 lifted Mudder Build Project (Mud Mutt)

View previous topic View next topic Go down
AuthorMessage
gearheadmike
Skilled
Skilled
avatar

Age : 27
Join date : 2011-11-18
Posts : 392
Forum Rep : 0
Location : west chazy ny

PostSubject: lifted Mudder Build Project (Mud Mutt)   Thu Dec 13, 2012 10:28 pm

Well im starting to build a lifted mudder tractor i started off with a toro 13/38 hydro tractor i got for $40 i stripped everything down to the frame as basicly thats all i wanted it for, im keeping the 13hp off it and prob going to use that for this build.The body is what i think is a 77 sears. It's going to be both belt and chain drive i got a 3spd&reverse gearbox its a foote just got that all apart/cleaned/regreased/back together. Im looking for a atv/3wheeler rear axle assy to use and im going to prob build my own front axle. Im going to run 22 in front tires and prob 25 in the rear or 25 front and 27 rear lol.

I still got tons todo small list off of the top of my head.
-Build body mounts for frnt/rear body
-Install /fit gearbox in
-Build motor mount/plate as current one is a offset one
-Build running boards for my feet
-Find/Mod in a rear axle
-Build the front and rear axle drop brackets
-Make custom front axle or use original?
-Seat
-Install engine
-Build custom exhaust
-pulley swap
-Build Bumpers
-Etc


As you can tell is basic start from scratch build lol Im going to try and get as many pics and videos as i can.



Toro 13hp/38in cut hydro drive getting ready for tare down

Stripping it down to bare bones lol

13 HP flathead quite engine im going to reuse in this tractor

Down to the frame just the rear peice and hydro trans left to remove

My 3spd gearbox im using its a Foote

Nast a$$ $hit lol deff getting refreshend

Had to clean and service the shift forks

Gearbox cleaned and ready for new grease

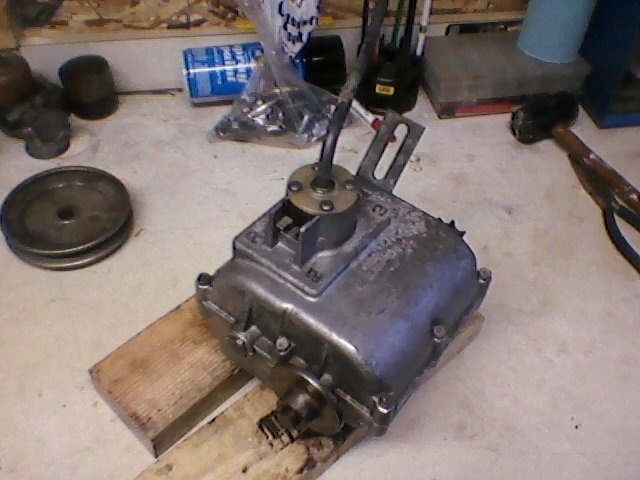

The gearbox all assembled and ready to go

The body just sitting on the frame

As you can see the rear body fits perfectly on the frame Very Happy




Last edited by gearheadmike on Fri Dec 21, 2012 5:36 pm; edited 1 time in total
Back to top Go down
truckin42
Expert
Expert
avatar

Age : 19
Join date : 2012-10-04
Posts : 1070
Forum Rep : 0

PostSubject: Re: lifted Mudder Build Project (Mud Mutt)   Thu Dec 13, 2012 11:22 pm

Hey cool project u got there,that gearbox looked pretty nastey inside.
Back to top Go down
W1ldyOvvnZ
Skilled
Skilled
avatar

Age : 21
Join date : 2011-12-06
Posts : 499
Forum Rep : 0
Location : Winchester, ON, Canada

PostSubject: Re: lifted Mudder Build Project (Mud Mutt)   Thu Dec 13, 2012 11:30 pm

nice project,seems like the Toros are being used more for mudders:P Fearless, me, then you.
Back to top Go down
http://www.stat10.tk/
gearheadmike
Skilled
Skilled
avatar

Age : 27
Join date : 2011-11-18
Posts : 392
Forum Rep : 0
Location : west chazy ny

PostSubject: Re: lifted Mudder Build Project (Mud Mutt)   Fri Dec 14, 2012 4:33 am

Thanks and yeah i know lol
Back to top Go down
muddstir
Apprentice
Apprentice
avatar

Join date : 2012-01-22
Posts : 161
Forum Rep : 0
Location : Transfer,PA

PostSubject: Re: lifted Mudder Build Project (Mud Mutt)   Fri Dec 14, 2012 10:38 am

Nice start you got there. Are you going to be lifting it up since its a mudder, if so how high?
Back to top Go down
gearheadmike
Skilled
Skilled
avatar

Age : 27
Join date : 2011-11-18
Posts : 392
Forum Rep : 0
Location : west chazy ny

PostSubject: Re: lifted Mudder Build Project (Mud Mutt)   Fri Dec 14, 2012 10:51 am

Yea im going to lift it i just dont know how high yet. I dont want it to high where its going to be top heavy but then i want it to be able to clear the tires and have that lifted stance lol
Back to top Go down
gearheadmike
Skilled
Skilled
avatar

Age : 27
Join date : 2011-11-18
Posts : 392
Forum Rep : 0
Location : west chazy ny

PostSubject: Re: lifted Mudder Build Project (Mud Mutt)   Sun Dec 16, 2012 7:14 pm

Small update decided im only using the sears hood/grill/rear fenders and dash the center body i far to rusty. Im going to be using a agway tunnel and foot boards.
I decided to go with a 10'' lift as i dont need nothing to huge lol. Im just currently trying to decide if i want the axle to pivot or leave it solid.?
The drop support is 1/4'' angle long with support bars that are going to run back to the frame. Im going to run 22'' tires on it all the way around.
The front axle was originally in front of the frame but i moved it back 4'' so its more under the front of the engine.

Checking to see where i want to weld it

1/4 should be plentty strong lol

testing where about the axle will sit if i got with a solid axle

These are the tires i will be using for now

As you can see with my axle moved back it looks normal as if i were to keep it forward of the frame
Back to top Go down
gearheadmike
Skilled
Skilled
avatar

Age : 27
Join date : 2011-11-18
Posts : 392
Forum Rep : 0
Location : west chazy ny

PostSubject: Re: lifted Mudder Build Project (Mud Mutt)   Mon Dec 17, 2012 6:02 pm

Worked on the tractor some today after deciding to go with a piviot front axle i redid the design i relized 1/4 is to mush of a pain to work with. So today i picked up some 2in angle 1/8 thick and figured out my front drop i still have to add my support bar that runs to the frame to the axle kinda like a sideways triangle lol
Im going to run a basic piviot point in center where i drilled the holes. Im going to use a grade 8 3/4 bolt and in the axle it how its going to have brass bushings so they can be replaced.
Im then going to get a set of shocks and mount one on each side. The lift is a 10'' lift to the top of the axle shoud be good enough.
Now i have to build a front axle im not sure if i should go with 2x2in box or 2x3in box? Any ideas the spindles are going to be stock new 3/4. As im going to use bearing hubs on them.

Had to cut angle iron to fit frame better

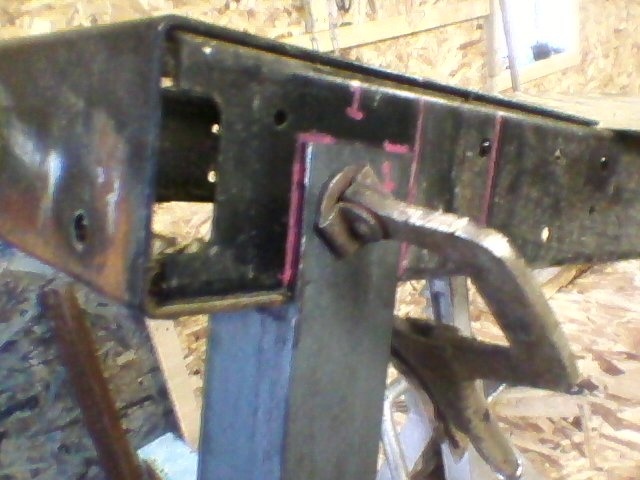

marking out where i need to weld it

tacked up into place

3/4 hole drilled

basic idea how its going to work with the right shocks ill still have some good travle
Back to top Go down
gearheadmike
Skilled
Skilled
avatar

Age : 27
Join date : 2011-11-18
Posts : 392
Forum Rep : 0
Location : west chazy ny

PostSubject: Re: lifted Mudder Build Project (Mud Mutt)   Tue Dec 25, 2012 7:44 pm

Update i gess lol i got to get some pics up here tomarrow , anyways i got the gear box mounted and placed where i want it,got the shifter on it cut and re welded. Aslo got the front grill support brackets welded on and just got the mounds made for the engine just have to drill some more holes and bolt engine down. Also got the body fitted on and clearing everything. Been a little low onf funds $$ lol so i have to wait on the front axle and rear axle. Thinking of going with the 1'' x 36'' solid axle then i can get good brake set up mounted and it will all be adjustable. Also got the clutch set up kinda planted in my head of how i want it. so thats next after engine being mounted.
Been tring to thing what a good pullet ratio would be as i got that 3spd gearbox and its both belt and chain drive.
Back to top Go down
gearheadmike
Skilled
Skilled
avatar

Age : 27
Join date : 2011-11-18
Posts : 392
Forum Rep : 0
Location : west chazy ny

PostSubject: Re: lifted Mudder Build Project (Mud Mutt)   Sat Dec 29, 2012 12:33 pm

Just some random pics and ideas of what i want t odo once i get the cash to pay for the new front and rear axle setup




Rear Axle Setup Idea I wanna do for this tractor


This is the front axle with the shocks basic idea how im going to do it


Front axle building it from scratch new steel/bushings/spindles/etc


About as direct as you can get lol off a old atv i junked

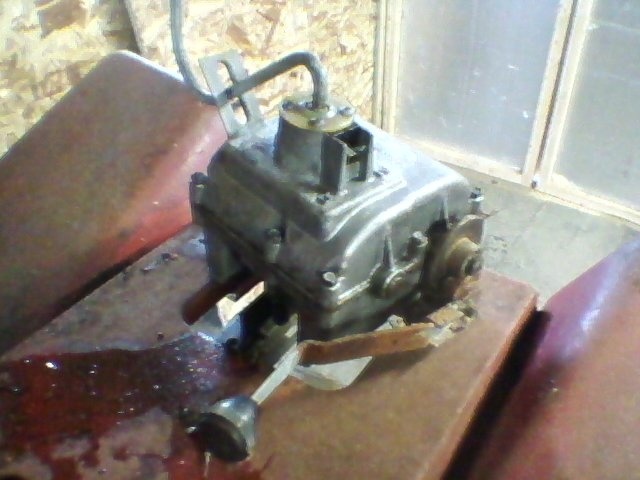

Random pic of the gearbox under the body


Pic showin where the shifter is going to be


Body sitting on the frame


Just random pic of one of the body mounts and front lift support


The agway body im using now insted of the sears


The mounts made up for the grill to attach to


Front drop of 10''


random pic of the gear box mounted and the frame work which is all removable


Once i get some money i can start on front axle and rear axle and the steering. Cause with out the front axle i cant mock up the steering with out the steering in place i cant mock up the clutch lol so im at the waiting point lol


Last edited by gearheadmike on Sat Dec 29, 2012 3:24 pm; edited 1 time in total
Back to top Go down
dked41
Apprentice
Apprentice
avatar

Age : 53
Join date : 2012-01-31
Posts : 141
Forum Rep : 0
Location : central Wisconsin

PostSubject: Re: lifted Mudder Build Project (Mud Mutt)   Sat Dec 29, 2012 1:23 pm

Very nice! I would suggest going 3/4 or 1 inch for the front spindles, 5/8 is pretty light duty. I have bent 3/4 inch spindles and wasn't really abusing it much.
Back to top Go down
gearheadmike
Skilled
Skilled
avatar

Age : 27
Join date : 2011-11-18
Posts : 392
Forum Rep : 0
Location : west chazy ny

PostSubject: Re: lifted Mudder Build Project (Mud Mutt)   Sat Dec 29, 2012 3:25 pm

Yeah haha i messed up im using a 5/8 grade 8 bolt and 3/4 spindles lol
Back to top Go down
dangeroustoys56
Grand Master
Grand Master
avatar

Age : 46
Join date : 2010-02-10
Posts : 1726
Forum Rep : 0
Location : Florida, USA

PostSubject: Re: lifted Mudder Build Project (Mud Mutt)   Sat Dec 29, 2012 4:25 pm

I used 3/4" bolts for a pair of custom spindles on my mod murray - i might scratch my setup and use hiem joints for ultimate adjustment with the steering setup - i used a MTD front axle as the base ( murray had too many bends in the stock front axle to work for lowering).

Im all set on my GT murray offroad - thing has 1" stock front spindles and 1" rear axles already.
Back to top Go down
gearheadmike
Skilled
Skilled
avatar

Age : 27
Join date : 2011-11-18
Posts : 392
Forum Rep : 0
Location : west chazy ny

PostSubject: Re: lifted Mudder Build Project (Mud Mutt)   Sat Dec 29, 2012 4:58 pm

Yea i was thinking heim joints but theres no point in having them as i dnt need ajustment on a mudder and yea the original front axle to the toro frame sucked full of factory holes and weak looking thats y im going with a solid wall 2x3 box for strength. And its getting a direct steer setup.
Back to top Go down
gearheadmike
Skilled
Skilled
avatar

Age : 27
Join date : 2011-11-18
Posts : 392
Forum Rep : 0
Location : west chazy ny

PostSubject: Re: lifted Mudder Build Project (Mud Mutt)   Sat Dec 29, 2012 6:17 pm

Quick Video of me blabering about it and that lol

http://youtu.be/bw_0JVYY3_0
Back to top Go down
dangeroustoys56
Grand Master
Grand Master
avatar

Age : 46
Join date : 2010-02-10
Posts : 1726
Forum Rep : 0
Location : Florida, USA

PostSubject: Re: lifted Mudder Build Project (Mud Mutt)   Sun Dec 30, 2012 1:30 pm

Id use the hiem joints to hold the spindle in - then the camber can be adjusted as needed ( how the wheels splay out top/bottom) for best traction.

Hiem joints on a moveable suspension are just for keeping the axle in place, but allow more flexing - no binding.
Back to top Go down
gearheadmike
Skilled
Skilled
avatar

Age : 27
Join date : 2011-11-18
Posts : 392
Forum Rep : 0
Location : west chazy ny

PostSubject: Re: lifted Mudder Build Project (Mud Mutt)   Tue Jan 01, 2013 7:04 pm

yea only thing is my spindles are going stright through the ends of the box steel unlike the racers run them on the outsides
Back to top Go down
gearheadmike
Skilled
Skilled
avatar

Age : 27
Join date : 2011-11-18
Posts : 392
Forum Rep : 0
Location : west chazy ny

PostSubject: Re: lifted Mudder Build Project (Mud Mutt)   Thu Jan 10, 2013 10:27 pm

Update on the Mud Mutt i got the front axle done with all holes drilled and bushings instlled and actually sitting on the ground with front tires on it lol, Got the steering all worked out. Its got a direct steering set up with an hight adjustment for the steering shaft. I welded up 2 spots i missed on the front frame and got the steering bearing supports welded in. Now im working on getting the clutch pedel setup along with a new duel clutch insted of the original single. Im still deciding if i want to heat and twist the arm from the spindles or if i want to cut them off and reweld them on an angle to allow more room for my tierod.
Well heres some pics of the steering and a video of the update.

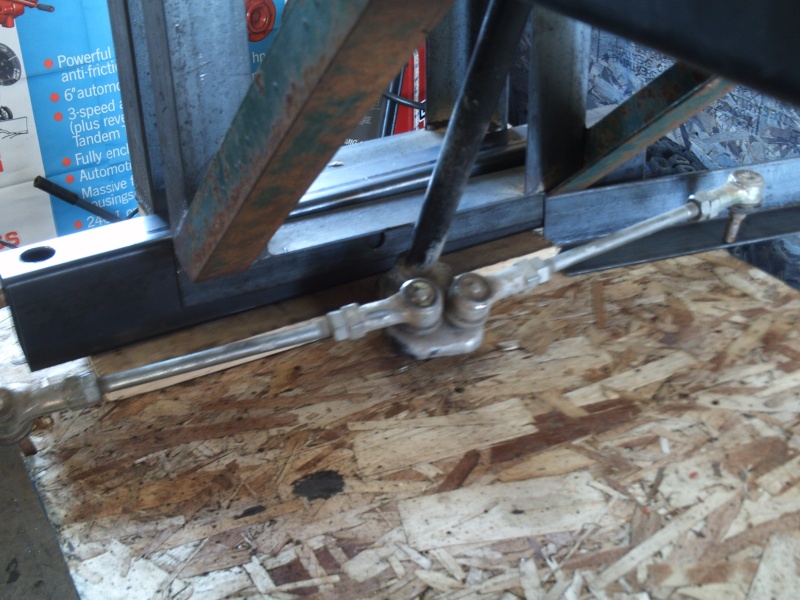

Steering setup from and old atv i cut up, i installed a bearing with supports at the bottom of this


Another bearing added on the underside of dash alot better then the stock plastic one


top view u can see the bracket for the handle bars from the atv


Handle bars i found in the junk yard im going to shorten them down some as there a little wide




Back to top Go down
gearheadmike
Skilled
Skilled
avatar

Age : 27
Join date : 2011-11-18
Posts : 392
Forum Rep : 0
Location : west chazy ny

PostSubject: Re: lifted Mudder Build Project (Mud Mutt)   Sat Mar 23, 2013 11:18 pm

HOLY $HIT time for a much needed update lol.

Well not a large amount done but enough lol

Got some important rear parts i needed axle/hubs/sprocket/brake/bearings/steel/etc

I got my 2x2- 1/8th in steel and fabed up my rear lift frame,got it all tacked into place to make sure everything is fitting right be4 putting down solid welds lol.

Got clutch set all up in in working order just need to find right tension spring and maybe some little tlc on it, had to fab a custom greasable holder for my clutch pedal got the front steering shaft setup with bearing just need to buy or make my new tie rods.
Got some springboxes made up just need to make 2 more for the top.
Just ordered a sprocket for the gearbox and just got some #40 chain at local tsc.

Anyways its coming together a little at a time lol heres some pics you can also follow me at my youtube channel http://www.youtube.com/user/s12gearhead?feature=mhee






























Back to top Go down
truckin42
Expert
Expert
avatar

Age : 19
Join date : 2012-10-04
Posts : 1070
Forum Rep : 0

PostSubject: Re: lifted Mudder Build Project (Mud Mutt)   Sun Mar 24, 2013 11:26 am

Looks good.
Its got a good bit of ground clearance so far.
Back to top Go down
k2500life
Expert
Expert
avatar

Age : 19
Join date : 2013-06-19
Posts : 1135
Forum Rep : 0
Location : Southern Florida

PostSubject: Re: lifted Mudder Build Project (Mud Mutt)   Fri Jul 26, 2013 11:27 pm

Nice I'm wanting to do this I found one of those gear boxes can't wait to see it work!
Back to top Go down
