Thunderdivine
Veteran Member

Veteran Member

1000+ Posts
1000+ Posts!

Join date : 2012-12-21
Posts : 2101

MTD off-road romper build. - Page 28 Empty
PostSubject: Re: MTD off-road romper build.   MTD off-road romper build. - Page 28 Icon_minitimeNovember 16th 2014, 5:10 pm

What welder did you use for that thick metal? Looks good. - and show us a plan of this secret suspension thingy, kinda looks like what i would build if i had the room for a mudder.
Back to top Go down
redlinemotorsportts
Moderator
redlinemotorsportts
Moderator

2500+ Posts
2500+ Posts!
2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 27
Join date : 2013-03-18
Points : 7245
Posts : 3131
Location : raleigh nc

MTD off-road romper build. - Page 28 Empty
PostSubject: Re: MTD off-road romper build.   MTD off-road romper build. - Page 28 Icon_minitimeNovember 16th 2014, 10:49 pm

Thunderdivine wrote:
What welder did you use for that thick metal? Looks good. - and show us a plan of this secret suspension thingy, kinda looks like what i would build if i had the room for a mudder.

My Hobart handler 140 set up for MIG. It welds like absolute butter, 1/4" melts right in.
Back to top Go down
Thunderdivine
Veteran Member
Thunderdivine
Veteran Member

1000+ Posts
1000+ Posts!

Join date : 2012-12-21
Points : 6305
Posts : 2101
Location : Norway, Europe

MTD off-road romper build. - Page 28 Empty
PostSubject: Re: MTD off-road romper build.   MTD off-road romper build. - Page 28 Icon_minitimeNovember 17th 2014, 10:45 am

redlinemotorsportts wrote:
Thunderdivine wrote:
What welder did you use for that thick metal? Looks good. - and show us a plan of this secret suspension thingy, kinda looks like what i would build if i had the room for a mudder.

My Hobart handler 140 set up for MIG. It welds like absolute butter,  1/4" melts right in.

Then it's a good mowchine. None of my cheap ones could penetrate the 1/4" or thicker steel.
Back to top Go down
redlinemotorsportts
Moderator
redlinemotorsportts
Moderator

2500+ Posts
2500+ Posts!
2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 27
Join date : 2013-03-18
Points : 7245
Posts : 3131
Location : raleigh nc

MTD off-road romper build. - Page 28 Empty
PostSubject: Re: MTD off-road romper build.   MTD off-road romper build. - Page 28 Icon_minitimeNovember 17th 2014, 11:09 am

Thunderdivine wrote:
redlinemotorsportts wrote:
Thunderdivine wrote:
What welder did you use for that thick metal? Looks good. - and show us a plan of this secret suspension thingy, kinda looks like what i would build if i had the room for a mudder.

My Hobart handler 140 set up for MIG. It welds like absolute butter,  1/4" melts right in.

Then it's a good mowchine. None of my cheap ones could penetrate the 1/4" or thicker steel.
Yea people say the harbor freight 90 amps can weld 1/4, and I had a 90 amp, not Hf, but still didn't penetrate for crap. I literally broke the leaf spring mounts that were 1/4" welded onto the frame off with a big cresant wrench in the tear down video.
Back to top Go down
Thunderdivine
Veteran Member
Thunderdivine
Veteran Member

1000+ Posts
1000+ Posts!

Join date : 2012-12-21
Points : 6305
Posts : 2101
Location : Norway, Europe

MTD off-road romper build. - Page 28 Empty
PostSubject: Re: MTD off-road romper build.   MTD off-road romper build. - Page 28 Icon_minitimeNovember 17th 2014, 11:14 am

redlinemotorsportts wrote:
Thunderdivine wrote:
redlinemotorsportts wrote:
Thunderdivine wrote:
What welder did you use for that thick metal? Looks good. - and show us a plan of this secret suspension thingy, kinda looks like what i would build if i had the room for a mudder.

My Hobart handler 140 set up for MIG. It welds like absolute butter,  1/4" melts right in.

Then it's a good mowchine. None of my cheap ones could penetrate the 1/4" or thicker steel.
Yea people say the harbor freight 90 amps can weld 1/4, and I had a 90 amp, not Hf, but still didn't penetrate for crap. I literally broke the leaf spring mounts that were 1/4" welded onto the frame off with a big cresant wrench in the tear down video.

Did you chamfer the edges before you lay the beads down? And maybe a pre-heat will help the harbour freight people.
Back to top Go down
redlinemotorsportts
Moderator
redlinemotorsportts
Moderator

2500+ Posts
2500+ Posts!
2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 27
Join date : 2013-03-18
Points : 7245
Posts : 3131
Location : raleigh nc

MTD off-road romper build. - Page 28 Empty
PostSubject: Re: MTD off-road romper build.   MTD off-road romper build. - Page 28 Icon_minitimeNovember 17th 2014, 9:55 pm

Thunderdivine wrote:
redlinemotorsportts wrote:
Thunderdivine wrote:
redlinemotorsportts wrote:
Thunderdivine wrote:
What welder did you use for that thick metal? Looks good. - and show us a plan of this secret suspension thingy, kinda looks like what i would build if i had the room for a mudder.

My Hobart handler 140 set up for MIG. It welds like absolute butter,  1/4" melts right in.

Then it's a good mowchine. None of my cheap ones could penetrate the 1/4" or thicker steel.
Yea people say the harbor freight 90 amps can weld 1/4, and I had a 90 amp, not Hf, but still didn't penetrate for crap. I literally broke the leaf spring mounts that were 1/4" welded onto the frame off with a big cresant wrench in the tear down video.

Did you chamfer the edges before you lay the beads down? And maybe a pre-heat will help the harbour freight people.
Yea, on the 1/4" stuff grinding the endge down helps a good amount.

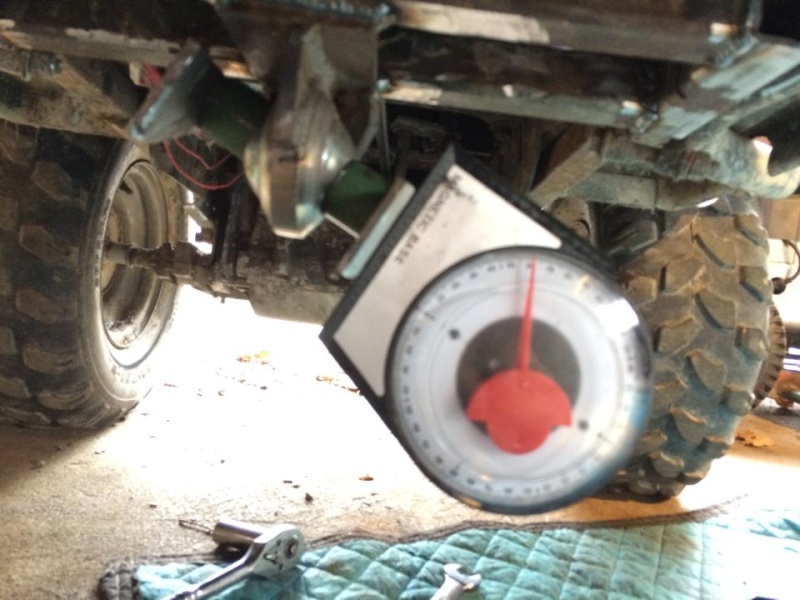

Lots of stuff from this weekend and yesterday. Make the link mount to the uniball, 1/4" tabs and angle iron, spacers to decrease walking. Roughly 30 degrees of pivot.
MTD off-road romper build. - Page 28 10815611
MTD off-road romper build. - Page 28 10816010
MTD off-road romper build. - Page 28 10805210

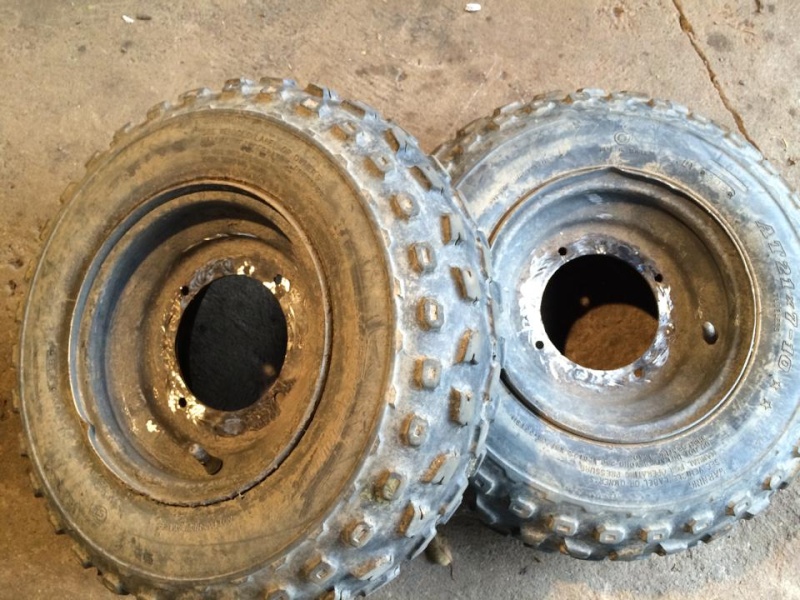

In the meantime, i took the rear tires off, cut and grinded the old hubs out. Gurk, what a fiasco. Cut the sides off the new axle rims and welded the center disk on. 4x4" hubs.
MTD off-road romper build. - Page 28 10751510
MTD off-road romper build. - Page 28 14199910
MTD off-road romper build. - Page 28 10581410
MTD off-road romper build. - Page 28 10818510

With the tires now on, I centered the axle, determined ride height and cut out some links. Put 5 degrees of caster on the front axle, i hear it helps out with turning with a posi rear end.
MTD off-road romper build. - Page 28 10807011
MTD off-road romper build. - Page 28 10808311

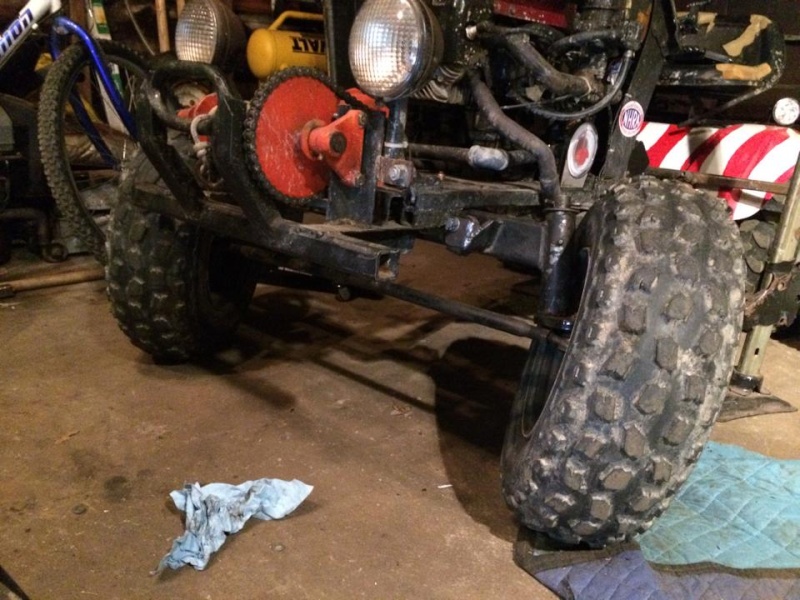

Beef trac-bar.
MTD off-road romper build. - Page 28 10807910

Taking advantage of that old hydro steering ram mount.
MTD off-road romper build. - Page 28 10805311

And frame mount.
MTD off-road romper build. - Page 28 10806810
MTD off-road romper build. - Page 28 10818710

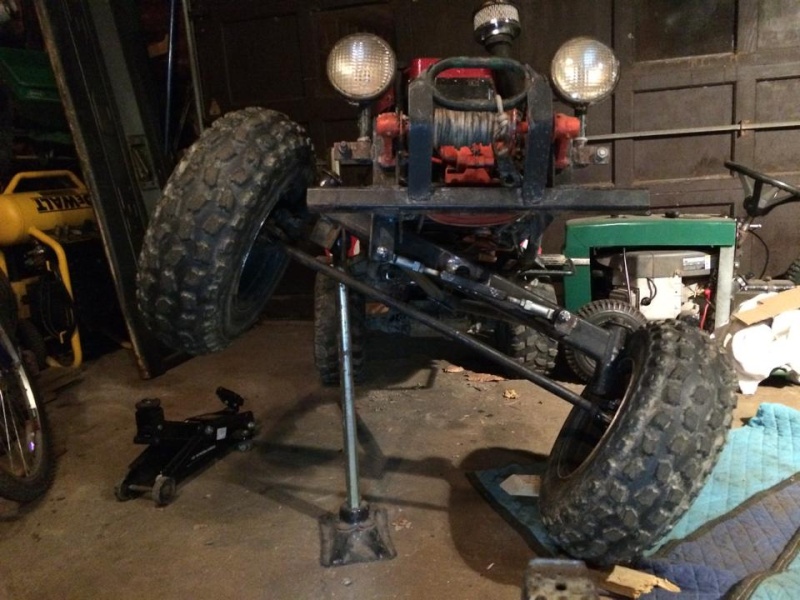

Now what people have waited for. About 17" of max flex on each side. Obviously not going to have that much, but is cool to look at. Razz Might have to move the trac-bar mount for a little more clearance for when i move the tie rod up.
MTD off-road romper build. - Page 28 10807110
MTD off-road romper build. - Page 28 10799310
MTD off-road romper build. - Page 28 10805010
MTD off-road romper build. - Page 28 10799610

Also did a second tube support for more......support. notching tube with a grinder really doesnt work to well, but eh, i got within 1/8" gap. Good enough.
MTD off-road romper build. - Page 28 10805111


All of this looks about 100x easier then it actually was lol. this is about 2 1/2 days of working.
Back to top Go down
Carshowkid
Member
Carshowkid
Member


Age : 24
Join date : 2014-07-22
Points : 3933
Posts : 347
Location : Downers Grove Illinois

MTD off-road romper build. - Page 28 Empty
PostSubject: Re: MTD off-road romper build.   MTD off-road romper build. - Page 28 Icon_minitimeNovember 17th 2014, 11:00 pm

HOLY FLEX!!!
Back to top Go down
redlinemotorsportts
Moderator
redlinemotorsportts
Moderator

2500+ Posts
2500+ Posts!
2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 27
Join date : 2013-03-18
Points : 7245
Posts : 3131
Location : raleigh nc

MTD off-road romper build. - Page 28 Empty
PostSubject: Re: MTD off-road romper build.   MTD off-road romper build. - Page 28 Icon_minitimeNovember 18th 2014, 11:13 am

Carshowkid wrote:
HOLY FLEX!!!
Thanks, some limit straps are in order or else the coils will fall out.
Back to top Go down
Carshowkid
Member
Carshowkid
Member


Age : 24
Join date : 2014-07-22
Points : 3933
Posts : 347
Location : Downers Grove Illinois

MTD off-road romper build. - Page 28 Empty
PostSubject: Re: MTD off-road romper build.   MTD off-road romper build. - Page 28 Icon_minitimeNovember 18th 2014, 12:42 pm

redlinemotorsportts wrote:
Carshowkid wrote:
HOLY FLEX!!!
Thanks, some limit straps are in order or else the coils will fall out.
yeah limit straps are first thing on the list
Back to top Go down
