PostSubject: Re: MTD off-road romper build.   MTD off-road romper build. - Page 38 Icon_minitimeWed Jul 13, 2016 11:40 pm

Thanks all, and they are fitting in the pockets i made for em in the bumper.
Back to top Go down
redlinemotorsportts
Moderator
Moderator
redlinemotorsportts

Age : 22
Join date : 2013-03-18
Posts : 3126
Forum Rep : 3
Location : raleigh nc

MTD off-road romper build. - Page 38 Empty
PostSubject: Re: MTD off-road romper build.   MTD off-road romper build. - Page 38 Icon_minitimeWed Jul 27, 2016 12:39 am

Moving onto steering, dropped the front axle and took the auger box out. like i thought one gear was chipped on both the ring and pinion gear.

MTD off-road romper build. - Page 38 13833410
MTD off-road romper build. - Page 38 13664410MTD off-road romper build. - Page 38 13871910

So i went shopping (salvge yard) for a new snow blower pinion gear. I blow a airens snow blower all apart and the gears are also stripped in that case and got me thinking, well i guess these arnt as strong gear boxes as i would think. I set it aside and went to brouse for some new steel u joints to replace my aluminum steering u joints. Two 280z datsuns with no engines sitting next to each other, i took the steel steering u joints off of them, and the non p/s car i looked at the steering rack and reailised its the perfect candidate to modify for my use.  The steering pinion imput shaft is almost 90deg to the housing tube, tube is steel, and no power steering guts so i took it to shorten. I got it home and blew it all apart (pretty easy actually) and began cutting it up and shortening it 10". Started with shortening the long shaft with the chop saw and welding it back together.
MTD off-road romper build. - Page 38 13872510
MTD off-road romper build. - Page 38 13875010
MTD off-road romper build. - Page 38 13867010

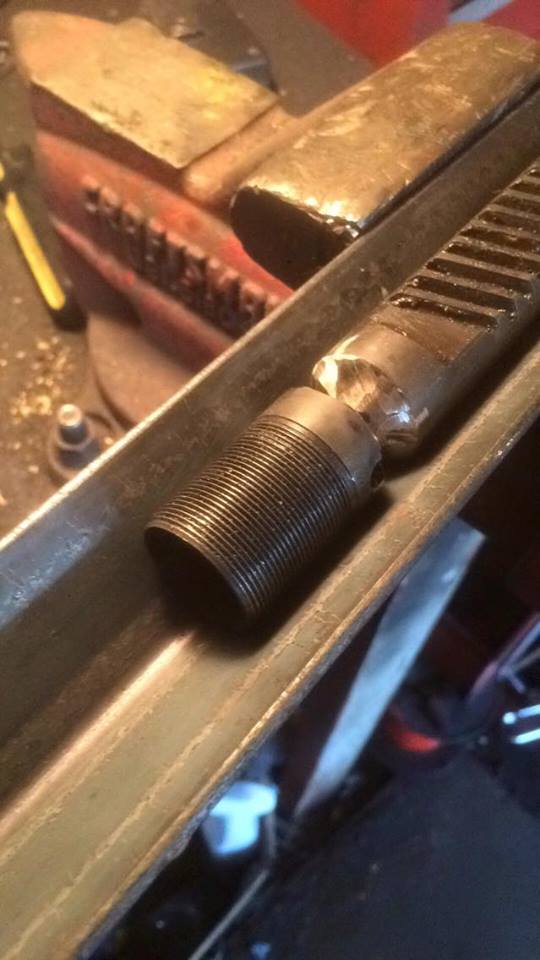

Chop the tube and re weld back together with the long shaft in to keep it straight, and your done! did a small bit of filing at the end of the tube to make the shaft slip effortlessly.
MTD off-road romper build. - Page 38 13871710

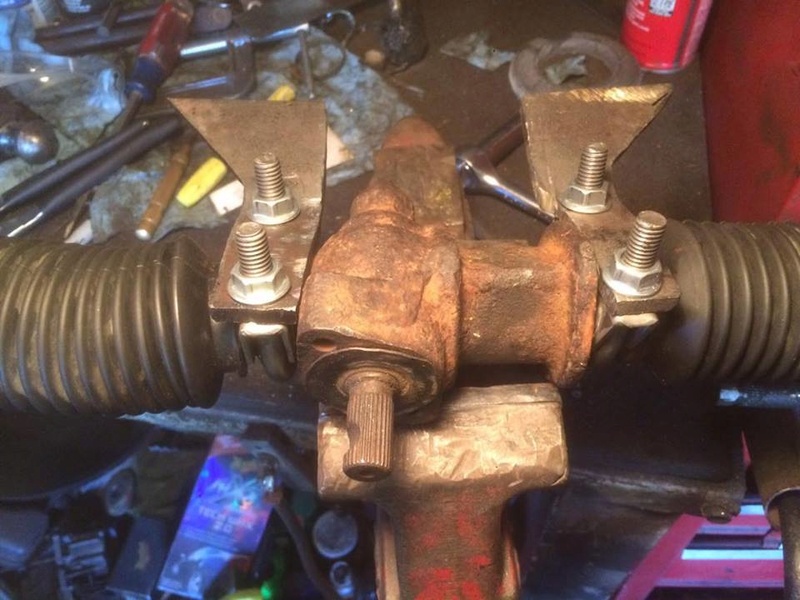

Torched up some 1/4" plate and bent it for mounts. Went and got some 1 1/2" exhaust clamps to hold it all together. there will be some more gussets from that 1/4" plate to the axle beam to make sure its rock solid.
MTD off-road romper build. - Page 38 13672410
MTD off-road romper build. - Page 38 13872310

chopped the front of the skid plate up a little and took the thin sheet metal skid off, mounted this up. Looks right at home. I actually gain ground clearance with the setup, so im going to modify the skid plate frame a little to get another inch or so of clearance.
MTD off-road romper build. - Page 38 13833010


Reason im replacing the u joint (other than the rack swap) is the aluminum u joint must of not really pinched onto the steering shaft or loosened up, causing it to just waller out the bore and wreak the splines, it was about to fall off it was so loose, made steering kinda sloppy. So in the other 280z car i pulled the power steering rack pinon, or splined shaft out, because my old 36 spline steering shaft end had to be ground like a "V" for the old aluminum steering u joints. The new splined shaft was welded in place of the old splines, and has a nice tight fit with the new u joints, shouldnt have that issue now.
MTD off-road romper build. - Page 38 13650510

New splines vs the old "V" grinded steering splines.
MTD off-road romper build. - Page 38 13672610
MTD off-road romper build. - Page 38 13874610

New splines cut off and welded to the new steering shaft, now to make the new u joints to work with the slip steering column and finish a tie rod up.

_______________________________________________
Check out my builds!: MTD "Rock Bouncing" Mower -------- 60's Springfeild V-twin Mini Speed Tractor : SOLD!
MTD off-road romper build. - Page 38 Screen17
ATLTF.com Facebook admin - Forum Mod
whos mans is this
Back to top Go down
mr.modified
Seasoned Veteran
Seasoned Veteran
mr.modified

Age : 29
Join date : 2013-11-02
Posts : 2279
Forum Rep : 56
Location : New Jersey USA

MTD off-road romper build. - Page 38 Empty
PostSubject: Re: MTD off-road romper build.   MTD off-road romper build. - Page 38 Icon_minitimeWed Jul 27, 2016 11:05 pm

Looks pretty good. I don't think you'll have any more broken teeth now. Have to see if the ratio is much different now. Maybe it'll be a little quicker steering than with the worm gear.

_______________________________________________
MTD off-road romper build. - Page 38 1023291?$gif$***Simplicity Racing Team*** #64 MTD off-road romper build. - Page 38 1023291?$gif$
Simplicity Adventure Edition #64
Diesel Submarine Project
Baja Sears Suburban
Modified Briggs Model 5s
ATLTF.COM Race Truck
Back to top Go down
redlinemotorsportts
Moderator
Moderator
redlinemotorsportts

Age : 22
Join date : 2013-03-18
Posts : 3126
Forum Rep : 3
Location : raleigh nc

MTD off-road romper build. - Page 38 Empty
PostSubject: Re: MTD off-road romper build.   MTD off-road romper build. - Page 38 Icon_minitimeThu Jul 28, 2016 1:13 am

@mr.modified wrote:
Looks pretty good. I don't think you'll have any more broken teeth now. Have to see if the ratio is much different now. Maybe it'll be a little quicker steering than with the worm gear.

Finished tie rod tonight, its 2 1/4 lock to lock. forgot what the old setup was, i think 3 turns lock to lock. Doesnt seem like its really all to different to me, maybe i gotta drive it.

And yea hopefully i dont have to do this again. Famous last words....

_______________________________________________
Check out my builds!: MTD "Rock Bouncing" Mower -------- 60's Springfeild V-twin Mini Speed Tractor : SOLD!
MTD off-road romper build. - Page 38 Screen17
ATLTF.com Facebook admin - Forum Mod
whos mans is this
Back to top Go down
Creepycrawler
Skilled
Skilled
Creepycrawler

Age : 32
Join date : 2013-07-02
Posts : 472
Forum Rep : 23
Location : Logan Ohio

MTD off-road romper build. - Page 38 Empty
PostSubject: Re: MTD off-road romper build.   MTD off-road romper build. - Page 38 Icon_minitimeFri Jul 29, 2016 8:59 am

this is great Tech Redline, nice work!
Back to top Go down
CraftsmanQuad19
Grand Master
Grand Master
CraftsmanQuad19

Age : 19
Join date : 2016-04-12
Posts : 1984
Forum Rep : 92
Location : Indiana

MTD off-road romper build. - Page 38 Empty
PostSubject: Re: MTD off-road romper build.   MTD off-road romper build. - Page 38 Icon_minitimeFri Jul 29, 2016 10:21 am

New setup looks tough. Nice work

But won't you get more feedback through the wheel with a rack and pinion than you did with the worm gear?
Back to top Go down
redlinemotorsportts
Moderator
Moderator
redlinemotorsportts

Age : 22
Join date : 2013-03-18
Posts : 3126
Forum Rep : 3
Location : raleigh nc

MTD off-road romper build. - Page 38 Empty
PostSubject: Re: MTD off-road romper build.   MTD off-road romper build. - Page 38 Icon_minitimeSat Jul 30, 2016 1:38 pm

Thanks CC!

@CraftsmanQuad19 wrote:
New setup looks tough. Nice work

But won't you get more feedback through the wheel with a rack and pinion than you did with the worm gear?

Probably, I'll have to see. I wouldn't think its more than I could handle though, besides its better than broken steering.

_______________________________________________
Check out my builds!: MTD "Rock Bouncing" Mower -------- 60's Springfeild V-twin Mini Speed Tractor : SOLD!
MTD off-road romper build. - Page 38 Screen17
ATLTF.com Facebook admin - Forum Mod
whos mans is this
Back to top Go down
CraftsmanQuad19
Grand Master
Grand Master
CraftsmanQuad19

Age : 19
Join date : 2016-04-12
Posts : 1984
Forum Rep : 92
Location : Indiana

MTD off-road romper build. - Page 38 Empty
PostSubject: Re: MTD off-road romper build.   MTD off-road romper build. - Page 38 Icon_minitimeSat Jul 30, 2016 1:46 pm

@redlinemotorsportts wrote:
besides its better than broken steering.

This is true.
Back to top Go down
redlinemotorsportts
Moderator
Moderator
redlinemotorsportts

Age : 22
Join date : 2013-03-18
Posts : 3126
Forum Rep : 3
Location : raleigh nc

MTD off-road romper build. - Page 38 Empty
PostSubject: Re: MTD off-road romper build.   MTD off-road romper build. - Page 38 Icon_minitimeSun Jul 31, 2016 6:35 pm

Finished tie rod and mounts.

MTD off-road romper build. - Page 38 13867110
MTD off-road romper build. - Page 38 13883910

Modded the old skid plate supports, moved them around a little and bent up a new skid plate.
MTD off-road romper build. - Page 38 13900910
MTD off-road romper build. - Page 38 13866910

All painted up and re assembled.
MTD off-road romper build. - Page 38 13872511
MTD off-road romper build. - Page 38 13874710

Made light tabs.
MTD off-road romper build. - Page 38 13884510

Painted the front half of the frame, grill/shock hoops, fairlead, installed lights.
MTD off-road romper build. - Page 38 13872512
MTD off-road romper build. - Page 38 13884410
MTD off-road romper build. - Page 38 13898510
MTD off-road romper build. - Page 38 13866611

_______________________________________________
Check out my builds!: MTD "Rock Bouncing" Mower -------- 60's Springfeild V-twin Mini Speed Tractor : SOLD!
MTD off-road romper build. - Page 38 Screen17
ATLTF.com Facebook admin - Forum Mod
whos mans is this
Back to top Go down
Carshowkid
Skilled
Skilled
Carshowkid

Age : 20
Join date : 2014-07-22
Posts : 347
Forum Rep : 0
Location : Downers Grove Illinois

MTD off-road romper build. - Page 38 Empty
PostSubject: Re: MTD off-road romper build.   MTD off-road romper build. - Page 38 Icon_minitimeSun Jul 31, 2016 6:56 pm

What type of coil overs are those and where did you get them?
Back to top Go down
redlinemotorsportts
Moderator
Moderator
redlinemotorsportts

Age : 22
Join date : 2013-03-18
Posts : 3126
Forum Rep : 3
Location : raleigh nc

MTD off-road romper build. - Page 38 Empty
PostSubject: Re: MTD off-road romper build.   MTD off-road romper build. - Page 38 Icon_minitimeSun Jul 31, 2016 7:31 pm

@Carshowkid wrote:
What type of coil overs are those and where did you get them?

http://www2.cip1.com/ProductDetails.asp?ProductCode=ACC-C10-4077

_______________________________________________
Check out my builds!: MTD "Rock Bouncing" Mower -------- 60's Springfeild V-twin Mini Speed Tractor : SOLD!
MTD off-road romper build. - Page 38 Screen17
ATLTF.com Facebook admin - Forum Mod
whos mans is this
Back to top Go down
rarbaugh07
Apprentice
Apprentice
rarbaugh07

Age : 30
Join date : 2014-01-22
Posts : 117
Forum Rep : 2
Location : Logan, iowa

MTD off-road romper build. - Page 38 Empty
PostSubject: Re: MTD off-road romper build.   MTD off-road romper build. - Page 38 Icon_minitimeWed Aug 10, 2016 11:19 pm

Looks killer. Tim Cameron would drive it. Get brakes figured out?
Back to top Go down
Carshowkid
Skilled
Skilled
Carshowkid

Age : 20
Join date : 2014-07-22
Posts : 347
Forum Rep : 0
Location : Downers Grove Illinois

MTD off-road romper build. - Page 38 Empty
PostSubject: Re: MTD off-road romper build.   MTD off-road romper build. - Page 38 Icon_minitimeWed Aug 10, 2016 11:29 pm

What's your pulley swap? One to one?
Back to top Go down
redlinemotorsportts
Moderator
Moderator
redlinemotorsportts

Age : 22
Join date : 2013-03-18
Posts : 3126
Forum Rep : 3
Location : raleigh nc

MTD off-road romper build. - Page 38 Empty
PostSubject: Re: MTD off-road romper build.   MTD off-road romper build. - Page 38 Icon_minitimeSat Aug 13, 2016 1:15 am

@Carshowkid wrote:
What's your pulley swap? One to one?

its 4" to 4"

@rarbaugh07 wrote:
Looks killer. Tim Cameron would drive it. Get brakes figured out?

Haha, dude builds buggy in 3 weeks flat and now building another one in his spare time just to beat the hell out of it.

Yep, went riding with doug this past weekend and bought his old RV1 drum brake setup off of him.
MTD off-road romper build. - Page 38 Img_0110

Getting up to speed, Tractor was lookin good, but could be better. one of the front rims had a huge paint chip out of it. so i didnt prep it for sh*t. wire wheeled all 4 wheels down and used duplicolor wax remover, and man that stuff is awesome. pick up so much dirt i cant see. Painted them all black,, who woulds thunk. Bought a new camera too. Canon T5 eos rebel. my first dslr. Def digging these crazy good pictures.
MTD off-road romper build. - Page 38 Img_0011
MTD off-road romper build. - Page 38 Img_0010
Added a hood rack too. Thx for the idea mr.mod
MTD off-road romper build. - Page 38 Img_0012
Went to buddys house for a romp. some good pics. Got video of it too.
MTD off-road romper build. - Page 38 Img_0015
MTD off-road romper build. - Page 38 Img_0013

Figured out in the grass i can spin a half donut before it tries to catch and flip. Here i am pushing my luck in the dirt haha. No flippage but had to throw a kickstand out
MTD off-road romper build. - Page 38 Img_0016
MTD off-road romper build. - Page 38 Img_0014

Some screenshots from the video
https://www.youtube.com/watch?v=0JFKOv3QssY
MTD off-road romper build. - Page 38 Snapsh10
MTD off-road romper build. - Page 38 Snapsh11

Now.... Onto the odd part of all of this. Romp went great. Nothing broke. Ran great. Love the new steering. Loaded it up and headed home. Welp deer ran out behind a treeline, hardly saw it doing 60mph with trailer in tow. Hit me in the C pillar of my jeep as it was jumping and while in mid air the body grazed the tractor. Could say i got lucky, didnt hit it in the front. 90% sure i woulda totaled it if i did. Put a hand size dent in the side of the pillar, and pushed my hood in, broke the steering column at the weld, and smashed the dash up when it hit the steering wheel on the tractor.
MTD off-road romper build. - Page 38 13900711
MTD off-road romper build. - Page 38 13936610
MTD off-road romper build. - Page 38 13900710

I already pushed the hood out some, welded the column back together and fit it all back together. Tied the gas tank back up. still have a crack in the dash but i might just zip tie it, lol getting lazy here. Going to hook up dougs old brake system soon and then it should be about done.

_______________________________________________
Check out my builds!: MTD "Rock Bouncing" Mower -------- 60's Springfeild V-twin Mini Speed Tractor : SOLD!
MTD off-road romper build. - Page 38 Screen17
ATLTF.com Facebook admin - Forum Mod
whos mans is this
Back to top Go down
Doug
Administrator
Administrator
Doug

Age : 24
Join date : 2012-12-24
Posts : 2883
Forum Rep : 47
Location : Lebanon County, PA

MTD off-road romper build. - Page 38 Empty
PostSubject: Re: MTD off-road romper build.   MTD off-road romper build. - Page 38 Icon_minitimeSun Aug 14, 2016 9:19 pm

Needs new dash.

Now that I think about it, I might have one from when i had my pan frame MTD.

_______________________________________________
Head Forum Administrator ** Chat Moderator ** Facebook Page Admin
ATLTF Facebook Page ** Chatbox ** How To Upload Pictures

_X_ FORUM ANNOUNCEMENTS _X_


Have a question? Ask me! Type in "@Doug" in your post!

Your ATLTF Staff:
Administrators: @Doug, @MightyRaze, @"Doc Sprocket", @Stretch44875
Moderators: @TheRainbowBoxer, @AllisKidD21




Back to top Go down
mr.modified
Seasoned Veteran
Seasoned Veteran
mr.modified

Age : 29
Join date : 2013-11-02
Posts : 2279
Forum Rep : 56
Location : New Jersey USA

MTD off-road romper build. - Page 38 Empty
PostSubject: Re: MTD off-road romper build.   MTD off-road romper build. - Page 38 Icon_minitimeWed Aug 17, 2016 8:47 pm

Machine looking pretty high tech these days. Is your dash plastic?

_______________________________________________
MTD off-road romper build. - Page 38 1023291?$gif$***Simplicity Racing Team*** #64 MTD off-road romper build. - Page 38 1023291?$gif$
Simplicity Adventure Edition #64
Diesel Submarine Project
Baja Sears Suburban
Modified Briggs Model 5s
ATLTF.COM Race Truck
Back to top Go down
MatthewD
Grand Master
Grand Master
MatthewD

Age : 17
Join date : 2014-11-16
Posts : 1992
Forum Rep : 40
Location : Northern Ireland

MTD off-road romper build. - Page 38 Empty
PostSubject: Re: MTD off-road romper build.   MTD off-road romper build. - Page 38 Icon_minitimeThu Aug 18, 2016 10:47 am

Broken plastic dash - Some duct tape and wood screws lol Very Happy Very Happy
Back to top Go down
Axelsol89
Forum Newbie
Forum Newbie


Join date : 2017-08-20
Posts : 8
Forum Rep : 0

MTD off-road romper build. - Page 38 Empty
PostSubject: Re: MTD off-road romper build.   MTD off-road romper build. - Page 38 Icon_minitimeSun Oct 15, 2017 4:18 am

Hey redlinemotorsports been trying to message you but keeps freezing when I try I've got some questions about the spings your using I'm currently building a mini rockcrawler 190×70cm will be running 700mm wide solid front & rear diffs with 4 link suspension setup geared at 3.89 through a company in China with 23/7-10 ATV tyres I'll be running a big bored performance 125cc semi auto 3+R ATV motor with an atv reverse drive shaft to a Suzuki sierra/samurai transfer case geared high range 1.4 low range 2.5 roughly to run both diffs custom chassis/rollcage motor in front was gonna mount the fuel tank in the back and have a small fuel pump for pressure as far as front shocks I want alot of flex and was wondering how your springs are holding up? how much more flex could you get out of them? What setting do u have yours on? i was gonna run 400mm adjustable atv front shocks up my hole build will weigh as much as a 150cc buggy so any advice would be awesome thank you
Back to top Go down
Sponsored content




MTD off-road romper build. - Page 38 Empty
PostSubject: Re: MTD off-road romper build.   MTD off-road romper build. - Page 38 Icon_minitime

Back to top Go down

MTD off-road romper build.
Back to top
Page 38 of 38Go to page : Previous  1 ... 20 ... 36, 37, 38
 Similar topics
-
» Craftsman Off Road/ High Speed Tractor Build
» Pinkie's off road build
» Craftsman Off road
» Wetherby Road Morgue
» Lawn Flite Trail/mudder build

Permissions in this forum:You cannot reply to topics in this forum
All-Terrain Lawn Tractor Forum :: Tractor Project Builds :: Off Road & Rally Tractors-
Jump to:
