redlinemotorsportts
Moderator
Moderator


Join date : 2013-03-18
Posts : 3126

70's Wheel horse C-120 mud crawler trail rider - Page 4 Empty
PostSubject: Re: 70's Wheel horse C-120 mud crawler trail rider   70's Wheel horse C-120 mud crawler trail rider - Page 4 Icon_minitimeWed Aug 19, 2015 8:41 pm

offroadohio wrote:
[IMG]http://images.tapatalk-cdn.com/15/08/19/703e594880480d2831921157f8c688bc.jpg[/IMG

Little tractor showage

Chop the [/IMG off the URL that got tagged on there to get the link to work cyclops

http://images.tapatalk-cdn.com/15/08/19/703e594880480d2831921157f8c688bc.jpg
Back to top Go down
donaldcon
Skilled
Skilled
donaldcon

Age : 33
Join date : 2015-04-28
Posts : 359
Forum Rep : 1
Location : Lancaster OH

70's Wheel horse C-120 mud crawler trail rider - Page 4 Empty
PostSubject: Re: 70's Wheel horse C-120 mud crawler trail rider   70's Wheel horse C-120 mud crawler trail rider - Page 4 Icon_minitimeThu Aug 20, 2015 2:22 pm

Posting from phone. I over looked it.
Back to top Go down
Creepycrawler
Skilled
Skilled
Creepycrawler

Age : 32
Join date : 2013-07-02
Posts : 470
Forum Rep : 22
Location : Logan Ohio

70's Wheel horse C-120 mud crawler trail rider - Page 4 Empty
PostSubject: Re: 70's Wheel horse C-120 mud crawler trail rider   70's Wheel horse C-120 mud crawler trail rider - Page 4 Icon_minitimeThu Dec 10, 2015 9:56 pm

Been riding again and found some breakage, made a video of the repairs

https://youtu.be/_tO7IsiJ7pw
Back to top Go down
mr.modified
Seasoned Veteran
Seasoned Veteran
mr.modified

Age : 29
Join date : 2013-11-02
Posts : 2249
Forum Rep : 55
Location : New Jersey USA

70's Wheel horse C-120 mud crawler trail rider - Page 4 Empty
PostSubject: Re: 70's Wheel horse C-120 mud crawler trail rider   70's Wheel horse C-120 mud crawler trail rider - Page 4 Icon_minitimeSat Dec 12, 2015 10:34 am

What's the engine on that thing rated for?

_______________________________________________
70's Wheel horse C-120 mud crawler trail rider - Page 4 1023291?$gif$***Simplicity Racing Team*** #64 70's Wheel horse C-120 mud crawler trail rider - Page 4 1023291?$gif$
Simplicity Adventure Edition #64
Diesel Submarine Project
Baja Sears Suburban
Modified Briggs Model 5s
ATLTF.COM Race Truck
Back to top Go down
Creepycrawler
Skilled
Skilled
Creepycrawler

Age : 32
Join date : 2013-07-02
Posts : 470
Forum Rep : 22
Location : Logan Ohio

70's Wheel horse C-120 mud crawler trail rider - Page 4 Empty
PostSubject: Re: 70's Wheel horse C-120 mud crawler trail rider   70's Wheel horse C-120 mud crawler trail rider - Page 4 Icon_minitimeFri Dec 25, 2015 5:24 pm

13 hp
Back to top Go down
Creepycrawler
Skilled
Skilled
Creepycrawler

Age : 32
Join date : 2013-07-02
Posts : 470
Forum Rep : 22
Location : Logan Ohio

70's Wheel horse C-120 mud crawler trail rider - Page 4 Empty
PostSubject: Re: 70's Wheel horse C-120 mud crawler trail rider   70's Wheel horse C-120 mud crawler trail rider - Page 4 Icon_minitimeWed Jan 27, 2016 7:18 pm

Ive been working on finishing up the wheel horses belt cover, Im tired of getting sprayed with water every time I go deep. Only grabbed a couple pics but Ill get some more, also shooting video for a update on my channel. I added the horizontal piece of flat strap to help the water spray. also since the flat strap added a good bit of weight to the guard I added two more mounting points, one on the dash and one on the motor its self. stiffened the whole thing up immensely.

70's Wheel horse C-120 mud crawler trail rider - Page 4 3B9202FA-E356-4B45-A6C5-99881C8CC671_zpshtvpa3pg

70's Wheel horse C-120 mud crawler trail rider - Page 4 3C88B8C9-F7D4-4D2A-8425-790A59D0F548_zpsrvo2ihmf
Back to top Go down
tscustoms
Apprentice
Apprentice
tscustoms

Age : 18
Join date : 2015-02-25
Posts : 54
Forum Rep : 0

70's Wheel horse C-120 mud crawler trail rider - Page 4 Empty
PostSubject: Nice    70's Wheel horse C-120 mud crawler trail rider - Page 4 Icon_minitimeWed Jan 27, 2016 7:55 pm

Nice job I am going to do something like this to so I don't get covered with water and mud
Back to top Go down
mr.modified
Seasoned Veteran
Seasoned Veteran
mr.modified

Age : 29
Join date : 2013-11-02
Posts : 2249
Forum Rep : 55
Location : New Jersey USA

70's Wheel horse C-120 mud crawler trail rider - Page 4 Empty
PostSubject: Re: 70's Wheel horse C-120 mud crawler trail rider   70's Wheel horse C-120 mud crawler trail rider - Page 4 Icon_minitimeWed Jan 27, 2016 9:07 pm

I've heard rumors that you'll be out at haspin. Is this thing going out there? Belt picks up some water on the baja sears, but it only throws it out towards the front. Doesn't bother me too bad, but people trying to hook up tow cables complain about it...

_______________________________________________
70's Wheel horse C-120 mud crawler trail rider - Page 4 1023291?$gif$***Simplicity Racing Team*** #64 70's Wheel horse C-120 mud crawler trail rider - Page 4 1023291?$gif$
Simplicity Adventure Edition #64
Diesel Submarine Project
Baja Sears Suburban
Modified Briggs Model 5s
ATLTF.COM Race Truck
Back to top Go down
Creepycrawler
Skilled
Skilled
Creepycrawler

Age : 32
Join date : 2013-07-02
Posts : 470
Forum Rep : 22
Location : Logan Ohio

70's Wheel horse C-120 mud crawler trail rider - Page 4 Empty
PostSubject: Re: 70's Wheel horse C-120 mud crawler trail rider   70's Wheel horse C-120 mud crawler trail rider - Page 4 Icon_minitimeWed Jan 27, 2016 9:48 pm

I am planning on going to Haspin, bounce how ever its bad timing, my Wedding Anniversary is the same weekend. I still have to convince the Wife that its a good idea that Im going on a 3 day mower ride instead of spending the weekend with her.....Embarassed but shes cool and I think I can convince her to do Anniversary stuff early. You bringing the Baja ?
Back to top Go down
donaldcon
Skilled
Skilled
donaldcon

Age : 33
Join date : 2015-04-28
Posts : 359
Forum Rep : 1
Location : Lancaster OH

70's Wheel horse C-120 mud crawler trail rider - Page 4 Empty
PostSubject: Re: 70's Wheel horse C-120 mud crawler trail rider   70's Wheel horse C-120 mud crawler trail rider - Page 4 Icon_minitimeThu Jan 28, 2016 11:01 am

Don't worry tom if he doesn't my sears will be there to pull you around.

As long as she doesn't find the anf you'll be ok
Back to top Go down
redlinemotorsportts
Moderator
Moderator
redlinemotorsportts

Age : 22
Join date : 2013-03-18
Posts : 3126
Forum Rep : 3
Location : raleigh nc

70's Wheel horse C-120 mud crawler trail rider - Page 4 Empty
PostSubject: Re: 70's Wheel horse C-120 mud crawler trail rider   70's Wheel horse C-120 mud crawler trail rider - Page 4 Icon_minitimeSun Jan 31, 2016 10:27 pm

Any more of your group going to haspin other than you and ohioOR? How many days?

And are your brakes connected to the petal? How do you like it if so.

_______________________________________________
Check out my builds!: MTD "Rock Bouncing" Mower -------- 60's Springfeild V-twin Mini Speed Tractor : SOLD!
70's Wheel horse C-120 mud crawler trail rider - Page 4 Screen17
ATLTF.com Facebook admin - Forum Mod
whos mans is this
Back to top Go down
Creepycrawler
Skilled
Skilled
Creepycrawler

Age : 32
Join date : 2013-07-02
Posts : 470
Forum Rep : 22
Location : Logan Ohio

70's Wheel horse C-120 mud crawler trail rider - Page 4 Empty
PostSubject: Re: 70's Wheel horse C-120 mud crawler trail rider   70's Wheel horse C-120 mud crawler trail rider - Page 4 Icon_minitimeSun Jan 31, 2016 11:46 pm

Redline, Im guessing just Me and Oro are gonna make it, might get my cousin jared and his "Statesman" but I really doubt it. I have the factory separate clutch and brake. Clutch on the left, Brake on the right, and I love it.
Back to top Go down
donaldcon
Skilled
Skilled
donaldcon

Age : 33
Join date : 2015-04-28
Posts : 359
Forum Rep : 1
Location : Lancaster OH

70's Wheel horse C-120 mud crawler trail rider - Page 4 Empty
PostSubject: Re: 70's Wheel horse C-120 mud crawler trail rider   70's Wheel horse C-120 mud crawler trail rider - Page 4 Icon_minitimeMon Feb 01, 2016 7:48 am

I may have my 11 year old with me on her craftsman ii if it's done and surviving
Back to top Go down
Creepycrawler
Skilled
Skilled
Creepycrawler

Age : 32
Join date : 2013-07-02
Posts : 470
Forum Rep : 22
Location : Logan Ohio

70's Wheel horse C-120 mud crawler trail rider - Page 4 Empty
PostSubject: Re: 70's Wheel horse C-120 mud crawler trail rider   70's Wheel horse C-120 mud crawler trail rider - Page 4 Icon_minitimeThu Dec 13, 2018 1:15 pm

So the ol horse has served me very well, but the last handful of rides she has been letting me down, mainly belt issues. I recently changed from a 6 to a 7 when I swapped the motor to a 18 hp Duromax. So I decided to pull it apart and make some long needed upgrades. First up is a overall pic of the belt system, you can see I moved my adjustable idler over a bit to work better with the new motor and pulley size. just fyi the new motor sits about 2 inchs farther forward than the old one, slightly longer bolt pattern than the honda and honda clone I ran before. You can also see the new adjustable belt brake.
70's Wheel horse C-120 mud crawler trail rider - Page 4 0d40e810

Close up of the adjustable belt brake, my problem with the factory one is 2 fold, Ive worn it out twice and rebuilt it with welds, and more importantly its not really in the right spot with how the belt runs with my current setup, basically I needed to run a size smaller belt, but if I did I couldnt push the clutch down enough to disengage before it hit the belt brake. the only way to get it to work was to run a size up belt, but then I really didnt have much tension on the belt because the clutch was already all the way out. Kinda hard to explain with words but if anyone really cares I can explain it in a video. This stop is made out of 1/4 inch angle iron so I shouldn't have to replace it anytime soon and I  can adjust it as the belt wears in.

70's Wheel horse C-120 mud crawler trail rider - Page 4 6feff110

Here we have a good pic of my extended belt guard, on my wheel horse where I have the very wide 13.5 rear tires, when I go riding at atv parks where there is mud that sticks to the side of my tire, the old open belt guard would scrap the mud off my tire and up into my belt system, forcing me to stop and pull the cover off mid ride and clean the mud out of the belt system. which was very annoying to say the least.

70's Wheel horse C-120 mud crawler trail rider - Page 4 B9d7f810

here you can see the extension I welded onto the factory belt cover, I messed up my template and cut it to small, and this was the day before the ride so I just scabbed some scrap steel in the missing part, Ill remake it before I put it back on.

70's Wheel horse C-120 mud crawler trail rider - Page 4 87da4810


Ive also been working slowly on a heavy duty foot throttle, I tried out foot throttle on our last ride, I just scabbed a bike brake on it to see if I liked it, and I did, I just hated the bike lever its self, so I decided to build one to my standards. Ill try to get some pics of it in the next week or so
Back to top Go down
Crazy_Carl
Seasoned Veteran
Seasoned Veteran
Crazy_Carl

Age : 30
Join date : 2017-10-30
Posts : 2257
Forum Rep : 136
Location : Rochester, New York

70's Wheel horse C-120 mud crawler trail rider - Page 4 Empty
PostSubject: Re: 70's Wheel horse C-120 mud crawler trail rider   70's Wheel horse C-120 mud crawler trail rider - Page 4 Icon_minitimeTue Dec 18, 2018 11:23 am

That adjustable belt brake and idler are great ideas.  Someday I might implement that on Ol' Red.

I saw in one of your videos that your gear oil was getting very milky after your rides.  Here's a link to the rubber shift boot you're missing to keep water out toro part number 3577 seal

Secondly if you're not on wheelhorseforum.com already you need to be.  It is the best resource for wheel horse manuals, parts cross referencing and advice.  Here's a link to a guy's topic where he put together pdfs with all the seal part numbers that wheel horse used in their various transmissions Wheel Horse Trans Seals
Back to top Go down
Creepycrawler
Skilled
Skilled
Creepycrawler

Age : 32
Join date : 2013-07-02
Posts : 470
Forum Rep : 22
Location : Logan Ohio

70's Wheel horse C-120 mud crawler trail rider - Page 4 Empty
PostSubject: Re: 70's Wheel horse C-120 mud crawler trail rider   70's Wheel horse C-120 mud crawler trail rider - Page 4 Icon_minitimeWed Dec 19, 2018 9:59 am

70's Wheel horse C-120 mud crawler trail rider - Page 4 Cb989810

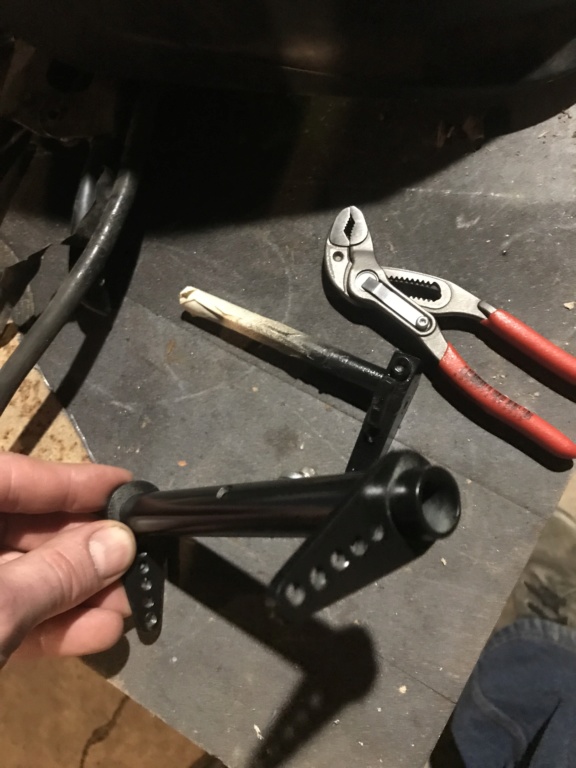

Working on the new foot throttle, needed a linkage arm so I been working on this, first hole came out to big, even though I used a 3/8 drill bit for 3/8 rod. so I went a letter size  U and it came out perfect, mild press fit on a 3/8 rod after I sanded the rod with sandpaper a bit.

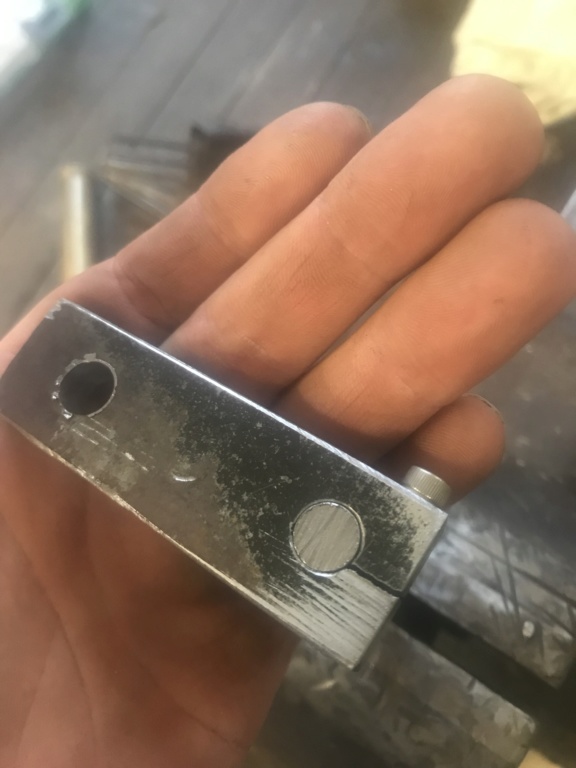

70's Wheel horse C-120 mud crawler trail rider - Page 4 3816ba10

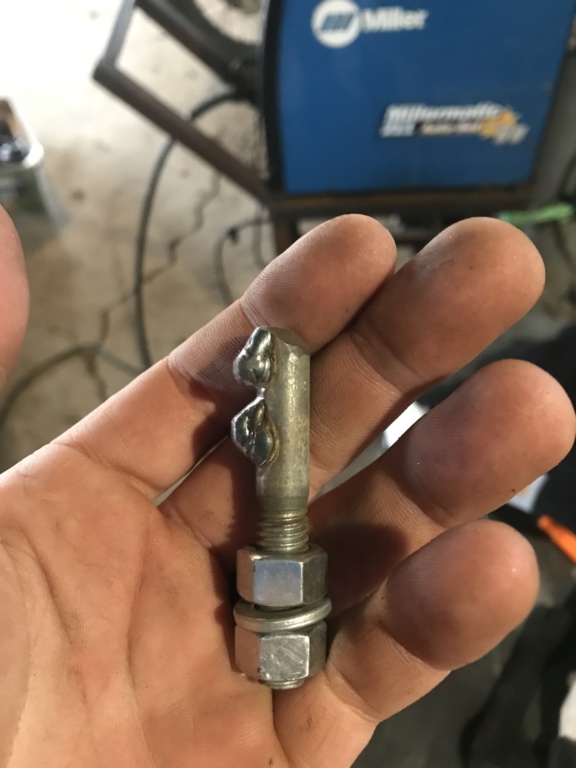

Much better fit, I drill and tapped a #12 allen bolt perpendicular to let it pinch the shaft for extra tightness, but even when I tightened it down, the shaft still slipped on the linkage if I twisted hard. So I though and though on how to secure it to the shaft in a positive fashion. the standard approach would be a regular square keyway. but even though I have a mill for the keyway on the shaft, I dont have a broach to make the keyway in the Arm. I actually even price a couple broach kits, but they seemed really pricey. so I found this, a round keyway, though its agreed upon that its not as strong as a square key, its perfect for the low amount of force that it needs to hold in this situation. I went ahead and used a roll pin to help keep tension on both parts.

70's Wheel horse C-120 mud crawler trail rider - Page 4 01394710

So step 1 of about 50 on making ultra heavy duty gas pedal is complete bounce
Carl, Thanks for finding that part number for me, the problem with that boot is its really just a dust cover, not a postive seal. if you look at the bottom of the seal youll see its round and is actually a fair amount bigger than the square boss that the shifter comes out of that its suppose to seal. I actually bought one of these many years ago and took it back once I saw that it doesnt actually seal. what I did to seal up mine was to pack the shifter hole and ball full of grease, and pack grease around the base of the shaft, then I very very carefully put a ton of silicone on top of the grease, kida like a cast in place shifter boot. its not perfect but it seems to be doing ok, I made a vid of it when I made it, but it got lost when my computer crashed Sad I may join the wheel horse site if I get some extra time, but Ill be honest I barely have time to update my stuff on here.
