 How to install a PTO rear drive on your tractor

View previous topic View next topic Go down
Go to page : 1, 2  Next
AuthorMessage
FOSWMT
Apprentice
Apprentice
avatar

Join date : 2013-07-28
Posts : 163
Forum Rep : 0

PostSubject: How to install a PTO rear drive on your tractor   Sat Oct 19, 2013 9:23 am

I do not i think have a PTO drive on my Gazelle W11 tractor and am wondering what all the party look like I have found a diagram but wonder if this is how it is done on my machine it did come with an odd tube with horns on it ?



Last edited by FOSWMT on Tue Oct 29, 2013 2:25 pm; edited 1 time in total
Back to top Go down
http://www.friendsofspeckledwood.org.uk
FOSWMT
Apprentice
Apprentice
avatar

Join date : 2013-07-28
Posts : 163
Forum Rep : 0

PostSubject: Re: How to install a PTO rear drive on your tractor   Sat Oct 19, 2013 9:27 am

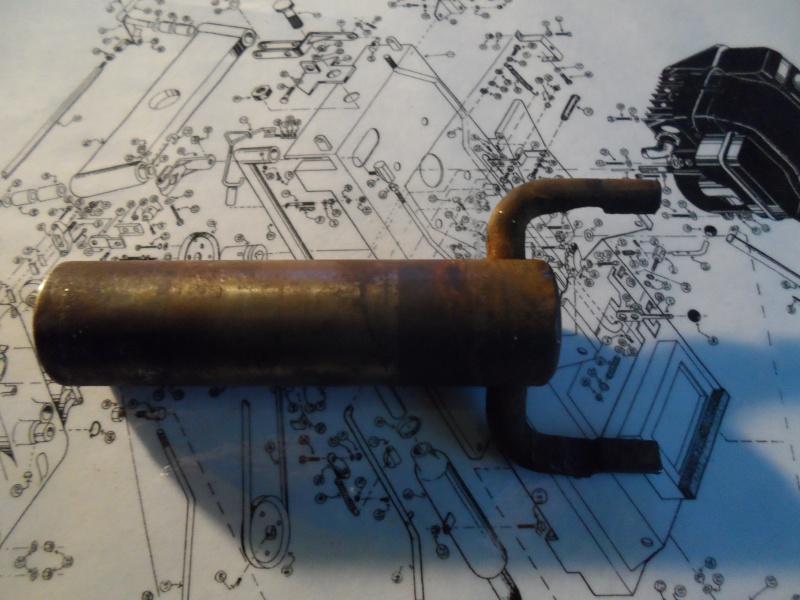

The Tractor came with one of these and a wallet of eye pins but have no idea what they are for
Back to top Go down
http://www.friendsofspeckledwood.org.uk
FOSWMT
Apprentice
Apprentice
avatar

Join date : 2013-07-28
Posts : 163
Forum Rep : 0

PostSubject: Re: How to install a PTO rear drive on your tractor   Sat Oct 19, 2013 12:31 pm

I am presuming this is what i need?




And this bottom bit presses into holes on pulley?
Back to top Go down
http://www.friendsofspeckledwood.org.uk
FOSWMT
Apprentice
Apprentice
avatar

Join date : 2013-07-28
Posts : 163
Forum Rep : 0

PostSubject: Re: How to install a PTO rear drive on your tractor   Sat Oct 19, 2013 2:23 pm



Cut a hole and it although its not need at present can se i need three prong holes anyone have any ideas please
Back to top Go down
http://www.friendsofspeckledwood.org.uk
FOSWMT
Apprentice
Apprentice
avatar

Join date : 2013-07-28
Posts : 163
Forum Rep : 0

PostSubject: Re: How to install a PTO rear drive on your tractor   Sun Oct 20, 2013 9:21 am

Have re-cut PTO access to its neater . Am now wondering how far to cut the back up to allow access for the belt . I presume it will have to be at least 2" from the sides to allow for the bolt holes but I dont know how far up it should be.

The new cut hole from the underside


My rear panel currently looks like this :


It fits snuggly down to the chassis. I intend to cut this 2" from either side and up far enough to fit a flap . I really could do with some measurements for this?

Also does anyone know anything about pully's types please . It looks like I will have to drop transaxle to remove and fit a different pully . Any Idea whats available and what will work with PTO
Back to top Go down
http://www.friendsofspeckledwood.org.uk
FOSWMT
Apprentice
Apprentice
avatar

Join date : 2013-07-28
Posts : 163
Forum Rep : 0

PostSubject: Re: How to install a PTO rear drive on your tractor   Sun Oct 20, 2013 11:08 am

Have re measured and I have about 3" from each side before i get into the bottom bolt holes . I have 6 inches vertically to make a hole . I have seen this but it doesnt give you much idea of dimensions.

Back to top Go down
http://www.friendsofspeckledwood.org.uk
FOSWMT
Apprentice
Apprentice
avatar

Join date : 2013-07-28
Posts : 163
Forum Rep : 0

PostSubject: Re: How to install a PTO rear drive on your tractor   Sun Oct 20, 2013 11:19 am

I have just learned that there isnt different pullets but a PTO ring which bolts to the pully yet another part to order
Back to top Go down
http://www.friendsofspeckledwood.org.uk
FOSWMT
Apprentice
Apprentice
avatar

Join date : 2013-07-28
Posts : 163
Forum Rep : 0

PostSubject: Re: How to install a PTO rear drive on your tractor   Sun Oct 20, 2013 11:34 am

This would be what it looked like 3" in leaving the bolt on the back in place The height of this panel is 6" . I am wondering if i can adapt a flap from a lawn mower to cover this pannel

I am thinking this is not as wide as the one I have a photo off Someone must have this on their tractor I could really do with some measurements please?

Back to top Go down
http://www.friendsofspeckledwood.org.uk
FOSWMT
Apprentice
Apprentice
avatar

Join date : 2013-07-28
Posts : 163
Forum Rep : 0

PostSubject: Re: How to install a PTO rear drive on your tractor   Sun Oct 20, 2013 11:49 am

If I take it back to the seam this would loose the one rear bolt hole and would give around an 1" all the way round this looks more like the red tractor picture ? Can you let me know what you think please?

Back to top Go down
http://www.friendsofspeckledwood.org.uk
TheRainbowBoxer
Moderator
Moderator
avatar

Age : 42
Join date : 2012-04-23
Posts : 1007
Forum Rep : 0
Location : Galion, OH

PostSubject: Re: How to install a PTO rear drive on your tractor   Tue Oct 22, 2013 10:36 pm

Sorry you're not getting any replies on this FOS...
I've not seen anyone on here work with PTOs... hope you find the info you're looking for and post it up as the new authority on the subject.

_______________________________________________
Proud member of the Mower Cycle Gang... aka the "Mowrons!"

My build (Chaos is one of 3 built like this)
Chaos Build

The Mower Cycle Gang visited 1puglife in May 2014
Check out the pics and vids!

Haspin 2016 was a blast!  Check out pics and vids here
Haspin 2016 Media thread

Join us for the annual Mowron-fest at Haspin Acres!
Haspin Acres Rally 2017!

Check out my YouTube for more tractor action, my vlog, and my bus build!
TheRainbowBoxer on YouTube
Back to top Go down
FOSWMT
Apprentice
Apprentice
avatar

Join date : 2013-07-28
Posts : 163
Forum Rep : 0

PostSubject: Re: How to install a PTO rear drive on your tractor   Wed Oct 23, 2013 1:05 pm

Hi The Rainbow.

I have been working on this and have cut the rear out and intend on getting some 1/2 " angle iron to go around the outside to neaten hole and prevent snagging. The inner part will become the hinged section with a stay and lock to keep fingers out.



I received a Jocky wheel from a 91 Westwood which I think will all fit



With the aid of a diagram from the 91 machine I have identified the parts I require


I have received the PTO connector today
Back to top Go down
http://www.friendsofspeckledwood.org.uk
FOSWMT
Apprentice
Apprentice
avatar

Join date : 2013-07-28
Posts : 163
Forum Rep : 0

PostSubject: Re: How to install a PTO rear drive on your tractor   Sat Oct 26, 2013 11:43 am

Cleaned up blasted flywheel


Painted and fitted newly ordered PTO adapter . This still need bolting place. Was placed on transaxle to see how it looked
Back to top Go down
http://www.friendsofspeckledwood.org.uk
redlinemotorsportts
Moderator
Moderator
avatar

Age : 20
Join date : 2013-03-18
Posts : 3122
Forum Rep : 2
Location : fingerlakes, New York

PostSubject: Re: How to install a PTO rear drive on your tractor   Sat Oct 26, 2013 12:16 pm

Ummmm, you should change the name of this thread....
Back to top Go down
FOSWMT
Apprentice
Apprentice
avatar

Join date : 2013-07-28
Posts : 163
Forum Rep : 0

PostSubject: Re: How to install a PTO rear drive on your tractor   Tue Oct 29, 2013 10:45 am

Cant do that not an admin :-) Oh yes lol just did hope thats better


Last edited by FOSWMT on Tue Oct 29, 2013 2:26 pm; edited 1 time in total
Back to top Go down
http://www.friendsofspeckledwood.org.uk
FOSWMT
Apprentice
Apprentice
avatar

Join date : 2013-07-28
Posts : 163
Forum Rep : 0

PostSubject: Re: How to install a PTO rear drive on your tractor   Tue Oct 29, 2013 10:49 am

Flywheel bolted to PTO drive


Chassis turned upside down to have a look at rust
Back to top Go down
http://www.friendsofspeckledwood.org.uk
TheRainbowBoxer
Moderator
Moderator
avatar

Age : 42
Join date : 2012-04-23
Posts : 1007
Forum Rep : 0
Location : Galion, OH

PostSubject: Re: How to install a PTO rear drive on your tractor   Tue Oct 29, 2013 12:01 pm

You can edit your initial post, changing the title.

_______________________________________________
Proud member of the Mower Cycle Gang... aka the "Mowrons!"

My build (Chaos is one of 3 built like this)
Chaos Build

The Mower Cycle Gang visited 1puglife in May 2014
Check out the pics and vids!

Haspin 2016 was a blast!  Check out pics and vids here
Haspin 2016 Media thread

Join us for the annual Mowron-fest at Haspin Acres!
Haspin Acres Rally 2017!

Check out my YouTube for more tractor action, my vlog, and my bus build!
TheRainbowBoxer on YouTube
Back to top Go down
FOSWMT
Apprentice
Apprentice
avatar

Join date : 2013-07-28
Posts : 163
Forum Rep : 0

PostSubject: Re: How to install a PTO rear drive on your tractor   Tue Oct 29, 2013 3:19 pm

De rusted and red-oxided underneath was surprised what little rust there was. Next job is to find and buy other parts :


Back to top Go down
http://www.friendsofspeckledwood.org.uk
FOSWMT
Apprentice
Apprentice
avatar

Join date : 2013-07-28
Posts : 163
Forum Rep : 0

PostSubject: Re: How to install a PTO rear drive on your tractor   Sat Nov 09, 2013 4:54 am

Have been quiet as have been busy the underneath is now painted and rear tranxaxle and new belt fitted. Strangely I found out why the tractor was not changing gear smoothly someone in the past had put a belt on and revered the clutch pulleys so that they could not turn and graded on the clutch mechanism. Have sorted this.


Had a lucky find and have found a lot of the parts from a tractor that was to be broken:
a T1200 i think from 1988. These donor bits look very good:




It seems that the PTO gear box had been fitted incorrectly and that the pto shaft had been hitting the pulley and been driven from that. I removed the PTO shaft from the gearbox by first removing the top pulley. The pulley came of with my method i found on Youtube to use candle wax melted into it and drove it out easily . This enabled me to unbolt the PTO gearbox top. I used a puller to pull the top bearing off and drove the other out through the bottom. This has given me the shaft and I have ordered a new one.

You can see the damage this did to the shaft.



Back to top Go down
http://www.friendsofspeckledwood.org.uk
FOSWMT
Apprentice
Apprentice
avatar

Join date : 2013-07-28
Posts : 163
Forum Rep : 0

PostSubject: Re: How to install a PTO rear drive on your tractor   Sat Nov 16, 2013 11:42 am

Finally got hold of a PTO shaft a new one for £30.00 so put gearbox back together.


I used the PTO on the gearbox and a pencil to mark the perimeter of the bolt holes I took a bolt out to use a smaller hole and lost it in the garage . Will be off shopping on
Monday again at some point. I then used the gearbox to mark holes and checked they was parallel to the chassis with a square before centre punching and drilling out.

Back to top Go down
http://www.friendsofspeckledwood.org.uk
FOSWMT
Apprentice
Apprentice
avatar

Join date : 2013-07-28
Posts : 163
Forum Rep : 0

PostSubject: Re: How to install a PTO rear drive on your tractor   Sun Nov 17, 2013 4:31 am

Holes drilled and chassis painted again.  Spoke to my supply at westwood spares who say spacers are not on their catalog anymore as its to old . Spent yesterday going through all of their catalogs to see if i could find the two spacers they have on any of their catalogs the answer is no so have sent and email requesting sizes of the two that they have.

Have decided to make a working drawing of the pulleys to see what spacers i would require in case i have to make them.

Back to top Go down
http://www.friendsofspeckledwood.org.uk
FOSWMT
Apprentice
Apprentice
avatar

Join date : 2013-07-28
Posts : 163
Forum Rep : 0

PostSubject: Re: How to install a PTO rear drive on your tractor   Sun Nov 17, 2013 6:35 am

Holes cut 8mm . I think I need a 17mm bottom spacer and a 28mm jockey wheel spacer.

Back to top Go down
http://www.friendsofspeckledwood.org.uk
TroyBilt Pony
Veteran
Veteran
avatar

Join date : 2013-06-01
Posts : 578
Forum Rep : 0
Location : West Virginia

PostSubject: Re: How to install a PTO rear drive on your tractor   Sun Nov 17, 2013 1:27 pm

Definately a good looking project! looks neat!
Back to top Go down
FOSWMT
Apprentice
Apprentice
avatar

Join date : 2013-07-28
Posts : 163
Forum Rep : 0

PostSubject: Re: How to install a PTO rear drive on your tractor   Mon Nov 18, 2013 2:11 pm

Cleaned up the Jokey wheel

Back to top Go down
http://www.friendsofspeckledwood.org.uk
FOSWMT
Apprentice
Apprentice
avatar

Join date : 2013-07-28
Posts : 163
Forum Rep : 0

PostSubject: bolted in gearbox and made spacers   Wed Dec 18, 2013 1:17 pm

I re-assembled PTO Gear box with bolts and found some spacers on ebay which would raise the gearbox up 10mm This with a washer gave me the correct height. I bent an 8.8 HT bolt to make the belt guard. I made it longer and inserted it in back rather than front.



I bolted this down giving me the size of the spacers i Needed to find

Having been told that the Spacers for the pulley arm where obsolete. I decided I would have to make them I used the pulley inserts that are available cutting them down to fit.


I milled these on a small lathe but thus could be done by a drill and file.
Back to top Go down
http://www.friendsofspeckledwood.org.uk
FOSWMT
Apprentice
Apprentice
avatar

Join date : 2013-07-28
Posts : 163
Forum Rep : 0

PostSubject: Jockey whel mounted   Wed Dec 18, 2013 1:26 pm

I used the spacers i had created from the pulley spacers to make up the jokey wheel this mounted up fine I greased thoroughly. I had used 10mm bolts all around instead of the standard bolts I hoped this would make it stronger.



I received the accessory adapter back from the zinc platers it looks fabulous


I replaced the body work to check clearance and bolted it down.
Back to top Go down
http://www.friendsofspeckledwood.org.uk
Sponsored content




PostSubject: Re: How to install a PTO rear drive on your tractor

Back to top Go down

How to install a PTO rear drive on your tractor
View previous topic View next topic Back to top
Page 1 of 2Go to page : 1, 2  Next
 Similar topics
-
» How to install a PTO rear drive on your tractor
» I am looking to buy a rear drive unit
» WHINING REAR DRIVE
» does changing the rear drive change the odometer signal?
» Question about rear drive shafts.

Permissions in this forum:You cannot reply to topics in this forum
All-Terrain Lawn Tractor Forum :: General Tractor Talk + Pictures/ Videos :: General Tractor Talk-
Jump to:
