 Baja sears suburban

Go down
Go to page : 1, 2  Next
AuthorMessage
mr.modified
Seasoned Veteran
Seasoned Veteran
mr.modified

Age : 29
Join date : 2013-11-02
Posts : 2545
Forum Rep : 95
Location : New Jersey USA

Baja sears suburban Empty
PostSubject: Baja sears suburban   Baja sears suburban Icon_minitimeSat Nov 09, 2013 9:17 pm

Entered into 2014 Build-Off. View thread here: http://www.atltf.com/t3157-baja-sears-build

Starting a new project based on this sears suburban frame that I was going to make a circle tracker out of.
Baja sears suburban Img_2927

The circle track bumper is out, so I took care of that with the torch.
Baja sears suburban Img_2928

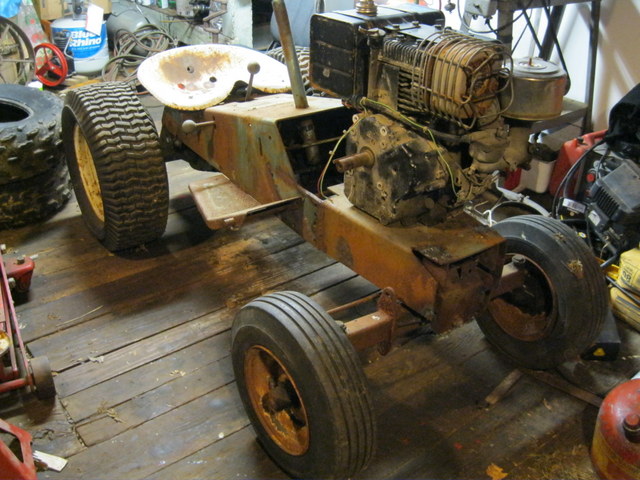

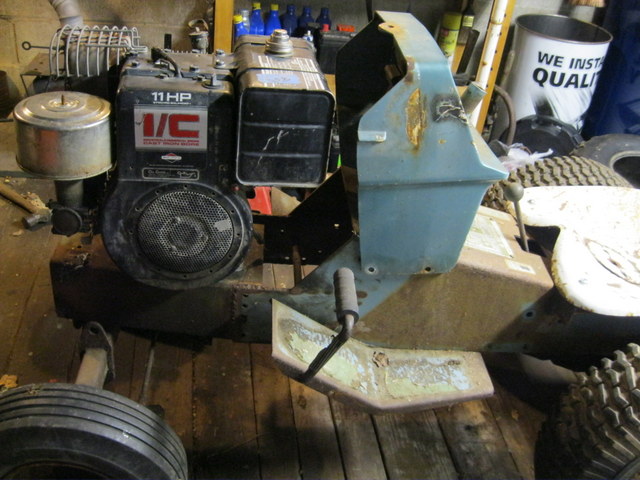

Planning on using an 11hp Briggs I/C
Baja sears suburban Img_2929


Baja sears suburban Img_2933

Some used atv tires will go on the rear rims
Baja sears suburban Img_2931

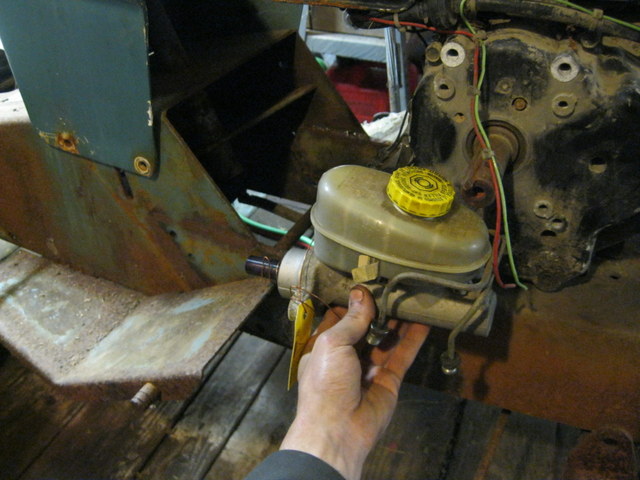

Planning on using hydraulic brakes. I have to look for a small rotor and caliper for the
rear axle, maybe off a small toyota something of that nature.
Baja sears suburban Img_2932

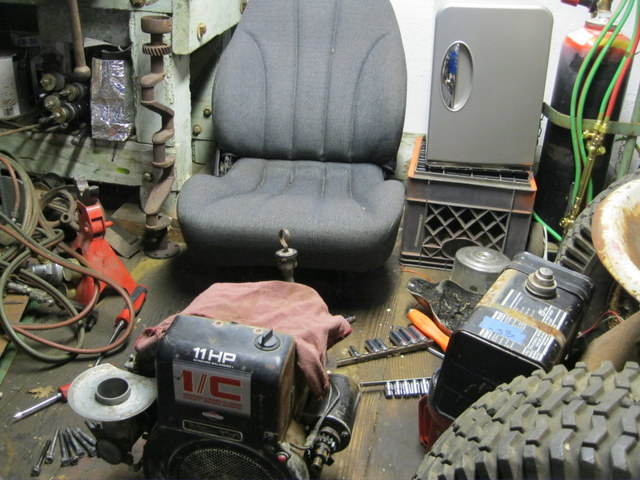

I'm also going to mount the seat on some springs again, but I'm going to leave it as low as possible. Locking the rear, already put a smaller pulley on the original transmission pulley hub when I was working on it before. I'll probably put some beefier tie rod ends on it. Front axle is either going to have some shocks attached to it, or I'm going to make an independent front suspension setup. Just welding on some shocks would be quick and easy and still look cool, but IFS might make banging over stuff a bit easier. Thinking of making a hood that's about a third lower than it would have been stock and having the engine stick through it. Not sure if i'll stick with the stock dash or make my own. Of course It'll have a cool front bumper and some kind of nifty exhaust... Open to suggestions on pretty much anything about the project.


Last edited by mr.modified on Wed Nov 13, 2013 8:41 pm; edited 1 time in total
Back to top Go down
k2500life
Expert
Expert
k2500life

Age : 22
Join date : 2013-06-19
Posts : 1135
Forum Rep : 2
Location : Southern Florida

Baja sears suburban Empty
PostSubject: Re: Baja sears suburban   Baja sears suburban Icon_minitimeSat Nov 09, 2013 9:37 pm

That's pretty cool
Back to top Go down
http://www.lastdropgarage.com
redlinemotorsportts
Moderator
Moderator
redlinemotorsportts

Age : 22
Join date : 2013-03-18
Posts : 3126
Forum Rep : 3
Location : raleigh nc

Baja sears suburban Empty
PostSubject: Re: Baja sears suburban   Baja sears suburban Icon_minitimeSun Nov 10, 2013 9:13 am

Sweet base to start with. I've made a custom mesh grille if that helps out. Ill suggest a front and rear bumper, lights, and maybe rear fenders.

_______________________________________________
Check out my builds!: MTD "Rock Bouncing" Mower -------- 60's Springfeild V-twin Mini Speed Tractor : SOLD!
Baja sears suburban Screen17
ATLTF.com Facebook admin - Forum Mod
whos mans is this
Back to top Go down
mr.modified
Seasoned Veteran
Seasoned Veteran
mr.modified

Age : 29
Join date : 2013-11-02
Posts : 2545
Forum Rep : 95
Location : New Jersey USA

Baja sears suburban Empty
PostSubject: Re: Baja sears suburban   Baja sears suburban Icon_minitimeSun Nov 10, 2013 9:52 am

I don't know yet if i'm going to put fenders on or just leave it open. I do have another complete tractor that I could use fenders grill and hood off of, But it might be nice to keep that one original and get it going again so you can see what this one started from. If I leave the fenders off, any water will be a real pain unless your crawling through it. I'm going to try to get the motor running today.
Back to top Go down
mr.modified
Seasoned Veteran
Seasoned Veteran
mr.modified

Age : 29
Join date : 2013-11-02
Posts : 2545
Forum Rep : 95
Location : New Jersey USA

Baja sears suburban Empty
PostSubject: Re: Baja sears suburban   Baja sears suburban Icon_minitimeMon Nov 11, 2013 8:55 pm

I've decided to leave the front axle in one piece and just add some shocks. I can always make it into an independent setup later if I need too without too much trouble. I'll weld some brackets on the axles to hold the bottom of the shocks, and make some kind of T bar type structure to hold the top.
Baja sears suburban Img_2935

I torched off the brackets that used to hold up your plow/mower deck because I didn't like the look of them and I was going to reuse them to hold the bottom of the shocks. Once I got them off I realized the holes were a bit too big and they were pretty heavy. I don't think it's worth bothering with them. I'll make my own out of something a little lighter.
Baja sears suburban Img_2936
Baja sears suburban Img_2937
I didn't want the axle to warp while cutting off the brackets, so I put it on a jack stand to take the weight off of it.
Baja sears suburban Img_2938
I also had the motor running a little over the weekend although the carb needs to be cleaned out. I might use a different one later anyway.
Back to top Go down
redlinemotorsportts
Moderator
Moderator
redlinemotorsportts

Age : 22
Join date : 2013-03-18
Posts : 3126
Forum Rep : 3
Location : raleigh nc

Baja sears suburban Empty
PostSubject: Re: Baja sears suburban   Baja sears suburban Icon_minitimeMon Nov 11, 2013 9:12 pm

Good progress. im putting car shocks on mine. im just going to get a bolt and weld it to the side of my axle and the same with a angle iron shock tower.

_______________________________________________
Check out my builds!: MTD "Rock Bouncing" Mower -------- 60's Springfeild V-twin Mini Speed Tractor : SOLD!
Baja sears suburban Screen17
ATLTF.com Facebook admin - Forum Mod
whos mans is this
Back to top Go down
willis923
Expert
Expert
willis923

Age : 23
Join date : 2013-04-10
Posts : 1408
Forum Rep : 0
Location : Galway NY

Baja sears suburban Empty
PostSubject: Re: Baja sears suburban   Baja sears suburban Icon_minitimeMon Nov 11, 2013 10:22 pm

lookin good. i like the strut ides

_______________________________________________
-1974 bolens 1055 (Rolling Thunder)
-1989 Craftsman GT6000 (Blockhead)
-2004 Ford F-250 super duty FX4
-1999 Ford F-350 Superduty 4x4 7.3 Powerstroke


Lt wrote:
Feel free to try... Dont let anything but fear and common sense stop you.


Baja sears suburban Pbucket

Chat moderator

1st Lieutenant, Volunteer Firefighter, EMT-B, Galway Vol Fire co. Galway NY
Back to top Go down
GenevaCustoms
Skilled
Skilled
GenevaCustoms

Age : 22
Join date : 2013-09-24
Posts : 315
Forum Rep : 0
Location : Florida

Baja sears suburban Empty
PostSubject: Re: Baja sears suburban   Baja sears suburban Icon_minitimeTue Nov 12, 2013 6:24 am

I'm planning on doin that kind of shocks on my hot rod. Everyone's been doin independent and it seems like a lot of work, Celt mine will just be little springs.... Cuz it's gonna be lowered and not have very much travel.. But I like this thing man lookin sweet!
Back to top Go down
mr.modified
Seasoned Veteran
Seasoned Veteran
mr.modified

Age : 29
Join date : 2013-11-02
Posts : 2545
Forum Rep : 95
Location : New Jersey USA

Baja sears suburban Empty
PostSubject: Re: Baja sears suburban   Baja sears suburban Icon_minitimeWed Nov 13, 2013 9:20 pm

I drilled some holes through a piece of steel I had for my lower shock mounts. My new to me drill press worked pretty good although I don't have a vice for it yet.
Baja sears suburban Img_2939
Cut the brackets to length, then mocked everything up with the drill bit until I get bolts that fit.
Baja sears suburban Img_2940
Put the front end up on a jack and measured maximum travel at the point where the shock is to be mounted. About 4 1/4 inches.
Baja sears suburban Img_2941
I fully compressed the shock and made a mark where the dust skirt came down to on the shock body. Next I measured up 4 1/4 inches and made another mark.
Baja sears suburban Img_2942

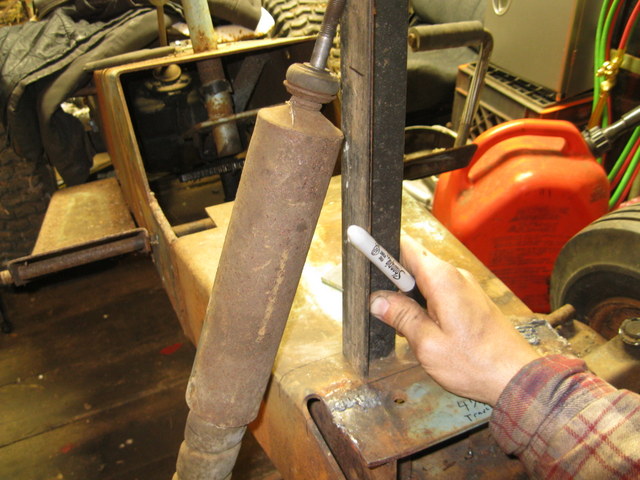

I moved the axle on the side I was working on back to the lowest point. Then put my shock so it was an inch or so above my upper mark, and marked my shock tower steel to be cut. The extra was just to ensure the axle would bottom out against the tractor frame and not on the shock itself. I think the max travel on these shocks are around 6 or 7 inches, so I have plenty to play with.
Baja sears suburban Img_2943

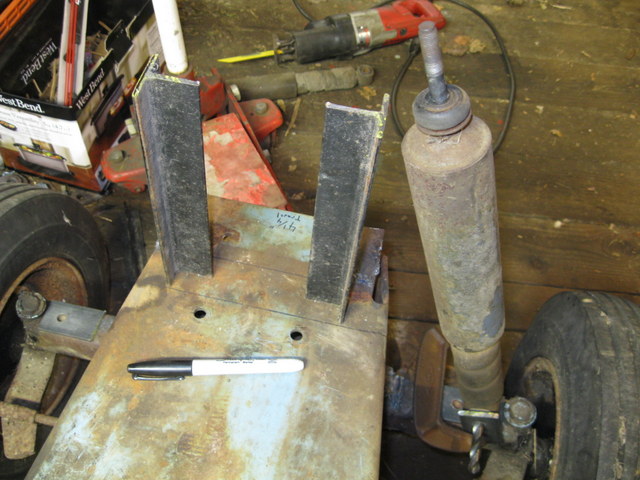

I cut some pieces of steel out for the shock towers. I think it was part of an overhead door track. Gives it a little different look than the bed frame angle iron I usually use. All thats left is the top piece and to weld everything together.
Baja sears suburban Img_2944
Already having thoughts about flipping the intake and mounting this down draft carb off a two cylinder. I'm not sure what i'm going to do about that yet. I'm not sure if I want the carb sticking out through the hood.
Baja sears suburban Img_2945
Not that anyone cares but, in case you were wondering, the shocks came off the back of a 67 pontiac firebird (not mine). I'm not sure whats up with the weird spiral groove on them or what brand they are. I was thinking of painting them yellow and painting the groove black.
Back to top Go down
GenevaCustoms
Skilled
Skilled
GenevaCustoms

Age : 22
Join date : 2013-09-24
Posts : 315
Forum Rep : 0
Location : Florida

Baja sears suburban Empty
PostSubject: Re: Baja sears suburban   Baja sears suburban Icon_minitimeThu Nov 14, 2013 6:11 am

That's sweet man, got ome firebird shocks on there you should put the bird logo on the hood now lol
Back to top Go down
mr.modified
Seasoned Veteran
Seasoned Veteran
mr.modified

Age : 29
Join date : 2013-11-02
Posts : 2545
Forum Rep : 95
Location : New Jersey USA

Baja sears suburban Empty
PostSubject: Re: Baja sears suburban   Baja sears suburban Icon_minitimeThu Nov 14, 2013 9:59 pm

If I had a hood!
Back to top Go down
GenevaCustoms
Skilled
Skilled
GenevaCustoms

Age : 22
Join date : 2013-09-24
Posts : 315
Forum Rep : 0
Location : Florida

Baja sears suburban Empty
PostSubject: Re: Baja sears suburban   Baja sears suburban Icon_minitimeFri Nov 15, 2013 6:28 am

Haha I need to fix my plastic tabs on mine... They broke off like plastic does lol
Back to top Go down
redlinemotorsportts
Moderator
Moderator
redlinemotorsportts

Age : 22
Join date : 2013-03-18
Posts : 3126
Forum Rep : 3
Location : raleigh nc

Baja sears suburban Empty
PostSubject: Re: Baja sears suburban   Baja sears suburban Icon_minitimeFri Nov 15, 2013 7:40 am

I second that. I firebird paint job would be badass!

_______________________________________________
Check out my builds!: MTD "Rock Bouncing" Mower -------- 60's Springfeild V-twin Mini Speed Tractor : SOLD!
Baja sears suburban Screen17
ATLTF.com Facebook admin - Forum Mod
whos mans is this
Back to top Go down
mr.modified
Seasoned Veteran
Seasoned Veteran
mr.modified

Age : 29
Join date : 2013-11-02
Posts : 2545
Forum Rep : 95
Location : New Jersey USA

Baja sears suburban Empty
PostSubject: Re: Baja sears suburban   Baja sears suburban Icon_minitimeSat Nov 16, 2013 5:45 pm

I've got the front "suspension" completed. I actually got everything lined up pretty close this time. Next I'm going to get a pulley for the motor and line it up with the transmission so I can drill some mounting holes. It's going to be back a couple inches more than the original engine was since the shocks and assosiated junk are in the way now. Maybe moving the engine back will make it handle a little better by keeping the weight centered a bit better. I think the battery is going to go right in front of the steering column and i'll move the gas tank behind me right over where the hitch is. My rear bumper will wrap around the gas tank to protect it like the rear bumper cage on a baja bug. Of course i'll have to use a vaccum fuel pump to get the fuel up to the carb, but thats not a big deal.

Baja sears suburban Img_2949

Baja sears suburban Img_2950

Baja sears suburban Img_2951
Back to top Go down
Doug
Administrator
Administrator
Doug

Age : 24
Join date : 2012-12-24
Posts : 2893
Forum Rep : 50
Location : Lebanon County, PA

Baja sears suburban Empty
PostSubject: Re: Baja sears suburban   Baja sears suburban Icon_minitimeSat Nov 16, 2013 7:39 pm

Could use a small electrical sending unit too.

Otherwise very cool!

_______________________________________________
Head Forum Administrator ** Chat Moderator ** Facebook Page Admin
ATLTF Facebook Page ** Chatbox ** How To Upload Pictures

_X_ FORUM ANNOUNCEMENTS _X_


Have a question? Ask me! Type in "@Doug" in your post!

Your ATLTF Staff:
Administrators: @Doug, @MightyRaze, @"Doc Sprocket", @Stretch44875
Moderators: @TheRainbowBoxer, @AllisKidD21




Back to top Go down
redlinemotorsportts
Moderator
Moderator
redlinemotorsportts

Age : 22
Join date : 2013-03-18
Posts : 3126
Forum Rep : 3
Location : raleigh nc

Baja sears suburban Empty
PostSubject: Re: Baja sears suburban   Baja sears suburban Icon_minitimeSat Nov 16, 2013 8:09 pm

This is very cool. To go with the theme, what about a light bar on the consle in front of the steering wheel with like 4 circle lights?

_______________________________________________
Check out my builds!: MTD "Rock Bouncing" Mower -------- 60's Springfeild V-twin Mini Speed Tractor : SOLD!
Baja sears suburban Screen17
ATLTF.com Facebook admin - Forum Mod
whos mans is this
Back to top Go down
mr.modified
Seasoned Veteran
Seasoned Veteran
mr.modified

Age : 29
Join date : 2013-11-02
Posts : 2545
Forum Rep : 95
Location : New Jersey USA

Baja sears suburban Empty
PostSubject: Re: Baja sears suburban   Baja sears suburban Icon_minitimeSat Nov 16, 2013 8:11 pm

I was thinking about that. I did some checking and found some that are relatively cheap at $25-50. Something to think about anyway.
Back to top Go down
redlinemotorsportts
Moderator
Moderator
redlinemotorsportts

Age : 22
Join date : 2013-03-18
Posts : 3126
Forum Rep : 3
Location : raleigh nc

Baja sears suburban Empty
PostSubject: Re: Baja sears suburban   Baja sears suburban Icon_minitimeSat Nov 16, 2013 8:56 pm

i always thought a LED bar (like 16" or whatever) would be cool, but then i saw how much they cost..... Shocked Shocked

_______________________________________________
Check out my builds!: MTD "Rock Bouncing" Mower -------- 60's Springfeild V-twin Mini Speed Tractor : SOLD!
Baja sears suburban Screen17
ATLTF.com Facebook admin - Forum Mod
whos mans is this
Back to top Go down
mr.modified
Seasoned Veteran
Seasoned Veteran
mr.modified

Age : 29
Join date : 2013-11-02
Posts : 2545
Forum Rep : 95
Location : New Jersey USA

Baja sears suburban Empty
PostSubject: Re: Baja sears suburban   Baja sears suburban Icon_minitimeSun Nov 17, 2013 9:30 pm

@redlinemotorsportts wrote:
This is very cool. To go with the theme, what about a light bar on the consle in front of the steering wheel with like 4 circle lights?
Sorry, I didn't even see this post. I was talking about fuel pumps. Must have hit send right after you posted. Yeah, some of those light bars are really expensive. I wanted to have four lights in the front bumper, but I would need smaller ones than I used on the simplicity. The ones I used for that were $15 each from napa. I intended on putting those in the simplicity bumper also but once I got the bumper made, There wasn't quite enough room so I just mounted them on top. I could go with the napa lights again but use three, But I don't know if three would look too good.

Here's a picture with three lights. I was thinking those cross bars in the bumper between the lights would look neat.
Baja sears suburban Baja_b10

Here's one with four, which would really make it look like you have a serious setup!
Baja sears suburban Baja_b11
Back to top Go down
Doug
Administrator
Administrator
Doug

Age : 24
Join date : 2012-12-24
Posts : 2893
Forum Rep : 50
Location : Lebanon County, PA

Baja sears suburban Empty
PostSubject: Re: Baja sears suburban   Baja sears suburban Icon_minitimeSun Nov 17, 2013 9:34 pm

I think 3 would look great. Put an exo cage around em and be ready to roll.

_______________________________________________
Head Forum Administrator ** Chat Moderator ** Facebook Page Admin
ATLTF Facebook Page ** Chatbox ** How To Upload Pictures

_X_ FORUM ANNOUNCEMENTS _X_


Have a question? Ask me! Type in "@Doug" in your post!

Your ATLTF Staff:
Administrators: @Doug, @MightyRaze, @"Doc Sprocket", @Stretch44875
Moderators: @TheRainbowBoxer, @AllisKidD21




Back to top Go down
mr.modified
Seasoned Veteran
Seasoned Veteran
mr.modified

Age : 29
Join date : 2013-11-02
Posts : 2545
Forum Rep : 95
Location : New Jersey USA

Baja sears suburban Empty
PostSubject: Re: Baja sears suburban   Baja sears suburban Icon_minitimeMon Nov 18, 2013 9:41 pm

Maybe that’s what i'll end up doing. The other thing to worry about is how much power your going to draw with all these lights. My simplicity is just above breaking even with the two napa lights and one tail light. Of course I don't use them much. Maybe I can find some LED headlights that won't draw so much juice. I was going to use a small automotive alternator, but decided not to since I don't have as much space as I thought and also, I don't want to keep adding extra weight to this thing. I have a third stop light from a 2003 or so chevy cavalier that I think would work pretty good for a tail light. It looks more yellow than red in the picture. Pretty bright compared to a regular light.

Baja sears suburban Img_2952
Back to top Go down
TroyBilt Pony
Veteran
Veteran
TroyBilt Pony

Join date : 2013-06-01
Posts : 578
Forum Rep : 0
Location : West Virginia

Baja sears suburban Empty
PostSubject: Re: Baja sears suburban   Baja sears suburban Icon_minitimeMon Nov 18, 2013 9:56 pm

Looking good!
Back to top Go down
mr.modified
Seasoned Veteran
Seasoned Veteran
mr.modified

Age : 29
Join date : 2013-11-02
Posts : 2545
Forum Rep : 95
Location : New Jersey USA

Baja sears suburban Empty
PostSubject: Re: Baja sears suburban   Baja sears suburban Icon_minitimeTue Nov 19, 2013 9:39 pm

Lined up the motor with a belt and pulley I had, this should be about where it ends up. Here's how much clearance you have between the shocks and carb. To the rear, the mounting bolts hang over the rear of the frame. I'll have to weld some tabs or something back there. A much closer fit than I thought, but it's do-able. I put the carb back together, but I didn't try to run it again yet.
Baja sears suburban Img_2953
Baja sears suburban Img_2954
Back to top Go down
mr.modified
Seasoned Veteran
Seasoned Veteran
mr.modified

Age : 29
Join date : 2013-11-02
Posts : 2545
Forum Rep : 95
Location : New Jersey USA

Baja sears suburban Empty
PostSubject: Re: Baja sears suburban   Baja sears suburban Icon_minitimeFri Nov 22, 2013 10:46 pm

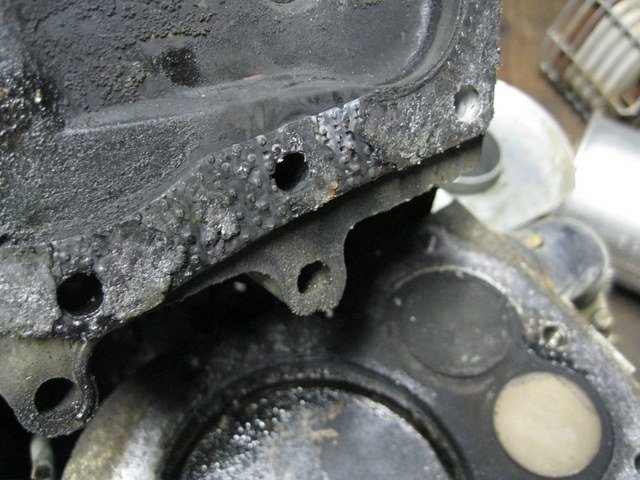

I've been trying to get the motor running but had a lot of trouble. After I got the carb put back on, it still wouldn't run. It fired here and there, but I couldn't keep it going. I thought I missed something in the carb (like I usually do) so I took it back apart. Still didn't run. So I finally pulled the head off to see if a valve was hung up a bit or something like that, since it seemed a little dead on compression. I found out the head gasket had a serious spot in it. Maybe somebody took it off at one point and ripped it, then put it back together with the old gasket and it blew out or maybe it blew out on it's own. I think everything else is ok, so it should run once I get a gasket for it. I might pick up a carb kit too, the needle would stick open here and there while I was fooling around trying to get it started. It's one of those rubber tipped deals.

Baja sears suburban Img_2955

More or less where the gas tank should end up, with an idea of the bumper size...
Baja sears suburban Img_2956

Getting technical now, trying to keep dirt out and everything...Maybe a bit lazy too, with how close the motor is to that chair...
Baja sears suburban Img_2957
Back to top Go down
Creepycrawler
Veteran
Veteran
Creepycrawler

Age : 32
Join date : 2013-07-02
Posts : 566
Forum Rep : 47
Location : Logan Ohio

Baja sears suburban Empty
PostSubject: Re: Baja sears suburban   Baja sears suburban Icon_minitimeSat Nov 23, 2013 10:30 am

Im a big fan of the old sears, and I like that your taking a out of the box approach. also digging the rear gas tank/bumper setup
Back to top Go down
Sponsored content




Baja sears suburban Empty
PostSubject: Re: Baja sears suburban   Baja sears suburban Icon_minitime

Back to top Go down

Baja sears suburban
Back to top
Page 1 of 2Go to page : 1, 2  Next

Permissions in this forum:You cannot reply to topics in this forum
All-Terrain Lawn Tractor Forum :: Tractor Project Builds :: Off Road & Rally Tractors-
Jump to:
