 Craftsman off road tractor

Go down
+11
fetters18
Ford Boi
indianaboy93
MSteele323
CMHN
Yamaharules163
Webmaster
Chunk
dangeroustoys56
arild365
motorhead45102
15 posters
Go to page : 1, 2, 3, 4, 5, 6, 7, 8, 9  Next
AuthorMessage
motorhead45102
Member

Member


Join date : 2010-03-07
Points : 5456
Posts : 244
Location : Ohio

Craftsman off road tractor Empty
PostSubject: Craftsman off road tractor   Craftsman off road tractor Icon_minitimeMarch 8th 2010, 9:16 pm

well im figuring things out on this forum

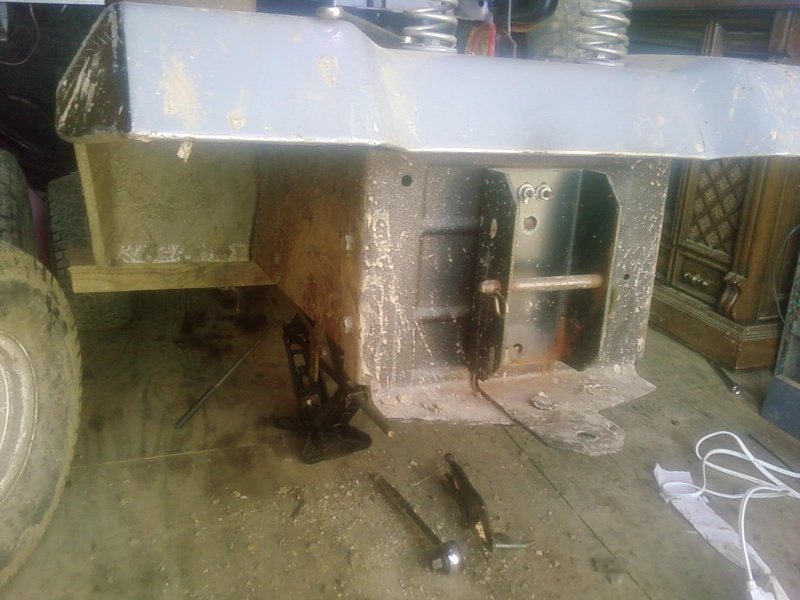

Well this is a view from the side of my mower, as you see there is no hood at the moment and its slightly muddy.
[img]Craftsman off road tractor 03081011[/img]


this next pic is the front of the engine, its dirty but i have cleaned it since ive taken the pic.
[img]Craftsman off road tractor 03081013[/img]

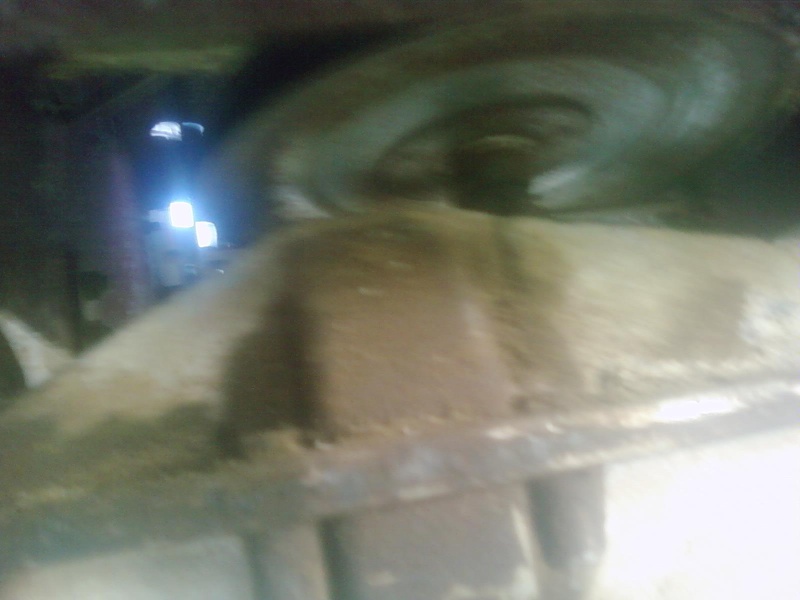

well this one is blury but its the transaxel as you can see, now this tranny makes a weird clicking noise, is that normal or somthing wore out
[img]Craftsman off road tractor 03081014[/img]

i was thinking this tire would do better than my current wheels, i just need a 5 bolt hub, i should of taken the hubs of the tractor i got the tires off of but i didn't think anything about that.
[img]Craftsman off road tractor 03081015[/img]

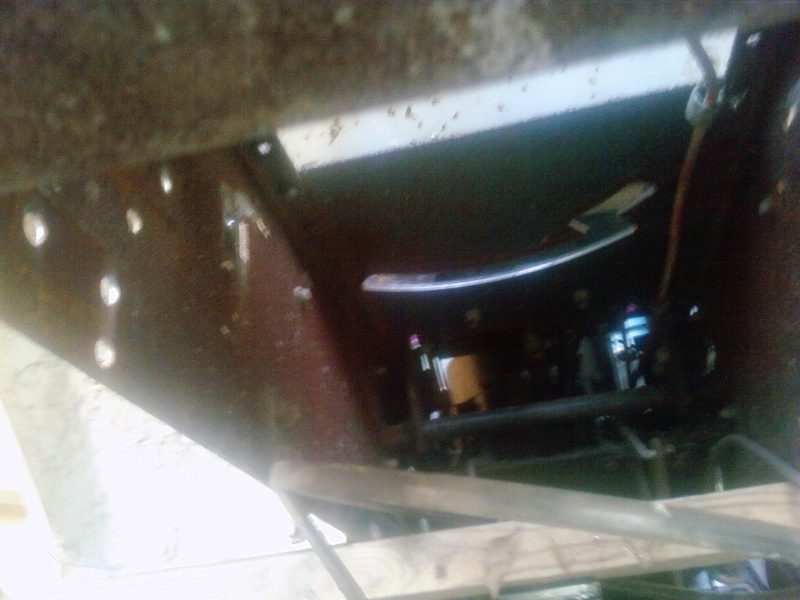

i don't know if you can tell in this pic but, if you can you can see how much better the tire on the right is than the left, what i was planning to do is put the bigger tire on the rear and the rear on there now on the front, but i need to drill a short and not to big hole on the front spindles and thread it to put a bolt in rather than welding since i don't have a welder. I want one though
[img]Craftsman off road tractor 03081016[/img]

im not done perfecting it yet but its a start, my gas pedal was once the throttle, and the bracket is actually a track bar from an old steel window. but i need to exten the little stubb of the pedal
[img]Craftsman off road tractor 03081017[/img]

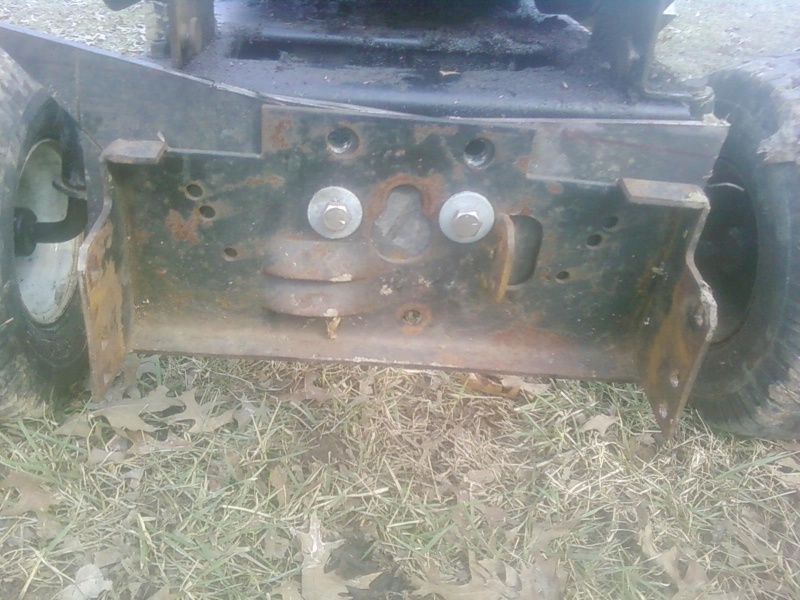

ok this is my bracket (which im not done cutting the flat steel you see behind it) for the snow plow when it snows but idk if im going to get any more snow, i live in southern ohio so idk maybe maybe not, but it works and is use full
[img]Craftsman off road tractor 03081018[/img]




well thats all for now tell me what you all think about it so far and actually my lg shine cell phone doesn't do that bad with pictures,
Back to top Go down
arild365
Member
arild365
Member


Age : 28
Join date : 2010-02-11
Points : 5566
Posts : 320
Location : Canada, BC

Craftsman off road tractor Empty
PostSubject: Re: Craftsman off road tractor   Craftsman off road tractor Icon_minitimeMarch 8th 2010, 9:21 pm

is that an LT4000? I have one like that. its gettin there. Welders are great too have almost essential.
Back to top Go down
https://www.youtube.com/user/arild365
motorhead45102
Member

Member


Join date : 2010-03-07
Points : 5456
Posts : 244
Location : Ohio

Craftsman off road tractor Empty
PostSubject: Re: Craftsman off road tractor   Craftsman off road tractor Icon_minitimeMarch 8th 2010, 9:42 pm

yea really, i also have a go kart with a 5hp briggs i can get going 35 40 with it, but i can't go off road like i can on this thing, also do you think that tire will do good the larger one. also would anyone know where i can get 5 bolt hub for that rim? its off of a old 1970 somthing john deere tractor
Back to top Go down
arild365
Member
arild365
Member


Age : 28
Join date : 2010-02-11
Points : 5566
Posts : 320
Location : Canada, BC

Craftsman off road tractor Empty
PostSubject: Re: Craftsman off road tractor   Craftsman off road tractor Icon_minitimeMarch 8th 2010, 10:04 pm

quads have em
Back to top Go down
https://www.youtube.com/user/arild365
motorhead45102
Member

Member


Join date : 2010-03-07
Points : 5456
Posts : 244
Location : Ohio

Craftsman off road tractor Empty
PostSubject: Re: Craftsman off road tractor   Craftsman off road tractor Icon_minitimeMarch 8th 2010, 10:33 pm

if i cant find one i was thinking about going to my grandpa's house and fabricate one, or have him make one at work, he machined and welded my sprocket on my go kart, but i think it will be bad @Ss if i put those tires on it, they are kinda large for the tractor i may have to cut some of the fender but if not its cutting it close.
Back to top Go down
arild365
Member
arild365
Member


Age : 28
Join date : 2010-02-11
Points : 5566
Posts : 320
Location : Canada, BC

Craftsman off road tractor Empty
PostSubject: Re: Craftsman off road tractor   Craftsman off road tractor Icon_minitimeMarch 8th 2010, 10:37 pm

i have quad tires on my tractor. It never gets stuck in the mud and not too bad in the snow . they were 100$ each witch was like 3 days work
Back to top Go down
https://www.youtube.com/user/arild365
dangeroustoys56
Veteran Member
dangeroustoys56
Veteran Member

1000+ Posts
1000+ Posts!

Age : 53
Join date : 2010-02-10
Points : 6829
Posts : 1726
Location : Florida, USA

Craftsman off road tractor Empty
PostSubject: Re: Craftsman off road tractor   Craftsman off road tractor Icon_minitimeMarch 9th 2010, 3:07 pm

Clicking from the trans isnt normal ... youd hear a lil bit of gear whirr if anything.

I know my GT craftsmans and 69 wheelhorse have 5 lug wheels ( ironically will fit either one- i put my WH wheels on my GT6000) - the craftsmans are splined to the axle, while the WH has a keyed hub - cept both are 1" axles.....

I know northern tools has 4 bolt ATV hubs- theyre like $40 each tho- i bot 2 keyed and two tapered bering for my golf kart rims- which are going on my wheelhorse mod.

I know trailer hubs are 5 bolt- cept they run berings- might be better to have the pair machined.....


That looks like my 85 LT12 - thats the one i trashed the trans on when i swapped pulleys w/o adding oil/grease to it.

Check out Fearlessfronts rockcrawler build- hed running rear tires on the front....
Back to top Go down
Chunk
Established Member
Chunk
Established Member

500+ Posts
500+ Posts

Age : 32
Join date : 2010-02-10
Points : 5973
Posts : 779
Location : Angus, Scotland

Craftsman off road tractor Empty
PostSubject: Re: Craftsman off road tractor   Craftsman off road tractor Icon_minitimeMarch 9th 2010, 3:20 pm

I think I know what you mean by that clicking. Is it on the input shaft when you do it by hand, it sounds like the input shaft gear isnt messing properly. Im new to working on trannys, but I sorted my rear end that was doing that, could be a case of trail and error.

As for those hubs, I dont thin you can get one for a 3/4" axle. Might be easier making one. If you can get some ATV tyres. THose tall tyres will be better, but they'll still have their limitations.

This looks like it will be good, nice strong chassis' they have. You got the hood for it?
Back to top Go down
https://www.youtube.com/csakvids
dangeroustoys56
Veteran Member
dangeroustoys56
Veteran Member

1000+ Posts
1000+ Posts!

Age : 53
Join date : 2010-02-10
Points : 6829
Posts : 1726
Location : Florida, USA

Craftsman off road tractor Empty
PostSubject: Re: Craftsman off road tractor   Craftsman off road tractor Icon_minitimeMarch 9th 2010, 4:06 pm

The front hubs on those ATV flanges are 3/4" - the rear keyed hubs are 1" ....

Transmissions are cake now- after i cracked open that one out of the weedeater tractor its like " wow that easy!" well cept for the kleen kut- thats a pain..... the MTD transaxles are like empty inside- basically just 4 main gears and then the pinion gears on the axles....

On normal trans, only thing to watch for is the shift detent ball n spring....
Back to top Go down
Chunk
Established Member
Chunk
Established Member

500+ Posts
500+ Posts

Age : 32
Join date : 2010-02-10
Points : 5973
Posts : 779
Location : Angus, Scotland

Craftsman off road tractor Empty
PostSubject: Re: Craftsman off road tractor   Craftsman off road tractor Icon_minitimeMarch 9th 2010, 4:21 pm

Yup, there really is no need to be put off by them, they are simple as hell! Glad I decided to delve into mine!
Back to top Go down
https://www.youtube.com/csakvids
dangeroustoys56
Veteran Member
dangeroustoys56
Veteran Member

1000+ Posts
1000+ Posts!

Age : 53
Join date : 2010-02-10
Points : 6829
Posts : 1726
Location : Florida, USA

Craftsman off road tractor Empty
PostSubject: Re: Craftsman off road tractor   Craftsman off road tractor Icon_minitimeMarch 9th 2010, 5:39 pm

Engines on the other hand are scarey.....im sorta afraid to actually fix one.
Back to top Go down
Webmaster
Webmaster
Webmaster
Webmaster


Age : 14
Join date : 2010-02-09
Points : 5488
Posts : 332
Location : Here!

Craftsman off road tractor Empty
PostSubject: Re: Craftsman off road tractor   Craftsman off road tractor Icon_minitimeMarch 9th 2010, 6:11 pm

Nice looking machine! These craftsmans are fun to work on... Lots of room to put stuff. If your tranny is clicking, it may have a broken tooth somewhere. It's probably still drivable, but start looking for a parts machine, it's always nice to have some backup.

I rebuilt my engine, it was intresting. I was actually suprized that there wern't more moving parts in there. To me, engines make sence, trannys are a strange animal!
Back to top Go down
http://ww.atltf.com
dangeroustoys56
Veteran Member
dangeroustoys56
Veteran Member

1000+ Posts
1000+ Posts!

Age : 53
Join date : 2010-02-10
Points : 6829
Posts : 1726
Location : Florida, USA

Craftsman off road tractor Empty
PostSubject: Re: Craftsman off road tractor   Craftsman off road tractor Icon_minitimeMarch 9th 2010, 7:38 pm

Yeah i have like 4 motors that could be rebuilt in my parts shed- mostly 12HP's - one that possibly could work w/o opening it....ive cracked alot of em open, theres alot of weird stuff in there to me....


When my craftsmans trans crapped out, luckily i wasnt at full speed or slowing down- i just had fired it up, put it in first till i got to the street... shifted it to second, popped the clutch and.... stopped dead. - literally in the middle of the street ( was a side street) - ran up to the shed n grabbed another tractor cause i couldnt even push it off the road - was locked up completely- used a ratchet strap, and had to drag the thing all the way thru the yard - luckily i had a spare transmission, but that was the end as a modifed hot rod for it.

Gave no warning or anything , just locked up..... i cracked it open later n found about 5 of the main gear and couple of pinion teeth all broken off and lodged in the gear area.
Back to top Go down
motorhead45102
Member

Member


Join date : 2010-03-07
Points : 5456
Posts : 244
Location : Ohio

Craftsman off road tractor Empty
PostSubject: Re: Craftsman off road tractor   Craftsman off road tractor Icon_minitimeMarch 9th 2010, 9:01 pm

ok more update no pics yet but, heres whats happening.

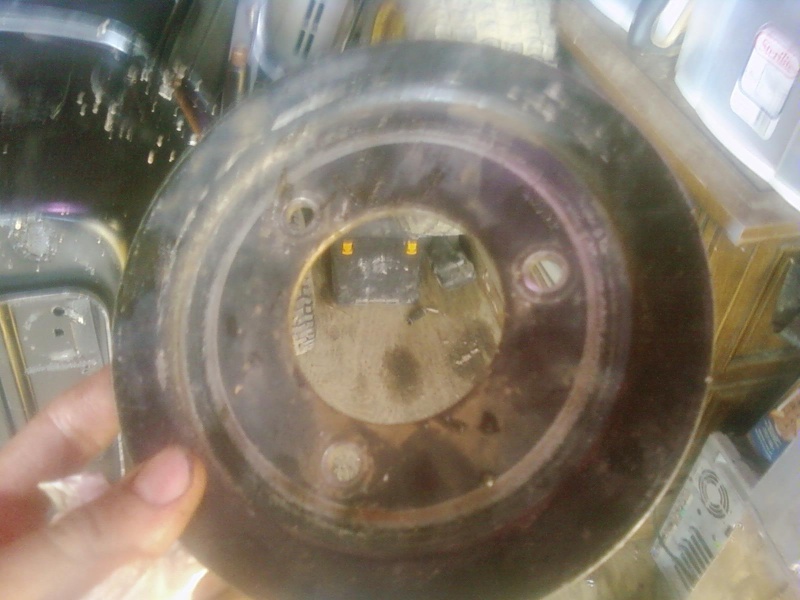

i could not get my giant pulley off the thing and i pulled the input shaft out of the trans, so i said fck, so i tore the case of the trans to find out i popped off a snap ring, Rolling Eyes
but i also found out there was a sht ton of metal shavings on the bolt holes on the brake caliper, i looked closley and found out the gears managed to not get any shavings, i don't know what this person did but must of taped the hole out or somthing.
so im going to clean the tranny case and gears, and re grease everything or should i use fluid? the trans isn't really all that sealed,
now i need to put the pulley with the input shaft stuck to it, in to a hydraulic press and press it out, then i need to make a hub for the smaller pulley, i think its either 5 or 6 but with big tires it shall fly,

also is it hard at all to mess with the shift key and gears?, also whats the chain in there for, revers? if so than my trans is a 6 speed cause theres 6 gears and a chain,
oh and i also found out that i have a broken piece of the case up front on a bracket, wonder how that happend?
Back to top Go down
arild365
Member
arild365
Member


Age : 28
Join date : 2010-02-11
Points : 5566
Posts : 320
Location : Canada, BC

Craftsman off road tractor Empty
PostSubject: Re: Craftsman off road tractor   Craftsman off road tractor Icon_minitimeMarch 9th 2010, 9:05 pm

i totaly agree with fearlessfront. ive rebuild my craftsmans motor twice (like all apart) and my vikings once and a couple other motors too (all briggs engines). I understand mostly every thing on em but trannys on the other hand... Im scared shitless to open the one on my crafftsman. i dont want to fuck it up cause its my only mudden tractor right now and i can go 3 days with out a romp Razz
Back to top Go down
https://www.youtube.com/user/arild365
motorhead45102
Member

Member


Join date : 2010-03-07
Points : 5456
Posts : 244
Location : Ohio

Craftsman off road tractor Empty
PostSubject: Re: Craftsman off road tractor   Craftsman off road tractor Icon_minitimeMarch 9th 2010, 9:05 pm

oh and forgot the trans is a FOOTE 3865
Back to top Go down
motorhead45102
Member

Member


Join date : 2010-03-07
Points : 5456
Posts : 244
Location : Ohio

Craftsman off road tractor Empty
PostSubject: Re: Craftsman off road tractor   Craftsman off road tractor Icon_minitimeMarch 9th 2010, 10:09 pm

well its actually a peerless 930 series 6 speed, these trans series go from 3 to 7 speeds
Back to top Go down
motorhead45102
Member

Member


Join date : 2010-03-07
Points : 5456
Posts : 244
Location : Ohio

Craftsman off road tractor Empty
PostSubject: Re: Craftsman off road tractor   Craftsman off road tractor Icon_minitimeMarch 9th 2010, 10:19 pm

also what type of grease can i use other than bentonite for the transaxle gears?
can i use red wheel bearing grease? i know that stuff works great.
Back to top Go down
dangeroustoys56
Veteran Member
dangeroustoys56
Veteran Member

1000+ Posts
1000+ Posts!

Age : 53
Join date : 2010-02-10
Points : 6829
Posts : 1726
Location : Florida, USA

Craftsman off road tractor Empty
PostSubject: Re: Craftsman off road tractor   Craftsman off road tractor Icon_minitimeMarch 10th 2010, 5:19 am

Yeah- i used lucas oil high temp wheel bering grease along with red lucas grease from the grease gun in the MTD - bennonite is like a one shot only grease- the funny thing is they must only put a few ounces in each trans- cause there isnt very much inside - yd think theyd pack it full.... on the other hand they probably want to sell you another tractor when the trans locks ....


gear oil tends to weep past openings in the case ( no oil seals) - even filling it only half full. I used lucas oil additve in my modded murray, it held together after a bunch of high speed runs- stuff sticks like glue to parts.

Only transmissions id be afraid to open are hydro static and the ones on my GT's - both those are nitemares. Y haveta watch for the detent ball and spring when you tear an average trans apart- usually theres an access hole ( with a screwed in plug ) right above it- take those out and keep em safe- when its ready to go back together- just drop em down the access hole n put the plug in.

Actually small metal shavings inside the trans ( unless a gear came apart) are allright- since its grease n no fluid- itll stay put - transmissions on lawntractors arent super high tolerance built - theres some leeway and slop in em - if they were highly machined- theyd be a whole lot more to buy.

Usually since the caliper bolts are steel and the trans is aluminum, the two are disimilar metals- and corrode- most times they break when trying to remove em ( had that happen) - but sometimes theyll come out easy- a good way to prevent breaking em is to use a dab of never seize on the bolts - specially if it sees alot of mud n water.
Back to top Go down
motorhead45102
Member

Member


Join date : 2010-03-07
Points : 5456
Posts : 244
Location : Ohio

Craftsman off road tractor Empty
PostSubject: Re: Craftsman off road tractor   Craftsman off road tractor Icon_minitimeMarch 10th 2010, 6:21 am

well thanks, ill probably pack the crap out of it cause i don't want any gears running dry, the grease in there wasn't doing so much and was kinda hard in spots. ill probably use the red bearing grease since that gease is a high pressure and temp grease used in car wheel bearings, and that benonite crap is 18 bucks for idk what even size of amount. and what sadden's me is the trans is made by techumseh, does briggs make any, if so i bet they be bad @ss. but my trans is cake to work on. i bet hydro trans are confusing as hll. or the trans out of my junk john deere was really confusing, but thanks for the reply, im going to be cleaning out the trans today hopfully
Back to top Go down
arild365
Member
arild365
Member


Age : 28
Join date : 2010-02-11
Points : 5566
Posts : 320
Location : Canada, BC

Craftsman off road tractor Empty
PostSubject: Re: Craftsman off road tractor   Craftsman off road tractor Icon_minitimeMarch 10th 2010, 10:10 am

im thinking of taking the tranny out of my craftsman and puttin the grease in. before i do that i just got a couple of questions

1 what is the exact name of the grease (red bearing grease)?

2 do i havta clean all the old grease out before i put the new stuff in?
Back to top Go down
https://www.youtube.com/user/arild365
Chunk
Established Member
Chunk
Established Member

500+ Posts
500+ Posts

Age : 32
Join date : 2010-02-10
Points : 5973
Posts : 779
Location : Angus, Scotland

Craftsman off road tractor Empty
PostSubject: Re: Craftsman off road tractor   Craftsman off road tractor Icon_minitimeMarch 10th 2010, 3:45 pm

FearlessFront wrote:
I rebuilt my engine, it was intresting. I was actually suprized that there wern't more moving parts in there. To me, engines make sence, trannys are a strange animal!

Bingo! Im much happier to rip open an engine than a tranny, although now I know how simple theres things are! Only thing to worry about it the shift ball thing, and making sure its all properly lubed. Im gonna oil fillmine, then silicone the hell of the case when its together to help stop leaks! This thing is gonna live outside under cover, but for now Im gonna keep somethign under the tranny, cos it will no doubt leak oil!

Cant wait to see more photos motorhead. Hopefully that tranyn should last, but keep an eye out for another parts tractor, always useful to have, even if you have a perfect gearbox
Back to top Go down
https://www.youtube.com/csakvids
motorhead45102
Member

Member


Join date : 2010-03-07
Points : 5456
Posts : 244
Location : Ohio

Craftsman off road tractor Empty
PostSubject: Re: Craftsman off road tractor   Craftsman off road tractor Icon_minitimeMarch 10th 2010, 4:49 pm

yeah thats true, i don't know where i would find another tractor.
but my trans is good, i had to use a hydraulic press to get the input shaft out of the stock pullley, so im going to have a hub made for the new pulley, and see if i can't make some hubs for my rims too. also i didn't get red bearing grease but i got this different kind of wheel bearing grease, its high temp, high pressure, not that my trans is going to be hauling a truck or anything, but im going to get some pics of the before then and after of my trans, so people can see whats inside and what not.
Back to top Go down
motorhead45102
Member

Member


Join date : 2010-03-07
Points : 5456
Posts : 244
Location : Ohio

Craftsman off road tractor Empty
PostSubject: Re: Craftsman off road tractor   Craftsman off road tractor Icon_minitimeMarch 10th 2010, 9:38 pm

ok this is the tear down and rebuild of the transaxle or not really rebuild but deep clean and packed with fresh better grease



Ok these are the shift gears, 1-6 and revers(chain) before i cleaned them

[img]Craftsman off road tractor 03101010[/img]

Ok this is the rear end without the wheels and trans assembly
[img]Craftsman off road tractor 03101011[/img]

and this is underneath the rear end without trans
[img]Craftsman off road tractor 03101012[/img]

this is the trans housing before i cleaned it
[img]Craftsman off road tractor 03101014[/img]



ok this is the trans housing being cleaned and soaked.

[img]Craftsman off road tractor 03101013[/img]



ok this is the pulley im going to use, its 5in i think but its WAY smaller than the stock pulley, so i should pick up some speed but be able to have lots of torque, with out major engine bogg

[img]Craftsman off road tractor 03101015[/img]

well the only thing else after putting back together the trans that i need is the brake rotor and pad and i think the push pin.
also i was thinking about using fearless idea on the lowering the front axle for more articulation cause the trails i like to go on have lots of uneaven spots, and the only reason why i would use this idea is cause my frame twist too much and wheels lift off the ground at times and i have no traction or control over somthings, also what are the ways to lock a differential list me as many as there is and ones that work great.
well tell me what you all think so far
Back to top Go down
dangeroustoys56
Veteran Member
dangeroustoys56
Veteran Member

1000+ Posts
1000+ Posts!

Age : 53
Join date : 2010-02-10
Points : 6829
Posts : 1726
Location : Florida, USA

Craftsman off road tractor Empty
PostSubject: Re: Craftsman off road tractor   Craftsman off road tractor Icon_minitimeMarch 10th 2010, 10:36 pm

arild365: 1. Any type of heavy duty wheelbering grease is fine- i just get high speed/temp grease for packing front wheel berings.

2. Yes id clean it out as best as possible - as i recall the grease in my craftsman was pretty nasty looking- the grease from my kleen kut looked like baby crap....


motorhead 45102 : I bot most mine on craigslist in my area- some i got for free from people i know - i go after dead n junk ones - going after runners will be a whole lot more.... surprisingly most my 'junkers' arent really that bad- lil work and they run, mow n drive fine. I did get a few on the local online freecycle- only stipulation is you need to give something away to get something free tho....
Back to top Go down
Sponsored content





Craftsman off road tractor Empty
PostSubject: Re: Craftsman off road tractor   Craftsman off road tractor Icon_minitime

Back to top Go down

Craftsman off road tractor
Back to top
Page 1 of 9Go to page : 1, 2, 3, 4, 5, 6, 7, 8, 9  Next
 Similar topics
-
» Craftsman Off-Road Mower
» Craftsman Off Road/ High Speed Tractor Build
» For Sale: Snow Blower Craftsman for Craftsman lawn tractor for parts
» Craftsman Off road
» Craftsman "Champ" Build

Permissions in this forum:You cannot reply to topics in this forum
All-Terrain Lawn Tractor Forum :: Tractor Project Builds :: Off Road & Rally Tractors-
Jump to:
