 Briggs parts interchangeability and other fun info

Go down
AuthorMessage
mr.modified
Seasoned Veteran
Seasoned Veteran
mr.modified

Age : 29
Join date : 2013-11-02
Posts : 2278
Forum Rep : 56
Location : New Jersey USA

Briggs parts interchangeability and other fun info Empty
PostSubject: Briggs parts interchangeability and other fun info   Briggs parts interchangeability and other fun info Icon_minitimeWed Oct 08, 2014 10:48 pm

Recently i've been tearing apart some engines and figured I would post some parts that fit back and forth. At the moment i've got a 14hp opposed disassebled and I have an 18hp opposed also.
Briggs parts interchangeability and other fun info Img_3713

Before I take the 18hp apart, I took apart this 11hp single. Found out the piston is the same as in the 14hp opposed. The valves and lifters are different, although the valve springs appear to be the same. I don't have a way to check springs so i'm just guessing.
Briggs parts interchangeability and other fun info Img_3711

Turns out the pin for the "dog bone" rod that guides the balence weights is basicly a wrist pin that would fit many small briggs engines. 3hp-5hp flatheads for example.
Briggs parts interchangeability and other fun info Img_3712

_______________________________________________
Briggs parts interchangeability and other fun info 1023291?$gif$***Simplicity Racing Team*** #64 Briggs parts interchangeability and other fun info 1023291?$gif$
Simplicity Adventure Edition #64
Diesel Submarine Project
Baja Sears Suburban
Modified Briggs Model 5s
ATLTF.COM Race Truck
Back to top Go down
redlinemotorsportts
Moderator
Moderator
redlinemotorsportts

Age : 22
Join date : 2013-03-18
Posts : 3126
Forum Rep : 3
Location : raleigh nc

Briggs parts interchangeability and other fun info Empty
PostSubject: Re: Briggs parts interchangeability and other fun info   Briggs parts interchangeability and other fun info Icon_minitimeThu Oct 09, 2014 10:47 pm

I wonder if you can swap that single crank out for a traditional crank with castes counterweights on the crank.

_______________________________________________
Check out my builds!: MTD "Rock Bouncing" Mower -------- 60's Springfeild V-twin Mini Speed Tractor : SOLD!
Briggs parts interchangeability and other fun info Screen17
ATLTF.com Facebook admin - Forum Mod
whos mans is this
Back to top Go down
Doc Sprocket
Administrator
Administrator
Doc Sprocket

Age : 46
Join date : 2013-04-21
Posts : 2911
Forum Rep : 19
Location : Ontario Canada

Briggs parts interchangeability and other fun info Empty
PostSubject: Re: Briggs parts interchangeability and other fun info   Briggs parts interchangeability and other fun info Icon_minitimeFri Oct 10, 2014 5:59 pm

Sure- if you could actually find a suitable one. I'm not so sure they exist. ARC racing sells brass counterweights that you can use on a SB crank- you simply take the counterweight eccentrics off the crank, and slip these on. Well- certain SM cranks anyways. Documentation suggests that SOME SB cranks don't have removable eccentrics so I think if you have one like that, you're pretty much screwed.

_______________________________________________
***Get YOUR official "Doc Locked, And Ready To Rock!" Stickers by clicking here!***
***Official Sprocket's Garage vinyl graphics and tees for sale HERE!***
Briggs parts interchangeability and other fun info Facebo12
Put down the wrench, and come out with your hands up!-Doc "Tranny Crusher" Sprocket, ATLTF Forum Admin, Thinkerer and Tinkerer, and all-around good dood. Wink

Gen. Mayhem- http://www.atltf.com/t2597-general-mayhem-race-tractor
MULE- http://www.atltf.com/t2153-lawn-boy-utltv
MULEII- http://www.atltf.com/t3328-1970-john-deere-112-the-beginnings-of-mule-ii
MULEIII http://www.atltf.com/t4263-mule3-brainstorming-ideas-etc#58287
Wrench, Wheel, Wreck, Repeat...
Back to top Go down
mr.modified
Seasoned Veteran
Seasoned Veteran
mr.modified

Age : 29
Join date : 2013-11-02
Posts : 2278
Forum Rep : 56
Location : New Jersey USA

Briggs parts interchangeability and other fun info Empty
PostSubject: Re: Briggs parts interchangeability and other fun info   Briggs parts interchangeability and other fun info Icon_minitimeFri Oct 10, 2014 7:01 pm

You can get those brass weights or arc has those billet dog bone rods too. Brass weights are about $80 from arc and the billet dog bone rod is $25. Actually, it broke in the engine in the picture and I had to replace it maybe 3-4 years ago when it was still on a grass cutter. Governor was kind of messed up and it would run up too high all the time. The weights banged around in there a little but they didn't break through the case.

_______________________________________________
Briggs parts interchangeability and other fun info 1023291?$gif$***Simplicity Racing Team*** #64 Briggs parts interchangeability and other fun info 1023291?$gif$
Simplicity Adventure Edition #64
Diesel Submarine Project
Baja Sears Suburban
Modified Briggs Model 5s
ATLTF.COM Race Truck
Back to top Go down
Doc Sprocket
Administrator
Administrator
Doc Sprocket

Age : 46
Join date : 2013-04-21
Posts : 2911
Forum Rep : 19
Location : Ontario Canada

Briggs parts interchangeability and other fun info Empty
PostSubject: Re: Briggs parts interchangeability and other fun info   Briggs parts interchangeability and other fun info Icon_minitimeFri Oct 10, 2014 7:28 pm

Given the choice, I think the brass weights are a far superior choice. All the dogbone does, is replace the factory dogbone. You STILL end up with that ridiculous, iron, 1942-friggin-Buick swinging around in your crankcase. Ees no bueno.

_______________________________________________
***Get YOUR official "Doc Locked, And Ready To Rock!" Stickers by clicking here!***
***Official Sprocket's Garage vinyl graphics and tees for sale HERE!***
Briggs parts interchangeability and other fun info Facebo12
Put down the wrench, and come out with your hands up!-Doc "Tranny Crusher" Sprocket, ATLTF Forum Admin, Thinkerer and Tinkerer, and all-around good dood. Wink

Gen. Mayhem- http://www.atltf.com/t2597-general-mayhem-race-tractor
MULE- http://www.atltf.com/t2153-lawn-boy-utltv
MULEII- http://www.atltf.com/t3328-1970-john-deere-112-the-beginnings-of-mule-ii
MULEIII http://www.atltf.com/t4263-mule3-brainstorming-ideas-etc#58287
Wrench, Wheel, Wreck, Repeat...
Back to top Go down
mr.modified
Seasoned Veteran
Seasoned Veteran
mr.modified

Age : 29
Join date : 2013-11-02
Posts : 2278
Forum Rep : 56
Location : New Jersey USA

Briggs parts interchangeability and other fun info Empty
PostSubject: Re: Briggs parts interchangeability and other fun info   Briggs parts interchangeability and other fun info Icon_minitimeSat Oct 11, 2014 1:01 pm

I think the flywheel from the 11hp single fits the taper on the opposed twins, but it hits the case on the opposed. I was thinking of using the smaller diameter flywheel and either making an adapter to move the coil closer or using a different ignition system.

_______________________________________________
Briggs parts interchangeability and other fun info 1023291?$gif$***Simplicity Racing Team*** #64 Briggs parts interchangeability and other fun info 1023291?$gif$
Simplicity Adventure Edition #64
Diesel Submarine Project
Baja Sears Suburban
Modified Briggs Model 5s
ATLTF.COM Race Truck
Back to top Go down
mr.modified
Seasoned Veteran
Seasoned Veteran
mr.modified

Age : 29
Join date : 2013-11-02
Posts : 2278
Forum Rep : 56
Location : New Jersey USA

Briggs parts interchangeability and other fun info Empty
PostSubject: Re: Briggs parts interchangeability and other fun info   Briggs parts interchangeability and other fun info Icon_minitimeThu Oct 16, 2014 10:47 pm

Finally started disassembling my 18hp opposed. The interesting two piece aluminum manifold was from the 14hp opposed. I didn't get the manifold bolts loose yet on the 18hp, but it looks like the ports are spaced out the same and manifolds should be interchangeable. The area where the carb mounts is the same.
Briggs parts interchangeability and other fun info Img_3719

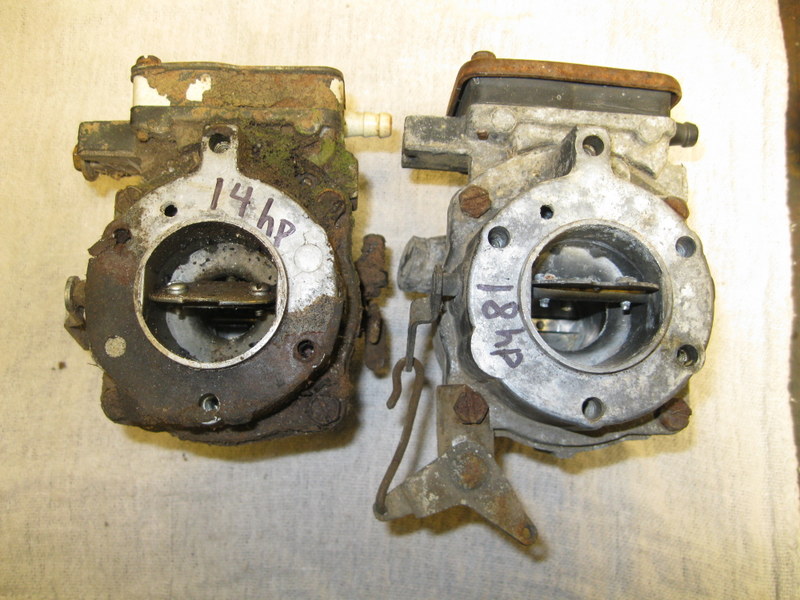

The venturi of the 18hp carb is about 1/8" larger diameter than the one from the 14hp. The throttle plate and the rest of the carb looks to be about the same.
Briggs parts interchangeability and other fun info Img_3720

Heads and tin work are the same.
Briggs parts interchangeability and other fun info Img_3723

The 14 and 18hp share the same bore, but the 18hp has about 1/8" longer stroke. Valves appear to be the same also. Looks like the bores of my 18hp opposed have seen some rain water at some point. Oh well, that extra oil consumption will keep the exhaust valves lubricated...
Briggs parts interchangeability and other fun info Img_3722

_______________________________________________
Briggs parts interchangeability and other fun info 1023291?$gif$***Simplicity Racing Team*** #64 Briggs parts interchangeability and other fun info 1023291?$gif$
Simplicity Adventure Edition #64
Diesel Submarine Project
Baja Sears Suburban
Modified Briggs Model 5s
ATLTF.COM Race Truck
Back to top Go down
redlinemotorsportts
Moderator
Moderator
redlinemotorsportts

Age : 22
Join date : 2013-03-18
Posts : 3126
Forum Rep : 3
Location : raleigh nc

Briggs parts interchangeability and other fun info Empty
PostSubject: Re: Briggs parts interchangeability and other fun info   Briggs parts interchangeability and other fun info Icon_minitimeTue Oct 21, 2014 8:23 pm

What if you put the 14hp rods/pistons in the 18hp block, 1/4" more stroke?

_______________________________________________
Check out my builds!: MTD "Rock Bouncing" Mower -------- 60's Springfeild V-twin Mini Speed Tractor : SOLD!
Briggs parts interchangeability and other fun info Screen17
ATLTF.com Facebook admin - Forum Mod
whos mans is this
Back to top Go down
Carshowkid
Skilled
Skilled
Carshowkid

Age : 20
Join date : 2014-07-22
Posts : 347
Forum Rep : 0
Location : Downers Grove Illinois

Briggs parts interchangeability and other fun info Empty
PostSubject: Re: Briggs parts interchangeability and other fun info   Briggs parts interchangeability and other fun info Icon_minitimeTue Oct 21, 2014 9:39 pm

That's cool you took the time and investigeated... Now all of us that read this know those parts are interchangeable
Back to top Go down
1997 Murray
Expert
Expert
1997 Murray

Age : 20
Join date : 2013-11-13
Posts : 1311
Forum Rep : 2
Location : NW USA

Briggs parts interchangeability and other fun info Empty
PostSubject: Re: Briggs parts interchangeability and other fun info   Briggs parts interchangeability and other fun info Icon_minitimeWed Oct 22, 2014 9:56 am

@redlinemotorsportts wrote:
What if you put the 14hp rods/pistons in the 18hp block, 1/4" more stroke?

the stroke is determined by the crank. the rods do not.
Back to top Go down
redlinemotorsportts
Moderator
Moderator
redlinemotorsportts

Age : 22
Join date : 2013-03-18
Posts : 3126
Forum Rep : 3
Location : raleigh nc

Briggs parts interchangeability and other fun info Empty
PostSubject: Re: Briggs parts interchangeability and other fun info   Briggs parts interchangeability and other fun info Icon_minitimeWed Oct 22, 2014 11:32 am

Stroke is determined by the crank, rods, and pistons. He'd need longer rods with the 18's crank if it's deeper then the 14's, and the wrist pin on the piston needs to be high up towards the rings and then you'd get more stroke.  Least I think.

_______________________________________________
Check out my builds!: MTD "Rock Bouncing" Mower -------- 60's Springfeild V-twin Mini Speed Tractor : SOLD!
Briggs parts interchangeability and other fun info Screen17
ATLTF.com Facebook admin - Forum Mod
whos mans is this
Back to top Go down
Thunderdivine
Seasoned Veteran
Seasoned Veteran
Thunderdivine

Join date : 2012-12-21
Posts : 2098
Forum Rep : 2
Location : Norway, Europe

Briggs parts interchangeability and other fun info Empty
PostSubject: Re: Briggs parts interchangeability and other fun info   Briggs parts interchangeability and other fun info Icon_minitimeWed Oct 22, 2014 11:50 am

@redlinemotorsportts wrote:
Stroke is determined by the crank, rods, and pistons. He'd need longer rods with the 18's crank if it's deeper then the 14's, and the wrist pin on the piston needs to be high up towards the rings and then you'd get more stroke.  Least I think.

Stroke is determined by the block / sleeve no? The crank merely controls the stroke, in my mind atleast Razz

_______________________________________________
*Thunderdivine*
My Custom Racing Mower Build
JD210R - Racing Mower, Sidebuild
My Vintage John Deere 110, 1967 model
"Imagination is more important than knowledge." - Albert Einstein
Back to top Go down
Carshowkid
Skilled
Skilled
Carshowkid

Age : 20
Join date : 2014-07-22
Posts : 347
Forum Rep : 0
Location : Downers Grove Illinois

Briggs parts interchangeability and other fun info Empty
PostSubject: Re: Briggs parts interchangeability and other fun info   Briggs parts interchangeability and other fun info Icon_minitimeWed Oct 22, 2014 3:31 pm

Ok so mostly if you put the 14hp pistions in the 18hp block... You get a more stroke... So mostly more go power.... DO IT!!!
Back to top Go down
mr.modified
Seasoned Veteran
Seasoned Veteran
mr.modified

Age : 29
Join date : 2013-11-02
Posts : 2278
Forum Rep : 56
Location : New Jersey USA

Briggs parts interchangeability and other fun info Empty
PostSubject: Re: Briggs parts interchangeability and other fun info   Briggs parts interchangeability and other fun info Icon_minitimeSat Feb 14, 2015 8:14 pm

Idea from redline to hook two opposed engines together at the base. They line up good. Even if you just made a fake one up it would look cool.
Briggs parts interchangeability and other fun info IMG_3965_zpsrropsj1d

No clearance issues.
Briggs parts interchangeability and other fun info IMG_3962_zpsxno37onn

Exhausts are angled towards each other. Could easily merge the pipes together from the side by side cylinders. Single down draft carb in the middle maybe.
Briggs parts interchangeability and other fun info IMG_3963_zps8o4zkwb0

_______________________________________________
Briggs parts interchangeability and other fun info 1023291?$gif$***Simplicity Racing Team*** #64 Briggs parts interchangeability and other fun info 1023291?$gif$
Simplicity Adventure Edition #64
Diesel Submarine Project
Baja Sears Suburban
Modified Briggs Model 5s
ATLTF.COM Race Truck
Back to top Go down
redlinemotorsportts
Moderator
Moderator
redlinemotorsportts

Age : 22
Join date : 2013-03-18
Posts : 3126
Forum Rep : 3
Location : raleigh nc

Briggs parts interchangeability and other fun info Empty
PostSubject: Re: Briggs parts interchangeability and other fun info   Briggs parts interchangeability and other fun info Icon_minitimeSat Feb 14, 2015 9:53 pm

I could see this working good. Works better then i thought. Cranks dont really move around when the bottom case is off. Take both rods out of both blocks, cut the cranks and bevel em, mock them together and weld the crank inside the blocks.... custom cam extender from some tube, and your golden. I think

_______________________________________________
Check out my builds!: MTD "Rock Bouncing" Mower -------- 60's Springfeild V-twin Mini Speed Tractor : SOLD!
Briggs parts interchangeability and other fun info Screen17
ATLTF.com Facebook admin - Forum Mod
whos mans is this
Back to top Go down
mr.modified
Seasoned Veteran
Seasoned Veteran
mr.modified

Age : 29
Join date : 2013-11-02
Posts : 2278
Forum Rep : 56
Location : New Jersey USA

Briggs parts interchangeability and other fun info Empty
PostSubject: Re: Briggs parts interchangeability and other fun info   Briggs parts interchangeability and other fun info Icon_minitimeSun Feb 15, 2015 10:49 am

Yeah, but I've gotta use one of these engines in stock form. That beat 18hp block would be a good candidate for something like this. If you wanted to mount it to something, you would have to find a way to bolt it down of course. Also, you might need a couple more places to bolt the two blocks together since a couple of the holes would be impossible to use. Probably other engines with side covers would line up the same way. Might be some neat combinations with single cylinders.

_______________________________________________
Briggs parts interchangeability and other fun info 1023291?$gif$***Simplicity Racing Team*** #64 Briggs parts interchangeability and other fun info 1023291?$gif$
Simplicity Adventure Edition #64
Diesel Submarine Project
Baja Sears Suburban
Modified Briggs Model 5s
ATLTF.COM Race Truck
Back to top Go down
Sponsored content




Briggs parts interchangeability and other fun info Empty
PostSubject: Re: Briggs parts interchangeability and other fun info   Briggs parts interchangeability and other fun info Icon_minitime

Back to top Go down

Briggs parts interchangeability and other fun info
Back to top
Page 1 of 1
 Similar topics
-
» 12 hp Briggs i/c a 1985 model is knocking
» Rhino Parts For Sale
» Rhino Parts
» Briggs and Stratton didn't get it right, maybe one of you will.
» Very imortant info- Thanks 04 parents!!!!

Permissions in this forum:You cannot reply to topics in this forum
All-Terrain Lawn Tractor Forum :: Technical Forum :: Engine Tech :: Briggs and Stratton-
Jump to:
