 MatthewD's Westwood S1200 Build [2016 Build-Off Entry]

Go down
+14
Doug
MightyRaze
MatthewD
Thunderdivine
1997 Murray
Off Road Domination
redlinemotorsportts
mr.modified
STUNTMAN JON
redzz02
MasonMcK
Rockinator
Doc Sprocket
jonnya
18 posters
Go to page : Previous  1, 2, 3, 4, 5, 6, 7  Next
AuthorMessage
Doug
Site Owner

Site Owner

2500+ Posts
2500+ Posts!
2014 Build-Off Entrant
2014 Build-Off Entrant
2017 Build-Off Entrant
2017 Build-Off Entrant

Join date : 2012-12-24
Posts : 3033

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Icon_minitimeOctober 28th 2016, 11:46 am

I dont think the flop will affect it too much if you cut the joint off and do a V instead of a single rod. Youll want to do that anyways to make the axle stronger and less likely to snap off or bend. Once you do that and get it sprung and the panhard mounted it shouldnt be an issue until it starts making noise from excess slop.
Back to top Go down
MatthewD
Veteran Member
MatthewD
Veteran Member

1000+ Posts
1000+ Posts!
2015 Build-Off Entrant
2015 Build-Off Entrant
2016 Build-Off Entrant
2016 Build-Off Entrant

Age : 22
Join date : 2014-11-16
Points : 5506
Posts : 1993
Location : Northern Ireland

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Icon_minitimeOctober 28th 2016, 11:54 am

Yeah well I plan on doing the V because there's no way I could get any strength out of that threaded joint. That's just there to help me get measurements etc done before I finish welding everything up.
Back to top Go down
MatthewD
Veteran Member
MatthewD
Veteran Member

1000+ Posts
1000+ Posts!
2015 Build-Off Entrant
2015 Build-Off Entrant
2016 Build-Off Entrant
2016 Build-Off Entrant

Age : 22
Join date : 2014-11-16
Points : 5506
Posts : 1993
Location : Northern Ireland

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Icon_minitimeOctober 29th 2016, 11:26 am

So instead of having the panhard rod I was thinking of just using some guide bars from the frame to stabilize the axle and stop it walking from side to side.
Back to top Go down
MatthewD
Veteran Member
MatthewD
Veteran Member

1000+ Posts
1000+ Posts!
2015 Build-Off Entrant
2015 Build-Off Entrant
2016 Build-Off Entrant
2016 Build-Off Entrant

Age : 22
Join date : 2014-11-16
Points : 5506
Posts : 1993
Location : Northern Ireland

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Icon_minitimeOctober 29th 2016, 7:45 pm

So progress on the front end stopped yesterday because I ran out of steel. I'm getting some on Tuesday but meanwhile I've nearly finished the clutch. I've just got to either bush the clutch pivot or get a bigger bolt and adjust the belt retainers. It's really just the stock Westwood configuration but slightly modified.

Fabbed a clutch/brake pedal
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Dsc00313

Engaged
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Dsc00315

Disengaged
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Dsc00314

The rod on the clutch plate connects to the end of the pedal rod. My other Westwood has exactly the same configuration.
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Dsc00316

Back to top Go down
MatthewD
Veteran Member
MatthewD
Veteran Member

1000+ Posts
1000+ Posts!
2015 Build-Off Entrant
2015 Build-Off Entrant
2016 Build-Off Entrant
2016 Build-Off Entrant

Age : 22
Join date : 2014-11-16
Points : 5506
Posts : 1993
Location : Northern Ireland

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Icon_minitimeNovember 5th 2016, 12:08 pm

Update!
Haven't been doing much work on the Westwood this week, but I did manage to get some 40mm (1 1/2") box section for my front axle triangulation. It's not finished, the ball joint still needs some bracing but that will come later. It look me like 2 days to do all those strange angles with nothing other than a 4 inch angle grinder and a protractor.

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Dsc00310

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Dsc00422

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Dsc00423

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Dsc00420


Last edited by MatthewD on November 5th 2016, 5:16 pm; edited 1 time in total
Back to top Go down
Doug
Site Owner
Doug
Site Owner

2500+ Posts
2500+ Posts!
2014 Build-Off Entrant
2014 Build-Off Entrant
2017 Build-Off Entrant
2017 Build-Off Entrant

Age : 28
Join date : 2012-12-24
Points : 7520
Posts : 3033
Location : Lebanon County, PA

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Icon_minitimeNovember 5th 2016, 12:38 pm

Looking good! A panhard might be the better option versus two supports. All kinds of ways you could make one without needing heims.


Head Forum Administrator ** Chat Moderator ** Facebook Page Admin
ATLTF Facebook Page ** Chatbox ** How To Upload Pictures

_X_ FORUM ANNOUNCEMENTS _X_


Have a question? Ask me! Type in "@Doug" in your post!

Your ATLTF Staff:
Administrators: @Doug, @MightyRaze, @"Doc Sprocket", @Stretch44875
Moderators: @TheRainbowBoxer, @AllisKidD21, @Brianator, @RichieRichOverdrive




Back to top Go down
AllisKidD21
Moderator
AllisKidD21
Moderator

5000+ Posts
5000+ Posts!
2020 Build-Off Entrant
2020 Build-Off Entrant
1st Place Build-Off 2019
1st Place Build-Off Winner 2019

Age : 25
Join date : 2016-07-10
Points : 8340
Posts : 5190
Location : Ontario Canada

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Icon_minitimeNovember 5th 2016, 12:58 pm

Looks great man!


"This'll either wake you up or put you to sleep forever!"- Red Green         "Whatever you do you should do right, even if it's something wrong." - Hank Hill

      - MTD Off-Road Build
      - Ford LT 110 Off-Road Build
      - Craftsman GT 6000 Off-Road Build
       - Sears LT11 Rat Rod Build *2019 Build-Off Winner!*


 Garden Tractor Collection: Allis B-110 x2, 710, 716, & 410 - Wheel Horse 655, 953 & 500 Special - Case 444 - Bolens Versamatic, G10 & 1668 Diesel Swapped - Cub 106, 124 & 1000/149 Frankentractor - Ford 120, LGT 125 & 145 - White 1650 Yard Boss - Moto Mower 710-100
Back to top Go down
Doug
Site Owner
Doug
Site Owner

2500+ Posts
2500+ Posts!
2014 Build-Off Entrant
2014 Build-Off Entrant
2017 Build-Off Entrant
2017 Build-Off Entrant

Age : 28
Join date : 2012-12-24
Points : 7520
Posts : 3033
Location : Lebanon County, PA

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Icon_minitimeNovember 5th 2016, 3:02 pm

Heres an idea I thought of as an alternative to heims. Not sure if it would bind up, and the steel would need to be L shaped or at least really thick to prevent flex, but heres the basic idea. Didnt draw it in the pic, but the round ends where bolt goes through would need to go into a U shaped bracket. Only one bar would really need elongated holes. And I would use a lock washer on each side in addition to lock nuts to prevent the bolts from sliding.

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Panhar10


Head Forum Administrator ** Chat Moderator ** Facebook Page Admin
ATLTF Facebook Page ** Chatbox ** How To Upload Pictures

_X_ FORUM ANNOUNCEMENTS _X_


Have a question? Ask me! Type in "@Doug" in your post!

Your ATLTF Staff:
Administrators: @Doug, @MightyRaze, @"Doc Sprocket", @Stretch44875
Moderators: @TheRainbowBoxer, @AllisKidD21, @Brianator, @RichieRichOverdrive




Back to top Go down
MatthewD
Veteran Member
MatthewD
Veteran Member

1000+ Posts
1000+ Posts!
2015 Build-Off Entrant
2015 Build-Off Entrant
2016 Build-Off Entrant
2016 Build-Off Entrant

Age : 22
Join date : 2014-11-16
Points : 5506
Posts : 1993
Location : Northern Ireland

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Icon_minitimeNovember 5th 2016, 5:10 pm

Thanks Allis! @Doug, That might work, although I do have some ball joints kicking around that I'll probably use as I mentioned in chat.

Mock up for rough height. It will be about an inch higher on the front but later I plan to raise the rear slightly

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Dsc00421

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Dsc00419

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Dsc00418

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Dsc00417

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Dsc00414

The engine that will be going in (temporarily, I hope to be getting a 12hp I/C after the build off)

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Dsc00412

Pulley setup I'll probably use. Pretty close to a 1 to 1. 5 inch front, 4 1/2 inch rear.

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Dsc00415

This should end up as my front bumper. Pretty thick wall

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Dsc00416

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Dsc00413


And after these pics were taken, I welded in a cross member at the front because there was quite a bit of flex there.

I think I need to modify the point where the ball joint is attached to the frame. It means that the axle is higher than the ball joint.

I'm also wondering, how much should I leave for those shocks to compress? They are 200lbs. I was thinking 3-4 inches but not sure.
Back to top Go down
Doug
Site Owner
Doug
Site Owner

2500+ Posts
2500+ Posts!
2014 Build-Off Entrant
2014 Build-Off Entrant
2017 Build-Off Entrant
2017 Build-Off Entrant

Age : 28
Join date : 2012-12-24
Points : 7520
Posts : 3033
Location : Lebanon County, PA

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Icon_minitimeNovember 5th 2016, 6:34 pm

I would mock up where the top shock mount would go, mount an engine and anything heavy that might go on it, and go from there. That way it sits with a little back lean after its put together and without you on it, otherwise the front will sag as soon as the engine is on.


Head Forum Administrator ** Chat Moderator ** Facebook Page Admin
ATLTF Facebook Page ** Chatbox ** How To Upload Pictures

_X_ FORUM ANNOUNCEMENTS _X_


Have a question? Ask me! Type in "@Doug" in your post!

Your ATLTF Staff:
Administrators: @Doug, @MightyRaze, @"Doc Sprocket", @Stretch44875
Moderators: @TheRainbowBoxer, @AllisKidD21, @Brianator, @RichieRichOverdrive




Back to top Go down
MatthewD
Veteran Member
MatthewD
Veteran Member

1000+ Posts
1000+ Posts!
2015 Build-Off Entrant
2015 Build-Off Entrant
2016 Build-Off Entrant
2016 Build-Off Entrant

Age : 22
Join date : 2014-11-16
Points : 5506
Posts : 1993
Location : Northern Ireland

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Icon_minitimeNovember 5th 2016, 8:53 pm

Thanks Doug. I'll probably end up doing something like that. For the panhard, I could just make my own adjustable ends instead of having it adjustable in the middle.
Back to top Go down
AllisKidD21
Moderator
AllisKidD21
Moderator

5000+ Posts
5000+ Posts!
2020 Build-Off Entrant
2020 Build-Off Entrant
1st Place Build-Off 2019
1st Place Build-Off Winner 2019

Age : 25
Join date : 2016-07-10
Points : 8340
Posts : 5190
Location : Ontario Canada

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Icon_minitimeNovember 5th 2016, 11:26 pm

Haha, that aluminum pulley looks familiar!


"This'll either wake you up or put you to sleep forever!"- Red Green         "Whatever you do you should do right, even if it's something wrong." - Hank Hill

      - MTD Off-Road Build
      - Ford LT 110 Off-Road Build
      - Craftsman GT 6000 Off-Road Build
       - Sears LT11 Rat Rod Build *2019 Build-Off Winner!*


 Garden Tractor Collection: Allis B-110 x2, 710, 716, & 410 - Wheel Horse 655, 953 & 500 Special - Case 444 - Bolens Versamatic, G10 & 1668 Diesel Swapped - Cub 106, 124 & 1000/149 Frankentractor - Ford 120, LGT 125 & 145 - White 1650 Yard Boss - Moto Mower 710-100
Back to top Go down
MatthewD
Veteran Member
MatthewD
Veteran Member

1000+ Posts
1000+ Posts!
2015 Build-Off Entrant
2015 Build-Off Entrant
2016 Build-Off Entrant
2016 Build-Off Entrant

Age : 22
Join date : 2014-11-16
Points : 5506
Posts : 1993
Location : Northern Ireland

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Icon_minitimeNovember 6th 2016, 12:53 pm

Shhhh, I was hoping no one would notice it was aluminum lol.

Anyway I drew up a pic of the ball joint bracket, at the moment it is about 2 1/2 inches off the frame, I think I can get it to be about 1/4" by removing the 1 1/2" and 1x1 square tubing and replacing it with 1/4 flat stock. The reason the 1x1 is below the 1 1/2 square is because I though that the belt might hit the 1 1/2" but now that I've got the clutch done I know that it won't so I can afford to go even lower. At the moment the bracket is hanging too low which is why I'm redoing it.

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Ball_j10
Back to top Go down
MatthewD
Veteran Member
MatthewD
Veteran Member

1000+ Posts
1000+ Posts!
2015 Build-Off Entrant
2015 Build-Off Entrant
2016 Build-Off Entrant
2016 Build-Off Entrant

Age : 22
Join date : 2014-11-16
Points : 5506
Posts : 1993
Location : Northern Ireland

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Icon_minitimeNovember 7th 2016, 6:04 pm

Got a bit done today, tore the old ball joint bracket off (it wasn't welded on straight lol) and started to mock up the 1/4" plate. Have got it all welded up, took some pics but my camera mysteriously deleted them so I'll try snap some tomorrow.
Back to top Go down
MightyRaze
Administrator
MightyRaze
Administrator

2017 Build-Off Finalist
2017 Build-Off Finalist
2018 Build-Off Top 3 Winner
2018 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2021 Winner of Winners
2021 Winner of Winners
1st Place Build-Off 2022
1st Place Build-Off Winner 2022
10,000 POSTS!
10,000 POSTS!
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 48
Join date : 2016-09-06
Points : 14921
Posts : 10540
Location : Oklahoma

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Icon_minitimeNovember 8th 2016, 9:37 am

Got to love those gremlins in electronics.


MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Sig115PROJECTS:
     Marshal ........93 Craftsman GT6000
     Red Bandit ...72 Wheel Horse Raider 12
     Dirty Rat........77 Sears Suburban
     Bowser..........01 Murray Widebody LT
     Other projects
Have a question? Ask me! Type in "@MightyRaze" in your post!
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Sig214MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Sig314
Back to top Go down
MatthewD
Veteran Member
MatthewD
Veteran Member

1000+ Posts
1000+ Posts!
2015 Build-Off Entrant
2015 Build-Off Entrant
2016 Build-Off Entrant
2016 Build-Off Entrant

Age : 22
Join date : 2014-11-16
Points : 5506
Posts : 1993
Location : Northern Ireland

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Icon_minitimeNovember 8th 2016, 12:49 pm

Yep, its a Sony Handycam, got it for free. Getting a new camera for Christmas anyway.
Back to top Go down
mr.modified
Veteran Member
mr.modified
Veteran Member

2015 Build-Off Top 3 Winner
2015 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2018 Build-Off Finalist
2018 Build-Off Finalist
2022 Build-Off Entrant
2022 Build-Off Entrant
2500+ Posts
2500+ Posts!
1st Place Build-Off 2014
1st Place Build-Off Winner 2014
2023 Build-Off Entrant
2023 Build-Off Entrant

Age : 34
Join date : 2013-11-02
Points : 6916
Posts : 2906
Location : New Jersey USA

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Icon_minitimeNovember 8th 2016, 6:15 pm

Front end looking good. I bet that square tubing is a little easier to fit together than my pipe was. I tried measuring it out, but it got pretty messed up, in the end I just welded everything up. Seems to hold together good though.
Back to top Go down
MatthewD
Veteran Member
MatthewD
Veteran Member

1000+ Posts
1000+ Posts!
2015 Build-Off Entrant
2015 Build-Off Entrant
2016 Build-Off Entrant
2016 Build-Off Entrant

Age : 22
Join date : 2014-11-16
Points : 5506
Posts : 1993
Location : Northern Ireland

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Icon_minitimeNovember 9th 2016, 12:30 pm

Yeah Mr mod, it's really hard to get it straight, and the monolink still needs to be more securely welded to the tube. It took me about 4 days on and off working on it to get it straight. I still don't think it is perfectly straight though. Anyway, I ordered a set of M12 heims last night for the panhard. Should be here in a few days.
Back to top Go down
The author of this message was banned from the forum - See the message
MatthewD
Veteran Member
MatthewD
Veteran Member

1000+ Posts
1000+ Posts!
2015 Build-Off Entrant
2015 Build-Off Entrant
2016 Build-Off Entrant
2016 Build-Off Entrant

Age : 22
Join date : 2014-11-16
Points : 5506
Posts : 1993
Location : Northern Ireland

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Icon_minitimeNovember 18th 2016, 1:58 pm

My internet has been down for a while so only getting these pics up now

New monolink bracket. It's much better than the old one. About 2 1/4 inches closer to the frame.

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Dsc00426

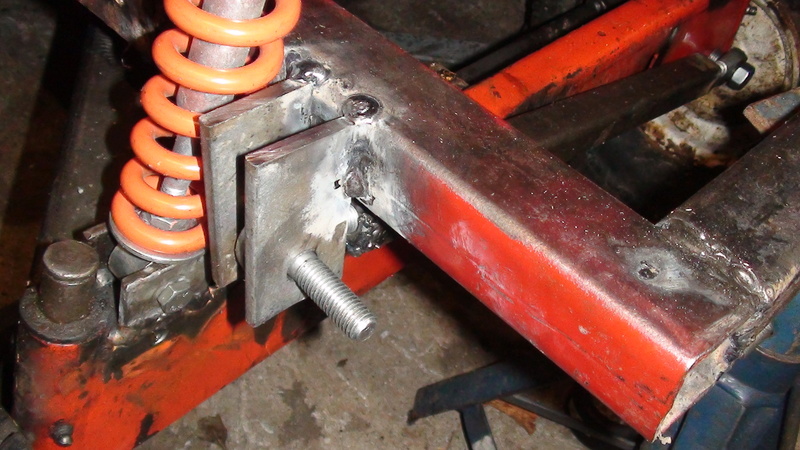

Panhard bracket on the frame.

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Dsc00425

Back to top Go down
mr.modified
Veteran Member
mr.modified
Veteran Member

2015 Build-Off Top 3 Winner
2015 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2018 Build-Off Finalist
2018 Build-Off Finalist
2022 Build-Off Entrant
2022 Build-Off Entrant
2500+ Posts
2500+ Posts!
1st Place Build-Off 2014
1st Place Build-Off Winner 2014
2023 Build-Off Entrant
2023 Build-Off Entrant

Age : 34
Join date : 2013-11-02
Points : 6916
Posts : 2906
Location : New Jersey USA

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Icon_minitimeNovember 18th 2016, 3:04 pm

Nice.
Back to top Go down
MatthewD
Veteran Member
MatthewD
Veteran Member

1000+ Posts
1000+ Posts!
2015 Build-Off Entrant
2015 Build-Off Entrant
2016 Build-Off Entrant
2016 Build-Off Entrant

Age : 22
Join date : 2014-11-16
Points : 5506
Posts : 1993
Location : Northern Ireland

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Icon_minitimeNovember 18th 2016, 4:44 pm

Thanks! Glad you think so haha, your Simplicity build was the inspiration for this one.


Last edited by MatthewD on November 19th 2016, 6:36 am; edited 1 time in total
Back to top Go down
RichieRichOverdrive
Moderator
RichieRichOverdrive
Moderator

2500+ Posts
2500+ Posts!
2018 Build-Off Entrant
2018 Build-Off Entrant
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 21
Join date : 2016-10-29
Points : 6476
Posts : 3549
Location : Lewisburg, KY

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Icon_minitimeNovember 18th 2016, 5:32 pm

Looks good! Y'know, it wouldn't be too hard to put suspension like that on the new front axle i made......
Back to top Go down
MatthewD
Veteran Member
MatthewD
Veteran Member

1000+ Posts
1000+ Posts!
2015 Build-Off Entrant
2015 Build-Off Entrant
2016 Build-Off Entrant
2016 Build-Off Entrant

Age : 22
Join date : 2014-11-16
Points : 5506
Posts : 1993
Location : Northern Ireland

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Icon_minitimeNovember 19th 2016, 6:39 am

Yeah, although it is really hard to get straight and alined true.
Back to top Go down
MatthewD
Veteran Member
MatthewD
Veteran Member

1000+ Posts
1000+ Posts!
2015 Build-Off Entrant
2015 Build-Off Entrant
2016 Build-Off Entrant
2016 Build-Off Entrant

Age : 22
Join date : 2014-11-16
Points : 5506
Posts : 1993
Location : Northern Ireland

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Icon_minitimeNovember 19th 2016, 5:10 pm

So, the suspension is finished (some welding/tightning of bolts to be done) and I'm started on the steering. Also got my front and rear bumpers mounted. I took lots of pics but my camera did not save them AGAIN!! :facepalm: Lol, I'll try take some tomorrow.
Back to top Go down
MatthewD
Veteran Member
MatthewD
Veteran Member

1000+ Posts
1000+ Posts!
2015 Build-Off Entrant
2015 Build-Off Entrant
2016 Build-Off Entrant
2016 Build-Off Entrant

Age : 22
Join date : 2014-11-16
Points : 5506
Posts : 1993
Location : Northern Ireland

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Icon_minitimeNovember 20th 2016, 10:03 am

Got some pics!
I've finally got a rolling chassis but only got 10 days of the build off remaining so I might not make it Sad

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Dsc00429
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Dsc00430
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Dsc00428
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Dsc00427
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Dsc00432
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Dsc00431
Back to top Go down
Sponsored content





MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 5 Icon_minitime

Back to top Go down

MatthewD's Westwood S1200 Build [2016 Build-Off Entry]
Back to top
Page 5 of 7Go to page : Previous  1, 2, 3, 4, 5, 6, 7  Next
 Similar topics
-
» 1984 murray build [2016 Build-Off Entry]
» "Ryf" GT Build [2016 Build-Off Entry]
» jd 214 mudder [2016 Build-Off Entry]
» The SimpleGator [2016 Build-Off Entry]
» John Deere 108 "SRT 24" [2016 Build-Off Entry]

Permissions in this forum:You cannot reply to topics in this forum
All-Terrain Lawn Tractor Forum :: Tractor Project Builds :: Off Road & Rally Tractors-
Jump to:
