@MatthewD wrote:
Hi,
I played some Matt black on the front rims, but it all started to wrinkle up. Why is this? Need help! Exclamation scratch bounce

kid you need to go to bed lol, Its been crap weather for spraying/painting over the last few days for sure, had you a primer down before this coat?


Back to top Go down
MatthewD
Grand Master
Grand Master
MatthewD

Age : 17
Join date : 2014-11-16
Posts : 1992
Forum Rep : 40
Location : Northern Ireland

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Icon_minitimeThu Feb 18, 2016 8:28 pm

Oh I know I should. And Yes, I did have primer on before this coat. Maybe I should wait till it warms up a bit.


Last edited by MatthewD on Sun Mar 13, 2016 6:39 am; edited 1 time in total
Back to top Go down
MatthewD
Grand Master
Grand Master
MatthewD

Age : 17
Join date : 2014-11-16
Posts : 1992
Forum Rep : 40
Location : Northern Ireland

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Icon_minitimeFri Feb 19, 2016 7:51 pm

I'm debating on whether to run the engine with out the governor (bypassing it) or try and get a throttle body. I'm now planning on doing a foot throttle
Back to top Go down
mr.modified
Seasoned Veteran
Seasoned Veteran
mr.modified

Age : 29
Join date : 2013-11-02
Posts : 2263
Forum Rep : 56
Location : New Jersey USA

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Icon_minitimeFri Feb 19, 2016 9:05 pm

Possibly messed up due to the cold, unless you primed it first and didn't let it dry enough or something like that. For instance, most spray paints say to make all coats within one hour or else wait 4 days. Something like that anyway. I think I had that happen to me once where the paint wrinkled up. The only other issue I've had with paint is high humidity. Too high humidity with black paint and it turns greyish as it drys. All the important specs are on the can though. A couple of cans I've had small chunks spray out now and then. Maybe they were sitting for a long time and had some dry paint inside. That messed up one of my engine shrouds.

_______________________________________________
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 1023291?$gif$***Simplicity Racing Team*** #64 MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 1023291?$gif$
Simplicity Adventure Edition #64
Diesel Submarine Project
Baja Sears Suburban
Modified Briggs Model 5s
ATLTF.COM Race Truck
Back to top Go down
MatthewD
Grand Master
Grand Master
MatthewD

Age : 17
Join date : 2014-11-16
Posts : 1992
Forum Rep : 40
Location : Northern Ireland

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Icon_minitimeSun Feb 21, 2016 12:45 pm

Yeah. I'll try and get them painted again when it warms up.

Got some more work done this weekend. Clutch is almost done.

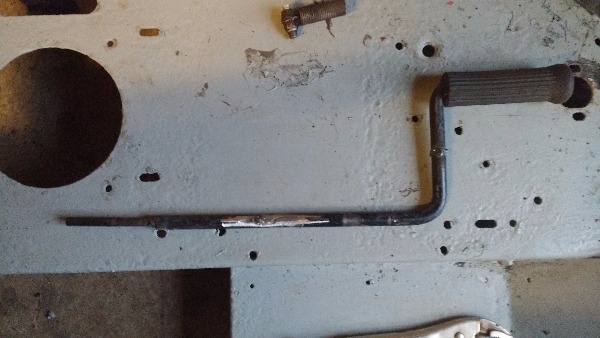

This is the butchered Rally clutch pedal, with a wee piece of bar welded on the end to slide into the original clutch pedal.
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 M80tb

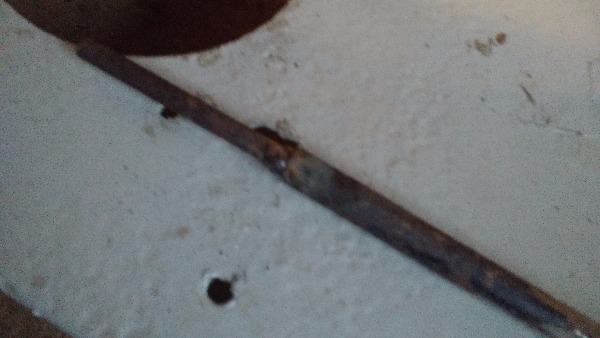

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 M8lAu

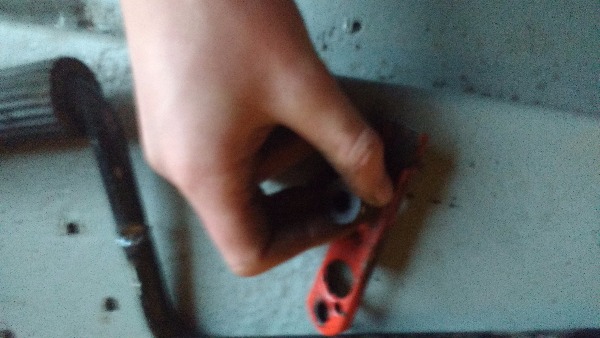

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 M8xjg
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 M8fus

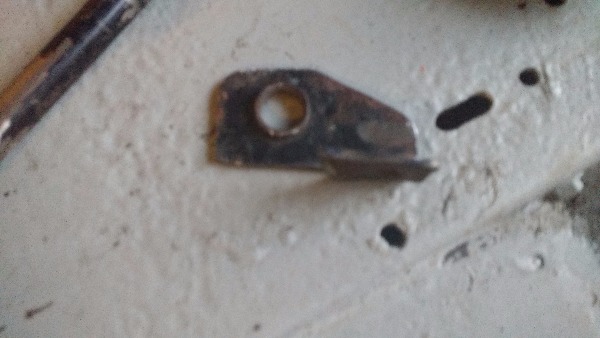

Made a bracket to hold the left side of the clutch pedal.
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 M8HDK

Rough mock up of how its going to go
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 M8qak

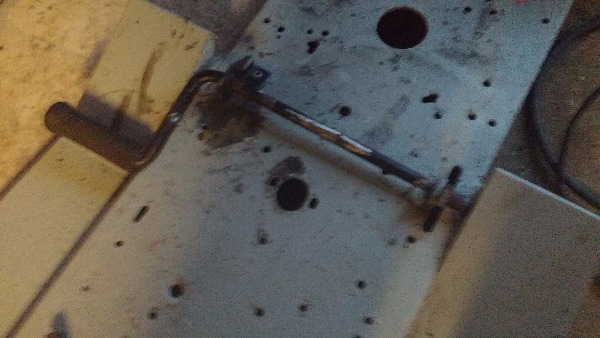

Welding in the bracket
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 M84ey

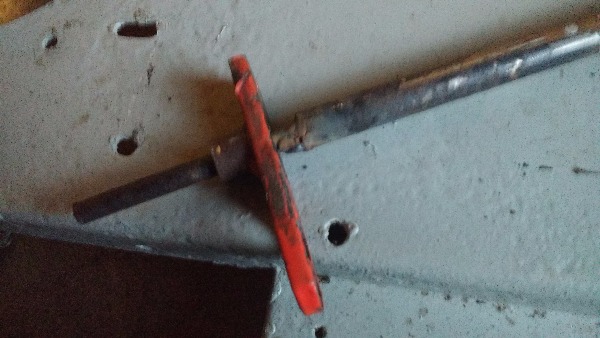

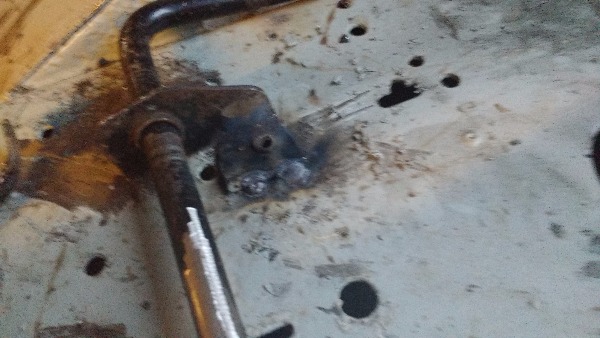

Clutch linkage bit spot welded in
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 M8Fbh

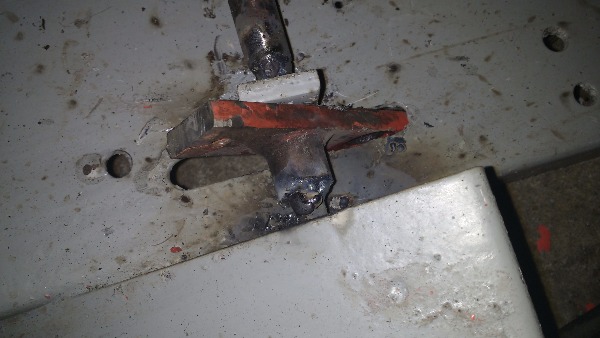

Clutch in

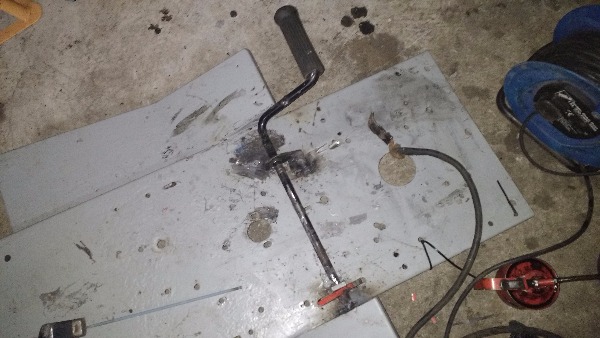

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 M8QHn

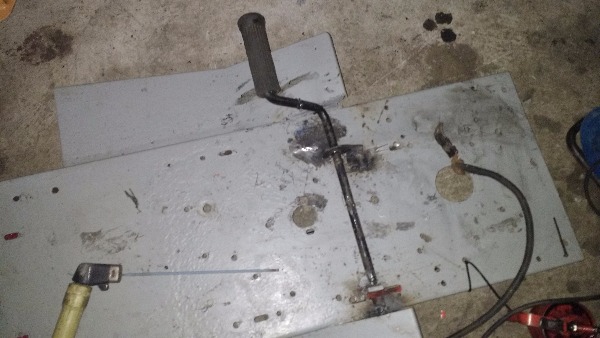

Clutch out
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 M8aIU

After this, its just fine tuning really, but the bulk of it is complete.
Back to top Go down
MatthewD
Grand Master
Grand Master
MatthewD

Age : 17
Join date : 2014-11-16
Posts : 1992
Forum Rep : 40
Location : Northern Ireland

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Icon_minitimeSun Feb 21, 2016 4:19 pm

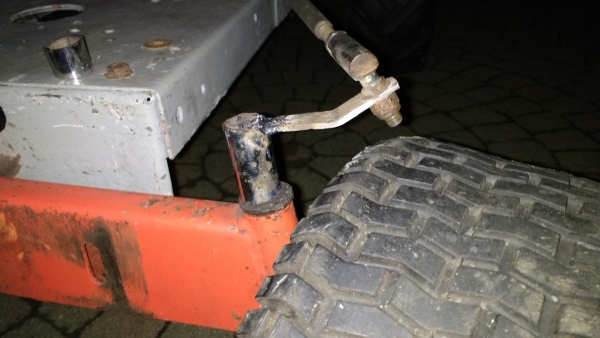

Got some work on the front axle done today. I had to make the linkage that connects the two spindles as that was missing.

Dug around and found two bits that I could use. A steering arm from the parts Rally and a shifter linkage that had broken and been rewelded so many times that it was threw in the scrap pile.
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 M8NnD

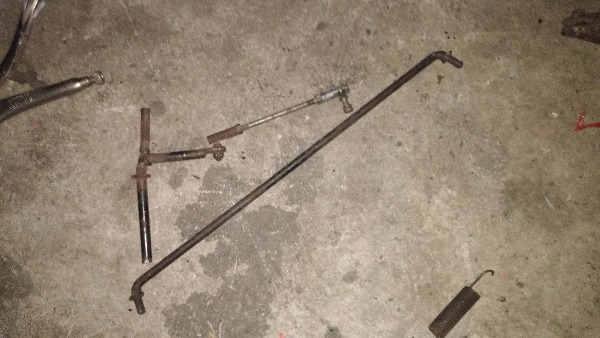

First job was to remove the bit that had the adjustable arms on it off the rest of the shifter linkage.
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 M8Xu7

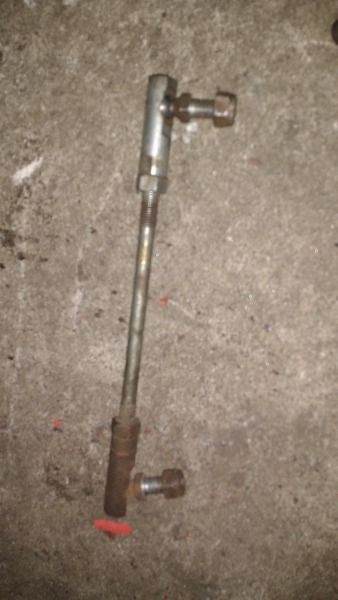

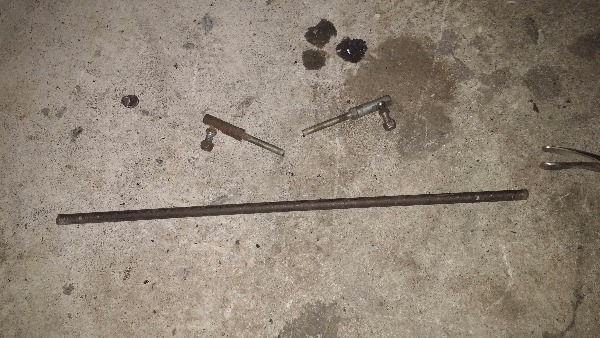

Then I had to cut the adjustable arm linkage in half and trim the ends off the Rally front axle linkage.
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 M8nJQ

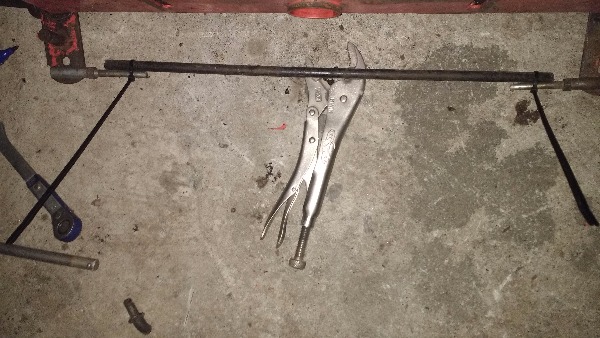

Then I cabled tied the bits together ready for welding it.
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 M8zlR

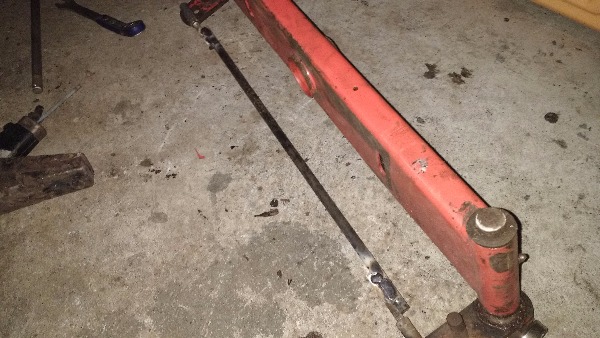

Burned her in.
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 M89eP
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 M8kmq

The frontaxle usually sits infront of this axle hanger but I dont have the front one so I'm thinking of making one or putting the axle behind the axle carrier.

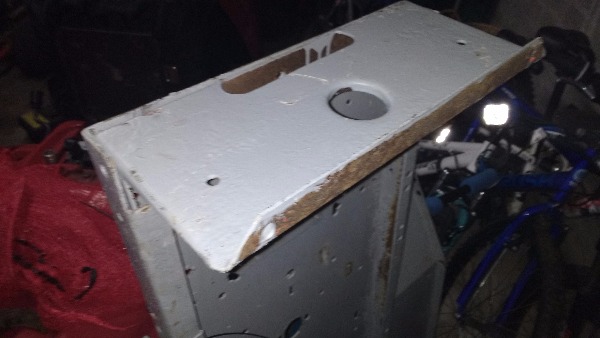

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 M8BtB

After this, my welder blew a fuse so I quit for the night.
Back to top Go down
MatthewD
Grand Master
Grand Master
MatthewD

Age : 17
Join date : 2014-11-16
Posts : 1992
Forum Rep : 40
Location : Northern Ireland

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Icon_minitimeMon Feb 22, 2016 7:27 pm

When I was cleaning the 12hp carb (for testing) I found that there was no jet in it. So I'll have to look for that. I also painted the shroud gloss white.








Back to top Go down
Off Road Domination
Apprentice
Apprentice
Off Road Domination

Age : 17
Join date : 2016-02-17
Posts : 74
Forum Rep : 0

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Icon_minitimeTue Feb 23, 2016 2:15 pm

Looks like a really cool project cant wait ti see it
Back to top Go down
MatthewD
Grand Master
Grand Master
MatthewD

Age : 17
Join date : 2014-11-16
Posts : 1992
Forum Rep : 40
Location : Northern Ireland

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Icon_minitimeTue Feb 23, 2016 2:22 pm

Thanks.
I have been sandblasting the rims and the primer below the topcoat is just mush so maybe it wasn't totally dry before I got the black on. It's still tough to get off though. Got a second coat on my shroud as well.
Back to top Go down
Off Road Domination
Apprentice
Apprentice
Off Road Domination

Age : 17
Join date : 2016-02-17
Posts : 74
Forum Rep : 0

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Icon_minitimeTue Feb 23, 2016 2:25 pm

Awesome
Back to top Go down
1997 Murray
Expert
Expert
1997 Murray

Age : 20
Join date : 2013-11-13
Posts : 1311
Forum Rep : 2
Location : NW USA

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Icon_minitimeTue Feb 23, 2016 2:38 pm

Nice. I should repaint my tractor, I did it once. I had an auto body shop paint one, it turned out nice, but It was a tractor so it got dirty and the paint got scratched. Cost me an arm and leg, but looked good.
Back to top Go down
MatthewD
Grand Master
Grand Master
MatthewD

Age : 17
Join date : 2014-11-16
Posts : 1992
Forum Rep : 40
Location : Northern Ireland

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Icon_minitimeTue Feb 23, 2016 6:17 pm

Yeah I'm just doing it myself with spray cans.


Last edited by MatthewD on Sun Mar 13, 2016 6:40 am; edited 1 time in total
Back to top Go down
mr.modified
Seasoned Veteran
Seasoned Veteran
mr.modified

Age : 29
Join date : 2013-11-02
Posts : 2263
Forum Rep : 56
Location : New Jersey USA

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Icon_minitimeTue Feb 23, 2016 9:32 pm

Just realized the stock westwood colors are sort of like Maico colors.....
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 6091860

_______________________________________________
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 1023291?$gif$***Simplicity Racing Team*** #64 MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 1023291?$gif$
Simplicity Adventure Edition #64
Diesel Submarine Project
Baja Sears Suburban
Modified Briggs Model 5s
ATLTF.COM Race Truck
Back to top Go down
MatthewD
Grand Master
Grand Master
MatthewD

Age : 17
Join date : 2014-11-16
Posts : 1992
Forum Rep : 40
Location : Northern Ireland

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Icon_minitimeWed Feb 24, 2016 11:59 am

Sort of. It's more orange though than red.
Back to top Go down
MatthewD
Grand Master
Grand Master
MatthewD

Age : 17
Join date : 2014-11-16
Posts : 1992
Forum Rep : 40
Location : Northern Ireland

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Icon_minitimeWed Feb 24, 2016 6:47 pm

So, doing some work on the front axle. Will post pics when it's all done. I'm doing a pivoting front axle. I'm not sure whether to cut into the front axle to take out the bushing or not. Not sure how else I would get it out tbh.
Back to top Go down
mr.modified
Seasoned Veteran
Seasoned Veteran
mr.modified

Age : 29
Join date : 2013-11-02
Posts : 2263
Forum Rep : 56
Location : New Jersey USA

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Icon_minitimeWed Feb 24, 2016 9:58 pm

Your not using the bushing as it was from the factory?

_______________________________________________
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 1023291?$gif$***Simplicity Racing Team*** #64 MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 1023291?$gif$
Simplicity Adventure Edition #64
Diesel Submarine Project
Baja Sears Suburban
Modified Briggs Model 5s
ATLTF.COM Race Truck
Back to top Go down
MatthewD
Grand Master
Grand Master
MatthewD

Age : 17
Join date : 2014-11-16
Posts : 1992
Forum Rep : 40
Location : Northern Ireland

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Icon_minitimeThu Feb 25, 2016 2:59 am

No I'm taking the bushing out of the rally front axle to weld it in to the Westwood one
Back to top Go down
MatthewD
Grand Master
Grand Master
MatthewD

Age : 17
Join date : 2014-11-16
Posts : 1992
Forum Rep : 40
Location : Northern Ireland

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Icon_minitimeSat Feb 27, 2016 8:17 pm

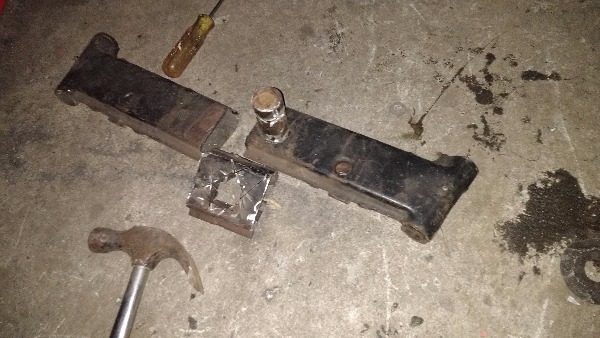

Rally front axle donating it's center pivot bushing.
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 MTEvg

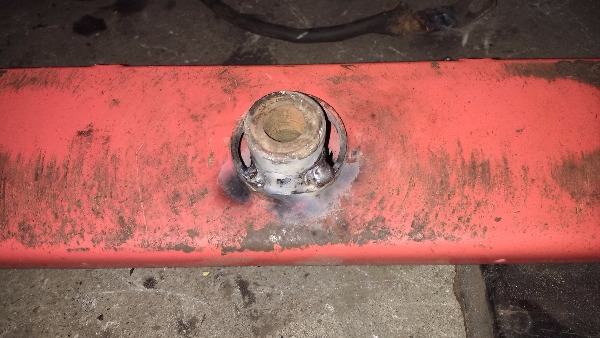

Bushing being welded in to the Westwood front axle. The gaps will later get plated in.
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 MTkBs

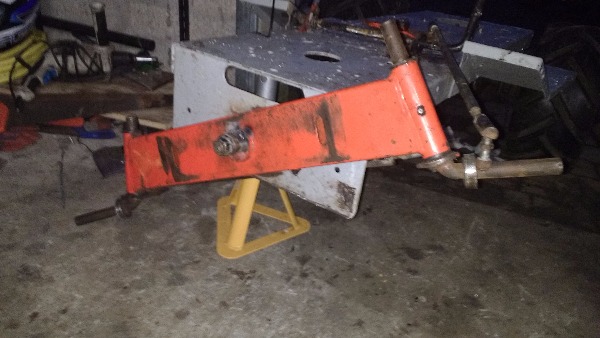

Test fit. I did actually weld a piece of steel plate onto the rear front axle carrier to accept the bolt to allow the axle to pivot. Usually they are fixed on Westwoods.
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 MT27K

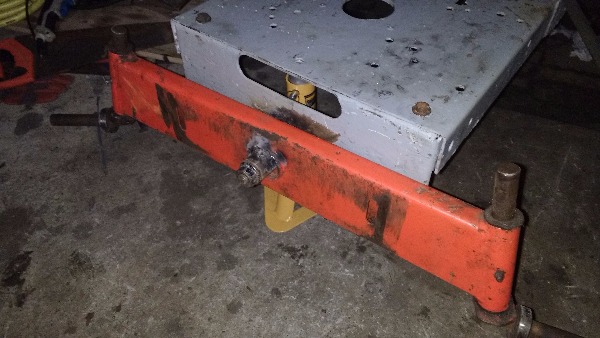

This shows how much potential flex there is with the axle being forward of the frame. There is actually more, just my axle stand doesn't go high enough!
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 MTZSk

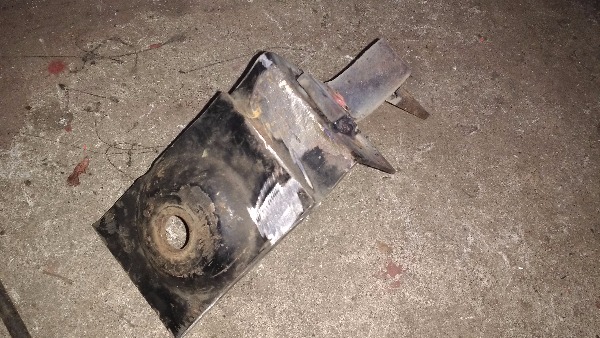

Start of the front mount/bracket. This only serves to stop the front axle going all over the place when it pivots so it doesnt need to be extra strong.
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 MTg5y

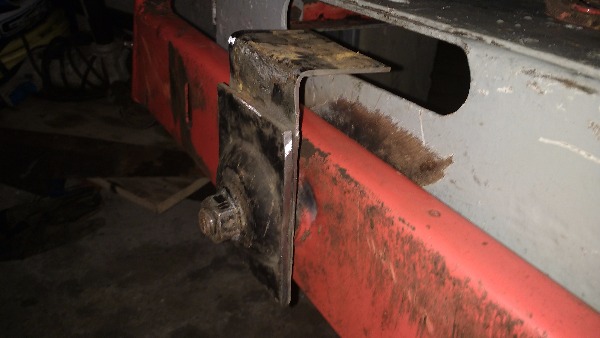

Bracket to mount it to the frame welded on. I just used pieces of steel that I had laying around to make this.
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 MTwgh

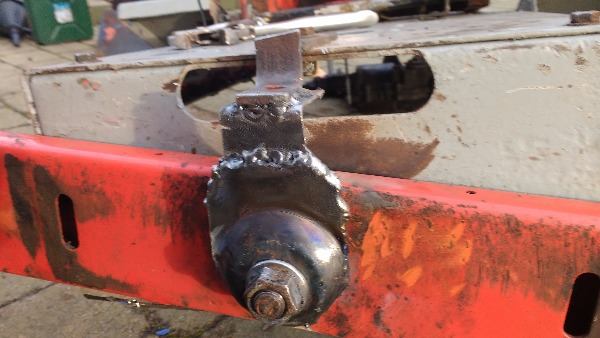

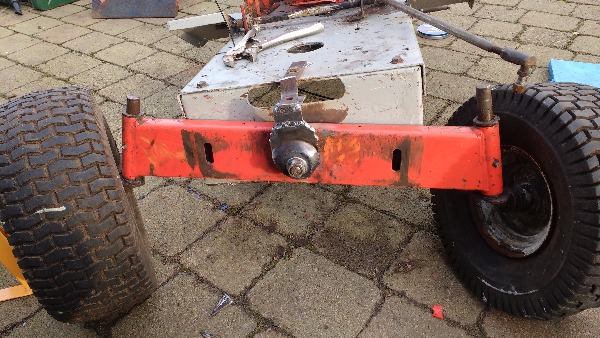

Finished mount. Got some spare front tyres on as I still have to get the other ones on the painted rims.
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 MTPon
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 MTexU

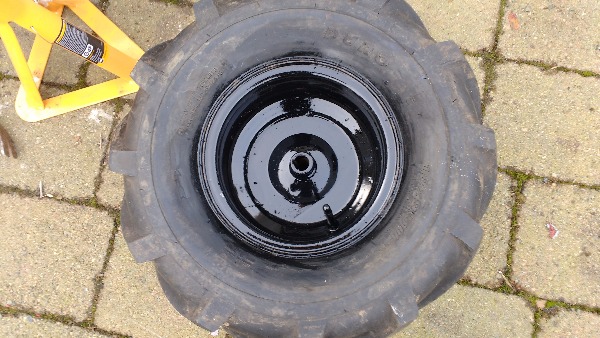

Also got my rear rims painted. Using Chevrons this time, instead of the turfs I intended.
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 MT69u

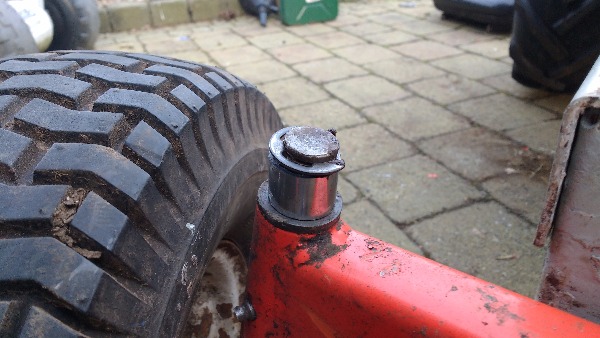

Made a spacer for the right hand side spindle just like the one on my other Westwood. You can also see a bit of how the stock Westwood front axle configuration works. The main reason I done it the way I did is because I was missing nearly all the parts and had to make them. So I made it better.
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 MTOUD
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 MT7TB

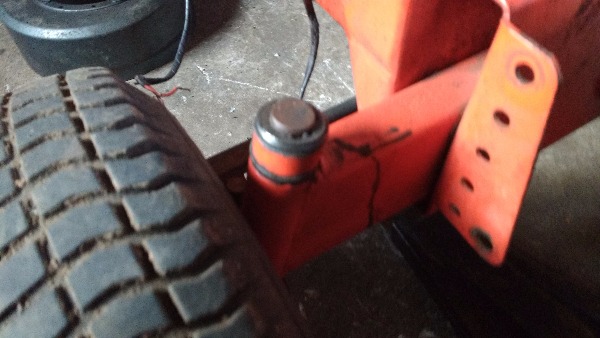

Next thing to do is working on the steering (I have it mostly done, just need to set it up right) and the steering arm for the left hand side spindle. Watch this space!
Back to top Go down
MatthewD
Grand Master
Grand Master
MatthewD

Age : 17
Join date : 2014-11-16
Posts : 1992
Forum Rep : 40
Location : Northern Ireland

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Icon_minitimeThu Mar 03, 2016 5:17 pm

Right, another update. This one covers the fabrication of the left steering arm.

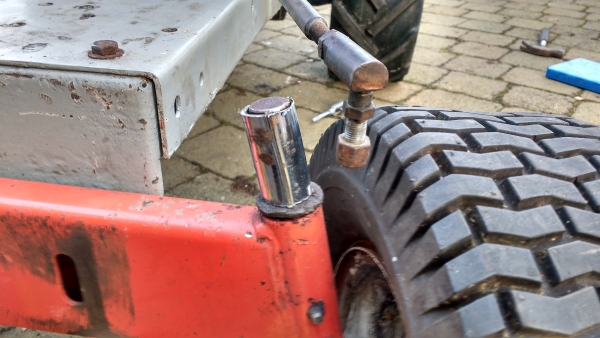

This was my first attempt, a bit of tube welded to the top of the spindle with a length of plate welded to it with a hole in it.
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 MTKEx
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 MToTA

This didnt work because the tubing was too thin to get good penetration and the welding just broke. So............ a Mk2 was on the way.

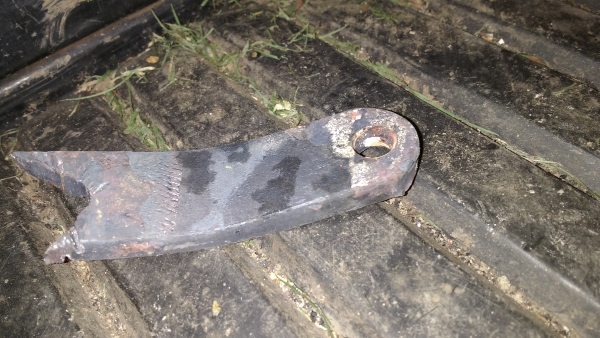

This is the Mk2 steering arm. It's just really a piece of Westwood deck hanger, put in the stove until it was red hot and then bent and a 'semi circle' cut in one end with the grinder.
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 MhmL8

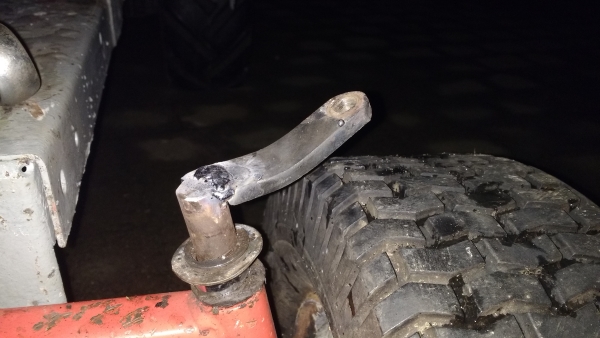

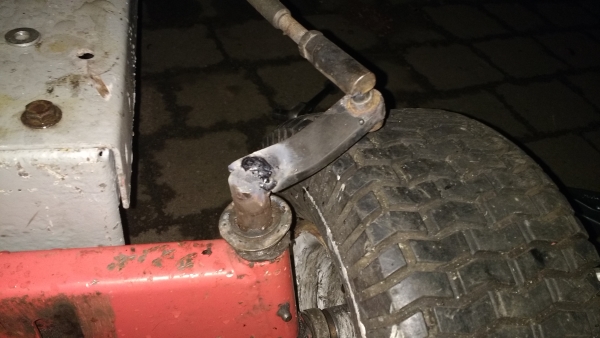

This is the finished one welded onto the spindle. So far this has held up when we took it for a 'test drive', towing it with the wee quad until the back left tyre nearly come off because the C-clip was missing!
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 MhbNW
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 MhMU9

Like the clutch pedal, it still needs some more 'fine tuning' but we're getting there Wink
Back to top Go down
Rockinator
Apprentice
Apprentice
Rockinator

Age : 18
Join date : 2016-01-16
Posts : 164
Forum Rep : 1
Location : Canada

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Icon_minitimeThu Mar 03, 2016 6:58 pm

Thats a neat way to get the steering arm out of the way. How sharp does the steering get?
Back to top Go down
mr.modified
Seasoned Veteran
Seasoned Veteran
mr.modified

Age : 29
Join date : 2013-11-02
Posts : 2263
Forum Rep : 56
Location : New Jersey USA

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Icon_minitimeThu Mar 03, 2016 10:10 pm

Steering and your clutch is always a pain to get figured out. I'd rather just work on making bumpers on my stuff. Oh well. Coming along anyway.

_______________________________________________
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 1023291?$gif$***Simplicity Racing Team*** #64 MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 1023291?$gif$
Simplicity Adventure Edition #64
Diesel Submarine Project
Baja Sears Suburban
Modified Briggs Model 5s
ATLTF.COM Race Truck
Back to top Go down
MatthewD
Grand Master
Grand Master
MatthewD

Age : 17
Join date : 2014-11-16
Posts : 1992
Forum Rep : 40
Location : Northern Ireland

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Icon_minitimeSun Mar 06, 2016 5:34 pm

Thanks, steering is quite sharp, about just over half a turn lock to lock.

I've been sitting the last few days just looking at it and wondering whether I should go for a more sophisticated approach to building this. I'm thinking of putting in a V-twin (likely somewhere around 14hp) and front suspension like I've seen a few of the guys doing it this year. Also may go for an 820 and bigger tyres now too.




I need your opinions on it, you're the experts, I'm not!Very Happy
Back to top Go down
MatthewD
Grand Master
Grand Master
MatthewD

Age : 17
Join date : 2014-11-16
Posts : 1992
Forum Rep : 40
Location : Northern Ireland

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Icon_minitimeSun Mar 13, 2016 6:49 am

So, apologies in advance. I'm quite renowned for changing my mind with my projects and this build is no exception.

When I first planned this, I was going for a simple, basic tractor for general use. But then, I already have one, my Westwood T1200. So I've decided to turn this in to a go-anywhere offroader. I'm also gonna run 18" tyres all round and I'm doing front suspension as well. The rear is going to be lifted 1-2" and if I decide that I'm gonna use the MST-205 that I have bolted in now, I'll lock it. I would like to find a 12hp pull start Briggs for this one aswell, my uncle has one on a go-kart which he has always said that he's for vamping up with a Peerless 801. It has a Foote 3 speed at the minute, bit like a 700. I might get it if he never does anything with it.

Anyway, I hope you have endured that block of speech and I'll have an update coming very soon.
Back to top Go down
Thunderdivine
Seasoned Veteran
Seasoned Veteran
Thunderdivine

Join date : 2012-12-21
Posts : 2098
Forum Rep : 2
Location : Norway, Europe

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Icon_minitimeWed Mar 16, 2016 6:01 pm

bounce

_______________________________________________
*Thunderdivine*
My Custom Racing Mower Build
JD210R - Racing Mower, Sidebuild
My Vintage John Deere 110, 1967 model
"Imagination is more important than knowledge." - Albert Einstein
Back to top Go down
MatthewD
Grand Master
Grand Master
MatthewD

Age : 17
Join date : 2014-11-16
Posts : 1992
Forum Rep : 40
Location : Northern Ireland

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Icon_minitimeThu Mar 17, 2016 10:58 am

Huh? Need some speech man!

Anyway, due an update.

Ripped the clutch mech I done apart (was gonna get in the way so will redesign it later when everything is in place) and took the pivioting front axle brackets off.

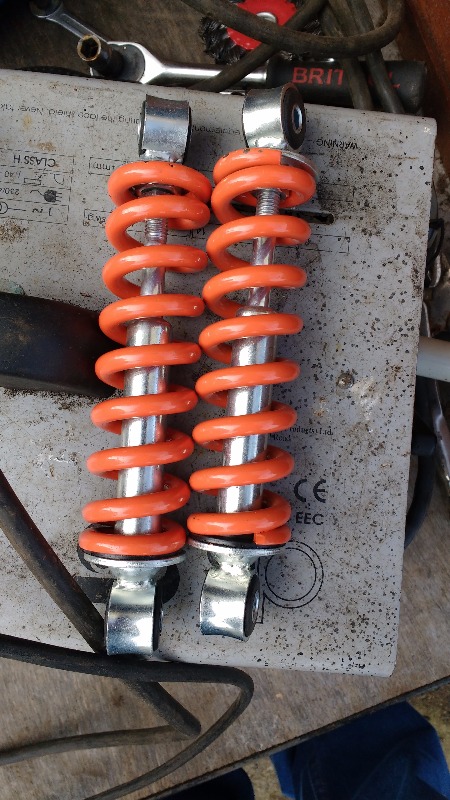

Got my shocks in the post, seem reasonably good quality. They're rated for 200lbs each and are about 8 inches long.
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Rm9s7

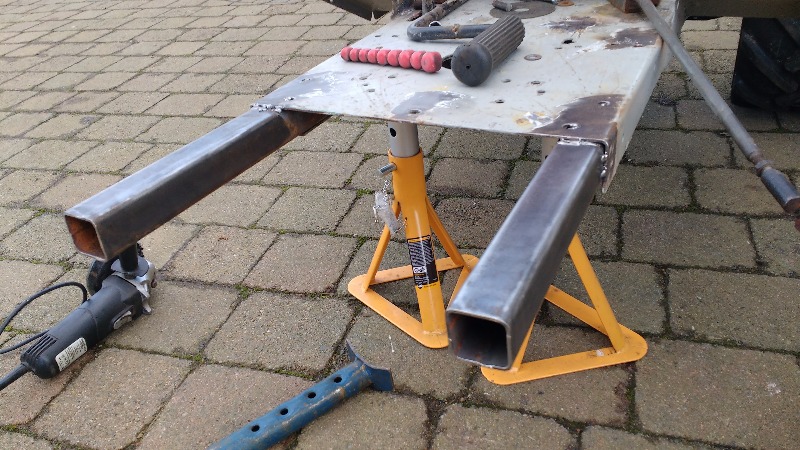

Started extending the frame to mount the shocks. I'm aware it does need more welding! This will become the front bumper and will also serve as a mounting point for the hood.
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 RmE2Q

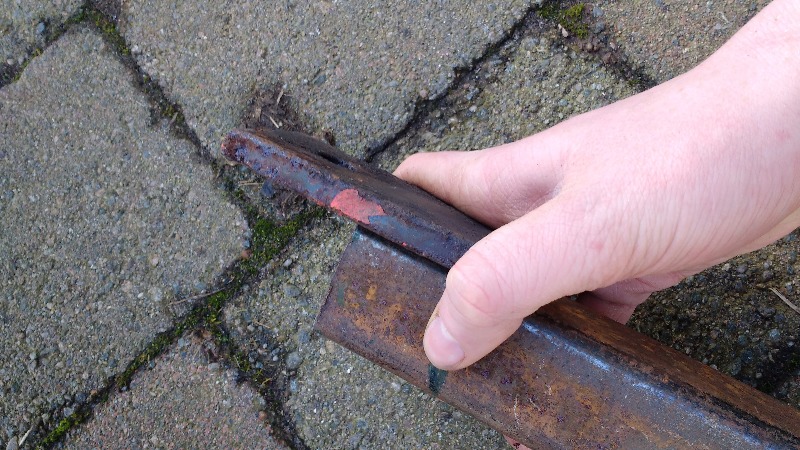

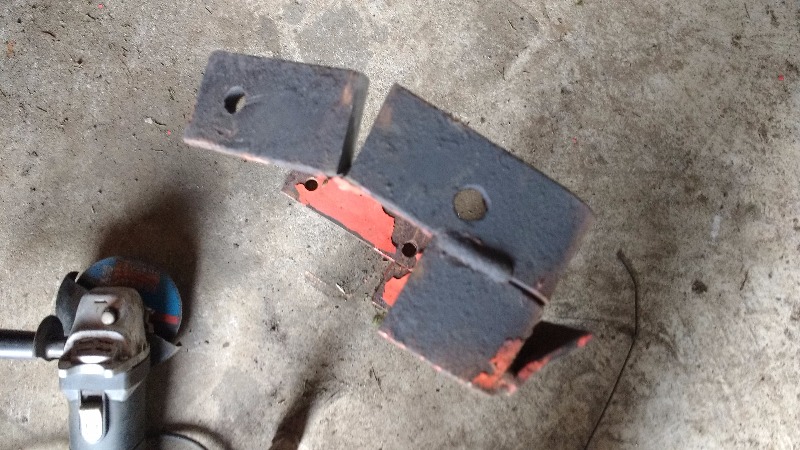

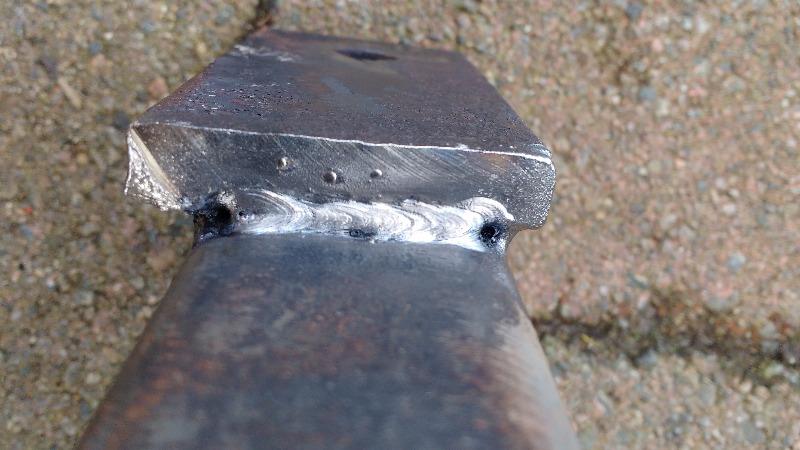

Then started on the trailing arm suspension. I have this setup on two of my go-karts and it works well, so I thought I'd try it on this. Got some pretty good welds for an old stick welder!
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 RmkAR
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 RmIWP
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 RmZjq

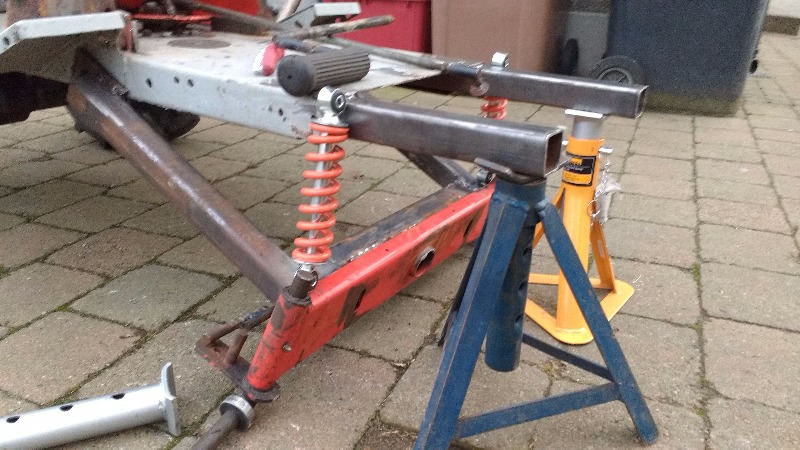

Here's the rough mock up for the front.
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 RmguC

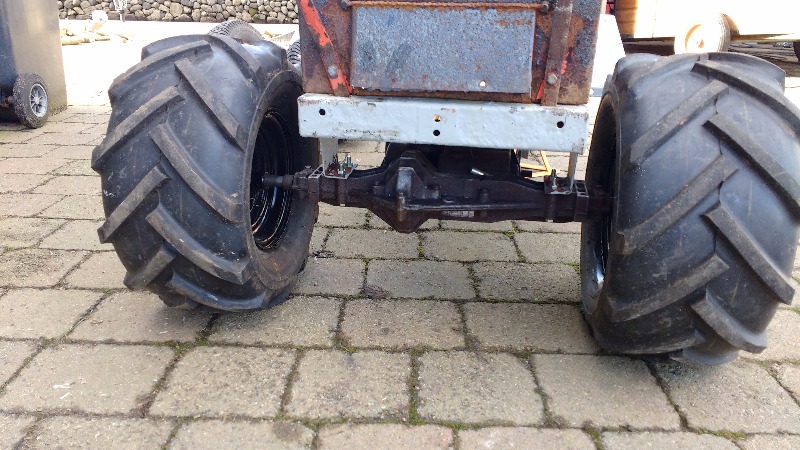

The rear will need to be lifted 1-2 inches because of the bigger tyres going on the front and the front suspension which lifts the front end to avoid the thing bottoming out on the frame. Will probably just make some spacers with 40mm box. Still waiting on getting a set of 8 inch rims for the front so I can do my measurements.
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 RmPDI
Back to top Go down
mr.modified
Seasoned Veteran
Seasoned Veteran
mr.modified

Age : 29
Join date : 2013-11-02
Posts : 2263
Forum Rep : 56
Location : New Jersey USA

MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Icon_minitimeThu Mar 17, 2016 11:17 am

Are you going to keep the front axle tipped out a bit on the swing arm? Unless you already welded it, but then the spindles would be straight up and down at rest and have a little rake when the suspension pushes down. Looking good. Stick welding takes some getting used to compared to wire setups. At least for me.

_______________________________________________
MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 1023291?$gif$***Simplicity Racing Team*** #64 MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 1023291?$gif$
Simplicity Adventure Edition #64
Diesel Submarine Project
Baja Sears Suburban
Modified Briggs Model 5s
ATLTF.COM Race Truck
Back to top Go down
Sponsored content




MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Empty
PostSubject: Re: MatthewD's Westwood S1200 Build [2016 Build-Off Entry]   MatthewD's Westwood S1200 Build [2016 Build-Off Entry] - Page 3 Icon_minitime

Back to top Go down

MatthewD's Westwood S1200 Build [2016 Build-Off Entry]
Back to top
Page 3 of 7Go to page : Previous  1, 2, 3, 4, 5, 6, 7  Next
 Similar topics
-
» 2002 craftsman utility rig ''ol blue'' [2016 Build-Off Entry]
» AND THE WINNER IS... [2016 Build-Off Winners]
» Lawn Flite Trail/mudder build
» Sears Hot Rod Gasser Build
» Price quote to build a racing mower

Permissions in this forum:You cannot reply to topics in this forum
All-Terrain Lawn Tractor Forum :: Tractor Project Builds :: Off Road & Rally Tractors-
Jump to:
