 Welding Table build

Go down
+4
MightyRaze
Doug
CraftsmanQuad19
muddstir
8 posters
AuthorMessage
muddstir
Member
muddstir
Member

2018 Build-Off Entrant
2018 Build-Off Entrant

Join date : 2012-01-22
Points : 4790
Posts : 318
Location : Western,PA

Welding Table build Empty
PostSubject: Welding Table build   Welding Table build Icon_minitimeJanuary 13th 2018, 10:26 pm

I been building a welding table for awhile now. The lower section is done and i'll be starting on the top once i go get more steel. I dont have a bunch of pics of what i got done so far but i got enough to make a build.

I wanted a good sturdy welding table that had a sectional top that didnt need holes drilled in it for clamps. So i did a search online and came across one that used c-channel as a top surface. So thats what ill base my top off of.
The other stipulations were lenght between 60 and 72in long, top 32in wide with 4in overhang on front and back side. Height had to work at a comfortable sitting position.
So i went to the metal supplier and picked up the steel for the lower frame work.
2x4x.125wall rect tube
1.250 x 1.250 x .250 angle iron
1 x 2 x .125 rect tube
2.500 x .187 square tube
6In std weight c-channel
.125 thick tread plate

This is some of the metal from above list
Welding Table build 20170311

Upper framework welded

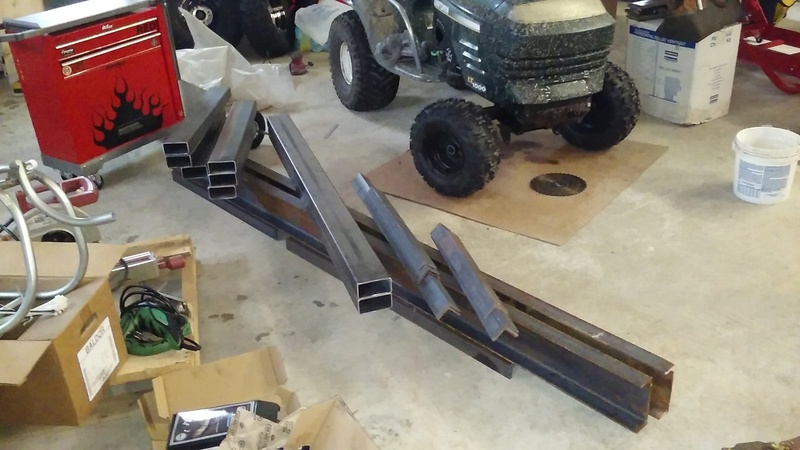

Welding Table build 20170510

Welding legs on
Welding Table build 20170710

Setting in lower shelf (table is upside down on the cart)
Welding Table build 20171210

Lower shelf in and sitting upright
Welding Table build 20171211

Lower shelf covered and now your up to date.

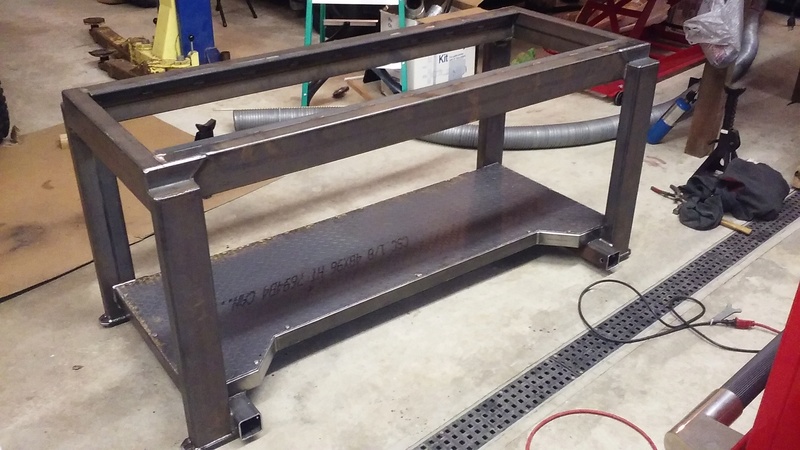

Welding Table build 20180110
Back to top Go down
CraftsmanQuad19
Veteran Member
CraftsmanQuad19
Veteran Member

2500+ Posts
2500+ Posts!
2018 Build-Off Entrant
2018 Build-Off Entrant
2019 Build-Off Finalist
2019 Build-Off Finalist

Age : 23
Join date : 2016-04-12
Points : 5709
Posts : 2617
Location : Indiana

Welding Table build Empty
PostSubject: Re: Welding Table build   Welding Table build Icon_minitimeJanuary 13th 2018, 10:31 pm

Looks good. Very intricate design
Back to top Go down
Doug
Site Owner
Doug
Site Owner

2500+ Posts
2500+ Posts!
2014 Build-Off Entrant
2014 Build-Off Entrant
2017 Build-Off Entrant
2017 Build-Off Entrant

Age : 28
Join date : 2012-12-24
Points : 7520
Posts : 3033
Location : Lebanon County, PA

Welding Table build Empty
PostSubject: Re: Welding Table build   Welding Table build Icon_minitimeJanuary 13th 2018, 10:51 pm

I like how the bottom shelf is angled in for foot space. I bought some Edsal table legs to make new benches, going to use 2x4s I got from work for free as a new wall length bench. THought of laying some 1/4" plate across the top so I can weld on it too. Cant wait to see how your channel top works out.


Head Forum Administrator ** Chat Moderator ** Facebook Page Admin
ATLTF Facebook Page ** Chatbox ** How To Upload Pictures

_X_ FORUM ANNOUNCEMENTS _X_


Have a question? Ask me! Type in "@Doug" in your post!

Your ATLTF Staff:
Administrators: @Doug, @MightyRaze, @"Doc Sprocket", @Stretch44875
Moderators: @TheRainbowBoxer, @AllisKidD21, @Brianator, @RichieRichOverdrive




Back to top Go down
MightyRaze
Administrator
MightyRaze
Administrator

2017 Build-Off Finalist
2017 Build-Off Finalist
2018 Build-Off Top 3 Winner
2018 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2021 Winner of Winners
2021 Winner of Winners
1st Place Build-Off 2022
1st Place Build-Off Winner 2022
10,000 POSTS!
10,000 POSTS!
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 48
Join date : 2016-09-06
Points : 14921
Posts : 10540
Location : Oklahoma

Welding Table build Empty
PostSubject: Re: Welding Table build   Welding Table build Icon_minitimeJanuary 13th 2018, 11:20 pm

That is super nice!  Nice and sturdy looking. Bet it weighs a ton. Excellent!


Welding Table build Sig115PROJECTS:
     Marshal ........93 Craftsman GT6000
     Red Bandit ...72 Wheel Horse Raider 12
     Dirty Rat........77 Sears Suburban
     Bowser..........01 Murray Widebody LT
     Other projects
Have a question? Ask me! Type in "@MightyRaze" in your post!
Welding Table build Sig214Welding Table build Sig314
Back to top Go down
mr.modified
Veteran Member
mr.modified
Veteran Member

2015 Build-Off Top 3 Winner
2015 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2018 Build-Off Finalist
2018 Build-Off Finalist
2022 Build-Off Entrant
2022 Build-Off Entrant
2500+ Posts
2500+ Posts!
1st Place Build-Off 2014
1st Place Build-Off Winner 2014
2023 Build-Off Entrant
2023 Build-Off Entrant

Age : 34
Join date : 2013-11-02
Points : 6916
Posts : 2906
Location : New Jersey USA

Welding Table build Empty
PostSubject: Re: Welding Table build   Welding Table build Icon_minitimeJanuary 14th 2018, 7:33 pm

Nice deal. What do they use for a top piece? Do people use stainless or something so weld splatter doesn't stick?
Back to top Go down
muddstir
Member
muddstir
Member

2018 Build-Off Entrant
2018 Build-Off Entrant

Join date : 2012-01-22
Points : 4790
Posts : 318
Location : Western,PA

Welding Table build Empty
PostSubject: Re: Welding Table build   Welding Table build Icon_minitimeJanuary 14th 2018, 8:37 pm

Thanks guys

Doug- I'd put a pc of plate steel on top of your work bench or i'd have a manageable pc laying around that you can throw up there when you need to weld something. You get that work bench built post some pics up, i enjoy looking at home built shop stuff.

Mightyraze-  I'd guess around 300 lbs so far as it sits. When finished Im taking it to work and weighing it.

Mr.modified- they use anything flat for a top its really personal preference. I am going with steel c-channel. Weld splatter usually knocks right off with a scrapper and if it dosen't then a flap disk takes care of it.
I also picked a steel top over a aluminum or stainless top for these other reasons
1. I can weld to it if need be
2. Can use welding magnets on it
3. It can take more abuse (than alum).
Back to top Go down
Doug
Site Owner
Doug
Site Owner

2500+ Posts
2500+ Posts!
2014 Build-Off Entrant
2014 Build-Off Entrant
2017 Build-Off Entrant
2017 Build-Off Entrant

Age : 28
Join date : 2012-12-24
Points : 7520
Posts : 3033
Location : Lebanon County, PA

Welding Table build Empty
PostSubject: Re: Welding Table build   Welding Table build Icon_minitimeJanuary 14th 2018, 10:20 pm

Stainless will also run a small fortune.

I definitely plan on taking pics or video when I construct mine. I should take my current welding table and weigh it. It probably weighs at least 500lb.


Head Forum Administrator ** Chat Moderator ** Facebook Page Admin
ATLTF Facebook Page ** Chatbox ** How To Upload Pictures

_X_ FORUM ANNOUNCEMENTS _X_


Have a question? Ask me! Type in "@Doug" in your post!

Your ATLTF Staff:
Administrators: @Doug, @MightyRaze, @"Doc Sprocket", @Stretch44875
Moderators: @TheRainbowBoxer, @AllisKidD21, @Brianator, @RichieRichOverdrive




Back to top Go down
mr.modified
Veteran Member
mr.modified
Veteran Member

2015 Build-Off Top 3 Winner
2015 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2018 Build-Off Finalist
2018 Build-Off Finalist
2022 Build-Off Entrant
2022 Build-Off Entrant
2500+ Posts
2500+ Posts!
1st Place Build-Off 2014
1st Place Build-Off Winner 2014
2023 Build-Off Entrant
2023 Build-Off Entrant

Age : 34
Join date : 2013-11-02
Points : 6916
Posts : 2906
Location : New Jersey USA

Welding Table build Empty
PostSubject: Re: Welding Table build   Welding Table build Icon_minitimeJanuary 15th 2018, 11:23 am

I didn't even think about welding magnets not sticking to stainless. Looks pretty neat though. I need to build one. Usually I'm kneeling on the floor bent over an old metal crate.
Back to top Go down
biggasmowers
Veteran Member
biggasmowers
Veteran Member

1000+ Posts
1000+ Posts!
2018 Build-Off Finalist
2018 Build-Off Finalist

Age : 23
Join date : 2016-12-30
Points : 4683
Posts : 1944
Location : Kansas

Welding Table build Empty
PostSubject: Re: Welding Table build   Welding Table build Icon_minitimeJanuary 15th 2018, 12:19 pm

Very nice table! I've been wanting to build a nice welding table for awhile but have not gotten going on plans yet.
Back to top Go down
muddstir
Member
muddstir
Member

2018 Build-Off Entrant
2018 Build-Off Entrant

Join date : 2012-01-22
Points : 4790
Posts : 318
Location : Western,PA

Welding Table build Empty
PostSubject: Re: Welding Table build   Welding Table build Icon_minitimeJanuary 20th 2018, 9:03 pm

Went today and bought a full sheet of 3/16 thick steel plate. Then took it to work and sheared some strips off for boxing in the c-channel on the bottom side. Welding Table build 20180111

Here is all the cut pcs at home with one placed on the c-channel ready for welding. I am going to cut the sides of the channel at a 45.

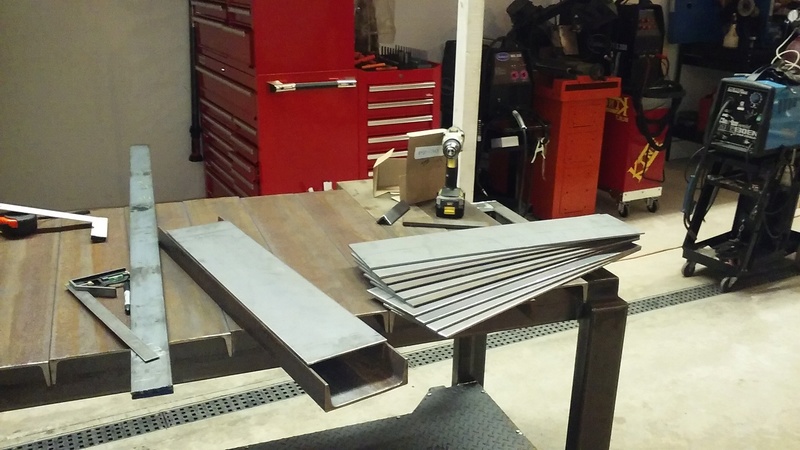

Welding Table build 20180112
Back to top Go down
muddstir
Member
muddstir
Member

2018 Build-Off Entrant
2018 Build-Off Entrant

Join date : 2012-01-22
Points : 4790
Posts : 318
Location : Western,PA

Welding Table build Empty
PostSubject: Re: Welding Table build   Welding Table build Icon_minitimeJanuary 27th 2018, 7:19 pm

Did some corner notchin this past week. Measured in 2in on the one end and 2 3/8 on the other, then used an angle grinder with a cutoff wheel.
There are 44 corners total and I've done 15. Might take awhile.

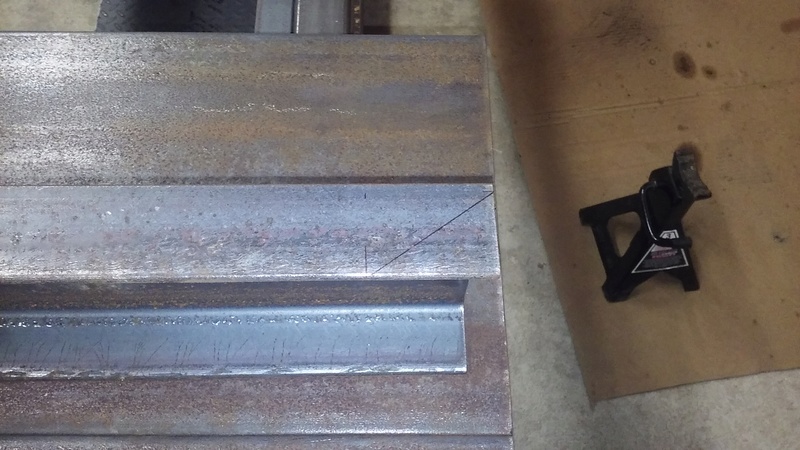

Welding Table build 20180113

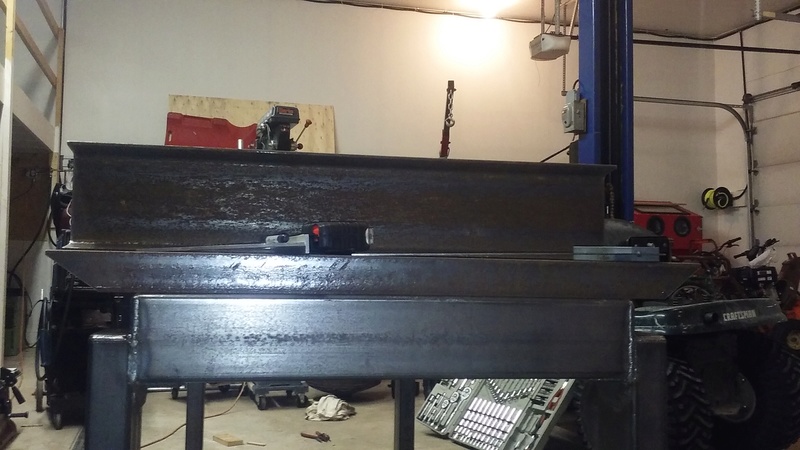

Welding Table build 20180114

Back to top Go down
biggasmowers
Veteran Member
biggasmowers
Veteran Member

1000+ Posts
1000+ Posts!
2018 Build-Off Finalist
2018 Build-Off Finalist

Age : 23
Join date : 2016-12-30
Points : 4683
Posts : 1944
Location : Kansas

Welding Table build Empty
PostSubject: Re: Welding Table build   Welding Table build Icon_minitimeJanuary 27th 2018, 8:37 pm

How much does a sheet of 3/16 cost? Iv'e never had the guts to ask at the metal yard lol
Back to top Go down
muddstir
Member
muddstir
Member

2018 Build-Off Entrant
2018 Build-Off Entrant

Join date : 2012-01-22
Points : 4790
Posts : 318
Location : Western,PA

Welding Table build Empty
PostSubject: Re: Welding Table build   Welding Table build Icon_minitimeFebruary 15th 2018, 8:25 pm

The 3/16 plate ran me $135 and that was the cheapest i found it for.

I got some more work done to this over the past week.
Got all the top c-channel angle cut and got all the strips of plate ground/prepared for welding to the c-channel.
Welding Table build 20180219
Back to top Go down
biggasmowers
Veteran Member
biggasmowers
Veteran Member

1000+ Posts
1000+ Posts!
2018 Build-Off Finalist
2018 Build-Off Finalist

Age : 23
Join date : 2016-12-30
Points : 4683
Posts : 1944
Location : Kansas

Welding Table build Empty
PostSubject: Re: Welding Table build   Welding Table build Icon_minitimeFebruary 16th 2018, 11:00 am

Ouch ! thats some pricey steel, but cheaper than stainless or aluminum i guess. Oooh a TIG machine!
Back to top Go down
muckmudd
Established Member
muckmudd
Established Member

500+ Posts
500+ Posts
2018 Build-Off Entrant
2018 Build-Off Entrant

Age : 21
Join date : 2017-07-11
Points : 3314
Posts : 825
Location : In the shop

Welding Table build Empty
PostSubject: Re: Welding Table build   Welding Table build Icon_minitimeFebruary 16th 2018, 11:14 am

That's so nice. My welding table is a school desk with a metal top attached to it.
Back to top Go down
biggasmowers
Veteran Member
biggasmowers
Veteran Member

1000+ Posts
1000+ Posts!
2018 Build-Off Finalist
2018 Build-Off Finalist

Age : 23
Join date : 2016-12-30
Points : 4683
Posts : 1944
Location : Kansas

Welding Table build Empty
PostSubject: Re: Welding Table build   Welding Table build Icon_minitimeFebruary 16th 2018, 11:25 am

My welding table is...... well i just use the concrete floor.
Back to top Go down
MightyRaze
Administrator
MightyRaze
Administrator

2017 Build-Off Finalist
2017 Build-Off Finalist
2018 Build-Off Top 3 Winner
2018 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2021 Winner of Winners
2021 Winner of Winners
1st Place Build-Off 2022
1st Place Build-Off Winner 2022
10,000 POSTS!
10,000 POSTS!
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 48
Join date : 2016-09-06
Points : 14921
Posts : 10540
Location : Oklahoma

Welding Table build Empty
PostSubject: Re: Welding Table build   Welding Table build Icon_minitimeFebruary 16th 2018, 12:09 pm

biggasmowers wrote:
My welding table is...... well i just use the concrete floor.

Ditto.


Welding Table build Sig115PROJECTS:
     Marshal ........93 Craftsman GT6000
     Red Bandit ...72 Wheel Horse Raider 12
     Dirty Rat........77 Sears Suburban
     Bowser..........01 Murray Widebody LT
     Other projects
Have a question? Ask me! Type in "@MightyRaze" in your post!
Welding Table build Sig214Welding Table build Sig314
Back to top Go down
Doug
Site Owner
Doug
Site Owner

2500+ Posts
2500+ Posts!
2014 Build-Off Entrant
2014 Build-Off Entrant
2017 Build-Off Entrant
2017 Build-Off Entrant

Age : 28
Join date : 2012-12-24
Points : 7520
Posts : 3033
Location : Lebanon County, PA

Welding Table build Empty
PostSubject: Re: Welding Table build   Welding Table build Icon_minitimeFebruary 17th 2018, 2:04 am

That gives me a good idea for my table, just frame a mold and pour a layer of concrete onto it. Brilliant!


Head Forum Administrator ** Chat Moderator ** Facebook Page Admin
ATLTF Facebook Page ** Chatbox ** How To Upload Pictures

_X_ FORUM ANNOUNCEMENTS _X_


Have a question? Ask me! Type in "@Doug" in your post!

Your ATLTF Staff:
Administrators: @Doug, @MightyRaze, @"Doc Sprocket", @Stretch44875
Moderators: @TheRainbowBoxer, @AllisKidD21, @Brianator, @RichieRichOverdrive




Back to top Go down
MightyRaze
Administrator
MightyRaze
Administrator

2017 Build-Off Finalist
2017 Build-Off Finalist
2018 Build-Off Top 3 Winner
2018 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2021 Winner of Winners
2021 Winner of Winners
1st Place Build-Off 2022
1st Place Build-Off Winner 2022
10,000 POSTS!
10,000 POSTS!
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 48
Join date : 2016-09-06
Points : 14921
Posts : 10540
Location : Oklahoma

Welding Table build Empty
PostSubject: Re: Welding Table build   Welding Table build Icon_minitimeFebruary 17th 2018, 2:32 am

That actually does not sound bad. king


Welding Table build Sig115PROJECTS:
     Marshal ........93 Craftsman GT6000
     Red Bandit ...72 Wheel Horse Raider 12
     Dirty Rat........77 Sears Suburban
     Bowser..........01 Murray Widebody LT
     Other projects
Have a question? Ask me! Type in "@MightyRaze" in your post!
Welding Table build Sig214Welding Table build Sig314
Back to top Go down
biggasmowers
Veteran Member
biggasmowers
Veteran Member

1000+ Posts
1000+ Posts!
2018 Build-Off Finalist
2018 Build-Off Finalist

Age : 23
Join date : 2016-12-30
Points : 4683
Posts : 1944
Location : Kansas

Welding Table build Empty
PostSubject: Re: Welding Table build   Welding Table build Icon_minitimeFebruary 17th 2018, 9:40 am

It might blow up from heat .
Back to top Go down
TheBeal
Veteran Member
TheBeal
Veteran Member

1000+ Posts
1000+ Posts!

Age : 29
Join date : 2013-06-06
Points : 5465
Posts : 1398
Location : Central PA

Welding Table build Empty
PostSubject: Re: Welding Table build   Welding Table build Icon_minitimeFebruary 17th 2018, 2:05 pm

I dont know about that, it would see some heat sure, but not really concentrated, or sustained long enough to make things asplode?


I like the idea of using c channel. If one gets too buggard up knock it out and drop in a new one.
Like to build one someday, I was thinking using angle iron sorta like /\ /\ /\ /\ /\ /\ /\ /\ then I could have a 1/4in plate that could be man handled on top if needed.

But man, all those angled cuts??? Thats dedication right there. Shocked

{EDIT} Will you be making any sort of uprights to tack stuff to?
At voteck the little tables we had in the booths had some uprights to tack stuff to for uphill, or overhead welding. Also, a chunk of bar stock off the side to hand the stinger on was nice.
Back to top Go down
Doug
Site Owner
Doug
Site Owner

2500+ Posts
2500+ Posts!
2014 Build-Off Entrant
2014 Build-Off Entrant
2017 Build-Off Entrant
2017 Build-Off Entrant

Age : 28
Join date : 2012-12-24
Points : 7520
Posts : 3033
Location : Lebanon County, PA

Welding Table build Empty
PostSubject: Re: Welding Table build   Welding Table build Icon_minitimeFebruary 17th 2018, 5:41 pm

If I were to do it I would add mesh and steel reinforcement.

Ive seen tables where they have holes lazer cut for pegs or clamps to run through.


Head Forum Administrator ** Chat Moderator ** Facebook Page Admin
ATLTF Facebook Page ** Chatbox ** How To Upload Pictures

_X_ FORUM ANNOUNCEMENTS _X_


Have a question? Ask me! Type in "@Doug" in your post!

Your ATLTF Staff:
Administrators: @Doug, @MightyRaze, @"Doc Sprocket", @Stretch44875
Moderators: @TheRainbowBoxer, @AllisKidD21, @Brianator, @RichieRichOverdrive




Back to top Go down
muddstir
Member
muddstir
Member

2018 Build-Off Entrant
2018 Build-Off Entrant

Join date : 2012-01-22
Points : 4790
Posts : 318
Location : Western,PA

Welding Table build Empty
PostSubject: Re: Welding Table build   Welding Table build Icon_minitimeFebruary 17th 2018, 7:34 pm

With my c-channel top each pc will be removable. Each pc will have a  toggle clamp on the bottom of it flip the handle and remove. So the top can have any arrangement at any given point a time, from solid top to open framework in a minute.
Back to top Go down
biggasmowers
Veteran Member
biggasmowers
Veteran Member

1000+ Posts
1000+ Posts!
2018 Build-Off Finalist
2018 Build-Off Finalist

Age : 23
Join date : 2016-12-30
Points : 4683
Posts : 1944
Location : Kansas

Welding Table build Empty
PostSubject: Re: Welding Table build   Welding Table build Icon_minitimeFebruary 18th 2018, 12:14 am

Woah ! That's a very cool design . Not just your run of the mill welding bench.
Back to top Go down
