 MrShaft696 Stretched CraftsmanPlicity [2018 Build-Off Entry]

Go down
Go to page : Previous  1, 2
AuthorMessage
mrshaft696
Skilled
Skilled


Join date : 2016-07-10
Posts : 308

PostSubject: Re: MrShaft696 Stretched CraftsmanPlicity [2018 Build-Off Entry]   Sun Jul 29, 2018 8:40 am

finally got the frame & subframe all stitched & bolted up.... gonna try and get my rear wheels built today so I can roll the thing around & hopefully test drive & make some decisions about pulleys etc.




Back to top Go down
MightyRaze
Administrator
Administrator
avatar

Age : 43
Join date : 2016-09-06
Posts : 4026
Forum Rep : 175
Location : Shawnee, OK

PostSubject: Re: MrShaft696 Stretched CraftsmanPlicity [2018 Build-Off Entry]   Sun Jul 29, 2018 9:44 am

You going with a single belt or try to do multibelt? If single, that will be a lot of belt to sag. Maybe a lot of belt keepers. Smile

_______________________________________________

(Kal-El) 1982 Murray GT. . . . . . . . . . . . . . . . . . 2-39002 . . . [2018 Entry]
Progress:  ▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄
           0              |              50             |             100

Murray CCT (KAL prebuild)
Sasquatch II . [2017 Finalist]
Li'l Red Murray

Arrow How To Upload Pictures
Back to top Go down
http://mightyraze.com
Crazy_Carl
Grand Master
Grand Master
avatar

Age : 29
Join date : 2017-10-30
Posts : 1558
Forum Rep : 64
Location : Rochester, New York

PostSubject: Re: MrShaft696 Stretched CraftsmanPlicity [2018 Build-Off Entry]   Sun Jul 29, 2018 3:19 pm

Yeah two belts with a jackshaft or double idler connecting them in the middle seems like the way to go.
Back to top Go down
mrshaft696
Skilled
Skilled
avatar

Join date : 2016-07-10
Posts : 308
Forum Rep : 6
Location : Phillydelphia

PostSubject: Re: MrShaft696 Stretched CraftsmanPlicity [2018 Build-Off Entry]   Sun Jul 29, 2018 9:32 pm

got one of my rims done... hopefully by end of week have a roller....


Back to top Go down
mrshaft696
Skilled
Skilled
avatar

Join date : 2016-07-10
Posts : 308
Forum Rep : 6
Location : Phillydelphia

PostSubject: Re: MrShaft696 Stretched CraftsmanPlicity [2018 Build-Off Entry]   Sun Jul 29, 2018 9:38 pm

@MightyRaze wrote:
You going with a single belt or try to do multibelt?  If single, that will be a lot of belt to sag.  Maybe a lot of belt keepers.  Smile

I bought a super huge one... i am planning on running two extra idler pulleys and seeing how it goes....
Back to top Go down
Double W Cross Ranch
Grand Master
Grand Master
avatar

Age : 14
Join date : 2017-06-09
Posts : 1835
Forum Rep : 17
Location : Central Texas

PostSubject: Re: MrShaft696 Stretched CraftsmanPlicity [2018 Build-Off Entry]   Sun Jul 29, 2018 9:56 pm

Sweet! How you gonna do the shifter linkage?
Back to top Go down
https://themagazineishalff.wixsite.com/website
mrshaft696
Skilled
Skilled
avatar

Join date : 2016-07-10
Posts : 308
Forum Rep : 6
Location : Phillydelphia

PostSubject: Re: MrShaft696 Stretched CraftsmanPlicity [2018 Build-Off Entry]   Mon Jul 30, 2018 7:44 am

@Double W Cross Ranch wrote:
Sweet! How you gonna do the shifter linkage?

I am not 100% but I am pretty sure I am just going to weld a tab where the current shifter is and use another one further up, which will have some kind of push pull action. I might put the shifter under the seat or somewhere else that doesn't hang outa mile like the stock..
Back to top Go down
MatthewD
Grand Master
Grand Master
avatar

Age : 16
Join date : 2014-11-16
Posts : 1867
Forum Rep : 34
Location : Northern Ireland

PostSubject: Re: MrShaft696 Stretched CraftsmanPlicity [2018 Build-Off Entry]   Mon Jul 30, 2018 4:54 pm

Yeah I had a problem with belt sag and belt flapping on my Westwood, solved it by putting an idler along the belt, which keeps the belt tensioned in the middle. How are you modding the rims?
Back to top Go down
Crazy_Carl
Grand Master
Grand Master
avatar

Age : 29
Join date : 2017-10-30
Posts : 1558
Forum Rep : 64
Location : Rochester, New York

PostSubject: Re: MrShaft696 Stretched CraftsmanPlicity [2018 Build-Off Entry]   Mon Jul 30, 2018 7:26 pm

I just watched @Camdg2010youtube videos on his homemade gators almost identical to this using craftsman frames.  He used a FF idea and used the deck height lever for a slap shifter.  The linkage looked really simple to fabricate.
Back to top Go down
mrshaft696
Skilled
Skilled
avatar

Join date : 2016-07-10
Posts : 308
Forum Rep : 6
Location : Phillydelphia

PostSubject: Re: MrShaft696 Stretched CraftsmanPlicity [2018 Build-Off Entry]   Tue Jul 31, 2018 8:38 am

@MatthewD wrote:
Yeah I had a problem with belt sag and belt flapping on my Westwood, solved it by putting an idler along the belt, which keeps the belt tensioned in the middle. How are you modding the rims?

I just did the ol' cut the center out of a 8" rim and weld it inside the 12" rim.
Back to top Go down
mrshaft696
Skilled
Skilled
avatar

Join date : 2016-07-10
Posts : 308
Forum Rep : 6
Location : Phillydelphia

PostSubject: Re: MrShaft696 Stretched CraftsmanPlicity [2018 Build-Off Entry]   Tue Jul 31, 2018 8:45 am

@Crazy_Carl wrote:
I just watched @Camdg2010youtube videos on his homemade gators almost identical to this using craftsman frames.  He used a FF idea and used the deck height lever for a slap shifter.  The linkage looked really simple to fabricate.

Ill have to check that out, I have a hydro axle so I think it will be easier... I did rip out my deck lever so I could move all the wiring under the gas tank.. The kohler engines have more wires/relays and such... I still want to use the factory ignition switch with it, and I will have the battery under the seat or something.
Back to top Go down
Crazy_Carl
Grand Master
Grand Master
avatar

Age : 29
Join date : 2017-10-30
Posts : 1558
Forum Rep : 64
Location : Rochester, New York

PostSubject: Re: MrShaft696 Stretched CraftsmanPlicity [2018 Build-Off Entry]   Tue Jul 31, 2018 10:03 am

weird my kohler only has a kill wire, charge wire, and ground.  Pretty simple my rectifier is mounted on the motor and I cut the needle off the evil soleniod valve on the carburetor.
Back to top Go down
Camdg2010
Apprentice
Apprentice
avatar

Join date : 2014-01-22
Posts : 76
Forum Rep : 4

PostSubject: Re: MrShaft696 Stretched CraftsmanPlicity [2018 Build-Off Entry]   Tue Jul 31, 2018 11:36 pm

well good news. i figured it out! and it runs like brand new!. gotta adjust the tracking again. hopefully tomarrow i can post a video of it driving
Back to top Go down
mrshaft696
Skilled
Skilled
avatar

Join date : 2016-07-10
Posts : 308
Forum Rep : 6
Location : Phillydelphia

PostSubject: Re: MrShaft696 Stretched CraftsmanPlicity [2018 Build-Off Entry]   Sat Aug 04, 2018 10:04 pm

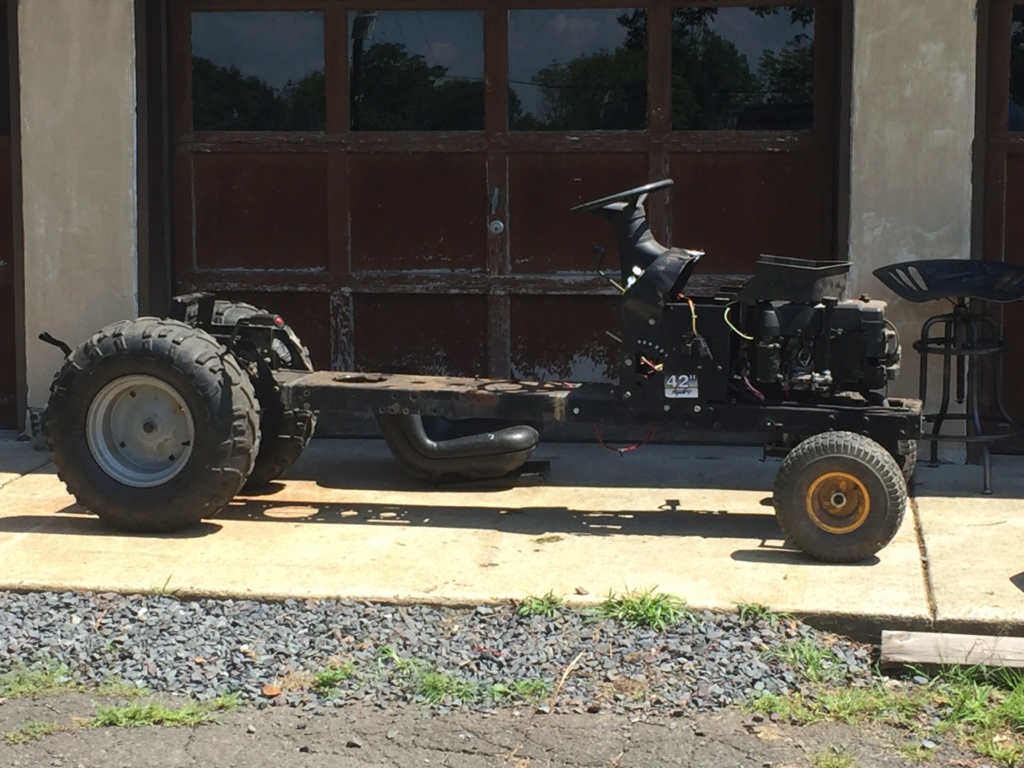

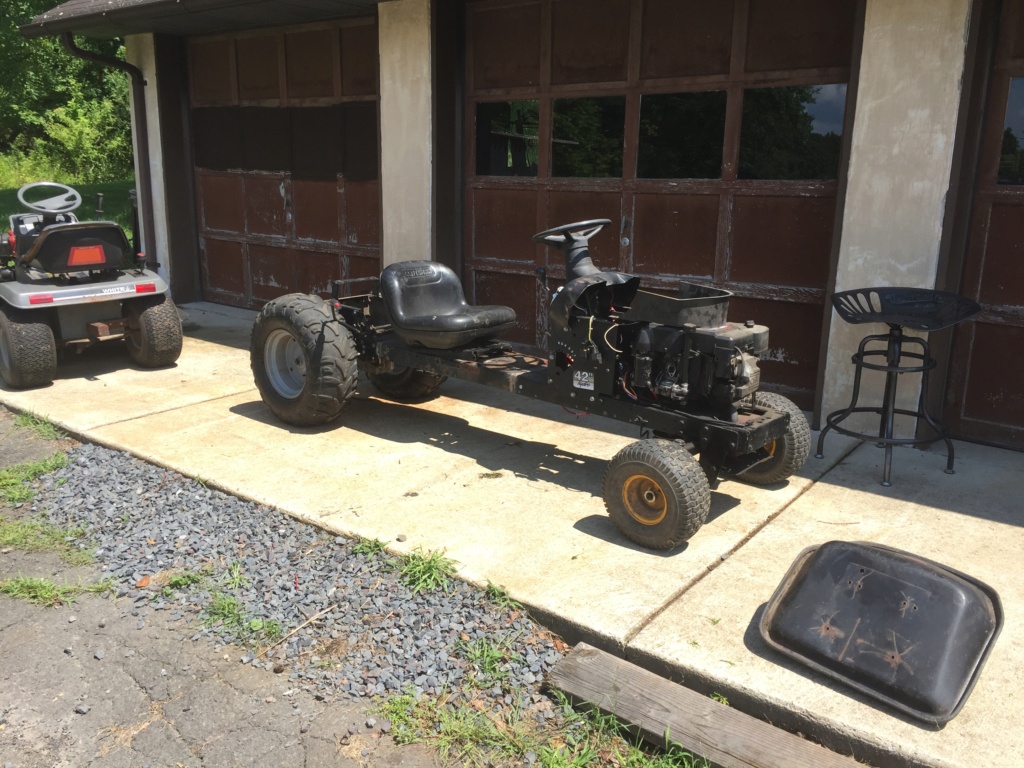

oooOOO no did some work on the wiring, and mounted the rear tires!! front tires are just rollers for now... Got to do some more frame stiffening has a bit of flex to it, but i need some tube on it anyway to mount the seat etc.....

anyway as you can see I got some 12" rims from a scotts tractor and just mounted up the 25's!



Back to top Go down
MatthewD
Grand Master
Grand Master
avatar

Age : 16
Join date : 2014-11-16
Posts : 1867
Forum Rep : 34
Location : Northern Ireland

PostSubject: Re: MrShaft696 Stretched CraftsmanPlicity [2018 Build-Off Entry]   Sat Aug 04, 2018 10:07 pm

Looks good on four wheels, can't wait to see it with the bed on.
Back to top Go down
Crazy_Carl
Grand Master
Grand Master
avatar

Age : 29
Join date : 2017-10-30
Posts : 1558
Forum Rep : 64
Location : Rochester, New York

PostSubject: Re: MrShaft696 Stretched CraftsmanPlicity [2018 Build-Off Entry]   Sun Aug 05, 2018 4:29 pm

So you found 12" rims for 3/4" keyed shaft after all? nice.

Do you have any design ideas for the bed?
Back to top Go down
mrshaft696
Skilled
Skilled
avatar

Join date : 2016-07-10
Posts : 308
Forum Rep : 6
Location : Phillydelphia

PostSubject: Re: MrShaft696 Stretched CraftsmanPlicity [2018 Build-Off Entry]   Sun Aug 05, 2018 9:44 pm

@Crazy_Carl wrote:
So you found 12" rims for 3/4" keyed shaft after all? nice.

Do you have any design ideas for the bed?

yeah they are from a scotts mower... anyway the bed i have is a trailer, so I am just going to use a pillow block so that I can tilt it back. It is going to be manual lift, no fancy stuff....


Back to top Go down
Crazy_Carl
Grand Master
Grand Master
avatar

Age : 29
Join date : 2017-10-30
Posts : 1558
Forum Rep : 64
Location : Rochester, New York

PostSubject: Re: MrShaft696 Stretched CraftsmanPlicity [2018 Build-Off Entry]   Mon Aug 06, 2018 9:29 pm

Yeah I would put the pivot point about where that axle is to make it easy to dump manually with a full load.
Back to top Go down
muckmudd
Veteran
Veteran
avatar

Age : 15
Join date : 2017-07-11
Posts : 744
Forum Rep : 23
Location : In the shop

PostSubject: Re: MrShaft696 Stretched CraftsmanPlicity [2018 Build-Off Entry]   Tue Aug 07, 2018 12:10 am

Looks good, what welder are you using? looks like flux core.
