 Redzz02's Haspin Build [2018 Build-Off Entry]

Go down
Go to page : 1, 2, 3, 4, 5  Next
AuthorMessage
redzz02
Sponsor
Sponsor
avatar

Age : 23
Join date : 2010-05-12
Posts : 585
Forum Rep : 7
Location : PA pittsburgh and pymatuning

PostSubject: Redzz02's Haspin Build [2018 Build-Off Entry]   Thu Feb 01, 2018 9:33 pm

as some of you may know i love me some dynamarks, i recently picked up a twin to my 2nd ever dynamark that i have been beating on for over 10 years now. this one is in a little rougher shape than the first but its the perfect platform. lat year i attended the 2017 haspin acres off road park romp joining (mowrons and doug) the dynamark mud mower did wonderful but its a mud mower, it is made for flat trails and deep mud holes resulting in one roll over, so i have set sail on building a haspin rig for myself and here are my plans!

dynamark haspin build:

Body: full sheet metal/ slight modifications
-front and rear bumpers (minimalistic)

Motor: 16 hp vangaurd vtwin
-ryker racing ported heads/dual valvesprings
-ryker racing polished twin barrel intake
-twin barrel carb
-cheetah cam
-high rev kit/copper head gaskets
-steel intake push rods
-advanced timing
-two into one exhaust with muffler cut out
>hand or foot throttle i have not decided

chassis: im ditching the pan frame and building a tube frame that will virtually resemble stock
-cutting 2 inches off of the main body panel(lower enter of gravity)
-lower fenders
-lower seat(extra squishy and possibly shocks)
-rear axle solid mount
-front axle/coil overs solid axle (mono, three, four linked?)

rear axle: peerless 820 series
-roms peerless race gear set
- 40 inch live axle
-solid axle mod(expensive way)
-axle truss

front axle:
-2x2x1/8 tubing axle

gearing: undetermined
-6 inch motor 5 inch transaxle?

paint: undetermined
-something flashy

tires: multiple combinations
-rears
>21x11-9 swamp lites on 9x10 hiper dual carbon fiber bead lock wheels
>18x8-8 ag tire on 8 inch steel wheels
> 20-9 sport atv style tread on douglass 9x8 aluminum wheels
(i will have all three of these ready to throw on the mower depending on riding conditions)

-front tires 16x6.5-8 on steel wheels(highspeed 3/4 bearings)

miscellaneous:random mods and flashy stuff undecided








i hope you guys enjoy this build and i hope to win your support and votes again this year, my dead line is the second weekend in june so lets make it happen! good luck to every one and may the best mower win!

(p.s. doug dont give me any gripe about the eggplant!) (It looks excellent ~Doug)




-Approved by Doug, 2/1/2018

_______________________________________________
Espyville Mudders

https://www.youtube.com/user/redzz02

https://www.facebook.com/Espyvillemudders


everything from dropping em down and racing, to jacking up high muddin
Back to top Go down
Doug
Administrator
Administrator
avatar

Age : 23
Join date : 2012-12-24
Posts : 2822
Forum Rep : 32
Location : Amish Country, PA

PostSubject: Re: Redzz02's Haspin Build [2018 Build-Off Entry]   Thu Feb 01, 2018 9:43 pm

Eggplant

_______________________________________________
Head Forum Administrator ** Chat Moderator ** Facebook Page Admin
ATLTF Facebook Page ** Chatbox ** How To Upload Pictures

_X_ FORUM ANNOUNCEMENTS _X_


2018 Build Off Entry Commissionaire - Have a question? Ask me! Type in "@Doug" in your post!

Your ATLTF Staff:
Administrators: @Doug, @"Doc Sprocket", @Stretch44875, @MightyRaze
Moderators: @TheRainbowBoxer, @AllisKidD21




Back to top Go down
MightyRaze
Administrator
Administrator
avatar

Age : 43
Join date : 2016-09-06
Posts : 3870
Forum Rep : 161
Location : Shawnee, OK

PostSubject: Re: Redzz02's Haspin Build [2018 Build-Off Entry]   Thu Feb 01, 2018 11:57 pm

Man... that eggplant I'm glad you did not put a couple other smaller ones with it. Embarassed

_______________________________________________

1982 Murray GT. . . . . . . . . . . . . . . . . . 2-39002 . . . [2018 Entry]
Progress:  ▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄
           0              |              50             |             100

Murray CCT (KAL prebuild)
Sasquatch II . [2017 Finalist]
Li'l Red Murray

Arrow How To Upload Pictures
Back to top Go down
http://mightyraze.com
Double W Cross Ranch
Grand Master
Grand Master
avatar

Age : 14
Join date : 2017-06-09
Posts : 1767
Forum Rep : 13
Location : Central Texas

PostSubject: Re: Redzz02's Haspin Build [2018 Build-Off Entry]   Fri Feb 02, 2018 8:46 am

Man you are a good artist...
Back to top Go down
https://themagazineishalff.wixsite.com/website
MightyRaze
Administrator
Administrator
avatar

Age : 43
Join date : 2016-09-06
Posts : 3870
Forum Rep : 161
Location : Shawnee, OK

PostSubject: Re: Redzz02's Haspin Build [2018 Build-Off Entry]   Fri Feb 02, 2018 9:16 am

Should you not get done in time for Haspin, you have last year's machine....... uh who am I kidding. You'll be done before the end of Feb.

lol!

_______________________________________________

1982 Murray GT. . . . . . . . . . . . . . . . . . 2-39002 . . . [2018 Entry]
Progress:  ▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄
           0              |              50             |             100

Murray CCT (KAL prebuild)
Sasquatch II . [2017 Finalist]
Li'l Red Murray

Arrow How To Upload Pictures
Back to top Go down
http://mightyraze.com
redzz02
Sponsor
Sponsor
avatar

Age : 23
Join date : 2010-05-12
Posts : 585
Forum Rep : 7
Location : PA pittsburgh and pymatuning

PostSubject: Re: Redzz02's Haspin Build [2018 Build-Off Entry]   Fri Feb 02, 2018 9:23 am

The password was eggplant not eggplants so I only drew one big one Smile. I have a few mowers I can take but I'm hoping to have this one done in time, it would be easy peasy if I was using the stock frame and solid front axle but I'm not so it's gonna take me a little more time

_______________________________________________
Espyville Mudders

https://www.youtube.com/user/redzz02

https://www.facebook.com/Espyvillemudders


everything from dropping em down and racing, to jacking up high muddin
Back to top Go down
Double W Cross Ranch
Grand Master
Grand Master
avatar

Age : 14
Join date : 2017-06-09
Posts : 1767
Forum Rep : 13
Location : Central Texas

PostSubject: Re: Redzz02's Haspin Build [2018 Build-Off Entry]   Fri Feb 02, 2018 4:34 pm

@redzz02 wrote:
I have a few mowers I can take but I'm hoping to have this one done in time, it would be easy peasy if I was using the stock frame and solid front axle but I'm not so it's gonna take me a little more time
Solid front axle? I assume you are locking the diff then?
Back to top Go down
https://themagazineishalff.wixsite.com/website
redzz02
Sponsor
Sponsor
avatar

Age : 23
Join date : 2010-05-12
Posts : 585
Forum Rep : 7
Location : PA pittsburgh and pymatuning

PostSubject: Re: Redzz02's Haspin Build [2018 Build-Off Entry]   Fri Feb 02, 2018 4:36 pm

I meant that if I was using a stock chassis and a stock front axle it would be a lot quicker build, when I referred to solid front axle I meant spline mount no suspension

_______________________________________________
Espyville Mudders

https://www.youtube.com/user/redzz02

https://www.facebook.com/Espyvillemudders


everything from dropping em down and racing, to jacking up high muddin
Back to top Go down
Double W Cross Ranch
Grand Master
Grand Master
avatar

Age : 14
Join date : 2017-06-09
Posts : 1767
Forum Rep : 13
Location : Central Texas

PostSubject: Re: Redzz02's Haspin Build [2018 Build-Off Entry]   Fri Feb 02, 2018 4:40 pm

@redzz02 wrote:
I meant that if I was using a stock chassis and a stock front axle it would be a lot quicker build, when I referred to solid front axle I meant spline mount no suspension
Ah okay.
Back to top Go down
https://themagazineishalff.wixsite.com/website
Doug
Administrator
Administrator
avatar

Age : 23
Join date : 2012-12-24
Posts : 2822
Forum Rep : 32
Location : Amish Country, PA

PostSubject: Re: Redzz02's Haspin Build [2018 Build-Off Entry]   Fri Feb 02, 2018 5:53 pm

Just hopefully no pulley splitting this year lmao.

_______________________________________________
Head Forum Administrator ** Chat Moderator ** Facebook Page Admin
ATLTF Facebook Page ** Chatbox ** How To Upload Pictures

_X_ FORUM ANNOUNCEMENTS _X_


2018 Build Off Entry Commissionaire - Have a question? Ask me! Type in "@Doug" in your post!

Your ATLTF Staff:
Administrators: @Doug, @"Doc Sprocket", @Stretch44875, @MightyRaze
Moderators: @TheRainbowBoxer, @AllisKidD21




Back to top Go down
redzz02
Sponsor
Sponsor
avatar

Age : 23
Join date : 2010-05-12
Posts : 585
Forum Rep : 7
Location : PA pittsburgh and pymatuning

PostSubject: Re: Redzz02's Haspin Build [2018 Build-Off Entry]   Mon Feb 05, 2018 11:37 pm

well i got the 820 all together and ready to rock.

i replace the axle needle bearings with bronze bushings.

roms peerless gears installed

i went ahead and got the rear diff bored out to one inch and broached a 1/4 key way into both halves of the diff housing. but i had one fudge up. i forgot that the bolt pattern on an 820 diff is not symmetrical. needless to say when the keyways were broached i only had 4 bolts into the two halves not paying attention to it. so i had t line it up correctly on my axle and re drill and tap the other 4 holes. i am using one lock collar and a spacer inside the diff housing to keep my axle from moving side to side.

all in all my 820 is all together with a 40 inch live axle, roms peerless gear set, and some belray gear saver lubes, and a nice bead of rtv to seal it all up














_______________________________________________
Espyville Mudders

https://www.youtube.com/user/redzz02

https://www.facebook.com/Espyvillemudders


everything from dropping em down and racing, to jacking up high muddin
Back to top Go down
Crazy_Carl
Expert
Expert
avatar

Age : 29
Join date : 2017-10-30
Posts : 1377
Forum Rep : 53
Location : Rochester, New York

PostSubject: Re: Redzz02's Haspin Build [2018 Build-Off Entry]   Tue Feb 06, 2018 7:28 am

Very Interesting. Looks nice. Did you do all of the machine work yourself?
Back to top Go down
redzz02
Sponsor
Sponsor
avatar

Age : 23
Join date : 2010-05-12
Posts : 585
Forum Rep : 7
Location : PA pittsburgh and pymatuning

PostSubject: Re: Redzz02's Haspin Build [2018 Build-Off Entry]   Tue Feb 06, 2018 7:35 am

@Crazy_Carl wrote:
Very Interesting.  Looks nice.  Did you do all of the machine work yourself?

No I had the machinist at work bore it and broach it if I had the tools myself I sure would have done them myself

_______________________________________________
Espyville Mudders

https://www.youtube.com/user/redzz02

https://www.facebook.com/Espyvillemudders


everything from dropping em down and racing, to jacking up high muddin
Back to top Go down
Dave 007
Apprentice
Apprentice


Age : 54
Join date : 2017-02-02
Posts : 111
Forum Rep : 2
Location : Australia

PostSubject: Re: Redzz02's Haspin Build [2018 Build-Off Entry]   Tue Feb 13, 2018 5:44 am

Good luck and best wishes, very happy to see your entry. cheers.
Back to top Go down
Thunderdivine
Seasoned Veteran
Seasoned Veteran
avatar

Join date : 2012-12-21
Posts : 2098
Forum Rep : 0
Location : Norway, Europe

PostSubject: Re: Redzz02's Haspin Build [2018 Build-Off Entry]   Tue Feb 13, 2018 5:49 am

Wow redzz your going for the Gold again I see, well good luck bounce

_______________________________________________
*Thunderdivine*
My Custom Racing Mower Build
JD210R - Racing Mower, Sidebuild
My Vintage John Deere 110, 1967 model
"Imagination is more important than knowledge." - Albert Einstein
Back to top Go down
Dave 007
Apprentice
Apprentice


Age : 54
Join date : 2017-02-02
Posts : 111
Forum Rep : 2
Location : Australia

PostSubject: Re: Redzz02's Haspin Build [2018 Build-Off Entry]   Tue Feb 13, 2018 5:55 am

@Thunderdivine wrote:
[color=#00cc33]Wow redzz your going for the Gold again I see, well good luck :boun/color]
Back to top Go down
redzz02
Sponsor
Sponsor
avatar

Age : 23
Join date : 2010-05-12
Posts : 585
Forum Rep : 7
Location : PA pittsburgh and pymatuning

PostSubject: Re: Redzz02's Haspin Build [2018 Build-Off Entry]   Tue Feb 13, 2018 9:23 pm

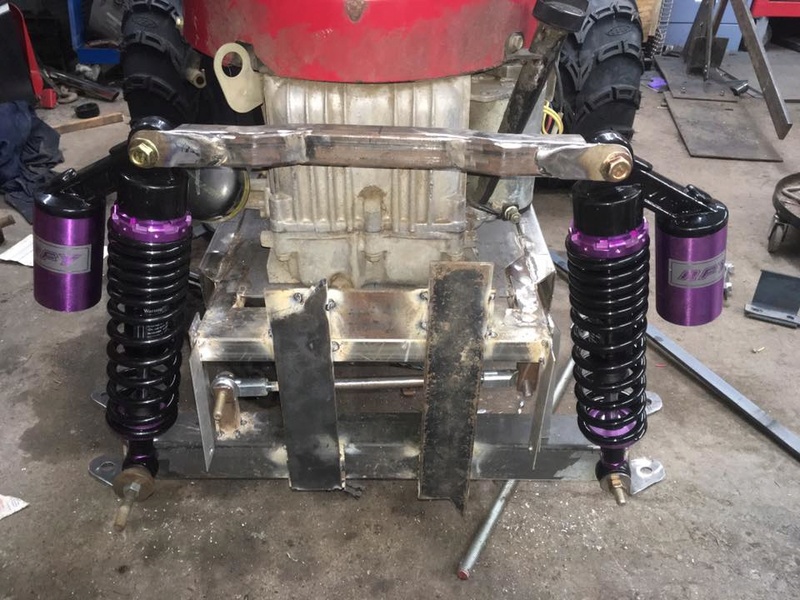

some frame work and some rework lol

2x1 stainless tubing frame work i had to narrow the front end to give me some extra room for some shocks upfront, engine plate tacked in there too

picked up a set of 20x10-8 v treads i think they might be a little too tall so i might run my 18inch as a spare set

cut down the tunnel 2.5 inches








_______________________________________________
Espyville Mudders

https://www.youtube.com/user/redzz02

https://www.facebook.com/Espyvillemudders


everything from dropping em down and racing, to jacking up high muddin
Back to top Go down
redzz02
Sponsor
Sponsor
avatar

Age : 23
Join date : 2010-05-12
Posts : 585
Forum Rep : 7
Location : PA pittsburgh and pymatuning

PostSubject: Re: Redzz02's Haspin Build [2018 Build-Off Entry]   Tue Feb 13, 2018 9:24 pm

thanks thunder and dave! i sure am shooting for first again Smile

_______________________________________________
Espyville Mudders

https://www.youtube.com/user/redzz02

https://www.facebook.com/Espyvillemudders


everything from dropping em down and racing, to jacking up high muddin
Back to top Go down
AllisKidD21
Moderator
Moderator
avatar

Age : 19
Join date : 2016-07-10
Posts : 3438
Forum Rep : 113
Location : Glencoe, Ontario

PostSubject: Re: Redzz02's Haspin Build [2018 Build-Off Entry]   Tue Feb 13, 2018 9:38 pm

Looks pretty cool so far! Love that all-thread axle, hahaha

_______________________________________________
"Here's another option, it's not as violent but it's dishonest. So it has that going for it" - Red Green                "Memory is good, remember that" - Tomas Haake
                                                                        ----Uploading Pictures----
        - M.T.D. Off-Road Build

- Toro Rat Rod Tractor Build
        - Ford LT 110 Off-Road Build
        - Craftsman GT 6000 Off-Road/Workhorse Build
        -John Deere 110 Basic Project
Back to top Go down
CraftsmanQuad19
Expert
Expert
avatar

Age : 18
Join date : 2016-04-12
Posts : 1402
Forum Rep : 43
Location : Indiana

PostSubject: Re: Redzz02's Haspin Build [2018 Build-Off Entry]   Tue Feb 13, 2018 10:10 pm

That all thread should keep the wheels on alright and be pretty sturdy to boot!
Back to top Go down
Stretch44875
Administrator
Administrator
avatar

Age : 43
Join date : 2012-04-05
Posts : 945
Forum Rep : 1
Location : Mansfield, Ohio

PostSubject: Re: Redzz02's Haspin Build [2018 Build-Off Entry]   Thu Feb 15, 2018 11:29 am

Good looking build, see you liked some of our ideas, sounds like it will kick our butts, lol
Back to top Go down
redzz02
Sponsor
Sponsor
avatar

Age : 23
Join date : 2010-05-12
Posts : 585
Forum Rep : 7
Location : PA pittsburgh and pymatuning

PostSubject: Re: Redzz02's Haspin Build [2018 Build-Off Entry]   Tue Feb 27, 2018 11:49 pm

@CraftsmanQuad19 @AllisKidD21 what you guys dont think the all thread is gonna be strong enough????

@Stretch44875 i wasnt a big fan of your mowers cause im used to big tires for the mud, and then once i seen them in person and seen you guys in action. i fell in love and needed to build my own lol


i started working on the front end since thats the most complex part of this build and i have been messing with my geo tracker, i also plan to take to haspin, way tooooo much.


as rumors are going around sadly no im not using althread for my front axle, yes i know what a bummer

2x2x1/8 square tubing for the front axle, 3x16 plate for the knuckles

3/8 heims and rod for the panhard bar, and ill be using 7/16 heims for the links. still havent decided mono or three link

the passenger side of the grille had to be notched out like the factory notch on the other side

running 13 inch remote reservoir shocks up front too

i am going to be mounting the motor in a "backwards" position, because the v twin juggs create alot wider foot print than a single cylinder. so to avoid cutting my hood or making an exo cage, i turned it around to make room for the shocks and to keep the mass of the motor as far forward as possible




















_______________________________________________
Espyville Mudders

https://www.youtube.com/user/redzz02

https://www.facebook.com/Espyvillemudders


everything from dropping em down and racing, to jacking up high muddin
Back to top Go down
AllisKidD21
Moderator
Moderator
avatar

Age : 19
Join date : 2016-07-10
Posts : 3438
Forum Rep : 113
Location : Glencoe, Ontario

PostSubject: Re: Redzz02's Haspin Build [2018 Build-Off Entry]   Wed Feb 28, 2018 12:36 am

Those are some fancy looking coilovers, looks sweet! If you can't decide between a 3-link or 1-link, what about a wish-bone 3-link? That's sort of a cross between both and it wouldn't need a track bar. Either I'm looking forward to seeing your front suspension come together!

_______________________________________________
"Here's another option, it's not as violent but it's dishonest. So it has that going for it" - Red Green                "Memory is good, remember that" - Tomas Haake
                                                                        ----Uploading Pictures----
        - M.T.D. Off-Road Build

- Toro Rat Rod Tractor Build
        - Ford LT 110 Off-Road Build
        - Craftsman GT 6000 Off-Road/Workhorse Build
        -John Deere 110 Basic Project
Back to top Go down
MightyRaze
Administrator
Administrator
avatar

Age : 43
Join date : 2016-09-06
Posts : 3870
Forum Rep : 161
Location : Shawnee, OK

PostSubject: Re: Redzz02's Haspin Build [2018 Build-Off Entry]   Wed Feb 28, 2018 7:13 am

Looking good Redzz02. Definite contender. I started off trying to do 3 link, I'm going to give a 1 link a try. So far it seems simple enough and doesn't take so much room underneath. At least in my case. I'm using what redlinemotorsportts did as an example.

_______________________________________________

1982 Murray GT. . . . . . . . . . . . . . . . . . 2-39002 . . . [2018 Entry]
Progress:  ▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄
           0              |              50             |             100

Murray CCT (KAL prebuild)
Sasquatch II . [2017 Finalist]
Li'l Red Murray

Arrow How To Upload Pictures
Back to top Go down
http://mightyraze.com
redzz02
Sponsor
Sponsor
avatar

Age : 23
Join date : 2010-05-12
Posts : 585
Forum Rep : 7
Location : PA pittsburgh and pymatuning

PostSubject: Re: Redzz02's Haspin Build [2018 Build-Off Entry]   Wed Feb 28, 2018 12:18 pm

@AllisKidD21 wish bone three link is just a cheated 4 link, but it's a good idea, I think the middle top link will get in my way

@mightyraze I actually saw your post right after I posted mine and saw you switched to a mono link, I was leaning more towards a mono link, but I think I'll stick with doing a 3 link, we do not want every build having a mini link now do we lol

_______________________________________________
Espyville Mudders

https://www.youtube.com/user/redzz02

https://www.facebook.com/Espyvillemudders


everything from dropping em down and racing, to jacking up high muddin
Back to top Go down
Sponsored content




PostSubject: Re: Redzz02's Haspin Build [2018 Build-Off Entry]

Back to top Go down

Redzz02's Haspin Build [2018 Build-Off Entry]
Back to top
Page 1 of 5Go to page : 1, 2, 3, 4, 5  Next
 Similar topics
-
» Redzz02's Haspin Build [2018 Build-Off Entry]
» Maine Mud Mower "Mud Wizard" [2018 Build-Off Entry]
» tater's Ford XXLT18 [2018 Build-Off Entry]
» ATLTF 2018 Build-Off Competition "NellyBelle" LT1000 [2018 Build-Off Entry]
» Biggasmower's "Lawn Gone lawn boy" [2018 Build-Off Entry]

Permissions in this forum:You cannot reply to topics in this forum
All-Terrain Lawn Tractor Forum :: Build-Off Competition :: Build-Off Competition Threads-
Jump to:
