 RichieRichOverdrive's Snapper LT18RS [2018 Build-Off Entry]

Go down
AuthorMessage
RichieRichOverdrive
Expert
Expert
avatar

Age : 15
Join date : 2016-10-29
Posts : 1144
Forum Rep : 38
Location : Lewisburg, KY

PostSubject: RichieRichOverdrive's Snapper LT18RS [2018 Build-Off Entry]   Sun Feb 04, 2018 1:07 am

Well folks, I've finally got the courage to do it. This here's my series 2 Snapper LT16 (made sometime after 1986) that I'm planning to build into a speedy ralley type tractor. Will swap in a peerless 700 series, ungoverned Briggs 18hp opposed twin lowering it to 4" or 5" off the ground, and gearing her for 40mph or so. Will have a go kart brake caliper and disk and live axle.

Work that has to be done? Front axle built, 700 mounted, oppy mounted, live axle mounted, belt system made, steering system made...etc etc.



doug that's the bonus pw at the bottom of the sign cause i know you're gonna say you cant read that




-Approved by Doug, 2/4/2018
Back to top Go down
Doug
Webmaster
Webmaster
avatar

Age : 22
Join date : 2012-12-24
Posts : 2782
Forum Rep : 28
Location : Amish Country, PA

PostSubject: Re: RichieRichOverdrive's Snapper LT18RS [2018 Build-Off Entry]   Sun Feb 04, 2018 3:25 pm

I guess I'll let you in.

_______________________________________________
Back to top Go down
mightyraze
Moderator
Moderator
avatar

Age : 42
Join date : 2016-09-06
Posts : 2712
Forum Rep : 112
Location : Shawnee, OK

PostSubject: Re: RichieRichOverdrive's Snapper LT18RS [2018 Build-Off Entry]   Sun Feb 04, 2018 3:32 pm

Yay Rich..... Hope that 700 holds up to the Oppy.

_______________________________________________

Kal-El 1982 Murray GT. . . . . . . . . . . . . . . . . . 2-39002 . . . [2018 Entry]
Progress: ▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄
           0                                 50                                 100

Sasquatch II 1990 Craftsman II . . . . . . . . . . . . . 917.2559101 . [2017 Finalist]
Li'l Red Murray 1998 Murray. . . . . . . . . . . . . . . 42505x92A
[Future Project] 1974 Craftsman LT10/36  . . . 917.2552704

Arrow How To Upload Pictures
Back to top Go down
http://mightyraze.com
RichieRichOverdrive
Expert
Expert
avatar

Age : 15
Join date : 2016-10-29
Posts : 1144
Forum Rep : 38
Location : Lewisburg, KY

PostSubject: Re: RichieRichOverdrive's Snapper LT18RS [2018 Build-Off Entry]   Sun Feb 04, 2018 4:55 pm

I've seen 700s hold up to a lot more, plus I think I've decided against the big tires. I'm confident it'll work.
Back to top Go down
biggasmowers
Master
Master
avatar

Age : 17
Join date : 2016-12-30
Posts : 778
Forum Rep : 29
Location : Kansas

PostSubject: Re: RichieRichOverdrive's Snapper LT18RS [2018 Build-Off Entry]   Sun Feb 04, 2018 7:00 pm

yeah i had my ungoverned oppy with a 700. and 22 inch mud lites. went about 45-55 mph . if i would of put smaller tires on it, it would of lasted more than the couple months it did.
Back to top Go down
RichieRichOverdrive
Expert
Expert
avatar

Age : 15
Join date : 2016-10-29
Posts : 1144
Forum Rep : 38
Location : Lewisburg, KY

PostSubject: Re: RichieRichOverdrive's Snapper LT18RS [2018 Build-Off Entry]   Fri Feb 09, 2018 11:17 pm

Mockup, looks weird because it's a bad mockup lol, rear wheels are at full width




Think these bushings will hold up for what I'm doing

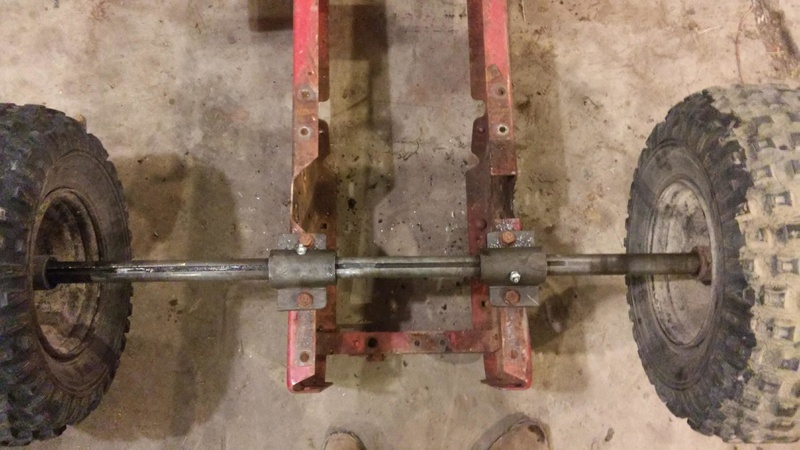

Rear axle mounted


Wheels in around where they will be when finalized


Got hella tired after this for whatever reason so i quit lol, prolly will get back at it tomorrow.
Back to top Go down
mightyraze
Moderator
Moderator
avatar

Age : 42
Join date : 2016-09-06
Posts : 2712
Forum Rep : 112
Location : Shawnee, OK

PostSubject: Re: RichieRichOverdrive's Snapper LT18RS [2018 Build-Off Entry]   Sat Feb 10, 2018 12:47 am

I didn't realize you were going for a speed build. Smile

_______________________________________________

Kal-El 1982 Murray GT. . . . . . . . . . . . . . . . . . 2-39002 . . . [2018 Entry]
Progress: ▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄
           0                                 50                                 100

Sasquatch II 1990 Craftsman II . . . . . . . . . . . . . 917.2559101 . [2017 Finalist]
Li'l Red Murray 1998 Murray. . . . . . . . . . . . . . . 42505x92A
[Future Project] 1974 Craftsman LT10/36  . . . 917.2552704

Arrow How To Upload Pictures
Back to top Go down
http://mightyraze.com
biggasmowers
Master
Master
avatar

Age : 17
Join date : 2016-12-30
Posts : 778
Forum Rep : 29
Location : Kansas

PostSubject: Re: RichieRichOverdrive's Snapper LT18RS [2018 Build-Off Entry]   Sat Feb 10, 2018 10:01 am

Interesting axle ,bushings? I like the shape of the fenders!
Back to top Go down
RichieRichOverdrive
Expert
Expert
avatar

Age : 15
Join date : 2016-10-29
Posts : 1144
Forum Rep : 38
Location : Lewisburg, KY

PostSubject: Re: RichieRichOverdrive's Snapper LT18RS [2018 Build-Off Entry]   Sat Feb 10, 2018 10:35 am

The axle had bearings, I took em off because I didn't see them holding up to what I wanted. Were just in stamped housings. I got the bushings from my old trade school, they were throwing em out and I snatched em up as fast as I could.

Yeah mighty, she's a Ralley/Sport, so on/off road, sorta like a mowron build.
Back to top Go down
TheBeal
Expert
Expert
avatar

Age : 23
Join date : 2013-06-06
Posts : 1038
Forum Rep : 20
Location : Central PA

PostSubject: Re: RichieRichOverdrive's Snapper LT18RS [2018 Build-Off Entry]   Sat Feb 10, 2018 1:22 pm

The keyed axle might chew em up quick? Can you drill em out and put in some brass bushings?
Atleast then it wearing something that more easily replaceable.

Something else to think about... that alot of un-supported axle hanging out there. That will bend without support closer to the wheel.


Looks like a fun build at any rate.
Back to top Go down
Crazy_Carl
Skilled
Skilled
avatar

Age : 28
Join date : 2017-10-30
Posts : 287
Forum Rep : 13
Location : Rochester, New York

PostSubject: Re: RichieRichOverdrive's Snapper LT18RS [2018 Build-Off Entry]   Sat Feb 10, 2018 2:23 pm

Rich could easily weld up the keyway in that axle then machine or sand it down to make it fully round. He might already have plans to add a couple more bearings closer to the wheels to support the axle better.
Back to top Go down
biggasmowers
Master
Master
avatar

Age : 17
Join date : 2016-12-30
Posts : 778
Forum Rep : 29
Location : Kansas

PostSubject: Re: RichieRichOverdrive's Snapper LT18RS [2018 Build-Off Entry]   Sat Feb 10, 2018 4:42 pm

I would get some cast iron axle bracket hangers, you can order full assemblies from bmikarts for around 10 bucks apiece i think. That includes installed bearings , they are what i use and have not had any issues with them.

I dont think the axle is going to bend by being out that far, i ran a 42 inch axle with 22 inch tires and had my brackets 14 inches apart in the center without bending anything.
Back to top Go down
RichieRichOverdrive
Expert
Expert
avatar

Age : 15
Join date : 2016-10-29
Posts : 1144
Forum Rep : 38
Location : Lewisburg, KY

PostSubject: Re: RichieRichOverdrive's Snapper LT18RS [2018 Build-Off Entry]   Sat Feb 10, 2018 9:51 pm

Those cast iron things already have bronze in them, and they have grease fittings, I think they'll be fine. Aren't stretch and doc running bushings over keyways in their 820s?

I'm not really concerned about the axle bending. Not much room to move the bearings out farther(at least easily), gotta fit my brake rotor out there somewhere. Also this is an actual axle, not just some cold rolled.

Didn't get any work done today. Went to BG and went around through flea markets and thrift stores and stuff, was great. I'll get back to it tomorrow hopefully.
Back to top Go down
CraftsmanQuad19
Expert
Expert
avatar

Age : 17
Join date : 2016-04-12
Posts : 1013
Forum Rep : 32
Location : Indiana

PostSubject: Re: RichieRichOverdrive's Snapper LT18RS [2018 Build-Off Entry]   Sat Feb 10, 2018 9:58 pm

Ooh find anything good?
Back to top Go down
RichieRichOverdrive
Expert
Expert
avatar

Age : 15
Join date : 2016-10-29
Posts : 1144
Forum Rep : 38
Location : Lewisburg, KY

PostSubject: Re: RichieRichOverdrive's Snapper LT18RS [2018 Build-Off Entry]   Sat Feb 10, 2018 10:22 pm

Ehhh...nothing special. Got a guitar strap and pick, went to walmart and got a misfits tea shart and the Master of Puppets remaster(thats missing disc 3, and instead has 2 disc 2s...gotta do something about that, and I got Wendy's lol.

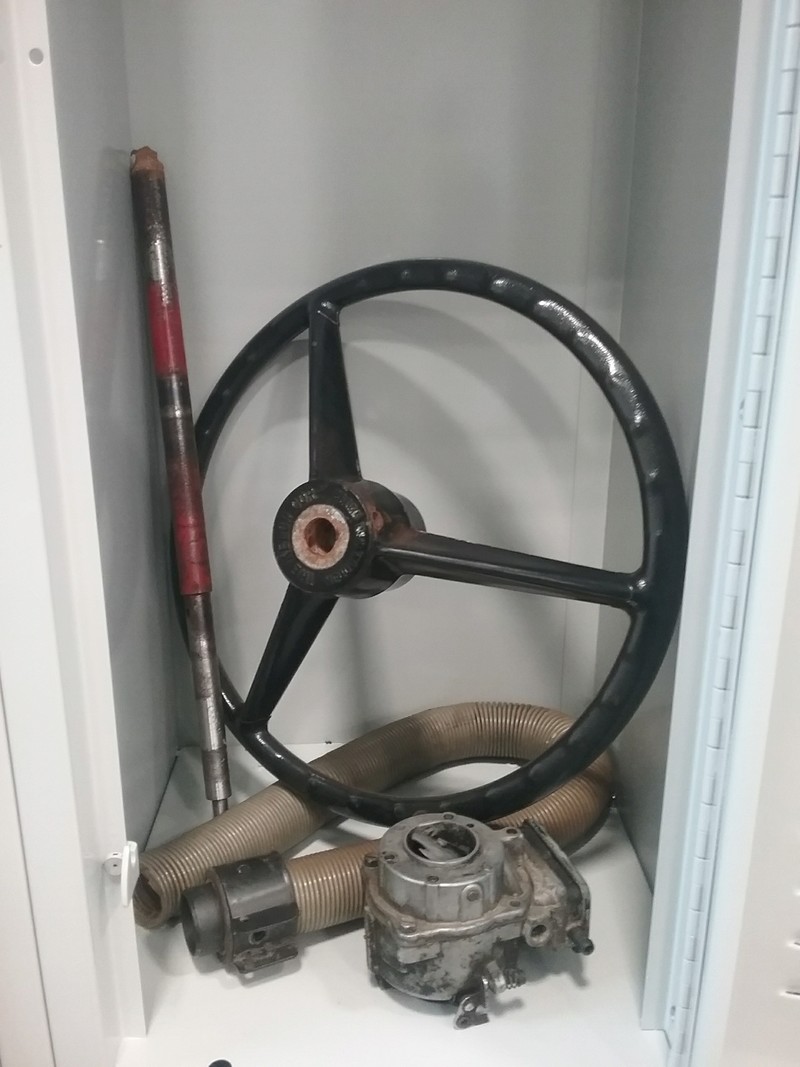

Misc pics somewhat related to this build that I didn't put before because they're pretty non-essential but I'm putting here so i don't look like I'm supporting the thread jacking of my own thread








Back to top Go down
RichieRichOverdrive
Expert
Expert
avatar

Age : 15
Join date : 2016-10-29
Posts : 1144
Forum Rep : 38
Location : Lewisburg, KY

PostSubject: Re: RichieRichOverdrive's Snapper LT18RS [2018 Build-Off Entry]   Mon Feb 12, 2018 12:31 am

Got some stuff done today/ Was looking the frame over a bit, found that there was a bit too much flex towards the back, especially above the axle. I figured plugging the hole around the axle would help, I think it will. Might add some more crossmembers toawrds to back to get back what I lost from taking the crossmember for the drive disk and what the stock transmission helped with.

This is actually the frame I cut the plug from, but it's the exact same as the one I'm patching.


Was having some trouble with the gas at first. Turned out ok though. Bit outta practice with the Mig haha.


Nice and flat on both sides.
Back to top Go down
Dave 007
Apprentice
Apprentice


Age : 53
Join date : 2017-02-02
Posts : 99
Forum Rep : 2
Location : Australia

PostSubject: Re: RichieRichOverdrive's Snapper LT18RS [2018 Build-Off Entry]   Tue Feb 13, 2018 5:38 am

Good luck and best wishes, very happy to see your entry. cheers.
Back to top Go down
Thunderdivine
Grand Master
Grand Master
avatar

Join date : 2012-12-21
Posts : 2085
Forum Rep : 0
Location : Norway, Europe

PostSubject: Re: RichieRichOverdrive's Snapper LT18RS [2018 Build-Off Entry]   Tue Feb 13, 2018 5:41 am

Good luck, good to see another Rally build

_______________________________________________
*Thunderdivine*
My Custom Racing Mower Build
JD210R - Racing Mower, Sidebuild
My Vintage John Deere 110, 1967 model
"Imagination is more important than knowledge." - Albert Einstein
Back to top Go down
RichieRichOverdrive
Expert
Expert
avatar

Age : 15
Join date : 2016-10-29
Posts : 1144
Forum Rep : 38
Location : Lewisburg, KY

PostSubject: Re: RichieRichOverdrive's Snapper LT18RS [2018 Build-Off Entry]   Fri Feb 16, 2018 12:53 pm

Dragged my sick arse out to the shop yesterday and did a bit of work. Patched the other side of the frame. Tuned the settings a bit from last time, turned the wire feed down and the heat up a bit, burned in a lot better. I was kinda out of it though, welds weren't so pretty.

Pro grade clamping. Didnt do a very good job cutting this one out, oh well.


All ground down. Got lucky, welds didn't interphere with the forward axle mount hole


Finally got the steering shaft out of the dash. Had to make a drift out of a rusty drill bit (tried just about everything that i had that wasn't tool steel, everything bent), and used a bit hammer to drive it out. What a pain.


Oh, and first pics on here from my new phone!
Back to top Go down
CraftsmanQuad19
Expert
Expert
avatar

Age : 17
Join date : 2016-04-12
Posts : 1013
Forum Rep : 32
Location : Indiana

PostSubject: Re: RichieRichOverdrive's Snapper LT18RS [2018 Build-Off Entry]   Fri Feb 16, 2018 1:40 pm

Ooh new phone, whatcha get?

Build looks like it’s coming along. Hope ya feel better bud
Back to top Go down
biggasmowers
Master
Master
avatar

Age : 17
Join date : 2016-12-30
Posts : 778
Forum Rep : 29
Location : Kansas

PostSubject: Re: RichieRichOverdrive's Snapper LT18RS [2018 Build-Off Entry]   Fri Feb 16, 2018 2:23 pm

Cool. I just got a new phone too. Frame looks like it's getting stronger with all of those patches !
I need to get out and do some stuff on my machines but I have so much stuff that's cluttering up my life rn.
Back to top Go down
mightyraze
Moderator
Moderator
avatar

Age : 42
Join date : 2016-09-06
Posts : 2712
Forum Rep : 112
Location : Shawnee, OK

PostSubject: Re: RichieRichOverdrive's Snapper LT18RS [2018 Build-Off Entry]   Fri Feb 16, 2018 3:45 pm

Wondered where you have been. Hope you get better man.

_______________________________________________

Kal-El 1982 Murray GT. . . . . . . . . . . . . . . . . . 2-39002 . . . [2018 Entry]
Progress: ▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄▄
           0                                 50                                 100

Sasquatch II 1990 Craftsman II . . . . . . . . . . . . . 917.2559101 . [2017 Finalist]
Li'l Red Murray 1998 Murray. . . . . . . . . . . . . . . 42505x92A
[Future Project] 1974 Craftsman LT10/36  . . . 917.2552704

Arrow How To Upload Pictures
Back to top Go down
http://mightyraze.com
