 4X4 Mud-Murray Offroad Mower

Go down
Go to page : Previous  1, 2, 3, 4, 5
AuthorMessage
SebastianAlbrecht
Veteran
Veteran


Join date : 2018-02-27
Posts : 501

PostSubject: Re: 4X4 Mud-Murray Offroad Mower   Thu Aug 09, 2018 1:41 pm

I looked at Ebay for 8" ball bearing front rims.....

with shipping to me..

220$ !!!

Mad Mad Mad Mad

I needed another solution!

So I saw the Vid of RCG modding Snowblower rims to fit his mower with ball bearings in them

I had the FNR Rims lying around off my buds POS Rat Rod Mower things

and I have 10 Axle bearings...

that sounds like: HOMEMADE FRONT RIMS! YEP!

I chopped off the hub





and I found some steel pipe that fitted the outside diameter of the bearings.

I cut off some slices and put them in my metal lathe to get them perfectly flat at the ends and at the right length.



and I hate throwing something away, even if it's junk, it could be helpful someday. So it was with the Axles off the blown FNR.

I put the axle in the part what's left of the hub, a axle bearing on the shaft, slide the pipe over it. Centered!



I used the outside of the rims as the new inside, cuz otherwis I would get into trouble with my front axle, and the rims would hit the axle.



this is the old inside, now the new Outside

and I machined the longer bearing guides for the inside



I welded on the other side too



now I just need to take the rims to the company my dad works for, and ask them if tey could drill me the center out to 20mm.



I really like the new rims, and they cost me nothing then the bearings. And hopefully the drilling job will be free too.
Back to top Go down
MatthewD
Grand Master
Grand Master
avatar

Age : 16
Join date : 2014-11-16
Posts : 1869
Forum Rep : 34
Location : Northern Ireland

PostSubject: Re: 4X4 Mud-Murray Offroad Mower   Thu Aug 09, 2018 1:51 pm

Nice mod to the rims. Better than running them metal to metal on the spindles. I might have to steal that idea Razz Why do you need the rims drilled out to 20mm? On most mowers the spindles are 3/4", which is 19.05mm.
Back to top Go down
SebastianAlbrecht
Veteran
Veteran
avatar

Age : 17
Join date : 2018-02-27
Posts : 501
Forum Rep : 13
Location : Saxony, Germany

PostSubject: Re: 4X4 Mud-Murray Offroad Mower   Thu Aug 09, 2018 1:54 pm

@MatthewD wrote:
Nice mod to the rims. Better than running them metal to metal on the spindles. I might have to steal that idea Razz Why do you need the rims drilled out to 20mm? On most mowers the spindles are 3/4", which is 19.05mm.

Cuz I want to have some clearance between the spindle and the rim, so if I welded the pipe a tiny bit offcentered on, I have still some clearance for the rim to move, so it still spins freely, without applying force to it.
Back to top Go down
AllisKidD21
Moderator
Moderator
avatar

Age : 19
Join date : 2016-07-10
Posts : 3559
Forum Rep : 116
Location : Glencoe, Ontario

PostSubject: Re: 4X4 Mud-Murray Offroad Mower   Thu Aug 09, 2018 3:00 pm

Nice work with the bearing setup there. Maybe groove the insides for an internal snapring to hold in the bearings?

_______________________________________________
"Here's another option, it's not as violent but it's dishonest. So it has that going for it" - Red Green                "Memory is good, remember that" - Tomas Haake
                                                                        ----Uploading Pictures----
        - M.T.D. Off-Road Build

- Toro Rat Rod Tractor Build
        - Ford LT 110 Off-Road Build
        - Craftsman GT 6000 Off-Road/Workhorse Build
        -John Deere 110 Basic Project
Back to top Go down
Online
SebastianAlbrecht
Veteran
Veteran
avatar

Age : 17
Join date : 2018-02-27
Posts : 501
Forum Rep : 13
Location : Saxony, Germany

PostSubject: Re: 4X4 Mud-Murray Offroad Mower   Thu Aug 09, 2018 3:28 pm

@AllisKidD21 wrote:
Nice work with the bearing setup there. Maybe  groove the insides for an internal snapring to hold in the bearings?

I hadn't planned, normally they should stay in there when I put the washer and hitch pin on the Axle

Back to top Go down
George Gooding
Apprentice
Apprentice


Join date : 2018-06-15
Posts : 90
Forum Rep : 0

PostSubject: Re: 4X4 Mud-Murray Offroad Mower   Thu Aug 09, 2018 4:01 pm

Looking good
Back to top Go down
Crazy_Carl
Grand Master
Grand Master
avatar

Age : 29
Join date : 2017-10-30
Posts : 1558
Forum Rep : 64
Location : Rochester, New York

PostSubject: Re: 4X4 Mud-Murray Offroad Mower   Thu Aug 09, 2018 10:14 pm

Since you're not using flanged bearings you'll need some method to keep them from moving into the pipes you welded on.  Good work though.  I like that method for centering them.  You could also make a useful tool that involves cutting a slot with a saw into the end of a shaft that you can put a rough piece of sandpaper in.  Put that shaft into a drill and with some patience you'll have clearance without taking it to a machine shop.  Be warned this method is a lot slower that drilling.  It's better suited for removing small amounts of material.

I also would have drilled and tapped for grease zerks in the pipes before they were welded on.  Then remove the inner seal on the bearing to allow the grease to penetrate the bearing.
Back to top Go down
SebastianAlbrecht
Veteran
Veteran
avatar

Age : 17
Join date : 2018-02-27
Posts : 501
Forum Rep : 13
Location : Saxony, Germany

PostSubject: Re: 4X4 Mud-Murray Offroad Mower   Fri Aug 10, 2018 4:45 am

@George Gooding wrote:
Looking good

Thanks

@Crazy_Carl wrote:
Since you're not using flanged bearings you'll need some method to keep them from moving into the pipes you welded on.  Good work though.  I like that method for centering them.  You could also make a useful tool that involves cutting a slot with a saw into the end of a shaft that you can put a rough piece of sandpaper in.  Put that shaft into a drill and with some patience you'll have clearance without taking it to a machine shop.  Be warned this method is a lot slower that drilling.  It's better suited for removing small amounts of material.

I also would have drilled and tapped for grease zerks in the pipes before they were welded on.  Then remove the inner seal on the bearing to allow the grease to penetrate the bearing.

The Outside I just need to put in a washer between the bearing and the rim. Inside I will machine the cutoffs of the FNR Hubs to length to prevent it from sliding in or or out.

When they will not make it for me, I will try it.

Maybe I add some, or I just pull the bearings out, threw some grease in their area, put them back in without the seal on 1 side.
Back to top Go down
SebastianAlbrecht
Veteran
Veteran
avatar

Age : 17
Join date : 2018-02-27
Posts : 501
Forum Rep : 13
Location : Saxony, Germany

PostSubject: Re: 4X4 Mud-Murray Offroad Mower   Sat Aug 11, 2018 2:11 pm

I MADE TODAY THE BEST DEAL OF MY WHOLE LIFETIME!!!!

Well, let me calm down, tell you the whole story, while enjoying a Beer!
I looked for a AWS Transaxle since long time. Then I found this:

an Dynamark-based Mower from the 90s without deck, but it had a AWS Transaxle, and a Vanguard Engine!

(I wish I could show U the pics the seller sent me, but in G we got new laws, so we get punished if we share pics U hand't took your own public. )

I foght a pretty bad, hard fight, trying to show Dad, the Mower would be fully worth it. And after Long hard Work, I finally got him to agree. Very Happy Very Happy Very Happy

We Drove the seller, and again stuffed it into my dads car, like every other mower I own.

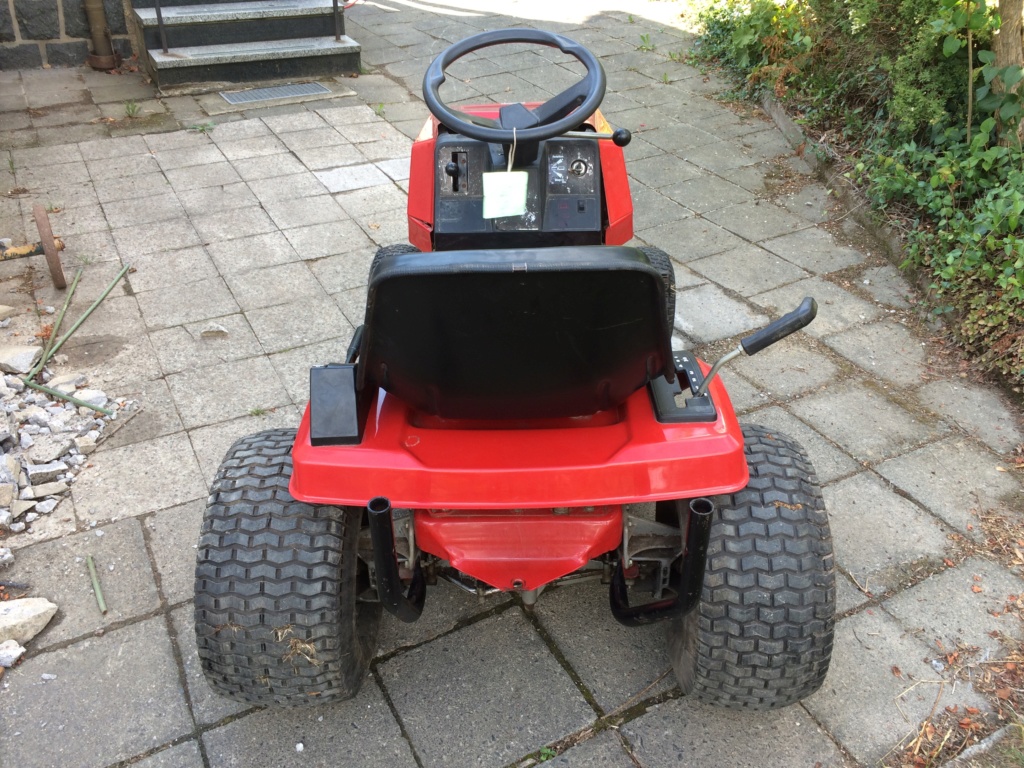

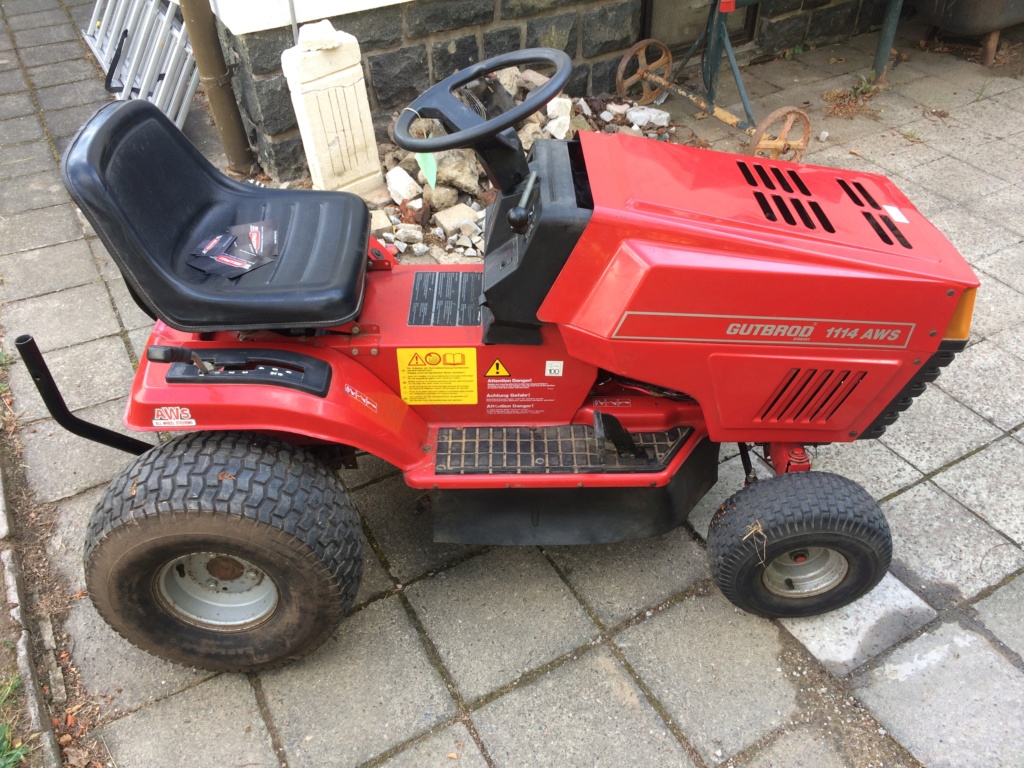

Here are some Pics I took off him at home:















For DOM 1990 it's in pretty good Shape!

here are a few Pics I made off the AWS Transaxle. It seems to be an Peerless 930.







And finally some Pics of the Vanguard. I got it running and driving just 1 hour after we unloaded it!







The Engine is complete, I just needed to pull the air filter off, cuz the fuel pump was pumping gas into the carb, and the Engine wo'nt run on the carb, and the seller said, he ultrasonic cleaned the carb.  It was the Fuel Solenoid that was stuck and someone ripped off the wire accidentally. I pushed the plug in the solenoid all the way down, and then it ran!

Now you ask: ,,Why I share that stuff in the Mud Murray Thread?

Easy Answer!

It's kind of a shame, but I will do it! I will PART THIS MOWER OUT!

The AWS is going into MUD MURRAY, so I build a 4X4 Mud-Murray!!

The Engine into Murray Widebody!

I hope you like that!
Back to top Go down
CraftsmanQuad19
Expert
Expert
avatar

Age : 18
Join date : 2016-04-12
Posts : 1475
Forum Rep : 45
Location : Indiana

PostSubject: Re: 4X4 Mud-Murray Offroad Mower   Sat Aug 11, 2018 2:43 pm

Read redzz02’s 4wd thread very carefully, because he built his on the dynamark platform, which is pretty similar to the stamped frame on the Murray. You might learn some tips from it
Back to top Go down
SebastianAlbrecht
Veteran
Veteran
avatar

Age : 17
Join date : 2018-02-27
Posts : 501
Forum Rep : 13
Location : Saxony, Germany

PostSubject: Re: 4X4 Mud-Murray Offroad Mower   Sat Aug 11, 2018 2:59 pm

@CraftsmanQuad19 wrote:
Read redzz02’s 4wd thread very carefully, because he built his on the dynamark platform, which is pretty similar to the stamped frame on the Murray. You might learn some tips from it

Thanks for The Tip! I watched his vid series yesterday! Will look up the thread soon.
Back to top Go down
RichieRichOverdrive
Grand Master
Grand Master
avatar

Age : 15
Join date : 2016-10-29
Posts : 1926
Forum Rep : 50
Location : Lewisburg, KY

PostSubject: Re: 4X4 Mud-Murray Offroad Mower   Sat Aug 11, 2018 5:13 pm

What CQ is saying:

Put a subframe on it that's stiffer than an atv frame
Back to top Go down
SebastianAlbrecht
Veteran
Veteran
avatar

Age : 17
Join date : 2018-02-27
Posts : 501
Forum Rep : 13
Location : Saxony, Germany

PostSubject: Re: 4X4 Mud-Murray Offroad Mower   Sat Aug 11, 2018 5:27 pm

@RichieRichOverdrive wrote:
What CQ is saying:

Put a subframe on it that's stiffer than an atv frame

I probably will build a subframe outta Box Steel, the thickest stuff I can get!
Back to top Go down
SebastianAlbrecht
Veteran
Veteran
avatar

Age : 17
Join date : 2018-02-27
Posts : 501
Forum Rep : 13
Location : Saxony, Germany

PostSubject: Re: 4X4 Mud-Murray Offroad Mower   Yesterday at 12:09 am

WOULD YOU LIKE TO SEE 4X4 MUD-MURRAY IN THE NEXT YEARS BUILD-OFF?

If yes, I will pause working on it, til the new Build-Off begins.
Back to top Go down
RichieRichOverdrive
Grand Master
Grand Master
avatar

Age : 15
Join date : 2016-10-29
Posts : 1926
Forum Rep : 50
Location : Lewisburg, KY

PostSubject: Re: 4X4 Mud-Murray Offroad Mower   Yesterday at 7:51 am

I say yes because i know it's gonna pain you to not touch this thing for several months
Back to top Go down
SebastianAlbrecht
Veteran
Veteran
avatar

Age : 17
Join date : 2018-02-27
Posts : 501
Forum Rep : 13
Location : Saxony, Germany

PostSubject: Re: 4X4 Mud-Murray Offroad Mower   Yesterday at 3:39 pm

@RichieRichOverdrive wrote:
I say yes because i know it's gonna pain you to not touch this thing for several months

I still can do something to it, like figuring out the Subframe. Just not allowed to Build anything on it.
And I still have some other Mowers to work on.
Back to top Go down
MatthewD
Grand Master
Grand Master
avatar

Age : 16
Join date : 2014-11-16
Posts : 1869
Forum Rep : 34
Location : Northern Ireland

PostSubject: Re: 4X4 Mud-Murray Offroad Mower   Yesterday at 5:16 pm

I would say enter it into the 2019 Build Off. You only need to be below 50% done to enter and it's going to be a 4x4 so there's a lot of work going into it so you could probably keep working on it slowly til the Build Off begins.
Back to top Go down
SebastianAlbrecht
Veteran
Veteran
avatar

Age : 17
Join date : 2018-02-27
Posts : 501
Forum Rep : 13
Location : Saxony, Germany

PostSubject: Re: 4X4 Mud-Murray Offroad Mower   Yesterday at 11:06 pm

@MatthewD wrote:
I would say enter it into the 2019 Build Off. You only need to be below 50% done to enter and it's going to be a 4x4 so there's a lot of work going into it so you could probably keep working on it slowly til the Build Off begins.

Yeah, Exactly!
Back to top Go down
