SebastianAlbrecht
Expert
Expert


Join date : 2018-02-27
Posts : 1233

Mud-Murray Offroad Mower - Page 5 Empty
PostSubject: Re: Mud-Murray Offroad Mower   Mud-Murray Offroad Mower - Page 5 Icon_minitimeThu Aug 09, 2018 1:41 pm

I looked at Ebay for 8" ball bearing front rims.....

with shipping to me..

220$ !!!

Mad Mad Mad Mad

I needed another solution!

So I saw the Vid of RCG modding Snowblower rims to fit his mower with ball bearings in them

I had the FNR Rims lying around off my buds POS Rat Rod Mower things

and I have 10 Axle bearings...

that sounds like: HOMEMADE FRONT RIMS! YEP!

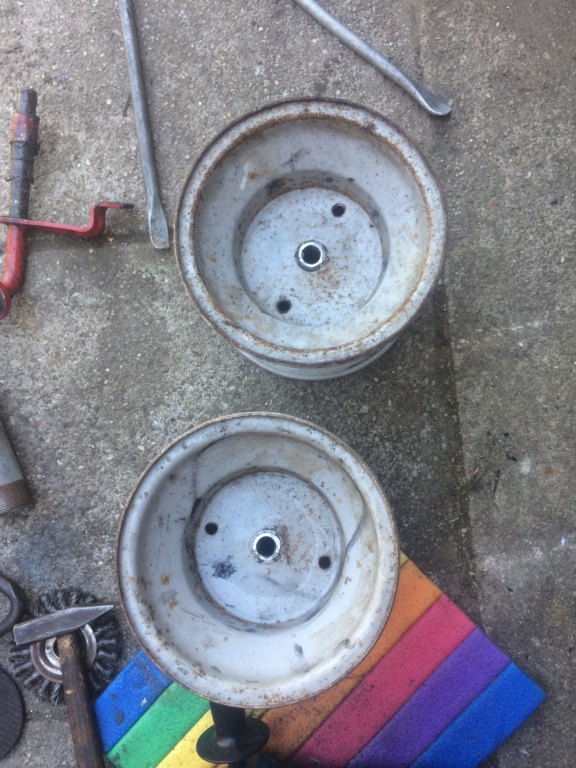

I chopped off the hub

Mud-Murray Offroad Mower - Page 5 20180840

Mud-Murray Offroad Mower - Page 5 20180842

and I found some steel pipe that fitted the outside diameter of the bearings.

I cut off some slices and put them in my metal lathe to get them perfectly flat at the ends and at the right length.

Mud-Murray Offroad Mower - Page 5 20180841

and I hate throwing something away, even if it's junk, it could be helpful someday. So it was with the Axles off the blown FNR.

I put the axle in the part what's left of the hub, a axle bearing on the shaft, slide the pipe over it. Centered!

Mud-Murray Offroad Mower - Page 5 20180844

I used the outside of the rims as the new inside, cuz otherwis I would get into trouble with my front axle, and the rims would hit the axle.

Mud-Murray Offroad Mower - Page 5 20180845

this is the old inside, now the new Outside

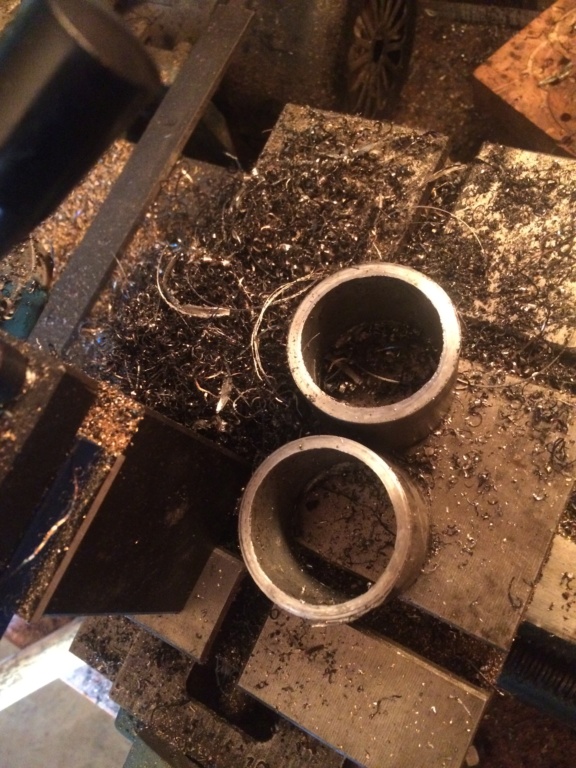

and I machined the longer bearing guides for the inside

Mud-Murray Offroad Mower - Page 5 20180843

I welded on the other side too

Mud-Murray Offroad Mower - Page 5 20180847

now I just need to take the rims to the company my dad works for, and ask them if tey could drill me the center out to 20mm.

Mud-Murray Offroad Mower - Page 5 20180846

I really like the new rims, and they cost me nothing then the bearings. And hopefully the drilling job will be free too.
Back to top Go down
MatthewD
Grand Master
Grand Master
MatthewD

Age : 17
Join date : 2014-11-16
Posts : 1992
Forum Rep : 40
Location : Northern Ireland

Mud-Murray Offroad Mower - Page 5 Empty
PostSubject: Re: Mud-Murray Offroad Mower   Mud-Murray Offroad Mower - Page 5 Icon_minitimeThu Aug 09, 2018 1:51 pm

Nice mod to the rims. Better than running them metal to metal on the spindles. I might have to steal that idea Razz Why do you need the rims drilled out to 20mm? On most mowers the spindles are 3/4", which is 19.05mm.
Back to top Go down
SebastianAlbrecht
Expert
Expert
SebastianAlbrecht

Age : 18
Join date : 2018-02-27
Posts : 1233
Forum Rep : 45
Location : Saxony, Germany

Mud-Murray Offroad Mower - Page 5 Empty
PostSubject: Re: Mud-Murray Offroad Mower   Mud-Murray Offroad Mower - Page 5 Icon_minitimeThu Aug 09, 2018 1:54 pm

@MatthewD wrote:
Nice mod to the rims. Better than running them metal to metal on the spindles. I might have to steal that idea Razz Why do you need the rims drilled out to 20mm? On most mowers the spindles are 3/4", which is 19.05mm.

Cuz I want to have some clearance between the spindle and the rim, so if I welded the pipe a tiny bit offcentered on, I have still some clearance for the rim to move, so it still spins freely, without applying force to it.
Back to top Go down
AllisKidD21
Moderator
Moderator
AllisKidD21

Age : 20
Join date : 2016-07-10
Posts : 4353
Forum Rep : 186
Location : Ontario Canada

Mud-Murray Offroad Mower - Page 5 Empty
PostSubject: Re: Mud-Murray Offroad Mower   Mud-Murray Offroad Mower - Page 5 Icon_minitimeThu Aug 09, 2018 3:00 pm

Nice work with the bearing setup there. Maybe groove the insides for an internal snapring to hold in the bearings?

_______________________________________________
"This'll either wake you up or put you to sleep forever!"- Red Green         "Just took a center punch *Wham!* Oh that's close enough." - TheBeal
                                                                       ----Uploading Pictures----
        - MTD Off-Road Build

- Toro Rat Rod Tractor Build
        - Ford LT 110 Off-Road Build
        - Craftsman GT 6000 Off-Road Build
        - John Deere 110 Basic Off-Road Build
        - Allis B-110, Case 444, WH 655, Bolens Versamatic -
Back to top Go down
SebastianAlbrecht
Expert
Expert
SebastianAlbrecht

Age : 18
Join date : 2018-02-27
Posts : 1233
Forum Rep : 45
Location : Saxony, Germany

Mud-Murray Offroad Mower - Page 5 Empty
PostSubject: Re: Mud-Murray Offroad Mower   Mud-Murray Offroad Mower - Page 5 Icon_minitimeThu Aug 09, 2018 3:28 pm

@AllisKidD21 wrote:
Nice work with the bearing setup there. Maybe  groove the insides for an internal snapring to hold in the bearings?

I hadn't planned, normally they should stay in there when I put the washer and hitch pin on the Axle

Back to top Go down
George Gooding
Apprentice
Apprentice


Age : 45
Join date : 2018-06-15
Posts : 121
Forum Rep : 0
Location : Joplin Missouri

Mud-Murray Offroad Mower - Page 5 Empty
PostSubject: Re: Mud-Murray Offroad Mower   Mud-Murray Offroad Mower - Page 5 Icon_minitimeThu Aug 09, 2018 4:01 pm

Looking good
Back to top Go down
Crazy_Carl
Seasoned Veteran
Seasoned Veteran
Crazy_Carl

Age : 30
Join date : 2017-10-30
Posts : 2249
Forum Rep : 135
Location : Rochester, New York

Mud-Murray Offroad Mower - Page 5 Empty
PostSubject: Re: Mud-Murray Offroad Mower   Mud-Murray Offroad Mower - Page 5 Icon_minitimeThu Aug 09, 2018 10:14 pm

Since you're not using flanged bearings you'll need some method to keep them from moving into the pipes you welded on.  Good work though.  I like that method for centering them.  You could also make a useful tool that involves cutting a slot with a saw into the end of a shaft that you can put a rough piece of sandpaper in.  Put that shaft into a drill and with some patience you'll have clearance without taking it to a machine shop.  Be warned this method is a lot slower that drilling.  It's better suited for removing small amounts of material.

I also would have drilled and tapped for grease zerks in the pipes before they were welded on.  Then remove the inner seal on the bearing to allow the grease to penetrate the bearing.
Back to top Go down
SebastianAlbrecht
Expert
Expert
SebastianAlbrecht

Age : 18
Join date : 2018-02-27
Posts : 1233
Forum Rep : 45
Location : Saxony, Germany

Mud-Murray Offroad Mower - Page 5 Empty
PostSubject: Re: Mud-Murray Offroad Mower   Mud-Murray Offroad Mower - Page 5 Icon_minitimeFri Aug 10, 2018 4:45 am

@George Gooding wrote:
Looking good

Thanks

@Crazy_Carl wrote:
Since you're not using flanged bearings you'll need some method to keep them from moving into the pipes you welded on.  Good work though.  I like that method for centering them.  You could also make a useful tool that involves cutting a slot with a saw into the end of a shaft that you can put a rough piece of sandpaper in.  Put that shaft into a drill and with some patience you'll have clearance without taking it to a machine shop.  Be warned this method is a lot slower that drilling.  It's better suited for removing small amounts of material.

I also would have drilled and tapped for grease zerks in the pipes before they were welded on.  Then remove the inner seal on the bearing to allow the grease to penetrate the bearing.

The Outside I just need to put in a washer between the bearing and the rim. Inside I will machine the cutoffs of the FNR Hubs to length to prevent it from sliding in or or out.

When they will not make it for me, I will try it.

Maybe I add some, or I just pull the bearings out, threw some grease in their area, put them back in without the seal on 1 side.
Back to top Go down
SebastianAlbrecht
Expert
Expert
SebastianAlbrecht

Age : 18
Join date : 2018-02-27
Posts : 1233
Forum Rep : 45
Location : Saxony, Germany

Mud-Murray Offroad Mower - Page 5 Empty
PostSubject: Re: Mud-Murray Offroad Mower   Mud-Murray Offroad Mower - Page 5 Icon_minitimeSat Aug 11, 2018 2:11 pm

I MADE TODAY THE BEST DEAL OF MY WHOLE LIFETIME!!!!

Well, let me calm down, tell you the whole story, while enjoying a Beer!
I looked for a AWS Transaxle since long time. Then I found this:

an Dynamark-based Mower from the 90s without deck, but it had a AWS Transaxle, and a Vanguard Engine!

(I wish I could show U the pics the seller sent me, but in G we got new laws, so we get punished if we share pics U hand't took your own public. )

I foght a pretty bad, hard fight, trying to show Dad, the Mower would be fully worth it. And after Long hard Work, I finally got him to agree. Very Happy Very Happy Very Happy

We Drove the seller, and again stuffed it into my dads car, like every other mower I own.

Mud-Murray Offroad Mower - Page 5 20180849

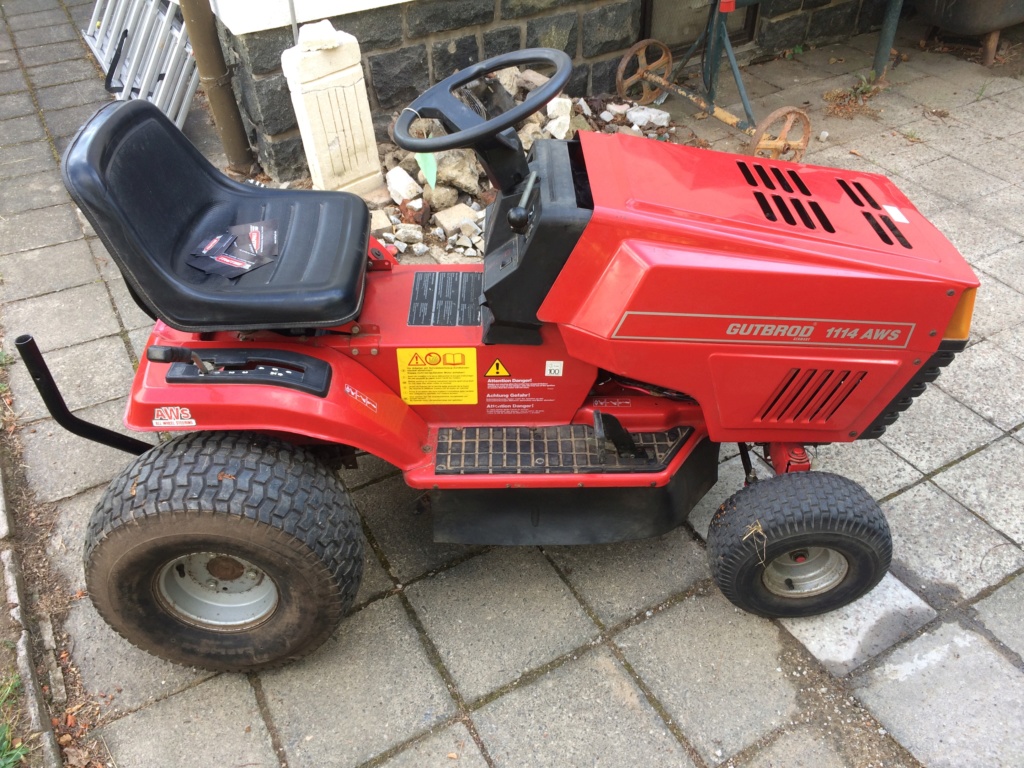

Here are some Pics I took off him at home:

Mud-Murray Offroad Mower - Page 5 20180851

Mud-Murray Offroad Mower - Page 5 20180850

Mud-Murray Offroad Mower - Page 5 20180852

Mud-Murray Offroad Mower - Page 5 20180854

Mud-Murray Offroad Mower - Page 5 20180853

Mud-Murray Offroad Mower - Page 5 20180856

Mud-Murray Offroad Mower - Page 5 20180855

For DOM 1990 it's in pretty good Shape!

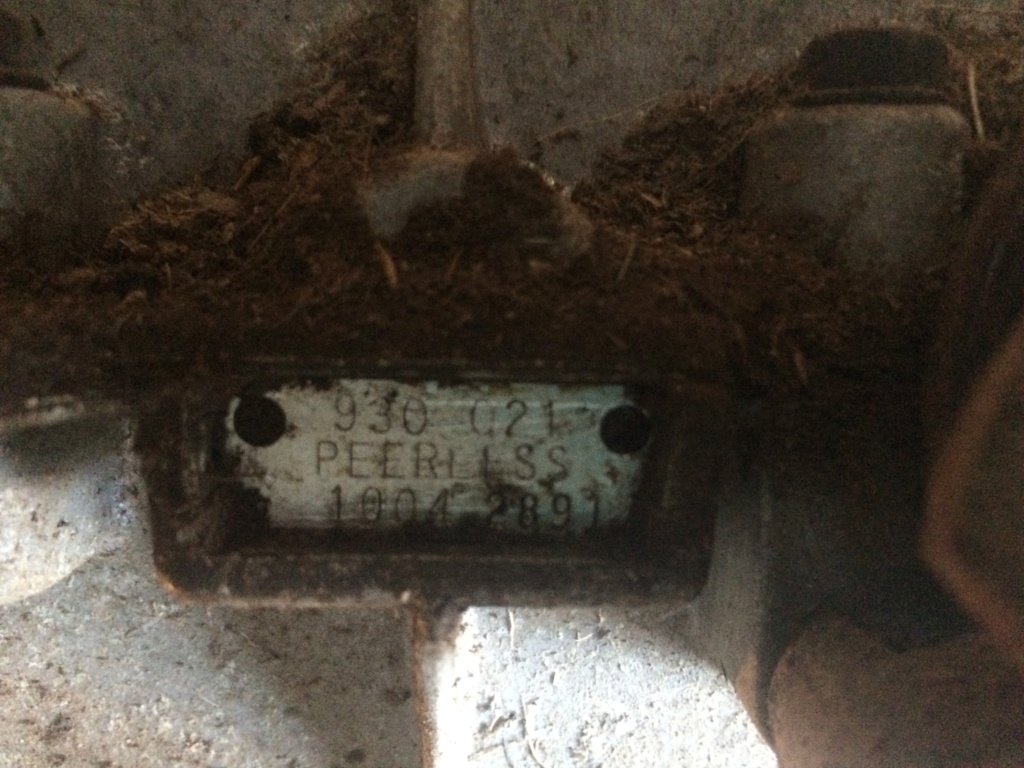

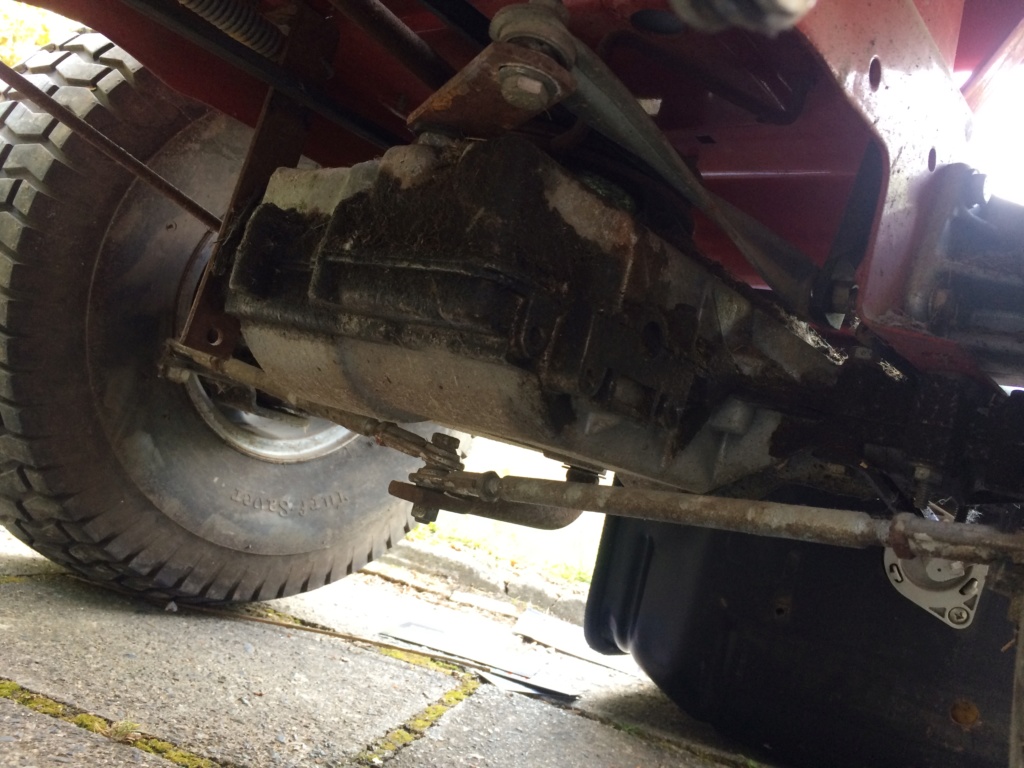

here are a few Pics I made off the AWS Transaxle. It seems to be an Peerless 930.

Mud-Murray Offroad Mower - Page 5 20180859

Mud-Murray Offroad Mower - Page 5 20180857

Mud-Murray Offroad Mower - Page 5 20180858

And finally some Pics of the Vanguard. I got it running and driving just 1 hour after we unloaded it!

Mud-Murray Offroad Mower - Page 5 20180862

Mud-Murray Offroad Mower - Page 5 20180860

Mud-Murray Offroad Mower - Page 5 20180861

The Engine is complete, I just needed to pull the air filter off, cuz the fuel pump was pumping gas into the carb, and the Engine wo'nt run on the carb, and the seller said, he ultrasonic cleaned the carb.  It was the Fuel Solenoid that was stuck and someone ripped off the wire accidentally. I pushed the plug in the solenoid all the way down, and then it ran!

Now you ask: ,,Why I share that stuff in the Mud Murray Thread?

Easy Answer!

It's kind of a shame, but I will do it! I will PART THIS MOWER OUT!

The AWS is going into MUD MURRAY, so I build a 4X4 Mud-Murray!!

The Engine into Murray Widebody!

I hope you like that!
Back to top Go down
CraftsmanQuad19
Grand Master
Grand Master
CraftsmanQuad19

Age : 19
Join date : 2016-04-12
Posts : 1898
Forum Rep : 89
Location : Indiana

Mud-Murray Offroad Mower - Page 5 Empty
PostSubject: Re: Mud-Murray Offroad Mower   Mud-Murray Offroad Mower - Page 5 Icon_minitimeSat Aug 11, 2018 2:43 pm

Read redzz02’s 4wd thread very carefully, because he built his on the dynamark platform, which is pretty similar to the stamped frame on the Murray. You might learn some tips from it
Back to top Go down
SebastianAlbrecht
Expert
Expert
SebastianAlbrecht

Age : 18
Join date : 2018-02-27
Posts : 1233
Forum Rep : 45
Location : Saxony, Germany

Mud-Murray Offroad Mower - Page 5 Empty
PostSubject: Re: Mud-Murray Offroad Mower   Mud-Murray Offroad Mower - Page 5 Icon_minitimeSat Aug 11, 2018 2:59 pm

@CraftsmanQuad19 wrote:
Read redzz02’s 4wd thread very carefully, because he built his on the dynamark platform, which is pretty similar to the stamped frame on the Murray. You might learn some tips from it

Thanks for The Tip! I watched his vid series yesterday! Will look up the thread soon.
Back to top Go down
RichieRichOverdrive
Seasoned Veteran
Seasoned Veteran
RichieRichOverdrive

Age : 16
Join date : 2016-10-29
Posts : 2370
Forum Rep : 72
Location : Lewisburg, KY

Mud-Murray Offroad Mower - Page 5 Empty
PostSubject: Re: Mud-Murray Offroad Mower   Mud-Murray Offroad Mower - Page 5 Icon_minitimeSat Aug 11, 2018 5:13 pm

What CQ is saying:

Put a subframe on it that's stiffer than an atv frame
Back to top Go down
SebastianAlbrecht
Expert
Expert
SebastianAlbrecht

Age : 18
Join date : 2018-02-27
Posts : 1233
Forum Rep : 45
Location : Saxony, Germany

Mud-Murray Offroad Mower - Page 5 Empty
PostSubject: Re: Mud-Murray Offroad Mower   Mud-Murray Offroad Mower - Page 5 Icon_minitimeSat Aug 11, 2018 5:27 pm

@RichieRichOverdrive wrote:
What CQ is saying:

Put a subframe on it that's stiffer than an atv frame

I probably will build a subframe outta Box Steel, the thickest stuff I can get!
Back to top Go down
SebastianAlbrecht
Expert
Expert
SebastianAlbrecht

Age : 18
Join date : 2018-02-27
Posts : 1233
Forum Rep : 45
Location : Saxony, Germany

Mud-Murray Offroad Mower - Page 5 Empty
PostSubject: Re: Mud-Murray Offroad Mower   Mud-Murray Offroad Mower - Page 5 Icon_minitimeTue Aug 14, 2018 12:09 am

WOULD YOU LIKE TO SEE 4X4 MUD-MURRAY IN THE NEXT YEARS BUILD-OFF?

If yes, I will pause working on it, til the new Build-Off begins.
Back to top Go down
RichieRichOverdrive
Seasoned Veteran
Seasoned Veteran
RichieRichOverdrive

Age : 16
Join date : 2016-10-29
Posts : 2370
Forum Rep : 72
Location : Lewisburg, KY

Mud-Murray Offroad Mower - Page 5 Empty
PostSubject: Re: Mud-Murray Offroad Mower   Mud-Murray Offroad Mower - Page 5 Icon_minitimeTue Aug 14, 2018 7:51 am

I say yes because i know it's gonna pain you to not touch this thing for several months
Back to top Go down
SebastianAlbrecht
Expert
Expert
SebastianAlbrecht

Age : 18
Join date : 2018-02-27
Posts : 1233
Forum Rep : 45
Location : Saxony, Germany

Mud-Murray Offroad Mower - Page 5 Empty
PostSubject: Re: Mud-Murray Offroad Mower   Mud-Murray Offroad Mower - Page 5 Icon_minitimeTue Aug 14, 2018 3:39 pm

@RichieRichOverdrive wrote:
I say yes because i know it's gonna pain you to not touch this thing for several months

I still can do something to it, like figuring out the Subframe. Just not allowed to Build anything on it.
And I still have some other Mowers to work on.
Back to top Go down
MatthewD
Grand Master
Grand Master
MatthewD

Age : 17
Join date : 2014-11-16
Posts : 1992
Forum Rep : 40
Location : Northern Ireland

Mud-Murray Offroad Mower - Page 5 Empty
PostSubject: Re: Mud-Murray Offroad Mower   Mud-Murray Offroad Mower - Page 5 Icon_minitimeTue Aug 14, 2018 5:16 pm

I would say enter it into the 2019 Build Off. You only need to be below 50% done to enter and it's going to be a 4x4 so there's a lot of work going into it so you could probably keep working on it slowly til the Build Off begins.
Back to top Go down
SebastianAlbrecht
Expert
Expert
SebastianAlbrecht

Age : 18
Join date : 2018-02-27
Posts : 1233
Forum Rep : 45
Location : Saxony, Germany

Mud-Murray Offroad Mower - Page 5 Empty
PostSubject: Re: Mud-Murray Offroad Mower   Mud-Murray Offroad Mower - Page 5 Icon_minitimeTue Aug 14, 2018 11:06 pm

@MatthewD wrote:
I would say enter it into the 2019 Build Off. You only need to be below 50% done to enter and it's going to be a 4x4 so there's a lot of work going into it so you could probably keep working on it slowly til the Build Off begins.

Yeah, Exactly!
Back to top Go down
SebastianAlbrecht
Expert
Expert
SebastianAlbrecht

Age : 18
Join date : 2018-02-27
Posts : 1233
Forum Rep : 45
Location : Saxony, Germany

Mud-Murray Offroad Mower - Page 5 Empty
PostSubject: Re: Mud-Murray Offroad Mower   Mud-Murray Offroad Mower - Page 5 Icon_minitimeWed Aug 15, 2018 2:14 pm

I had some time, and pulled the AWS Peerless 930 outta the Gutbrod (it has now his own thread)

Was some hard work, but 1 step closer to a 4X4 Mower!

Mud-Murray Offroad Mower - Page 5 20180865

Mud-Murray Offroad Mower - Page 5 20180864
Back to top Go down
Crazy_Carl
Seasoned Veteran
Seasoned Veteran
Crazy_Carl

Age : 30
Join date : 2017-10-30
Posts : 2249
Forum Rep : 135
Location : Rochester, New York

Mud-Murray Offroad Mower - Page 5 Empty
PostSubject: Re: Mud-Murray Offroad Mower   Mud-Murray Offroad Mower - Page 5 Icon_minitimeWed Aug 15, 2018 5:05 pm

Yeah I'd save it for the build off.
Back to top Go down
SebastianAlbrecht
Expert
Expert
SebastianAlbrecht

Age : 18
Join date : 2018-02-27
Posts : 1233
Forum Rep : 45
Location : Saxony, Germany

Mud-Murray Offroad Mower - Page 5 Empty
PostSubject: Re: Mud-Murray Offroad Mower   Mud-Murray Offroad Mower - Page 5 Icon_minitimeThu Aug 16, 2018 11:38 am

@Crazy_Carl wrote:
Yeah I'd save it for the build off.
Yep, a Murray 4X4 would be awesome in the build off!
Back to top Go down
SebastianAlbrecht
Expert
Expert
SebastianAlbrecht

Age : 18
Join date : 2018-02-27
Posts : 1233
Forum Rep : 45
Location : Saxony, Germany

Mud-Murray Offroad Mower - Page 5 Empty
PostSubject: Re: Mud-Murray Offroad Mower   Mud-Murray Offroad Mower - Page 5 Icon_minitimeSat Aug 25, 2018 4:26 pm

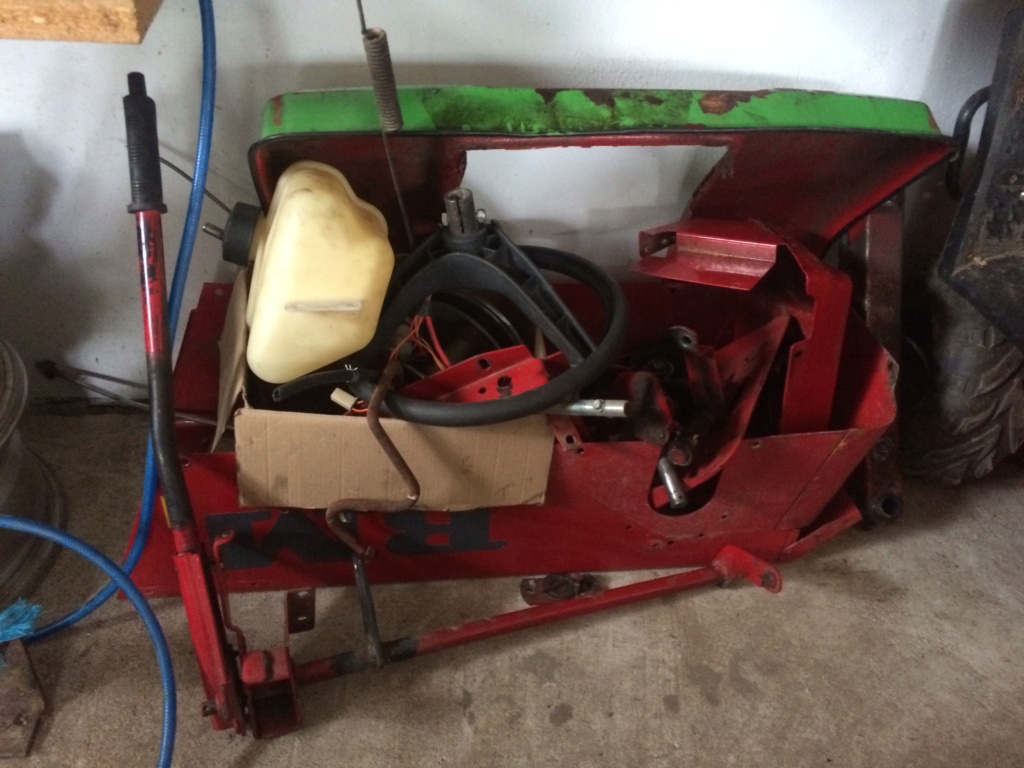

Just cleaned up the shop, and made a few Parts Piles for Mud Murray

Mud-Murray Offroad Mower - Page 5 20180890

3 of the 4 Transaxles I make to 2 very good ones soon...

Mud-Murray Offroad Mower - Page 5 20180891
Back to top Go down
SebastianAlbrecht
Expert
Expert
SebastianAlbrecht

Age : 18
Join date : 2018-02-27
Posts : 1233
Forum Rep : 45
Location : Saxony, Germany

Mud-Murray Offroad Mower - Page 5 Empty
PostSubject: Re: Mud-Murray Offroad Mower   Mud-Murray Offroad Mower - Page 5 Icon_minitimeSat Sep 01, 2018 9:29 am

bought me tons of hardware (nuts and bolts) for my mower projects, 75% of thm will go into the Mud Murray. And the Latches are for the hoods.

Mud-Murray Offroad Mower - Page 5 20180126
Back to top Go down
Double W Cross Ranch
Seasoned Veteran
Seasoned Veteran
Double W Cross Ranch

Age : 15
Join date : 2017-06-09
Posts : 2370
Forum Rep : 53
Location : Lampasas, Texas

Mud-Murray Offroad Mower - Page 5 Empty
PostSubject: Re: Mud-Murray Offroad Mower   Mud-Murray Offroad Mower - Page 5 Icon_minitimeSat Sep 01, 2018 1:06 pm

Nice! Is one of those latches going onto your widebody too?
Back to top Go down
https://themagazineishalff.wixsite.com/website
SebastianAlbrecht
Expert
Expert
SebastianAlbrecht

Age : 18
Join date : 2018-02-27
Posts : 1233
Forum Rep : 45
Location : Saxony, Germany

Mud-Murray Offroad Mower - Page 5 Empty
PostSubject: Re: Mud-Murray Offroad Mower   Mud-Murray Offroad Mower - Page 5 Icon_minitimeSun Sep 02, 2018 3:10 am

@Double W Cross Ranch wrote:
Nice!  Is one of those latches going onto your widebody too?

that are 4 ones, 2 for the Mud Murray Hood, 2 for the Widebody Hood. Dynamark has stock hood securing pins on the side. MTD don't gets any, cuz since I build me some real Offroad Mowers, I don't need that feature anymore on it.
Back to top Go down
SebastianAlbrecht
Expert
Expert
SebastianAlbrecht

Age : 18
Join date : 2018-02-27
Posts : 1233
Forum Rep : 45
Location : Saxony, Germany

Mud-Murray Offroad Mower - Page 5 Empty
PostSubject: Re: Mud-Murray Offroad Mower   Mud-Murray Offroad Mower - Page 5 Icon_minitimeTue Oct 16, 2018 1:31 pm

Probably going for a paint Job that looks similar to this K30:

https://morlock-motors.de/produkt/gelaendewagenpickup-chevrolet-k30-m1008-4/
Back to top Go down
Sponsored content




Mud-Murray Offroad Mower - Page 5 Empty
PostSubject: Re: Mud-Murray Offroad Mower   Mud-Murray Offroad Mower - Page 5 Icon_minitime

Back to top Go down

Mud-Murray Offroad Mower
Back to top
Page 5 of 6Go to page : Previous  1, 2, 3, 4, 5, 6  Next
 Similar topics
-
» Murray offroad mower build
» Murray Street Mower
» towing the sled with the yard king offroad mower.
» Will a Craftsman LT1000 work for an offroad mower? Want to use it on my farm.
» Offroad, all terrain, Mudding Murray atv mower."citrus"

Permissions in this forum:You cannot reply to topics in this forum
All-Terrain Lawn Tractor Forum :: Tractor Project Builds :: Off Road & Rally Tractors-
Jump to:
