JamisonCampbellRacing
Member

Member

2014 Build-Off Entrant
2014 Build-Off Entrant

Join date : 2013-01-02
Posts : 29

drive - JCRacing's Racin Trapter - Page 2 Empty
PostSubject: Another Update1   drive - JCRacing's Racin Trapter - Page 2 Icon_minitimeJanuary 31st 2014, 4:34 pm

So, this past week or so I drilled the holes in my transmission plate and then tacked it into the frame. I don't have a picture of the bolt holes or the aluminum support bushing that I made.

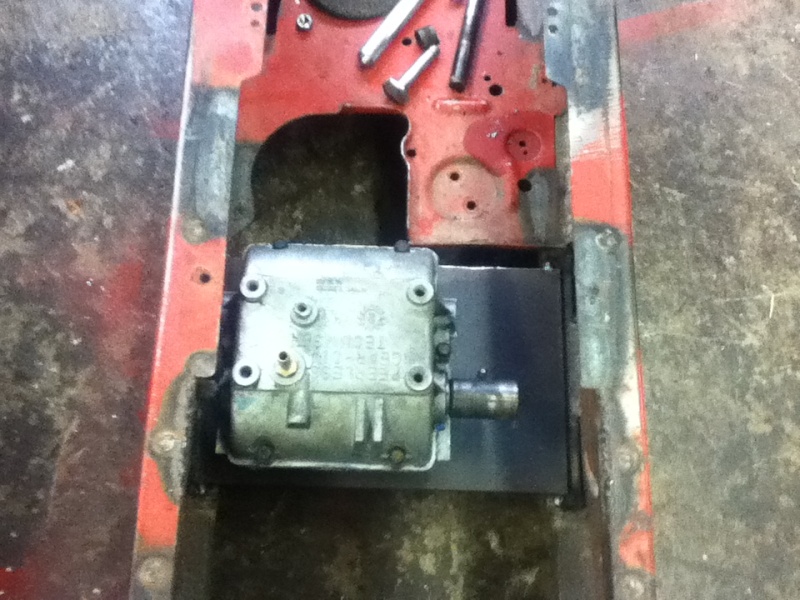

Here it is mounted in the frame.
drive - JCRacing's Racin Trapter - Page 2 Img_3417

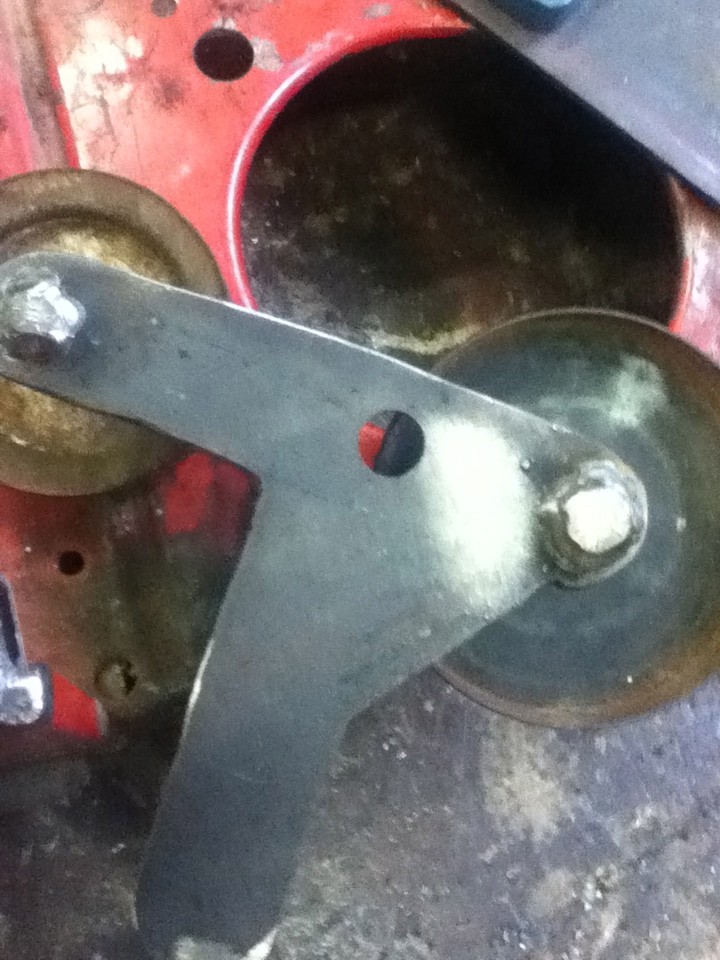

I also started to make the clutch. It will be a dual pulley clutch. I made the main part out of 3/8" steel plate and the bolts for the pulleys are both grade 8. the pivot bolt will be a grade 5 3/4" bolt that will ride with brass bushings in a large aluminum mounting hub. I really did not have any flex in the clutch lol. Here are the pictures
drive - JCRacing's Racin Trapter - Page 2 Img_3418drive - JCRacing's Racin Trapter - Page 2 Img_3419
I have some more parts coming, as well as many new updates because the build is starting to move a lot faster.
Back to top Go down
JamisonCampbellRacing
Member

Member

2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 27
Join date : 2013-01-02
Points : 4245
Posts : 29
Location : Vermont

drive - JCRacing's Racin Trapter - Page 2 Empty
PostSubject: Re: JCRacing's Racin Trapter   drive - JCRacing's Racin Trapter - Page 2 Icon_minitimeFebruary 25th 2014, 4:37 pm

Here is some new progress!

Got the rear tires mounted, the picture on the right is comparing the front to back tires, although I will be getting matching front tires.
drive - JCRacing's Racin Trapter - Page 2 Img_3420drive - JCRacing's Racin Trapter - Page 2 Img_3421

The clutch pivot bolt will ride on this, which is about 1 1/2" thick aluminum block with a 3/4" bronze bushing. That is mounted on 1/4" plate to the frame.
drive - JCRacing's Racin Trapter - Page 2 Img_3422drive - JCRacing's Racin Trapter - Page 2 Img_3423

The bottom of the transmission plate with the 4" pulley.
drive - JCRacing's Racin Trapter - Page 2 Img_3424

Here are the clutch and brake pedal. Made from 3/4" 1/8" wall square tube.
drive - JCRacing's Racin Trapter - Page 2 Img_3428drive - JCRacing's Racin Trapter - Page 2 Img_3429

As it sits now, the hood and fenders are the only body panels mounted so far, and the steering column is coming next.
drive - JCRacing's Racin Trapter - Page 2 Img_3425drive - JCRacing's Racin Trapter - Page 2 Img_3426drive - JCRacing's Racin Trapter - Page 2 Img_3427
Back to top Go down
redlinemotorsportts
Moderator
redlinemotorsportts
Moderator

2500+ Posts
2500+ Posts!
2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 27
Join date : 2013-03-18
Points : 7352
Posts : 3131
Location : raleigh nc

drive - JCRacing's Racin Trapter - Page 2 Empty
PostSubject: Re: JCRacing's Racin Trapter   drive - JCRacing's Racin Trapter - Page 2 Icon_minitimeFebruary 25th 2014, 7:14 pm

Dang that's got one hell of a bada$$ stance. Coming together! I guess I'm not the only one running a 70's wheelhorse hood.
Back to top Go down
JamisonCampbellRacing
Member

Member

2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 27
Join date : 2013-01-02
Points : 4245
Posts : 29
Location : Vermont

drive - JCRacing's Racin Trapter - Page 2 Empty
PostSubject: Re: JCRacing's Racin Trapter   drive - JCRacing's Racin Trapter - Page 2 Icon_minitimeFebruary 25th 2014, 7:29 pm

Thanks, she sits really wide and low, but still has 5" of clearance, so I can still take her out in a field for some fun! You are lucky to have a v-twin though, I wish I could get my hands on one of those!
Back to top Go down
redlinemotorsportts
Moderator
redlinemotorsportts
Moderator

2500+ Posts
2500+ Posts!
2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 27
Join date : 2013-03-18
Points : 7352
Posts : 3131
Location : raleigh nc

drive - JCRacing's Racin Trapter - Page 2 Empty
PostSubject: Re: JCRacing's Racin Trapter   drive - JCRacing's Racin Trapter - Page 2 Icon_minitimeFebruary 25th 2014, 9:55 pm

JamisonCampbellRacing wrote:
Thanks, she sits really wide and low, but still has 5" of clearance, so I can still take her out in a field for some fun! You are lucky to have a v-twin though, I wish I could get my hands on one of those!
Yea junkyard is basically my savor when it comes to parts. I have three junkyard twins
Back to top Go down
TheRainbowBoxer
Moderator
TheRainbowBoxer
Moderator

1000+ Posts
1000+ Posts!

Age : 49
Join date : 2012-04-23
Points : 5570
Posts : 1091
Location : Galion, OH

drive - JCRacing's Racin Trapter - Page 2 Empty
PostSubject: Re: JCRacing's Racin Trapter   drive - JCRacing's Racin Trapter - Page 2 Icon_minitimeFebruary 27th 2014, 6:26 pm

I suggest using the welder to put some grippys on those pedals... it sucks to have a foot slips off.


Proud member of the Mower Cycle Gang... aka the "Mowrons!"

My build (Chaos is one of 3 built like this)
Chaos Build

The Mower Cycle Gang visited 1puglife in May 2014
Check out the pics and vids!

Haspin 2021 was a blast!  Check out pics and vids here
Haspin 2021 thread

Join us for the annual Mowron-fest at Haspin Acres!
Haspin Acres Rally 2022!

Check out my YouTube for more tractor action, my vlog, and my bus build!
TheRainbowBoxer on YouTube
Back to top Go down
mr.modified
Veteran Member
mr.modified
Veteran Member

2015 Build-Off Top 3 Winner
2015 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2018 Build-Off Finalist
2018 Build-Off Finalist
2022 Build-Off Entrant
2022 Build-Off Entrant
2500+ Posts
2500+ Posts!
1st Place Build-Off 2014
1st Place Build-Off Winner 2014
2023 Build-Off Entrant
2023 Build-Off Entrant

Age : 34
Join date : 2013-11-02
Points : 7032
Posts : 2906
Location : New Jersey USA

drive - JCRacing's Racin Trapter - Page 2 Empty
PostSubject: Re: JCRacing's Racin Trapter   drive - JCRacing's Racin Trapter - Page 2 Icon_minitimeFebruary 27th 2014, 8:43 pm

TheRainbowBoxer wrote:
I suggest using the welder to put some grippys on those pedals... it sucks to have a foot slips off.

Just an idea in case someone wants to do this. I put a nut of the size I want on a footpeg or whatever I'm working on, then just spot weld in the center to hold it on. Quick to do, and it's nice and clean.
Back to top Go down
JamisonCampbellRacing
Member

Member

2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 27
Join date : 2013-01-02
Points : 4245
Posts : 29
Location : Vermont

drive - JCRacing's Racin Trapter - Page 2 Empty
PostSubject: Got some more done!   drive - JCRacing's Racin Trapter - Page 2 Icon_minitimeMarch 24th 2014, 9:11 pm

I got quite a bit done since the last update. Thank you guys for the suggestions on the foot pedals. I think ill try them out at first smooth, because the way I made them, your foot should stay on the pedal pretty well.

I made the header for it, using a rusted out lawn chair! The thing shoots flames pretty good. Lol
drive - JCRacing's Racin Trapter - Page 2 Img_3430drive - JCRacing's Racin Trapter - Page 2 Img_3434
drive - JCRacing's Racin Trapter - Page 2 Img_3435

Here is the dash board I made using left over from my wheeler fenders.
drive - JCRacing's Racin Trapter - Page 2 Img_3510

Here are some pictures of the steering set up.
drive - JCRacing's Racin Trapter - Page 2 Img_3511drive - JCRacing's Racin Trapter - Page 2 Img_3512
drive - JCRacing's Racin Trapter - Page 2 Img_3513drive - JCRacing's Racin Trapter - Page 2 Img_3514
drive - JCRacing's Racin Trapter - Page 2 Img_3515drive - JCRacing's Racin Trapter - Page 2 Img_3516

Here is a picture to show about how much clearance it has.
drive - JCRacing's Racin Trapter - Page 2 Img_3517

How the gas tank is mounted, which is original wheel horse.
drive - JCRacing's Racin Trapter - Page 2 Img_3518

Here are some pictures of the thing as it sits. I am so excited to see it drive!
drive - JCRacing's Racin Trapter - Page 2 Img_3431drive - JCRacing's Racin Trapter - Page 2 Img_3432
drive - JCRacing's Racin Trapter - Page 2 Img_3433

Also, here is the first start up of it!


Thanks for looking!
Back to top Go down
redlinemotorsportts
Moderator
redlinemotorsportts
Moderator

2500+ Posts
2500+ Posts!
2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 27
Join date : 2013-03-18
Points : 7352
Posts : 3131
Location : raleigh nc

drive - JCRacing's Racin Trapter - Page 2 Empty
PostSubject: Re: JCRacing's Racin Trapter   drive - JCRacing's Racin Trapter - Page 2 Icon_minitimeMarch 24th 2014, 10:21 pm

Looks killer. Front axle makes me feel better after seeing a lot of people on Facebook doing "40" on stock mowers.
Back to top Go down
JamisonCampbellRacing
Member

Member

2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 27
Join date : 2013-01-02
Points : 4245
Posts : 29
Location : Vermont

drive - JCRacing's Racin Trapter - Page 2 Empty
PostSubject: Re: JCRacing's Racin Trapter   drive - JCRacing's Racin Trapter - Page 2 Icon_minitimeMarch 25th 2014, 7:09 am

Yeah it's pretty wide, and my spindles are long enough that I could make the front end about 4" wider. I sits about 42" wide with the stock MTD wheelbase. It is also very low, like the rear has 16" tires, so you probably only sit 18" off the ground.
Back to top Go down
Thunderdivine
Veteran Member
Thunderdivine
Veteran Member

1000+ Posts
1000+ Posts!

Join date : 2012-12-21
Points : 6412
Posts : 2101
Location : Norway, Europe

drive - JCRacing's Racin Trapter - Page 2 Empty
PostSubject: Re: JCRacing's Racin Trapter   drive - JCRacing's Racin Trapter - Page 2 Icon_minitimeMarch 25th 2014, 4:48 pm

Nice, and what's up with that steering design, looks great tho.
Back to top Go down
JamisonCampbellRacing
Member

Member

2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 27
Join date : 2013-01-02
Points : 4245
Posts : 29
Location : Vermont

drive - JCRacing's Racin Trapter - Page 2 Empty
PostSubject: Re: JCRacing's Racin Trapter   drive - JCRacing's Racin Trapter - Page 2 Icon_minitimeMarch 25th 2014, 4:59 pm

Thunderdivine wrote:
Nice, and what's up with that steering design, looks great tho.

What do you mean? It is a normal direct steer setup, just it is above the chassis. That way I wouldn't have to worry about hitting the drivetrain.
Back to top Go down
Thunderdivine
Veteran Member
Thunderdivine
Veteran Member

1000+ Posts
1000+ Posts!

Join date : 2012-12-21
Points : 6412
Posts : 2101
Location : Norway, Europe

drive - JCRacing's Racin Trapter - Page 2 Empty
PostSubject: Re: JCRacing's Racin Trapter   drive - JCRacing's Racin Trapter - Page 2 Icon_minitimeMarch 25th 2014, 6:25 pm

JamisonCampbellRacing wrote:
Thunderdivine wrote:
Nice, and what's up with that steering design, looks great tho.

What do you mean? It is a normal direct steer setup, just it is above the chassis. That way I wouldn't have to worry about hitting the drivetrain.

Yeah I saw that, its clever. I ment how you did the 3 pipes to connect to the bearings and so on.
Back to top Go down
Lawren Wimberly
Established Member
Lawren Wimberly
Established Member

500+ Posts
500+ Posts
2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 57
Join date : 2013-12-21
Points : 4674
Posts : 744
Location : Salem Illinois

drive - JCRacing's Racin Trapter - Page 2 Empty
PostSubject: Re: JCRacing's Racin Trapter   drive - JCRacing's Racin Trapter - Page 2 Icon_minitimeMarch 25th 2014, 7:01 pm

Sweet setup... and it looks safe and stable. the direct steer should help prevent overcorrection at high speeds, though I imagine it will be a bit stiff when puttering around
Back to top Go down
JamisonCampbellRacing
Member

Member

2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 27
Join date : 2013-01-02
Points : 4245
Posts : 29
Location : Vermont

drive - JCRacing's Racin Trapter - Page 2 Empty
PostSubject: Re: JCRacing's Racin Trapter   drive - JCRacing's Racin Trapter - Page 2 Icon_minitimeMarch 25th 2014, 9:45 pm

Yeah, the tubes between the bearings seemed like the simplest way to do it. And I can still remove the dash, bearings, and steering shaft. Pitman arm is actually welded to the original splined piece that went inside the plastic MTD steering wheel and then the steering shaft is the original MTD, just flipped upside down. What used to be the bottom end of the MTD steering shaft is welded to the Wheelhorse steering shaft.
Back to top Go down
JamisonCampbellRacing
Member

Member

2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 27
Join date : 2013-01-02
Points : 4245
Posts : 29
Location : Vermont

drive - JCRacing's Racin Trapter - Page 2 Empty
PostSubject: Re: JCRacing's Racin Trapter   drive - JCRacing's Racin Trapter - Page 2 Icon_minitimeMarch 25th 2014, 9:47 pm

Lawren Wimberly wrote:
Sweet setup... and it looks safe and stable. the direct steer should help prevent overcorrection at high speeds, though I imagine it will be a bit stiff when puttering around

Yeah it should be okay at speed, but I think I am going to make the arm on the steering column a little shorter, so I have to turn the steering wheel further for the wheels to turn less. It is a bit quick now.
Back to top Go down
partin_us_99
Member

Member


Age : 37
Join date : 2013-10-28
Points : 4081
Posts : 144
Location : muncie IN

drive - JCRacing's Racin Trapter - Page 2 Empty
PostSubject: Re: JCRacing's Racin Trapter   drive - JCRacing's Racin Trapter - Page 2 Icon_minitimeApril 10th 2014, 12:41 pm

How'd you make a 14.5 hp that stupid fast?! Lol gives me an idea with the spare 14.5 ive got Smile
Back to top Go down
JamisonCampbellRacing
Member

Member

2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 27
Join date : 2013-01-02
Points : 4245
Posts : 29
Location : Vermont

drive - JCRacing's Racin Trapter - Page 2 Empty
PostSubject: Re: JCRacing's Racin Trapter   drive - JCRacing's Racin Trapter - Page 2 Icon_minitimeApril 10th 2014, 10:46 pm

Finally got to drive it for the first time! I thought it was in first, but this is actually forth.

https://youtu.be/opfvFYCcnpg

There is still quite a bit of work to do, but for now I am happy that it moves!
Back to top Go down
partin_us_99
Member

Member


Age : 37
Join date : 2013-10-28
Points : 4081
Posts : 144
Location : muncie IN

drive - JCRacing's Racin Trapter - Page 2 Empty
PostSubject: Re: JCRacing's Racin Trapter   drive - JCRacing's Racin Trapter - Page 2 Icon_minitimeApril 10th 2014, 10:53 pm

Lol I repeat how'd u get a 14.5 hp scoot that fast? Im blown away by how fast it goes on that engine.
Back to top Go down
redlinemotorsportts
Moderator
redlinemotorsportts
Moderator

2500+ Posts
2500+ Posts!
2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 27
Join date : 2013-03-18
Points : 7352
Posts : 3131
Location : raleigh nc

drive - JCRacing's Racin Trapter - Page 2 Empty
PostSubject: Re: JCRacing's Racin Trapter   drive - JCRacing's Racin Trapter - Page 2 Icon_minitimeApril 10th 2014, 10:55 pm

Hows the direct steer handle?
Back to top Go down
JamisonCampbellRacing
Member

Member

2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 27
Join date : 2013-01-02
Points : 4245
Posts : 29
Location : Vermont

drive - JCRacing's Racin Trapter - Page 2 Empty
PostSubject: Re: JCRacing's Racin Trapter   drive - JCRacing's Racin Trapter - Page 2 Icon_minitimeMay 5th 2014, 3:42 pm

redlinemotorsportts wrote:
Hows the direct steer handle?

The steering is too quick such that you still have to over correct some and hold on for dear life!
I will be drilling a hole closer in on the steering wheel arm so that it steers slower.
Back to top Go down
JamisonCampbellRacing
Member

Member

2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 27
Join date : 2013-01-02
Points : 4245
Posts : 29
Location : Vermont

drive - JCRacing's Racin Trapter - Page 2 Empty
PostSubject: Re: JCRacing's Racin Trapter   drive - JCRacing's Racin Trapter - Page 2 Icon_minitimeMay 5th 2014, 3:45 pm

partin_us_99 wrote:
Lol I repeat how'd u get a 14.5 hp scoot that fast? Im blown away by how fast it goes on that engine.

Its all in the gear ratios! I was starting in fourth gear and thats why it took off so hard. On this I ran a 6in. pulley on the engine to a 4in. pulley on the peerless 700, and then in the video the sprocket on the tranny was a 12tooth to a 36 tooth on the axle.
I just installed a 15tooth on the tranny so it should go around 25% faster.
Back to top Go down
JamisonCampbellRacing
Member

Member

2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 27
Join date : 2013-01-02
Points : 4245
Posts : 29
Location : Vermont

drive - JCRacing's Racin Trapter - Page 2 Empty
PostSubject: Post Test Drive Update   drive - JCRacing's Racin Trapter - Page 2 Icon_minitimeMay 5th 2014, 3:52 pm

I drove it for a weekend and the only thing that broke were the bearings for the front wheels! Also, the sprocket on the axle kept coming miss aligned, and another interesting thing that kept happening was that because there is no give on any part of the mower, everything kept vibrating terribly. The bolts that held the engine to the frame wiggled themselves out in about every 10 min of riding, aswell as the exhaust bolts, and most interestingly, the crankcase bolts came loose and one even back itself all the way out! It kept draining oil. Also, probably more than half of my set screws are now missing! Needless to say, now almost every nut and bolt is getting locktite, a lock washer, or a nylock, and in some cases all three.

In 5 gear it goes about 40-45mph and it loves to do donuts. With the recent switch of a tranny sprocket every gear should be about 25% faster. Meaning it will do 50-57mph, and first will still be low enough to take off and do donuts.
Back to top Go down
Sponsored content





drive - JCRacing's Racin Trapter - Page 2 Empty
PostSubject: Re: JCRacing's Racin Trapter   drive - JCRacing's Racin Trapter - Page 2 Icon_minitime

Back to top Go down

JCRacing's Racin Trapter
Back to top
Page 2 of 2Go to page : Previous  1, 2
 Similar topics
-
» Introducing "Merc", the Murray racin' rally!

Permissions in this forum:You cannot reply to topics in this forum
All-Terrain Lawn Tractor Forum :: Competitions and Challenges :: Build-Off Competition :: Build-Off Archives :: 2014 Archive-
Jump to:
