I am not sure what year this mower is. I do know that it has a 16h B&S with a 42 inch cutting deck that is currently not attached, it also came with a snow blower attachment. The transaxle is a peerless 2348 which I will probably keep for now.

What I plan on doing to it this spring.
Pulley Swap
Lock Transaxle
4 inch lift to accommodate larger tires
replace steering rag with steering u-joint
custom glass pack exhaust
custom gas peddle
relocate brake peddle
lay some new paint

This winter I plan of ripping it down and doing the following.
Replace transaxle
Leaf spring suspension on the front end.

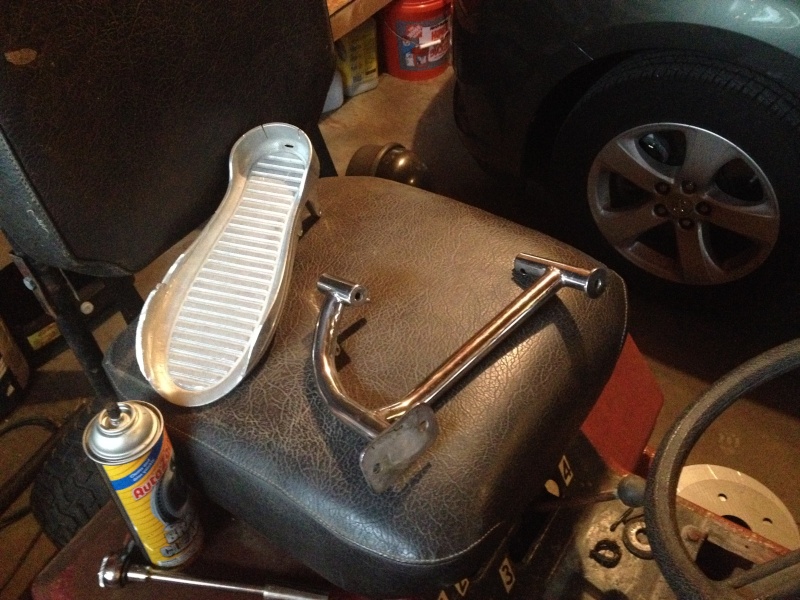

Getting Started on the Murray 7p10

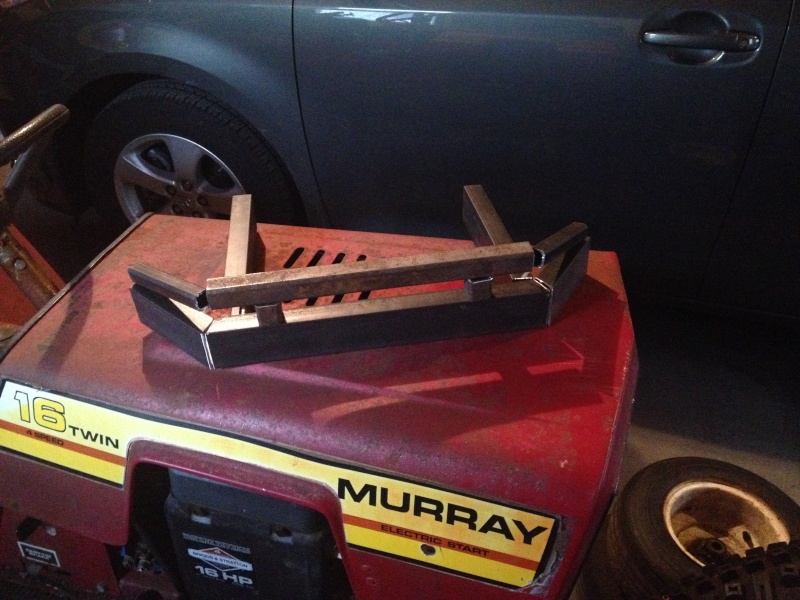

Getting Started on the Murray 5p10

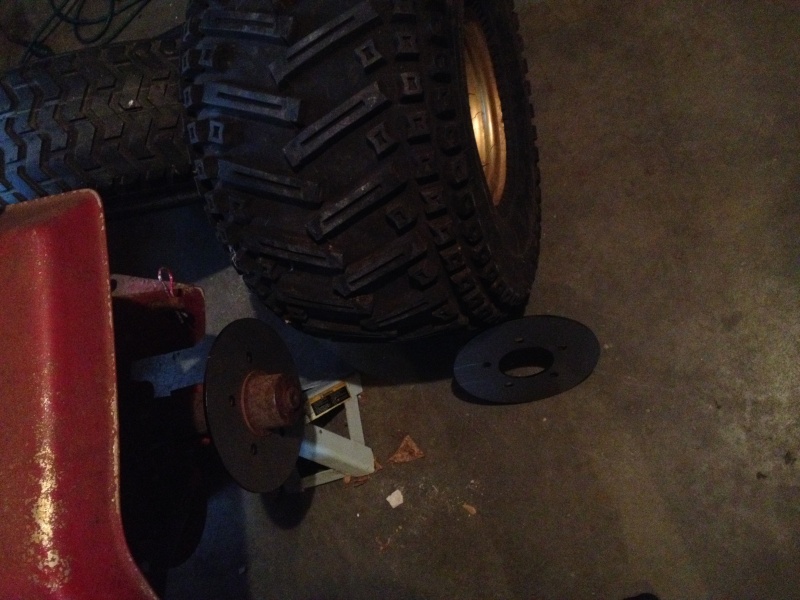

Getting Started on the Murray 4p10

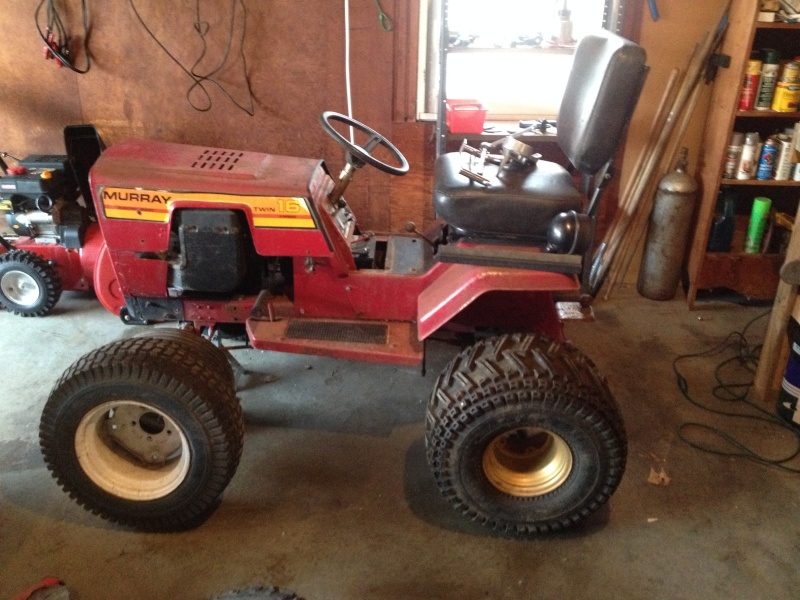

Getting Started on the Murray 2p10

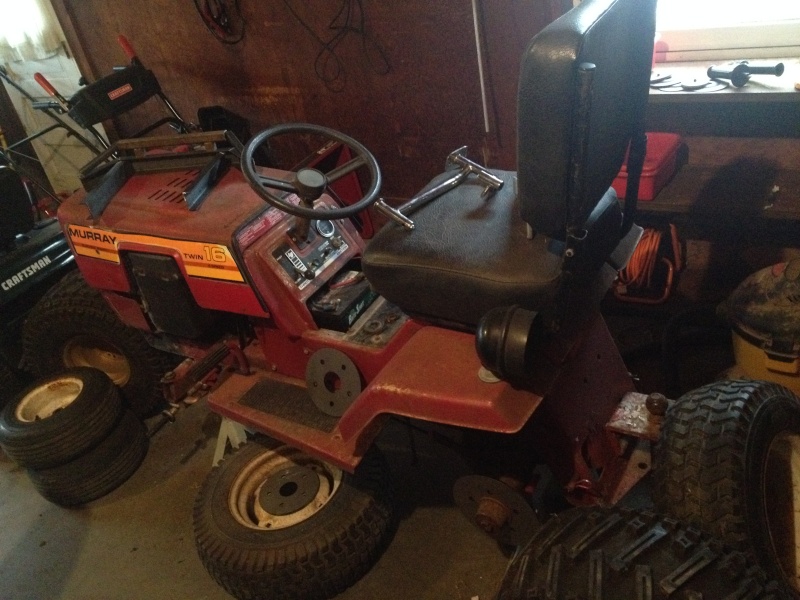

Getting Started on the Murray 1p12


Last edited by MurryMaddnes on April 13th 2014, 8:02 am; edited 1 time in total
