 nabbed a free mower/kart chassis from a neighbor...

Go down
5 posters
AuthorMessage
dwcopple
Forum Newbie
Forum Newbie


Join date : 2014-01-03
Posts : 95
Forum Rep : 0

nabbed a free mower/kart chassis from a neighbor... Empty
PostSubject: nabbed a free mower/kart chassis from a neighbor...   nabbed a free mower/kart chassis from a neighbor... Icon_minitimeSun Jul 13, 2014 5:16 pm

he was gonna pitch it so I said I'd take it. Another project, Oh boy! Gonna look for a two smoke engine with clutch or small 3.5-5hp Briggs horiz for it. How can I rig up brakes on this thing? It has the jackshaft which is a pulley on one end and a sprocket for the chain/axle on the other end. Might need to swap the pulley for a sprocket if I run a kart clutch on the engine. The PO had a hunk of 4x4 lumber hanging off the back that the engine was bolted to at one point. Neighbor said its been in his barn out back for 25+ yrs!!! Steering wheel is a washing machine pulley! LOL
nabbed a free mower/kart chassis from a neighbor... IMG_20140713_163824_791_zpstjb9t2kh
nabbed a free mower/kart chassis from a neighbor... IMG_20140713_163836_609_zpstxc5nkut
Back to top Go down
dwcopple
Forum Newbie
Forum Newbie


Join date : 2014-01-03
Posts : 95
Forum Rep : 0

nabbed a free mower/kart chassis from a neighbor... Empty
PostSubject: Re: nabbed a free mower/kart chassis from a neighbor...   nabbed a free mower/kart chassis from a neighbor... Icon_minitimeSun Jul 13, 2014 5:17 pm

tires are hard rubber compound not pneumatic and this thing has zerks everywhere!  steering, axle, jackshaft, pulley, hubs, wow!
jackshaft sprocket is 11 tooth and the pulley is 5" OD. that tensioner was for a belt setup that was actuated by the rod that travels up front to a pedal on the left.
nabbed a free mower/kart chassis from a neighbor... IMG_20140713_171954_889_zpsyxn9jgir
nabbed a free mower/kart chassis from a neighbor... IMG_20140713_172051_160_zpsdxtwjb9t
Back to top Go down
redlinemotorsportts
Moderator
Moderator
redlinemotorsportts

Age : 24
Join date : 2013-03-18
Posts : 3127
Forum Rep : 3
Location : raleigh nc

nabbed a free mower/kart chassis from a neighbor... Empty
PostSubject: Re: nabbed a free mower/kart chassis from a neighbor...   nabbed a free mower/kart chassis from a neighbor... Icon_minitimeSun Jul 13, 2014 5:56 pm

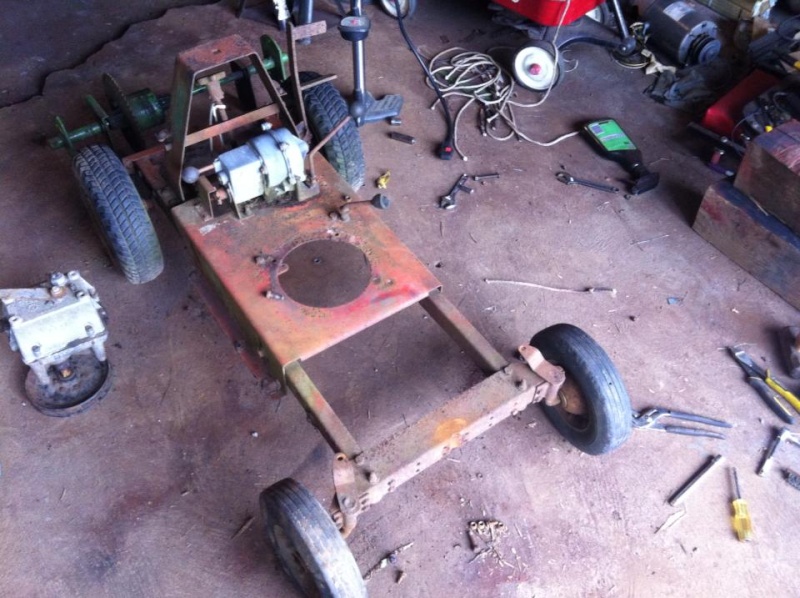

Looks like a huffy mini mower! Most of the mini mowers were made from the same company i imagine, because my mini mower chassis is pretty close, if not the same dimensions as huffys, and mine was branded Springfield.
nabbed a free mower/kart chassis from a neighbor... 11872010

_______________________________________________
Check out my builds!: MTD "Rock Bouncing" Mower -------- 60's Springfeild V-twin Mini Speed Tractor : SOLD!
nabbed a free mower/kart chassis from a neighbor... Screen17
ATLTF.com Facebook admin - Forum Mod
whos mans is this
Back to top Go down
Doc Sprocket
Administrator
Administrator
Doc Sprocket

Age : 48
Join date : 2013-04-21
Posts : 2911
Forum Rep : 20
Location : Ontario Canada

nabbed a free mower/kart chassis from a neighbor... Empty
PostSubject: Re: nabbed a free mower/kart chassis from a neighbor...   nabbed a free mower/kart chassis from a neighbor... Icon_minitimeSun Jul 13, 2014 6:12 pm

Cool! Mount a brake rotor (disc/caliper) on the axleshaft, or a drum for a band brake.

_______________________________________________
***Get YOUR official "Doc Locked, And Ready To Rock!" Stickers by clicking here!***
***Official Sprocket's Garage vinyl graphics and tees for sale HERE!***
nabbed a free mower/kart chassis from a neighbor... Facebo12
Put down the wrench, and come out with your hands up!-Doc "Tranny Crusher" Sprocket, ATLTF Forum Admin, Thinkerer and Tinkerer, and all-around good dood. Wink

Gen. Mayhem- https://www.atltf.com/t2597-general-mayhem-race-tractor
MULE- https://www.atltf.com/t2153-lawn-boy-utltv
MULEII- https://www.atltf.com/t3328-1970-john-deere-112-the-beginnings-of-mule-ii
MULEIII https://www.atltf.com/t4263-mule3-brainstorming-ideas-etc#58287
Wrench, Wheel, Wreck, Repeat...
Back to top Go down
LAWN MOWER MUDDER
Vise Grip
Vise Grip
LAWN MOWER MUDDER

Age : 20
Join date : 2013-04-08
Posts : 891
Forum Rep : 1
Location : Central Pa

nabbed a free mower/kart chassis from a neighbor... Empty
PostSubject: Re: nabbed a free mower/kart chassis from a neighbor...   nabbed a free mower/kart chassis from a neighbor... Icon_minitimeSun Jul 13, 2014 8:27 pm

Hey can you snap a picture of that ID tag under the seat?

I agree with red. That looks identical to a Huffy mini frame.  That is a nifty jack-shaft setup!
Back to top Go down
dwcopple
Forum Newbie
Forum Newbie


Join date : 2014-01-03
Posts : 95
Forum Rep : 0

nabbed a free mower/kart chassis from a neighbor... Empty
PostSubject: Re: nabbed a free mower/kart chassis from a neighbor...   nabbed a free mower/kart chassis from a neighbor... Icon_minitimeMon Jul 14, 2014 12:00 pm

@LAWN MOWER MUDDER wrote:
Hey can you snap a picture of that ID tag under the seat?

I agree with red. That looks identical to a Huffy mini frame.  That is a nifty jack-shaft setup!
its not an ID tag, it's lubrication instructions
Thanks for the ID fellas. Need to find a side shaft engine now. Looked at a Tec 2-smoke from a snowblower but they mount sideways and I think making a bottom engine mount would be a PITA...
Back to top Go down
dwcopple
Forum Newbie
Forum Newbie


Join date : 2014-01-03
Posts : 95
Forum Rep : 0

nabbed a free mower/kart chassis from a neighbor... Empty
PostSubject: Re: nabbed a free mower/kart chassis from a neighbor...   nabbed a free mower/kart chassis from a neighbor... Icon_minitimeTue Jul 15, 2014 9:49 pm

found a painted over decal on the ass end that says "model 5025"...off to google that.
Some Chachi from Craigslist supposedly is bringing me a 5hp Briggs off a snow thrower for $30 on Thursday. Says it runs good. Had e-start and recoil. Says its a 5/8" keyed shaft so clutching should be simple. Anything ideas for making it have a throttle instead of a set speed?
I will be losing the "steering wheel" and replacing it with an ATV steering stem and clamps and motorcycle handlebars with throttle and kill switch. It would also appear I'll be setting up a 4" drum and band brake on the rear left wheel outside of the frame rail. Should be able to throw this thing together for short $$$ if all goes as planned. Looks like I'll be placing an order with BMI or mfgsupply for an engine mount plate, brake stuff, and a clutch at the minimum right now. Anywhere else I should look for that stuff? Their prices seem pretty good to me.
Back to top Go down
dwcopple
Forum Newbie
Forum Newbie


Join date : 2014-01-03
