 lifting the GT6000 (no welds)

Go down
+3
Backroadbomber
1997 Murray
Alaskan Craftsman
7 posters
Go to page : 1, 2  Next
AuthorMessage
Alaskan Craftsman
Member
Alaskan Craftsman
Member


Age : 38
Join date : 2015-12-17
Points : 3303
Posts : 44
Location : Anchorage, Alaska

lifting the GT6000 (no welds)  Empty
PostSubject: lifting the GT6000 (no welds)    lifting the GT6000 (no welds)  Icon_minitimeDecember 24th 2015, 7:58 am

So the build is beause I have possible future plans for this rig. But for now the lift is more because I like the look and im 6'2" and felt the tractor was too short. Enough said. The rear is neimg lifted utilizing the stock implement hitch plate by swinging it down to a 90° angle to the mower's frame rails.yes there is a little grinding involved but the process is very straight forward. Use the hitch plate and the front will be dropped down using spacers between the axle and frame. Any tips are very much appreciated.

lifting the GT6000 (no welds)  KIMG0018
lifting the GT6000 (no welds)  KIMG0017
lifting the GT6000 (no welds)  KIMG0022
lifting the GT6000 (no welds)  KIMG0021
lifting the GT6000 (no welds)  KIMG0023
Back to top Go down
1997 Murray
Veteran Member
1997 Murray
Veteran Member

1000+ Posts
1000+ Posts!
2014 Build-Off Finalist
2014 Build-Off Finalist
2015 Build-Off Finalist
2015 Build-Off Finalist
2016 Build-Off Entrant
2016 Build-Off Entrant

Age : 26
Join date : 2013-11-13
Points : 5433
Posts : 1311
Location : NW USA

lifting the GT6000 (no welds)  Empty
PostSubject: Re: lifting the GT6000 (no welds)    lifting the GT6000 (no welds)  Icon_minitimeDecember 24th 2015, 10:55 am

cool. I have been trying to do a lift on my rig, since it looks funny with the lift on the front and big tires. I think the hardest part would be hooking up the hi/lo selector. It will be interesting to see how this turns out.
Back to top Go down
Alaskan Craftsman
Member
Alaskan Craftsman
Member


Age : 38
Join date : 2015-12-17
Points : 3303
Posts : 44
Location : Anchorage, Alaska

lifting the GT6000 (no welds)  Empty
PostSubject: Re: lifting the GT6000 (no welds)    lifting the GT6000 (no welds)  Icon_minitimeDecember 24th 2015, 2:20 pm

Thats exactly my thinking as well. Buuuttttt since I took off my stock throttle which is pretty much a push/pull choke cable I figure I could reuse the cable as my high low selector.hooking it up wouldnt be too hard. Any thoughts?
Back to top Go down
Backroadbomber
New Member

New Member


Join date : 2015-12-01
Points : 3292
Posts : 24

lifting the GT6000 (no welds)  Empty
PostSubject: Re: lifting the GT6000 (no welds)    lifting the GT6000 (no welds)  Icon_minitimeDecember 24th 2015, 11:10 pm

I have a 60's Sears with the same transaxle and the hi/lo lever isn't all that easy to move... I don't know if a choke cable will have enough to move it. If there's enough room I'd suggest drilling a new hole in the tunnel for it lower and keep the stock linkage.
Back to top Go down
Alaskan Craftsman
Member
Alaskan Craftsman
Member


Age : 38
Join date : 2015-12-17
Points : 3303
Posts : 44
Location : Anchorage, Alaska

lifting the GT6000 (no welds)  Empty
PostSubject: Re: lifting the GT6000 (no welds)    lifting the GT6000 (no welds)  Icon_minitimeDecember 24th 2015, 11:12 pm

Ill have to try that and get it mocked up. Currently im getting the rear hitch cut to fit around the pumkin hiusing of the transaxle. So far so good
Back to top Go down
Alaskan Craftsman
Member
Alaskan Craftsman
Member


Age : 38
Join date : 2015-12-17
Points : 3303
Posts : 44
Location : Anchorage, Alaska

lifting the GT6000 (no welds)  Empty
PostSubject: Re: lifting the GT6000 (no welds)    lifting the GT6000 (no welds)  Icon_minitimeDecember 25th 2015, 6:25 am

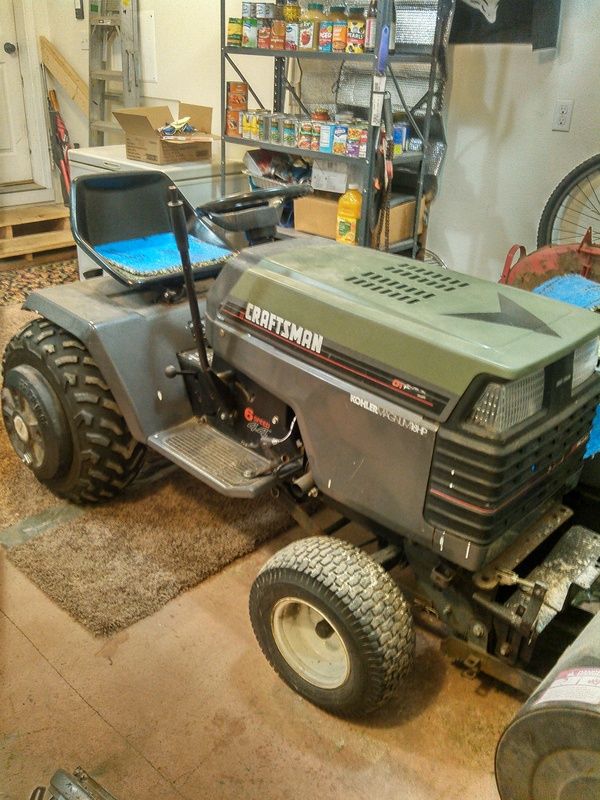

Ok so heres the update...got a total around 5.5" of lift in the rear and I jacked up the front and put her on blocks to see what she'll look like when level, and man she looks sexy. Surprisingly enough my belt still fits!!! Theres a little less travel to put the clutch in now which is nice but it still fully enguages and fully disengages the belt. Next on the list is brakes and hi/low shifter.

Before

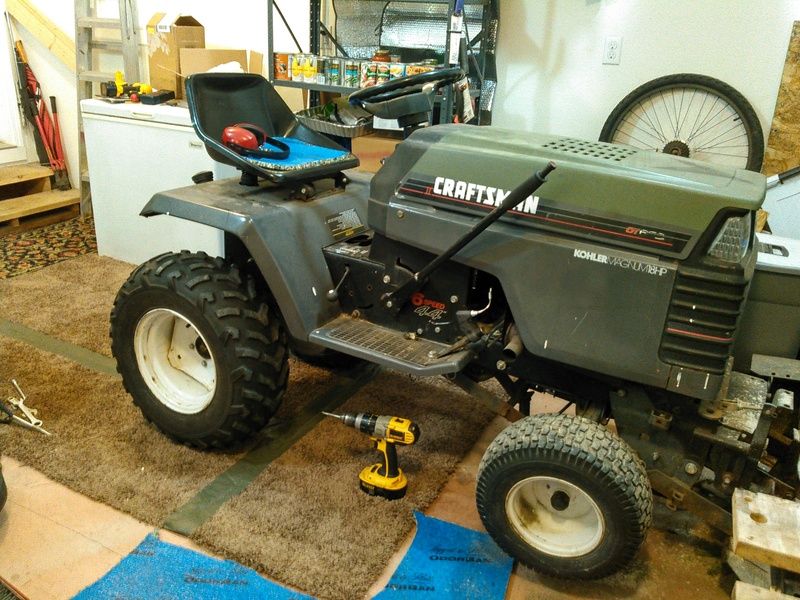

lifting the GT6000 (no welds)  KIMG0010

After

lifting the GT6000 (no welds)  KIMG0026

Hitch plate and how its set up

lifting the GT6000 (no welds)  KIMG0027

Had to cut the hitch to fit the 633 rear but ill get it guseted and welded later.

lifting the GT6000 (no welds)  KIMG0028


Back to top Go down
Moose
Established Member
Moose
Established Member

500+ Posts
500+ Posts

Age : 35
Join date : 2014-01-12
Points : 4938
Posts : 919
Location : Defiance, Ohio

lifting the GT6000 (no welds)  Empty
PostSubject: Re: lifting the GT6000 (no welds)    lifting the GT6000 (no welds)  Icon_minitimeDecember 27th 2015, 1:26 pm

Could probably just lower the shifter make new brackets and bolt them up.
Back to top Go down
Alaskan Craftsman
Member
Alaskan Craftsman
Member


Age : 38
Join date : 2015-12-17
Points : 3303
Posts : 44
Location : Anchorage, Alaska

lifting the GT6000 (no welds)  Empty
PostSubject: Re: lifting the GT6000 (no welds)    lifting the GT6000 (no welds)  Icon_minitimeDecember 29th 2015, 3:25 am

Moose wrote:
Could probably just lower the shifter make new brackets and bolt them up.

Yeah Ive been putting together kids toys from Christmas lol been busy but Im going to be lowering the shift arm like you all have been saying and Im trying to figure out how much lift Im doing in the front because I have 25" atv tires for the front as well lol.
Back to top Go down
Alaskan Craftsman
Member
Alaskan Craftsman
Member


Age : 38
Join date : 2015-12-17
Points : 3303
Posts : 44
Location : Anchorage, Alaska

lifting the GT6000 (no welds)  Empty
PostSubject: Re: lifting the GT6000 (no welds)    lifting the GT6000 (no welds)  Icon_minitimeDecember 29th 2015, 11:27 am

Front lift done using unistrut. Its very heavy duty unistrut. got steering hooked back up just need to run the brake cable

lifting the GT6000 (no welds)  KIMG0155
lifting the GT6000 (no welds)  KIMG0156
lifting the GT6000 (no welds)  KIMG0157
lifting the GT6000 (no welds)  KIMG0158
lifting the GT6000 (no welds)  KIMG0154
Back to top Go down
1997 Murray
Veteran Member
1997 Murray
Veteran Member

1000+ Posts
1000+ Posts!
2014 Build-Off Finalist
2014 Build-Off Finalist
2015 Build-Off Finalist
2015 Build-Off Finalist
2016 Build-Off Entrant
2016 Build-Off Entrant

Age : 26
Join date : 2013-11-13
Points : 5433
Posts : 1311
Location : NW USA

lifting the GT6000 (no welds)  Empty
PostSubject: Re: lifting the GT6000 (no welds)    lifting the GT6000 (no welds)  Icon_minitimeDecember 29th 2015, 12:57 pm

In pic #4 your belt is rubbing on the retainer. It will wear the belt out really quick that way.
Back to top Go down
Backroadbomber
New Member

New Member


Join date : 2015-12-01
Points : 3292
Posts : 24

lifting the GT6000 (no welds)  Empty
PostSubject: Re: lifting the GT6000 (no welds)    lifting the GT6000 (no welds)  Icon_minitimeDecember 29th 2015, 1:15 pm

Yeah if you ditch that retainer it'll loosen your belt up a little and give you your clutch travel back. Or, if you don't want your belt hanging that low, I'd suggest to put an idler pulley on the bottom of the belt. But then that will be hanging low. Either way it's gotta go.
Back to top Go down
Alaskan Craftsman
Member
Alaskan Craftsman
Member


Age : 38
Join date : 2015-12-17
Points : 3303
Posts : 44
Location : Anchorage, Alaska

lifting the GT6000 (no welds)  Empty
PostSubject: Re: lifting the GT6000 (no welds)    lifting the GT6000 (no welds)  Icon_minitimeDecember 29th 2015, 9:17 pm

So that retainer has been on the tractor rubbing like how you see it for a long time and Ive never had any issues but I think something is in order to get it out of there....I kinda like the short throw clutch lol. Also I have to add another clutch spring since I removed the brake linkage from the clutch to do a remote brake handle.
Back to top Go down
Backroadbomber
New Member

New Member


Join date : 2015-12-01
Points : 3292
Posts : 24

lifting the GT6000 (no welds)  Empty
PostSubject: Re: lifting the GT6000 (no welds)    lifting the GT6000 (no welds)  Icon_minitimeDecember 30th 2015, 1:41 am

Well before your axle was higher, so your belt wasn't as tight on the retainer. But at the angle it is, I give your tractor 3 miles before it burns out the belt.
Back to top Go down
Alaskan Craftsman
Member
Alaskan Craftsman
Member


Age : 38
Join date : 2015-12-17
Points : 3303
Posts : 44
Location : Anchorage, Alaska

lifting the GT6000 (no welds)  Empty
PostSubject: Re: lifting the GT6000 (no welds)    lifting the GT6000 (no welds)  Icon_minitimeDecember 30th 2015, 10:13 am

Backroadbomber wrote:
Well before your axle was higher, so your belt wasn't as tight on the retainer. But at the angle it is, I give your tractor 3 miles before it burns out the belt.

welp guess ill be laying out my extra pulleys and figuing a quick idler set up to keep the belt up out of the way. Thanks for all the help guys. much appreciated.
Back to top Go down
mr.modified
Veteran Member
mr.modified
Veteran Member

2015 Build-Off Top 3 Winner
2015 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2018 Build-Off Finalist
2018 Build-Off Finalist
2022 Build-Off Entrant
2022 Build-Off Entrant
2500+ Posts
2500+ Posts!
1st Place Build-Off 2014
1st Place Build-Off Winner 2014
2023 Build-Off Entrant
2023 Build-Off Entrant

Age : 34
Join date : 2013-11-02
Points : 7156
Posts : 2910
Location : New Jersey USA

lifting the GT6000 (no welds)  Empty
PostSubject: Re: lifting the GT6000 (no welds)    lifting the GT6000 (no welds)  Icon_minitimeDecember 30th 2015, 12:43 pm

Neat. Shifter just makes it through the frame huh?
Back to top Go down
Alaskan Craftsman
Member
Alaskan Craftsman
Member


Age : 38
Join date : 2015-12-17
Points : 3303
Posts : 44
Location : Anchorage, Alaska

lifting the GT6000 (no welds)  Empty
PostSubject: Re: lifting the GT6000 (no welds)    lifting the GT6000 (no welds)  Icon_minitimeDecember 30th 2015, 12:46 pm

mr.modified wrote:
Neat. Shifter just makes it through the frame huh?

yeah its enough to shift but the ball scrapes just barely making it almost impossible to lock it in gear so its an easy fix.....cant fix it till the build off starts lol. bounce getting ansy
Back to top Go down
Alaskan Craftsman
Member
Alaskan Craftsman
Member


Age : 38
Join date : 2015-12-17
Points : 3303
Posts : 44
Location : Anchorage, Alaska

lifting the GT6000 (no welds)  Empty
PostSubject: Re: lifting the GT6000 (no welds)    lifting the GT6000 (no welds)  Icon_minitimeDecember 30th 2015, 10:36 pm

Heres my update!!! im getting so excited for this build beacuse im going by ear, no plans just daily visions.




lifting the GT6000 (no welds)  KIMG0161
lifting the GT6000 (no welds)  KIMG0164
lifting the GT6000 (no welds)  KIMG0167
lifting the GT6000 (no welds)  KIMG0169


Flexing Big time
lifting the GT6000 (no welds)  KIMG0170
lifting the GT6000 (no welds)  KIMG0171
lifting the GT6000 (no welds)  KIMG0172


10" of flex, probably a couple inches more if I was on flat ground...
lifting the GT6000 (no welds)  KIMG0175


View of "Squatch" compaired to my Four Wheeler with 25" muds



Back to top Go down
Alaskan Craftsman
Member
Alaskan Craftsman
Member


Age : 38
Join date : 2015-12-17
Points : 3303
Posts : 44
Location : Anchorage, Alaska

lifting the GT6000 (no welds)  Empty
PostSubject: Re: lifting the GT6000 (no welds)    lifting the GT6000 (no welds)  Icon_minitimeDecember 30th 2015, 10:55 pm

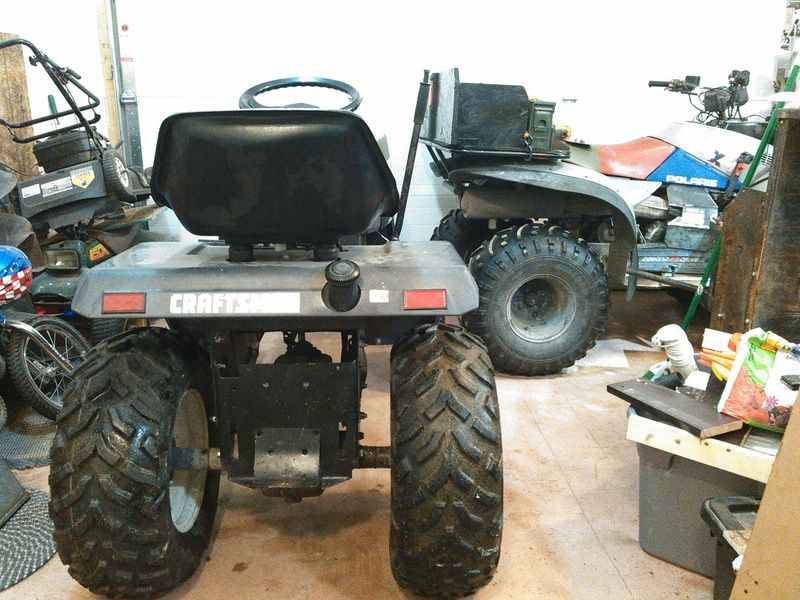

View of "Squatch" compaired to my Four Wheeler with 25" muds


lifting the GT6000 (no welds)  KIMG0176
Back to top Go down
Alaskan Craftsman
Member
Alaskan Craftsman
Member


Age : 38
Join date : 2015-12-17
Points : 3303
Posts : 44
Location : Anchorage, Alaska

lifting the GT6000 (no welds)  Empty
PostSubject: Re: lifting the GT6000 (no welds)    lifting the GT6000 (no welds)  Icon_minitimeDecember 31st 2015, 8:12 am

Here are some more updates on the GT
hardest part was shaping the shifter to where I wanted it. everything else just came into play.

this was an old single stage snowblower shoot director turn handle Im using as my shifter extension

lifting the GT6000 (no welds)  KIMG0177

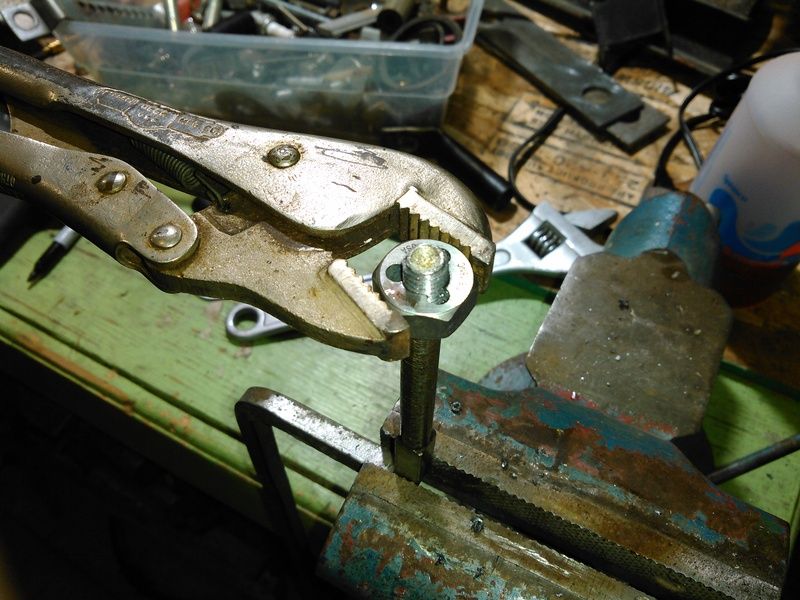

Threaded the rod to 7/16 or a standard 3/8 ths bolt

lifting the GT6000 (no welds)  KIMG0178

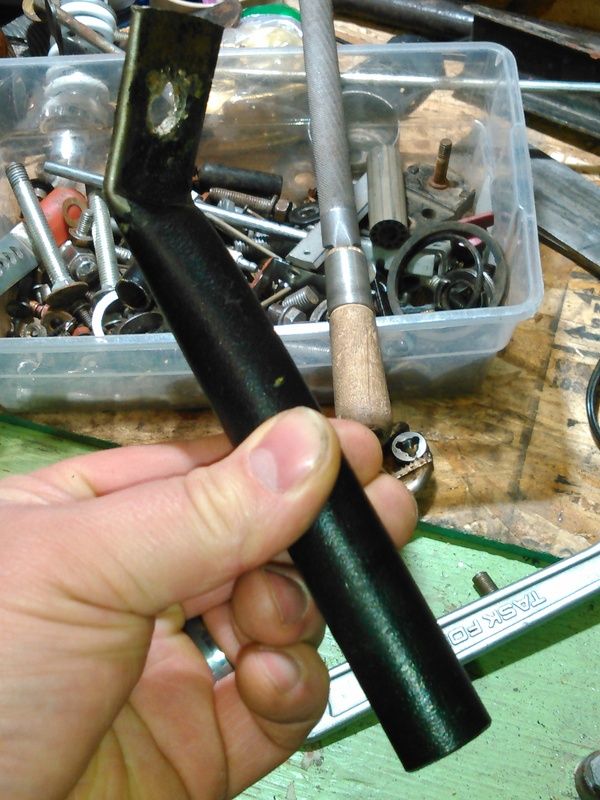

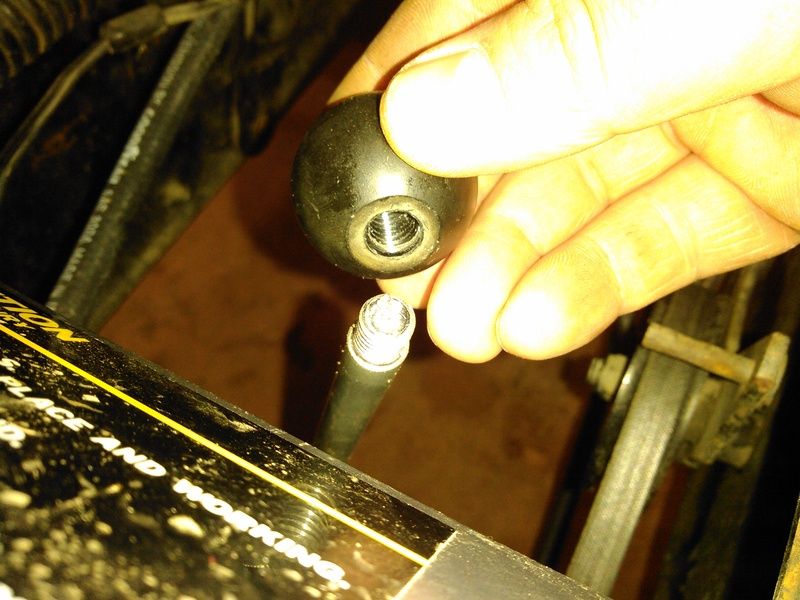

removed old shifter knob to use it on the new shifter

lifting the GT6000 (no welds)  KIMG0179

lifting the GT6000 (no welds)  KIMG0180

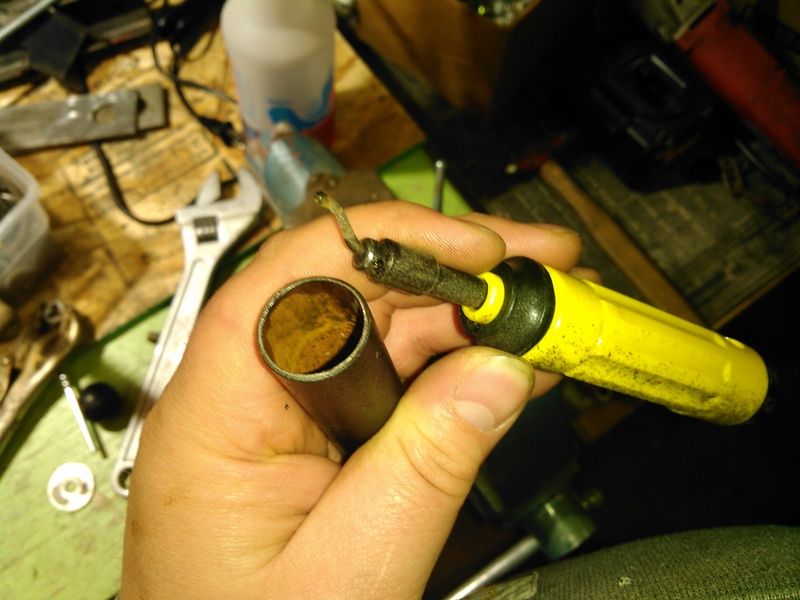

One of the most important tools in the metal fab lol everyone should have one.

lifting the GT6000 (no welds)  KIMG0181

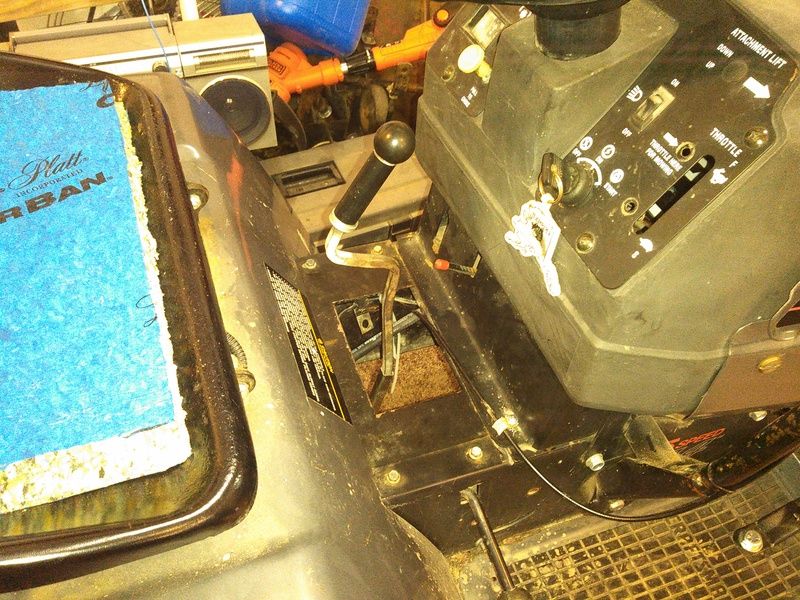

Shifter handle mocked up ready to test fit

lifting the GT6000 (no welds)  KIMG0182

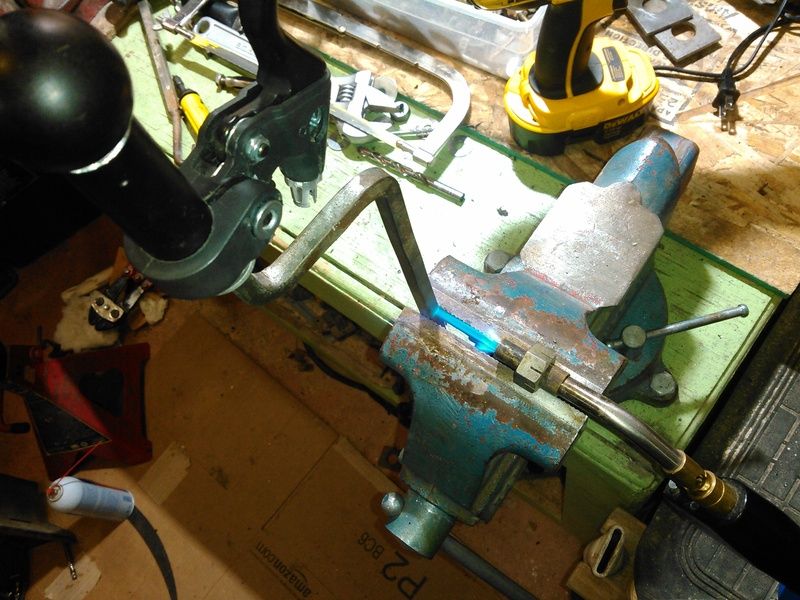

made measurements and heating up the solid rod for my bends

lifting the GT6000 (no welds)  KIMG0183

Had to do a little trimming but in the end everything fit very well.

lifting the GT6000 (no welds)  KIMG0185

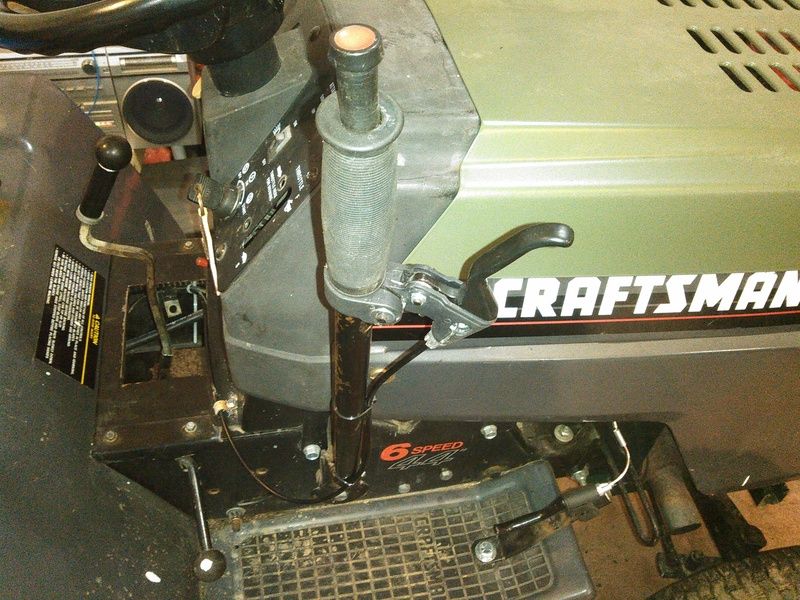

new hand brake deal. so now my clutch and brake are separate.

lifting the GT6000 (no welds)  KIMG0186

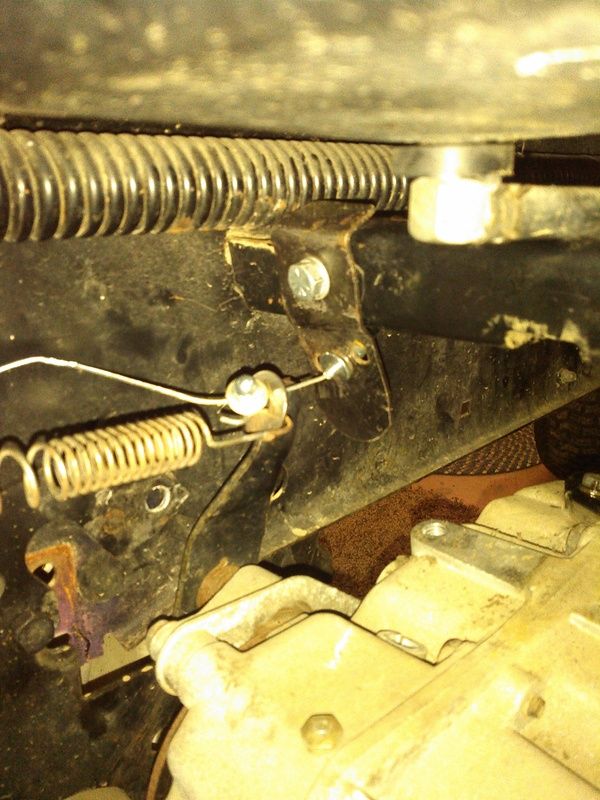

Disc brake hooked up and she stops on a dime. much nicer than stock setup

lifting the GT6000 (no welds)  KIMG0187


Hope you all Enjoyed, more to come
Back to top Go down
1997 Murray
Veteran Member
1997 Murray
Veteran Member

1000+ Posts
1000+ Posts!
2014 Build-Off Finalist
2014 Build-Off Finalist
2015 Build-Off Finalist
2015 Build-Off Finalist
2016 Build-Off Entrant
2016 Build-Off Entrant

Age : 26
Join date : 2013-11-13
Points : 5433
Posts : 1311
Location : NW USA

lifting the GT6000 (no welds)  Empty
PostSubject: Re: lifting the GT6000 (no welds)    lifting the GT6000 (no welds)  Icon_minitimeDecember 31st 2015, 10:48 am

that's coming along nice! now you need a set of 22" tall front tires Twisted Evil Have you figured out the hi/lo selector?
Back to top Go down
Alaskan Craftsman
Member
Alaskan Craftsman
Member


Age : 38
Join date : 2015-12-17
Points : 3303
Posts : 44
Location : Anchorage, Alaska

lifting the GT6000 (no welds)  Empty
PostSubject: Re: lifting the GT6000 (no welds)    lifting the GT6000 (no welds)  Icon_minitimeDecember 31st 2015, 4:28 pm

my goal is to get some 3/4" bore 4 bolt hubs from BMI karts or MFG Supply and slip them on the front spindles and run a 4.80 x12 trailer tire up front. and no i still havent done the hi/low selector yet lol the low on the tractor is really low so i need some more pulley options. I need a smaller trans-axle pulleybut im not sure what other pulleys will fit the tapered shaft on the 633 transaxle.
Back to top Go down
donaldcon
Member
donaldcon
Member


Age : 38
Join date : 2015-04-28
Points : 3948
Posts : 401
Location : Roseville, OH

lifting the GT6000 (no welds)  Empty
PostSubject: Re: lifting the GT6000 (no welds)    lifting the GT6000 (no welds)  Icon_minitimeDecember 31st 2015, 6:46 pm

Don't change the trans axle pulley, change the engine pulley.

Bigger front pulley =less slippage.

Back to top Go down
Alaskan Craftsman
Member
Alaskan Craftsman
Member


Age : 38
Join date : 2015-12-17
Points : 3303
Posts : 44
Location : Anchorage, Alaska

lifting the GT6000 (no welds)  Empty
PostSubject: Re: lifting the GT6000 (no welds)    lifting the GT6000 (no welds)  Icon_minitimeJanuary 1st 2016, 2:24 am

not sure where to get a smaller front pulley because i have one of those wedge style ones
where you tighten it up and the pulley wedged to the mount thats bolted to the engine
Back to top Go down
Alaskan Craftsman
Member
Alaskan Craftsman
Member


Age : 38
Join date : 2015-12-17
Points : 3303
Posts : 44
Location : Anchorage, Alaska

lifting the GT6000 (no welds)  Empty
PostSubject: Re: lifting the GT6000 (no welds)    lifting the GT6000 (no welds)  Icon_minitimeJanuary 3rd 2016, 4:59 am

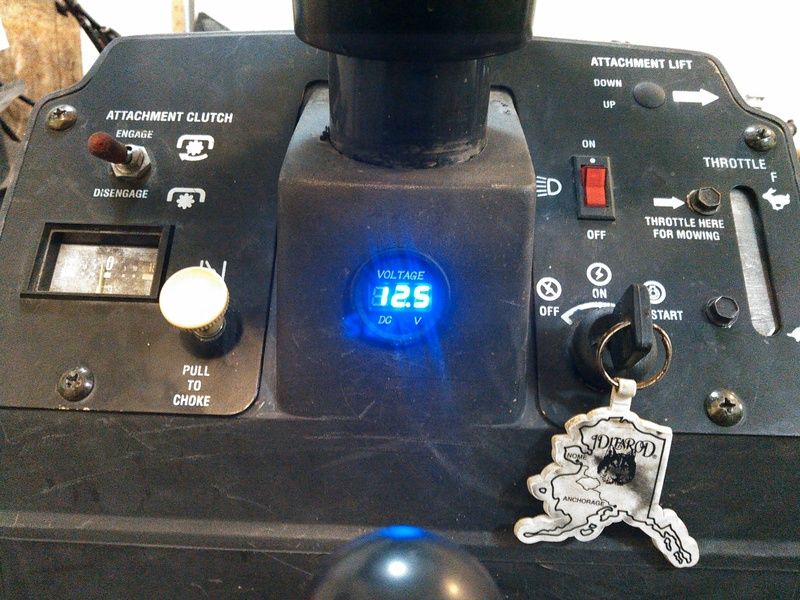

Got my waterproof digital voltage meter in today and have it wire up to the ignition switch. Looks really nice in my opinion and I plated off the old throttle area. Getting her cleaned up....I still am having an issue figuring out what pulley to get for my engine....I'll post pics

lifting the GT6000 (no welds)  KIMG0160


And here is my new bumper. Nothing fancy, but works and FREE.

lifting the GT6000 (no welds)  KIMG0159_1
Back to top Go down
Alaskan Craftsman
Member
Alaskan Craftsman
Member


Age : 38
Join date : 2015-12-17
Points : 3303
Posts : 44
Location : Anchorage, Alaska

lifting the GT6000 (no welds)  Empty
PostSubject: Re: lifting the GT6000 (no welds)    lifting the GT6000 (no welds)  Icon_minitimeJanuary 3rd 2016, 5:17 am

Heres the engine pulley ...guys are saying to not swap the transaxle pulley and to swap the engine pulley but I havent found any smaller wedge style tapered two piece pulleys

lifting the GT6000 (no welds)  KIMG0163
lifting the GT6000 (no welds)  KIMG0164_1
Back to top Go down
Sponsored content





lifting the GT6000 (no welds)  Empty
PostSubject: Re: lifting the GT6000 (no welds)    lifting the GT6000 (no welds)  Icon_minitime

Back to top Go down

lifting the GT6000 (no welds)
Back to top
Page 1 of 2Go to page : 1, 2  Next
 Similar topics
-
» Welds, will they hold up? (or maybe bolts)
» Are My Welds Good Enough?? A Short Discussion
» Craftsman Gt6000 M.U.T.T
» Gt6000 build
» lifting the beast

Permissions in this forum:You cannot reply to topics in this forum
All-Terrain Lawn Tractor Forum :: Tractor Project Builds :: Off Road & Rally Tractors-
Jump to:
