 Ive removed my wiring and I dont know how to wire it back up.

Go down
AuthorMessage
noledroByrreK
Screwdriver
Screwdriver
noledroByrreK

Age : 27
Join date : 2011-01-14
Posts : 252
Forum Rep : 0
Location : DFW Texas

Ive removed my wiring and I dont know how to wire it back up. Empty
PostSubject: Ive removed my wiring and I dont know how to wire it back up.   Ive removed my wiring and I dont know how to wire it back up. Icon_minitimeWed May 18, 2011 3:43 pm

so i was watching fearlessfronts video on wiring and it made me want to do a decnt wiring job on my mower. The whole reason i ripped all the wiring out in the first place was because i tried to take out one of the saftey sensors and endded up screwing up the whole thing and i couldn't figure out this starter solenoid. was thinkin mabye yall knew how to make it work

Ive removed my wiring and I dont know how to wire it back up. Photo015
theres the starter solenoid it has 2 prongs instead of 1. how do i rig up a switch to that?

The only real wiring i have is really ghetto

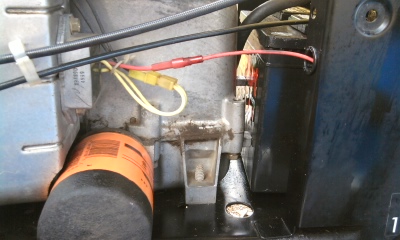

Ive removed my wiring and I dont know how to wire it back up. Photo016
i have what i think is the charge wire going to the other side of the dash(red) .... yea im lucky i managed to have enuf room under the dash for the battery:) it was under the seat but when i lowered the back i didnt have room for it there

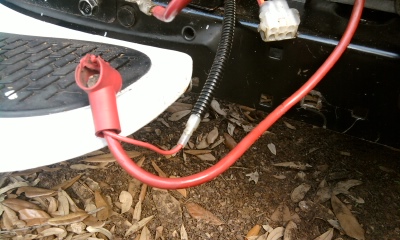

Ive removed my wiring and I dont know how to wire it back up. Photo017
then the charge wires goes into this bigger wire that is connected to the battery under the dash
Ive removed my wiring and I dont know how to wire it back up. Photo018

if i can figure out this solenoid it should be pretty easy to do push button star and a kill switch. maybe even throw a safety switch back on under the seat so it will die if i fall off and so i dont have to spark wires together to start it


Last edited by noledroByrreK on Wed May 18, 2011 6:41 pm; edited 2 times in total
Back to top Go down
https://www.youtube.com/user/noledroByrreK?feature=mhum
noledroByrreK
Screwdriver
Screwdriver
noledroByrreK

Age : 27
Join date : 2011-01-14
Posts : 252
Forum Rep : 0
Location : DFW Texas

Ive removed my wiring and I dont know how to wire it back up. Empty
PostSubject: Re: Ive removed my wiring and I dont know how to wire it back up.   Ive removed my wiring and I dont know how to wire it back up. Icon_minitimeWed May 18, 2011 6:31 pm

Alright so im pretty proud of myself i managed to get a kill switch rigged up with the help of fearlessfronts video. i used one of the old saftey switches and put one back under the seat so if i fall off the engine will die. im pretty happy with it to because before the thing would just keep goin without me, witch is bad. lol

heres a video

so i got the emergency switch done. when i figure out the starter solenoid im going to put in a push button starter and and flip kill switch both of witch will be mounted on the dash
Back to top Go down
https://www.youtube.com/user/noledroByrreK?feature=mhum
redneckcarrow
Forum Newbie
Forum Newbie
redneckcarrow

Age : 51
Join date : 2010-12-22
Posts : 30
Forum Rep : 0
Location : maine

Ive removed my wiring and I dont know how to wire it back up. Empty
PostSubject: Re: Ive removed my wiring and I dont know how to wire it back up.   Ive removed my wiring and I dont know how to wire it back up. Icon_minitimeThu May 19, 2011 5:51 pm

the starter solenoid is easy the two big post one goes to starter wire the other one yo battery the two small post one is ground one is power from psh button. the shut off switch just follow fearlessfronts video
Back to top Go down
noledroByrreK
Screwdriver
Screwdriver
noledroByrreK

Age : 27
Join date : 2011-01-14
Posts : 252
Forum Rep : 0
Location : DFW Texas

Ive removed my wiring and I dont know how to wire it back up. Empty
PostSubject: Re: Ive removed my wiring and I dont know how to wire it back up.   Ive removed my wiring and I dont know how to wire it back up. Icon_minitimeThu May 19, 2011 6:56 pm

ah so one is a ground.. thanks

knew what the to 2 big ones was just confused me cuz in fearlesses video there was only one little post. i uess i will be goin to home depot tommorow to get a button and a switch


for the killswitch i will eaither run the ground wire to the same wire as the seat sensor or to a seperate ground spot. i guess 2 different ones is better incase one comes off
Back to top Go down
https://www.youtube.com/user/noledroByrreK?feature=mhum
