yard king racing/offroad mower build. Empty
PostSubject: yard king racing/offroad mower build.   yard king racing/offroad mower build. Icon_minitimeMon Nov 19, 2012 8:20 am

hi all.
the yard king originally had a 11hp but it will be replaced with a 18 hp briggs twin.
-transaxle is cleaned, locked, and packed with fresch grease.
-tubes in rear tires.
-front and rear bumper welded.

To do list:
-new steering setup.
-lock front end in place.
-plant 18 hp twin.
-pulley swap.
-new clutch setup.
-seperate brake pedal.
-gas pedal.

Pictures:
yard king racing/offroad mower build. DSC09327_zpsf0b0411d
yard king racing/offroad mower build. DSC09328_zpsbe190444
yard king racing/offroad mower build. DSC09329_zpsfd6b186d
yard king racing/offroad mower build. Pbucket
yard king racing/offroad mower build. Pbucket
yard king racing/offroad mower build. Pbucket
yard king racing/offroad mower build. Pbucket
yard king racing/offroad mower build. AlgIH829TRPhb6h_xcveSjEv4MEz0NNhzOCR5VK6D4AV
yard king racing/offroad mower build. AnNJD_36xAtkqRIAp96mJ6PaB75emxoowqs09lv9KXv0
yard king racing/offroad mower build. Avzb_N6LmlCmufdRoxie_tOmFpw95nD11dhL9VDhZo4g
updates to come.
with better pictures.
Sander.
Back to top Go down
Craftsman Dude
Screwdriver
Screwdriver
Craftsman Dude

Age : 26
Join date : 2012-09-07
Posts : 145
Forum Rep : 0
Location : MS

yard king racing/offroad mower build. Empty
PostSubject: Re: yard king racing/offroad mower build.   yard king racing/offroad mower build. Icon_minitimeMon Nov 19, 2012 5:40 pm

What transaxle are you running.
Back to top Go down
thatrandomguy
Forum Newbie
Forum Newbie
thatrandomguy

Age : 24
Join date : 2012-03-28
Posts : 56
Forum Rep : 0
Location : netherlands

yard king racing/offroad mower build. Empty
PostSubject: Re: yard king racing/offroad mower build.   yard king racing/offroad mower build. Icon_minitimeTue Nov 20, 2012 4:26 am

@craftsman dude wrote:
What transaxle are you running.

It's a 5 speed. Peerles i think.
Back to top Go down
CornishMorgan
Screwdriver
Screwdriver


Join date : 2012-06-10
Posts : 302
Forum Rep : 0

yard king racing/offroad mower build. Empty
PostSubject: Re: yard king racing/offroad mower build.   yard king racing/offroad mower build. Icon_minitimeTue Nov 20, 2012 9:47 am

Looking good so far, can't wait to see your progress Very Happy
Back to top Go down
AcreFarm
Screwdriver
Screwdriver
AcreFarm

Age : 37
Join date : 2011-11-02
Posts : 208
Forum Rep : 1
Location : Tennessee

yard king racing/offroad mower build. Empty
PostSubject: Re: yard king racing/offroad mower build.   yard king racing/offroad mower build. Icon_minitimeTue Nov 20, 2012 10:12 am

From the pic I'd guess a Peerless 900, 920 or 930
I've got a locked 900 in my tractor; so far it's held up fine
Back to top Go down
thatrandomguy
Forum Newbie
Forum Newbie
thatrandomguy

Age : 24
Join date : 2012-03-28
Posts : 56
Forum Rep : 0
Location : netherlands

yard king racing/offroad mower build. Empty
PostSubject: Re: yard king racing/offroad mower build.   yard king racing/offroad mower build. Icon_minitimeTue Nov 20, 2012 10:44 am

mlwinters wrote:
Looking good so far, can't wait to see your progress Very Happy
Thanks, i cant wait to get it done.
Back to top Go down
thatrandomguy
Forum Newbie
Forum Newbie
thatrandomguy

Age : 24
Join date : 2012-03-28
Posts : 56
Forum Rep : 0
Location : netherlands

yard king racing/offroad mower build. Empty
PostSubject: Re: yard king racing/offroad mower build.   yard king racing/offroad mower build. Icon_minitimeTue Nov 20, 2012 11:28 am

@AcreFarm wrote:
From the pic I'd guess a Peerless 900, 920 or 930
I've got a locked 900 in my tractor; so far it's held up fine

im hoping me weld holds, im not that good with electrodes.
getting a little flux core welder soon.
Back to top Go down
thatrandomguy
Forum Newbie
Forum Newbie
thatrandomguy

Age : 24
Join date : 2012-03-28
Posts : 56
Forum Rep : 0
Location : netherlands

yard king racing/offroad mower build. Empty
PostSubject: Re: yard king racing/offroad mower build.   yard king racing/offroad mower build. Icon_minitimeTue Nov 20, 2012 11:40 am

some updates:

welded the front end in locked.
yard king racing/offroad mower build. DSC09356
yard king racing/offroad mower build. DSC09357
yard king racing/offroad mower build. DSC09359

flipping front pulley:

cut the long end off and welded it on to the other side.
yard king racing/offroad mower build. DSC09361
yard king racing/offroad mower build. DSC09363
yard king racing/offroad mower build. DSC09365

my welder, grinder and welding helmet:
yard king racing/offroad mower build. DSC09372
yard king racing/offroad mower build. DSC09373

Sander.
Back to top Go down
AcreFarm
Screwdriver
Screwdriver
AcreFarm

Age : 37
Join date : 2011-11-02
Posts : 208
Forum Rep : 1
Location : Tennessee

yard king racing/offroad mower build. Empty
PostSubject: Re: yard king racing/offroad mower build.   yard king racing/offroad mower build. Icon_minitimeTue Nov 20, 2012 11:48 am

Good progress!
I did not weld mine, I used 2 extra spider gears.
Back to top Go down
CornishMorgan
Screwdriver
Screwdriver


Join date : 2012-06-10
Posts : 302
Forum Rep : 0

yard king racing/offroad mower build. Empty
PostSubject: Re: yard king racing/offroad mower build.   yard king racing/offroad mower build. Icon_minitimeTue Nov 20, 2012 11:52 am

Wow, those are nice clean welds, I cant get welds to look that good with my arc welder. You must of had way more practice than I have. Keep up the great work Very Happy.
Back to top Go down
thatrandomguy
Forum Newbie
Forum Newbie
thatrandomguy

Age : 24
Join date : 2012-03-28
Posts : 56
Forum Rep : 0
Location : netherlands

yard king racing/offroad mower build. Empty
PostSubject: Re: yard king racing/offroad mower build.   yard king racing/offroad mower build. Icon_minitimeTue Nov 20, 2012 2:04 pm

@AcreFarm wrote:
Good progress!
I did not weld mine, I used 2 extra spider gears.

That is alot less cleaning or having the risk of the weld breaking.
I dont have extra spider gears so i just like welding them.
Back to top Go down
thatrandomguy
Forum Newbie
Forum Newbie
thatrandomguy

Age : 24
Join date : 2012-03-28
Posts : 56
Forum Rep : 0
Location : netherlands

yard king racing/offroad mower build. Empty
PostSubject: Re: yard king racing/offroad mower build.   yard king racing/offroad mower build. Icon_minitimeTue Nov 20, 2012 2:15 pm

mlwinters wrote:
Wow, those are nice clean welds, I cant get welds to look that good with my arc welder. You must of had way more practice than I have. Keep up the great work Very Happy.

Thanks. I make nicer welds using mig. Getting a little mig soon.
I do practise quite alot, but im still not happy with my arc welds.
Sander.
Back to top Go down
thatrandomguy
Forum Newbie
Forum Newbie
thatrandomguy

Age : 24
Join date : 2012-03-28
Posts : 56
Forum Rep : 0
Location : netherlands

yard king racing/offroad mower build. Empty
PostSubject: Re: yard king racing/offroad mower build.   yard king racing/offroad mower build. Icon_minitimeTue Nov 20, 2012 2:19 pm

What do you guys think about an extra break that rubs on the tires?
Back to top Go down
thatrandomguy
Forum Newbie
Forum Newbie
thatrandomguy

Age : 24
Join date : 2012-03-28
Posts : 56
Forum Rep : 0
Location : netherlands

yard king racing/offroad mower build. Empty
PostSubject: Re: yard king racing/offroad mower build.   yard king racing/offroad mower build. Icon_minitimeWed Nov 21, 2012 11:23 am

updates:

have been working on the briggs twin today:

yard king racing/offroad mower build. DSC09375
yard king racing/offroad mower build. DSC09377

one of the intake manefolt ears broke off:
yard king racing/offroad mower build. DSC09380

does anybody have an idea how to fix this?
is it possible to weld it or something?

muffler off:
yard king racing/offroad mower build. DSC09381

my brother talkt me into doing stacks on the mower.
yard king racing/offroad mower build. DSC09383

im trying to figur out what size rear pulley i should get to get a top speed of about 30/35 mph? anybody have an idea?
Back to top Go down
thatrandomguy
Forum Newbie
Forum Newbie
thatrandomguy

Age : 24
Join date : 2012-03-28
Posts : 56
Forum Rep : 0
Location : netherlands

yard king racing/offroad mower build. Empty
PostSubject: Re: yard king racing/offroad mower build.   yard king racing/offroad mower build. Icon_minitimeSun Nov 25, 2012 1:02 pm

update:

fixed the intake with some exhaust sealer.
yard king racing/offroad mower build. ArJU5Q4Z4wlhAzPXhNHxi0zmRg5HwDqQKHarsQCCHT37
yard king racing/offroad mower build. ApSFNr1RYz5lwwzwrDjwIT0FIz9pXAekbQXoeoINlY5J

straight pipes(not done yet)
yard king racing/offroad mower build. As7YpehRkayfZX3Ai-acFlpGdCdo9SLMpMuTc1_oldji
yard king racing/offroad mower build. AqnjiY4X5lda80soHR7PkIhwpgNkMNNe2dbcwo0jz2iV
yard king racing/offroad mower build. AkKiSVT-O7MlnAE4ocrhObL2M39pvy0ugJWKeUf2wUP7
yard king racing/offroad mower build. AgTqacYxXfWn_QjfttGDvDHRHhuGjrdWLhW5hn_irDxE
also sealed all the welds with the gungum exhaust sealer.
Back to top Go down
dangeroustoys56
Prybar
Prybar
dangeroustoys56

Age : 51
Join date : 2010-02-10
Posts : 1726
Forum Rep : 0
Location : Florida, USA

yard king racing/offroad mower build. Empty
PostSubject: Re: yard king racing/offroad mower build.   yard king racing/offroad mower build. Icon_minitimeSun Nov 25, 2012 11:18 pm

JB weld wouldve worked for the intake crack - ive used it to repair some small holes on a couple tractor decks as well.

Id probably go a lil longer on those exhaust tubes- i ran shorty pipes on my mod murray and the thing backfired /popped like crazy - it can eventually burn a valve - briggs motors like a little back pressure.
Back to top Go down
thatrandomguy
Forum Newbie
Forum Newbie
thatrandomguy

Age : 24
Join date : 2012-03-28
Posts : 56
Forum Rep : 0
Location : netherlands

yard king racing/offroad mower build. Empty
PostSubject: Re: yard king racing/offroad mower build.   yard king racing/offroad mower build. Icon_minitimeMon Nov 26, 2012 7:19 am

@dangeroustoys56 wrote:
JB weld wouldve worked for the intake crack - ive used it to repair some small holes on a couple tractor decks as well.

Id probably go a lil longer on those exhaust tubes- i ran shorty pipes on my mod murray and the thing backfired /popped like crazy - it can eventually burn a valve - briggs motors like a little back pressure.

Im hoping this will hold up, but if it doesn't i will JB weld it.

The straght pipes are going to be a bit longer, problably exiting underneath the runningboards.
Back to top Go down
dangeroustoys56
Prybar
Prybar
dangeroustoys56

Age : 51
Join date : 2010-02-10
Posts : 1726
Forum Rep : 0
Location : Florida, USA

yard king racing/offroad mower build. Empty
PostSubject: Re: yard king racing/offroad mower build.   yard king racing/offroad mower build. Icon_minitimeTue Nov 27, 2012 7:41 am

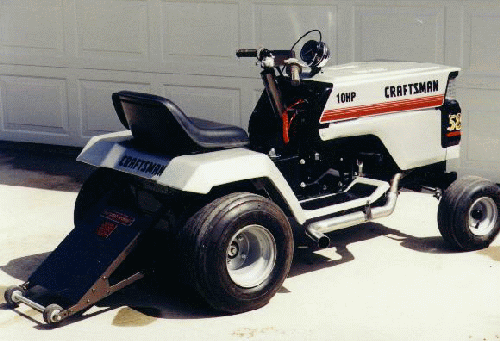

Cool - when i get around to building my rat rod wheelhorse i plan on putting pipes like this on it, cept a lil bit more under the foot rests :
yard king racing/offroad mower build. Craftm10

( No this isnt my tractor)
Back to top Go down
tralme98
Forum Newbie
Forum Newbie
tralme98

Join date : 2012-11-29
Posts : 26
Forum Rep : 0
Location : United States

yard king racing/offroad mower build. Empty
PostSubject: Sup   yard king racing/offroad mower build. Icon_minitimeSat Dec 01, 2012 9:56 pm

Hey awesome tractor man! I just started mine today and have some of the things your doing and doing them on mine but I dont think ill put stacks on mine. Very Happy
Awesome work, keep it up!


- Trent
Back to top Go down
thatrandomguy
Forum Newbie
Forum Newbie
thatrandomguy

Age : 24
Join date : 2012-03-28
Posts : 56
Forum Rep : 0
Location : netherlands

yard king racing/offroad mower build. Empty
PostSubject: Re: yard king racing/offroad mower build.   yard king racing/offroad mower build. Icon_minitimeMon Dec 10, 2012 3:47 pm

@dangeroustoys56 wrote:
Cool - when i get around to building my rat rod wheelhorse i plan on putting pipes like this on it, cept a lil bit more under the foot rests :
yard king racing/offroad mower build. Craftm10

( No this isnt my tractor)

That is going to look slick, what engine is the rat rod getting?
Back to top Go down
thatrandomguy
Forum Newbie
Forum Newbie
thatrandomguy

Age : 24
Join date : 2012-03-28
Posts : 56
Forum Rep : 0
Location : netherlands

yard king racing/offroad mower build. Empty
PostSubject: Re: yard king racing/offroad mower build.   yard king racing/offroad mower build. Icon_minitimeMon Dec 10, 2012 3:53 pm

@tralme98 wrote:
Hey awesome tractor man! I just started mine today and have some of the things your doing and doing them on mine but I dont think ill put stacks on mine. Very Happy
Awesome work, keep it up!


- Trent
Thanks alot.
Get some pics of your mower and post them on the forum. I would love to see it.
Im not going with stacks anymore, because of the exhaust fumes getting in my face.
Sander.
Back to top Go down
dangeroustoys56
Prybar
Prybar
dangeroustoys56

Age : 51
Join date : 2010-02-10
Posts : 1726
Forum Rep : 0
Location : Florida, USA

yard king racing/offroad mower build. Empty
PostSubject: Re: yard king racing/offroad mower build.   yard king racing/offroad mower build. Icon_minitimeMon Dec 10, 2012 5:06 pm

That was a pic i found on a racing tractor website - altho i have a couple stock tractors of the same model.

My rat rod is going to have a 03 bolens chassis ( MTD) , and original unpainted rusty sheetmetal off my 69 raider 10 wheelhorse - itll be lowered, 8" golf kart rims all around, straight rear axle, and a 18HP twin opposed briggs - debating on wether to use a peerless 700 or right angle gear box with go kart clutch.

Back to top Go down
thatrandomguy
Forum Newbie
Forum Newbie
thatrandomguy

Age : 24
Join date : 2012-03-28
Posts : 56
Forum Rep : 0
Location : netherlands

yard king racing/offroad mower build. Empty
PostSubject: Re: yard king racing/offroad mower build.   yard king racing/offroad mower build. Icon_minitimeTue Dec 11, 2012 2:58 pm

@dangeroustoys56 wrote:
That was a pic i found on a racing tractor website - altho i have a couple stock tractors of the same model.

My rat rod is going to have a 03 bolens chassis ( MTD) , and original unpainted rusty sheetmetal off my 69 raider 10 wheelhorse - itll be lowered, 8" golf kart rims all around, straight rear axle, and a 18HP twin opposed briggs - debating on wether to use a peerless 700 or right angle gear box with go kart clutch.


That bolens frame is going to be very strong and the wheelhorse sheetmetal is going to look sweet.
The 18 horse briggs are great engines. Are you going to do any mods to the engine?
I have a peerles 700 laying around, pretty strong transmissions. Ive seen people put little needle bearings in them to replace the bushings.
Its nice to be able to shift, and having lots of torque.
Right angle gearbox is easy to install and setup. But its more exspensive.

Back to top Go down
dangeroustoys56
Prybar
Prybar
dangeroustoys56

Age : 51
Join date : 2010-02-10
Posts : 1726
Forum Rep : 0
Location : Florida, USA

yard king racing/offroad mower build. Empty
PostSubject: Re: yard king racing/offroad mower build.   yard king racing/offroad mower build. Icon_minitimeTue Dec 11, 2012 11:27 pm

I have one thats stock that was on a mod murray, i ran it with the governer and it was scarey fast - i have another briggs 18HP that i was trying to set up dual carbs on to see if it even ran ( was missing carb and intake) , i bot a couple street scooter carbs at a flea market - i was thinking of hooking one up with a custom intake possibly. Its still up in the air what ill use on it.


I already have both - the 700 peerless and the RAGB - the 1:1 RAGB i bot off ebay for $25 because a pulley is stuck on it ( ill have to cut if off) .

Itll be a bit before i get working on it - i have a few other projects and stock mowers to work on first.
Back to top Go down
thatrandomguy
Forum Newbie
Forum Newbie
thatrandomguy

Age : 24
Join date : 2012-03-28
Posts : 56
Forum Rep : 0
Location : netherlands

yard king racing/offroad mower build. Empty
PostSubject: Re: yard king racing/offroad mower build.   yard king racing/offroad mower build. Icon_minitimeWed Dec 12, 2012 8:46 am

@dangeroustoys56 wrote:
I have one thats stock that was on a mod murray, i ran it with the governer and it was scarey fast - i have another briggs 18HP that i was trying to set up dual carbs on to see if it even ran ( was missing carb and intake) , i bot a couple street scooter carbs at a flea market - i was thinking of hooking one up with a custom intake possibly. Its still up in the air what ill use on it.


I already have both - the 700 peerless and the RAGB - the 1:1 RAGB i bot off ebay for $25 because a pulley is stuck on it ( ill have to cut if off) .

Itll be a bit before i get working on it - i have a few other projects and stock mowers to work on first.


Dont think those scooter carbs will do. Ive seen people put snowmobile carbs on twins. Works great and gives them lots of power.

I bought my 700 togheter with a little RER rear axle with ballbearings for 50 bucks.
My toro groundmaster has a RAGB on the rotted out mowing deck. Im hoping i can save the deck, but if i cant save the deck i wil use the RAGB for a project or something.

When you do start to build yout ratrod mower, be sure to put it up on the forum.
Back to top Go down
Sponsored content




yard king racing/offroad mower build. Empty
PostSubject: Re: yard king racing/offroad mower build.   yard king racing/offroad mower build. Icon_minitime

Back to top Go down

yard king racing/offroad mower build.
Back to top
Page 1 of 2Go to page : 1, 2  Next

Permissions in this forum:You cannot reply to topics in this forum
All-Terrain Lawn Tractor Forum :: Tractor Project Builds :: Off Road & Rally Tractors-
Jump to:
