truckin42 wrote:
Yeah i will have somthing like 20" of clearance when i put the bigger tires on front and cut the deck hanger of the axle.
Right now i have like 10" from the grond to the axle ill have to measure it to be sure.
i did some messurements again and ill have 16" 1/2 i the front with lift kit and in the rear front the bottom on the transaxle ill have 12" with new tires a the foot boards it will be 27" total i dont wanna have a monster mower just wanna make it where i can get thru my creek trails with out bottoming out
Back to top Go down
MowBandit
Member
MowBandit
Member

2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 28
Join date : 2013-03-16
Points : 4767
Posts : 477
Location : Haddock,Georgia

Sarge offroad/mud mower  - Page 3 Empty
PostSubject: Re: Sarge offroad/mud mower    Sarge offroad/mud mower  - Page 3 Icon_minitimeMay 29th 2013, 10:30 pm

well here are some updates

had to get the front up on the ramps
Sarge offroad/mud mower  - Page 3 Img_2036

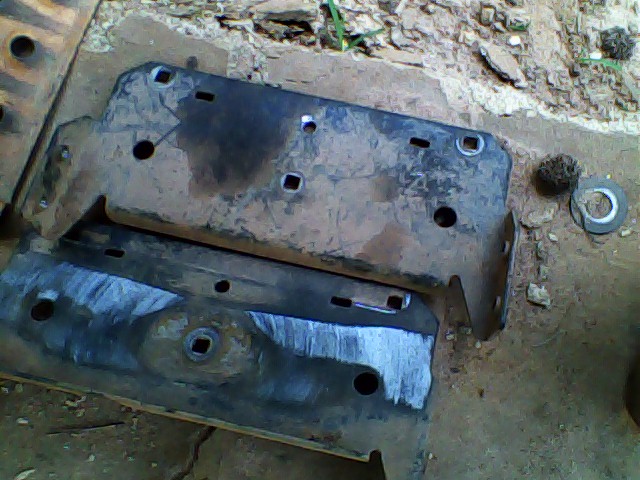

i had to remove the mounts and drill new wholes
Sarge offroad/mud mower  - Page 3 Img_2037
Sarge offroad/mud mower  - Page 3 Img_2038

this is the best $20 drill ive ever used LOL
Sarge offroad/mud mower  - Page 3 Img_2039

this is how you tell that you have enough lift
Sarge offroad/mud mower  - Page 3 Img_2040
is when you can see to the other side


and the final product 2ft of lift Twisted Evil
Sarge offroad/mud mower  - Page 3 Img_2041

and some photoshoots my little cuz with my sister mudqueen Very Happy
Sarge offroad/mud mower  - Page 3 Img_2042

Back to top Go down
Doc Sprocket
Site VIP
Doc Sprocket
Site VIP

2500+ Posts
2500+ Posts!
2018 Build-Off Entrant
2018 Build-Off Entrant
2021 Winner of Winners
2021 Winner of Winners
1st Place Build-Off 2016
1st Place Build-Off Winner 2016

Age : 51
Join date : 2013-04-21
Points : 7336
Posts : 2914
Location : Ontario Canada

Sarge offroad/mud mower  - Page 3 Empty
PostSubject: Re: Sarge offroad/mud mower    Sarge offroad/mud mower  - Page 3 Icon_minitimeMay 30th 2013, 5:58 am

Looks like you've got some decent articulation now! Get some grease onto those axle plates- you can see a lot of wear on them.
Back to top Go down
mudmonkey06
Member
mudmonkey06
Member


Age : 28
Join date : 2013-03-18
Points : 4612
Posts : 327
Location : Rindge, NH

Sarge offroad/mud mower  - Page 3 Empty
PostSubject: Re: Sarge offroad/mud mower    Sarge offroad/mud mower  - Page 3 Icon_minitimeMay 30th 2013, 6:16 am

its looking good. i like how much flex it has
Back to top Go down
MowBandit
Member
MowBandit
Member

2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 28
Join date : 2013-03-16
Points : 4767
Posts : 477
Location : Haddock,Georgia

Sarge offroad/mud mower  - Page 3 Empty
PostSubject: Re: Sarge offroad/mud mower    Sarge offroad/mud mower  - Page 3 Icon_minitimeMay 30th 2013, 7:06 am

Doc Sprocket wrote:
Looks like you've got some decent articulation now! Get some grease onto those axle plates- you can see a lot of wear on them.
that is the front plate that looks worn its mostly surface i plan on getting some grease zerks to put on that axle plate so i can grease it but the center bushing is pretty much done for so im thinking its time to do what stretch done to his mowers make your own front axle lol
Back to top Go down
MowBandit
Member
MowBandit
Member

2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 28
Join date : 2013-03-16
Points : 4767
Posts : 477
Location : Haddock,Georgia

Sarge offroad/mud mower  - Page 3 Empty
PostSubject: Re: Sarge offroad/mud mower    Sarge offroad/mud mower  - Page 3 Icon_minitimeMay 30th 2013, 7:08 am

mudmonkey06 wrote:
its looking good. i like how much flex it has
Very Happy thanx yea i still gotta get my new 820 stuffed in there along with some 24" mud tires i was gonna get some 26" mud tires but dont have the $$$$
Back to top Go down
truckin42
Veteran Member
truckin42
Veteran Member

1000+ Posts
1000+ Posts!
2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 26
Join date : 2012-10-04
Points : 5521
Posts : 1070

Sarge offroad/mud mower  - Page 3 Empty
PostSubject: Re: Sarge offroad/mud mower    Sarge offroad/mud mower  - Page 3 Icon_minitimeMay 30th 2013, 1:35 pm

Jay_Rod wrote:
mudmonkey06 wrote:
its looking good. i like how much flex it has
Very Happy thanx yea i still gotta get my new 820 stuffed in there along with some 24" mud tires i was gonna get some 26" mud tires but dont have the $$$$
I was gonna go with 25in kenda bear claws for my mower but didt have the cash so i did car tires.
What type are the tires?
Back to top Go down
truckin42
Veteran Member
truckin42
Veteran Member

1000+ Posts
1000+ Posts!
2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 26
Join date : 2012-10-04
Points : 5521
Posts : 1070

Sarge offroad/mud mower  - Page 3 Empty
PostSubject: Re: Sarge offroad/mud mower    Sarge offroad/mud mower  - Page 3 Icon_minitimeMay 30th 2013, 1:35 pm

Jay_Rod wrote:
mudmonkey06 wrote:
its looking good. i like how much flex it has
Very Happy thanx yea i still gotta get my new 820 stuffed in there along with some 24" mud tires i was gonna get some 26" mud tires but dont have the $$$$
I was gonna go with 25in kenda bear claws for my mower but didt have the cash so i did car tires.
What type are the tires?
Back to top Go down
MowBandit
Member
MowBandit
Member

2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 28
Join date : 2013-03-16
Points : 4767
Posts : 477
Location : Haddock,Georgia

Sarge offroad/mud mower  - Page 3 Empty
PostSubject: Re: Sarge offroad/mud mower    Sarge offroad/mud mower  - Page 3 Icon_minitimeMay 30th 2013, 8:27 pm

truckin42 wrote:
Jay_Rod wrote:
mudmonkey06 wrote:
its looking good. i like how much flex it has
Very Happy thanx yea i still gotta get my new 820 stuffed in there along with some 24" mud tires i was gonna get some 26" mud tires but dont have the $$$$
I was gonna go with 25in kenda bear claws for my mower but didt have the cash so i did car tires.
What type are the tires?
there duro sand and mud tires
Back to top Go down
redlinemotorsportts
Moderator
redlinemotorsportts
Moderator

2500+ Posts
2500+ Posts!
2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 27
Join date : 2013-03-18
Points : 7501
Posts : 3131
Location : raleigh nc

Sarge offroad/mud mower  - Page 3 Empty
PostSubject: Re: Sarge offroad/mud mower    Sarge offroad/mud mower  - Page 3 Icon_minitimeMay 30th 2013, 9:37 pm

ill do the shock thing like you did soon. Take a pic of the side, I want to see how this thing sits. Is do more flex but the front tires on mine would hit everything Very Happy
Back to top Go down
MowBandit
Member
MowBandit
Member

2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 28
Join date : 2013-03-16
Points : 4767
Posts : 477
Location : Haddock,Georgia

Sarge offroad/mud mower  - Page 3 Empty
PostSubject: Re: Sarge offroad/mud mower    Sarge offroad/mud mower  - Page 3 Icon_minitimeMay 30th 2013, 9:46 pm

redlinemotorsportts wrote:
ill do the shock thing like you did soon. Take a pic of the side, I want to see how this thing sits. Is do more flex but the front tires on mine would hit everything Very Happy
ill try to get pics as soon as i can
Back to top Go down
truckin42
Veteran Member
truckin42
Veteran Member

1000+ Posts
1000+ Posts!
2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 26
Join date : 2012-10-04
Points : 5521
Posts : 1070

Sarge offroad/mud mower  - Page 3 Empty
PostSubject: Re: Sarge offroad/mud mower    Sarge offroad/mud mower  - Page 3 Icon_minitimeMay 31st 2013, 9:18 am

I know with my v-twin there is no way i can do shocks i want to but just dont have the room.
Back to top Go down
MowBandit
Member
MowBandit
Member

2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 28
Join date : 2013-03-16
Points : 4767
Posts : 477
Location : Haddock,Georgia

Sarge offroad/mud mower  - Page 3 Empty
PostSubject: Re: Sarge offroad/mud mower    Sarge offroad/mud mower  - Page 3 Icon_minitimeMay 31st 2013, 1:32 pm

truckin42 wrote:
I know with my v-twin there is no way i can do shocks i want to but just dont have the room.
yea i know how ya feel i wanted to do a smog pump supercharger but i cant because my frame is to small the air box on my oppy is 3" from the front of my grill
Back to top Go down
Guest
Guest




Sarge offroad/mud mower  - Page 3 Empty
PostSubject: Re: Sarge offroad/mud mower    Sarge offroad/mud mower  - Page 3 Icon_minitimeMay 31st 2013, 1:46 pm

Jay_Rod wrote:
truckin42 wrote:
I know with my v-twin there is no way i can do shocks i want to but just dont have the room.
yea i know how ya feel i wanted to do a smog pump supercharger but i cant because my frame is to small the air box on my oppy is 3" from the front of my grill

Well, there *may* be a solution to that... What about remote mounting it say... back by the differential and using radiator hose to bring the output back up to the intake? the pulley can be an idler/tensioner for the drive system too...
Back to top Go down
MowBandit
Member
MowBandit
Member

2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 28
Join date : 2013-03-16
Points : 4767
Posts : 477
Location : Haddock,Georgia

Sarge offroad/mud mower  - Page 3 Empty
PostSubject: Re: Sarge offroad/mud mower    Sarge offroad/mud mower  - Page 3 Icon_minitimeMay 31st 2013, 6:33 pm

ok here is a better view of my shocks and how i mounted them i just welded a bolt to the front axle on both ends and made 2 shock towers o of 1" tube steel the middle piece is 1/2" tube steel
Sarge offroad/mud mower  - Page 3 Img_2044
Sarge offroad/mud mower  - Page 3 Img_2045
Sarge offroad/mud mower  - Page 3 Img_2046
and i didnt like how my muffler tips where sticking out so much so that got fixxed
BEFORE
Sarge offroad/mud mower  - Page 3 Img_2047
Sarge offroad/mud mower  - Page 3 Img_2048
Sarge offroad/mud mower  - Page 3 Img_2049
AFTER
Sarge offroad/mud mower  - Page 3 Img_2050
Sarge offroad/mud mower  - Page 3 Img_2051
Sarge offroad/mud mower  - Page 3 Img_2052
Back to top Go down
truckin42
Veteran Member
truckin42
Veteran Member

1000+ Posts
1000+ Posts!
2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 26
Join date : 2012-10-04
Points : 5521
Posts : 1070

Sarge offroad/mud mower  - Page 3 Empty
PostSubject: Re: Sarge offroad/mud mower    Sarge offroad/mud mower  - Page 3 Icon_minitimeMay 31st 2013, 7:24 pm

Looks good i like the dual exhaust.
Back to top Go down
LAWN MOWER MUDDER
Established Member
LAWN MOWER MUDDER
Established Member

500+ Posts
500+ Posts
2014 Build-Off Top 3 Winner
2014 Build-Off Top 3 Winner

Age : 24
Join date : 2013-04-08
Points : 5227
Posts : 913
Location : Central Pa

Sarge offroad/mud mower  - Page 3 Empty
PostSubject: Re: Sarge offroad/mud mower    Sarge offroad/mud mower  - Page 3 Icon_minitimeJune 1st 2013, 9:46 am

I like your front tires. I'd like some for my craftsman but can't afford any. Mad
Back to top Go down
truckin42
Veteran Member
truckin42
Veteran Member

1000+ Posts
1000+ Posts!
2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 26
Join date : 2012-10-04
Points : 5521
Posts : 1070

Sarge offroad/mud mower  - Page 3 Empty
PostSubject: Re: Sarge offroad/mud mower    Sarge offroad/mud mower  - Page 3 Icon_minitimeJune 1st 2013, 10:53 am

Also i was thinkin you should build a full engine cage for that.
Back to top Go down
MowBandit
Member
MowBandit
Member

2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 28
Join date : 2013-03-16
Points : 4767
Posts : 477
Location : Haddock,Georgia

Sarge offroad/mud mower  - Page 3 Empty
PostSubject: Re: Sarge offroad/mud mower    Sarge offroad/mud mower  - Page 3 Icon_minitimeJune 3rd 2013, 12:34 am

truckin42 wrote:
Also i was thinkin you should build a full engine cage for that.
why would i do that lol??? theres no need for it i dont see me flipping again unless im drunk (might happen)
Back to top Go down
MowBandit
Member
MowBandit
Member

2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 28
Join date : 2013-03-16
Points : 4767
Posts : 477
Location : Haddock,Georgia

Sarge offroad/mud mower  - Page 3 Empty
PostSubject: Re: Sarge offroad/mud mower    Sarge offroad/mud mower  - Page 3 Icon_minitimeJune 3rd 2013, 12:53 am

Sarge offroad/mud mower  - Page 3 Img_2054
picked up this 1998 ford f-250 smogpump for $5 it made 7psi when the engine was reved to 4200rpm and thats the max i run my opposed twin so it does make boost ima changed the pulley so i can run a normal v-belt what would be a good pulley setup to run? it will be ran off the flywheel and its not really big so i can find a spot for it somewhere
Back to top Go down
Guest
Guest




Sarge offroad/mud mower  - Page 3 Empty
PostSubject: Re: Sarge offroad/mud mower    Sarge offroad/mud mower  - Page 3 Icon_minitimeJune 3rd 2013, 1:01 am

Jay_Rod wrote:
Sarge offroad/mud mower  - Page 3 Img_2054
picked up this 1998 ford f-250 smogpump for $5 it made 7psi when the engine was reved to 4200rpm and thats the max i run my opposed twin so it does make boost ima changed the pulley so i can run a normal v-belt what would be a good pulley setup to run? it will be ran off the flywheel and its not really big so i can find a spot for it somewhere

Nice score! Well, the deal is you actually have to consider engine load just to spin it. Try to keep the ratio similar to what it'd be on the engine it came from, if not a little under driven. That way at lower RPM it doesnt drag the motor down much. Keep the pulley engine side similar in size to the crank pulley on the engine it came off of. Eh, IIRC a ford 400 crank pulley has 3 grooves (3 belts I mean) and is about right.
Back to top Go down
MowBandit
Member
MowBandit
Member

2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 28
Join date : 2013-03-16
Points : 4767
Posts : 477
Location : Haddock,Georgia

Sarge offroad/mud mower  - Page 3 Empty
PostSubject: Re: Sarge offroad/mud mower    Sarge offroad/mud mower  - Page 3 Icon_minitimeJune 3rd 2013, 1:12 am

yea i might run a 3 on the motor and 4 on the smog pump so ill be pushing 5-6 psi i hope
Back to top Go down
Doc Sprocket
Site VIP
Doc Sprocket
Site VIP

2500+ Posts
2500+ Posts!
2018 Build-Off Entrant
2018 Build-Off Entrant
2021 Winner of Winners
2021 Winner of Winners
1st Place Build-Off 2016
1st Place Build-Off Winner 2016

Age : 51
Join date : 2013-04-21
Points : 7336
Posts : 2914
Location : Ontario Canada

Sarge offroad/mud mower  - Page 3 Empty
PostSubject: Re: Sarge offroad/mud mower    Sarge offroad/mud mower  - Page 3 Icon_minitimeJune 3rd 2013, 5:52 am

This oughta be interesting! What modifications do you plan to make to the engine to deal with the air boost?
Back to top Go down
redlinemotorsportts
Moderator
redlinemotorsportts
Moderator

2500+ Posts
2500+ Posts!
2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 27
Join date : 2013-03-18
Points : 7501
Posts : 3131
Location : raleigh nc

Sarge offroad/mud mower  - Page 3 Empty
PostSubject: Re: Sarge offroad/mud mower    Sarge offroad/mud mower  - Page 3 Icon_minitimeJune 3rd 2013, 6:53 am

Id set it up so it hits 6-7 psi around 3500, because then you can keep that boost pressure in the higher rpm's when the engine is consuming more.
Back to top Go down
truckin42
Veteran Member
truckin42
Veteran Member

1000+ Posts
1000+ Posts!
2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 26
Join date : 2012-10-04
Points : 5521
Posts : 1070

Sarge offroad/mud mower  - Page 3 Empty
PostSubject: Re: Sarge offroad/mud mower    Sarge offroad/mud mower  - Page 3 Icon_minitimeJune 3rd 2013, 9:19 am

Jay_Rod wrote:
truckin42 wrote:
Also i was thinkin you should build a full engine cage for that.
why would i do that lol??? theres no need for it i dont see me flipping again unless im drunk (might happen)
True and it would make it even more tighter in the engine bay.

I like the idea of a smog pump for turbo.
Back to top Go down
MowBandit
Member
MowBandit
Member

2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 28
Join date : 2013-03-16
Points : 4767
Posts : 477
Location : Haddock,Georgia

Sarge offroad/mud mower  - Page 3 Empty
PostSubject: Re: Sarge offroad/mud mower    Sarge offroad/mud mower  - Page 3 Icon_minitimeJune 3rd 2013, 12:30 pm

Doc Sprocket wrote:
This oughta be interesting! What modifications do you plan to make to the engine to deal with the air boost?
when i rebuilt my carb i started to think about the smog pump supercharger idea well while i had the carb apart i did a few internal mods bigger jets so it does run rich right now as idle and a little bit rich at max throttle so this should fix it going lean with 6psi running thru the engine nd the reason for my stock heads insted of my shaved ones is the compression if i keep the shaved heads i would of blew the head gasket in less then a hour thats why im running stock heads but i did have the engine ported and polished a few weeks ago i had a pro look at it and he told me 40hp is what im pushing with these mods if i added a turbo and got billet rods and a flywheel i could push 50+hp but he recommended the smogpump idea because i already have a bigger cam in the engine and i might run a small heater core for a intercooler (since im going with the smogpump he sees my HP being around 45-47HP depending on the boost 47hp at 8psi 45 at 5psi)
Back to top Go down
Sponsored content





Sarge offroad/mud mower  - Page 3 Empty
PostSubject: Re: Sarge offroad/mud mower    Sarge offroad/mud mower  - Page 3 Icon_minitime

Back to top Go down

Sarge offroad/mud mower
Back to top
Page 3 of 5Go to page : Previous  1, 2, 3, 4, 5  Next
 Similar topics
-
» 87 Mtd mud/ offroad mower project
» my offroad mower
» MTD Offroad mower
» Mud-Murray Offroad Mower
» Dynamark offroad mower

Permissions in this forum:You cannot reply to topics in this forum
All-Terrain Lawn Tractor Forum :: Tractor Project Builds :: Off Road & Rally Tractors-
Jump to:
