| Hey guys I got a new project going some members might remember me others not lol it's been like a year ugh. Anyways I picked up a 83 Montgomery wards which share the same design as the wizards mtd ect. This one has the factory 5speed peerless witch is the main reason I bought it as I don't care for the variable speeds lol. Stuff I've done so far -Peerless Transaxle with bearings and seals. I've pulled and diss assy/cleaned/fozzy locked axle/added air vent with hose/sealed case with sealant/engine honey added as the lube/4" pulley shimed pinion for less up & down movement. -Built double pulley clutch along with linkage/relocated pedal to left side/rear and clutch pulley retainers. -Belly cover to protect belt/pulleys/linkages from sticks ect -Added pillow block bearing to steering column/added shim under gear for less play/upgraded steering linkage/right side spindle hole drilled for pin instead of retainer clip. - Old b&s 10hp flatty removed and replaced with 1990 b&s vanguard 14hp ohv with full oil pressure lub/4 1/2" front pulley
Lots more to do lol pics soon lol | |
|
![Go down](https://2img.net/i/empty.gif) | |
k2500life Veteran Member
![k2500life](https://2img.net/u/2812/37/66/46/avatars/982-67.jpg)
![Veteran Member Veteran Member](https://i.servimg.com/u/f62/19/56/75/89/g510.png)
Age : 26 Join date : 2013-06-19 Points : 5254 Posts : 1135 Location : Southern Florida
![All Around Use Tractor AKA The Monkeywards Empty](https://2img.net/i/empty.gif) | |
![Go down](https://2img.net/i/empty.gif) | |
craftsmancole Established Member
![craftsmancole](https://2img.net/u/2812/37/66/46/avatars/817-65.jpg)
![Established Member Established Member](https://i.servimg.com/u/f62/19/56/75/89/g310.png)
2015 Build-Off Entrant
2015 Build-Off Entrant
Age : 25 Join date : 2013-04-05 Points : 4845 Posts : 661 Location : New Smyrna Beach,Fl
![All Around Use Tractor AKA The Monkeywards Empty](https://2img.net/i/empty.gif) | |
![Go down](https://2img.net/i/empty.gif) | |
gearheadmike Member
![gearheadmike](https://2img.net/u/2812/37/66/46/avatars/211-4.jpg)
![Member Member](https://i.servimg.com/u/f62/19/56/75/89/g110.png)
Age : 34 Join date : 2011-11-18 Points : 5089 Posts : 392 Location : west chazy ny
![All Around Use Tractor AKA The Monkeywards Empty](https://2img.net/i/empty.gif) | Subject: Re: All Around Use Tractor AKA The Monkeywards June 4th 2014, 8:41 pm | |
| I've should of took more pics when I started but here's some and more to come. Not much customizing right now just upgrading and bettering the original stuff. When I first got it ![All Around Use Tractor AKA The Monkeywards Imagejpg1_zps93225a29](https://2img.net/h/i840.photobucket.com/albums/zz325/mzero19/imagejpg1_zps93225a29.jpg) Belly pan install for clutch/belt protection. ![All Around Use Tractor AKA The Monkeywards Imagejpg3_zps74c3e0fb](https://2img.net/h/i840.photobucket.com/albums/zz325/mzero19/imagejpg3_zps74c3e0fb.jpg) Double clutch better then original single ![All Around Use Tractor AKA The Monkeywards Imagejpg5_zps72601b2d](https://2img.net/h/i840.photobucket.com/albums/zz325/mzero19/imagejpg5_zps72601b2d.jpg) Fozzy lock for the trans my first one ever cleaned it up with grinder went together good. ![All Around Use Tractor AKA The Monkeywards Imagejpg2_zpsca19e79d](https://2img.net/h/i840.photobucket.com/albums/zz325/mzero19/imagejpg2_zpsca19e79d.jpg) Trans just back together with the pulley swap and lube added. ![All Around Use Tractor AKA The Monkeywards Imagejpg4_zps68860c5f](https://2img.net/h/i840.photobucket.com/albums/zz325/mzero19/imagejpg4_zps68860c5f.jpg) My battery holder angle corners front and rear with rubber hold down. ![All Around Use Tractor AKA The Monkeywards Imagejpg6_zps3ce3b209](https://2img.net/h/i840.photobucket.com/albums/zz325/mzero19/imagejpg6_zps3ce3b209.jpg) Bearing added to reinforce the steering column instead of the $hity plastic one. ![All Around Use Tractor AKA The Monkeywards Imagejpg8_zpsfa76bcfc](https://2img.net/h/i840.photobucket.com/albums/zz325/mzero19/imagejpg8_zpsfa76bcfc.jpg) Added a better tie rod end to steering rod instead of the sloppy original 90degree bent metel one. ![All Around Use Tractor AKA The Monkeywards Imagejpg7_zps747995fc](https://2img.net/h/i840.photobucket.com/albums/zz325/mzero19/imagejpg7_zps747995fc.jpg) Right spindle nothing big added shims & drilled hole for carter pin as I don't trust the original retainer ring ![All Around Use Tractor AKA The Monkeywards Imagejpg9_zpsfe4a51cd](https://2img.net/h/i840.photobucket.com/albums/zz325/mzero19/imagejpg9_zpsfe4a51cd.jpg) Also got new oil and filter and carb cleaned today fired right up from sitting 5 years just need slight carb adj and new plug. Also got starter solenoid mounted. What's left befor test drive -adj carb -wiring -mount fuel tank -engine pulley belt retainers - bolt hood on | |
|
![Go down](https://2img.net/i/empty.gif) | |
redlinemotorsportts Moderator
![redlinemotorsportts](https://2img.net/u/2812/37/66/46/avatars/749-8.png)
![Moderator Moderator](https://i.servimg.com/u/f86/19/98/54/71/mod212.png)
2014 Build-Off Entrant
2014 Build-Off Entrant
Age : 27 Join date : 2013-03-18 Points : 7366 Posts : 3131 Location : raleigh nc
![All Around Use Tractor AKA The Monkeywards Empty](https://2img.net/i/empty.gif) | Subject: Re: All Around Use Tractor AKA The Monkeywards June 4th 2014, 8:43 pm | |
| For a MTD, thats impressive man! Mine was also a turd, but you just need to put time into it and make it right, awesome. what kinda tires are you putting on it? And how do you like that lincoln? i was looking at one myself | |
|
![Go down](https://2img.net/i/empty.gif) | |
camomanusa Member
![camomanusa](https://2img.net/u/2812/37/66/46/avatars/1098-34.jpg)
![Member Member](https://i.servimg.com/u/f62/19/56/75/89/g110.png)
2014 Build-Off Entrant
2014 Build-Off Entrant
Age : 25 Join date : 2013-09-15 Points : 4462 Posts : 467 Location : Greensburg, PA
![All Around Use Tractor AKA The Monkeywards Empty](https://2img.net/i/empty.gif) | |
![Go down](https://2img.net/i/empty.gif) | |
k2500life Veteran Member
![k2500life](https://2img.net/u/2812/37/66/46/avatars/982-67.jpg)
![Veteran Member Veteran Member](https://i.servimg.com/u/f62/19/56/75/89/g510.png)
Age : 26 Join date : 2013-06-19 Points : 5254 Posts : 1135 Location : Southern Florida
![All Around Use Tractor AKA The Monkeywards Empty](https://2img.net/i/empty.gif) | |
![Go down](https://2img.net/i/empty.gif) | |
gearheadmike Member
![gearheadmike](https://2img.net/u/2812/37/66/46/avatars/211-4.jpg)
![Member Member](https://i.servimg.com/u/f62/19/56/75/89/g110.png)
Age : 34 Join date : 2011-11-18 Points : 5089 Posts : 392 Location : west chazy ny
![All Around Use Tractor AKA The Monkeywards Empty](https://2img.net/i/empty.gif) | Subject: Re: All Around Use Tractor AKA The Monkeywards June 4th 2014, 9:22 pm | |
| - redlinemotorsportts wrote:
- For a MTD, thats impressive man! Mine was also a turd, but you just need to put time into it and make it right, awesome. what kinda tires are you putting on it? And how do you like that lincoln? i was looking at one myself
I'm not sure yet would like to have a set of sport quad rear tires as I want it for road/dirt/lawn/offroad. And my welder I love best welder I've had. I got it for a steal $50 one day I hope to get the regulator and tank for it other then that it's all set up for gas.
Last edited by gearheadmike on June 4th 2014, 9:33 pm; edited 1 time in total | |
|
![Go down](https://2img.net/i/empty.gif) | |
gearheadmike Member
![gearheadmike](https://2img.net/u/2812/37/66/46/avatars/211-4.jpg)
![Member Member](https://i.servimg.com/u/f62/19/56/75/89/g110.png)
Age : 34 Join date : 2011-11-18 Points : 5089 Posts : 392 Location : west chazy ny
![All Around Use Tractor AKA The Monkeywards Empty](https://2img.net/i/empty.gif) | Subject: Re: All Around Use Tractor AKA The Monkeywards June 4th 2014, 9:23 pm | |
| - camomanusa wrote:
- Im liking it! I have the same one but it has square headlights instead of round, would you say its newer or older?
Hard to tell mines a 83 but I also for got a wizard with same hood but rectangle headlights prob all in the 80's tho | |
|
![Go down](https://2img.net/i/empty.gif) | |
gearheadmike Member
![gearheadmike](https://2img.net/u/2812/37/66/46/avatars/211-4.jpg)
![Member Member](https://i.servimg.com/u/f62/19/56/75/89/g110.png)
Age : 34 Join date : 2011-11-18 Points : 5089 Posts : 392 Location : west chazy ny
![All Around Use Tractor AKA The Monkeywards Empty](https://2img.net/i/empty.gif) | Subject: Re: All Around Use Tractor AKA The Monkeywards June 4th 2014, 9:30 pm | |

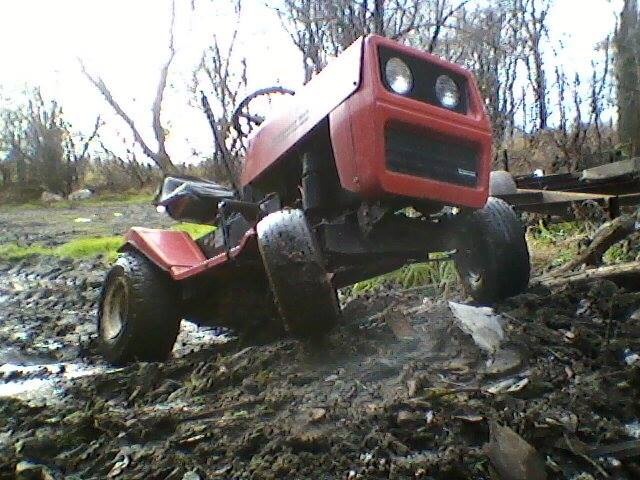

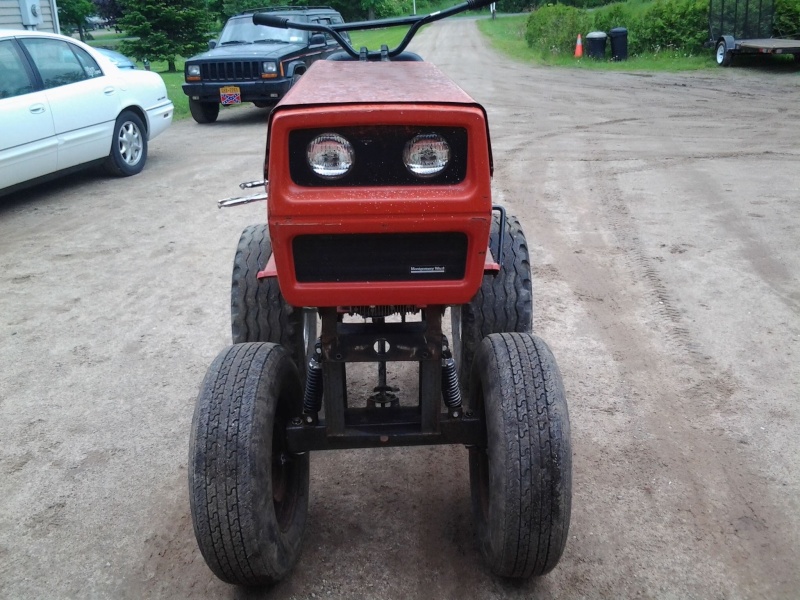

| Altogether I had 3 of these including the one I'm working on now. My first tractor I started off-roading /romping with ![All Around Use Tractor AKA The Monkeywards Image11](https://i.servimg.com/u/f39/17/98/54/48/image11.jpg) My lifted one I had ![All Around Use Tractor AKA The Monkeywards Image12](https://i.servimg.com/u/f39/17/98/54/48/image12.jpg) The one I have now. ![All Around Use Tractor AKA The Monkeywards Image13](https://i.servimg.com/u/f39/17/98/54/48/image13.jpg) | |
|
![Go down](https://2img.net/i/empty.gif) | |
camomanusa Member
![camomanusa](https://2img.net/u/2812/37/66/46/avatars/1098-34.jpg)
![Member Member](https://i.servimg.com/u/f62/19/56/75/89/g110.png)
2014 Build-Off Entrant
2014 Build-Off Entrant
Age : 25 Join date : 2013-09-15 Points : 4462 Posts : 467 Location : Greensburg, PA
![All Around Use Tractor AKA The Monkeywards Empty](https://2img.net/i/empty.gif) | |
![Go down](https://2img.net/i/empty.gif) | |
craftsmancole Established Member
![craftsmancole](https://2img.net/u/2812/37/66/46/avatars/817-65.jpg)
![Established Member Established Member](https://i.servimg.com/u/f62/19/56/75/89/g310.png)
2015 Build-Off Entrant
2015 Build-Off Entrant
Age : 25 Join date : 2013-04-05 Points : 4845 Posts : 661 Location : New Smyrna Beach,Fl
![All Around Use Tractor AKA The Monkeywards Empty](https://2img.net/i/empty.gif) | Subject: Re: All Around Use Tractor AKA The Monkeywards June 5th 2014, 8:23 am | |
| [quote="gearheadmike"] My lifted one I had ![All Around Use Tractor AKA The Monkeywards Image12](https://i.servimg.com/u/f39/17/98/54/48/image12.jpg) Do ya have a diagram on how exactly you did the steering on this? I wanna know for when I start building my Ford. | |
|
![Go down](https://2img.net/i/empty.gif) | |
gearheadmike Member
![gearheadmike](https://2img.net/u/2812/37/66/46/avatars/211-4.jpg)
![Member Member](https://i.servimg.com/u/f62/19/56/75/89/g110.png)
Age : 34 Join date : 2011-11-18 Points : 5089 Posts : 392 Location : west chazy ny
![All Around Use Tractor AKA The Monkeywards Empty](https://2img.net/i/empty.gif) | Subject: Re: All Around Use Tractor AKA The Monkeywards June 5th 2014, 1:26 pm | |
| I don't have a diagram as I built it off the top off my head. Steering shaft and tie rods were from a atv 2x3 box steel axle with bronze bushings and center pivot with 3/4 spindles from a snapper. I had to weld 2 arms on the drop frame to mount a bearing to to hold the bottom of steering shaft. Then cut and welded up my tie rods to size. It was. Direct steer setup.i might have pics. | |
|
