 Vtwin Ford Race Mower

Go down
+10
Ghyde97
willis923
CornShuck4CE
craftsmancole
redlinemotorsportts
untrusty huskee
LAWN MOWER MUDDER
Creepycrawler
kawasaki220
osiff
14 posters
Go to page : 1, 2  Next
AuthorMessage
osiff
New Member

New Member


Join date : 2014-09-11
Points : 3590
Posts : 23

Vtwin Ford Race Mower Empty
PostSubject: Vtwin Ford Race Mower   Vtwin Ford Race Mower Icon_minitimeWed Sep 17, 2014 9:34 pm

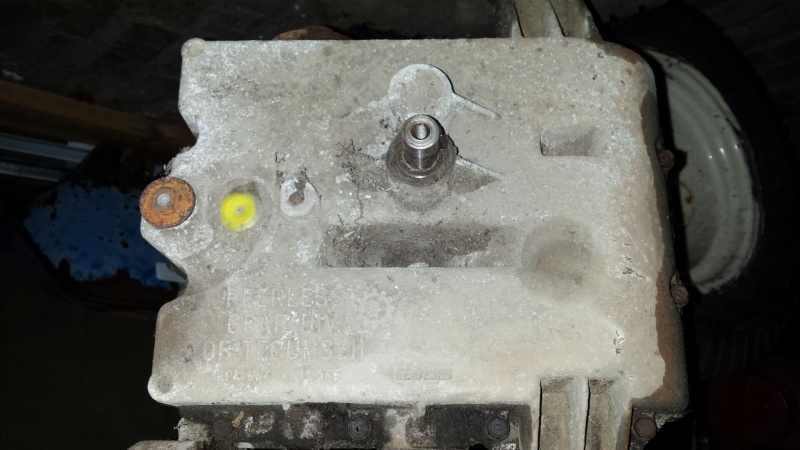

Picked up this Ford for a race mower and just got a welder so I started tearing it down. I dropped the tansaxle but I cant find a model number on it anywhere. I want to get some new seals and bearings and see if I can gear it up. Just says Patent 4.103.566 and re 32.125
Vtwin Ford Race Mower 20140910
Back to top Go down
kawasaki220
Established Member
kawasaki220
Established Member

500+ Posts
500+ Posts
2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 23
Join date : 2014-01-22
Points : 4412
Posts : 546
Location : north carolina

Vtwin Ford Race Mower Empty
PostSubject: Re: Vtwin Ford Race Mower   Vtwin Ford Race Mower Icon_minitimeWed Sep 17, 2014 9:51 pm

Look next to the small round disc the brake there should be a small plate about a inch long sounds like a cool build u got anymore pics
Back to top Go down
Creepycrawler
Established Member
Creepycrawler
Established Member

500+ Posts
500+ Posts
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 37
Join date : 2013-07-02
Points : 4860
Posts : 731
Location : Logan Ohio

Vtwin Ford Race Mower Empty
PostSubject: Re: Vtwin Ford Race Mower   Vtwin Ford Race Mower Icon_minitimeThu Sep 18, 2014 7:36 am

Im guessing its a 800 series peerless
Back to top Go down
LAWN MOWER MUDDER
Established Member
LAWN MOWER MUDDER
Established Member

500+ Posts
500+ Posts
2014 Build-Off Top 3 Winner
2014 Build-Off Top 3 Winner

Age : 23
Join date : 2013-04-08
Points : 5050
Posts : 913
Location : Central Pa

Vtwin Ford Race Mower Empty
PostSubject: Re: Vtwin Ford Race Mower   Vtwin Ford Race Mower Icon_minitimeThu Sep 18, 2014 7:47 am

Yeah Peerless 800 or 801. They are usually grease filled. They also have axle bearings. One thing though, Beef up the spider gears. I have ran into alot of them that got rain and stuff inside them and the spiders worn down and it wouldn't drive any more because of slippage.
Back to top Go down
osiff
New Member

New Member


Join date : 2014-09-11
Points : 3590
Posts : 23

Vtwin Ford Race Mower Empty
PostSubject: Re: Vtwin Ford Race Mower   Vtwin Ford Race Mower Icon_minitimeThu Sep 18, 2014 9:53 am

Not much going on with it yet but this is the frame. I plan on doing direct steering and all new tie rods. For now I'm focusing on the transaxle.
Vtwin Ford Race Mower 20140911
Back to top Go down
untrusty huskee
Member
untrusty huskee
Member

2014 Build-Off Finalist
2014 Build-Off Finalist

Age : 26
Join date : 2014-01-04
Points : 3919
Posts : 79
Location : Fulton IL

Vtwin Ford Race Mower Empty
PostSubject: Re: Vtwin Ford Race Mower   Vtwin Ford Race Mower Icon_minitimeThu Sep 18, 2014 11:11 am

that one is an 801, i had the same one in my lawn mower trike. BUT i had found out that it spins counter clock wise. as in the motor would turn like how it normally dose but the input gear is on the opposite side of the case. you would have 5 gears in revers and one in forward. you can still use that trans but you would have to flip or cross your belt or if you mount it backwards.
Back to top Go down
redlinemotorsportts
Moderator
redlinemotorsportts
Moderator

2500+ Posts
2500+ Posts!
2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 27
Join date : 2013-03-18
Points : 7324
Posts : 3131
Location : raleigh nc

Vtwin Ford Race Mower Empty
PostSubject: Re: Vtwin Ford Race Mower   Vtwin Ford Race Mower Icon_minitimeThu Sep 18, 2014 2:10 pm

untrusty huskee wrote:
that one is an 801, i had the same one in my lawn mower trike. BUT i had found out that it spins counter clock wise. as in the motor would turn like how it normally dose but the input gear is on the opposite side of the case. you would have 5 gears in revers and one in forward. you can still use that trans but you would have to flip or cross your belt or if you mount it backwards.
Is the highest gear next to neutral? Or what? I imagine switch some gears around an it would be normal.
Back to top Go down
craftsmancole
Established Member
craftsmancole
Established Member

500+ Posts
500+ Posts
2015 Build-Off Entrant
2015 Build-Off Entrant

Age : 25
Join date : 2013-04-05
Points : 4803
Posts : 661
Location : New Smyrna Beach,Fl

Vtwin Ford Race Mower Empty
PostSubject: Re: Vtwin Ford Race Mower   Vtwin Ford Race Mower Icon_minitimeThu Sep 18, 2014 3:09 pm

untrusty huskee wrote:
that one is an 801, i had the same one in my lawn mower trike. BUT i had found out that it spins counter clock wise. as in the motor would turn like how it normally dose but the input gear is on the opposite side of the case. you would have 5 gears in revers and one in forward. you can still use that trans but you would have to flip or cross your belt or if you mount it backwards.
I have the same mower and it worked like a normal transaxle, before I screwed it up...
*edit: and it was an 801
Back to top Go down
CornShuck4CE
Member
CornShuck4CE
Member


Age : 35
Join date : 2014-04-07
Points : 4077
Posts : 337
Location : Woodville Al

Vtwin Ford Race Mower Empty
PostSubject: Re: Vtwin Ford Race Mower   Vtwin Ford Race Mower Icon_minitimeThu Sep 18, 2014 3:14 pm

I have 2 of those trans but not sure what thay are. Im speeding mine up internaly for a project. Pritty easy just have to do some machining and welding.
Back to top Go down
osiff
New Member

New Member


Join date : 2014-09-11
Points : 3590
Posts : 23

Vtwin Ford Race Mower Empty
PostSubject: Re: Vtwin Ford Race Mower   Vtwin Ford Race Mower Icon_minitimeThu Sep 18, 2014 3:20 pm

Could you go into detail what I would have to do I'll be taking the tranny apart this weekend and locking it but I also want to speed it up.
Back to top Go down
willis923
Veteran Member
willis923
Veteran Member

1000+ Posts
1000+ Posts!

Age : 27
Join date : 2013-04-10
Points : 5602
Posts : 1408
Location : Galway NY

Vtwin Ford Race Mower Empty
PostSubject: Re: Vtwin Ford Race Mower   Vtwin Ford Race Mower Icon_minitimeThu Sep 18, 2014 3:30 pm

to speed it up, just change the pullies. big on the engine, small on the transmission. how fast are you looking to go?
Back to top Go down
osiff
New Member

New Member


Join date : 2014-09-11
Points : 3590
Posts : 23

Vtwin Ford Race Mower Empty
PostSubject: Re: Vtwin Ford Race Mower   Vtwin Ford Race Mower Icon_minitimeThu Sep 18, 2014 3:33 pm

I could but I figured I could keep bigger pulleys and get better belt grip. I'm looking to go 40 with it and I'm not sure how big of a swap that would require.
Back to top Go down
LAWN MOWER MUDDER
Established Member
LAWN MOWER MUDDER
Established Member

500+ Posts
500+ Posts
2014 Build-Off Top 3 Winner
2014 Build-Off Top 3 Winner

Age : 23
Join date : 2013-04-08
Points : 5050
Posts : 913
Location : Central Pa

Vtwin Ford Race Mower Empty
PostSubject: Re: Vtwin Ford Race Mower   Vtwin Ford Race Mower Icon_minitimeThu Sep 18, 2014 6:09 pm

redlinemotorsportts wrote:
untrusty huskee wrote:
that one is an 801, i had the same one in my lawn mower trike. BUT i had found out that it spins counter clock wise. as in the motor would turn like how it normally dose but the input gear is on the opposite side of the case. you would have 5 gears in revers and one in forward. you can still use that trans but you would have to flip or cross your belt or if you mount it backwards.
Is the highest gear next to neutral? Or what? I imagine switch some gears around an it would be normal.

IDK if y'all follow 3DMachines on youtube. He had an 801 in his ford racin trapter. He said he changed the gears around on the shaft and it sped it up. He also turned his tranny 108* and flipped it upside down.
Back to top Go down
osiff
New Member

New Member


Join date : 2014-09-11
Points : 3590
Posts : 23

Vtwin Ford Race Mower Empty
PostSubject: Re: Vtwin Ford Race Mower   Vtwin Ford Race Mower Icon_minitimeThu Sep 18, 2014 6:32 pm

Yea I've seen em its actually the same tractor I have I just thought this transaxle was oil filled because of the plug on top. He's not clear exactly what he does to it. I'll just pm him on YouTube. I'm gonna be taking it apart this weekend most likely Sunday.
Back to top Go down
CornShuck4CE
Member
CornShuck4CE
Member


Age : 35
Join date : 2014-04-07
Points : 4077
Posts : 337
Location : Woodville Al

Vtwin Ford Race Mower Empty
PostSubject: Re: Vtwin Ford Race Mower   Vtwin Ford Race Mower Icon_minitimeThu Sep 18, 2014 7:41 pm

Stretch has a video of how to speed a peerless 920-930 up basicly the same thing. Just used parts out of the other trans. Here is link to video
Back to top Go down
Ghyde97
Member
Ghyde97
Member


Age : 26
Join date : 2014-09-09
Points : 3634
Posts : 63
Location : Jacksonville fl

Vtwin Ford Race Mower Empty
PostSubject: Pully swap speed up    Vtwin Ford Race Mower Icon_minitimeThu Sep 18, 2014 7:57 pm

If you do a 3' pull on the transaxle and a 4.5 that will give you 13mph in 1st gear, 26mph in 2nd, 39mph in 3rd, 52mph in 4th, 65mph in 5th, and then a massive 78mph in 6th. But really who would want to go that fast with no windshield Shocked
Back to top Go down
redlinemotorsportts
Moderator
redlinemotorsportts
Moderator

2500+ Posts
2500+ Posts!
2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 27
Join date : 2013-03-18
Points : 7324
Posts : 3131
Location : raleigh nc

Vtwin Ford Race Mower Empty
PostSubject: Re: Vtwin Ford Race Mower   Vtwin Ford Race Mower Icon_minitimeThu Sep 18, 2014 8:32 pm

Ghyde97 wrote:
If you do a 3' pull on the transaxle and a 4.5 that will give you 13mph in 1st gear, 26mph in 2nd, 39mph in 3rd, 52mph in 4th, 65mph in 5th, and then a massive 78mph in 6th. But really who would want to go that fast with no windshield Shocked
There is much more then a windshield if be worrying about at 65 from cutting grass to that. tongue
Back to top Go down
CornShuck4CE
Member
CornShuck4CE
Member


Age : 35
Join date : 2014-04-07
Points : 4077
Posts : 337
Location : Woodville Al

Vtwin Ford Race Mower Empty
PostSubject: Re: Vtwin Ford Race Mower   Vtwin Ford Race Mower Icon_minitimeFri Sep 19, 2014 5:17 am

Ghyde97 wrote:
If you do a 3' pull on the transaxle and a 4.5 that will give you 13mph in 1st gear, 26mph in 2nd, 39mph in 3rd, 52mph in 4th, 65mph in 5th, and then a massive 78mph in 6th. But really who would want to go that fast with no windshield Shocked
How do you figure that. Im running a 5 on trans a 6 on motor and 26 in tires and only get 30 with no governer. Thats basicly running a 3 on trans an 4 on motor i dont think a 1/2" on pulley will make that much diffrence.
Back to top Go down
Ghyde97
Member
Ghyde97
Member


Age : 26
Join date : 2014-09-09
Points : 3634
Posts : 63
Location : Jacksonville fl

Vtwin Ford Race Mower Empty
PostSubject: Re: Vtwin Ford Race Mower   Vtwin Ford Race Mower Icon_minitimeFri Sep 19, 2014 7:26 am

CornShuck4CE wrote:
Ghyde97 wrote:
If you do a 3' pull on the transaxle and a 4.5 that will give you 13mph in 1st gear, 26mph in 2nd, 39mph in 3rd, 52mph in 4th, 65mph in 5th, and then a massive 78mph in 6th. But really who would want to go that fast with no windshield Shocked
How do you figure that. Im running a 5 on trans a 6 on motor and 26 in tires and only get 30 with no governer. Thats basicly running a 3 on trans an 4 on motor i dont think a 1/2" on pulley will make that much diffrence.
It's a exel that someone created on here. You put in engine rpm then each pully size and it calculates the speeds you will aproxomatly get in each gear. I will see if I can find it and I'll put a link in here.
Back to top Go down
osiff
New Member

New Member


Join date : 2014-09-11
Points : 3590
Posts : 23

Vtwin Ford Race Mower Empty
PostSubject: Re: Vtwin Ford Race Mower   Vtwin Ford Race Mower Icon_minitimeFri Sep 19, 2014 8:44 am

My mud mower runs about a 1:1 ratio and goes about 14 but it's got some belt slippage in the higher gears so that's why I wanted to gear this up internally. I have a parts tranny I can take gears out of. I watched stretch's vid I could just gear up the final drive ratio like that with the parts and pulley swap from there.
Back to top Go down
osiff
New Member

New Member


Join date : 2014-09-11
Points : 3590
Posts : 23

Vtwin Ford Race Mower Empty
PostSubject: Re: Vtwin Ford Race Mower   Vtwin Ford Race Mower Icon_minitimeSun Sep 21, 2014 7:00 pm

So I got the transaxle at my house and started working.
Vtwin Ford Race Mower 20140913
Found this.
Vtwin Ford Race Mower 20140914
I can't get the innards from the top half of the case because the shift key holds it in place. I assume this washer is supposed to come off but I can't get it to budge and I just hit the shaft down. Question
Vtwin Ford Race Mower 20140915
Vtwin Ford Race Mower 20140916
This is the motor I'm using btw it's a 14hp vanguard from my mtd that blew a tranny. afro
Vtwin Ford Race Mower 20140917
Vtwin Ford Race Mower 20140310
Back to top Go down
craftsmancole
Established Member
craftsmancole
Established Member

500+ Posts
500+ Posts
2015 Build-Off Entrant
2015 Build-Off Entrant

Age : 25
Join date : 2013-04-05
Points : 4803
Posts : 661
Location : New Smyrna Beach,Fl

Vtwin Ford Race Mower Empty
PostSubject: Re: Vtwin Ford Race Mower   Vtwin Ford Race Mower Icon_minitimeSun Sep 21, 2014 7:17 pm

Why the picture of the exploded fnr?
Back to top Go down
osiff
New Member

New Member


Join date : 2014-09-11
Points : 3590
Posts : 23

Vtwin Ford Race Mower Empty
PostSubject: Re: Vtwin Ford Race Mower   Vtwin Ford Race Mower Icon_minitimeSun Sep 21, 2014 7:27 pm

I had it so I figure I'd show everyone
Back to top Go down
osiff
New Member

New Member


Join date : 2014-09-11
Points : 3590
Posts : 23

Vtwin Ford Race Mower Empty
PostSubject: Re: Vtwin Ford Race Mower   Vtwin Ford Race Mower Icon_minitimeMon Sep 22, 2014 9:15 pm

I got the washer off and shift key out I had to grind the outside of it down because when I hit it in I flattened the end to where the washer wouldn't slide off. I think I found a way I can use my spare gear sets like stretch did I'll post pics in the next few days of what I have planned for now it's soaking in some degreaser.
Back to top Go down
osiff
New Member

New Member


Join date : 2014-09-11
Points : 3590
Posts : 23

Vtwin Ford Race Mower Empty
PostSubject: Re: Vtwin Ford Race Mower   Vtwin Ford Race Mower Icon_minitimeWed Sep 24, 2014 9:13 pm

Just got done welding up the spider gears in this thing. Was a little different becasue of the way its set up. I don't know if I can speed it up with the gears I have though because they're out of a spicer and won't fit easily. I don't have a lathe to bore them out. I'm pretty sure 3dmachines just used parts from the transaxle but he hasn't answered me. The only thing I can think of is that he used the reverse gear to run the gears because he said it ran backwards and was hard to turn after because the chain was worn into the direction it usually goes. He also says the tractor has N12345N for gears and apparently no reverse. I'll take a look at that tomorrow. Has anyone pulley swapped a tranny to do like 40 or 45? It is gonna be running some big tires.
Vtwin Ford Race Mower 20140919
Vtwin Ford Race Mower 20140918
Back to top Go down
