 Craftsman LT10 build

Go down
+9
the beast
Doc Sprocket
MowBandit
TheRainbowBoxer
gilsonrumbler
CityRedneck
dked41
DICE464
Stretch44875
13 posters
Go to page : 1, 2  Next
AuthorMessage
Stretch44875
Administrator
Stretch44875
Administrator

500+ Posts
500+ Posts

Age : 49
Join date : 2012-04-05
Points : 5657
Posts : 959
Location : Mansfield, Ohio

Craftsman LT10 build Empty
PostSubject: Craftsman LT10 build   Craftsman LT10 build Icon_minitimeApril 7th 2012, 8:55 pm

My main trail/race mower. Started out as a 10hp Tecumseh, 600 peerless transaxle. Upgraded to a 18 opposed twin briggs, then started blowing transmissions. Now it has a 20hp v-twin, and modified 820 peerless transaxle.
Craftsman LT10 build Picture019Medium
Fresh paint!
Craftsman LT10 build Picture020Medium

Craftsman LT10 build Picture021Medium

Craftsman LT10 build Picture022Medium

Craftsman LT10 build Picture023Medium

Craftsman LT10 build Picture025Medium
Back to top Go down
Stretch44875
Administrator
Stretch44875
Administrator

500+ Posts
500+ Posts

Age : 49
Join date : 2012-04-05
Points : 5657
Posts : 959
Location : Mansfield, Ohio

Craftsman LT10 build Empty
PostSubject: Re: Craftsman LT10 build   Craftsman LT10 build Icon_minitimeApril 7th 2012, 9:04 pm

My main modfication was the transmission. Started out as a 6 speed peerless 820-16d. Orginial spider gears and axles removed. Hubs for spider gears bored to 1 in and keyed. Needle bearings removed from the axle housings and replaced with bronze bushings. Orings removed from other bearings. High speed gear set installed. Brake shaft cut off and bearing replaced with capped bearing to prevent oil leaks. Go kart axle installed. 10 in brake rotor and brake caliper installed. Vent and fill plugs, filled with 90wt gear oil.
Craftsman LT10 build Picture078Medium
another axle built, in empty housing.
Craftsman LT10 build Picture079Medium
Welded axle keyway and filed smooth for orings to prevent oil leakage.
Craftsman LT10 build Picture083Medium
Spare tranny
Craftsman LT10 build Picture066Medium
disk and caliper on tractor.

maddog1949 likes this post

Back to top Go down
Stretch44875
Administrator
Stretch44875
Administrator

500+ Posts
500+ Posts

Age : 49
Join date : 2012-04-05
Points : 5657
Posts : 959
Location : Mansfield, Ohio

Craftsman LT10 build Empty
PostSubject: Re: Craftsman LT10 build   Craftsman LT10 build Icon_minitimeApril 7th 2012, 9:18 pm

Front axle is completely custom. 3/16 wall 2x3 channel, with welded ends. 10 degrees postive caster for handling, no toe or camber. Grade 8 3/4 bolts welded for spindles/pivots. Center pivot is 1 in bushing with bronze bushing, bolted to tractor with 3/4 grade 8 bolt. Also installed a rack and pinion steering.
Craftsman LT10 build Picture071Medium
Old axle donating its center to new axle.
Craftsman LT10 build Picture069Medium
basic idea of how spindles are made
Craftsman LT10 build Picture032Medium
installed on mower
Craftsman LT10 build Picture031Medium
tie rod connection
Craftsman LT10 build Picture033Medium
Rack and pinion
Back to top Go down
Stretch44875
Administrator
Stretch44875
Administrator

500+ Posts
500+ Posts

Age : 49
Join date : 2012-04-05
Points : 5657
Posts : 959
Location : Mansfield, Ohio

Craftsman LT10 build Empty
PostSubject: Re: Craftsman LT10 build   Craftsman LT10 build Icon_minitimeApril 7th 2012, 9:25 pm

Some pics of the undercarriage. We use rods all the way across, above and below the belt, to keep it in place. Also x brace installed, and 1/2 welded to bottom of frame rails.
Craftsman LT10 build Picture034Medium

Craftsman LT10 build Picture035Medium

Craftsman LT10 build Picture036Medium
Back to top Go down
DICE464
Member
DICE464
Member


Age : 28
Join date : 2010-07-30
Points : 5317
Posts : 129

Craftsman LT10 build Empty
PostSubject: Re: Craftsman LT10 build   Craftsman LT10 build Icon_minitimeApril 7th 2012, 9:54 pm

sweer cant wait to see more
Back to top Go down
dked41
Member
dked41
Member


Age : 60
Join date : 2012-01-31
Points : 4764
Posts : 141
Location : central Wisconsin

Craftsman LT10 build Empty
PostSubject: Re: Craftsman LT10 build   Craftsman LT10 build Icon_minitimeApril 8th 2012, 10:53 am

What is the steering rack out of? Very solid looking tractor"nice job!
Back to top Go down
CityRedneck
Member
CityRedneck
Member


Age : 28
Join date : 2011-08-13
Points : 5100
Posts : 241
Location : Winter Park

Craftsman LT10 build Empty
PostSubject: Re: Craftsman LT10 build   Craftsman LT10 build Icon_minitimeApril 8th 2012, 11:36 am

Dked41 ---- i saw a guy with a monster mower use that same one. Its out of a golf cart i would believe because that what the other guys was out of
Back to top Go down
gilsonrumbler
Member
gilsonrumbler
Member


Join date : 2011-10-05
Points : 4809
Posts : 49

Craftsman LT10 build Empty
PostSubject: Re: Craftsman LT10 build   Craftsman LT10 build Icon_minitimeApril 8th 2012, 4:18 pm

what you running for exhaust on that bad boy?
Back to top Go down
Stretch44875
Administrator
Stretch44875
Administrator

500+ Posts
500+ Posts

Age : 49
Join date : 2012-04-05
Points : 5657
Posts : 959
Location : Mansfield, Ohio

Craftsman LT10 build Empty
PostSubject: Re: Craftsman LT10 build   Craftsman LT10 build Icon_minitimeApril 8th 2012, 7:37 pm

No idea what the rack and pinion is off of. I bought it at a surplus place for 30.00. They sold out of them shortly after.

Exhaust is 3/4 electrical conduit. Duals ran out the back. It's a little small, but engine is stock. Sounds really good, quiet at idle, loud as heck when you get on it.

It's geared for 45mph, and gets there in a big hurry. Lot of fun to run it through the gears. With the 6 speed, 1st is still really slow, like a granny gear. You could actually mow in that gear. Pulleys are 6 in front and rear. I'll have to get a pic of the high speed gears.

Let me know if you guys want a pic of something.
Back to top Go down
Guest
Guest




Craftsman LT10 build Empty
PostSubject: Re: Craftsman LT10 build   Craftsman LT10 build Icon_minitimeApril 19th 2013, 6:57 pm

my avatar pic is of my own old LT10 that ended up getting an 18hp opposed twin... built up almost the same way (but I kept my 3 speed peerless with some modifications)

Then someone stole it, and put it inside a storage yard where it rots away. Can't find the owner of the lot to get it back ( I have ways to positively ID the thing) or else I'd bring it back to life in a big way.
Back to top Go down
TheRainbowBoxer
Moderator
TheRainbowBoxer
Moderator

1000+ Posts
1000+ Posts!

Age : 49
Join date : 2012-04-23
Points : 5657
Posts : 1091
Location : Galion, OH

Craftsman LT10 build Empty
PostSubject: Re: Craftsman LT10 build   Craftsman LT10 build Icon_minitimeMay 7th 2013, 10:00 pm

Stretch preps for surgery on his transaxle.

Craftsman LT10 build IMG_20130507_200724_870

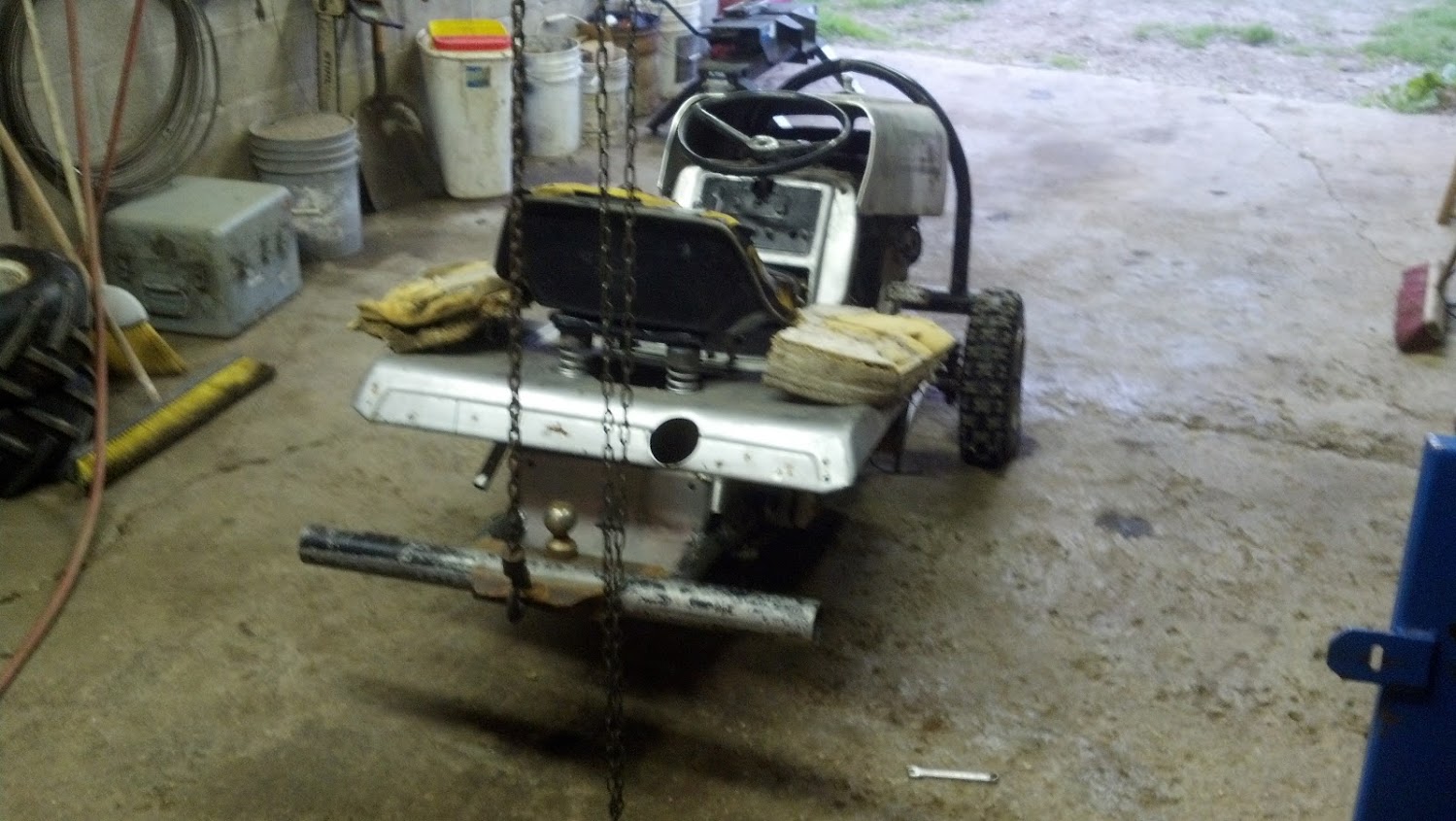

The Silver Bullet hanging from the chain fall, sans trans.

Craftsman LT10 build IMG_20130507_200832_545

The oil is a bit sparkly but not too bad.

Craftsman LT10 build IMG_20130507_201128_702

Proof that a #40 chain will work perfectly fine on a #41 sprocket... *poke poke*

Craftsman LT10 build IMG_20130507_201405_495

That shifter key is toast. The reverse gear sprocket somehow rode up on it.

Craftsman LT10 build IMG_20130507_201636_924


Proud member of the Mower Cycle Gang... aka the "Mowrons!"

My build (Chaos is one of 3 built like this)
Chaos Build

The Mower Cycle Gang visited 1puglife in May 2014
Check out the pics and vids!

Haspin 2021 was a blast!  Check out pics and vids here
Haspin 2021 thread

Join us for the annual Mowron-fest at Haspin Acres!
Haspin Acres Rally 2022!

Check out my YouTube for more tractor action, my vlog, and my bus build!
TheRainbowBoxer on YouTube
Back to top Go down
TheRainbowBoxer
Moderator
TheRainbowBoxer
Moderator

1000+ Posts
1000+ Posts!

Age : 49
Join date : 2012-04-23
Points : 5657
Posts : 1091
Location : Galion, OH

Craftsman LT10 build Empty
PostSubject: Re: Craftsman LT10 build   Craftsman LT10 build Icon_minitimeMay 28th 2013, 10:40 pm

New Taillights on Stretch's "Silver Bullet!"

Craftsman LT10 build IMG_20130528_203904_309

Craftsman LT10 build IMG_20130528_203914_209


Proud member of the Mower Cycle Gang... aka the "Mowrons!"

My build (Chaos is one of 3 built like this)
Chaos Build

The Mower Cycle Gang visited 1puglife in May 2014
Check out the pics and vids!

Haspin 2021 was a blast!  Check out pics and vids here
Haspin 2021 thread

Join us for the annual Mowron-fest at Haspin Acres!
Haspin Acres Rally 2022!

Check out my YouTube for more tractor action, my vlog, and my bus build!
TheRainbowBoxer on YouTube
Back to top Go down
MowBandit
Member
MowBandit
Member

2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 28
Join date : 2013-03-16
Points : 4705
Posts : 477
Location : Haddock,Georgia

Craftsman LT10 build Empty
PostSubject: Re: Craftsman LT10 build   Craftsman LT10 build Icon_minitimeMay 29th 2013, 12:46 am

very well built Very Happy so how do the tail lights come on do they come on by a toggle switch or a pedal?
Back to top Go down
TheRainbowBoxer
Moderator
TheRainbowBoxer
Moderator

1000+ Posts
1000+ Posts!

Age : 49
Join date : 2012-04-23
Points : 5657
Posts : 1091
Location : Galion, OH

Craftsman LT10 build Empty
PostSubject: Re: Craftsman LT10 build   Craftsman LT10 build Icon_minitimeMay 29th 2013, 8:52 am

Toggle switch... I have thought about doing brake lights on mine, but haven't gotten around to it.


Proud member of the Mower Cycle Gang... aka the "Mowrons!"

My build (Chaos is one of 3 built like this)
Chaos Build

The Mower Cycle Gang visited 1puglife in May 2014
Check out the pics and vids!

Haspin 2021 was a blast!  Check out pics and vids here
Haspin 2021 thread

Join us for the annual Mowron-fest at Haspin Acres!
Haspin Acres Rally 2022!

Check out my YouTube for more tractor action, my vlog, and my bus build!
TheRainbowBoxer on YouTube
Back to top Go down
MowBandit
Member
MowBandit
Member

2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 28
Join date : 2013-03-16
Points : 4705
Posts : 477
Location : Haddock,Georgia

Craftsman LT10 build Empty
PostSubject: Re: Craftsman LT10 build   Craftsman LT10 build Icon_minitimeMay 29th 2013, 6:14 pm

TheRainbowBoxer wrote:
Toggle switch... I have thought about doing brake lights on mine, but haven't gotten around to it.
yea ive been thinking about it to and using a push start button on my brake pedal to turn the lights on but i figure i wont be going on any major road lol and if one of my buddys hit my rear there just gonna lift me off the ground Razz
Back to top Go down
Doc Sprocket
Site VIP
Doc Sprocket
Site VIP

2500+ Posts
2500+ Posts!
2018 Build-Off Entrant
2018 Build-Off Entrant
2021 Winner of Winners
2021 Winner of Winners
1st Place Build-Off 2016
1st Place Build-Off Winner 2016

Age : 51
Join date : 2013-04-21
Points : 7274
Posts : 2914
Location : Ontario Canada

Craftsman LT10 build Empty
PostSubject: Re: Craftsman LT10 build   Craftsman LT10 build Icon_minitimeMay 29th 2013, 7:02 pm

I used the brake light switch from a motorcycle. Adjustable, and weatherproof.
Back to top Go down
MowBandit
Member
MowBandit
Member

2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 28
Join date : 2013-03-16
Points : 4705
Posts : 477
Location : Haddock,Georgia

Craftsman LT10 build Empty
PostSubject: Re: Craftsman LT10 build   Craftsman LT10 build Icon_minitimeMay 29th 2013, 8:19 pm

Doc Sprocket wrote:
I used the brake light switch from a motorcycle. Adjustable, and weatherproof.
never thought of that
Back to top Go down
the beast
Member
the beast
Member


Age : 25
Join date : 2013-04-25
Points : 4264
Posts : 59
Location : Rio Rancho, NM AKA "The Catbox"

Craftsman LT10 build Empty
PostSubject: Re: Craftsman LT10 build   Craftsman LT10 build Icon_minitimeMay 30th 2013, 4:31 pm

That looks awesome! Very Happy
Back to top Go down
redlinemotorsportts
Moderator
redlinemotorsportts
Moderator

2500+ Posts
2500+ Posts!
2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 27
Join date : 2013-03-18
Points : 7439
Posts : 3131
Location : raleigh nc

Craftsman LT10 build Empty
PostSubject: Re: Craftsman LT10 build   Craftsman LT10 build Icon_minitimeDecember 22nd 2013, 7:51 pm

Craftsman LT10 build Picture033Medium
Craftsman LT10 build Picture034Medium
Just looking at these- those U joints, i can only see two. Is there a third one? it looks like it would be really sharp turn for the second one, but then again i might be wrong.
Back to top Go down
Stretch44875
Administrator
Stretch44875
Administrator

500+ Posts
500+ Posts

Age : 49
Join date : 2012-04-05
Points : 5657
Posts : 959
Location : Mansfield, Ohio

Craftsman LT10 build Empty
PostSubject: Re: Craftsman LT10 build   Craftsman LT10 build Icon_minitimeDecember 22nd 2013, 11:00 pm

Only 2 ujoints, one at each end of the middle shaft. Somewhat of a sharp angle, but it's a low speed steering setup, not a driveline.
Back to top Go down
redlinemotorsportts
Moderator
redlinemotorsportts
Moderator

2500+ Posts
2500+ Posts!
2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 27
Join date : 2013-03-18
Points : 7439
Posts : 3131
Location : raleigh nc

Craftsman LT10 build Empty
PostSubject: Re: Craftsman LT10 build   Craftsman LT10 build Icon_minitimeDecember 22nd 2013, 11:15 pm

Stretch44875 wrote:
Only 2 ujoints, one at each end of the middle shaft.  Somewhat of a sharp angle, but it's a low speed steering setup, not a driveline.
Gotcha. Maybe its the camera angle of the second pic that makes it look more then it is. I was kinda thinking about using a golf kart steering box for mine, but thats only if the gears broke or something. Trying to help out greener179 too with his broken steering. Thanks
Back to top Go down
TractorHoard
New Member
TractorHoard
New Member


Age : 27
Join date : 2013-11-25
Points : 3992
Posts : 14

Craftsman LT10 build Empty
PostSubject: Re: Craftsman LT10 build   Craftsman LT10 build Icon_minitimeDecember 23rd 2013, 11:45 am

I will defiantly model my next racing mower off this, my little simplicity i have now i wanted to be alot like this, but it just didn't work out and instead of having a locked transaxle like i wanted (so i could have gears) i had o have a 90 degree gear box and i wish i had revers because its pretty much pointless for doing anything other than going fast at this point  Sad
Back to top Go down
LAWN MOWER MUDDER
Established Member
LAWN MOWER MUDDER
Established Member

500+ Posts
500+ Posts
2014 Build-Off Top 3 Winner
2014 Build-Off Top 3 Winner

Age : 23
Join date : 2013-04-08
Points : 5165
Posts : 913
Location : Central Pa

Craftsman LT10 build Empty
PostSubject: Re: Craftsman LT10 build   Craftsman LT10 build Icon_minitimeMay 9th 2014, 9:48 pm

Hey Stretch I know that you take pride in your exhaust but can you share a picture of it with us? I really like your exhaust sound. I ask because have another V-Twin that I am thinking about rebuilding for my Rally.  I was wondering about mimicking your sound.
Back to top Go down
Stretch44875
Administrator
Stretch44875
Administrator

500+ Posts
500+ Posts

Age : 49
Join date : 2012-04-05
Points : 5657
Posts : 959
Location : Mansfield, Ohio

Craftsman LT10 build Empty
PostSubject: Re: Craftsman LT10 build   Craftsman LT10 build Icon_minitimeMay 9th 2014, 10:33 pm

Nothing like TRB's... Mine's dead simple, just two straight pipes out the back, made out of 3/4 electrical conduit.
Back to top Go down
TheRainbowBoxer
Moderator
TheRainbowBoxer
Moderator

1000+ Posts
1000+ Posts!

Age : 49
Join date : 2012-04-23
Points : 5657
Posts : 1091
Location : Galion, OH

Craftsman LT10 build Empty
PostSubject: Re: Craftsman LT10 build   Craftsman LT10 build Icon_minitimeMay 15th 2014, 12:46 am

Yes yes yes... dead simple...

thanks to TheRainbowBoxer's fantastic conduit bending/routing skills......


Proud member of the Mower Cycle Gang... aka the "Mowrons!"

My build (Chaos is one of 3 built like this)
Chaos Build

The Mower Cycle Gang visited 1puglife in May 2014
Check out the pics and vids!

Haspin 2021 was a blast!  Check out pics and vids here
Haspin 2021 thread

Join us for the annual Mowron-fest at Haspin Acres!
Haspin Acres Rally 2022!

Check out my YouTube for more tractor action, my vlog, and my bus build!
TheRainbowBoxer on YouTube
Back to top Go down
Sponsored content





Craftsman LT10 build Empty
PostSubject: Re: Craftsman LT10 build   Craftsman LT10 build Icon_minitime

Back to top Go down

Craftsman LT10 build
Back to top
Page 1 of 2Go to page : 1, 2  Next
 Similar topics
-
» 1982 Sears Craftsman LT10
» Another craftsman II build
» Craftsman build.
» Craftsman Build
» craftsman build

Permissions in this forum:You cannot reply to topics in this forum
All-Terrain Lawn Tractor Forum :: Tractor Project Builds :: Off Road & Rally Tractors-
Jump to:
