 Honda HT-R 3009 mid engine rider engine swap

Go down
+4
Creepycrawler
LAWN MOWER MUDDER
1997 Murray
Thomas de Boer
8 posters
AuthorMessage
Thomas de Boer
Member
Thomas de Boer
Member


Age : 26
Join date : 2014-01-13
Points : 3740
Posts : 39
Location : Netherlands

Honda HT-R 3009 mid engine rider engine swap Empty
PostSubject: Honda HT-R 3009 mid engine rider engine swap   Honda HT-R 3009 mid engine rider engine swap Icon_minitimeJune 7th 2014, 10:28 am

as if some of you might know i want to do an engine swap on my mud mower. i want to replace the orignial Honda GXV270 (9hp) with a briggs 5.5 hp push mower engine. im doing this because my original engine keeps breaking down, runs horrible and i always have trouble getting it going. the replacement engine is brand new and doesnt have an electric start so goodbye batterys and wireing.

LOL
Honda HT-R 3009 mid engine rider engine swap Foto1810

and here is the brand new engine that will serve me till the end of times  Honda HT-R 3009 mid engine rider engine swap 1401206053

Honda HT-R 3009 mid engine rider engine swap Foto1910

Honda HT-R 3009 mid engine rider engine swap Foto2010

the underside looks kinda wierd but i got it all figured

Honda HT-R 3009 mid engine rider engine swap Foto2110

the old, bad engine... farewell

Honda HT-R 3009 mid engine rider engine swap Foto2210

the engine and wireing removed:

Honda HT-R 3009 mid engine rider engine swap Foto2310

more to come!
Back to top Go down
Thomas de Boer
Member
Thomas de Boer
Member


Age : 26
Join date : 2014-01-13
Points : 3740
Posts : 39
Location : Netherlands

Honda HT-R 3009 mid engine rider engine swap Empty
PostSubject: **UPDATE**   Honda HT-R 3009 mid engine rider engine swap Icon_minitimeJune 9th 2014, 1:04 pm

made some good progress today even though i didnt have that much time (lawn maintainence).

so i started of with making the custom flywheel, as if you can see its bolted directly to the drive pully and also serves as a belt slider (i made this because these engines normaly use the blade as flywheel):

Honda HT-R 3009 mid engine rider engine swap Foto2410

this engine had 3 mounting holes so i obviously had to drill some new mounting holes and weld some sheetsteel in. but i also had to make some bushings to lift the engine slightly (you can see them in these 3 images) :

Honda HT-R 3009 mid engine rider engine swap Foto2510

this one is realy hard to see, its underneath the carb/airfilter:

Honda HT-R 3009 mid engine rider engine swap Foto2610

and this one is next to the exhaust:

Honda HT-R 3009 mid engine rider engine swap Foto2710

the official new engine location:

Honda HT-R 3009 mid engine rider engine swap Foto2810

Honda HT-R 3009 mid engine rider engine swap Foto2910

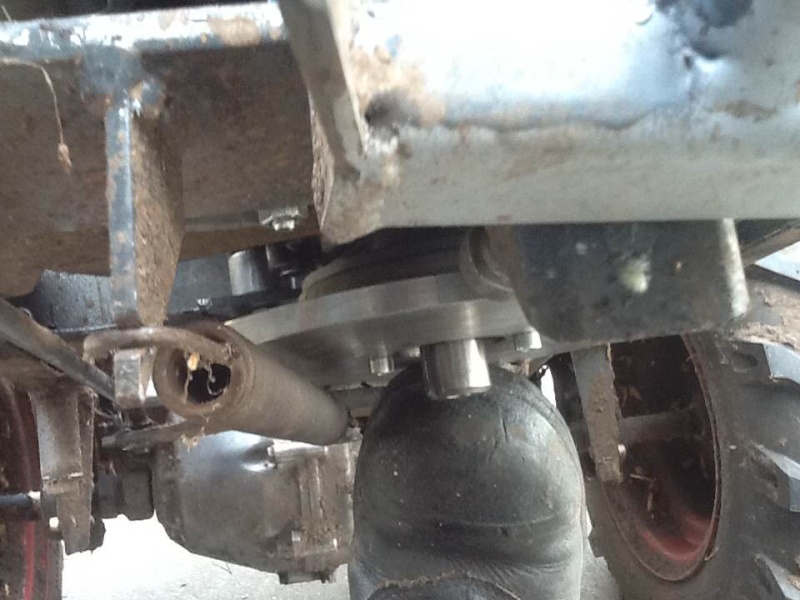

with the flywheel on, its not even 1/2 inch away from the clutch spring!

Honda HT-R 3009 mid engine rider engine swap Foto3010

Honda HT-R 3009 mid engine rider engine swap Foto3110

my modded single pully clutch:

Honda HT-R 3009 mid engine rider engine swap Foto3210

Honda HT-R 3009 mid engine rider engine swap Foto3310

Honda HT-R 3009 mid engine rider engine swap Foto3410

my transaxle is not from peerles, tecumseh, foote, dana or whatever. i looked all around it when i had it apart but i couldnt find a single brand, i guess this transaxle was fabricated by honda and the lower pully was normaly build to power the mowing deck, it will soon be replaced with a bushing:

Honda HT-R 3009 mid engine rider engine swap Foto3510

thats all i did today. i hope your enjoying this how to/build topic, more to come!
Back to top Go down
1997 Murray
Veteran Member
1997 Murray
Veteran Member

1000+ Posts
1000+ Posts!
2014 Build-Off Finalist
2014 Build-Off Finalist
2015 Build-Off Finalist
2015 Build-Off Finalist
2016 Build-Off Entrant
2016 Build-Off Entrant

Age : 25
Join date : 2013-11-13
Points : 5172
Posts : 1311
Location : NW USA

Honda HT-R 3009 mid engine rider engine swap Empty
PostSubject: Re: Honda HT-R 3009 mid engine rider engine swap   Honda HT-R 3009 mid engine rider engine swap Icon_minitimeJune 9th 2014, 1:09 pm

nice Honda HT-R 3009 mid engine rider engine swap Fresse
Back to top Go down
LAWN MOWER MUDDER
Established Member
LAWN MOWER MUDDER
Established Member

500+ Posts
500+ Posts
2014 Build-Off Top 3 Winner
2014 Build-Off Top 3 Winner

Age : 23
Join date : 2013-04-08
Points : 4935
Posts : 913
Location : Central Pa

Honda HT-R 3009 mid engine rider engine swap Empty
PostSubject: Re: Honda HT-R 3009 mid engine rider engine swap   Honda HT-R 3009 mid engine rider engine swap Icon_minitimeJune 9th 2014, 1:27 pm

Cool. I like your flywheel. Let us know how that small motor works out!
Back to top Go down
Creepycrawler
Established Member
Creepycrawler
Established Member

500+ Posts
500+ Posts
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 36
Join date : 2013-07-02
Points : 4745
Posts : 731
Location : Logan Ohio

Honda HT-R 3009 mid engine rider engine swap Empty
PostSubject: Re: Honda HT-R 3009 mid engine rider engine swap   Honda HT-R 3009 mid engine rider engine swap Icon_minitimeJune 9th 2014, 1:28 pm

I really like this mower, do you have any of the body or do you just run it without? also good thinking on the custom add on flywheel, how does it do offroad
Back to top Go down
Craftsman1998
Veteran Member
Craftsman1998
Veteran Member

1000+ Posts
1000+ Posts!
2014 Build-Off Top 3 Winner
2014 Build-Off Top 3 Winner
2015 Build-Off Entrant
2015 Build-Off Entrant

Age : 26
Join date : 2013-10-30
Points : 4878
Posts : 1068
Location : New jersey

Honda HT-R 3009 mid engine rider engine swap Empty
PostSubject: Re: Honda HT-R 3009 mid engine rider engine swap   Honda HT-R 3009 mid engine rider engine swap Icon_minitimeJune 9th 2014, 1:40 pm

very nice what's the motor off of it looks like a push mower engine
Back to top Go down
Thomas de Boer
Member
Thomas de Boer
Member


Age : 26
Join date : 2014-01-13
Points : 3740
Posts : 39
Location : Netherlands

Honda HT-R 3009 mid engine rider engine swap Empty
PostSubject: Re: Honda HT-R 3009 mid engine rider engine swap   Honda HT-R 3009 mid engine rider engine swap Icon_minitimeJune 9th 2014, 2:17 pm

Creepycrawler wrote:
I really like this mower, do you have any of the body or do you just run it without? also good thinking on the custom add on flywheel, how does it do offroad

thanks, i run this mower without the body because i didnt like the way the orignal body looks, i might however concider chopping the original body and use it aigan. it does very good offroad, the V-tread tires do realy good in the mud, steep hills or hauling heavy stuff. it has an open diff because it works better for my conditions
Back to top Go down
Thomas de Boer
Member
Thomas de Boer
Member


Age : 26
Join date : 2014-01-13
Points : 3740
Posts : 39
Location : Netherlands

Honda HT-R 3009 mid engine rider engine swap Empty
PostSubject: Re: Honda HT-R 3009 mid engine rider engine swap   Honda HT-R 3009 mid engine rider engine swap Icon_minitimeJune 9th 2014, 2:19 pm

Craftsman1998 wrote:
very nice what's the motor off of it looks like a push mower engine

yep, these engines were originaly disigned for push mowers, im not sure at the moment what model it is but is very similar to the Briggs&Stratton Quantum engines. these engines normaly use the blade as the flywheel, thats why im making a flywheel myself
Back to top Go down
Angchor
Member
Angchor
Member


Age : 66
Join date : 2014-04-14
Points : 4145
Posts : 491
Location : Index, Washington

Honda HT-R 3009 mid engine rider engine swap Empty
PostSubject: Re: Honda HT-R 3009 mid engine rider engine swap   Honda HT-R 3009 mid engine rider engine swap Icon_minitimeJune 9th 2014, 3:43 pm

Yowserkrikinetley!

I don't think I'd want to ride around with a gas engine so close to my noogies!
Back to top Go down
Thomas de Boer
Member
Thomas de Boer
Member


Age : 26
Join date : 2014-01-13
Points : 3740
Posts : 39
Location : Netherlands

Honda HT-R 3009 mid engine rider engine swap Empty
PostSubject: Re: Honda HT-R 3009 mid engine rider engine swap   Honda HT-R 3009 mid engine rider engine swap Icon_minitimeJune 9th 2014, 5:17 pm

Angchor wrote:
Yowserkrikinetley!

I don't think I'd want to ride around with a gas engine so close to my noogies!

HAHAHA, it seems kinda dangerous but the worst thing that can happen is that the piston will blow out of the cylinder and mess my feet up realy bad, but thats very unlikely to happen i guess...
Back to top Go down
Thomas de Boer
Member
Thomas de Boer
Member


Age : 26
Join date : 2014-01-13
Points : 3740
Posts : 39
Location : Netherlands

Honda HT-R 3009 mid engine rider engine swap Empty
PostSubject: Re: Honda HT-R 3009 mid engine rider engine swap   Honda HT-R 3009 mid engine rider engine swap Icon_minitimeJune 9th 2014, 5:20 pm

one thing that i honestly dont like about the new engine is that the airfilter/intake is just over a foot removed from the ground. i might have to concider making a snorkal or somesort. but im not realy plannin on using this tractor for heavy offroad abuse anymore, more like a working tractor
Back to top Go down
camomanusa
Member
camomanusa
Member

2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 25
Join date : 2013-09-15
Points : 4305
Posts : 467
Location : Greensburg, PA

Honda HT-R 3009 mid engine rider engine swap Empty
PostSubject: Re: Honda HT-R 3009 mid engine rider engine swap   Honda HT-R 3009 mid engine rider engine swap Icon_minitimeJune 9th 2014, 6:16 pm

looks good! Very Happy
Back to top Go down
Thomas de Boer
Member
Thomas de Boer
Member


Age : 26
Join date : 2014-01-13
Points : 3740
Posts : 39
Location : Netherlands

Honda HT-R 3009 mid engine rider engine swap Empty
PostSubject: **UPDATE**   Honda HT-R 3009 mid engine rider engine swap Icon_minitimeJune 10th 2014, 5:02 pm

today i decided to finish the flywheel/drive pully.

i broached in a keyway using a 2 way broach set:

Honda HT-R 3009 mid engine rider engine swap Foto3710

after doing this i ran into a bit of a problem: the keyway on the cranckshaft wasnt as long as the keyway in the pully, so i had to ad a clamping bolt in a very wierd position but it should work just fine (the bolt will go in a lot deeper so it doesnt make any contact with the belt) :

Honda HT-R 3009 mid engine rider engine swap Foto3610

and i also discovered that the tread in the crankshaft was a US size so i took a bolt out of my old MTD parts tractor and tryed if it fit but it turned out to be fine tread. but i want this build done soon so i came up with this alternative:

its a 2 bolt clamp that squeezes around the crankshaft and keeps the pully on the right altitude.

Honda HT-R 3009 mid engine rider engine swap Foto3910

thats it for now, the only things i have to do now is install the shorter belt and ad a cable to toggle the engine on and off.

im also thinking of putting a 3 point hitch to the front of the tractor for a pushing blade
Back to top Go down
Stretch44875
Administrator
Stretch44875
Administrator

500+ Posts
500+ Posts

Age : 49
Join date : 2012-04-05
Points : 5427
Posts : 959
Location : Mansfield, Ohio

Honda HT-R 3009 mid engine rider engine swap Empty
PostSubject: Re: Honda HT-R 3009 mid engine rider engine swap   Honda HT-R 3009 mid engine rider engine swap Icon_minitimeJune 10th 2014, 6:49 pm

This is a neat little build. The crank bolt may be 7/16-20 thread.

I used a push mower engine to power a small racer for the kid. Didn't bother with an extra flywheel, it seemed to run fine without it.

Back to top Go down
Thomas de Boer
Member
Thomas de Boer
Member


Age : 26
Join date : 2014-01-13
Points : 3740
Posts : 39
Location : Netherlands

Honda HT-R 3009 mid engine rider engine swap Empty
PostSubject: Re: Honda HT-R 3009 mid engine rider engine swap   Honda HT-R 3009 mid engine rider engine swap Icon_minitimeJune 11th 2014, 5:35 am

Stretch44875 wrote:
This is a neat little build.  The crank bolt may be 7/16-20 thread.

I used a push mower engine to power a small racer for the kid.  Didn't bother with an extra flywheel, it seemed to run fine without it.


Thanks, if i would use this as a racer i probably wouldnt bother with a flywheel aswell, but im looking to use this machine for plowing/hauling. So with this flywheel i cant rev it quickly but my engine doesnt tend to stall when plowing/hauling
Back to top Go down
Thomas de Boer
Member
Thomas de Boer
Member


Age : 26
Join date : 2014-01-13
Points : 3740
Posts : 39
Location : Netherlands

Honda HT-R 3009 mid engine rider engine swap Empty
PostSubject: Re: Honda HT-R 3009 mid engine rider engine swap   Honda HT-R 3009 mid engine rider engine swap Icon_minitimeJune 22nd 2014, 4:58 pm

so first i want to appoligize for not posting any updates recently. my old computer broke and i just baught a brand new HP Pavilion dv6 laptop.

so here is the deal:
about a day after taking the last picture i trew fuel and oil in the Motor pulled it only 1 time and she ran like a beauty. BUT after 10 seconds of running it started making a nocking noise. it turned out that the custom flywheel had came loose and made the nocking noise. so i removed the custom flywheel and tryed it aigan. this time it didnt nock and i neither noticed any lack of power even though i ran it without the custom flywheel. about a week later the engine started nocking aigan. it turned out that the key in the keyway started getting play so i welded the caststeel engine pully to one side of the clamp and this completely removed the nocking aigan. i hope this will hold up for now and im pretty sure it will last for ages.

I also made a ditch plow and a normal plow, and since im still doing many mods weekly to this tractor i have decided to start a tread on it SOON.
