![Front drum brake conversion for your atlt! Empty](https://2img.net/i/empty.gif) | Subject: Front drum brake conversion for your atlt! July 25th 2014, 3:25 pm | |

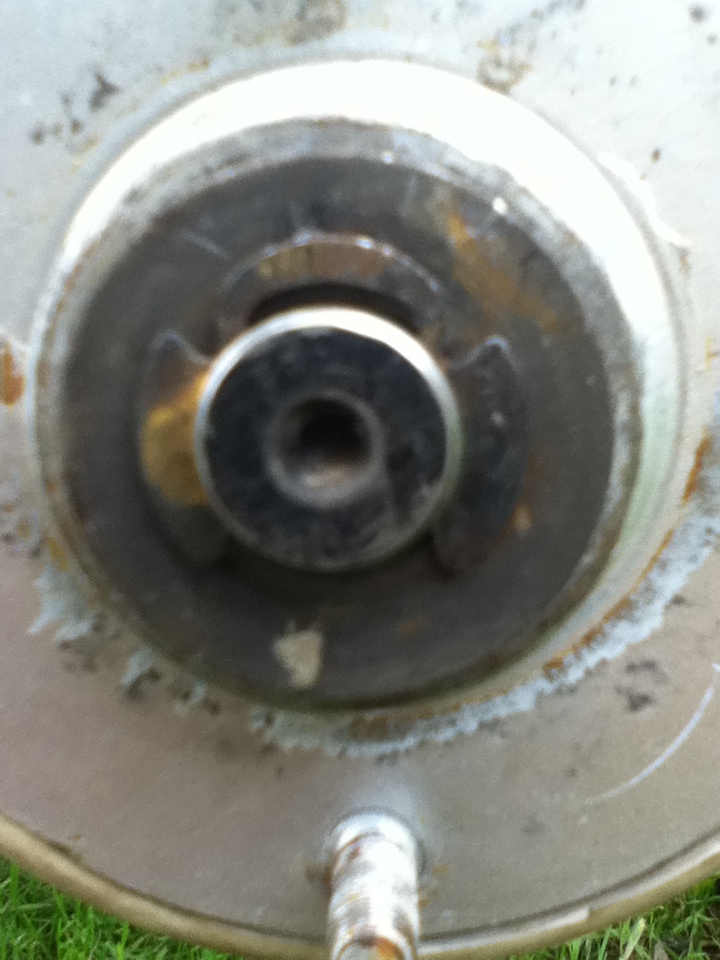

| Here is a quick write up on how i converted my lawn tractor to have drum brakes. ![Front drum brake conversion for your atlt! Img_0716](https://i.servimg.com/u/f39/18/77/13/61/img_0716.jpg) the drums came off of a 110cc chinese mini quad in my case i had to drill the back plate out to 3/4 in so that it could fit onto my craftsman front axle ![Front drum brake conversion for your atlt! Img_0717](https://i.servimg.com/u/f39/18/77/13/61/img_0717.jpg) i then had to replace the bearings that were originally on the hub to have a 3/4in ID and a 35mm OD ![Front drum brake conversion for your atlt! Img_0718](https://i.servimg.com/u/f39/18/77/13/61/img_0718.jpg) then you need to find away to prevent the back plate from spinning, on the atv there's a little block that fits in a groove on the back plate of the drums. i wasnt able to use that little block so i found that 8mm socket fit inside it perfectly without any slop ![Front drum brake conversion for your atlt! Img_0719](https://i.servimg.com/u/f39/18/77/13/61/img_0719.jpg) this is the back plate, the rectangular indent is the stop that prevents it from spinning ![Front drum brake conversion for your atlt! Img_0720](https://i.servimg.com/u/f39/18/77/13/61/img_0720.jpg) the socket is welded to a small piece of metal that is welded to the spindle, not pretty, but it holds ![Front drum brake conversion for your atlt! Img_0721](https://i.servimg.com/u/f39/18/77/13/61/img_0721.jpg) the back plate mounted up ![Front drum brake conversion for your atlt! Img_0722](https://i.servimg.com/u/f39/18/77/13/61/img_0722.jpg) the hub needs to be tapped on with a socket ![Front drum brake conversion for your atlt! Img_0723](https://i.servimg.com/u/f39/18/77/13/61/img_0723.jpg) the whole assembly still fits onto the spindle and is still held on with a washer and e clip ![Front drum brake conversion for your atlt! Img_0724](https://i.servimg.com/u/f39/18/77/13/61/img_0724.jpg) i was able to re use the atv brake cables and brake lever, the cables slide through holes in the dash and the lever slides right onto the mower deck lever ![Front drum brake conversion for your atlt! Img_0725](https://i.servimg.com/u/f39/18/77/13/61/img_0725.jpg) ![Front drum brake conversion for your atlt! Img_0728](https://i.servimg.com/u/f39/18/77/13/61/img_0728.jpg) there yah have it, front drum brakes. this works great and i highly reccomend this mod. | |
| ![Go down](https://2img.net/i/empty.gif) | | redlinemotorsportts Moderator
![redlinemotorsportts](https://2img.net/u/2812/37/66/46/avatars/749-8.png)
![Moderator Moderator](https://i.servimg.com/u/f86/19/98/54/71/mod212.png)
2014 Build-Off Entrant
2014 Build-Off Entrant
Age : 27 Join date : 2013-03-18 Points : 7366 Posts : 3131 Location : raleigh nc
![Front drum brake conversion for your atlt! Empty](https://2img.net/i/empty.gif) | | ![Go down](https://2img.net/i/empty.gif) | | jamcco Member
![jamcco](https://2img.net/u/2812/37/66/46/avatars/1314-41.jpg)
![Member Member](https://i.servimg.com/u/f62/19/56/75/89/g110.png)
Age : 25 Join date : 2014-01-04 Points : 4099 Posts : 226 Location : New Hampshire
![Front drum brake conversion for your atlt! Empty](https://2img.net/i/empty.gif) | Subject: Re: Front drum brake conversion for your atlt! July 25th 2014, 4:50 pm | |
| thanks, im surprised it hasnt been done yet, I've seen so many ideas to mod the transaxle brake but never have i seen someone slap a set of brakes on the front. | |
| ![Go down](https://2img.net/i/empty.gif) | | Doug Site Owner
![Doug](https://2img.net/u/2812/37/66/46/avatars/524-71.jpg)
![Site Owner Site Owner](https://i.servimg.com/u/f86/19/98/54/71/owner410.png)
2014 Build-Off Entrant
2014 Build-Off Entrant
2017 Build-Off Entrant
2017 Build-Off Entrant
Age : 29 Join date : 2012-12-24 Points : 7662 Posts : 3044 Location : Lebanon County, PA
![Front drum brake conversion for your atlt! Empty](https://2img.net/i/empty.gif) | Subject: Re: Front drum brake conversion for your atlt! July 25th 2014, 5:03 pm | |
| Sebastian did, ive thought of it on the Gravely when I get to it in 20 years. Great writeup! Ill add it to the How to, now you have bragging rights over Red. ![](https://i.servimg.com/u/f86/19/98/54/71/separa13.png) Head Forum Administrator ** Chat Moderator ** Facebook Page AdminATLTF Facebook Page ** Chatbox ** How To Upload Pictures
_X_ FORUM ANNOUNCEMENTS _X_Have a question? Ask me! Type in "@Doug" in your post!
Your ATLTF Staff: Administrators: @Doug, @MightyRaze, @"Doc Sprocket", @Stretch44875 Moderators: @TheRainbowBoxer, @AllisKidD21, @Brianator, @RichieRichOverdrive
| |
| ![Go down](https://2img.net/i/empty.gif) | | jamcco Member
![jamcco](https://2img.net/u/2812/37/66/46/avatars/1314-41.jpg)
![Member Member](https://i.servimg.com/u/f62/19/56/75/89/g110.png)
Age : 25 Join date : 2014-01-04 Points : 4099 Posts : 226 Location : New Hampshire
![Front drum brake conversion for your atlt! Empty](https://2img.net/i/empty.gif) | | ![Go down](https://2img.net/i/empty.gif) | | Doug Site Owner
![Doug](https://2img.net/u/2812/37/66/46/avatars/524-71.jpg)
![Site Owner Site Owner](https://i.servimg.com/u/f86/19/98/54/71/owner410.png)
2014 Build-Off Entrant
2014 Build-Off Entrant
2017 Build-Off Entrant
2017 Build-Off Entrant
Age : 29 Join date : 2012-12-24 Points : 7662 Posts : 3044 Location : Lebanon County, PA
![Front drum brake conversion for your atlt! Empty](https://2img.net/i/empty.gif) | Subject: Re: Front drum brake conversion for your atlt! July 25th 2014, 5:51 pm | |
| Its in his build off thread.
Yeah, it took me like a month to add in his one how-to for his winch and i added yours same day. Lol. ![](https://i.servimg.com/u/f86/19/98/54/71/separa13.png) Head Forum Administrator ** Chat Moderator ** Facebook Page AdminATLTF Facebook Page ** Chatbox ** How To Upload Pictures
_X_ FORUM ANNOUNCEMENTS _X_Have a question? Ask me! Type in "@Doug" in your post!
Your ATLTF Staff: Administrators: @Doug, @MightyRaze, @"Doc Sprocket", @Stretch44875 Moderators: @TheRainbowBoxer, @AllisKidD21, @Brianator, @RichieRichOverdrive
| |
| ![Go down](https://2img.net/i/empty.gif) | | jamcco Member
![jamcco](https://2img.net/u/2812/37/66/46/avatars/1314-41.jpg)
![Member Member](https://i.servimg.com/u/f62/19/56/75/89/g110.png)
Age : 25 Join date : 2014-01-04 Points : 4099 Posts : 226 Location : New Hampshire
![Front drum brake conversion for your atlt! Empty](https://2img.net/i/empty.gif) | | ![Go down](https://2img.net/i/empty.gif) | | Doc Sprocket Site VIP
![Doc Sprocket](https://2img.net/u/2812/37/66/46/avatars/863-5.png)
![Site VIP Site VIP](https://i.servimg.com/u/f86/19/98/54/71/vip11.png)
2018 Build-Off Entrant
2018 Build-Off Entrant
2021 Winner of Winners
2021 Winner of Winners
1st Place Build-Off 2016
1st Place Build-Off Winner 2016
Age : 51 Join date : 2013-04-21 Points : 7201 Posts : 2914 Location : Ontario Canada
![Front drum brake conversion for your atlt! Empty](https://2img.net/i/empty.gif) | Subject: Re: Front drum brake conversion for your atlt! July 25th 2014, 6:22 pm | |
| Well done! I scabbed a set of front drums off an old Honda ATV onto the Bolens chassis that will become my next utility build- hopefully by the turn of the century... Easy on them fronts heading downhill! ![Wink](https://2img.net/i/fa/i/smiles/icon_wink.gif) | |
| ![Go down](https://2img.net/i/empty.gif) | | redlinemotorsportts Moderator
![redlinemotorsportts](https://2img.net/u/2812/37/66/46/avatars/749-8.png)
![Moderator Moderator](https://i.servimg.com/u/f86/19/98/54/71/mod212.png)
2014 Build-Off Entrant
2014 Build-Off Entrant
Age : 27 Join date : 2013-03-18 Points : 7366 Posts : 3131 Location : raleigh nc
![Front drum brake conversion for your atlt! Empty](https://2img.net/i/empty.gif) | Subject: Re: Front drum brake conversion for your atlt! July 25th 2014, 6:47 pm | |
| - Doug Fackler wrote:
- Sebastian did, ive thought of it on the Gravely when I get to it in 20 years. Great writeup! Ill add it to the How to, now you have bragging rights over Red.
You sure do lol. Mine are currently pissing me off, dang cables! | |
| ![Go down](https://2img.net/i/empty.gif) | | jamcco Member
![jamcco](https://2img.net/u/2812/37/66/46/avatars/1314-41.jpg)
![Member Member](https://i.servimg.com/u/f62/19/56/75/89/g110.png)
Age : 25 Join date : 2014-01-04 Points : 4099 Posts : 226 Location : New Hampshire
![Front drum brake conversion for your atlt! Empty](https://2img.net/i/empty.gif) | Subject: Re: Front drum brake conversion for your atlt! July 25th 2014, 10:39 pm | |
| - Doc Sprocket wrote:
- Well done! I scabbed a set of front drums off an old Honda ATV onto the Bolens chassis that will become my next utility build- hopefully by the turn of the century...
Easy on them fronts heading downhill! ![Wink](https://2img.net/i/fa/i/smiles/icon_wink.gif) yah, this will come to show how strong the 4 link really is ![Cool](https://2img.net/i/fa/i/smiles/icon_cool.gif) ........i guess | |
| ![Go down](https://2img.net/i/empty.gif) | | jamcco Member
![jamcco](https://2img.net/u/2812/37/66/46/avatars/1314-41.jpg)
![Member Member](https://i.servimg.com/u/f62/19/56/75/89/g110.png)
Age : 25 Join date : 2014-01-04 Points : 4099 Posts : 226 Location : New Hampshire
![Front drum brake conversion for your atlt! Empty](https://2img.net/i/empty.gif) | Subject: Re: Front drum brake conversion for your atlt! September 11th 2014, 7:36 pm | |
| I've had some time to mess with the brakes lately and have some things to add: -if adjusted correctly, you can get the drums to lock up on loose/slick surfaces. Pretty good for them being brakes off of a 70cc atv -make sure that you build your front end of the tractor to compensate for the extra stress of the brakes. I didn't build my 4 link with strong enough metal so now i have to redo a couple of the link mounts. I don't know how stock axle setups will react. -pretty obvious to me, but for the ones who don't know..... make sure to push the clutch in while braking, seems self intuitive but i know that my brother didn't know this so I wanted to clear this up. It will take alot of stress off the transaxle and the tractor will actually stop (surprising right? ![Laughing](https://2img.net/i/fa/i/smiles/icon_lol.gif) ) -the brakes do stop the tractor, but keep in mind that it won't stop your tractor immediatly, remember your tractor weighs a good amount and will have momentum working against you. Basically thats my "findings" from a month or two of testing. I figured that this would help who ever wants to build this themselves.... put a couple more ideas in their head I guess. | |
