PostSubject: Muddstir's P.O.S   Muddstir's    P.O.S Icon_minitimeFebruary 5th 2018, 7:46 pm

Well i really shouldnt but i am - going so start a new build for the build off.

Here is my P.O.S (was going to call it "1st place" )
The plan is to make it a trail beater.
Tires, speed, brakes, handling, body protection, and cosmetic doodads will be addressed.
The final goal is to keep it as stock looking as possible.
Muddstir's    P.O.S 20180215
Muddstir's    P.O.S 20180216
Muddstir's    P.O.S 20180217



-Approved by Doug, 2/5/2018
Back to top Go down
muddstir
Member
muddstir
Member

2018 Build-Off Entrant
2018 Build-Off Entrant

Join date : 2012-01-22
Points : 4992
Posts : 318
Location : Western,PA

Muddstir's    P.O.S Empty
PostSubject: Re: Muddstir's P.O.S   Muddstir's    P.O.S Icon_minitimeFebruary 9th 2018, 4:03 am

Rims and tires ordered yesterday.  Should be here monday.

About 2 hours after ordering i realised i ordered the wrong front rims but i left it go, should be  interesting making them work.

Just been making lists of what i need and trying to source parts.
Official building start will prob take place around end of the month. Trying to get a few other projects wraped up.
Back to top Go down
RCG
Member
RCG
Member

2016 Build-Off Finalist
2016 Build-Off Finalist
2018 Build-Off Finalist
2018 Build-Off Finalist
2022 Build-Off Top 3 Winner
2022 Build-Off Top 3 Winner

Join date : 2013-01-05
Points : 4796
Posts : 438

Muddstir's    P.O.S Empty
PostSubject: Re: Muddstir's P.O.S   Muddstir's    P.O.S Icon_minitimeFebruary 9th 2018, 8:26 am

Any plans for the MTD trans and mods for the vary drive setup?
Back to top Go down
http://www.Mudmower.com
muddstir
Member
muddstir
Member

2018 Build-Off Entrant
2018 Build-Off Entrant

Join date : 2012-01-22
Points : 4992
Posts : 318
Location : Western,PA

Muddstir's    P.O.S Empty
PostSubject: Re: Muddstir's P.O.S   Muddstir's    P.O.S Icon_minitimeFebruary 9th 2018, 10:32 am

Maine Mud Mower wrote:
Any plans for the MTD trans and mods for the vary drive setup?



The mtd trans may stay, it really depends on what parts i can find for this build. The parts i find will determine the way i build it.
The vary drive will be removed.
Back to top Go down
CraftsmanQuad19
Veteran Member
CraftsmanQuad19
Veteran Member

2500+ Posts
2500+ Posts!
2018 Build-Off Entrant
2018 Build-Off Entrant
2019 Build-Off Finalist
2019 Build-Off Finalist

Age : 24
Join date : 2016-04-12
Points : 5923
Posts : 2632
Location : Indiana

Muddstir's    P.O.S Empty
PostSubject: Re: Muddstir's P.O.S   Muddstir's    P.O.S Icon_minitimeFebruary 9th 2018, 11:10 am

Well if you remove the varidrive and keep the transaxle, you’ll only have one speed forward, one speed reverse. Maybe you’re fine with that maybe not.


Little off topic but I wanted to enter into a mower demolition derby with an mtd. Lower it a bit, cut the turf tread (only stock tires allowed), lock the diff, and gut the varidrive with a ridiculous pulley swap. That way it’s a single speed and I would only have to worry about throttle input. Maybe give that idea a little thought? Wouldn’t be practical all the time but should be feasible

Ok, thread jack over
Back to top Go down
muddstir
Member
muddstir
Member

2018 Build-Off Entrant
2018 Build-Off Entrant

Join date : 2012-01-22
Points : 4992
Posts : 318
Location : Western,PA

Muddstir's    P.O.S Empty
PostSubject: Re: Muddstir's P.O.S   Muddstir's    P.O.S Icon_minitimeFebruary 10th 2018, 2:34 am

If i keep it ill make it work.

Running in a mower demo would be a blast.
Back to top Go down
muddstir
Member
muddstir
Member

2018 Build-Off Entrant
2018 Build-Off Entrant

Join date : 2012-01-22
Points : 4992
Posts : 318
Location : Western,PA

Muddstir's    P.O.S Empty
PostSubject: Re: Muddstir's P.O.S   Muddstir's    P.O.S Icon_minitimeFebruary 10th 2018, 6:24 pm

One pair of tires showed up yesterday and rest of my order showed up today. But when i open the rim box they had goofed up my order, by sending me 4 rear rims and no front rims.  Had to call and get it straighten out, now the new fronts should be here around thursday. All I got to do is send 2 of the rims back.
Ill post pics when everything is here and right

I also left work early today to goto the metal supplier, i bought a pc of 2x4 - 3/16  plain plate aluminum for this build.
Back to top Go down
Dave 007
Member

Member

2017 Build-Off Top 3 Winner
2017 Build-Off Top 3 Winner
2018 Build-Off Entrant
2018 Build-Off Entrant

Age : 60
Join date : 2017-02-02
Points : 2936
Posts : 115
Location : Australia

Muddstir's    P.O.S Empty
PostSubject: Re: Muddstir's P.O.S   Muddstir's    P.O.S Icon_minitimeFebruary 13th 2018, 5:39 am

Good luck and best wishes, very happy to see your entry. cheers.
Back to top Go down
muddstir
Member
muddstir
Member

2018 Build-Off Entrant
2018 Build-Off Entrant

Join date : 2012-01-22
Points : 4992
Posts : 318
Location : Western,PA

Muddstir's    P.O.S Empty
PostSubject: Re: Muddstir's P.O.S   Muddstir's    P.O.S Icon_minitimeFebruary 15th 2018, 11:16 pm

The front rims showed up on monday.  The final tire/rim specs are:

         Front
Rim: 10x5 on a 4 x110mm
Tire: 23x7x10 bearclaw

        Rear
Rim:  10x8 on a 4x110mm
Tire:  23x10x10 bearclaw

I chose Douglas.125 polished rims, mainly becouse i wanted a aluminum wheel that had a solid hub area that was lite and cheep, had to be 10in, same bolt pattern.

Tires i picked becouse of price. But the factors were, they had to have same tread pattern on front and rear, had to have same rim size, had to be the same height, and had to offer different widths.

Muddstir's    P.O.S 20180220
Back to top Go down
MightyRaze
Administrator
MightyRaze
Administrator

2017 Build-Off Finalist
2017 Build-Off Finalist
2018 Build-Off Top 3 Winner
2018 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2021 Winner of Winners
2021 Winner of Winners
1st Place Build-Off 2022
1st Place Build-Off Winner 2022
10,000 POSTS!
10,000 POSTS!
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 49
Join date : 2016-09-06
Points : 15559
Posts : 10931
Location : Oklahoma

Muddstir's    P.O.S Empty
PostSubject: Re: Muddstir's P.O.S   Muddstir's    P.O.S Icon_minitimeFebruary 15th 2018, 11:39 pm

i'd be afraid to get them rims dirty! LOL.. In all seriousness, those are going to look nice!


Muddstir's    P.O.S Sig115PROJECTS:
     Marshal ........................93 Craftsman GT6000
     Red Bandit ...................72 Wheel Horse Raider 12
     Dirty Rat........................77 Sears Suburban
     Bowser...........................01 Murray Widebody LT
     The Green Machine ....1990 Craftsman II GT18
Other projects
Have a question? Ask me! Type in "@MightyRaze" in your post!
Muddstir's    P.O.S Sig214Muddstir's    P.O.S Sig314
Back to top Go down
muddstir
Member
muddstir
Member

2018 Build-Off Entrant
2018 Build-Off Entrant

Join date : 2012-01-22
Points : 4992
Posts : 318
Location : Western,PA

Muddstir's    P.O.S Empty
PostSubject: Re: Muddstir's P.O.S   Muddstir's    P.O.S Icon_minitimeFebruary 16th 2018, 8:25 am

I was going to buy the black ones for the dirty factor but the polished ones were cheaper. Once they get all beat up looking ill end up painting them.
Back to top Go down
MightyRaze
Administrator
MightyRaze
Administrator

2017 Build-Off Finalist
2017 Build-Off Finalist
2018 Build-Off Top 3 Winner
2018 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2021 Winner of Winners
2021 Winner of Winners
1st Place Build-Off 2022
1st Place Build-Off Winner 2022
10,000 POSTS!
10,000 POSTS!
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 49
Join date : 2016-09-06
Points : 15559
Posts : 10931
Location : Oklahoma

Muddstir's    P.O.S Empty
PostSubject: Re: Muddstir's P.O.S   Muddstir's    P.O.S Icon_minitimeFebruary 16th 2018, 8:50 am

LOL, I think the chrome will look nice.


Muddstir's    P.O.S Sig115PROJECTS:
     Marshal ........................93 Craftsman GT6000
     Red Bandit ...................72 Wheel Horse Raider 12
     Dirty Rat........................77 Sears Suburban
     Bowser...........................01 Murray Widebody LT
     The Green Machine ....1990 Craftsman II GT18
Other projects
Have a question? Ask me! Type in "@MightyRaze" in your post!
Muddstir's    P.O.S Sig214Muddstir's    P.O.S Sig314
Back to top Go down
biggasmowers
Veteran Member
biggasmowers
Veteran Member

1000+ Posts
1000+ Posts!
2018 Build-Off Finalist
2018 Build-Off Finalist

Age : 24
Join date : 2016-12-30
Points : 4885
Posts : 1944
Location : Kansas

Muddstir's    P.O.S Empty
PostSubject: Re: Muddstir's P.O.S   Muddstir's    P.O.S Icon_minitimeFebruary 16th 2018, 10:27 am

All i see is dollar signs. Not sure how a mtd fnr is going to work very well with those tires, but should look good. How are you planning on doing the hubs?
Back to top Go down
muddstir
Member
muddstir
Member

2018 Build-Off Entrant
2018 Build-Off Entrant

Join date : 2012-01-22
Points : 4992
Posts : 318
Location : Western,PA

Muddstir's    P.O.S Empty
PostSubject: Re: Muddstir's P.O.S   Muddstir's    P.O.S Icon_minitimeFebruary 22nd 2018, 10:28 pm

For the hubs i always make my own, fronts use 3/4 sealed bearings and rears use whatever style of center i need to fit axle shalfs that i have. Will go into more detail on that when i get to that step of the build. The fnr is still up in the air if im going to use it. Parts collecting hasnt been real successful lately, will head out this weekend and see what i come up with.
Did manage to make it to the metal supplier this week and buy 24ft of .750 x .750. - 14 gauge wall thickness rectangle tube. That will be used as frame supports. Hoping to start that next week or that weekend. Muddstir's    P.O.S 20180221
Back to top Go down
Double W Cross Ranch
Veteran Member
Double W Cross Ranch
Veteran Member

2500+ Posts
2500+ Posts!
2018 Build-Off Finalist
2018 Build-Off Finalist

Age : 20
Join date : 2017-06-09
Points : 5447
Posts : 2640
Location : Literally Nowhere, Texas

Muddstir's    P.O.S Empty
PostSubject: Re: Muddstir's P.O.S   Muddstir's    P.O.S Icon_minitimeFebruary 23rd 2018, 9:33 am

Must've missed this build. Sounds good, always wanted to see a modded Troy Built, they look really good.
Back to top Go down
https://themagazineishalff.wixsite.com/website
muddstir
Member
muddstir
Member

2018 Build-Off Entrant
2018 Build-Off Entrant

Join date : 2012-01-22
Points : 4992
Posts : 318
Location : Western,PA

Muddstir's    P.O.S Empty
PostSubject: Re: Muddstir's P.O.S   Muddstir's    P.O.S Icon_minitimeFebruary 26th 2018, 10:07 pm

Finally some fabrication time in on this

Its not much but its a start.  One of the areas i want to modify is the wheelbase and i figured id start with the front. But there is a problem, the frame ends right were the front axle beam begins. So to move the beam forward 6in there needs to be something to bolt / weld it to and there is nothing.  So i need to make a frame extension to mount the axle to. But then they made these huge hood mounts that are in the way of everything.
So long story short i need to mod the hood mounts to the original frame then cut all of the not needed mount out of my way to extend frame.

Here you can see stock setup with hood mounts in the way
[url=https://servimg.com/view/17211505/31]Muddstir's    P.O.S 20180222"/>

Here is what i had to remove to start revamping the hood hindges. I did have to cut some of the axle mount out of my way and add a brace in from one hood hinge to the other. I had to do this to both sides.
Muddstir's    P.O.S 20180223" />
Back to top Go down
muddstir
Member
muddstir
Member

2018 Build-Off Entrant
2018 Build-Off Entrant

Join date : 2012-01-22
Points : 4992
Posts : 318
Location : Western,PA

Muddstir's    P.O.S Empty
PostSubject: Re: Muddstir's P.O.S   Muddstir's    P.O.S Icon_minitimeMarch 8th 2018, 9:22 pm

Ok with cutting that metal out of the front i realized that its going to be hard to section in a chunk of framework for the frontend to attach to. In other words there is no good spot to tie into. Then i looked at the original frame more in depth and saw that there was really no frame to it. They bolted the front motor pan to the rear hitchplate / seat support with some small bent c-channel shaped brackets that appear to be somewhere between 14 -16 ga thick (.072ish to .062ish)  not very thick.
Now i know why this thing flexed and twisted all over while i was just mowing grass with it.

Now it looks like im makin a frame for it.

Material-     1 x 3 - .125wall rect tube.

Cut list:  2 - 60in long pcs,   2 - 11in long pcsMuddstir's    P.O.S 20180310
Now this tube wasnt flat (only places that matter are the very front and back of the 60in pcs since thats where the 11in pcs get welded to)Muddstir's    P.O.S 20180316


So the press takes care of that. Muddstir's    P.O.S 20180317
Muddstir's    P.O.S 20180318


And now im ready to weld but my fume extractor isnt working right now so i will wait till i get that fixed
Muddstir's    P.O.S 20180319
Back to top Go down
Crazy_Carl
Veteran Member
Crazy_Carl
Veteran Member

2018 Build-Off Entrant
2018 Build-Off Entrant
2500+ Posts
2500+ Posts!
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 35
Join date : 2017-10-30
Points : 5288
Posts : 2561
Location : Rochester, New York

Muddstir's    P.O.S Empty
PostSubject: Re: Muddstir's P.O.S   Muddstir's    P.O.S Icon_minitimeMarch 9th 2018, 7:45 am

Cool. I'm excited to see another tractor with a custom frame in the build off. Off the top of my head I think there's three.
Back to top Go down
muddstir
Member
muddstir
Member

2018 Build-Off Entrant
2018 Build-Off Entrant

Join date : 2012-01-22
Points : 4992
Posts : 318
Location : Western,PA

Muddstir's    P.O.S Empty
PostSubject: Re: Muddstir's P.O.S   Muddstir's    P.O.S Icon_minitimeMarch 9th 2018, 2:26 pm

I really wanted to make the original frame work but i also like to build stuff right and the only way i see fit is to reframe it.
Back to top Go down
biggasmowers
Veteran Member
biggasmowers
Veteran Member

1000+ Posts
1000+ Posts!
2018 Build-Off Finalist
2018 Build-Off Finalist

Age : 24
Join date : 2016-12-30
Points : 4885
Posts : 1944
Location : Kansas

Muddstir's    P.O.S Empty
PostSubject: Re: Muddstir's P.O.S   Muddstir's    P.O.S Icon_minitimeMarch 9th 2018, 3:16 pm

Yeah. Mtds aren't very good frames stock
Back to top Go down
prancstaman
Veteran Member
prancstaman
Veteran Member

1000+ Posts
1000+ Posts!

Join date : 2015-02-02
Points : 5051
Posts : 1412
Location : Cleveland,Ohio

Muddstir's    P.O.S Empty
PostSubject: Re: Muddstir's P.O.S   Muddstir's    P.O.S Icon_minitimeMarch 10th 2018, 8:24 pm

Reading through the thread, when you described the frame, sounded like you was talking about my car I just got rid of. My car, I would drive it with one foot on the pedals and the other foot bent and leaning on the door. I swear I could feel the frame shifting while driving it, LOL.
Back to top Go down
muddstir
Member
muddstir
Member

2018 Build-Off Entrant
2018 Build-Off Entrant

Join date : 2012-01-22
Points : 4992
Posts : 318
Location : Western,PA

Muddstir's    P.O.S Empty
PostSubject: Re: Muddstir's P.O.S   Muddstir's    P.O.S Icon_minitimeMarch 16th 2018, 7:17 pm

I need some brackets for this new frame and here is how i made them. Took some 2 x 2 - .125 wall square tube and cut it into 1in tall pcs, needed 8 of them.

Muddstir's    P.O.S 20180320

Then marked out and drilled 4 - 3/8 holes per pc.

 Muddstir's    P.O.S 20180322

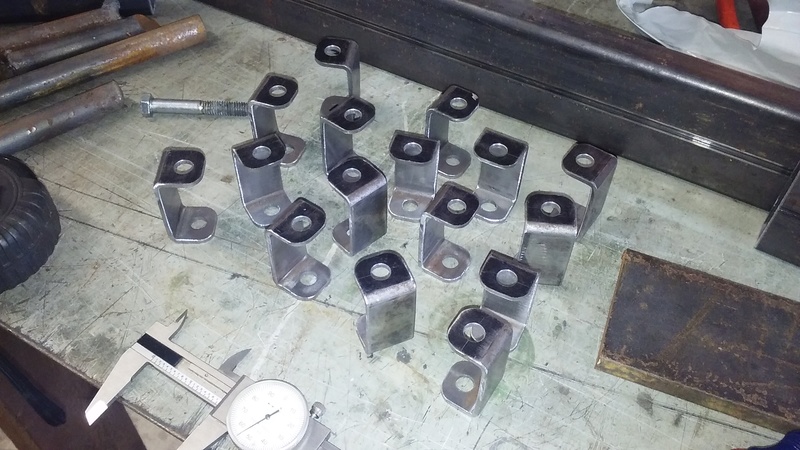

Then i cut them in half to give me 16 final pcs. There not completely finished but rest has to wait till their welded to the frame.

Muddstir's    P.O.S 20180321
Back to top Go down
biggasmowers
Veteran Member
biggasmowers
Veteran Member

1000+ Posts
1000+ Posts!
2018 Build-Off Finalist
2018 Build-Off Finalist

Age : 24
Join date : 2016-12-30
Points : 4885
Posts : 1944
Location : Kansas

Muddstir's    P.O.S Empty
PostSubject: Re: Muddstir's P.O.S   Muddstir's    P.O.S Icon_minitimeMarch 16th 2018, 8:09 pm

Wow that's some nice fabrication skills ! They all look uniform and very clean. What are they going to be used for?
Back to top Go down
muddstir
Member
muddstir
Member

2018 Build-Off Entrant
2018 Build-Off Entrant

Join date : 2012-01-22
Points : 4992
Posts : 318
Location : Western,PA

Muddstir's    P.O.S Empty
PostSubject: Re: Muddstir's P.O.S   Muddstir's    P.O.S Icon_minitimeApril 10th 2018, 9:34 pm

Got quite afew things-steps started on this now but nothing fully complete yet. Kinda goes like this- figure what part I need here, get that so i can half build this section to figure out what this measurement will be. Then that measurement lets me build the next part that has to match the frist part but be different in most functions. Then see what parts i need to buy to get everything working together and finished.
Then comes online shopping see who has what and cost, shipping time.  Then swapping this style of part for a different style but that style takes another part to make it work, then the cycle repeats.
So by friday i should have something in the mail that might allow me to finish something

But here is where my frame sits. It is welded together (i should say half of the frame. I got a whole lower section to add to the first section thats welded together.)
Muddstir's    P.O.S 20180323
Muddstir's    P.O.S 20180324
Back to top Go down
Crazy_Carl
Veteran Member
Crazy_Carl
Veteran Member

2018 Build-Off Entrant
2018 Build-Off Entrant
2500+ Posts
2500+ Posts!
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 35
Join date : 2017-10-30
Points : 5288
Posts : 2561
Location : Rochester, New York

Muddstir's    P.O.S Empty
PostSubject: Re: Muddstir's P.O.S   Muddstir's    P.O.S Icon_minitimeApril 11th 2018, 7:17 am

That frame will definitely be strong enough. I love those F style clamps. I have a couple of mini 4" and big 12" ones at work and at home. I use them all the time. They make a handy press or spreader in a pinch too.
Back to top Go down
Sponsored content





Muddstir's    P.O.S Empty
PostSubject: Re: Muddstir's P.O.S   Muddstir's    P.O.S Icon_minitime

Back to top Go down

Muddstir's P.O.S
Back to top
Page 1 of 3Go to page : 1, 2, 3  Next

Permissions in this forum:You cannot reply to topics in this forum
All-Terrain Lawn Tractor Forum :: Tractor Project Builds :: Off Road & Rally Tractors-
Jump to:
