 74 Franken Sears

Go down
5 posters
AuthorMessage
Buck
Member
Buck
Member


Join date : 2017-11-01
Points : 2672
Posts : 282
Location : Eastern Ontario

74 Franken Sears  Empty
PostSubject: 74 Franken Sears    74 Franken Sears  Icon_minitimeMarch 18th 2018, 8:16 pm

I picked this pile of scrap for 50 bucks, i wanted the 633 out of it and the blade.
It was a mess the 633 full of water, the mounting bolts were all stripped out, the 10hp Tecumseh snowblower engine was full of water and connecting rod made a racket.

74 Franken Sears  20171120

pulled the 633 to lock it, 74 Franken Sears  2429134702 everything was seized, couldn't pull the brake off or one of the hubs i ended up snapping it( still looking for one) i heated up the cast and welded it back together so far so good, drilled and heli coiled the mounting holes and said screw it for now and put it back in the tractor.
74 Franken Sears  20180318
74 Franken Sears  20171121


Back to top Go down
Buck
Member
Buck
Member


Join date : 2017-11-01
Points : 2672
Posts : 282
Location : Eastern Ontario

74 Franken Sears  Empty
PostSubject: Re: 74 Franken Sears    74 Franken Sears  Icon_minitimeMarch 18th 2018, 8:25 pm

So now a new plan( after watch you guys on the build off)

-Replace Motor with another 10hp i have laying around until i find somthing better
- stretch the front, front suspension coil overs, wider front axle
- rear suspension (half leaf or full not sure yet)
- bumpers front and rear, lights because i like to see
- Atv tires 26" rear, not sure of the front yet
- winch because these things are heavy
- beef up steering
- better seat mount, combined with a tool/rope box
- build a grill and hood
Back to top Go down
Crazy_Carl
Veteran Member
Crazy_Carl
Veteran Member

2018 Build-Off Entrant
2018 Build-Off Entrant
2500+ Posts
2500+ Posts!
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 35
Join date : 2017-10-30
Points : 5123
Posts : 2561
Location : Rochester, New York

74 Franken Sears  Empty
PostSubject: Re: 74 Franken Sears    74 Franken Sears  Icon_minitimeMarch 18th 2018, 8:28 pm

Sounds like a good plan to me. 74 Franken Sears  2731072446 74 Franken Sears  102878487
Back to top Go down
Buck
Member
Buck
Member


Join date : 2017-11-01
Points : 2672
Posts : 282
Location : Eastern Ontario

74 Franken Sears  Empty
PostSubject: Re: 74 Franken Sears    74 Franken Sears  Icon_minitimeMarch 18th 2018, 8:42 pm

Tear down
old engine off, this thing is haggard lol
74 Franken Sears  20180319
74 Franken Sears  20180320
74 Franken Sears  20180321
74 Franken Sears  20180322
Ok should work, had to use the seat spring on the other sears because i keep breaking them, this sould work for now before i build the box 74 Franken Sears  20180323
Dash has seen better days
74 Franken Sears  20180324
Back to top Go down
Crazy_Carl
Veteran Member
Crazy_Carl
Veteran Member

2018 Build-Off Entrant
2018 Build-Off Entrant
2500+ Posts
2500+ Posts!
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 35
Join date : 2017-10-30
Points : 5123
Posts : 2561
Location : Rochester, New York

74 Franken Sears  Empty
PostSubject: Re: 74 Franken Sears    74 Franken Sears  Icon_minitimeMarch 18th 2018, 9:16 pm

Man this tractor is in rough shape. I like how you’re saving it.
Back to top Go down
Buck
Member
Buck
Member


Join date : 2017-11-01
Points : 2672
Posts : 282
Location : Eastern Ontario

74 Franken Sears  Empty
PostSubject: Re: 74 Franken Sears    74 Franken Sears  Icon_minitimeMarch 18th 2018, 9:27 pm

Crazy_Carl wrote:
Man this tractor is in rough shape.  I like how you’re saving it.

Ya forsure, these things are tanks there worth saving, this one is not going to look like a sears but the bones are good.

I would like to find a wheel horse like the one your have. you can't beat the old garden tractors for being built to last
Back to top Go down
Buck
Member
Buck
Member


Join date : 2017-11-01
Points : 2672
Posts : 282
Location : Eastern Ontario

74 Franken Sears  Empty
PostSubject: Re: 74 Franken Sears    74 Franken Sears  Icon_minitimeMarch 20th 2018, 8:16 pm

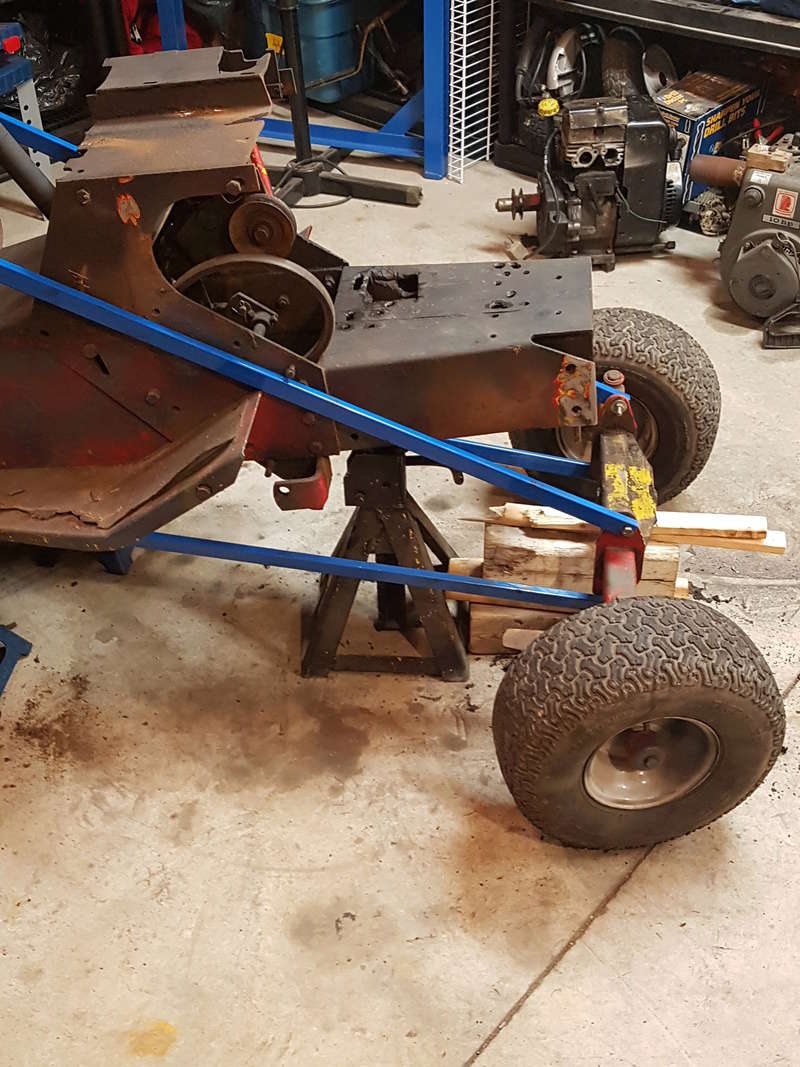

so this what im thinking for the front,the control arms will be parallel with each other, with a track bar and coils over the front
