 Small Off-Road Supplies Trailer

Go down
AuthorMessage
AllisKidD21
Moderator
Moderator
avatar

Age : 19
Join date : 2016-07-10
Posts : 3718
Forum Rep : 121
Location : Glencoe, Ontario

PostSubject: Small Off-Road Supplies Trailer   Sun Aug 05, 2018 11:15 pm

So I came up with the idea to turn the kart from my old Kohler generator into a neat little trailer to take with us when we go wheeling way back in the woods somewhere for a long while.



The idea was to just to take the front caster out and make a tongue that bolts into the same spot that the caster did.

Got the caster removed:



Started making the tongue out of some round tube steel:





Bolted it up and added some bracing to stop the small angle steel there from flexing with weight on the trailer:

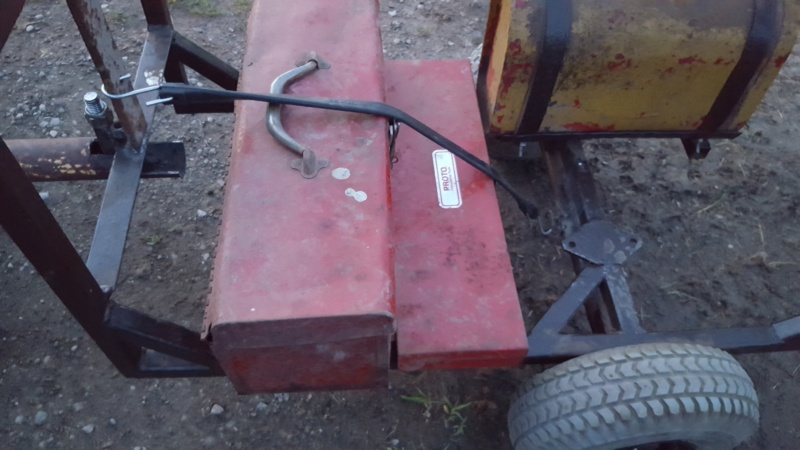

Got a couple little tool boxes laid down on there, they fit pretty darn good:





Just got a tarp strap holding them down, should be good enough.

Here's the tonuge setup:





I made it this way so I can pull the pin out and flip the end of the tongue upside down, as the draw bars on some of the other tractors are quite a bit lower. Should work nice to keep the trailer mostly level with any of the rigs pulling it.

I'm liking the idea of this little unit so far though, I'm planning on keeping the fuel tank to re-fuel the tractors while off-roading. Just gotta find a way to pump it outta there, maybe one of those big primer things for snowblowers or something. Also I'd definitely like to put some bigger wheels on it at some point. But yeah, should be a handy rig. Even with the tank and both tool boxes there's still a good amount of room for some other stuff to sit. Let me know what ya think!

_______________________________________________
"Here's another option, it's not as violent but it's dishonest. So it has that going for it" - Red Green                "Memory is good, remember that" - Tomas Haake
                                                                        ----Uploading Pictures----
        - M.T.D. Off-Road Build

- Toro Rat Rod Tractor Build
        - Ford LT 110 Off-Road Build
        - Craftsman GT 6000 Off-Road/Workhorse Build
        -John Deere 110 Basic Project


Last edited by AllisKidD21 on Fri Aug 10, 2018 1:10 am; edited 1 time in total
Back to top Go down
Creepycrawler
Skilled
Skilled
avatar

Age : 31
Join date : 2013-07-02
Posts : 381
Forum Rep : 7
Location : Logan Ohio

PostSubject: Re: Small Off-Road Supplies Trailer   Mon Aug 06, 2018 12:36 pm

cool idea, I like it. I have a idea for you for getting the fuel out. get you a small 12 volt air compressor, (which would be handy to have anyways for airing up flat tires) add a tire valve in the top of your gas tank and just pressurize it with the air compressor and it will push the fuel out the hose.
Back to top Go down
MatthewD
Grand Master
Grand Master
avatar

Age : 17
Join date : 2014-11-16
Posts : 1962
Forum Rep : 37
Location : Northern Ireland

PostSubject: Re: Small Off-Road Supplies Trailer   Mon Aug 06, 2018 1:10 pm

Cool trailer. You could make the tongue pivot on the frame, that would be nice for going round sharp corners and avoid jack knifing. For getting the fuel out of the tank, you could use a manual fuel pump like this one to siphon it into a tractor tank.
Back to top Go down
AllisKidD21
Moderator
Moderator
avatar

Age : 19
Join date : 2016-07-10
Posts : 3718
Forum Rep : 121
Location : Glencoe, Ontario

PostSubject: Re: Small Off-Road Supplies Trailer   Mon Aug 06, 2018 1:47 pm

@Creepycrawler wrote:
cool idea, I like it. I have a idea for you for getting the fuel out. get you a small 12 volt air compressor, (which would be handy to have anyways for airing up flat tires) add a tire valve in the top of your gas tank and just pressurize it with the air compressor and it will push the fuel out the hose.

Thanks CC! That's a neat idea with the air pump actually. I do have this little guy here I could use for that:





It's just got the 12v plug for you car, but I'm probably gonna cut that off, put some alligator clips on the ends, and add a toggle switch. That way I could just hook it up to the battery of any of tbe tractors. Thanks for the idea! Haha.

@MatthewD wrote:
Cool trailer. You could make the tongue pivot on the frame, that would be nice for going round sharp corners and avoid jack knifing. For getting the fuel out of the tank, you could use a manual fuel pump like this one to siphon it into a tractor tank.

Thanks Matt! Yeah that little pump thing looks just like the one I was talking about. It'd work good for sure, but I'm kinda liking CreepyCrawler's idea so I'm gonna try that and see if it works.

_______________________________________________
"Here's another option, it's not as violent but it's dishonest. So it has that going for it" - Red Green                "Memory is good, remember that" - Tomas Haake
                                                                        ----Uploading Pictures----
        - M.T.D. Off-Road Build

- Toro Rat Rod Tractor Build
        - Ford LT 110 Off-Road Build
        - Craftsman GT 6000 Off-Road/Workhorse Build
        -John Deere 110 Basic Project
Back to top Go down
Crazy_Carl
Grand Master
Grand Master
avatar

Age : 29
Join date : 2017-10-30
Posts : 1823
Forum Rep : 76
Location : Rochester, New York

PostSubject: Re: Small Off-Road Supplies Trailer   Mon Aug 06, 2018 8:52 pm

Man I'd love something small like this.  Seems like I always need a chainsaw on the trails I ride.

You should definitely add a milk crate for throwing odds and ends in.

I was going to suggest a cordless drill with a pump on it but honestly, I think putting on a good ole gas can held down with a bungie would be the simple and easy way to go.
Back to top Go down
AllisKidD21
Moderator
Moderator
avatar

Age : 19
Join date : 2016-07-10
Posts : 3718
Forum Rep : 121
Location : Glencoe, Ontario

PostSubject: Re: Small Off-Road Supplies Trailer   Mon Aug 06, 2018 9:51 pm

Yeah that would be simpler, but the cradle to hold the fuel tank in place is welded to the frame, so I figured I'd just leave it instead of cutting it all off. Haha.

Alrighty so I got some stuff done today. I got some small clamps hooked up to the leads on the compressor:



Then for pumping out the fuel I drilled the vent hole in the fuel cap bigger and pressed in a valve stem that I cut apart.



Works good! It pumps the fuel right outta there, haha. Might take a couple seconds to fully pressurize when the tank is close to emtpy, but that's no big deal. So now I just gotta get a length of fuel line coming off the fitting to I can get the fuel into the tanks on the tractors.

I just used one of the old generator mounts to bolt the little compressor down:

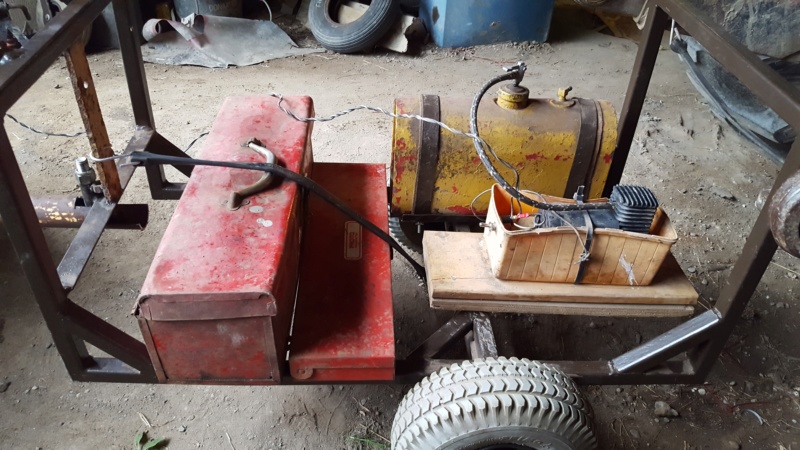

Fits in there pretty good! Had the little trailer hooked up to the GT and the leads for the compressor are easily long enough to reach the battery even while the trailer is still hooked up, so that's pretty handy. Let me know what ya think!

_______________________________________________
"Here's another option, it's not as violent but it's dishonest. So it has that going for it" - Red Green                "Memory is good, remember that" - Tomas Haake
                                                                        ----Uploading Pictures----
        - M.T.D. Off-Road Build

- Toro Rat Rod Tractor Build
        - Ford LT 110 Off-Road Build
        - Craftsman GT 6000 Off-Road/Workhorse Build
        -John Deere 110 Basic Project
Back to top Go down
Crazy_Carl
Grand Master
Grand Master
avatar

Age : 29
Join date : 2017-10-30
Posts : 1823
Forum Rep : 76
Location : Rochester, New York

PostSubject: Re: Small Off-Road Supplies Trailer   Mon Aug 06, 2018 9:53 pm

Glad the plan worked out! nice work.
Back to top Go down
AllisKidD21
Moderator
Moderator
avatar

Age : 19
Join date : 2016-07-10
Posts : 3718
Forum Rep : 121
Location : Glencoe, Ontario

PostSubject: Re: Small Off-Road Supplies Trailer   Mon Aug 06, 2018 10:18 pm

Thanks Carl!

_______________________________________________
"Here's another option, it's not as violent but it's dishonest. So it has that going for it" - Red Green                "Memory is good, remember that" - Tomas Haake
                                                                        ----Uploading Pictures----
        - M.T.D. Off-Road Build

- Toro Rat Rod Tractor Build
        - Ford LT 110 Off-Road Build
        - Craftsman GT 6000 Off-Road/Workhorse Build
        -John Deere 110 Basic Project
Back to top Go down
Creepycrawler
Skilled
Skilled
avatar

Age : 31
Join date : 2013-07-02
Posts : 381
Forum Rep : 7
Location : Logan Ohio

PostSubject: Re: Small Off-Road Supplies Trailer   Mon Aug 06, 2018 10:49 pm

wow you work fast, thats really cool, glad it worked out for you. I had another idea for your trailer, do you have a hand crank winch laying around you could mount to the top bar on the back of the trailer and use it like a tow truck if you have a mower lose a wheel or break down?
Back to top Go down
AllisKidD21
Moderator
Moderator
avatar

Age : 19
Join date : 2016-07-10
Posts : 3718
Forum Rep : 121
Location : Glencoe, Ontario

PostSubject: Re: Small Off-Road Supplies Trailer   Tue Aug 07, 2018 1:07 am

Thanks man! Yeah that tow truck idea actually crossed my mind at one point, and it'd probably be pretty handy. If I ever did that though I'd wanna upgrade the wheels because I don't trust them to hold that kinda weight. Shouldn't be hard to do that though, there's bound to be some old wheels lying around here I could use. lol!

_______________________________________________
"Here's another option, it's not as violent but it's dishonest. So it has that going for it" - Red Green                "Memory is good, remember that" - Tomas Haake
                                                                        ----Uploading Pictures----
        - M.T.D. Off-Road Build

- Toro Rat Rod Tractor Build
        - Ford LT 110 Off-Road Build
        - Craftsman GT 6000 Off-Road/Workhorse Build
        -John Deere 110 Basic Project
Back to top Go down
Crazy_Carl
Grand Master
Grand Master
avatar

Age : 29
Join date : 2017-10-30
Posts : 1823
Forum Rep : 76
Location : Rochester, New York

PostSubject: Re: Small Off-Road Supplies Trailer   Wed Aug 08, 2018 9:44 pm

Yes I love the winch idea.  Just put on some bigger tires as far back as you can put them so the load of the towed tractor will be closer to them.
Back to top Go down
AllisKidD21
Moderator
Moderator
avatar

Age : 19
Join date : 2016-07-10
Posts : 3718
Forum Rep : 121
Location : Glencoe, Ontario

PostSubject: Re: Small Off-Road Supplies Trailer   Wed Aug 08, 2018 11:37 pm

Yeah it'd be pretty handy for sure. We'll have to see if I can rig something up here maybe, haha.

_______________________________________________
"Here's another option, it's not as violent but it's dishonest. So it has that going for it" - Red Green                "Memory is good, remember that" - Tomas Haake
                                                                        ----Uploading Pictures----
        - M.T.D. Off-Road Build

- Toro Rat Rod Tractor Build
        - Ford LT 110 Off-Road Build
        - Craftsman GT 6000 Off-Road/Workhorse Build
        -John Deere 110 Basic Project
Back to top Go down
MightyRaze
Administrator
Administrator
avatar

Age : 43
Join date : 2016-09-06
Posts : 4249
Forum Rep : 191
Location : Shawnee, OK

PostSubject: Re: Small Off-Road Supplies Trailer   Thu Aug 09, 2018 11:17 pm

Very cool idea. I have used pressure to push gas before, but not like this.

_______________________________________________
(Kal-El) 1982 Murray GT [2018 Entry] Progress:  COMPLETE!
Murray CCT (KAL prebuild)
Sasquatch II [2017 Finalist]
Li'l Red Murray
Forum Administrator ~ Chat Moderator ~ Facebook Page Admin
ATLTF Facebook Page
How To Upload Pictures
ATLTF Staff:
Administrators: @Doug, @"Doc Sprocket", @Stretch44875, @MightyRaze
Moderators: @TheRainbowBoxer, @AllisKidD21
Back to top Go down
http://mightyraze.com
AllisKidD21
Moderator
Moderator
avatar

Age : 19
Join date : 2016-07-10
Posts : 3718
Forum Rep : 121
Location : Glencoe, Ontario

PostSubject: Re: Small Off-Road Supplies Trailer   Fri Aug 10, 2018 1:08 am

Thanks! I'm hoping it proves rather effective on the next trip, haha.

_______________________________________________
"Here's another option, it's not as violent but it's dishonest. So it has that going for it" - Red Green                "Memory is good, remember that" - Tomas Haake
                                                                        ----Uploading Pictures----
        - M.T.D. Off-Road Build

- Toro Rat Rod Tractor Build
        - Ford LT 110 Off-Road Build
        - Craftsman GT 6000 Off-Road/Workhorse Build
        -John Deere 110 Basic Project
Back to top Go down
mr.modified
Seasoned Veteran
Seasoned Veteran
avatar

Age : 28
Join date : 2013-11-02
Posts : 2157
Forum Rep : 41
Location : New Jersey

PostSubject: Re: Small Off-Road Supplies Trailer   Sun Aug 12, 2018 1:02 am

Turned out pretty neat

_______________________________________________
***Simplicity Racing Research & Development*** #64
Simplicity Adventure Edition
Diesel Submarine Project
Baja Sears Suburban
Modified Briggs Model 5s
ATLTF.COM Race Truck
Back to top Go down
AllisKidD21
Moderator
Moderator
avatar

Age : 19
Join date : 2016-07-10
Posts : 3718
Forum Rep : 121
Location : Glencoe, Ontario

PostSubject: Re: Small Off-Road Supplies Trailer   Sun Aug 12, 2018 1:09 am

Thanks mr.mod!

_______________________________________________
"Here's another option, it's not as violent but it's dishonest. So it has that going for it" - Red Green                "Memory is good, remember that" - Tomas Haake
                                                                        ----Uploading Pictures----
        - M.T.D. Off-Road Build

- Toro Rat Rod Tractor Build
        - Ford LT 110 Off-Road Build
        - Craftsman GT 6000 Off-Road/Workhorse Build
        -John Deere 110 Basic Project
Back to top Go down
prancstaman
Master
Master
avatar

Join date : 2015-02-02
Posts : 925
Forum Rep : 40
Location : Cleveland,Ohio

PostSubject: Re: Small Off-Road Supplies Trailer   Tue Aug 14, 2018 9:49 pm

Like the trailer/mobile gas station/future tractor tower, LOL. good idea with the air compressor too.
Back to top Go down
AllisKidD21
Moderator
Moderator
avatar

Age : 19
Join date : 2016-07-10
Posts : 3718
Forum Rep : 121
Location : Glencoe, Ontario

PostSubject: Re: Small Off-Road Supplies Trailer   Tue Aug 14, 2018 10:39 pm

Thanks! Haha, yeah no kidding, pretty much got a little mobile service station here. lol!

_______________________________________________
"Here's another option, it's not as violent but it's dishonest. So it has that going for it" - Red Green                "Memory is good, remember that" - Tomas Haake
                                                                        ----Uploading Pictures----
        - M.T.D. Off-Road Build

- Toro Rat Rod Tractor Build
        - Ford LT 110 Off-Road Build
        - Craftsman GT 6000 Off-Road/Workhorse Build
        -John Deere 110 Basic Project
Back to top Go down
Okie743
New Member
New Member


Join date : 2014-08-19
Posts : 1
Forum Rep : 0

PostSubject: Re: Small Off-Road Supplies Trailer   Sat Aug 18, 2018 9:01 pm

I'm new here and not sure about replying, etc,
But I built a trailer something similar in form of little cycle trailer, kept it low to the ground with 8 inch tires.

I added fenders and a skid bar at about a 45 degree angle in the front and rear of the wheels and when going through the woods if it encounters a tree going towards the tire/fender it will just slide around the tree. Really handy for hauling deer, tree stands, deer feeders and feed and I use it around the house for hauling rotor tillers, fill dirt, rocks, etc.

The trailer is roughly about 2 ft wide (same width as a Yamaha Big Bear and about 4 ft long. I can go thru the woods at day or night and not have to be concerned about the tires/fenders hanging up on any obstacles. It just skids around the trees, bushes, etc.

If crossing a deep ditch the rear of the trailer is free to just drag. I have a receiver type hitch on the Yamaha 350 Big Bear.
Back to top Go down
AllisKidD21
Moderator
Moderator
avatar

Age : 19
Join date : 2016-07-10
Posts : 3718
Forum Rep : 121
Location : Glencoe, Ontario

PostSubject: Re: Small Off-Road Supplies Trailer   Tue Sep 11, 2018 10:57 am

Yeah the nerf bars in front of the wheels is a pretty good idea, I might have to rig up some of those on this little rig at some point.

Anyways I got a good length of line run off the fuel tank outlet, and finally got a chance to try re-fueling a tractor when I ran the ol' B-110 outta gas:



Works great! Doesn't pump out super fast or anything, but it still gets the job done just fine. Now I'd like to try and find a way to hide the pump line and the leads coming off the compressor so they won't get snagged by branches or anything.

_______________________________________________
"Here's another option, it's not as violent but it's dishonest. So it has that going for it" - Red Green                "Memory is good, remember that" - Tomas Haake
                                                                        ----Uploading Pictures----
        - M.T.D. Off-Road Build

- Toro Rat Rod Tractor Build
        - Ford LT 110 Off-Road Build
        - Craftsman GT 6000 Off-Road/Workhorse Build
        -John Deere 110 Basic Project
Back to top Go down
Creepycrawler
Skilled
Skilled
avatar

Age : 31
Join date : 2013-07-02
Posts : 381
Forum Rep : 7
Location : Logan Ohio

PostSubject: Re: Small Off-Road Supplies Trailer   Tue Sep 11, 2018 11:18 am

thats cool man, love seeing it in action, especially helping out the old Allis
Back to top Go down
AllisKidD21
Moderator
Moderator
avatar

Age : 19
Join date : 2016-07-10
Posts : 3718
Forum Rep : 121
Location : Glencoe, Ontario

PostSubject: Re: Small Off-Road Supplies Trailer   Tue Sep 11, 2018 11:24 am

Thanks man! Yeah I'd say I couldn't have found a better test subject! lol!

_______________________________________________
"Here's another option, it's not as violent but it's dishonest. So it has that going for it" - Red Green                "Memory is good, remember that" - Tomas Haake
                                                                        ----Uploading Pictures----
        - M.T.D. Off-Road Build

- Toro Rat Rod Tractor Build
        - Ford LT 110 Off-Road Build
        - Craftsman GT 6000 Off-Road/Workhorse Build
        -John Deere 110 Basic Project
Back to top Go down
Sponsored content




PostSubject: Re: Small Off-Road Supplies Trailer

Back to top Go down

Small Off-Road Supplies Trailer
Back to top
Page 1 of 1
 Similar topics
-
» Off-road camper trailer hire? - Perth, WA
» Offroad Cargo Trailer
» Off Road mower Equipment Utility Trailer
» How do you build an off road trailer?
» Trailer Decking Upkeep

Permissions in this forum:You cannot reply to topics in this forum
All-Terrain Lawn Tractor Forum :: Off Topic :: Off Topic Project Builds-
Jump to:
