PostSubject: Death Machine Offroad Build!   Death Machine Offroad Build! Icon_minitimeMon Aug 05, 2013 12:34 am

Hey guys, This is the beginning of what will soon be a woods machine! So i guess I should probably start out with my plan.. The plan was..
-Buy the tractor off my buddy..
-Fix motor and flat tire..
-Begin mods..
-Beat the hell out of it Very Happy
(I do want to add.. that as soon as school comes back in, progress will increase because I'll have full access to a pro fab shop..)

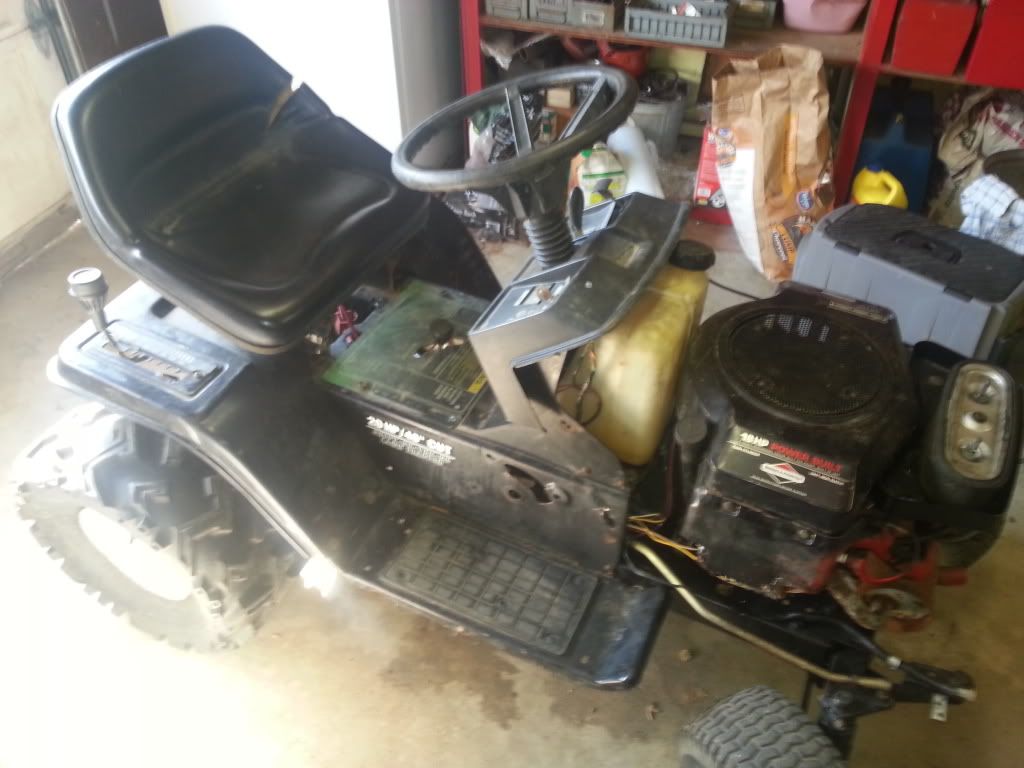

So here is how I got her, the motor was running on 1 cylinder and the right rear tire was off the bead.. Sad
Death Machine Offroad Build! 20130803_170751_zps904fd3a7
So then, I fixed the tire using carb cleaner, a lighter and a crappy bicycle pump.. Its all i have here at my uncles, then I got bored and seen a sick looking opposed in blue on youtube, but it was missing a sticker on one side so i had to top that and keep both stickers..
Death Machine Offroad Build! 20130803_211144_zpsc1707cdb
Death Machine Offroad Build! IMG_20130803_212015_zps98e2562e

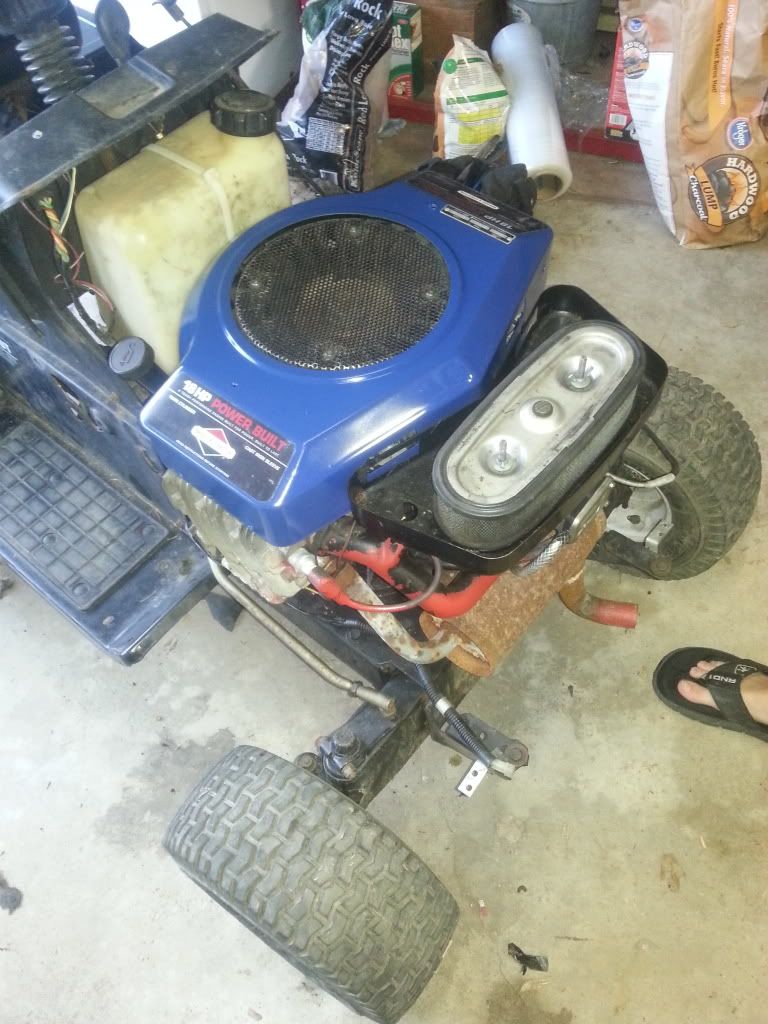

Heres an up close of the motor.. still running on one cylinder.. Sad
Death Machine Offroad Build! 20130803_200714_zpsf46e1db8
So.. running on one cylinder.. it barely sparked. so I made a homemade spark plug wire out of 10g wire and insulated it well.. still didn't run.. So i knew it had to be something internal.. and before I knew it was blowing air out of the intake on the carb.. So i thought maybe that valve had been stuck.. Well it was definitely stuck..
Death Machine Offroad Build! 20130804_175731_zps638b3b54
There a bolt in it!!!
So i pulled the intake manifold off and popped it out really quick! Bam.. torqued head to spec, and she fired right up.. No internal damage done luckily to the valve..

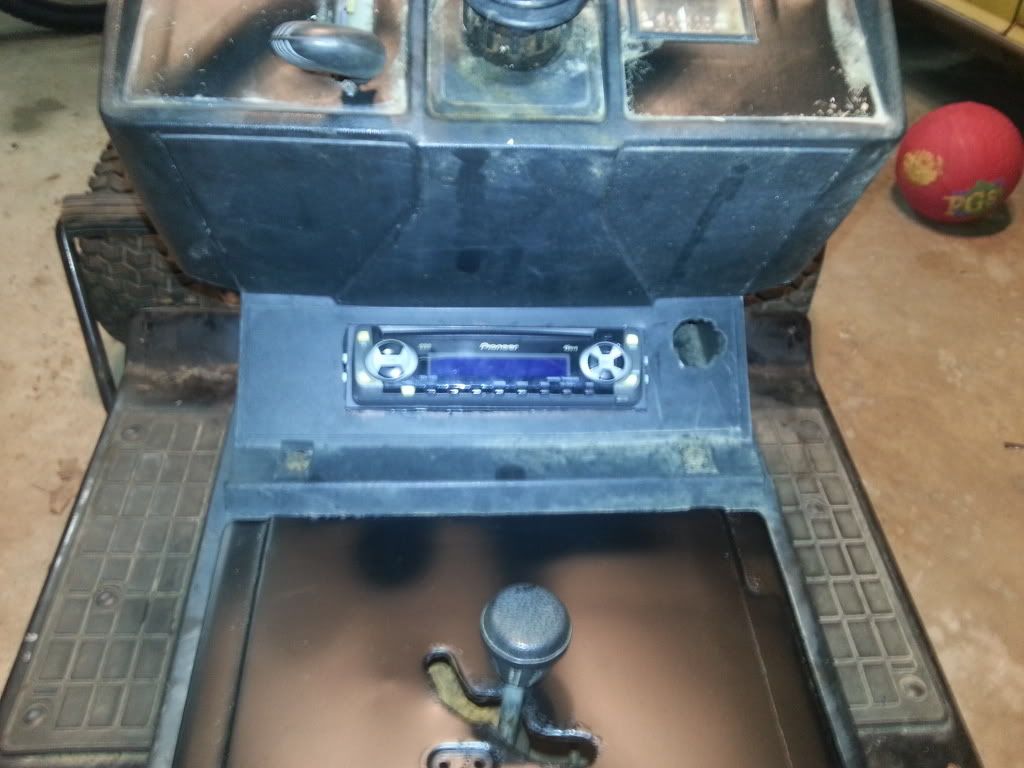

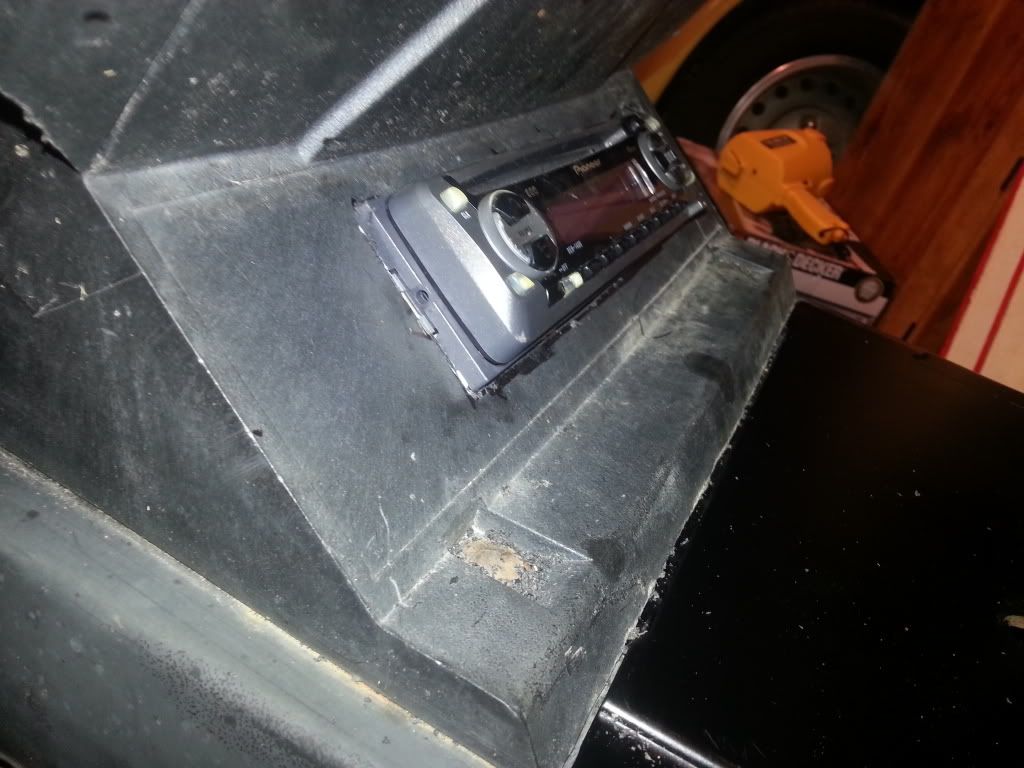

It started to get late so i had to shut her down.. So i started designing a dashboard.. It eventually gonna get tricked out with gauges and toggle switches (under glow!!) Also, push button ignition may be getting a transport if this fails.. So anyhow I found an old pioneer radio and started fitment!
Death Machine Offroad Build! 20130804_210549_zpsebf37fb4
Death Machine Offroad Build! 20130804_210603_zps4e9ac2ea
That all for now.. TO BE CONTINUED TOMORROW!!lol!
