All-Terrain Lawn Tractor Forum
Would you like to react to this message? Create an account in a few clicks or log in to continue.

All-Terrain Lawn Tractor Forum

Like riding lawn tractors through mud, woods, rocks, and snow? Then this is the place for you! Share your ideas, Post your projects and more!

PortalHomeSearchRegisterLog inBuild-OffTop Tractor Challenge
Welcome to the All Terrain Lawn Tractor Forum! . . .
New Top Tractor Challenge and Build-Off Profile Buttons on the menu bar! . . .
2020 Build-Off Winners . . . 1-Hillbilly Offroading . . . 2-darkside0914
HASPIN 2021 . . . Wednesday June 23rd through Sunday June 27th.
2021 Top Tractor Challenge August 14 competition –August 15 competitors ride, Pymatuning Pennsylvania **INFO HERE**
No 2021 Build-Off. Will return in 2022. Stay tuned later this year for rule changes!



 Hot rod craftsman

Go down
Go to page : 1, 2  Next
AuthorMessage
GenevaCustoms
Screwdriver
Screwdriver
GenevaCustoms

Age : 24
Join date : 2013-09-24
Posts : 315
Forum Rep : 0
Location : Florida

Hot rod craftsman Empty
PostSubject: Hot rod craftsman   Hot rod craftsman Icon_minitimeWed Nov 06, 2013 6:25 am

I have a 96 craftsman rear engine rider I used as a offroad until the tranny cracked... Had a 10hp craftsman flathead, ran good but I started working on the Deere cuz I had no tranny and just let it sit. Started gettin the idea of makin it a "hot rod" or "muscle mower". Not a racer by any means just like how id rather drive a 69 coop camaro then a 2013 camaro.. I'm putting a opposed twin on it, or a v twin I like the idea of opposed but is there one that's better? More torque/quicker revs? I plan on building the engine pretty damn good like cam, billet flywheel,rods,dual valve springs, maybe some rockers and lifters? But I have a peerless 700 I need to get the input and bevell gear for it and it'll be fine! So that means I'm running a straight axle. Some fat tires on the back and skinny ones in the front. Direct steer, hot foot, chopped steering lowered a little swing arm in back with single shock, and front axle flex with a little shock on each side. What ya guys think ?
Back to top Go down
Doc Sprocket
Administrator
Administrator
Doc Sprocket

Age : 48
Join date : 2013-04-21
Posts : 2911
Forum Rep : 20
Location : Ontario Canada

Hot rod craftsman Empty
PostSubject: Re: Hot rod craftsman   Hot rod craftsman Icon_minitimeWed Nov 06, 2013 6:54 am

Pretty cool, indeed. But the speed parts for the engine will cost you dearly. With such an engine on a RER, build wheelie bars, you'll need them! I am not entirely sure, but I think the high-buck goodies for the oppy will be more expensive and harder to find than for the V. Truth be told, you're probably best to just do some low-buck performance work on whatever engine you choose and call it good there. It'll still have plenty of grunt.

I'm one of those guys that simply cannot understand why someone would dump $500-$1000 into an OPE engine when it's not necessary. Sure- if you're racing in a league that mandates it, okay. But if you want a LOT of bang for a much lower buck, you're better to source a used bike, quad, or sled- swipe the engine and gearbox, and sell the rest to recoup costs. You'll end up with something that cost you less, but would smoke most built OPE engines.

_______________________________________________
***Get YOUR official "Doc Locked, And Ready To Rock!" Stickers by clicking here!***
***Official Sprocket's Garage vinyl graphics and tees for sale HERE!***
Hot rod craftsman Facebo12
Put down the wrench, and come out with your hands up!-Doc "Tranny Crusher" Sprocket, ATLTF Forum Admin, Thinkerer and Tinkerer, and all-around good dood. Wink

Gen. Mayhem- https://www.atltf.com/t2597-general-mayhem-race-tractor
MULE- https://www.atltf.com/t2153-lawn-boy-utltv
MULEII- https://www.atltf.com/t3328-1970-john-deere-112-the-beginnings-of-mule-ii
MULEIII https://www.atltf.com/t4263-mule3-brainstorming-ideas-etc#58287
Wrench, Wheel, Wreck, Repeat...
Back to top Go down
GenevaCustoms
Screwdriver
Screwdriver
GenevaCustoms

Age : 24
Join date : 2013-09-24
Posts : 315
Forum Rep : 0
Location : Florida

Hot rod craftsman Empty
PostSubject: Re: Hot rod craftsman   Hot rod craftsman Icon_minitimeWed Nov 06, 2013 9:00 am

I want a twin lawnmower cuz I want it to still have a mower engine, and ya I would spend tje money to get it goin first do some little engine mods like polishin, but eventually I'd want to dothose engine mods lol just cuz when you think about it.. its badass ! And yes wheelie bars will be nessasary lol
Back to top Go down
redlinemotorsportts
Moderator
Moderator
redlinemotorsportts

Age : 24
Join date : 2013-03-18
Posts : 3127
Forum Rep : 3
Location : raleigh nc

Hot rod craftsman Empty
PostSubject: Re: Hot rod craftsman   Hot rod craftsman Icon_minitimeWed Nov 06, 2013 10:48 am

@Doc Sprocket wrote:
Pretty cool, indeed. But the speed parts for the engine will cost you dearly. With such an engine on a RER, build wheelie bars, you'll need them! I am not entirely sure, but I think the high-buck goodies for the oppy will be more expensive and harder to find than for the V. Truth be told, you're probably best to just do some low-buck performance work on whatever engine you choose and call it good there. It'll still have plenty of grunt.

I'm one of those guys that simply cannot understand why someone would dump $500-$1000 into an OPE engine when it's not necessary. Sure- if you're racing in a league that mandates it, okay. But if you want a LOT of bang for a much lower buck, you're better to source a used bike, quad, or sled- swipe the engine and gearbox, and sell the rest to recoup costs. You'll end up with something that cost you less, but would smoke most built OPE engines.
Agreed. Who you gunna beat? You could probably buy a bigger engine. I mean I got a 21.5 and I think I'll have my hands full there.

_______________________________________________
Check out my builds!: MTD "Rock Bouncing" Mower -------- 60's Springfeild V-twin Mini Speed Tractor : SOLD!
Hot rod craftsman Screen17
ATLTF.com Facebook admin - Forum Mod
whos mans is this
Back to top Go down
GenevaCustoms
Screwdriver
Screwdriver
GenevaCustoms

Age : 24
Join date : 2013-09-24
Posts : 315
Forum Rep : 0
Location : Florida

Hot rod craftsman Empty
PostSubject: Re: Hot rod craftsman   Hot rod craftsman Icon_minitimeWed Nov 06, 2013 11:13 am

Ya for the mods id wana do mostly just quick revs and stroker mostly just for sound lol
Back to top Go down
GenevaCustoms
Screwdriver
Screwdriver
GenevaCustoms

Age : 24
Join date : 2013-09-24
Posts : 315
Forum Rep : 0
Location : Florida

Hot rod craftsman Empty
PostSubject: Re: Hot rod craftsman   Hot rod craftsman Icon_minitimeThu Nov 07, 2013 6:18 pm

heres some pics of this thing its all tore down to bare frame

Hot rod craftsman Img_0510
chassis
Hot rod craftsman Img_0511
the motor mount i will have to redo when i get the new twin
Hot rod craftsman Img_0512
where the steering assembly goes through the frame
Hot rod craftsman Img_0513
the pile lol
Hot rod craftsman Img_0514

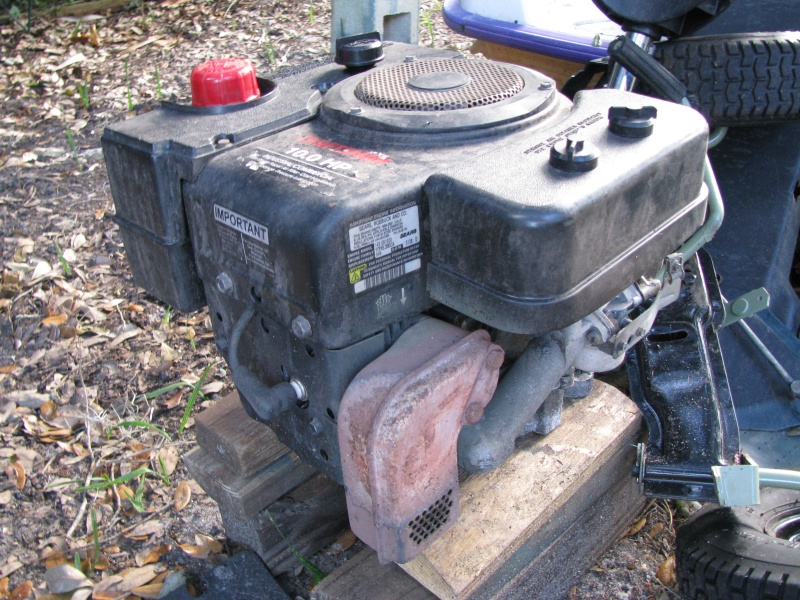

the old 10hp flatty
Hot rod craftsman Img_0515
sneek peak of the deeres new exhuast
Hot rod craftsman Img_0516
the stock "steering box" im going to modify it into direct steer
Hot rod craftsman Img_0517
Hot rod craftsman Img_0518
Hot rod craftsman Img_0519

Back to top Go down
GenevaCustoms
Screwdriver
Screwdriver
GenevaCustoms

Age : 24
Join date : 2013-09-24
Posts : 315
Forum Rep : 0
Location : Florida

Hot rod craftsman Empty
PostSubject: Re: Hot rod craftsman   Hot rod craftsman Icon_minitimeMon Nov 11, 2013 5:47 pm

heres the video on how i made it into a direct steer. keeping the stock mountin holes, and plate. will those 3/16 bolts be tough enough or should i bump it up to 1/4 (if i can i dont know if i have enough room on the coupler....)

https://www.youtube.com/watch?v=6q2NZ-Tdiz8&feature=c4-overview&list=UUpwCVwFunAcpRKg4IR_-XPw
Back to top Go down
GenevaCustoms
Screwdriver
Screwdriver
GenevaCustoms

Age : 24
Join date : 2013-09-24
Posts : 315
Forum Rep : 0
Location : Florida

Hot rod craftsman Empty
PostSubject: Re: Hot rod craftsman   Hot rod craftsman Icon_minitimeSun Nov 17, 2013 7:07 am

The Hot Rod got a engine, not what i had originally planned (being a twin) i couldn't find one around atm so i decided to throw on my old atv engine (Suzuki 160) the frame for that atv was done. im ditching the suspension in the back because i want to eliminate any weaker parts since i have this torqy ass engine now. still might do a inch or so suspension in the front so the aftermath of wheelies isnt very bad... will post pics soon!
Back to top Go down
Doc Sprocket
Administrator
Administrator
Doc Sprocket

Age : 48
Join date : 2013-04-21
Posts : 2911
Forum Rep : 20
Location : Ontario Canada

Hot rod craftsman Empty
PostSubject: Re: Hot rod craftsman   Hot rod craftsman Icon_minitimeSun Nov 17, 2013 9:41 am

I would not rely on those 3/16" bolts. Trouble is, you go much bigger, and you significantly weaken the shaft.

A humble suggestion:

Find a way to rig it so the bolt is not subjected to shear force, but merely keeps the coupler together. In fact, skip the bolts entirely. Picture this: Cutting both ends off a cheap socket extension. Weld the male side to one shaft, the female to the other. Now, you have a joint that is more than capable of transferring the torque without death threats. In a scenario like this, I would stay away from a cross bolt in the joint, but rather do this: Use C-clips to prevent the joint from separating. If you were to file a groove in each shaft inside the box right next to the bushings, and install C-clips, the joint could not separate. The upper half could not move upwards, the lower half could not go down.

Now, I see the point of the coupler- you want to be able to disassemble for service. Thinking ahead like this is never a bad thing. You can maybe expand or improve on my suggestion. Maybe you could use a male socket drive on each shaft, and make a coupler from 2 female drives welded together. C-Clips as above. That way, you yank the C-clips and both shafts will slide out.

_______________________________________________
***Get YOUR official "Doc Locked, And Ready To Rock!" Stickers by clicking here!***
***Official Sprocket's Garage vinyl graphics and tees for sale HERE!***
Hot rod craftsman Facebo12
Put down the wrench, and come out with your hands up!-Doc "Tranny Crusher" Sprocket, ATLTF Forum Admin, Thinkerer and Tinkerer, and all-around good dood. Wink

Gen. Mayhem- https://www.atltf.com/t2597-general-mayhem-race-tractor
MULE- https://www.atltf.com/t2153-lawn-boy-utltv
MULEII- https://www.atltf.com/t3328-1970-john-deere-112-the-beginnings-of-mule-ii
MULEIII https://www.atltf.com/t4263-mule3-brainstorming-ideas-etc#58287
Wrench, Wheel, Wreck, Repeat...
Back to top Go down
GenevaCustoms
Screwdriver
Screwdriver
GenevaCustoms

Age : 24
Join date : 2013-09-24
Posts : 315
Forum Rep : 0
Location : Florida

Hot rod craftsman Empty
PostSubject: Re: Hot rod craftsman   Hot rod craftsman Icon_minitimeMon Nov 18, 2013 3:37 pm

got some pics of this thing

widening the front wheel base. not finished braceing it up though
Hot rod craftsman Img_0521
how it looks with the suzuki
Hot rod craftsman Img_0522
the rear motor mounts (will cap them)
Hot rod craftsman Img_0523
the front mount will connect to the seat bracket to strengthen it up some
Hot rod craftsman Img_0524
it all tached up
Hot rod craftsman Img_0525
it welded up solid(without the flat going accross the box steel and over lapping the original axle)
Hot rod craftsman Img_0526

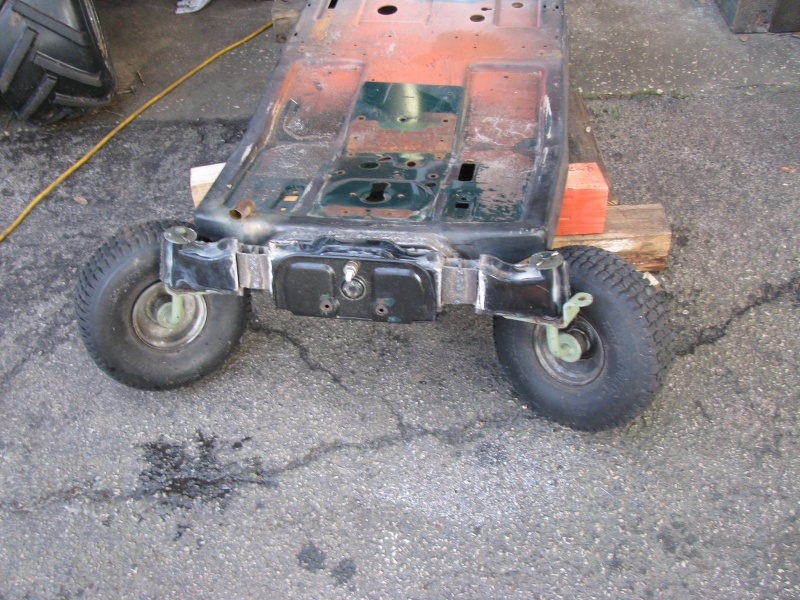

temporaliy bolted on.. (ditchin the front suspenion cuz i dont want anything extra to break lol)
Hot rod craftsman Img_0527

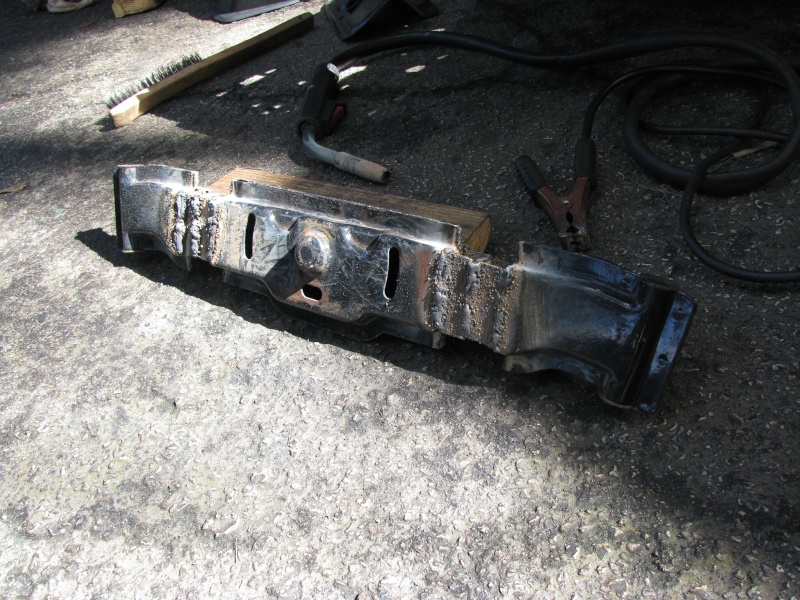

pretty decent weld
Hot rod craftsman Img_0528
side angle
Hot rod craftsman Img_0529
Back to top Go down
k2500life
Hammer
Hammer
k2500life

Age : 23
Join date : 2013-06-19
Posts : 1135
Forum Rep : 2
Location : Southern Florida

Hot rod craftsman Empty
PostSubject: Re: Hot rod craftsman   Hot rod craftsman Icon_minitimeMon Nov 18, 2013 4:02 pm

Sweet can't wait to see it driving with that motor on it!
Back to top Go down
http://www.lastdropgarage.com
craftsmancole
Monkey Wrench
Monkey Wrench
craftsmancole

Age : 21
Join date : 2013-04-05
Posts : 661
Forum Rep : 1
Location : New Smyrna Beach,Fl

Hot rod craftsman Empty
PostSubject: Re: Hot rod craftsman   Hot rod craftsman Icon_minitimeMon Nov 18, 2013 4:03 pm

Looks good so far
Back to top Go down
Doc Sprocket
Administrator
Administrator
Doc Sprocket

Age : 48
Join date : 2013-04-21
Posts : 2911
Forum Rep : 20
Location : Ontario Canada

Hot rod craftsman Empty
PostSubject: Re: Hot rod craftsman   Hot rod craftsman Icon_minitimeMon Nov 18, 2013 5:12 pm

Wow- you got a lot of weld in that front axle. Looks like it will do the job. I'm surprised you didn't fab up a new one.

_______________________________________________
***Get YOUR official "Doc Locked, And Ready To Rock!" Stickers by clicking here!***
***Official Sprocket's Garage vinyl graphics and tees for sale HERE!***
Hot rod craftsman Facebo12
Put down the wrench, and come out with your hands up!-Doc "Tranny Crusher" Sprocket, ATLTF Forum Admin, Thinkerer and Tinkerer, and all-around good dood. Wink

Gen. Mayhem- https://www.atltf.com/t2597-general-mayhem-race-tractor
MULE- https://www.atltf.com/t2153-lawn-boy-utltv
MULEII- https://www.atltf.com/t3328-1970-john-deere-112-the-beginnings-of-mule-ii
MULEIII https://www.atltf.com/t4263-mule3-brainstorming-ideas-etc#58287
Wrench, Wheel, Wreck, Repeat...
Back to top Go down
GenevaCustoms
Screwdriver
Screwdriver
GenevaCustoms

Age : 24
Join date : 2013-09-24
Posts : 315
Forum Rep : 0
Location : Florida

Hot rod craftsman Empty
PostSubject: Re: Hot rod craftsman   Hot rod craftsman Icon_minitimeMon Nov 18, 2013 6:00 pm

Wait till you see what I did this afternoon.... Finished bracein it up with 1/8 flat steel.... Going across the whole extended gap. Don't think it will ever break lol
Back to top Go down
GenevaCustoms
Screwdriver
Screwdriver
GenevaCustoms

Age : 24
Join date : 2013-09-24
Posts : 315
Forum Rep : 0
Location : Florida

Hot rod craftsman Empty
PostSubject: Re: Hot rod craftsman   Hot rod craftsman Icon_minitimeMon Nov 18, 2013 6:02 pm

On the last picture u can see were I ran a quick bead down the very end price. The axle is two pinched pieces of steel so in certain spots all around it I welded a bead to make sure they won't ever separate...
Back to top Go down
willis923
Hammer
Hammer
willis923

Age : 24
Join date : 2013-04-10
Posts : 1408
Forum Rep : 0
Location : Galway NY

Hot rod craftsman Empty
PostSubject: Re: Hot rod craftsman   Hot rod craftsman Icon_minitimeMon Nov 18, 2013 8:24 pm

i see stamped frame.. i'd re enforce it with box steel down the sides, maybe angle crossmembers. just my 2 cents

_______________________________________________
-1974 bolens 1055 (Rolling Thunder)
-1989 Craftsman GT6000 (Blockhead)
-2004 Ford F-250 super duty FX4
-1999 Ford F-350 Superduty 4x4 7.3 Powerstroke


Lt wrote:
Feel free to try... Dont let anything but fear and common sense stop you.


Hot rod craftsman Pbucket

Chat moderator

1st Lieutenant, Volunteer Firefighter, EMT-B, Galway Vol Fire co. Galway NY
Back to top Go down
GenevaCustoms
Screwdriver
Screwdriver
GenevaCustoms

Age : 24
Join date : 2013-09-24
Posts : 315
Forum Rep : 0
Location : Florida

Hot rod craftsman Empty
PostSubject: Re: Hot rod craftsman   Hot rod craftsman Icon_minitimeMon Nov 18, 2013 8:28 pm

Willis! I am going to run at least two pieces a box longways and three sideways. Underneath so you won't even notice it haha
Back to top Go down
willis923
Hammer
Hammer
willis923

Age : 24
Join date : 2013-04-10
Posts : 1408
Forum Rep : 0
Location : Galway NY

Hot rod craftsman Empty
PostSubject: Re: Hot rod craftsman   Hot rod craftsman Icon_minitimeMon Nov 18, 2013 8:31 pm

@GenevaCustoms wrote:
Willis! I am going to run at least two pieces a box longways and three sideways. Underneath so you won't even notice it haha
sounds good!

_______________________________________________
-1974 bolens 1055 (Rolling Thunder)
-1989 Craftsman GT6000 (Blockhead)
-2004 Ford F-250 super duty FX4
-1999 Ford F-350 Superduty 4x4 7.3 Powerstroke


Lt wrote:
Feel free to try... Dont let anything but fear and common sense stop you.


Hot rod craftsman Pbucket

Chat moderator

1st Lieutenant, Volunteer Firefighter, EMT-B, Galway Vol Fire co. Galway NY
Back to top Go down
TroyBilt Pony
Monkey Wrench
Monkey Wrench
TroyBilt Pony

Join date : 2013-06-01
Posts : 578
Forum Rep : 0
Location : West Virginia

Hot rod craftsman Empty
PostSubject: Re: Hot rod craftsman   Hot rod craftsman Icon_minitimeMon Nov 18, 2013 10:01 pm

Might have to copy that front axle idea some day!
Back to top Go down
Doc Sprocket
Administrator
Administrator
Doc Sprocket

Age : 48
Join date : 2013-04-21
Posts : 2911
Forum Rep : 20
Location : Ontario Canada

Hot rod craftsman Empty
PostSubject: Re: Hot rod craftsman   Hot rod craftsman Icon_minitimeTue Nov 19, 2013 6:33 am

I also just noticed your exhaust. Under the running board, where the pipe goes into the bull end of the tee... That restriction is not going to do your engine any favours. You might want to re-think that.

_______________________________________________
***Get YOUR official "Doc Locked, And Ready To Rock!" Stickers by clicking here!***
***Official Sprocket's Garage vinyl graphics and tees for sale HERE!***
Hot rod craftsman Facebo12
Put down the wrench, and come out with your hands up!-Doc "Tranny Crusher" Sprocket, ATLTF Forum Admin, Thinkerer and Tinkerer, and all-around good dood. Wink

Gen. Mayhem- https://www.atltf.com/t2597-general-mayhem-race-tractor
MULE- https://www.atltf.com/t2153-lawn-boy-utltv
MULEII- https://www.atltf.com/t3328-1970-john-deere-112-the-beginnings-of-mule-ii
MULEIII https://www.atltf.com/t4263-mule3-brainstorming-ideas-etc#58287
Wrench, Wheel, Wreck, Repeat...
Back to top Go down
redlinemotorsportts
Moderator
Moderator
redlinemotorsportts

Age : 24
Join date : 2013-03-18
Posts : 3127
Forum Rep : 3
Location : raleigh nc

Hot rod craftsman Empty
PostSubject: Re: Hot rod craftsman   Hot rod craftsman Icon_minitimeTue Nov 19, 2013 7:56 am

Those are 3/4" spindles with bearings i imagine? Thats why i like old rer tires and axles,  my racer if full ball bearing front and rear axles/spindles.

_______________________________________________
Check out my builds!: MTD "Rock Bouncing" Mower -------- 60's Springfeild V-twin Mini Speed Tractor : SOLD!
Hot rod craftsman Screen17
ATLTF.com Facebook admin - Forum Mod
whos mans is this


Last edited by redlinemotorsportts on Tue Nov 19, 2013 8:33 am; edited 1 time in total
Back to top Go down
GenevaCustoms
Screwdriver
Screwdriver
GenevaCustoms

Age : 24
Join date : 2013-09-24
Posts : 315
Forum Rep : 0
Location : Florida

Hot rod craftsman Empty
PostSubject: Re: Hot rod craftsman   Hot rod craftsman Icon_minitimeTue Nov 19, 2013 8:07 am

Doc I thought about it and ive been runnin it for while now though... Idles perfect (better actualky) and revs nice no backfirin and actually ts workin great lol
Back to top Go down
GenevaCustoms
Screwdriver
Screwdriver
GenevaCustoms

Age : 24
Join date : 2013-09-24
Posts : 315
Forum Rep : 0
Location : Florida

Hot rod craftsman Empty
PostSubject: Re: Hot rod craftsman   Hot rod craftsman Icon_minitimeTue Nov 19, 2013 7:46 pm

finsiihed up the front end.. Beefed like crazy and the beginning of the seat mount

blends into the night..
Hot rod craftsman Img_0530
front end veiw
Hot rod craftsman Img_0531
Hot rod craftsman Img_0532
88 wag and 76 vett in the backround
Hot rod craftsman Img_0533
theres the beef i was talkin bout doin... 1/4 flat steel solid as a brick now...
Hot rod craftsman Img_0534

watch the youtube vid and tell me what you think about the gas tank idea
https://www.youtube.com/watch?v=VrxiE63qr2A&feature=youtu.be
Back to top Go down
GenevaCustoms
Screwdriver
Screwdriver
GenevaCustoms

Age : 24
Join date : 2013-09-24
Posts : 315
Forum Rep : 0
Location : Florida

Hot rod craftsman Empty
PostSubject: Re: Hot rod craftsman   Hot rod craftsman Icon_minitimeWed Nov 20, 2013 6:25 pm

this engine was using a gravity fed fuel system like most atvs. i dont really want to mount a gas tank above the engine on this build because it will ruin the look of it. lol. so i was wondering if yall knew if this engine/carb could take a inline electric fuel pump. it is a 160cc with jets of 22.5 and 87.5 (if i member correctly). i was thinkin it would need maybe 1-2 psi?? idk if they even make an inline fuel pump with such low pressure... but the hose size is 3/8 and it would run the fuel UP to the carb, bein as i want to put the tank below my seat.

thanks
Back to top Go down
GenevaCustoms
Screwdriver
Screwdriver
GenevaCustoms

Age : 24
Join date : 2013-09-24
Posts : 315
Forum Rep : 0
Location : Florida

Hot rod craftsman Empty
PostSubject: Re: Hot rod craftsman   Hot rod craftsman Icon_minitimeWed Nov 20, 2013 6:27 pm

Back to top Go down
Sponsored content




Hot rod craftsman Empty
PostSubject: Re: Hot rod craftsman   Hot rod craftsman Icon_minitime

Back to top Go down

Hot rod craftsman
Back to top
Page 1 of 2Go to page : 1, 2  Next

Permissions in this forum:You cannot reply to topics in this forum
All-Terrain Lawn Tractor Forum :: Tractor Project Builds :: Rat Rod, Hybrid, and Unique Tractors-
Jump to:
