Jonjunk's Craftsman mud machine - Page 3 Empty
PostSubject: Re: Jonjunk's Craftsman mud machine   Jonjunk's Craftsman mud machine - Page 3 Icon_minitimeMay 19th 2014, 9:04 pm

Didn't have room for a brace but the bottom pipe rests on the frame so im not worried yet.
Back to top Go down
redlinemotorsportts
Moderator
Moderator
redlinemotorsportts

2500+ Posts
2500+ Posts!
2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 25
Join date : 2013-03-18
Posts : 3129
Location : raleigh nc

Jonjunk's Craftsman mud machine - Page 3 Empty
PostSubject: Re: Jonjunk's Craftsman mud machine   Jonjunk's Craftsman mud machine - Page 3 Icon_minitimeMay 20th 2014, 6:57 am

Looks good man!

_______________________________________________
Check out my builds!: MTD "Rock Bouncing" Mower -------- 60's Springfeild V-twin Mini Speed Tractor : SOLD!
Jonjunk's Craftsman mud machine - Page 3 Screen17
ATLTF.com Facebook admin - Forum Mod
whos mans is this
Back to top Go down
jonjunk
New Member
New Member
jonjunk


Age : 28
Join date : 2014-03-21
Posts : 66
Location : Montrose, MN

Jonjunk's Craftsman mud machine - Page 3 Empty
PostSubject: Re: Jonjunk's Craftsman mud machine   Jonjunk's Craftsman mud machine - Page 3 Icon_minitimeMay 20th 2014, 1:26 pm

Luckily the picture doesn't show the welds lol, and that 90degree angle under it is square tubing lol.
Back to top Go down
kawasaki220
Established Member
Established Member
kawasaki220

500+ Posts
500+ Posts
2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 21
Join date : 2014-01-22
Posts : 546
Location : north carolina

Jonjunk's Craftsman mud machine - Page 3 Empty
PostSubject: Re: Jonjunk's Craftsman mud machine   Jonjunk's Craftsman mud machine - Page 3 Icon_minitimeMay 20th 2014, 3:38 pm

thats nice like the chrome muffler
Back to top Go down
jonjunk
New Member
New Member
jonjunk


Age : 28
Join date : 2014-03-21
Posts : 66
Location : Montrose, MN

Jonjunk's Craftsman mud machine - Page 3 Empty
PostSubject: Re: Jonjunk's Craftsman mud machine   Jonjunk's Craftsman mud machine - Page 3 Icon_minitimeMay 20th 2014, 8:30 pm

Got the suspension attached now I need to fabricate the shock mounts and drag link.

Jonjunk's Craftsman mud machine - Page 3 IMAG0277
Back to top Go down
LAWN MOWER MUDDER
Established Member
Established Member
LAWN MOWER MUDDER

500+ Posts
500+ Posts
2014 Build-Off Top 3 Winner
2014 Build-Off Top 3 Winner

Age : 21
Join date : 2013-04-08
Posts : 906
Location : Central Pa

Jonjunk's Craftsman mud machine - Page 3 Empty
PostSubject: Re: Jonjunk's Craftsman mud machine   Jonjunk's Craftsman mud machine - Page 3 Icon_minitimeMay 20th 2014, 8:36 pm

Boy, your panhard bar would be hard to figure out..

BUT STILL!!!
Dat Travel Tho!!!
Back to top Go down
jonjunk
New Member
New Member
jonjunk


Age : 28
Join date : 2014-03-21
Posts : 66
Location : Montrose, MN

Jonjunk's Craftsman mud machine - Page 3 Empty
PostSubject: Re: Jonjunk's Craftsman mud machine   Jonjunk's Craftsman mud machine - Page 3 Icon_minitimeMay 20th 2014, 8:44 pm

I'm thinking it should be moved back but well have to see when it's all together
Back to top Go down
jamcco
New Member
New Member
jamcco


Age : 23
Join date : 2014-01-04
Posts : 226
Location : New Hampshire

Jonjunk's Craftsman mud machine - Page 3 Empty
PostSubject: Re: Jonjunk's Craftsman mud machine   Jonjunk's Craftsman mud machine - Page 3 Icon_minitimeMay 20th 2014, 8:51 pm

wow 4 links
4 links everywhere. Very Happy

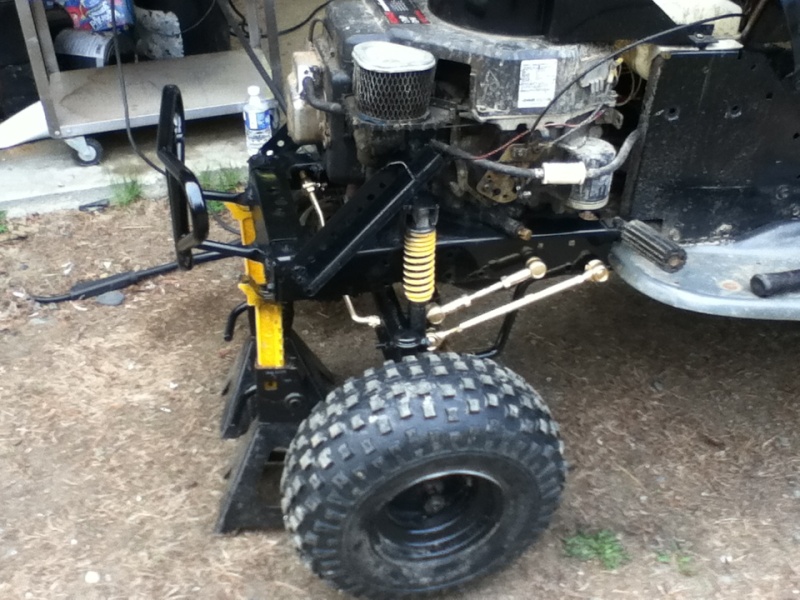

this looks really clean and yah like LMM said, the panhard is gonna be interesting. my 4 link doesnt give me travel, it gives me stability. this looks like a crazy amount of travel. im just wondering if it would be easier to connect your linkages and panhard if you moved the axle back so that it was right in front of the frame
Jonjunk's Craftsman mud machine - Page 3 006_210
this is how i set mine up, i believe i have the same chassis as you
this is looking good so far
Back to top Go down
redlinemotorsportts
Moderator
Moderator
redlinemotorsportts

2500+ Posts
2500+ Posts!
2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 25
Join date : 2013-03-18
Posts : 3129
Location : raleigh nc

Jonjunk's Craftsman mud machine - Page 3 Empty
PostSubject: Re: Jonjunk's Craftsman mud machine   Jonjunk's Craftsman mud machine - Page 3 Icon_minitimeMay 20th 2014, 9:10 pm

I dont see any rod ends, are you using any? A bolt drilled thru metal wont cut it.

_______________________________________________
Check out my builds!: MTD "Rock Bouncing" Mower -------- 60's Springfeild V-twin Mini Speed Tractor : SOLD!
Jonjunk's Craftsman mud machine - Page 3 Screen17
ATLTF.com Facebook admin - Forum Mod
whos mans is this
Back to top Go down
jonjunk
New Member
New Member
jonjunk


Age : 28
Join date : 2014-03-21
Posts : 66
Location : Montrose, MN

Jonjunk's Craftsman mud machine - Page 3 Empty
PostSubject: Re: Jonjunk's Craftsman mud machine   Jonjunk's Craftsman mud machine - Page 3 Icon_minitimeJune 2nd 2014, 12:51 am

Alright guys, update time.

Got a full time job so the mower is on the backburner, but I've shortened the 4 links to about half. Now I am making a new front axle out of 2x2 square doubled to 2x4 with c channel on each end, any tips on this? My other idea is scrap the front all together and buy an atv chassis for $50 but it's a long drive to get it.

Then I would use that front suspension on the mower and rig up steering and use the brakes (its a China mini atv) which would be good for this purpose, maybe in the future do a swingarm with chain off of my peerless 700 I have laying around.
Back to top Go down
