 My 99 murray build.

Go down
+6
1997 Murray
craftsmancole
MurryMaddnes
Ariens YT11
redlinemotorsportts
CornShuck4CE
10 posters
Go to page : 1, 2, 3  Next
AuthorMessage
CornShuck4CE
Screwdriver
Screwdriver
CornShuck4CE

Age : 32
Join date : 2014-04-07
Posts : 337
Forum Rep : 1
Location : Woodville Al

My 99 murray build.  Empty
PostSubject: My 99 murray build.    My 99 murray build.  Icon_minitimeSat Apr 26, 2014 11:50 am

Alright i figured i would make my own post of my mower. My mower started life as a organ doner for my grass cutter. It was in rough shape. It had a 18 horse oppy and a peerless mst 206. So i wonted to build it into a offroad mower. Befor this i had the same mower sept it was a hydro. Had 22 inch tires on rear and thats it till i got mower now. This is what it looked like. When i first started documenting my build
My 99 murray build.  Image33
I already had some mods done the first was pulleys foot throttle then brakes. I did the foot to run off governer but still use the hand throttle on governer. To do this i drilled a hole in governer rod put a bolt in it with a 1/8 hole it run cable through bolt with a cable lock from a bike to hold a spring to cable. Then built a cable holder to hold cable at governer rod. My 99 murray build.  Image38
My 99 murray build.  Image39with a bike brake lever
My 99 murray build.  Image40I did a custum pulley setup for clutch. 6 inch front and 5 inch rear. No pix. The brake is a custom hand brake made frome deck lift components ans linkeges. My 99 murray build.  Image34My 99 murray build.  Image35
One of the next thing was exaust. My brother owns a hydrolic hose bisness. And he has a tubin binder so i fabed up a flang and custom bent a piece of pipe to go under the footboard with a TSC muffler and turn down to the ground. But it wasent to last and i did this 3 inch tip with muffler inside it. My 99 murray build.  Image37
Next it was on to wireing push button start and so on. The silanoid has been raised up to just under the steering wheel. Igot the hood from a friend who was tryin to build a fast mower motor (16.5 hp B&S high performance OHV) come from same mower. Cold air intake/snorkle made of 1-1/2 pvc with a china atv filter. The blower cover is of a flathead. I like the old ones better. Plus its what i needed for the shock tower support to work. My 99 murray build.  Image23later found a murray GT organ doner witch is where the 820 come from. The best mod iv done is the 4 link front suspension. Here is a link to that. https://www.atltf.com/t3709-4-link-murray-front-suspintion

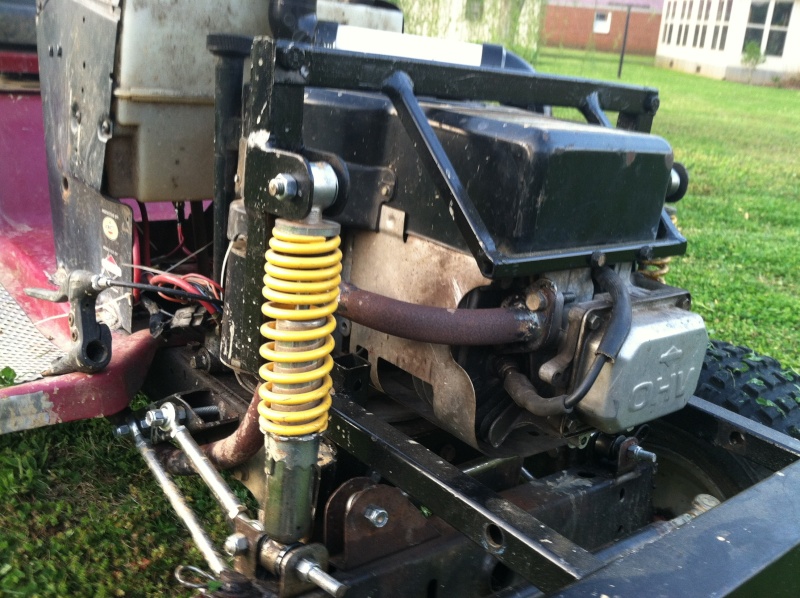

My 99 murray build.  Image24 and steering chang from dual tierod to single with drawbar.
My 99 murray build.  Image41just used spindels from an old murray. Just had to modafy the tierod and twist and make the drawbar longer. Also put tierod end on the ends. Works good but i have plans to change it. I have done lots of other lil things here and there like.
Skid plateMy 99 murray build.  Image32
Non slip foot boards made from the inside tube of a washing machin. My 99 murray build.  Image42
Hand thottle and choke lever.
My 99 murray build.  Image43
Closed off the deck lift hole.
My 99 murray build.  Image44
Pullstart.
My 99 murray build.  Image45
Removable hood.
My 99 murray build.  Image46
Pull thease pins out of bumper.
My 99 murray build.  Image47
Its got 26-11x12 tires on rear and 18-9.5x8 on front.
And this is where its at todayMy 99 murray build.  Image14
Im sure there is more but thats why i started this.
Back to top Go down
redlinemotorsportts
Moderator
Moderator
redlinemotorsportts

Age : 24
Join date : 2013-03-18
Posts : 3127
Forum Rep : 3
Location : raleigh nc

My 99 murray build.  Empty
PostSubject: Re: My 99 murray build.    My 99 murray build.  Icon_minitimeSat Apr 26, 2014 12:56 pm

Man that thing is beef, I love the belly pan and skid. Lots of sweet mods man! Is the axle locked?

_______________________________________________
Check out my builds!: MTD "Rock Bouncing" Mower -------- 60's Springfeild V-twin Mini Speed Tractor : SOLD!
My 99 murray build.  Screen17
ATLTF.com Facebook admin - Forum Mod
whos mans is this
Back to top Go down
CornShuck4CE
Screwdriver
Screwdriver
CornShuck4CE

Age : 32
Join date : 2014-04-07
Posts : 337
Forum Rep : 1
Location : Woodville Al

My 99 murray build.  Empty
PostSubject: Re: My 99 murray build.    My 99 murray build.  Icon_minitimeSat Apr 26, 2014 1:13 pm

Not yet. Iv got the stuff to do it. Im doin a spider gear lock. I really dont wont to weld. But its in the proses
Back to top Go down
Ariens YT11
Monkey Wrench
Monkey Wrench
Ariens YT11

Age : 24
Join date : 2012-10-31
Posts : 745
Forum Rep : 0
Location : The Wyo-Braska Panhandle

My 99 murray build.  Empty
PostSubject: Re: My 99 murray build.    My 99 murray build.  Icon_minitimeSat Apr 26, 2014 2:21 pm

I have a Q: how did you do the suspention on the front, and how much to do it?
Back to top Go down
CornShuck4CE
Screwdriver
Screwdriver
CornShuck4CE

Age : 32
Join date : 2014-04-07
Posts : 337
Forum Rep : 1
Location : Woodville Al

My 99 murray build.  Empty
PostSubject: Re: My 99 murray build.    My 99 murray build.  Icon_minitimeSat Apr 26, 2014 2:24 pm

Link in sibgnitur. About 60dollers i guess
Back to top Go down
CornShuck4CE
Screwdriver
Screwdriver
CornShuck4CE

Age : 32
Join date : 2014-04-07
Posts : 337
Forum Rep : 1
Location : Woodville Al

My 99 murray build.  Empty
PostSubject: Re: My 99 murray build.    My 99 murray build.  Icon_minitimeSat Apr 26, 2014 11:21 pm

Ight yall got motivated today. Dun some work on it today. Started painting it. Had bought a pad for my grinder to take off paint. My 99 murray build.  Image49
I got the hood finished so her is a sneek peek
Befor
My 99 murray build.  Image50
After
My 99 murray build.  Image51
So i decided to tear it down and do some work. This took me about 15 min.
My 99 murray build.  Image52.
Fixin to do alot of work to it i recon. Gettin it ready for a tracter show june 8th.
Back to top Go down
CornShuck4CE
Screwdriver
Screwdriver
CornShuck4CE

Age : 32
Join date : 2014-04-07
Posts : 337
Forum Rep : 1
Location : Woodville Al

My 99 murray build.  Empty
PostSubject: Re: My 99 murray build.    My 99 murray build.  Icon_minitimeTue Apr 29, 2014 9:58 pm

I got a lil more done today. Finished painting it and took the 820 out for the locker. Got the 820 took apart and discovered it had some water in it the bearings where dry so i recon it come in around the shifter. But im getting it ready for a tractor show june 7th in stevenson alabama. Yal tell me what yal think about the paint. The bottom has been sprayed with rubberized undercoat.
My 99 murray build.  Image58
My 99 murray build.  Image57
Back to top Go down
Ariens YT11
Monkey Wrench
Monkey Wrench
Ariens YT11

Age : 24
Join date : 2012-10-31
Posts : 745
Forum Rep : 0
Location : The Wyo-Braska Panhandle

My 99 murray build.  Empty
PostSubject: Re: My 99 murray build.    My 99 murray build.  Icon_minitimeTue Apr 29, 2014 10:25 pm

Sweet, I'm guessing you are clearcoating the raw steel?
Back to top Go down
MurryMaddnes
Forum Newbie
Forum Newbie
MurryMaddnes

Age : 35
Join date : 2014-03-24
Posts : 32
Forum Rep : 0
Location : Green Bay Wisconsin

My 99 murray build.  Empty
PostSubject: Re: My 99 murray build.    My 99 murray build.  Icon_minitimeTue Apr 29, 2014 10:28 pm

Me like lol great idea that paint job looks sweet if you are in fact leaving the metal bare and clear coating it.
Back to top Go down
CornShuck4CE
Screwdriver
Screwdriver
CornShuck4CE

Age : 32
Join date : 2014-04-07
Posts : 337
Forum Rep : 1
Location : Woodville Al

My 99 murray build.  Empty
PostSubject: Re: My 99 murray build.    My 99 murray build.  Icon_minitimeTue Apr 29, 2014 10:31 pm

O yea this bad boy has like 7 coats.  Its finished. This took a lot of work to get all the paint off.
Back to top Go down
craftsmancole
Monkey Wrench
Monkey Wrench
craftsmancole

Age : 22
Join date : 2013-04-05
Posts : 661
Forum Rep : 1
Location : New Smyrna Beach,Fl

My 99 murray build.  Empty
PostSubject: Re: My 99 murray build.    My 99 murray build.  Icon_minitimeWed Apr 30, 2014 10:23 am

It looks nice, I've always wanted one of those style widebodys
Back to top Go down
CornShuck4CE
Screwdriver
Screwdriver
CornShuck4CE

Age : 32
Join date : 2014-04-07
Posts : 337
Forum Rep : 1
Location : Woodville Al

My 99 murray build.  Empty
PostSubject: Re: My 99 murray build.    My 99 murray build.  Icon_minitimeWed Apr 30, 2014 10:28 am

I preshat it. Ive had bout 5 diff ones. I love thease models
Back to top Go down
1997 Murray
Hammer
Hammer
1997 Murray

Age : 23
Join date : 2013-11-13
Posts : 1311
Forum Rep : 2
Location : NW USA

My 99 murray build.  Empty
PostSubject: Re: My 99 murray build.    My 99 murray build.  Icon_minitimeWed Apr 30, 2014 1:52 pm

say where did you get the bigger gas tank? now that my mower has a twin i need one.
Back to top Go down
CornShuck4CE
Screwdriver
Screwdriver
CornShuck4CE

Age : 32
Join date : 2014-04-07
Posts : 337
Forum Rep : 1
Location : Woodville Al

My 99 murray build.  Empty
PostSubject: Re: My 99 murray build.    My 99 murray build.  Icon_minitimeWed Apr 30, 2014 3:45 pm

Thay come in alot of the murray widebody LT. with the big hood. The one withe the hood skirts on the side of dash. Its 2.8 gallons i run a tank seems like forever. But my oppy on my grass cutter sucks er on down.
Back to top Go down
1997 Murray
Hammer
Hammer
1997 Murray

Age : 23
Join date : 2013-11-13
Posts : 1311
Forum Rep : 2
Location : NW USA

My 99 murray build.  Empty
PostSubject: Re: My 99 murray build.    My 99 murray build.  Icon_minitimeWed Apr 30, 2014 4:10 pm

ok mine has the big hood but it had a single, so it had the smaller tank i guess. mine is 1.4 gal
Back to top Go down
CornShuck4CE
Screwdriver
Screwdriver
CornShuck4CE

Age : 32
Join date : 2014-04-07
Posts : 337
Forum Rep : 1
Location : Woodville Al

My 99 murray build.  Empty
PostSubject: Re: My 99 murray build.    My 99 murray build.  Icon_minitimeWed Apr 30, 2014 4:28 pm

My off road mower was a single. 16.5 but it had the big tank. They may have been a special model with them.
Back to top Go down
CornShuck4CE
Screwdriver
Screwdriver
CornShuck4CE

Age : 32
Join date : 2014-04-07
Posts : 337
Forum Rep : 1
Location : Woodville Al

My 99 murray build.  Empty
PostSubject: Re: My 99 murray build.    My 99 murray build.  Icon_minitimeFri May 02, 2014 8:14 am

Ight boys got lil more dun on er the last few days. Got er painted, locked the 820 and redone shift linkeg. Works great ill upload some pix when it all back together.
Back to top Go down
CornShuck4CE
Screwdriver
Screwdriver
CornShuck4CE

Age : 32
Join date : 2014-04-07
Posts : 337
Forum Rep : 1
Location : Woodville Al

My 99 murray build.  Empty
PostSubject: Re: My 99 murray build.    My 99 murray build.  Icon_minitimeFri May 02, 2014 9:32 pm

Got er pit back together today made so upgrades to the brake linkeg and shift linkeges works much better now. Ill get som pix in a few days. Her is it put together. What you fellas think. My 99 murray build.  Image59 My 99 murray build.  Image60So far i love it. The next task is a foot pedal. Not this bike brake handle. And paint wheels.
Back to top Go down
craftsmancole
Monkey Wrench
Monkey Wrench
craftsmancole

Age : 22
Join date : 2013-04-05
Posts : 661
Forum Rep : 1
Location : New Smyrna Beach,Fl

My 99 murray build.  Empty
PostSubject: Re: My 99 murray build.    My 99 murray build.  Icon_minitimeFri May 02, 2014 9:44 pm

I thought it looked good before... Now it looks awesome!
Back to top Go down
redlinemotorsportts
Moderator
Moderator
redlinemotorsportts

Age : 24
Join date : 2013-03-18
Posts : 3127
Forum Rep : 3
Location : raleigh nc

My 99 murray build.  Empty
PostSubject: Re: My 99 murray build.    My 99 murray build.  Icon_minitimeFri May 02, 2014 10:17 pm

That bare metal is stright up awesome! How tough is it with the clear coat and all?

_______________________________________________
Check out my builds!: MTD "Rock Bouncing" Mower -------- 60's Springfeild V-twin Mini Speed Tractor : SOLD!
My 99 murray build.  Screen17
ATLTF.com Facebook admin - Forum Mod
whos mans is this
Back to top Go down
CornShuck4CE
Screwdriver
Screwdriver
CornShuck4CE

Age : 32
Join date : 2014-04-07
Posts : 337
Forum Rep : 1
Location : Woodville Al

My 99 murray build.  Empty
PostSubject: Re: My 99 murray build.    My 99 murray build.  Icon_minitimeSat May 03, 2014 9:59 am

It will be ok i used enamal paint so its pritty hard. I also waxed it so it stays shiny. Water just beads up and rolls off
Back to top Go down
CornShuck4CE
Screwdriver
Screwdriver
CornShuck4CE

Age : 32
Join date : 2014-04-07
Posts : 337
Forum Rep : 1
Location : Woodville Al

My 99 murray build.  Empty
PostSubject: Re: My 99 murray build.    My 99 murray build.  Icon_minitimeTue May 06, 2014 11:31 pm

Thought i would show yal what i been doin lately. Made a gas pedal. Tired of the stupid bike brake handle. So time to upgrade. So here it is.My 99 murray build.  Image64My 99 murray build.  Image62My 99 murray build.  Image63
Back to top Go down
Angchor
Screwdriver
Screwdriver
Angchor

Age : 64
Join date : 2014-04-14
Posts : 491
Forum Rep : 2
Location : Index, Washington

My 99 murray build.  Empty
PostSubject: Re: My 99 murray build.    My 99 murray build.  Icon_minitimeWed May 07, 2014 1:11 am

I just might have to steal that design! Smile
Back to top Go down
Khal03
Forum Newbie
Forum Newbie
Khal03

Join date : 2014-04-29
Posts : 36
Forum Rep : 0
Location : Iowa

My 99 murray build.  Empty
PostSubject: Re: My 99 murray build.    My 99 murray build.  Icon_minitimeWed May 07, 2014 7:00 am

what tire sizes are you runnin?
Back to top Go down
Doc Sprocket
Administrator
Administrator
Doc Sprocket

Age : 48
Join date : 2013-04-21
Posts : 2911
Forum Rep : 20
Location : Ontario Canada

My 99 murray build.  Empty
PostSubject: Re: My 99 murray build.    My 99 murray build.  Icon_minitimeWed May 07, 2014 7:07 am

Good job on the pedal. You have the two elements that make a meh-pedal into a good one. A return spring, and a stop. Much better!

_______________________________________________
***Get YOUR official "Doc Locked, And Ready To Rock!" Stickers by clicking here!***
***Official Sprocket's Garage vinyl graphics and tees for sale HERE!***
My 99 murray build.  Facebo12
Put down the wrench, and come out with your hands up!-Doc "Tranny Crusher" Sprocket, ATLTF Forum Admin, Thinkerer and Tinkerer, and all-around good dood. Wink

Gen. Mayhem- https://www.atltf.com/t2597-general-mayhem-race-tractor
MULE- https://www.atltf.com/t2153-lawn-boy-utltv
MULEII- https://www.atltf.com/t3328-1970-john-deere-112-the-beginnings-of-mule-ii
MULEIII https://www.atltf.com/t4263-mule3-brainstorming-ideas-etc#58287
Wrench, Wheel, Wreck, Repeat...
Back to top Go down
Sponsored content




My 99 murray build.  Empty
PostSubject: Re: My 99 murray build.    My 99 murray build.  Icon_minitime

Back to top Go down

My 99 murray build.
Back to top
Page 1 of 3Go to page : 1, 2, 3  Next

Permissions in this forum:You cannot reply to topics in this forum
All-Terrain Lawn Tractor Forum :: Tractor Project Builds :: Off Road & Rally Tractors-
Jump to:
