 Vertical Shaft Engine on Horizontal Shaft Mower

Go down
4 posters
AuthorMessage
Craftsmonster
New Member

New Member


Join date : 2018-10-05
Points : 2216
Posts : 13

Vertical Shaft Engine on Horizontal Shaft Mower Empty
PostSubject: Vertical Shaft Engine on Horizontal Shaft Mower   Vertical Shaft Engine on Horizontal Shaft Mower Icon_minitimeOctober 17th 2018, 2:45 am

How hard would it be to convert a circa 1988 Craftsman II with the horizontal opposed engine over to using a vertical shaft engine? This old Briggs is seeing its last days and my only available replacement is a vertical off of a Toro (or one of those other brands, I can't ever remember the name).
Back to top Go down
AllisKidD21
Moderator
AllisKidD21
Moderator

5000+ Posts
5000+ Posts!
2020 Build-Off Entrant
2020 Build-Off Entrant
1st Place Build-Off 2019
1st Place Build-Off Winner 2019

Age : 25
Join date : 2016-07-10
Points : 8544
Posts : 5190
Location : Ontario Canada

Vertical Shaft Engine on Horizontal Shaft Mower Empty
PostSubject: Re: Vertical Shaft Engine on Horizontal Shaft Mower   Vertical Shaft Engine on Horizontal Shaft Mower Icon_minitimeOctober 17th 2018, 9:34 am

I'm guessing this a Craftsman GT with either an AYP 6-speed or a hydro. If so it is indeed possible and from what I understand it is fairly straight forward. @Mightyraze converted his Craftsman II (Sasquatch) from a horizontal shaft engine setup to a vertical, he might have some pictures that would help you out.


"This'll either wake you up or put you to sleep forever!"- Red Green         "Whatever you do you should do right, even if it's something wrong." - Hank Hill

      - MTD Off-Road Build
      - Ford LT 110 Off-Road Build
      - Craftsman GT 6000 Off-Road Build
       - Sears LT11 Rat Rod Build *2019 Build-Off Winner!*


 Garden Tractor Collection: Allis B-110 x2, 710, 716, & 410 - Wheel Horse 655, 953 & 500 Special - Case 444 - Bolens Versamatic, G10 & 1668 Diesel Swapped - Cub 106, 124 & 1000/149 Frankentractor - Ford 120, LGT 125 & 145 - White 1650 Yard Boss - Moto Mower 710-100
Back to top Go down
MightyRaze
Administrator
MightyRaze
Administrator

2017 Build-Off Finalist
2017 Build-Off Finalist
2018 Build-Off Top 3 Winner
2018 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2021 Winner of Winners
2021 Winner of Winners
1st Place Build-Off 2022
1st Place Build-Off Winner 2022
10,000 POSTS!
10,000 POSTS!
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 49
Join date : 2016-09-06
Points : 15561
Posts : 10931
Location : Oklahoma

Vertical Shaft Engine on Horizontal Shaft Mower Empty
PostSubject: Re: Vertical Shaft Engine on Horizontal Shaft Mower   Vertical Shaft Engine on Horizontal Shaft Mower Icon_minitimeOctober 17th 2018, 1:15 pm

2 ways you can do that...

1, Source a GT6000 a few years newer with a vertical and grab it's parts.

Or...

You can attempt to do it yourself.  One thing I will give you a heads up on.  Should you go big on the engine pulley, the belt will be more prone to fall off.  6.5 seemed to be fine.  I never threw a belt when I had that size pulley.  I still throw it time to time with the 9 inch I have on mine right now.

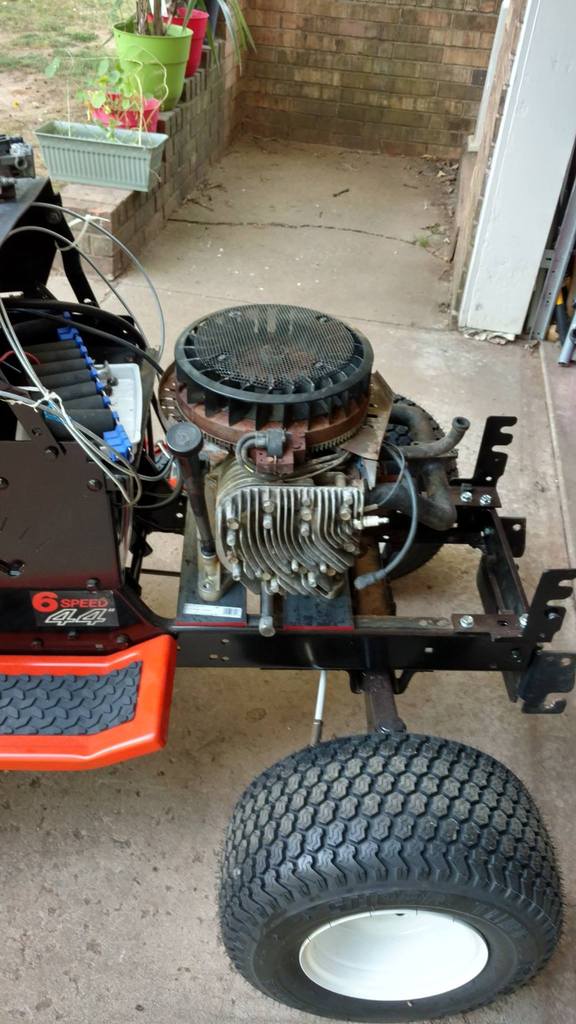

Here is an undershot that may help you with some Ideas.

Vertical Shaft Engine on Horizontal Shaft Mower Img_2130

Vertical Shaft Engine on Horizontal Shaft Mower 13503110

You will loose mower capability as the front steering is in the way.  I added an idler off one of the engine bolts as you can see to line up the belt.  This setup never failed on me.  Also note the belt keeper on the engine, and one between the engine pulley and the idler.  Those allow clutching to work fine.  I used 2 1/4 inch plates to mount the engine to.

I will probably go back to this setup next year.  Should a good horizontal fall in my lap I may go back to that.


Vertical Shaft Engine on Horizontal Shaft Mower Sig115PROJECTS:
     Marshal ........................93 Craftsman GT6000
     Red Bandit ...................72 Wheel Horse Raider 12
     Dirty Rat........................77 Sears Suburban
     Bowser...........................01 Murray Widebody LT
     The Green Machine ....1990 Craftsman II GT18
Other projects
Have a question? Ask me! Type in "@MightyRaze" in your post!
Vertical Shaft Engine on Horizontal Shaft Mower Sig214Vertical Shaft Engine on Horizontal Shaft Mower Sig314
Back to top Go down
Craftsmonster
New Member

New Member


Join date : 2018-10-05
Points : 2216
Posts : 13

Vertical Shaft Engine on Horizontal Shaft Mower Empty
PostSubject: Re: Vertical Shaft Engine on Horizontal Shaft Mower   Vertical Shaft Engine on Horizontal Shaft Mower Icon_minitimeOctober 18th 2018, 8:01 pm

Is there some way I could use a horizontal shaft engine thats not intended for a lawn mower, like a gx340 or one of those honda clones? I see that the engine pulley on this opposed twin is on the flywheel side.
Back to top Go down
Craftsmonster
New Member

New Member


Join date : 2018-10-05
Points : 2216
Posts : 13

Vertical Shaft Engine on Horizontal Shaft Mower Empty
PostSubject: Re: Vertical Shaft Engine on Horizontal Shaft Mower   Vertical Shaft Engine on Horizontal Shaft Mower Icon_minitimeOctober 18th 2018, 8:05 pm

I have a Troy-Bilt that i can do a pulley flip and pulley swap on but the frame and transaxle aren't nearly as strong as the craftsman.
Back to top Go down
Crazy_Carl
Veteran Member
Crazy_Carl
Veteran Member

2018 Build-Off Entrant
2018 Build-Off Entrant
2500+ Posts
2500+ Posts!
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 35
Join date : 2017-10-30
Points : 5290
Posts : 2561
Location : Rochester, New York

Vertical Shaft Engine on Horizontal Shaft Mower Empty
PostSubject: Re: Vertical Shaft Engine on Horizontal Shaft Mower   Vertical Shaft Engine on Horizontal Shaft Mower Icon_minitimeOctober 18th 2018, 9:22 pm

Craftsmonster wrote:
Is there some way I could use a horizontal shaft engine thats not intended for a lawn mower, like a gx340 or one of those honda clones? I see that the engine pulley on this opposed twin is on the flywheel side.

Absolutely Man!  People have been clone motors on garden tractors for years!
Back to top Go down
