I've been meaning to make a new thread for this project for a while but haven't had the time. Here it is in its current state.

Craftsman Trail Rig 20181210

Craftsman Trail Rig 20181212

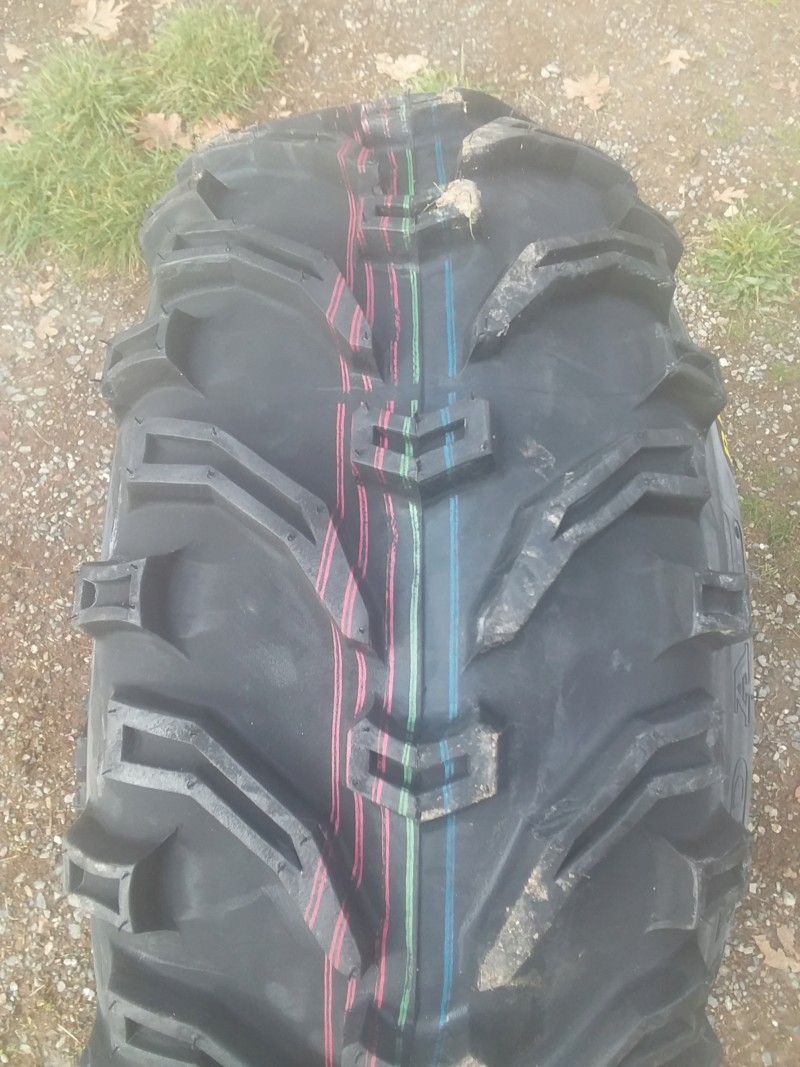

I ordered tgis pair of 18×7×8 SunF atv tires on amazon and mounted those on the front.

Craftsman Trail Rig 20181211
I moved the front axle 5in forward and used a piece of 1in angle iron to make a new front axle mount and flipped the previous front axle mount around to be the rear one. I also had to extend my drag link. The wheel base is now 52in.

This is gonna bs a fun build. Keep posted everybody.
