 Allis Chalmers 616 basket case rebuild.

Go down
3 posters
AuthorMessage
Otis413
New Member
Otis413
New Member


Join date : 2019-06-21
Points : 1966
Posts : 15
Location : Cass, W.Va.

Allis Chalmers 616 basket case rebuild. Empty
PostSubject: Allis Chalmers 616 basket case rebuild.   Allis Chalmers 616 basket case rebuild. Icon_minitimeDecember 23rd 2019, 12:17 pm

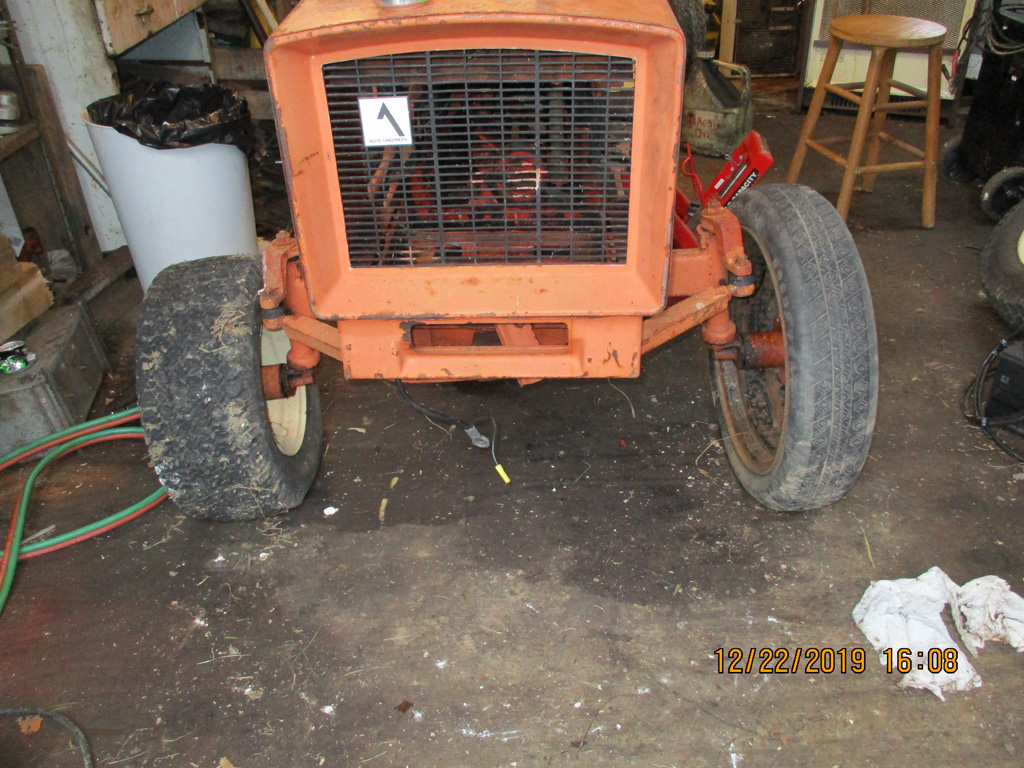

Just something I thought I'd pass on, we're rebuilding our AC 616 and one of the things it needs is tires. I noticed that the front has a 5 x 4.5" (5 x 115mm) bolt pattern which is pretty common, my Ford Ranger and my wife's old '92 Olds Cutlass to name a couple.. Anyway, just for S&Gs I got the old compact spare from the 92 Olds and tried it on... It fit surprisingly well, 185/80D16, I figure a 6.00-16 or 5.50-16 ag ribbed tire might fit nicely on the 16" x 4" wide rim.
3 problems with using these rims, one, the stock lug bolts have small heads, which don't match well to the half inch holes in the rims. But, one of the things that I will do is convert to lug studs and nuts, using 7/16x20 GM lug nuts should fix this problem. (I hate lug bolts anyway)
Two, the taller wheel/tire combo comes very close to the frame at full turn, not touching but very close. (see pics) a wheel spacer might fix that, or welding the turn stops to limit how far it turns.. or just live with it..
Three, I don't have a belly mower deck for this,  (It's being rebuilt as a garden tractor only.) these wheels/tires prob wouldn't work with the mower deck.
Anyway, hope someone finds this info useful,,, or amusing..

Allis Chalmers 616 basket case rebuild. Img_1311
Allis Chalmers 616 basket case rebuild. Img_1312
Allis Chalmers 616 basket case rebuild. Img_1310
Back to top Go down
Otis413
New Member
Otis413
New Member


Join date : 2019-06-21
Points : 1966
Posts : 15
Location : Cass, W.Va.

Allis Chalmers 616 basket case rebuild. Empty
PostSubject: Re: Allis Chalmers 616 basket case rebuild.   Allis Chalmers 616 basket case rebuild. Icon_minitimeDecember 23rd 2019, 4:37 pm

Update, the wheel/tire will rub on the drag-link on the other side, no biggie but either a wheel spacer or modifying the stops to limit how far it will steer might be necessary.
Back to top Go down
MightyRaze
Administrator
MightyRaze
Administrator

2017 Build-Off Finalist
2017 Build-Off Finalist
2018 Build-Off Top 3 Winner
2018 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2021 Winner of Winners
2021 Winner of Winners
1st Place Build-Off 2022
1st Place Build-Off Winner 2022
10,000 POSTS!
10,000 POSTS!
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 49
Join date : 2016-09-06
Points : 15560
Posts : 10931
Location : Oklahoma

Allis Chalmers 616 basket case rebuild. Empty
PostSubject: Re: Allis Chalmers 616 basket case rebuild.   Allis Chalmers 616 basket case rebuild. Icon_minitimeJanuary 10th 2020, 8:20 pm

Yeah that will probably work. Going larger on the rear to?


Allis Chalmers 616 basket case rebuild. Sig115PROJECTS:
     Marshal ........................93 Craftsman GT6000
     Red Bandit ...................72 Wheel Horse Raider 12
     Dirty Rat........................77 Sears Suburban
     Bowser...........................01 Murray Widebody LT
     The Green Machine ....1990 Craftsman II GT18
Other projects
Have a question? Ask me! Type in "@MightyRaze" in your post!
Allis Chalmers 616 basket case rebuild. Sig214Allis Chalmers 616 basket case rebuild. Sig314
Back to top Go down
Okie743
New Member

New Member


Join date : 2014-08-19
Points : 3720
Posts : 17

Allis Chalmers 616 basket case rebuild. Empty
PostSubject: Re: Allis Chalmers 616 basket case rebuild.   Allis Chalmers 616 basket case rebuild. Icon_minitimeJanuary 11th 2020, 1:02 pm

Yep. I've done that to garden tractors, sub the rims with Vec rims.

What'cha got on the rear?

I've used flat washers for awhile when the lug nuts or lug bolts are too small for the rim holes when testing slow speed garden tractor rims.

When you tighten the nuts or bolts the washers will dimple, just re-snug them after you have drive tested.

Back to top Go down
Otis413
New Member
Otis413
New Member


Join date : 2019-06-21
Points : 1966
Posts : 15
Location : Cass, W.Va.

Allis Chalmers 616 basket case rebuild. Empty
PostSubject: Re: Allis Chalmers 616 basket case rebuild.   Allis Chalmers 616 basket case rebuild. Icon_minitimeJanuary 12th 2020, 11:00 am

We thought that the left side brake had seazed/rusted up, but turns out that water had got into the bull-gear housing and mucked up to the point it wouldn't turn. Got everything cleaned up and all seems well, we checked the other side and found water contamination in it too, but with no real damage.

Allis Chalmers 616 basket case rebuild. Img_1314
There's a backing plate goes over the bull gear, I didn't get a pic of that....
Allis Chalmers 616 basket case rebuild. Img_1315

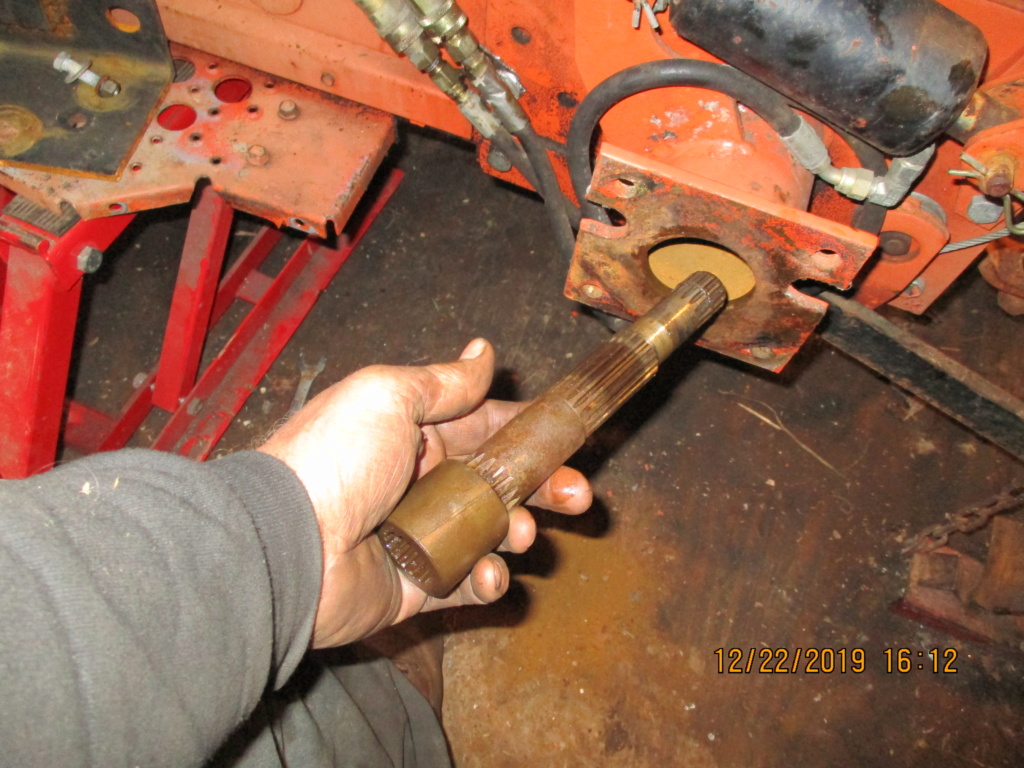

The differential shaft came out with the bull gear assembly, it has a snap ring on the inner end and just snaps back in place. (turn while you push)
Allis Chalmers 616 basket case rebuild. Img_1313


We drilled new holes in the rear hubs and got the lug-studs installed, I think it turned out purdy good! Re used some old Dodge 1/2 ton truck wheels (8" x 16" rims) and tires (Cooper S/T 265/75 R16, abt 31" tall) so didn't have to buy new tires.
Used 10 Ford Ranger rear lug studs and nuts (1/2x20 thread)
Drilled the hubs to 5x5.5" bolt pattern with 19/32" holes for the press in studs. I think 29/64 hole would have been better but we didn't have a bit that size, anyway, they pulled in nice and tight.

Allis Chalmers 616 basket case rebuild. Dodge_10
Allis Chalmers 616 basket case rebuild. Dodge_11

Next will be to dismount the tires, sand-blast and repaint the rims the proper color.  Also picked up 10 7/16x20 x2" bolts to use for front studs (I hate lug bolts)  I'll need to pick up 10 GM 7/16x20 lug nuts before we start that.
