 Will this work?

Go down
+5
willis923
1997 Murray
redlinemotorsportts
Doug
Tcolwell98
9 posters
AuthorMessage
Tcolwell98
Forum Newbie
Forum Newbie


Join date : 2015-03-18
Posts : 5
Forum Rep : 0

Will this work? Empty
PostSubject: Will this work?   Will this work? Icon_minitimeWed Mar 18, 2015 8:36 pm

Hi,
New user here, I'm still in school so I would like to do a build cheaply. My buddies have some pulling and off-roading tractors and wanted me to join in on the fun. My friend gave me a Murray chassis for free. But I need a motor right. So my uncle said I could have an inline 3 cylinder diesel from an old reefer trailer. It's small enough that it could fit but it'll be tight. I can't for the life of me figure out how to make the horizontal pulley go vertical. Could I put two idlers perpendicular? Or should I get some sort of bevel gear box? Or is there no chance of this working?

TL;DR: Is an inline engine in vertical shaft engine chassis possible?

Thanks,
Tim
Back to top Go down
Doug
Administrator
Administrator
Doug

Age : 26
Join date : 2012-12-24
Posts : 2954
Forum Rep : 71
Location : Lebanon County, PA

Will this work? Empty
PostSubject: Re: Will this work?   Will this work? Icon_minitimeWed Mar 18, 2015 8:44 pm

Will take some modding for engine mounts and the hood might not fit.

Look at how geared 6 speed hi/lo craftsmans run their belts. Its kind of similar to what youll need to do.

_______________________________________________
Head Forum Administrator ** Chat Moderator ** Facebook Page Admin
ATLTF Facebook Page ** Chatbox ** How To Upload Pictures

_X_ FORUM ANNOUNCEMENTS _X_


Have a question? Ask me! Type in "@Doug" in your post!

Your ATLTF Staff:
Administrators: @Doug, @MightyRaze, @"Doc Sprocket", @Stretch44875
Moderators: @TheRainbowBoxer, @AllisKidD21




Back to top Go down
redlinemotorsportts
Moderator
Moderator
redlinemotorsportts

Age : 24
Join date : 2013-03-18
Posts : 3127
Forum Rep : 3
Location : raleigh nc

Will this work? Empty
PostSubject: Re: Will this work?   Will this work? Icon_minitimeWed Mar 18, 2015 10:19 pm

Imagine the deck as the axle. this is how GT's do it. then you could make a clutch arm somewhere on the right side of things (Has to be on slack side of belt system) and thats how id set it up. I imagine new steering is in order, maybe even a new axle with that weight on rough terrain.
Will this work? Scan0011

_______________________________________________
Check out my builds!: MTD "Rock Bouncing" Mower -------- 60's Springfeild V-twin Mini Speed Tractor : SOLD!
Will this work? Screen17
ATLTF.com Facebook admin - Forum Mod
whos mans is this
Back to top Go down
Tcolwell98
Forum Newbie
Forum Newbie


Join date : 2015-03-18
Posts : 5
Forum Rep : 0

Will this work? Empty
PostSubject: Re: Will this work?   Will this work? Icon_minitimeThu Mar 19, 2015 8:57 am

Thank you! That was exactly what I was looking for! I thought there would be too much wear on the belt. Yeah, there's probably going to be a bunch of modifications but that's half the fun!
Back to top Go down
1997 Murray
Hammer
Hammer
1997 Murray

Age : 23
Join date : 2013-11-13
Posts : 1311
Forum Rep : 2
Location : NW USA

Will this work? Empty
PostSubject: Re: Will this work?   Will this work? Icon_minitimeThu Mar 19, 2015 10:33 am

or another idea, sell the diesel and buy a vertical shaft engine with the money. but it would be cool to have a diesel.
Back to top Go down
willis923
Hammer
Hammer
willis923

Age : 25
Join date : 2013-04-10
Posts : 1408
Forum Rep : 0
Location : Galway NY

Will this work? Empty
PostSubject: Re: Will this work?   Will this work? Icon_minitimeThu Mar 19, 2015 11:27 am

thats how mine is, even engine to tranny. works good, could use a set of idlers towards the back, gets alot of slop and chatters when there is alot of load on it. something to think about with a diesel, lots of torque

_______________________________________________
-1974 bolens 1055 (Rolling Thunder)
-1989 Craftsman GT6000 (Blockhead)
-2004 Ford F-250 super duty FX4
-1999 Ford F-350 Superduty 4x4 7.3 Powerstroke


Lt wrote:
Feel free to try... Dont let anything but fear and common sense stop you.


Will this work? Pbucket

Chat moderator

1st Lieutenant, Volunteer Firefighter, EMT-B, Galway Vol Fire co. Galway NY
Back to top Go down
802 Customs
Screwdriver
Screwdriver
802 Customs

Age : 21
Join date : 2015-01-08
Posts : 146
Forum Rep : 1
Location : Vermont

Will this work? Empty
PostSubject: Re: Will this work?   Will this work? Icon_minitimeThu Mar 19, 2015 4:57 pm

I'd say sell the diesel, you might snap a lot of input shafts if you dump the clutch under high load. Wont work too well with a standard lawn tractor transaxle.
Back to top Go down
the old guy
Forum Newbie
Forum Newbie


Age : 71
Join date : 2015-02-02
Posts : 37
Forum Rep : 0
Location : eastern Kentucky

Will this work? Empty
PostSubject: Re: Will this work?   Will this work? Icon_minitimeThu Mar 19, 2015 5:35 pm

I'd say getting everything to work out in the limited space of a mower frame would be your biggest challenge. I would like to hear more about this diesel engine pics maybe!?
Back to top Go down
Tcolwell98
Forum Newbie
Forum Newbie


Join date : 2015-03-18
Posts : 5
Forum Rep : 0

Will this work? Empty
PostSubject: Re: Will this work?   Will this work? Icon_minitimeThu Mar 19, 2015 5:44 pm

The engine is at my uncles currently. I will post some pics when I next am out there. How does one post a picture on here?
Back to top Go down
the old guy
Forum Newbie
Forum Newbie


Age : 71
Join date : 2015-02-02
Posts : 37
Forum Rep : 0
Location : eastern Kentucky

Will this work? Empty
PostSubject: Re: Will this work?   Will this work? Icon_minitimeThu Mar 19, 2015 6:57 pm

Well, you got me there still working on that myself.I'm about like Fred Flintstone when it comes to computers. It's not difficult just need someone to walk me through the first time. you'll figure it out I'm sure.
Back to top Go down
redlinemotorsportts
Moderator
Moderator
redlinemotorsportts

Age : 24
Join date : 2013-03-18
Posts : 3127
Forum Rep : 3
Location : raleigh nc

Will this work? Empty
PostSubject: Re: Will this work?   Will this work? Icon_minitimeThu Mar 19, 2015 7:02 pm

@Tcolwell98 wrote:
The engine is at my uncles currently. I will post some pics when I next am out there. How does one post a picture on here?

https://www.atltf.com/t1525-image-posting-for-new-members

I do that, but on his step #4 I cut the middle [img] code out and paste it right in, works the same and is a little easier. I believe you have to be on a computer.

_______________________________________________
Check out my builds!: MTD "Rock Bouncing" Mower -------- 60's Springfeild V-twin Mini Speed Tractor : SOLD!
Will this work? Screen17
ATLTF.com Facebook admin - Forum Mod
whos mans is this
Back to top Go down
Tcolwell98
Forum Newbie
Forum Newbie


Join date : 2015-03-18
Posts : 5
Forum Rep : 0

Will this work? Empty
PostSubject: Re: Will this work?   Will this work? Icon_minitimeThu Mar 19, 2015 8:10 pm

Will this work? Image_12
Back to top Go down
Tcolwell98
Forum Newbie
Forum Newbie


Join date : 2015-03-18
Posts : 5
Forum Rep : 0

Will this work? Empty
PostSubject: Re: Will this work?   Will this work? Icon_minitimeThu Mar 19, 2015 8:13 pm

Will this work? Image_13

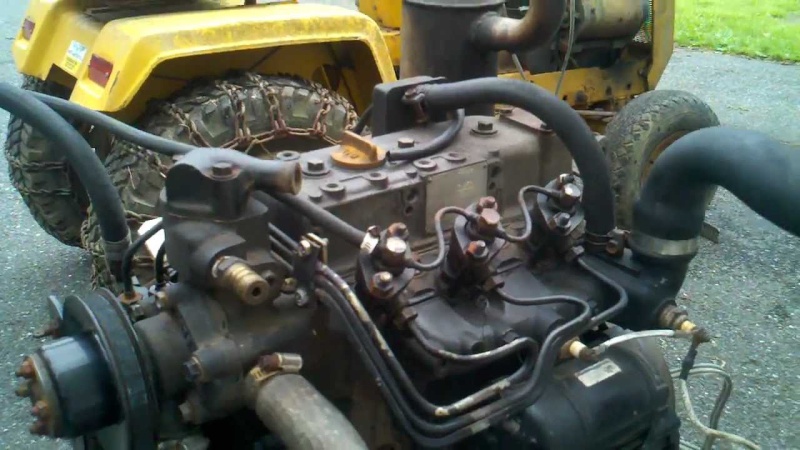

Here are some pics of a similar engine. I recall his being smaller and having a radiator but I'm probably wrong. Last time I checked on the one he gave (summer) it had a birds nest on it. Hopefully I can get it going.
Back to top Go down
redlinemotorsportts
Moderator
Moderator
redlinemotorsportts

Age : 24
Join date : 2013-03-18
Posts : 3127
Forum Rep : 3
Location : raleigh nc

Will this work? Empty
PostSubject: Re: Will this work?   Will this work? Icon_minitimeThu Mar 19, 2015 10:49 pm

Yea, the 3 cyl yanmars are water cooled. little radiator and fan ont he water pump. Someone put the same engine under a old cub (like the one in the picture) WITH the radiator and only had to extend the hood like 4" so its relatively smal.

_______________________________________________
Check out my builds!: MTD "Rock Bouncing" Mower -------- 60's Springfeild V-twin Mini Speed Tractor : SOLD!
Will this work? Screen17
ATLTF.com Facebook admin - Forum Mod
whos mans is this
Back to top Go down
willis923
Hammer
Hammer
willis923

Age : 25
Join date : 2013-04-10
Posts : 1408
Forum Rep : 0
Location : Galway NY

Will this work? Empty
PostSubject: Re: Will this work?   Will this work? Icon_minitimeThu Mar 19, 2015 11:44 pm

take a peek at Dock Sprocket's build, he is using a kubota diesel. might be able to copy him a bit, or atleast give you an idea. btw, you can post several pics per reply.

_______________________________________________
-1974 bolens 1055 (Rolling Thunder)
-1989 Craftsman GT6000 (Blockhead)
-2004 Ford F-250 super duty FX4
-1999 Ford F-350 Superduty 4x4 7.3 Powerstroke


Lt wrote:
Feel free to try... Dont let anything but fear and common sense stop you.


Will this work? Pbucket

Chat moderator

1st Lieutenant, Volunteer Firefighter, EMT-B, Galway Vol Fire co. Galway NY
Back to top Go down
Doc Sprocket
Administrator
Administrator
Doc Sprocket

Age : 48
Join date : 2013-04-21
Posts : 2911
Forum Rep : 20
Location : Ontario Canada

Will this work? Empty
PostSubject: Re: Will this work?   Will this work? Icon_minitimeFri Mar 20, 2015 8:39 pm

@Tcolwell98 wrote:
Hi,
New user here, I'm still in school so I would like to do a build cheaply. My buddies have some pulling and off-roading tractors and wanted me to join in on the fun. My friend gave me a Murray chassis for free. But I need a motor right. So my uncle said I could have an inline 3 cylinder diesel from an old reefer trailer. It's small enough that it could fit but it'll be tight. I can't for the life of me figure out how to make the horizontal pulley go vertical. Could I put two idlers perpendicular? Or should I get some sort of bevel gear box? Or is there no chance of this working?

TL;DR: Is an inline engine in vertical shaft engine chassis possible?

Thanks,
Tim

All things are possible, given the right combination of time, tools, skills and money. Good luck, I look forward to seeing it.

_______________________________________________
***Get YOUR official "Doc Locked, And Ready To Rock!" Stickers by clicking here!***
***Official Sprocket's Garage vinyl graphics and tees for sale HERE!***
Will this work? Facebo12
Put down the wrench, and come out with your hands up!-Doc "Tranny Crusher" Sprocket, ATLTF Forum Admin, Thinkerer and Tinkerer, and all-around good dood. Wink

Gen. Mayhem- https://www.atltf.com/t2597-general-mayhem-race-tractor
MULE- https://www.atltf.com/t2153-lawn-boy-utltv
MULEII- https://www.atltf.com/t3328-1970-john-deere-112-the-beginnings-of-mule-ii
MULEIII https://www.atltf.com/t4263-mule3-brainstorming-ideas-etc#58287
Wrench, Wheel, Wreck, Repeat...
Back to top Go down
rarbaugh07
Screwdriver
Screwdriver
rarbaugh07

Age : 33
Join date : 2014-01-22
Posts : 117
Forum Rep : 2
Location : Logan, iowa

Will this work? Empty
PostSubject: Re: Will this work?   Will this work? Icon_minitimeSat Mar 21, 2015 2:51 pm

Should work fine my buddies stock sears has a side input trans and the belt is routed the same way.
Back to top Go down
