 homemade mini dozer

Go down
+13
Double W Cross Ranch
Hillbilly Homer
hotrod-craftsman
MatthewD
RichieRichOverdrive
George Gooding
AllisKidD21
prancstaman
Camdg2010
Crazy_Carl
muckmudd
frostypaws
MightyRaze
17 posters
Go to page : 1, 2, 3, 4  Next
AuthorMessage
Camdg2010
Member
Camdg2010
Member


Join date : 2014-01-22
Points : 4051
Posts : 94

homemade mini dozer Empty
PostSubject: homemade mini dozer   homemade mini dozer Icon_minitimeJuly 18th 2018, 9:52 pm

Hello everyone! its been a long long time since ive been on here. Ive been working on a few projects the last few years. And as many people dont know, I have a thing for tracks!

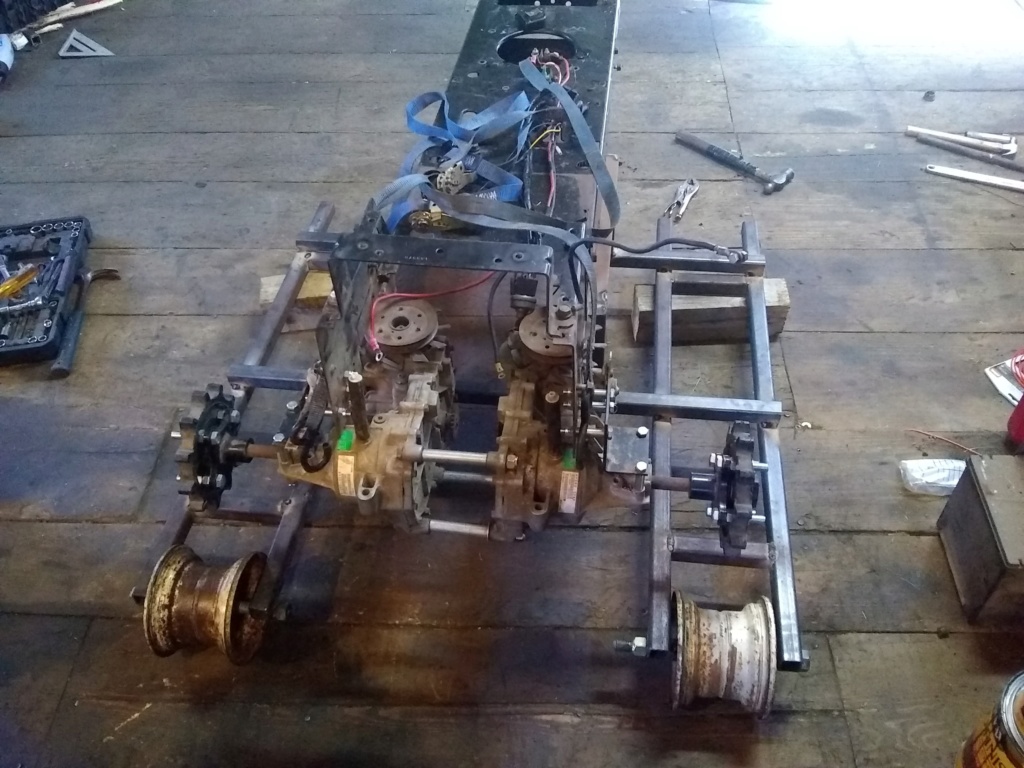

here is a few pictures of my current build.
Its utilizing 2 zero turn wheel motors,
1 snowmobile track cut down the middle,
1 set of snowmobile drive cogs drilled to fit the factory zeroturn wheel hub (1 on each side)
1 early 2000's craftsman frame
A whole bunch of 1 1/4 square tube
So far only (4) 5" front lawnmower rims
3/4 all thread with a nut welded to the ends as wheel pins/axles (has lock nut on other side)
my 18 hp briggs and stratton opposed twin
Hood and grille off an 80's Montgomery Wards mower painted to replicate CAT
still working on linkages and a few minor odds and ends. it will have small stacks with mufflers and clap caps. And why did i build this??? Because Im obsesed with tracks, using my atv plow on front so i can plow snow! and for fun!! homemade mini dozer 37308810

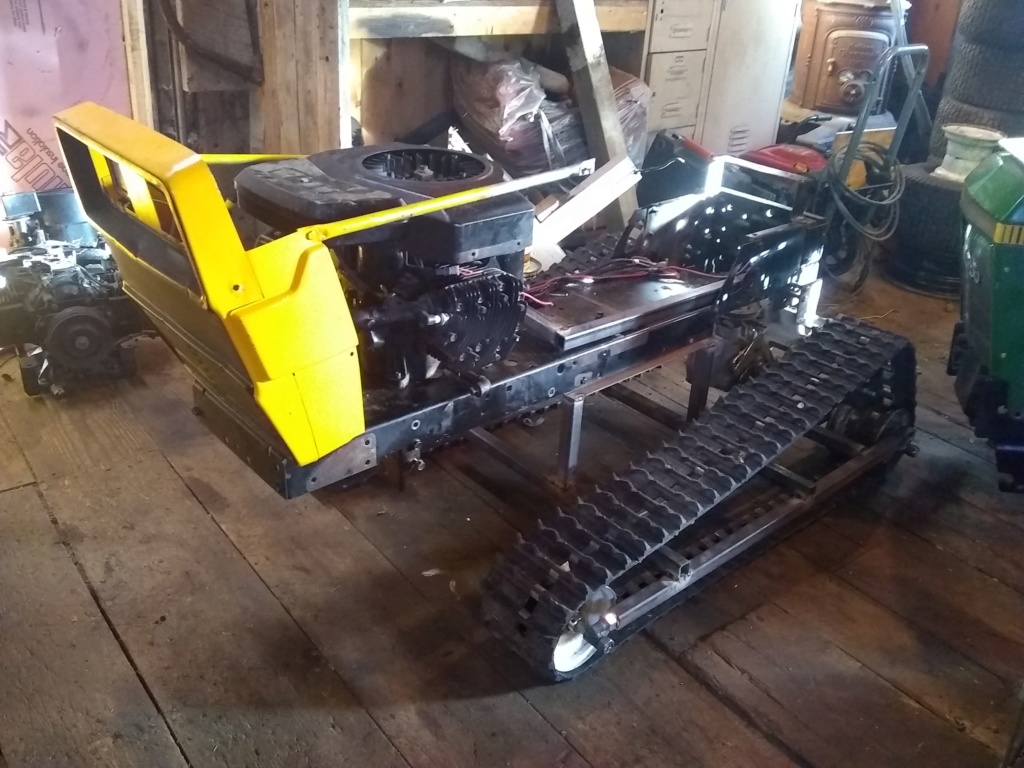

homemade mini dozer 37276610
homemade mini dozer 37198810
Back to top Go down
Camdg2010
Member
Camdg2010
Member


Join date : 2014-01-22
Points : 4051
Posts : 94

homemade mini dozer Empty
PostSubject: Re: homemade mini dozer   homemade mini dozer Icon_minitimeJuly 18th 2018, 9:53 pm

homemade mini dozer 37323910
homemade mini dozer 37381610
homemade mini dozer 37348010
Back to top Go down
Camdg2010
Member
Camdg2010
Member


Join date : 2014-01-22
Points : 4051
Posts : 94

homemade mini dozer Empty
PostSubject: Re: homemade mini dozer   homemade mini dozer Icon_minitimeJuly 18th 2018, 9:56 pm

Also, each front rim setup has adjustable bolts i guess you would call them. on the 3rd picture down you can see them. that allows me to set track tention as well as adjust the tracking of tracks right to left. i havent driven it yet. hopefully i get a chance to this by the end of next week. still lots of work ahead of me!
Back to top Go down
MightyRaze
Administrator
MightyRaze
Administrator

2017 Build-Off Finalist
2017 Build-Off Finalist
2018 Build-Off Top 3 Winner
2018 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2021 Winner of Winners
2021 Winner of Winners
1st Place Build-Off 2022
1st Place Build-Off Winner 2022
10,000 POSTS!
10,000 POSTS!
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 49
Join date : 2016-09-06
Points : 15623
Posts : 10962
Location : Oklahoma

homemade mini dozer Empty
PostSubject: Re: homemade mini dozer   homemade mini dozer Icon_minitimeJuly 18th 2018, 10:00 pm

Welcome back... cool looking rig you are building there. Love to see it progress! Very neat.


homemade mini dozer Sig115PROJECTS:
     Marshal ........................93 Craftsman GT6000
     Red Bandit ...................72 Wheel Horse Raider 12
     Dirty Rat........................77 Sears Suburban
     Bowser...........................01 Murray Widebody LT
     The Green Machine ....1990 Craftsman II GT18
Other projects
Have a question? Ask me! Type in "@MightyRaze" in your post!
homemade mini dozer Sig214homemade mini dozer Sig314
Back to top Go down
muckmudd
Established Member
muckmudd
Established Member

500+ Posts
500+ Posts
2018 Build-Off Entrant
2018 Build-Off Entrant

Age : 21
Join date : 2017-07-11
Points : 3544
Posts : 825
Location : In the shop

homemade mini dozer Empty
PostSubject: Re: homemade mini dozer   homemade mini dozer Icon_minitimeJuly 19th 2018, 1:21 am

Wasn't even aware this build was happening, curious to see how you make it.
Back to top Go down
frostypaws
Member
frostypaws
Member

2014 Build-Off Entrant
2014 Build-Off Entrant

Age : 30
Join date : 2012-07-01
Points : 4672
Posts : 131
Location : iowaaaa

homemade mini dozer Empty
PostSubject: Re: homemade mini dozer   homemade mini dozer Icon_minitimeJuly 19th 2018, 6:19 pm

I like the hi-drive!
Back to top Go down
Camdg2010
Member
Camdg2010
Member


Join date : 2014-01-22
Points : 4051
Posts : 94

homemade mini dozer Empty
PostSubject: Re: homemade mini dozer   homemade mini dozer Icon_minitimeJuly 20th 2018, 12:12 am

Got a little further on it today! got the frame supports/ dash mount built and welded into place. traded my horizontle shaft briggs for a 25 hp briggs vtwin. hoods mounted, Now before i get any dislikes on the wooden dash, its pressure treated t11, im using the smooth back as the dash face and stained it "dark oak", it dont have an angle grinder or else i would have made a metal dash and welded it on and besides... the old vintage look brings a smile to my face! also doing a wooden floor same way. Robbed 2 running boards off a Craftsman tractor. need to straighten one out and bolt them on. im wicked stoaked for this! Whats peoples oppinion on my tracks popping off due to the tracks not having rubber nubs inside and me using just rims as boogie wheels? 2 people have told me they will pop off. if they do, i plan on taking 4 more drive cogs for each end of the tracks, and use idler wheels on each side of cog but spaced so they are the same width as rims. then it wont be able to roll up on sides bu "should" stay on... i will cross that bridge if it happens... fingers crossed it wont!. homemade mini dozer 37544410
homemade mini dozer 37381611
homemade mini dozer 37380810
Back to top Go down
Camdg2010
Member
Camdg2010
Member


Join date : 2014-01-22
Points : 4051
Posts : 94

homemade mini dozer Empty
PostSubject: Re: homemade mini dozer   homemade mini dozer Icon_minitimeJuly 20th 2018, 12:14 am

homemade mini dozer 37392110
homemade mini dozer 37619910
Back to top Go down
Crazy_Carl
Veteran Member
Crazy_Carl
Veteran Member

2018 Build-Off Entrant
2018 Build-Off Entrant
2500+ Posts
2500+ Posts!
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 35
Join date : 2017-10-30
Points : 5316
Posts : 2561
Location : Rochester, New York

homemade mini dozer Empty
PostSubject: Re: homemade mini dozer   homemade mini dozer Icon_minitimeJuly 20th 2018, 3:04 pm

No angle grinder?  Seriously? How on earth are you fabricating?

I actually like the wood dash.  It has a custom touch to it.

You'll have to weld some drive teeth onto the driven rims or else the rims will just spin the the tracks.

I'd add some bogey wheels between the front and rear rims to help spread the weight across the track better and you could build them in such a way that they could also serve the purpose of keeping the tracks on and aligned.
Back to top Go down
muckmudd
Established Member
muckmudd
Established Member

500+ Posts
500+ Posts
2018 Build-Off Entrant
2018 Build-Off Entrant

Age : 21
Join date : 2017-07-11
Points : 3544
Posts : 825
Location : In the shop

homemade mini dozer Empty
PostSubject: Re: homemade mini dozer   homemade mini dozer Icon_minitimeJuly 20th 2018, 5:10 pm

Wait what? I put hours on my angle grinder each day haha.
Back to top Go down
Camdg2010
Member
Camdg2010
Member


Join date : 2014-01-22
Points : 4051
Posts : 94

homemade mini dozer Empty
PostSubject: Re: homemade mini dozer   homemade mini dozer Icon_minitimeJuly 20th 2018, 8:10 pm

I had one. For many years, been dropped, kicked...ect then it stopped working. Been using a sawsall then using my bench grinder to make things perfect. I got a little more done today, new mufflers, belt is on, ignition switch, throttle and choke are mounted on dash and dash is installed. And as far as the rims, those don't power the tracks. Not sure if I posted a picture of what I've done. As stated above I'm using stock snowmobile sprockets mounted to the zero turn hubs to power the tracks. The rims are there to act as boogie wheels. I haven't decided yet on if I want to use snowmobile slides and not use boogie wheels in between the 2 rims or if I want to take the wheels off snowmobile suspension and make them work.
Back to top Go down
Crazy_Carl
Veteran Member
Crazy_Carl
Veteran Member

2018 Build-Off Entrant
2018 Build-Off Entrant
2500+ Posts
2500+ Posts!
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 35
Join date : 2017-10-30
Points : 5316
Posts : 2561
Location : Rochester, New York

homemade mini dozer Empty
PostSubject: Re: homemade mini dozer   homemade mini dozer Icon_minitimeJuly 20th 2018, 8:45 pm

Thanks for clearing that up.  Makes sense.
Back to top Go down
Camdg2010
Member
Camdg2010
Member


Join date : 2014-01-22
Points : 4051
Posts : 94

homemade mini dozer Empty
PostSubject: Re: homemade mini dozer   homemade mini dozer Icon_minitimeJuly 20th 2018, 10:36 pm

here is a picture of how ive mounted the drive gears homemade mini dozer 37361110
Back to top Go down
prancstaman
Veteran Member
prancstaman
Veteran Member

1000+ Posts
1000+ Posts!

Join date : 2015-02-02
Points : 5079
Posts : 1412
Location : Cleveland,Ohio

homemade mini dozer Empty
PostSubject: Re: homemade mini dozer   homemade mini dozer Icon_minitimeJuly 20th 2018, 11:03 pm

The snowmobile slides should work. I think a simpler guide setup would be extending the horizontal support beams, for the bogies, past the tracks on both ends with rollers on them so when the track moves to the sides, the rollers will roll on the track to prevent wearing on the sides of the track.
Back to top Go down
Camdg2010
Member
Camdg2010
Member


Join date : 2014-01-22
Points : 4051
Posts : 94

homemade mini dozer Empty
PostSubject: Re: homemade mini dozer   homemade mini dozer Icon_minitimeJuly 21st 2018, 1:07 pm

Well guys. Not sure how I want to do my levers and linkages. Throwing a few through around on paper. But I really need a name for it. Here's what I've got. (MD11 for Mini D11) (C18 for Cameron 2018) (K11 for kitten 11). Any thoughts? I really like the sounds of MD11.
Back to top Go down
AllisKidD21
Moderator
AllisKidD21
Moderator

5000+ Posts
5000+ Posts!
2020 Build-Off Entrant
2020 Build-Off Entrant
1st Place Build-Off 2019
1st Place Build-Off Winner 2019

Age : 25
Join date : 2016-07-10
Points : 8570
Posts : 5190
Location : Ontario Canada

homemade mini dozer Empty
PostSubject: Re: homemade mini dozer   homemade mini dozer Icon_minitimeJuly 21st 2018, 3:10 pm

Yeah I'd have to agree MD11 sounds pretty cool.


"This'll either wake you up or put you to sleep forever!"- Red Green         "Whatever you do you should do right, even if it's something wrong." - Hank Hill

      - MTD Off-Road Build
      - Ford LT 110 Off-Road Build
      - Craftsman GT 6000 Off-Road Build
       - Sears LT11 Rat Rod Build *2019 Build-Off Winner!*


 Garden Tractor Collection: Allis B-110 x2, 710, 716, & 410 - Wheel Horse 655, 953 & 500 Special - Case 444 - Bolens Versamatic, G10 & 1668 Diesel Swapped - Cub 106, 124 & 1000/149 Frankentractor - Ford 120, LGT 125 & 145 - White 1650 Yard Boss - Moto Mower 710-100
Back to top Go down
Camdg2010
Member
Camdg2010
Member


Join date : 2014-01-22
Points : 4051
Posts : 94

homemade mini dozer Empty
PostSubject: Re: homemade mini dozer   homemade mini dozer Icon_minitimeJuly 21st 2018, 11:25 pm

Got the levers and linkages done today, painted the levers same yellow as hood just before i went inside! things are coming together great. except the engine... maybe its just my batterys are junk but ive tried 6 different batteries, it will struggle and turn over once maybe twice then just click like batteries are dead. unless i pull spark plugs out. I plan on buying a brand new battery soon. it will crank over great if spark plugs arnt in it. anyways heres the pictures! homemade mini dozer 37570510
homemade mini dozer 37594910
homemade mini dozer 37624210
Back to top Go down
Camdg2010
Member
Camdg2010
Member


Join date : 2014-01-22
Points : 4051
Posts : 94

homemade mini dozer Empty
PostSubject: Re: homemade mini dozer   homemade mini dozer Icon_minitimeJuly 21st 2018, 11:26 pm

homemade mini dozer 37609810
homemade mini dozer 37635810
homemade mini dozer 37577110
Back to top Go down
Camdg2010
Member
Camdg2010
Member


Join date : 2014-01-22
Points : 4051
Posts : 94

homemade mini dozer Empty
PostSubject: Re: homemade mini dozer   homemade mini dozer Icon_minitimeJuly 21st 2018, 11:27 pm

homemade mini dozer 37596210
Back to top Go down
Crazy_Carl
Veteran Member
Crazy_Carl
Veteran Member

2018 Build-Off Entrant
2018 Build-Off Entrant
2500+ Posts
2500+ Posts!
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 35
Join date : 2017-10-30
Points : 5316
Posts : 2561
Location : Rochester, New York

homemade mini dozer Empty
PostSubject: Re: homemade mini dozer   homemade mini dozer Icon_minitimeJuly 22nd 2018, 3:05 pm

I like the straight sticks!  Looks old school. I vote MD11.  Have you checked over your grounds?
Back to top Go down
Camdg2010
Member
Camdg2010
Member


Join date : 2014-01-22
Points : 4051
Posts : 94

homemade mini dozer Empty
PostSubject: Re: homemade mini dozer   homemade mini dozer Icon_minitimeJuly 22nd 2018, 3:32 pm

yes ive checked all grounds and connections. anytime i build a mower project the first thing i do it go thru the wiring harness and rewire everything. there is no safety switch plugs anymore, just magneto, solenoid, charging wire and ground on the ign switch. engine crangs over great with no spark plugs in it. its the same exact engine as my zero turn seen in the back ground of my pics, i swapped plugs and still nothing. i even hooked it up to my ole ladys car battery. same thing, jump started off my truck while it was running. same thing... what else could it be? it seems like its building WAY to much compression. pull valve covers and look for bent valve/ broken spring??
Back to top Go down
Camdg2010
Member
Camdg2010
Member


Join date : 2014-01-22
Points : 4051
Posts : 94

homemade mini dozer Empty
PostSubject: Re: homemade mini dozer   homemade mini dozer Icon_minitimeJuly 22nd 2018, 3:38 pm



homemade mini dozer 37638110
homemade mini dozer 37599710
Back to top Go down
Camdg2010
Member
Camdg2010
Member


Join date : 2014-01-22
Points : 4051
Posts : 94

homemade mini dozer Empty
PostSubject: Re: homemade mini dozer   homemade mini dozer Icon_minitimeJuly 22nd 2018, 3:46 pm

well i got to looking online. seems these are known for the compression valve to act up. unfortunately that means tearing into engine form what people are saying.. Sad
Back to top Go down
prancstaman
Veteran Member
prancstaman
Veteran Member

1000+ Posts
1000+ Posts!

Join date : 2015-02-02
Points : 5079
Posts : 1412
Location : Cleveland,Ohio

homemade mini dozer Empty
PostSubject: Re: homemade mini dozer   homemade mini dozer Icon_minitimeJuly 22nd 2018, 6:20 pm

I would take apart the starter first, and clean it out and put it back together. The compression release valve is usually for pull starting the engine. The starter should be strong enough to start the engine with no issues without it.
Back to top Go down
MightyRaze
Administrator
MightyRaze
Administrator

2017 Build-Off Finalist
2017 Build-Off Finalist
2018 Build-Off Top 3 Winner
2018 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2021 Winner of Winners
2021 Winner of Winners
1st Place Build-Off 2022
1st Place Build-Off Winner 2022
10,000 POSTS!
10,000 POSTS!
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 49
Join date : 2016-09-06
Points : 15623
Posts : 10962
Location : Oklahoma

homemade mini dozer Empty
PostSubject: Re: homemade mini dozer   homemade mini dozer Icon_minitimeJuly 22nd 2018, 6:31 pm

Not sure if anyone has mentioned it.  But before you tear into the engine to check compression release, maybe even before looking at the starter.  Check the valve lash adjustment.  I think I set mine around .004.


homemade mini dozer Sig115PROJECTS:
     Marshal ........................93 Craftsman GT6000
     Red Bandit ...................72 Wheel Horse Raider 12
     Dirty Rat........................77 Sears Suburban
     Bowser...........................01 Murray Widebody LT
     The Green Machine ....1990 Craftsman II GT18
Other projects
Have a question? Ask me! Type in "@MightyRaze" in your post!
homemade mini dozer Sig214homemade mini dozer Sig314
Back to top Go down
Sponsored content





homemade mini dozer Empty
PostSubject: Re: homemade mini dozer   homemade mini dozer Icon_minitime

Back to top Go down

homemade mini dozer
Back to top
Page 1 of 4Go to page : 1, 2, 3, 4  Next
 Similar topics
-
» 1971 Struck corp MD1200 mini dozer
» My 6211 simplicity dozer build
» Homemade 4WD
» transaxle for homemade utv
» My Homemade Trailers

Permissions in this forum:You cannot reply to topics in this forum
All-Terrain Lawn Tractor Forum :: Tractor Project Builds :: Utility, Workhorse, and Pulling Tractors-
Jump to:
