PostSubject: Mini Quad Refurbish   Mini Quad Refurbish Icon_minitimeJune 15th 2022, 12:13 am

A few weeks ago I got this 50cc mini quad in exchange for doing some small engine work for a neighbor. He never had it running, it had no carb, throttle cable or fuel tank or even spark for that matter! The plan is to bring it up to snuff and sell it.Mini Quad Refurbish 20220661


A couple weekends ago I started working on getting spark and nothing.  Mini Quad Refurbish 2429134702 I went through the wiring, removed the remote kill box, checked for power coming out of the primary coil, all of that was checking out but the blue/white wire for the crank trigger was grounding out and wasn't sending a signal! I opened it up and it was obvious someone had been into it at some point because I found not only was that wire pinched to the point of grounding but it was basically severed! One of the yellow wires was also pinched but it didn't pierce the insulation. I ended up robbing the crank trigger from a spare motor, soldered it in... Mini Quad Refurbish 20220663

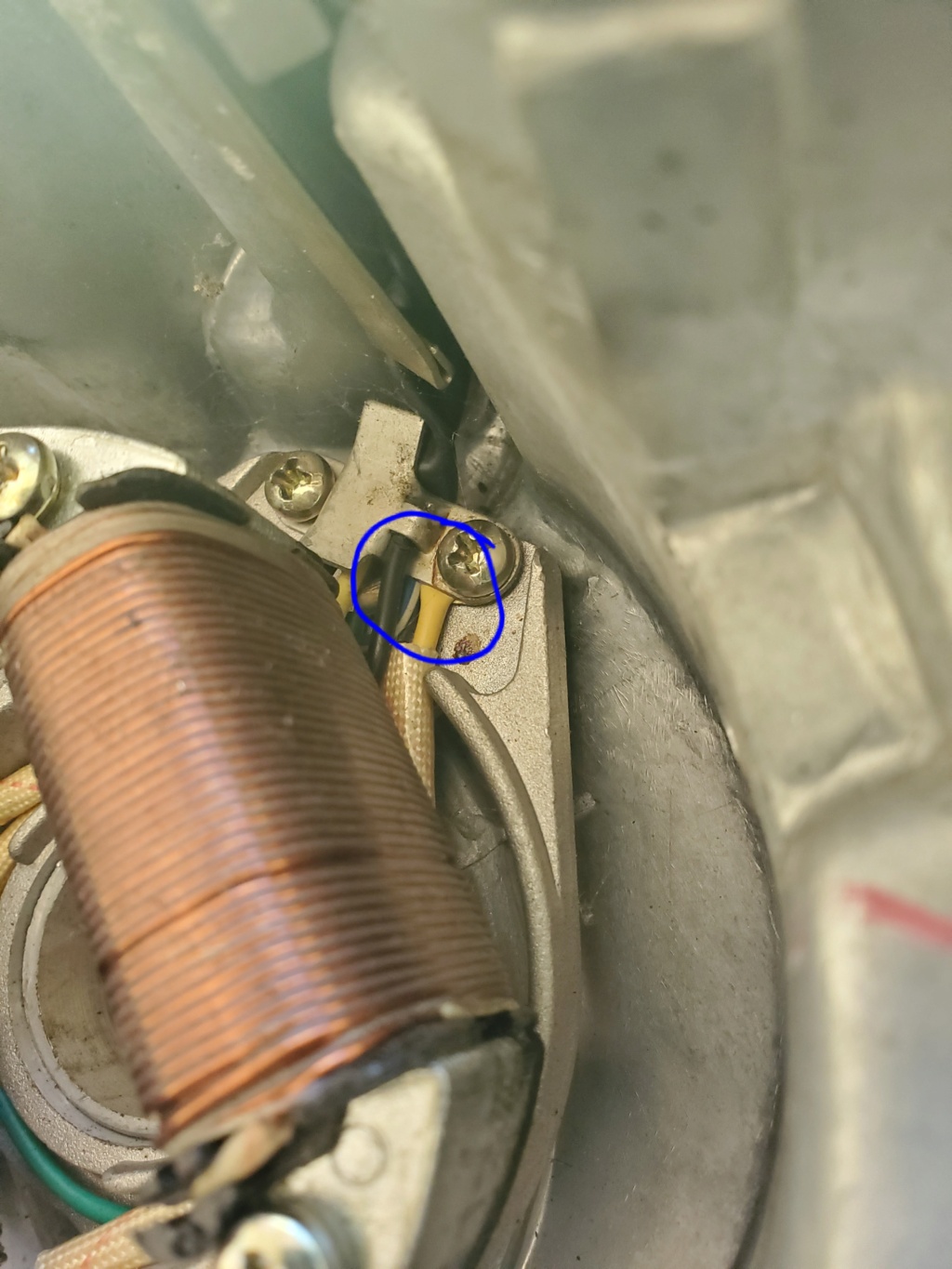

... and still no spark! I'm looking over the wiring again and what do I find? A tethered kill switch hiding out behind the battery box! Once I capped that switch there was fire! Obviously the crank trigger would've still been a problem if I hadn't fixed it already.

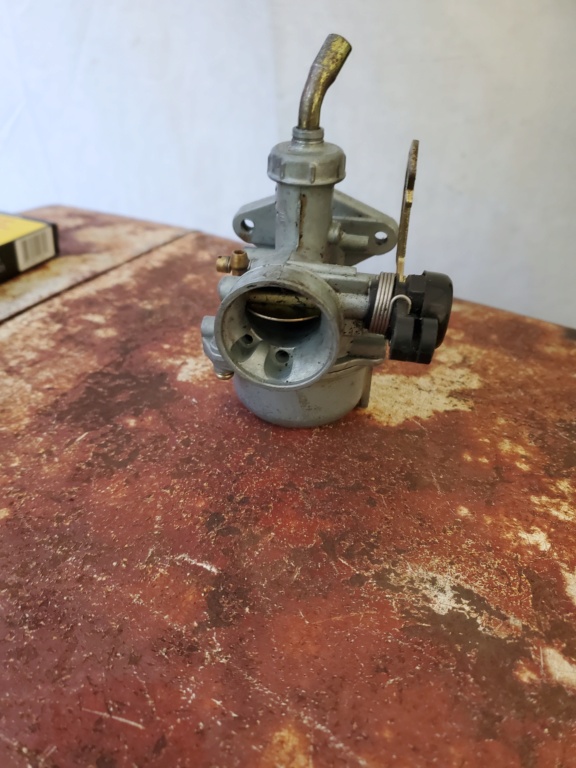

Last weekend I dug through my parts and found a carb that not only was the right one to fit but has the spring loaded choke and plate to work with the handlebar mounted choke lever. I also found I already had the right throttle cable and I stole the air filter for The WarHorse (and ordered another) seeing as how I won't be needing it for awhile. Mini Quad Refurbish 20220662


I taped a fuel tank from a pocket crotch rocket on it so I could get it running and start testing/tuning it, I got it running on my lift table, went to put the rear plastics on and it died! Take the plastic off, start it up and as I'm putting the rear plastic on it shut down again! So I start it up again, start moving wiring around and it's quits! Turns out the connectors metal tabs are loose for the rectifier and for the cdi (separate parts) so a little tweaking and it was good to go! I ripped the heck out of that thing, I'm actually surprised it hauled me around so well and it's quicker than I expected!

Fast forward to this week and I've custom mounted a larger fuel tank. I searched all over the web and Amazon, I ordered the one tank that looked like it was the right one but with my luck it wasn't! Lol.

Here's the new rear mount, I drilled and tapped holes for some Allen bolts... Mini Quad Refurbish 20220664

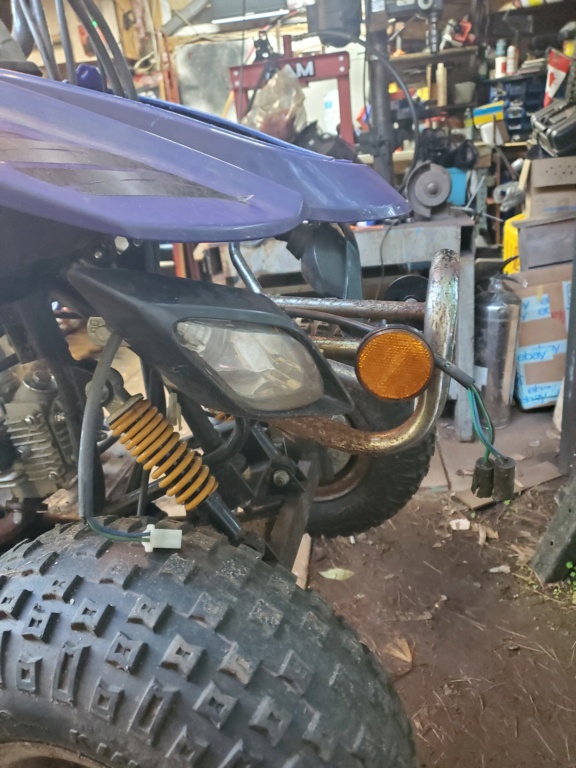

... and one of the front mounts. I cut a couple tabs off an old ATV frame, trimmed them to fit and welded them on. Mini Quad Refurbish 20220665


Here's the tank all mounted up finally! Mini Quad Refurbish 20220667
Mini Quad Refurbish 20220666


Some trimming of the front plastic is required to fit the tank, I've just been removing a little bit at a time and am getting close but still have more work to do (it should sit on top of the lights). Mini Quad Refurbish 20220669Mini Quad Refurbish 20220668


This is how it sits as of tonight.Mini Quad Refurbish 20220670


There's still alot of work to do before teardown and paint but at least it's running and driving now!


My All Terrain Tractors:
- "The WarHorse" ~ 1984 Sears Craftsman LT(V)11 (MTD Built) (Romping in Progress!)
- Roper "Trailblazer" ~ 1986 Roper LT110CR (Trailblazing in Progress!)
- The "Mud Duck" ~ 1969 Bolens 1225 Hydro (2022 Build Off 2nd place!)
- The "Silver Bullet" ~ 1984 Sears Craftsman LT(V)11 (MTD Built) (Part 1)
- The "Silver Bullet" (Take 2) ~ 2024 Build Off entry (Work in progress)
- Roper "Offroadster" ~ 1979 Roper T4328 (Romping in Progress!)
- 1973 Massey Ferguson MF12 ~ (Sold to a good home)



                             Click Here To See The DIY and Build Threads I've Created!

                                            ~My Real Hobby Is Collecting Projects!~

MightyRaze likes this post

Back to top Go down
Brianator
Moderator
Brianator
Moderator

1000+ Posts
1000+ Posts!
2022 Build-Off Top 3 Winner
2022 Build-Off Top 3 Winner
2023 Build-Off Entrant
2023 Build-Off Entrant
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 45
Join date : 2019-07-02
Points : 4363
Posts : 2383
Location : Ontario, Canada

Mini Quad Refurbish Empty
PostSubject: Re: Mini Quad Refurbish   Mini Quad Refurbish Icon_minitimeJune 16th 2022, 8:13 pm

A little bit of tinkering the last couple evenings and the plastic is trimmed to fit well around the tank. Mini Quad Refurbish 20220672


I also warmed the sides of the plastic with a propane torch to help mold it better. I used a cargo strap to pull it in from the sides while I did it.Mini Quad Refurbish 20220673


The tires I ordered a couple weeks ago came in and they look awesome! The old ones are pretty worn and cracking so I figured some new ones would help the curb appeal and resale value. Mini Quad Refurbish 20220674


My All Terrain Tractors:
- "The WarHorse" ~ 1984 Sears Craftsman LT(V)11 (MTD Built) (Romping in Progress!)
- Roper "Trailblazer" ~ 1986 Roper LT110CR (Trailblazing in Progress!)
- The "Mud Duck" ~ 1969 Bolens 1225 Hydro (2022 Build Off 2nd place!)
- The "Silver Bullet" ~ 1984 Sears Craftsman LT(V)11 (MTD Built) (Part 1)
- The "Silver Bullet" (Take 2) ~ 2024 Build Off entry (Work in progress)
- Roper "Offroadster" ~ 1979 Roper T4328 (Romping in Progress!)
- 1973 Massey Ferguson MF12 ~ (Sold to a good home)



                             Click Here To See The DIY and Build Threads I've Created!

                                            ~My Real Hobby Is Collecting Projects!~
Back to top Go down
Brianator
Moderator
Brianator
Moderator

1000+ Posts
1000+ Posts!
2022 Build-Off Top 3 Winner
2022 Build-Off Top 3 Winner
2023 Build-Off Entrant
2023 Build-Off Entrant
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 45
Join date : 2019-07-02
Points : 4363
Posts : 2383
Location : Ontario, Canada

Mini Quad Refurbish Empty
PostSubject: Re: Mini Quad Refurbish   Mini Quad Refurbish Icon_minitimeMay 29th 2023, 8:06 pm

Well I'm finally back to work on this thing, it's the perfect time of year to sell it so I'm hoping to have it done and sold by this weekend!

First step, tear down! Once it was torn down I cleaned and prepped the frame then sprayed it with bedliner, not only does it look great but it's really durable so yes, I use it for almost everything!  LolMini Quad Refurbish 20230571Mini Quad Refurbish 20230572



The rear swing arm had a piece missing and some cracks so I dealt with that and painted it. To fill the missing piece I found a little scrap of steel that was about the same thickness as the tubing and took my time welding and bending it as I went.Mini Quad Refurbish 20230574Mini Quad Refurbish 20230575Mini Quad Refurbish 20230573Mini Quad Refurbish 20230578Mini Quad Refurbish 20230577Mini Quad Refurbish 20230576


When I went to prep and paint the front axle/swingarm I noticed cracks in it as well so they got the same treatment!  Mini Quad Refurbish 20230581Mini Quad Refurbish 20230580Mini Quad Refurbish 20230579Mini Quad Refurbish 20230582Mini Quad Refurbish 20230583


While they were drying I cleaned up and painted the wheels, I figured gold would look good with the purple and go well with just about any color someone might want to paint the plastics! Mini Quad Refurbish 20230584


Then did a little reassembly and called it for the day! Mini Quad Refurbish 20230585


My All Terrain Tractors:
- "The WarHorse" ~ 1984 Sears Craftsman LT(V)11 (MTD Built) (Romping in Progress!)
- Roper "Trailblazer" ~ 1986 Roper LT110CR (Trailblazing in Progress!)
- The "Mud Duck" ~ 1969 Bolens 1225 Hydro (2022 Build Off 2nd place!)
- The "Silver Bullet" ~ 1984 Sears Craftsman LT(V)11 (MTD Built) (Part 1)
- The "Silver Bullet" (Take 2) ~ 2024 Build Off entry (Work in progress)
- Roper "Offroadster" ~ 1979 Roper T4328 (Romping in Progress!)
- 1973 Massey Ferguson MF12 ~ (Sold to a good home)



                             Click Here To See The DIY and Build Threads I've Created!

                                            ~My Real Hobby Is Collecting Projects!~

MightyRaze likes this post

Back to top Go down
Brianator
Moderator
Brianator
Moderator

1000+ Posts
1000+ Posts!
2022 Build-Off Top 3 Winner
2022 Build-Off Top 3 Winner
2023 Build-Off Entrant
2023 Build-Off Entrant
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 45
Join date : 2019-07-02
Points : 4363
Posts : 2383
Location : Ontario, Canada

Mini Quad Refurbish Empty
PostSubject: Re: Mini Quad Refurbish   Mini Quad Refurbish Icon_minitimeMay 30th 2023, 7:19 pm

I got alot more done on this today!

I touched up the top of the engine with silver paint because of some corrosion and flaking paint. Mini Quad Refurbish 20230586

I cleaned up and painted the rear axle, handlebars and exhaust. The only chrome I could save on the exhaust was the tip and the heat shield bolts! Lol. The rest of it got scuffed up really well then a few coats of high heat Rustoleum flat black paint, it turned out better than I hoped!

I reinstalled the engine, carb, handlebars, rear axle, front spindles, wheels, installed new tie rod ends, a new NGK spark plug and started hooking up some of the wiring and then packed it in for the day. Mini Quad Refurbish 20230587Mini Quad Refurbish 20230588

It's really starting to look like a quad again!


My All Terrain Tractors:
- "The WarHorse" ~ 1984 Sears Craftsman LT(V)11 (MTD Built) (Romping in Progress!)
- Roper "Trailblazer" ~ 1986 Roper LT110CR (Trailblazing in Progress!)
- The "Mud Duck" ~ 1969 Bolens 1225 Hydro (2022 Build Off 2nd place!)
- The "Silver Bullet" ~ 1984 Sears Craftsman LT(V)11 (MTD Built) (Part 1)
- The "Silver Bullet" (Take 2) ~ 2024 Build Off entry (Work in progress)
- Roper "Offroadster" ~ 1979 Roper T4328 (Romping in Progress!)
- 1973 Massey Ferguson MF12 ~ (Sold to a good home)



                             Click Here To See The DIY and Build Threads I've Created!

                                            ~My Real Hobby Is Collecting Projects!~

MightyRaze likes this post

Back to top Go down
MightyRaze
Administrator
MightyRaze
Administrator

2017 Build-Off Finalist
2017 Build-Off Finalist
2018 Build-Off Top 3 Winner
2018 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2021 Winner of Winners
2021 Winner of Winners
1st Place Build-Off 2022
1st Place Build-Off Winner 2022
10,000 POSTS!
10,000 POSTS!
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 49
Join date : 2016-09-06
Points : 15116
Posts : 10667
Location : Oklahoma

Mini Quad Refurbish Empty
PostSubject: Re: Mini Quad Refurbish   Mini Quad Refurbish Icon_minitimeMay 30th 2023, 11:31 pm

Looking good @Brianator!


Mini Quad Refurbish Sig115PROJECTS:
     Marshal ........93 Craftsman GT6000
     Red Bandit ...72 Wheel Horse Raider 12
     Dirty Rat........77 Sears Suburban
     Bowser..........01 Murray Widebody LT
     Other projects
Have a question? Ask me! Type in "@MightyRaze" in your post!
Mini Quad Refurbish Sig214Mini Quad Refurbish Sig314

Brianator likes this post

Back to top Go down
Brianator
Moderator
Brianator
Moderator

1000+ Posts
1000+ Posts!
2022 Build-Off Top 3 Winner
2022 Build-Off Top 3 Winner
2023 Build-Off Entrant
2023 Build-Off Entrant
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 45
Join date : 2019-07-02
Points : 4363
Posts : 2383
Location : Ontario, Canada

Mini Quad Refurbish Empty
PostSubject: Re: Mini Quad Refurbish   Mini Quad Refurbish Icon_minitimeJune 1st 2023, 5:51 pm

Well I've been plugging away on this sorting stuff out, painting more parts and getting it running again!

Top speed is actually a little scary on this as it's really unstable at 30MPH! I'm sure glad I gave the brakes a really good going over or I probably would've ended up in the lake! Lol.
Mini Quad Refurbish 20230611Mini Quad Refurbish 20230610

I'm not so sure I'll have it ready to sell this weekend, I do want to make sure that everything is 100% so it's good for the new owner and I'm being kind of picky about stuff but I have put a local ad up to start generating interest.


My All Terrain Tractors:
- "The WarHorse" ~ 1984 Sears Craftsman LT(V)11 (MTD Built) (Romping in Progress!)
- Roper "Trailblazer" ~ 1986 Roper LT110CR (Trailblazing in Progress!)
- The "Mud Duck" ~ 1969 Bolens 1225 Hydro (2022 Build Off 2nd place!)
- The "Silver Bullet" ~ 1984 Sears Craftsman LT(V)11 (MTD Built) (Part 1)
- The "Silver Bullet" (Take 2) ~ 2024 Build Off entry (Work in progress)
- Roper "Offroadster" ~ 1979 Roper T4328 (Romping in Progress!)
- 1973 Massey Ferguson MF12 ~ (Sold to a good home)



                             Click Here To See The DIY and Build Threads I've Created!

                                            ~My Real Hobby Is Collecting Projects!~
Back to top Go down
Brianator
Moderator
Brianator
Moderator

1000+ Posts
1000+ Posts!
2022 Build-Off Top 3 Winner
2022 Build-Off Top 3 Winner
2023 Build-Off Entrant
2023 Build-Off Entrant
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 45
Join date : 2019-07-02
Points : 4363
Posts : 2383
Location : Ontario, Canada

Mini Quad Refurbish Empty
PostSubject: Re: Mini Quad Refurbish   Mini Quad Refurbish Icon_minitimeJune 3rd 2023, 9:06 am

I figured out why it's unstable at speed and have corrected it although I still don't think it will be non-sketchy at 30mph.

The swingarm bolt is 10mm (all metric on these things) and the hole in the mounting plates was wallered out, no amount of tightening can stop it from waggling around.Mini Quad Refurbish 20230613Mini Quad Refurbish 20230612

I used an inside micrometer to determine that the actual tubes ID is just a hair over ½" so I started rummaging around and found some ½" OD tubing but the bolt wouldn't fit in... some more rummaging and I found a perfectly sized axle to slide into the tube and it's already the right length! I'm sure glad I haven't gotten rid of all the spare mini bike parts! Mini Quad Refurbish 20230614

After some Dremel work and drilling, the tube fit through the modified holes in a hammer fit fashion so its nice and snug in there! After cutting, griding and deburring the ends of the sleeve I made I put it all back together, low and behold the slop is gone! There's just a tiny little bit of play, nothing to be concerned about and it's probably the same if not better then factory at this point plus that sleeve is made from tubing that is readily available at most hardware stores!Mini Quad Refurbish 20230616Mini Quad Refurbish 20230615

Now I can set up the chain slack and alignment (again) so I can continue testing it today, it's coming along really well and is actually pretty fun to rip around on!


My All Terrain Tractors:
- "The WarHorse" ~ 1984 Sears Craftsman LT(V)11 (MTD Built) (Romping in Progress!)
- Roper "Trailblazer" ~ 1986 Roper LT110CR (Trailblazing in Progress!)
- The "Mud Duck" ~ 1969 Bolens 1225 Hydro (2022 Build Off 2nd place!)
- The "Silver Bullet" ~ 1984 Sears Craftsman LT(V)11 (MTD Built) (Part 1)
- The "Silver Bullet" (Take 2) ~ 2024 Build Off entry (Work in progress)
- Roper "Offroadster" ~ 1979 Roper T4328 (Romping in Progress!)
- 1973 Massey Ferguson MF12 ~ (Sold to a good home)



                             Click Here To See The DIY and Build Threads I've Created!

                                            ~My Real Hobby Is Collecting Projects!~
Back to top Go down
Brianator
Moderator
Brianator
Moderator

1000+ Posts
1000+ Posts!
2022 Build-Off Top 3 Winner
2022 Build-Off Top 3 Winner
2023 Build-Off Entrant
2023 Build-Off Entrant
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 45
Join date : 2019-07-02
Points : 4363
Posts : 2383
Location : Ontario, Canada

Mini Quad Refurbish Empty
PostSubject: Re: Mini Quad Refurbish   Mini Quad Refurbish Icon_minitimeJune 8th 2023, 8:43 pm

Well, this build is just about wrapped up now, all mechanical and electrical is sorted out and it's 98% reassembled, just a couple finishing touches to finish up and it's done. It was too overcast to get pictures today but hopefully tomorrow I can get and post some!


My All Terrain Tractors:
- "The WarHorse" ~ 1984 Sears Craftsman LT(V)11 (MTD Built) (Romping in Progress!)
- Roper "Trailblazer" ~ 1986 Roper LT110CR (Trailblazing in Progress!)
- The "Mud Duck" ~ 1969 Bolens 1225 Hydro (2022 Build Off 2nd place!)
- The "Silver Bullet" ~ 1984 Sears Craftsman LT(V)11 (MTD Built) (Part 1)
- The "Silver Bullet" (Take 2) ~ 2024 Build Off entry (Work in progress)
- Roper "Offroadster" ~ 1979 Roper T4328 (Romping in Progress!)
- 1973 Massey Ferguson MF12 ~ (Sold to a good home)



                             Click Here To See The DIY and Build Threads I've Created!

                                            ~My Real Hobby Is Collecting Projects!~

MightyRaze likes this post

Back to top Go down
Brianator
Moderator
Brianator
Moderator

1000+ Posts
1000+ Posts!
2022 Build-Off Top 3 Winner
2022 Build-Off Top 3 Winner
2023 Build-Off Entrant
2023 Build-Off Entrant
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 45
Join date : 2019-07-02
Points : 4363
Posts : 2383
Location : Ontario, Canada

Mini Quad Refurbish Empty
PostSubject: Re: Mini Quad Refurbish   Mini Quad Refurbish Icon_minitimeJune 9th 2023, 7:46 pm

Finally 100% done and ready for sale! Sleeving the rear swimgarm made a huge difference and it actually does feel pretty stable at top speed now but I still think the throttle should be limited via the thumb throttle screw.

Mini Quad Refurbish 20230623Mini Quad Refurbish 20230624Mini Quad Refurbish 20230625

I only had a couple nibbles this past week, hopefully now that's it's done I'll get an actual bite!


My All Terrain Tractors:
- "The WarHorse" ~ 1984 Sears Craftsman LT(V)11 (MTD Built) (Romping in Progress!)
- Roper "Trailblazer" ~ 1986 Roper LT110CR (Trailblazing in Progress!)
- The "Mud Duck" ~ 1969 Bolens 1225 Hydro (2022 Build Off 2nd place!)
- The "Silver Bullet" ~ 1984 Sears Craftsman LT(V)11 (MTD Built) (Part 1)
- The "Silver Bullet" (Take 2) ~ 2024 Build Off entry (Work in progress)
- Roper "Offroadster" ~ 1979 Roper T4328 (Romping in Progress!)
- 1973 Massey Ferguson MF12 ~ (Sold to a good home)



                             Click Here To See The DIY and Build Threads I've Created!

                                            ~My Real Hobby Is Collecting Projects!~

MightyRaze likes this post

Back to top Go down
Brianator
Moderator
Brianator
Moderator

1000+ Posts
1000+ Posts!
2022 Build-Off Top 3 Winner
2022 Build-Off Top 3 Winner
2023 Build-Off Entrant
2023 Build-Off Entrant
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 45
Join date : 2019-07-02
Points : 4363
Posts : 2383
Location : Ontario, Canada

Mini Quad Refurbish Empty
PostSubject: Re: Mini Quad Refurbish   Mini Quad Refurbish Icon_minitimeJuly 9th 2023, 9:22 am

Bye Bye Mini Quad!
Mini Quad Refurbish 20230713Mini Quad Refurbish 20230712

Time to wrap up this build thread as it's found a new home, a fella came 3 hours to buy it for his 7yo daughter so she can learn to ride!

I got a fair price, he got a fair deal and his daughter has a solid little quad to play with so everyone wins today! I'm almost sad to see it go because it's a blast to rip around on but I'm just glad it found a good home!

Thanks to all who followed along!


My All Terrain Tractors:
- "The WarHorse" ~ 1984 Sears Craftsman LT(V)11 (MTD Built) (Romping in Progress!)
- Roper "Trailblazer" ~ 1986 Roper LT110CR (Trailblazing in Progress!)
- The "Mud Duck" ~ 1969 Bolens 1225 Hydro (2022 Build Off 2nd place!)
- The "Silver Bullet" ~ 1984 Sears Craftsman LT(V)11 (MTD Built) (Part 1)
- The "Silver Bullet" (Take 2) ~ 2024 Build Off entry (Work in progress)
- Roper "Offroadster" ~ 1979 Roper T4328 (Romping in Progress!)
- 1973 Massey Ferguson MF12 ~ (Sold to a good home)



                             Click Here To See The DIY and Build Threads I've Created!

                                            ~My Real Hobby Is Collecting Projects!~

MightyRaze and TechnoChicken like this post

Back to top Go down
MightyRaze
Administrator
MightyRaze
Administrator

2017 Build-Off Finalist
2017 Build-Off Finalist
2018 Build-Off Top 3 Winner
2018 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2021 Winner of Winners
2021 Winner of Winners
1st Place Build-Off 2022
1st Place Build-Off Winner 2022
10,000 POSTS!
10,000 POSTS!
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 49
Join date : 2016-09-06
Points : 15116
Posts : 10667
Location : Oklahoma

Mini Quad Refurbish Empty
PostSubject: Re: Mini Quad Refurbish   Mini Quad Refurbish Icon_minitimeJuly 9th 2023, 12:17 pm

Nice job @Brianator!


Mini Quad Refurbish Sig115PROJECTS:
     Marshal ........93 Craftsman GT6000
     Red Bandit ...72 Wheel Horse Raider 12
     Dirty Rat........77 Sears Suburban
     Bowser..........01 Murray Widebody LT
     Other projects
Have a question? Ask me! Type in "@MightyRaze" in your post!
Mini Quad Refurbish Sig214Mini Quad Refurbish Sig314

Brianator likes this post

Back to top Go down
Sponsored content





Mini Quad Refurbish Empty
PostSubject: Re: Mini Quad Refurbish   Mini Quad Refurbish Icon_minitime

Back to top Go down

Mini Quad Refurbish
Back to top
Page 1 of 1
 Similar topics
-
» 50cc suzuki mini-quad
» video of my quad
» The 89 Craftsman big quad
» mini chopper
» 1997 Murray's DIESEL Craft Quad II [2016 Build-Off Entry]

Permissions in this forum:You cannot reply to topics in this forum
All-Terrain Lawn Tractor Forum :: Off Topic :: Off Topic Project Builds-
Jump to:
