 John Deere 110 Project

Go down
Go to page : 1, 2, 3, 4, 5  Next
AuthorMessage
AllisKidD21
Moderator
Moderator
AllisKidD21

Age : 20
Join date : 2016-07-10
Posts : 4785
Forum Rep : 223
Location : Ontario Canada

John Deere 110 Project Empty
PostSubject: John Deere 110 Project   John Deere 110 Project Icon_minitimeMon May 14, 2018 7:10 pm

So as most of you know we have a John Deere 110 basic off-roader set up for my cousin to use.

John Deere 110 Project 20180533

Since this ones actually in such good shape, the plan was to get a different one that was in much rougher shape and get it running and driving instead. He's gonna use the nice one until the other one is all ready and then it will most likely be sold with the deck, blower, etc. Basically it's gonna be mostly my job to get it functioning good enough to use for an off-road rig.

So anyways, here's the project unit:

John Deere 110 Project 20180534

John Deere 110 Project 20180535

Fairly rough but not too bad. When we got it there were no spindles but I had a set that we modified to work, as you can see they need to be bent a bit to get rid of that negative camber, hahaha.

It has a K241 Kohler 10hp engine that I started tearing into today. I got the carb off, dissassembled it, then cleaned/inspected it. It wasn't too bad but it needs a new float.
The next problem was the engine seemed to spin with no compression, but I could hear the intake breathing so I knew the rod and piston were intact.

Traced it down to simply a stuck exaust valve:

John Deere 110 Project 20180536

Got the cylinder head off and got it freed up, but still not %100, so it's soaking in some stuff overnight.

John Deere 110 Project 20180537


While the head was off I got all the carbon and junk cleaned off with a wire wheel:

John Deere 110 Project 20180538

John Deere 110 Project 20180539

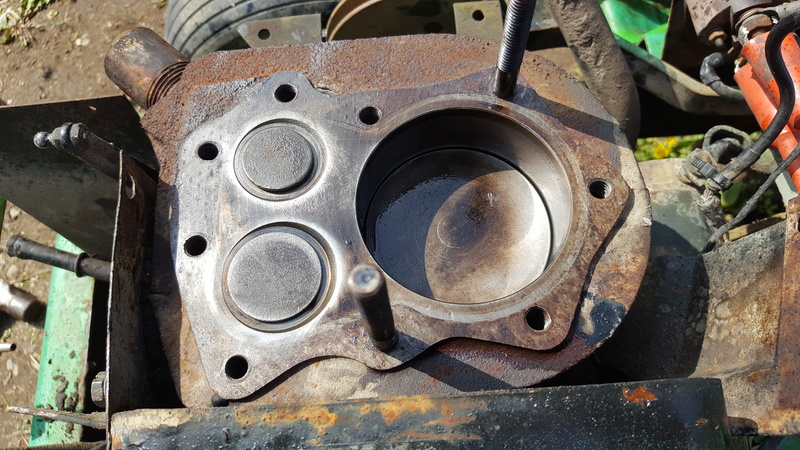

Cleaned up real nice! No slop in the piston, cylinder wall looks good, valves seating nice, etc. I definitely think it'll be easy to get 'er running.

This is gonna be a real basic project, not quite as much modding or anything, just something for my little cousin to have fun with. Either way I thought I'd document it and show it to you fellas, haha. More to come soon hopefully!

_______________________________________________
"This'll either wake you up or put you to sleep forever!"- Red Green         "Whatever you do you should do right, even if it's something wrong." - Hank Hill
       - MTD Off-Road Build
       - Toro Rat Rod Tractor Build
       - Ford LT 110 Off-Road Build
       - Craftsman GT 6000 Off-Road Build
       - John Deere 110 Basic Off-Road Build
       - Allis B-110, 710 & 716 - Wheel Horse 655 - Case 444 - Bolens Versamatic - Cub Cadet 106  - Jacobsen YT 14 -


Last edited by AllisKidD21 on Tue May 15, 2018 2:01 am; edited 1 time in total
