Bandit1
Member

Member


Join date : 2012-08-21
Posts : 43

Mastercraft Off road project - Page 2 Empty
PostSubject: Re: Mastercraft Off road project   Mastercraft Off road project - Page 2 Icon_minitimeOctober 29th 2012, 9:58 pm

If I had a Atv that I could use for parts I would deffinatly build a mower like this.
Back to top Go down
Trikahilux
Member
Trikahilux
Member


Age : 42
Join date : 2012-06-29
Points : 4596
Posts : 47
Location : C-Ville Va.

Mastercraft Off road project - Page 2 Empty
PostSubject: Re: Mastercraft Off road project   Mastercraft Off road project - Page 2 Icon_minitimeNovember 4th 2012, 10:25 pm

[quote="Chopperhed"]

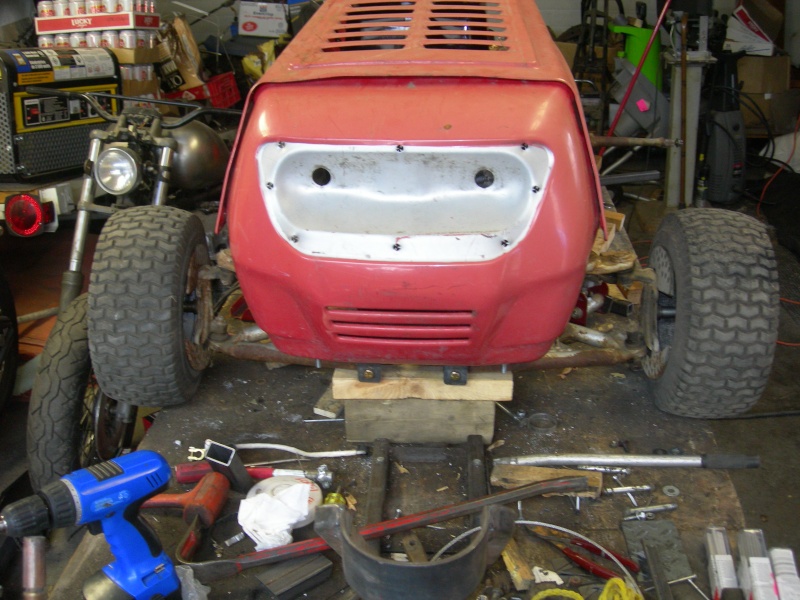

Mastercraft Off road project - Page 2 Dscn3717

Love this pic! I'd hav eto figure out som way of making that work. lol

Tractors looking sweet man!! hope i get the oppertunity to build one of these ifs beasts one day

*2 thumbs up!*
Back to top Go down
Chopperhed
Moderator
Chopperhed
Moderator

500+ Posts
500+ Posts

Age : 58
Join date : 2012-10-14
Points : 5273
Posts : 801
Location : Edmonton, Alberta, Canada Eh!

Mastercraft Off road project - Page 2 Empty
PostSubject: Re: Mastercraft Off road project   Mastercraft Off road project - Page 2 Icon_minitimeNovember 10th 2012, 1:37 pm

Ouch, Ouch, And More Ouch

Went down to PRincess Auto this morning, needed things like bearings universal joints centri clutch etc.

$300 later, I have enough stuff to keep me going a while. Still need some 1" keyed shaft, some 3/4" cold rolled round bar, and the jackshaft sprockets and chain, but coming together nicely
Started on the Steering last night. Its now fully suspended front and rear.

Will post some pics later today
Back to top Go down
http://http:\\members.shaw.ca\ducksgarage
Chopperhed
Moderator
Chopperhed
Moderator

500+ Posts
500+ Posts

Age : 58
Join date : 2012-10-14
Points : 5273
Posts : 801
Location : Edmonton, Alberta, Canada Eh!

Mastercraft Off road project - Page 2 Empty
PostSubject: Re: Mastercraft Off road project   Mastercraft Off road project - Page 2 Icon_minitimeNovember 10th 2012, 7:51 pm

A couple pics


Look mom no jackstands. It has a full suspension. Actually there is a jack under the left front end that makes everything look crooked. I have it jacked up to check clearance for the tie rods.

Mastercraft Off road project - Page 2 Dscn3810

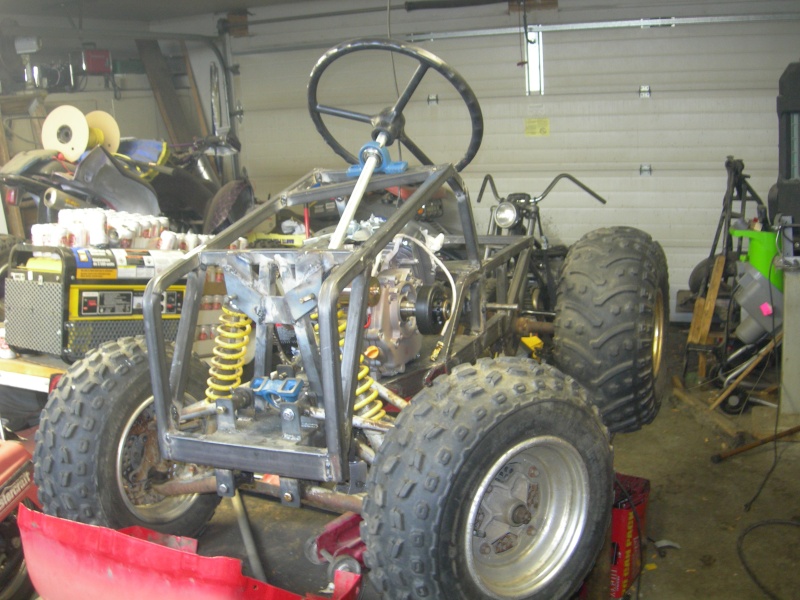

Mocking up the steering wheel and shaft

Mastercraft Off road project - Page 2 Dscn3812

Thats a new 110.00 Hilliard Extreme Duty clutch.

After some thought and "on the fly" design, I've discovered that I bought 1 too many u-joints, and 1 too many bearings. I'm OK with that I can take them back and get some 1" keyed shaft and a sprocket instead.

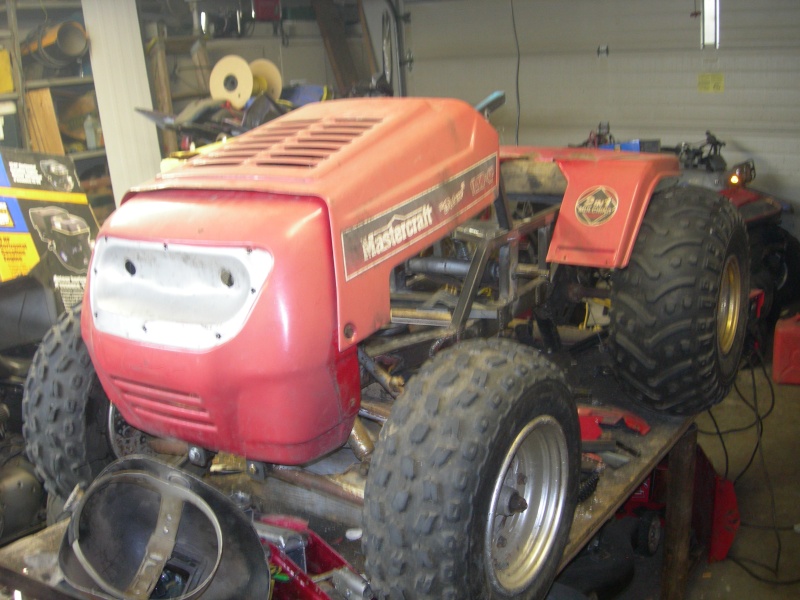

A Sheetmetal mockup, at empty ride height.
Mastercraft Off road project - Page 2 Dscn3716
Back to top Go down
http://http:\\members.shaw.ca\ducksgarage
W1ldyOvvnZ
Member
W1ldyOvvnZ
Member


Age : 29
Join date : 2011-12-06
Points : 5270
Posts : 499
Location : Winchester, ON, Canada

Mastercraft Off road project - Page 2 Empty
PostSubject: Re: Mastercraft Off road project   Mastercraft Off road project - Page 2 Icon_minitimeNovember 10th 2012, 9:11 pm

Looks awesome, is that steering wheel going to go through the hood or just behind it?
Back to top Go down
http://www.stat10.tk/
Chopperhed
Moderator
Chopperhed
Moderator

500+ Posts
500+ Posts

Age : 58
Join date : 2012-10-14
Points : 5273
Posts : 801
Location : Edmonton, Alberta, Canada Eh!

Mastercraft Off road project - Page 2 Empty
PostSubject: Re: Mastercraft Off road project   Mastercraft Off road project - Page 2 Icon_minitimeNovember 10th 2012, 10:50 pm

It will be very close to the back edge of the hood. Depending on the final angle of the steering column, I may have to notch the hood a bit.
Back to top Go down
http://http:\\members.shaw.ca\ducksgarage
Chopperhed
Moderator
Chopperhed
Moderator

500+ Posts
500+ Posts

Age : 58
Join date : 2012-10-14
Points : 5273
Posts : 801
Location : Edmonton, Alberta, Canada Eh!

Mastercraft Off road project - Page 2 Empty
PostSubject: Re: Mastercraft Off road project   Mastercraft Off road project - Page 2 Icon_minitimeNovember 17th 2012, 10:00 pm

More progress. Sorry pics are out of order

It has steering,

Finally found some high tensile 4140 alloy shafting form the steering column and jackshaft. Picked up some off cuts from metal supermarket. Was a hell of a lot cheaper than from Princess auto. The steering column was drilled for bolts, and assembled as is. The U-joint is a good beefy unit, bigger than on a lot of small cars.

.The jackshaft will have to be slotted. I'll take it to work and mill keyways in it next week. Apparently it will be a couple weeks before PA gets any more sprocket hubs, so final driveline work will be a little behind.


Getting started on the steering
Mastercraft Off road project - Page 2 Dscn3813

A steel checkerplate crotch protector. The rocker cover sits about 1/2" behind that plate. With out the plate, the piston points directly at my nutz. I left it as a bolted unit so I can get to the plug, rocker cover, and valves, without unbolting the engine.

Mastercraft Off road project - Page 2 Dscn3814

Mocking up the dash. Its polished aluminum checkerplate. The steering column bearing is evident. I had to notch the hood an inch or so, and the dash panel had to be notched as well
Mastercraft Off road project - Page 2 Dscn3818

Started on the flip up rear section
Mastercraft Off road project - Page 2 Dscn3821
Back to top Go down
http://http:\\members.shaw.ca\ducksgarage
W1ldyOvvnZ
Member
W1ldyOvvnZ
Member


Age : 29
Join date : 2011-12-06
Points : 5270
Posts : 499
Location : Winchester, ON, Canada

Mastercraft Off road project - Page 2 Empty
PostSubject: Re: Mastercraft Off road project   Mastercraft Off road project - Page 2 Icon_minitimeNovember 17th 2012, 10:15 pm

Looks nice, why did you do the steel checkerplate and aluminum checkerplate? and not all aluminum or all steel? thats all you had around?
Back to top Go down
http://www.stat10.tk/
Chopperhed
Moderator
Chopperhed
Moderator

500+ Posts
500+ Posts

Age : 58
Join date : 2012-10-14
Points : 5273
Posts : 801
Location : Edmonton, Alberta, Canada Eh!

Mastercraft Off road project - Page 2 Empty
PostSubject: Re: Mastercraft Off road project   Mastercraft Off road project - Page 2 Icon_minitimeNovember 17th 2012, 10:50 pm

Very Happy I wanted the steel for the critch protection. I like the aluminum for the looks. Plus it did fit with what I had handy.
Back to top Go down
http://http:\\members.shaw.ca\ducksgarage
W1ldyOvvnZ
Member
W1ldyOvvnZ
Member


Age : 29
Join date : 2011-12-06
Points : 5270
Posts : 499
Location : Winchester, ON, Canada

Mastercraft Off road project - Page 2 Empty
PostSubject: Re: Mastercraft Off road project   Mastercraft Off road project - Page 2 Icon_minitimeNovember 17th 2012, 10:52 pm

ooh ok, thats pretty much what I thought, still looks cool.
Back to top Go down
http://www.stat10.tk/
craftsman rider
New Member
craftsman rider
New Member


Age : 28
Join date : 2012-11-18
Points : 4405
Posts : 4
Location : Yakima,Washington

Mastercraft Off road project - Page 2 Empty
PostSubject: Re: Mastercraft Off road project   Mastercraft Off road project - Page 2 Icon_minitimeNovember 19th 2012, 7:45 pm

This is sweet. its come along way i really like the square tubing your using. what welder are you using? how fast are you planning on going? this thing will probly handle high speeds with no prob.
Back to top Go down
Chopperhed
Moderator
Chopperhed
Moderator

500+ Posts
500+ Posts

Age : 58
Join date : 2012-10-14
Points : 5273
Posts : 801
Location : Edmonton, Alberta, Canada Eh!

Mastercraft Off road project - Page 2 Empty
PostSubject: Re: Mastercraft Off road project   Mastercraft Off road project - Page 2 Icon_minitimeNovember 20th 2012, 12:00 am

I'm using a $90 dollar Princess auto stick welder. Its one of my favorite toys. Its sucks 20 amps AC at 120V and burns 5/64 Lincoln rods at up to 80 amps AC. I;m working on a DC cinversion, but it takes money better spent elsewhere.
With practise, it can do up to 3/16 pretty good, following accepted preheat procedures. I basically torch (preheat) the snot out of the heavy stuff with a map gas plumbing torch. My A arm brackets are 1/4" plate, and they are gorrilla solid. It might not be all that pretty , but its monster truck solid.

I've got lots of options for gearing. I want to go to a 18-20 inch rear tire, and a 15 front, maybe I'm looking for about a 45 mph top speed, in the rough stuff. The jackshaft setup leys me do what ever I want for ratios.


I tried to maintain the stock Warrior geometry as best I could, so it should be pretty stable up to 65 or so. Its not really going to be a mudder much with only 2 wheel drive, and no reverse. Although i could put a winch on the back.

I got the jackshaft set up in the mill today, will be milling the keyway later this week. The mill needs some service at the moment so I need to get one of the guys to go over it, I'm sure I have a guy that needs something to do tomorrow
Back to top Go down
http://http:\\members.shaw.ca\ducksgarage
Chopperhed
Moderator
Chopperhed
Moderator

500+ Posts
500+ Posts

Age : 58
Join date : 2012-10-14
Points : 5273
Posts : 801
Location : Edmonton, Alberta, Canada Eh!

Mastercraft Off road project - Page 2 Empty
PostSubject: Re: Mastercraft Off road project   Mastercraft Off road project - Page 2 Icon_minitimeNovember 20th 2012, 3:38 pm

Took some time this morning and got the coolant pump and power feed fixed on the milling machine.

Started on milling the jack shaft keyway

Mastercraft Off road project - Page 2 Img_2410

Hopefully have that finished off today, then I'll need to make a slotted mounting pad for the jackshaft bearings
Back to top Go down
http://http:\\members.shaw.ca\ducksgarage
Junkstarbuilds
Administrator
Junkstarbuilds
Administrator


Age : 48
Join date : 2012-07-03
Points : 4862
Posts : 236
Location : Fort Stewart Georgia

Mastercraft Off road project - Page 2 Empty
PostSubject: that has the same body skins as   Mastercraft Off road project - Page 2 Icon_minitimeNovember 20th 2012, 3:58 pm

That hood and grill are the same as my body from the MTD Huskee, soon to be the Speed Mower...
you are going all out on this thing...I wish I had a milling machine!
Back to top Go down
Chopperhed
Moderator
Chopperhed
Moderator

500+ Posts
500+ Posts

Age : 58
Join date : 2012-10-14
Points : 5273
Posts : 801
Location : Edmonton, Alberta, Canada Eh!

Mastercraft Off road project - Page 2 Empty
PostSubject: Re: Mastercraft Off road project   Mastercraft Off road project - Page 2 Icon_minitimeNovember 20th 2012, 5:10 pm

I just have access to the mill at work. It comes in handy though.

Near as I can tell, My mastercraft is all 100% MTD, and it looks exactly like a lot of others.

Been hunting another tractor for my next project. I've decided I need a dozer for my yard work. These light tractors can't cut it for what I'm doing, so I need something the same size ( to fit through the gates) with a lot more weight and traction. I figure I can build something with full hydraulics for under $1000
Back to top Go down
http://http:\\members.shaw.ca\ducksgarage
W1ldyOvvnZ
Member
W1ldyOvvnZ
Member


Age : 29
Join date : 2011-12-06
Points : 5270
Posts : 499
Location : Winchester, ON, Canada

Mastercraft Off road project - Page 2 Empty
PostSubject: Re: Mastercraft Off road project   Mastercraft Off road project - Page 2 Icon_minitimeNovember 20th 2012, 5:27 pm

your next project seems pretty cool, you should post it on the forum!
Back to top Go down
http://www.stat10.tk/
CornishMorgan
Member

Member


Join date : 2012-06-10
Points : 4888
Posts : 302

Mastercraft Off road project - Page 2 Empty
PostSubject: Re: Mastercraft Off road project   Mastercraft Off road project - Page 2 Icon_minitimeNovember 20th 2012, 7:43 pm

Chopperhed wrote:
I just have access to the mill at work. It comes in handy though.

Near as I can tell, My mastercraft is all 100% MTD, and it looks exactly like a lot of others.

Been hunting another tractor for my next project. I've decided I need a dozer for my yard work. These light tractors can't cut it for what I'm doing, so I need something the same size ( to fit through the gates) with a lot more weight and traction. I figure I can build something with full hydraulics for under $1000

What about one of these?
Mastercraft Off road project - Page 2 Db_Greg_Loader_11
I really want on of these.


Or if you need something smaller may I suggest:
Mastercraft Off road project - Page 2 Bigdozer500

or even smaller:
Mastercraft Off road project - Page 2 BUIL-LEGO-TECH-CONS-8259_MINI_BULLDOZER

Razz
Back to top Go down
Chopperhed
Moderator
Chopperhed
Moderator

500+ Posts
500+ Posts

Age : 58
Join date : 2012-10-14
Points : 5273
Posts : 801
Location : Edmonton, Alberta, Canada Eh!

Mastercraft Off road project - Page 2 Empty
PostSubject: Re: Mastercraft Off road project   Mastercraft Off road project - Page 2 Icon_minitimeNovember 20th 2012, 7:51 pm

mlwinters wrote:
Chopperhed wrote:
I just have access to the mill at work. It comes in handy though.

Near as I can tell, My mastercraft is all 100% MTD, and it looks exactly like a lot of others.

Been hunting another tractor for my next project. I've decided I need a dozer for my yard work. These light tractors can't cut it for what I'm doing, so I need something the same size ( to fit through the gates) with a lot more weight and traction. I figure I can build something with full hydraulics for under $1000

What about one of these?
Mastercraft Off road project - Page 2 Db_Greg_Loader_11
I really want on of these.



Somthing like that except based a heavily reinforced GT frame
Back to top Go down
http://http:\\members.shaw.ca\ducksgarage
Chopperhed
Moderator
Chopperhed
Moderator

500+ Posts
500+ Posts

Age : 58
Join date : 2012-10-14
Points : 5273
Posts : 801
Location : Edmonton, Alberta, Canada Eh!

Mastercraft Off road project - Page 2 Empty
PostSubject: Re: Mastercraft Off road project   Mastercraft Off road project - Page 2 Icon_minitimeNovember 21st 2012, 1:09 pm

Well turns out the locals won't let me race because of my suspension, Oh Well. They say I can run exhibition races, but can't race for real.

I'll have to find some guys willing to go off road.
Back to top Go down
http://http:\\members.shaw.ca\ducksgarage
Chopperhed
Moderator
Chopperhed
Moderator

500+ Posts
500+ Posts

Age : 58
Join date : 2012-10-14
Points : 5273
Posts : 801
Location : Edmonton, Alberta, Canada Eh!

Mastercraft Off road project - Page 2 Empty
PostSubject: Re: Mastercraft Off road project   Mastercraft Off road project - Page 2 Icon_minitimeNovember 22nd 2012, 11:27 pm

New Progress Pics.

Milled the slots for my jackshaft mount and got it tacked in place.

Mastercraft Off road project - Page 2 Dscn3823

Did some work on the sheetmetal, had to do some cutting to clear the chain drive.



Mastercraft Off road project - Page 2 Dscn3822

Mocked up the front end with the side panels and right side running board. Looks like i have to shorten it a bit, the front tires hit the running board.

Mastercraft Off road project - Page 2 Dscn3824

Jake AKA Jakaroo, or Jakey. Security Chief, he's a Husky Collie cross, one of the best dogs I've ever rescued.

Mastercraft Off road project - Page 2 Dscn3825
Back to top Go down
http://http:\\members.shaw.ca\ducksgarage
dangeroustoys56
Veteran Member
dangeroustoys56
Veteran Member

1000+ Posts
1000+ Posts!

Age : 54
Join date : 2010-02-10
Points : 7095
Posts : 1726
Location : Florida, USA

Mastercraft Off road project - Page 2 Empty
PostSubject: Re: Mastercraft Off road project   Mastercraft Off road project - Page 2 Icon_minitimeNovember 23rd 2012, 10:31 am

Yeah its an MTD for sure - i have a couple with the same sheetmetal - one's a '95 yardman 4WS , the other is a '03 bolens .

Its comming along pretty cool - running in official sanctioned lawntractor races, requires certian rules and regs per class - only one that has any sort of 'suspension' is the stock class ( i looked into it a few years back).
Back to top Go down
Chopperhed
Moderator
Chopperhed
Moderator

500+ Posts
500+ Posts

Age : 58
Join date : 2012-10-14
Points : 5273
Posts : 801
Location : Edmonton, Alberta, Canada Eh!

Mastercraft Off road project - Page 2 Empty
PostSubject: Re: Mastercraft Off road project   Mastercraft Off road project - Page 2 Icon_minitimeNovember 24th 2012, 7:30 am

Around here, they use a very basic set of rules, and only have the 2 classes right now. Unfortunately neither class allows for suspension and ATV tires.

Uploaded all build pics to my mediafire cloud storage space,

check them out here.

http://www.mediafire.com/?2q9avnr44i48o
Back to top Go down
http://http:\\members.shaw.ca\ducksgarage
Chopperhed
Moderator
Chopperhed
Moderator

500+ Posts
500+ Posts

Age : 58
Join date : 2012-10-14
Points : 5273
Posts : 801
Location : Edmonton, Alberta, Canada Eh!

Mastercraft Off road project - Page 2 Empty
PostSubject: Re: Mastercraft Off road project   Mastercraft Off road project - Page 2 Icon_minitimeNovember 30th 2012, 9:47 pm

New pics, and new news.

I've been yakkin with our local snactioning body, LMFAO, (Lawn Mower Fanatics Alberta Org).

Turns out, if I want to race, I can take the shocks out and put in solid struts of whatever length I want. then All I need is turf tires.

cheers

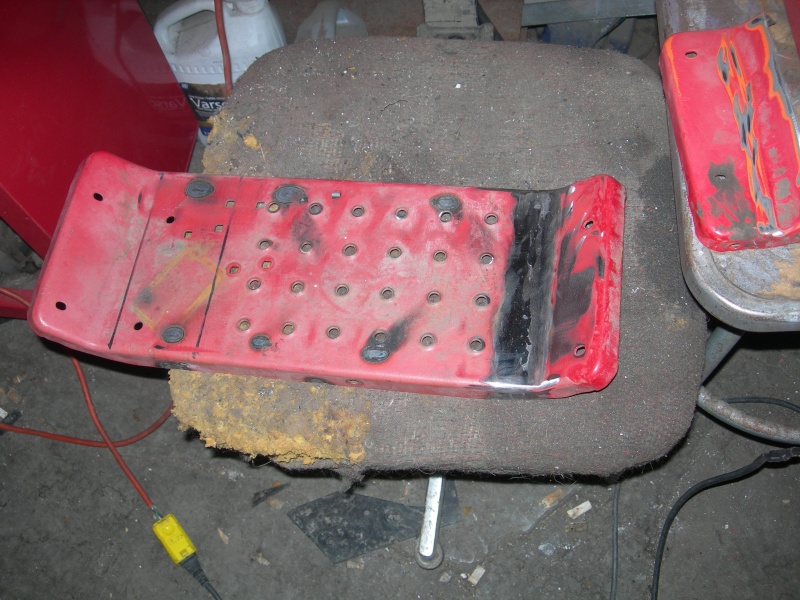

Also got some work done on the running boards. Cut three inches out of each one, added some 1/2" square tube to the undersides, and welded the ends back on.

]Mastercraft Off road project - Page 2 Dscn3829
Mastercraft Off road project - Page 2 Dscn3827
Mastercraft Off road project - Page 2 Dscn3828

Made some new cheeks too (you'll see what I mean) Nice polished aluminum checkerplate.Along with the beginnings of my chain guard.

Mastercraft Off road project - Page 2 Dscn3831
I'll need to cut holes to clear the carb and exhaust, but I'm getting there.

Back to top Go down
http://http:\\members.shaw.ca\ducksgarage
dangeroustoys56
Veteran Member
dangeroustoys56
Veteran Member

1000+ Posts
1000+ Posts!

Age : 54
Join date : 2010-02-10
Points : 7095
Posts : 1726
Location : Florida, USA

Mastercraft Off road project - Page 2 Empty
PostSubject: Re: Mastercraft Off road project   Mastercraft Off road project - Page 2 Icon_minitimeDecember 1st 2012, 10:29 am

Nice work so far - depending how fast the tractor would go would detirmine the height of the tractor when racing around ( be a bit top heavy) - id go for a lower setting for best handling.

Id look into getting another set of hubs/rims/tires for racing - be the easiest way to make it a dual purpose tractor .

When i get around to working on my mod tractor im running a set of 8" golf kart rims with turf tires for light off road and a set of 10" golf kart rims with street tires .
Back to top Go down
Chopperhed
Moderator
Chopperhed
Moderator

500+ Posts
500+ Posts

Age : 58
Join date : 2012-10-14
Points : 5273
Posts : 801
Location : Edmonton, Alberta, Canada Eh!

Mastercraft Off road project - Page 2 Empty
PostSubject: Re: Mastercraft Off road project   Mastercraft Off road project - Page 2 Icon_minitimeDecember 1st 2012, 10:32 am

With the struts I can lower this thing to 2" of clearance.

I'm already in the search for ways to fit smaller rims on the front. the rears are already 9" beadlock style.

Smaller rims on the front means no front brakes, but oh well
Back to top Go down
http://http:\\members.shaw.ca\ducksgarage
dangeroustoys56
Veteran Member
dangeroustoys56
Veteran Member

1000+ Posts
1000+ Posts!

Age : 54
Join date : 2010-02-10
Points : 7095
Posts : 1726
Location : Florida, USA

Mastercraft Off road project - Page 2 Empty
PostSubject: Re: Mastercraft Off road project   Mastercraft Off road project - Page 2 Icon_minitimeDecember 1st 2012, 10:43 am

Most racers run around 4" of clearance - even thats pretty low. If you could locate a go kart setup( hubs/wheels/brakes ) you could still keep brakes up front - you might want them when racing with others.

Its just the ease of swapping setups out when either racing or running around - i suppose its why i chose to stick with golf kart 4 bolt rims/hubs- its universal and a simple wheel swap.

I think youre limited on tire size with atv stuff on how low of profile you can go - i noticed that when i got some ATV wheels, theyre a 9" rim up front - my rear wooley booger 8" ATV wheels actually have a golf kart rim on them.
Back to top Go down
Sponsored content





Mastercraft Off road project - Page 2 Empty
PostSubject: Re: Mastercraft Off road project   Mastercraft Off road project - Page 2 Icon_minitime

Back to top Go down

Mastercraft Off road project
Back to top
Page 2 of 7Go to page : Previous  1, 2, 3, 4, 5, 6, 7  Next
 Similar topics
-
» Project VAP Off-road logger
» John Deere 112, Off Road Racer/Mudder Project
» Craftsman Rider 15 HP Kohler Off Road Project Build on Youtube!
» Kubota Off-Road Lawn Mower Complete Restoration Project - another country
» My Mastercraft build

Permissions in this forum:You cannot reply to topics in this forum
All-Terrain Lawn Tractor Forum :: Tractor Project Builds :: Rat Rod, Hybrid, and Unique Tractors-
Jump to:
