PostSubject: The 18hp Yard-Man Trailmower    The 18hp Yard-Man Trailmower  Icon_minitimeWed Nov 23, 2016 1:14 pm

This is my new build, its just going to be a fast and fun trail tractor.

specs:
12hp i/c briggs, 801? series tranny 5 speed

to do:

locking the tranny (maybe fozzy)
better steering/front axle
better tires
pulley swap something like 5 in front 4 in back
gas pedal
e-brake style seperate brake
frond and rear bumper
some storage hood rack maybe
engine swap from 10hp flathead briggs to a 12hp i/c flathead briggs w/o original carb



this is what i started with:

The 18hp Yard-Man Trailmower  Imag0910

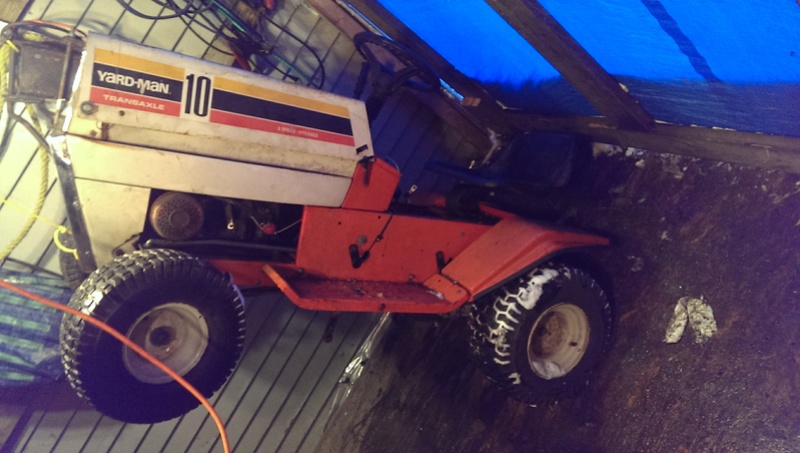

removed the deck and dragged it in the shop:

The 18hp Yard-Man Trailmower  Imag0010


then i removed the engine the gas tank all the mowing related stuff and the front axle.

The 18hp Yard-Man Trailmower  Imag0011


i stole the steering and the front axle of my parts tractor (my old jacobsen) i also removed the old crappy loose factory steering.

The 18hp Yard-Man Trailmower  Imag0016
The 18hp Yard-Man Trailmower  Imag0015

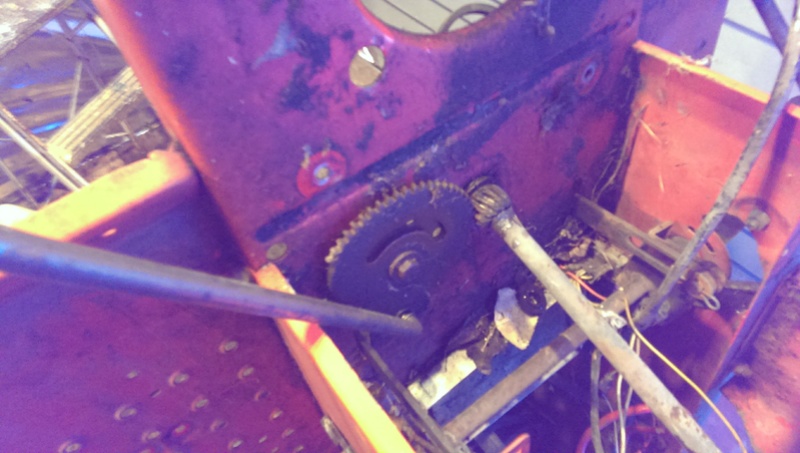

the factory steering had 1/2 a turn of play!

The 18hp Yard-Man Trailmower  Imag0014

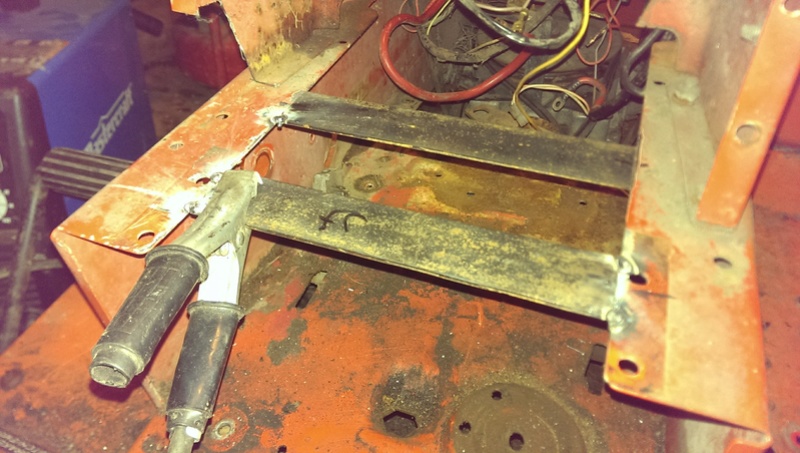

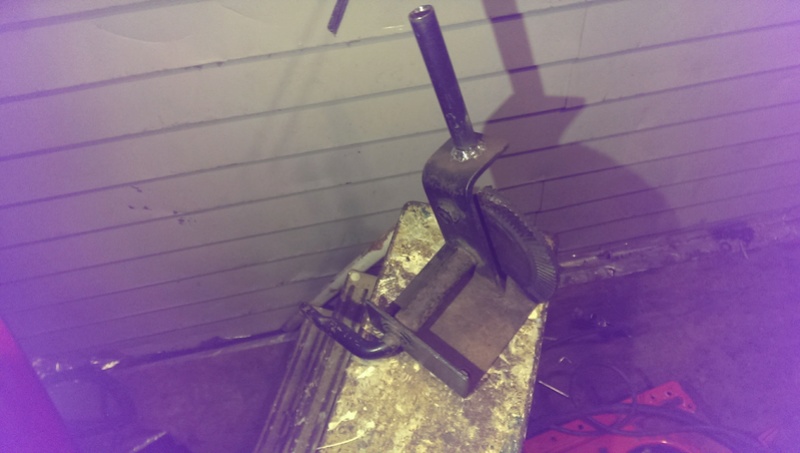

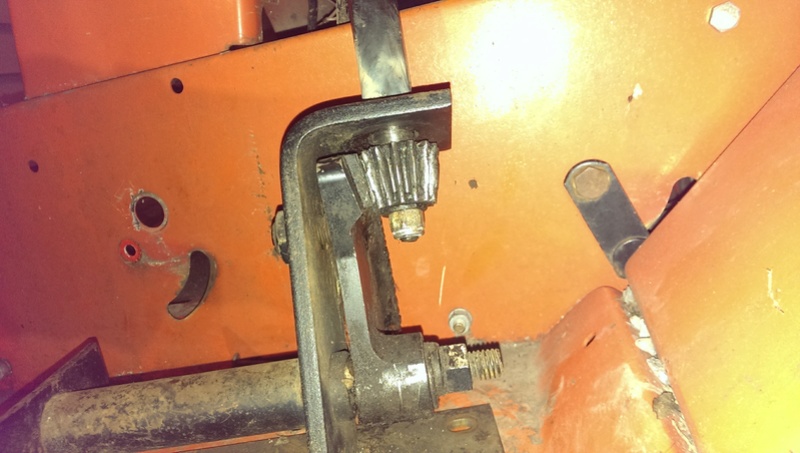

this is the new steering box i still have to reinforce it a little more but its way better than what was there.

The 18hp Yard-Man Trailmower  Imag0019
The 18hp Yard-Man Trailmower  Imag0021
The 18hp Yard-Man Trailmower  Imag0018
The 18hp Yard-Man Trailmower  Imag0017
The 18hp Yard-Man Trailmower  Imag0020


this is where im at.

sorry for the crap quality pics my new phone died and im stuck with the one that has a burnt cam.


Last edited by sadeoo7 on Mon Jul 17, 2017 1:00 am; edited 3 times in total
Back to top Go down
http://gdftech.com
mr.modified
Seasoned Veteran
Seasoned Veteran
mr.modified

Age : 29
Join date : 2013-11-02
Posts : 2185
Forum Rep : 51
Location : New Jersey

The 18hp Yard-Man Trailmower  Empty
PostSubject: Re: The 18hp Yard-Man Trailmower    The 18hp Yard-Man Trailmower  Icon_minitimeWed Nov 23, 2016 1:34 pm

Neat looking machine, I like older square stuff no matter what brand. What's that plate that the engine mounts to? Is it a separate piece bolted to the frame? Never saw anything like that before. Any thought about making some sort of front bumper?

_______________________________________________
The 18hp Yard-Man Trailmower  1023291?$gif$***Simplicity Off Road Research & Development*** #64 The 18hp Yard-Man Trailmower  1023291?$gif$
Simplicity Adventure Edition
Diesel Submarine Project
Baja Sears Suburban
Modified Briggs Model 5s
ATLTF.COM Race Truck
Back to top Go down
RichieRichOverdrive
Seasoned Veteran
Seasoned Veteran
RichieRichOverdrive

Age : 16
Join date : 2016-10-29
Posts : 2361
Forum Rep : 72
Location : Lewisburg, KY

The 18hp Yard-Man Trailmower  Empty
PostSubject: Re: The 18hp Yard-Man Trailmower    The 18hp Yard-Man Trailmower  Icon_minitimeWed Nov 23, 2016 2:00 pm

Looks cool, I like the color scheme. Whatcha thinkin for tires?
Back to top Go down
MatthewD
Grand Master
Grand Master
MatthewD

Age : 17
Join date : 2014-11-16
Posts : 1992
Forum Rep : 40
Location : Northern Ireland

The 18hp Yard-Man Trailmower  Empty
PostSubject: Re: The 18hp Yard-Man Trailmower    The 18hp Yard-Man Trailmower  Icon_minitimeWed Nov 23, 2016 2:14 pm

Lol I can't see the pics, but it sounds good!
Back to top Go down
sadeoo7
Skilled
Skilled
sadeoo7

Age : 20
Join date : 2014-01-14
Posts : 271
Forum Rep : 6
Location : Montreal Canada

The 18hp Yard-Man Trailmower  Empty
PostSubject: Re: The 18hp Yard-Man Trailmower    The 18hp Yard-Man Trailmower  Icon_minitimeWed Nov 23, 2016 3:48 pm

@mr.modified wrote:
Neat looking machine, I like older square stuff no matter what brand. What's that plate that the engine mounts to? Is it a separate piece bolted to the frame? Never saw anything like that before. Any thought about making some sort of front bumper?

i like the square body stuff too.

the engine mounts on a plates that mounts to the chassis trough plastic\rubber bushings, its suposed to reduce the vibration i guess but it doesnt really do much.

i dont really know how my bumper is gonna be, i know i want some lights some tow points. also the front axle is going to be welded in solid.

@RichieRichOverdrive wrote:
Looks cool, I like the color scheme. Whatcha thinkin for tires?

in the 20 inch region but i dont know, something cheap or what i can find for a reasonable amount on my local classifieds haha but i really need some front tires.


oh i forgot to say its going to be ungoverned, i dont have the stock carb.
Back to top Go down
http://gdftech.com
sadeoo7
Skilled
Skilled
sadeoo7

Age : 20
Join date : 2014-01-14
Posts : 271
Forum Rep : 6
Location : Montreal Canada

The 18hp Yard-Man Trailmower  Empty
PostSubject: Re: The 18hp Yard-Man Trailmower    The 18hp Yard-Man Trailmower  Icon_minitimeWed Nov 23, 2016 10:24 pm

i finished mounting the new front axle, i made a frame to mount the axle because the stock sheetmetal one wasnt strong enought.

ok it may be overkill but i also need weight in the front of the tractor so it helped for that too.


test fit


The 18hp Yard-Man Trailmower  Imag0024

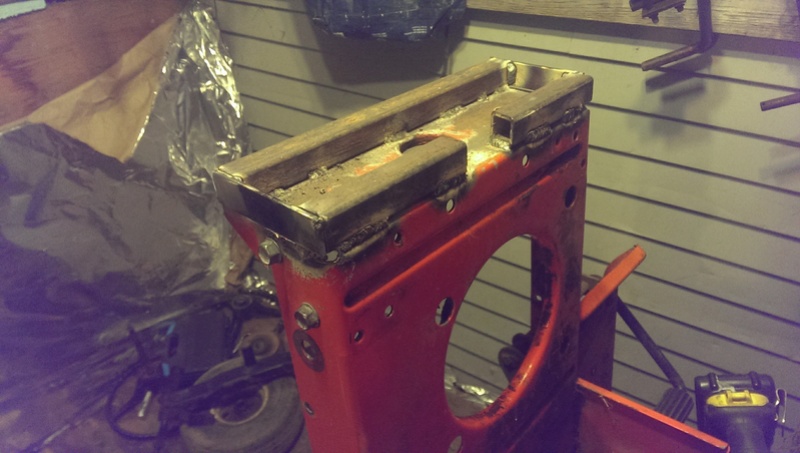

axle frame
[The 18hp Yard-Man Trailmower  Imag0028
The 18hp Yard-Man Trailmower  Imag0026
The 18hp Yard-Man Trailmower  Imag0025
The 18hp Yard-Man Trailmower  Imag0027


its gonna hold haha

i need to get new bushings for my front axle, for now i have steel ones but i need to change them.

next plan is hooking the steering and mount the hood back on.


Last edited by sadeoo7 on Wed Dec 07, 2016 11:39 am; edited 2 times in total
Back to top Go down
http://gdftech.com
sadeoo7
Skilled
Skilled
sadeoo7

Age : 20
Join date : 2014-01-14
Posts : 271
Forum Rep : 6
Location : Montreal Canada

The 18hp Yard-Man Trailmower  Empty
PostSubject: Re: The 18hp Yard-Man Trailmower    The 18hp Yard-Man Trailmower  Icon_minitimeThu Nov 24, 2016 11:58 pm

got some more work done today


got the engine mounted, and got some ideas on a pull start
The 18hp Yard-Man Trailmower  Imag0030

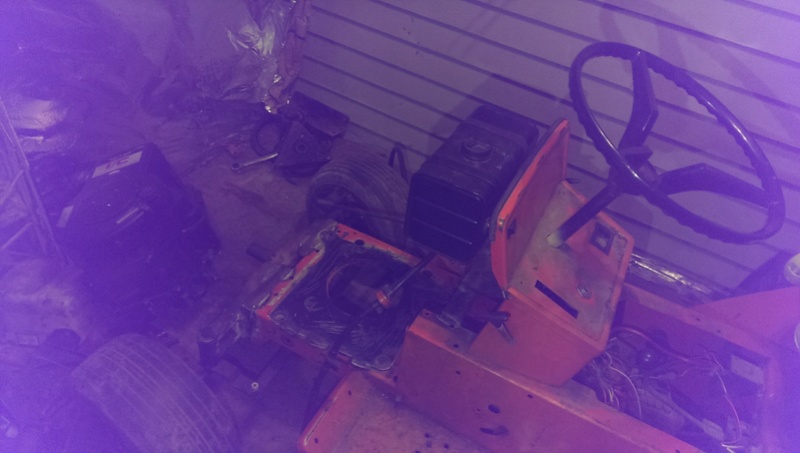

mounted a fuel tank from one of my 8hp briggs
The 18hp Yard-Man Trailmower  Imag0029

and changed the clutch spring for a way stronger one.
The 18hp Yard-Man Trailmower  Imag0031
The 18hp Yard-Man Trailmower  Imag0032


i also got the choke hoocked up

tommorow ill make a gas pedal and redo the wiring, ill also mount the battery.


Last edited by sadeoo7 on Wed Dec 07, 2016 11:41 am; edited 1 time in total
Back to top Go down
http://gdftech.com
sadeoo7
Skilled
Skilled
sadeoo7

Age : 20
Join date : 2014-01-14
Posts : 271
Forum Rep : 6
Location : Montreal Canada

The 18hp Yard-Man Trailmower  Empty
PostSubject: Re: The 18hp Yard-Man Trailmower    The 18hp Yard-Man Trailmower  Icon_minitimeSat Nov 26, 2016 1:17 am

today i made a gas pedal
i made some battery mounts
and i did the wiring ill post pics tomorrow.

i have a dual battery setup it cranks real nice.
Back to top Go down
http://gdftech.com
sadeoo7
Skilled
Skilled
sadeoo7

Age : 20
Join date : 2014-01-14
Posts : 271
Forum Rep : 6
Location : Montreal Canada

The 18hp Yard-Man Trailmower  Empty
PostSubject: Re: The 18hp Yard-Man Trailmower    The 18hp Yard-Man Trailmower  Icon_minitimeSun Nov 27, 2016 12:09 am

heres the custom heavy duty gas pedal i made its nice.


[
The 18hp Yard-Man Trailmower  Imag0023
The 18hp Yard-Man Trailmower  Imag0022
The 18hp Yard-Man Trailmower  Imag0110
The 18hp Yard-Man Trailmower  Imag0111


Last edited by sadeoo7 on Tue Nov 29, 2016 3:05 pm; edited 1 time in total
Back to top Go down
http://gdftech.com
sadeoo7
Skilled
Skilled
sadeoo7

Age : 20
Join date : 2014-01-14
Posts : 271
Forum Rep : 6
Location : Montreal Canada

The 18hp Yard-Man Trailmower  Empty
PostSubject: Re: The 18hp Yard-Man Trailmower    The 18hp Yard-Man Trailmower  Icon_minitimeSun Nov 27, 2016 10:14 pm

drove it for the first time with the new axle and the new engine today it works great. next is a pulley swap finishing the front bumper and getting some lighting going.
Back to top Go down
http://gdftech.com
sadeoo7
Skilled
Skilled
sadeoo7

Age : 20
Join date : 2014-01-14
Posts : 271
Forum Rep : 6
Location : Montreal Canada

The 18hp Yard-Man Trailmower  Empty
PostSubject: Re: The 18hp Yard-Man Trailmower    The 18hp Yard-Man Trailmower  Icon_minitimeTue Nov 29, 2016 11:25 pm

yeasterday i got the rear pulley swap and belt guard done. the rear has a 6inch now

The 18hp Yard-Man Trailmower  Imag0114
The 18hp Yard-Man Trailmower  Imag0112
The 18hp Yard-Man Trailmower  Imag0113
The 18hp Yard-Man Trailmower  Imag0112


today i started building a nice hand brake. i used some old mowing deck hardware like i did for my gas pedal.
the hand brake is going to be spring loaded and have a lock to use as a parking brake.

this is how i made the lever and the pivot thing.
The 18hp Yard-Man Trailmower  Imag0115
The 18hp Yard-Man Trailmower  Imag0116
The 18hp Yard-Man Trailmower  Imag0118
The 18hp Yard-Man Trailmower  Imag0119
The 18hp Yard-Man Trailmower  Imag0117

then i started to make the simple linkage

The 18hp Yard-Man Trailmower  Imag0120
The 18hp Yard-Man Trailmower  Imag0121


after that i pushed the tractor on its side and f****** WATER started dripping out of the tranny. guess ill have to tear that appart. oh well i have to lock it anyways.

puddle of water from the tranny...
The 18hp Yard-Man Trailmower  Imag0122

so heres the handbrake its almost done i just have to put a return spring and a parking lock mecanism.
The 18hp Yard-Man Trailmower  Imag0124
The 18hp Yard-Man Trailmower  Imag0123
The 18hp Yard-Man Trailmower  Imag0125


Back to top Go down
http://gdftech.com
Doug
Administrator
Administrator
Doug

Age : 23
Join date : 2012-12-24
Posts : 2865
Forum Rep : 43
Location : Lebanon County, PA

The 18hp Yard-Man Trailmower  Empty
PostSubject: Re: The 18hp Yard-Man Trailmower    The 18hp Yard-Man Trailmower  Icon_minitimeWed Nov 30, 2016 1:12 am

Looks good. I like the placement.

_______________________________________________
Head Forum Administrator ** Chat Moderator ** Facebook Page Admin
ATLTF Facebook Page ** Chatbox ** How To Upload Pictures

_X_ FORUM ANNOUNCEMENTS _X_


Have a question? Ask me! Type in "@Doug" in your post!

Your ATLTF Staff:
Administrators: @Doug, @MightyRaze, @"Doc Sprocket", @Stretch44875
Moderators: @TheRainbowBoxer, @AllisKidD21




Back to top Go down
AllisKidD21
Moderator
Moderator
AllisKidD21

Age : 20
Join date : 2016-07-10
Posts : 4345
Forum Rep : 186
Location : Ontario Canada

The 18hp Yard-Man Trailmower  Empty
PostSubject: Re: The 18hp Yard-Man Trailmower    The 18hp Yard-Man Trailmower  Icon_minitimeWed Nov 30, 2016 7:54 am

Nice build man! It looks cool with dual sticks like that, kinda like an old tractor.

_______________________________________________
"This'll either wake you up or put you to sleep forever!"- Red Green         "Just took a center punch *Wham!* Oh that's close enough." - TheBeal
                                                                       ----Uploading Pictures----
        - MTD Off-Road Build

- Toro Rat Rod Tractor Build
        - Ford LT 110 Off-Road Build
        - Craftsman GT 6000 Off-Road Build
        - John Deere 110 Basic Off-Road Build
        - Allis B-110, Case 444, WH 655, Bolens Versamatic -
Back to top Go down
MatthewD
Grand Master
Grand Master
MatthewD

Age : 17
Join date : 2014-11-16
Posts : 1992
Forum Rep : 40
Location : Northern Ireland

The 18hp Yard-Man Trailmower  Empty
PostSubject: Re: The 18hp Yard-Man Trailmower    The 18hp Yard-Man Trailmower  Icon_minitimeWed Nov 30, 2016 11:54 am

Looking good! It looks like it has a Hi-Low tranny Wink Is the brake lever pivot-y thing just like the way the shifter is done?
Back to top Go down
sadeoo7
Skilled
Skilled
sadeoo7

Age : 20
Join date : 2014-01-14
Posts : 271
Forum Rep : 6
Location : Montreal Canada

The 18hp Yard-Man Trailmower  Empty
PostSubject: Re: The 18hp Yard-Man Trailmower    The 18hp Yard-Man Trailmower  Icon_minitimeWed Nov 30, 2016 1:33 pm

@MatthewD wrote:
Looking good! It looks like it has a Hi-Low tranny Wink Is the brake lever pivot-y thing just like the way the shifter is done?

the shifter is stock, but its the same way i did the gas pedal.
Back to top Go down
http://gdftech.com
MatthewD
Grand Master
Grand Master
MatthewD

Age : 17
Join date : 2014-11-16
Posts : 1992
Forum Rep : 40
Location : Northern Ireland

The 18hp Yard-Man Trailmower  Empty
PostSubject: Re: The 18hp Yard-Man Trailmower    The 18hp Yard-Man Trailmower  Icon_minitimeWed Nov 30, 2016 4:13 pm

Yeah, but I mean like the shifter has that pivot-y thing but it's connected to the trans. I gotta do a brake like that on my tractor. I also like the belt guard
Back to top Go down
TheGreenHornet
Apprentice
Apprentice
TheGreenHornet

Age : 18
Join date : 2016-04-16
Posts : 217
Forum Rep : 2
Location : Indiana

The 18hp Yard-Man Trailmower  Empty
PostSubject: Re: The 18hp Yard-Man Trailmower    The 18hp Yard-Man Trailmower  Icon_minitimeWed Nov 30, 2016 7:55 pm

i think it has the same transaxle that is in my king. a peerless 801. mine was full of water too, because some knucklehead tried to change a tire and ended up hammering the axle out. good transaxles. they are a nice medium between the really heavy duty 820s and the lighter duty 900 series.
Back to top Go down
sadeoo7
Skilled
Skilled
sadeoo7

Age : 20
Join date : 2014-01-14
Posts : 271
Forum Rep : 6
Location : Montreal Canada

The 18hp Yard-Man Trailmower  Empty
PostSubject: Re: The 18hp Yard-Man Trailmower    The 18hp Yard-Man Trailmower  Icon_minitimeWed Nov 30, 2016 8:07 pm

@TheGreenHornet wrote:
i think it has the same transaxle that is in my king. a peerless 801. mine was full of water too, because some knucklehead tried to change a tire and ended up hammering the axle out. good transaxles. they are a nice medium between the really heavy duty 820s and the lighter duty 900 series.

yeah they seem to be pretty solid. and im gonna be putting a solid axle and converting it to oil lube soon.
Back to top Go down
http://gdftech.com
MatthewD
Grand Master
Grand Master
MatthewD

Age : 17
Join date : 2014-11-16
Posts : 1992
Forum Rep : 40
Location : Northern Ireland

The 18hp Yard-Man Trailmower  Empty
PostSubject: Re: The 18hp Yard-Man Trailmower    The 18hp Yard-Man Trailmower  Icon_minitimeThu Dec 01, 2016 11:24 am

Nice! Are you using an arc/stick welder?
Back to top Go down
sadeoo7
Skilled
Skilled
sadeoo7

Age : 20
Join date : 2014-01-14
Posts : 271
Forum Rep : 6
Location : Montreal Canada

The 18hp Yard-Man Trailmower  Empty
PostSubject: Re: The 18hp Yard-Man Trailmower    The 18hp Yard-Man Trailmower  Icon_minitimeThu Dec 01, 2016 9:16 pm

@MatthewD wrote:
Nice! Are you using an arc/stick welder?
no its just a normal flux cored welder 80a i think.

its the higher end model that is both mig and flux core but i cant find gas anywhere...
Back to top Go down
http://gdftech.com
sadeoo7
Skilled
Skilled
sadeoo7

Age : 20
Join date : 2014-01-14
Posts : 271
Forum Rep : 6
Location : Montreal Canada

The 18hp Yard-Man Trailmower  Empty
PostSubject: Re: The 18hp Yard-Man Trailmower    The 18hp Yard-Man Trailmower  Icon_minitimeThu Dec 01, 2016 9:21 pm

today i did the pulley swap !


ITS AWESOME... i love it haha. its my first tractor thats works great, everything i built worked how i wanted it to and thats just awesome.


now its fast and idk if its the carb but it runs nice, it does smoke quite a bit when i punch the throttle (too much to be normal) rings maybe ? idk

i got my 6in pulley today at my local bearing supplier for 34$

i also had to add an idler pulley to make the thing work withoud havint to buy another belt. that worked great too.

the brakes work really good too.

ill post pics tommorow.
Back to top Go down
http://gdftech.com
AllisKidD21
Moderator
Moderator
AllisKidD21

Age : 20
Join date : 2016-07-10
Posts : 4345
Forum Rep : 186
Location : Ontario Canada

The 18hp Yard-Man Trailmower  Empty
PostSubject: Re: The 18hp Yard-Man Trailmower    The 18hp Yard-Man Trailmower  Icon_minitimeThu Dec 01, 2016 10:54 pm

Cool! Is it black smoke? If so it could be running just a wee bit rich.

_______________________________________________
"This'll either wake you up or put you to sleep forever!"- Red Green         "Just took a center punch *Wham!* Oh that's close enough." - TheBeal
                                                                       ----Uploading Pictures----
        - MTD Off-Road Build

- Toro Rat Rod Tractor Build
        - Ford LT 110 Off-Road Build
        - Craftsman GT 6000 Off-Road Build
        - John Deere 110 Basic Off-Road Build
        - Allis B-110, Case 444, WH 655, Bolens Versamatic -
Back to top Go down
sadeoo7
Skilled
Skilled
sadeoo7

Age : 20
Join date : 2014-01-14
Posts : 271
Forum Rep : 6
Location : Montreal Canada

The 18hp Yard-Man Trailmower  Empty
PostSubject: Re: The 18hp Yard-Man Trailmower    The 18hp Yard-Man Trailmower  Icon_minitimeThu Dec 01, 2016 11:06 pm

@AllisKidD21 wrote:
Cool! Is it black smoke? If so it could be running just a wee bit rich.

i dont really remeber ill check tommorow.
Back to top Go down
http://gdftech.com
sadeoo7
Skilled
Skilled
sadeoo7

Age : 20
Join date : 2014-01-14
Posts : 271
Forum Rep : 6
Location : Montreal Canada

The 18hp Yard-Man Trailmower  Empty
PostSubject: Re: The 18hp Yard-Man Trailmower    The 18hp Yard-Man Trailmower  Icon_minitimeFri Dec 02, 2016 4:15 pm

@AllisKidD21 wrote:
Cool! Is it black smoke? If so it could be running just a wee bit rich.


could that be why it burns alot of gas ? its darkblueish i guess haha not quite black

how do you adjust the carb ? its a carb from a 400cc 11hp b&s
Back to top Go down
http://gdftech.com
AllisKidD21
Moderator
Moderator
AllisKidD21

Age : 20
Join date : 2016-07-10
Posts : 4345
Forum Rep : 186
Location : Ontario Canada

The 18hp Yard-Man Trailmower  Empty
PostSubject: Re: The 18hp Yard-Man Trailmower    The 18hp Yard-Man Trailmower  Icon_minitimeFri Dec 02, 2016 5:35 pm

Well for that style carb the high throttle mixture screw is on the bottom of the float bowl. If is running a wee bit rich you wanna turn it in like youre tightening it. Just a little bit though, too much and it will be running too lean. Also when you adjust the high idle screw you should rev the engine a few times to see if it will still rev up smoothly, and run it at WOT to see if it is misfiring or having trouble running. Just a slight adjustment should necessary to fix the smoke problem. That is if its fuel smoke.

_______________________________________________
"This'll either wake you up or put you to sleep forever!"- Red Green         "Just took a center punch *Wham!* Oh that's close enough." - TheBeal
                                                                       ----Uploading Pictures----
        - MTD Off-Road Build

- Toro Rat Rod Tractor Build
        - Ford LT 110 Off-Road Build
        - Craftsman GT 6000 Off-Road Build
        - John Deere 110 Basic Off-Road Build
        - Allis B-110, Case 444, WH 655, Bolens Versamatic -
Back to top Go down
Sponsored content




The 18hp Yard-Man Trailmower  Empty
PostSubject: Re: The 18hp Yard-Man Trailmower    The 18hp Yard-Man Trailmower  Icon_minitime

Back to top Go down

The 18hp Yard-Man Trailmower
Back to top
Page 1 of 8Go to page : 1, 2, 3, 4, 5, 6, 7, 8  Next
 Similar topics
-
» towing the sled with the yard king offroad mower.
» MTD Mud Mower "Yard Machines"
» Tracked Lawn mower
» My newest junk heep
» Boneyard Experiment

Permissions in this forum:You cannot reply to topics in this forum
All-Terrain Lawn Tractor Forum :: Tractor Project Builds :: Off Road & Rally Tractors-
Jump to:
