Murraymountain
Expert
Expert


Join date : 2019-02-04
Posts : 1137

Murray Stamped Frame - Page 2 Empty
PostSubject: Re: Murray Stamped Frame   Murray Stamped Frame - Page 2 Icon_minitimeTue Aug 27, 2019 7:49 am

Well, been working on this since Sunday afternoon... School takes up most of my time, but I'll have it finished tonight!

So as you know the Craps-man is dead, so the body is now going to this... That's right, a body swap! It went from this:

Murray Stamped Frame - Page 2 P1110650

To this:
Murray Stamped Frame - Page 2 P1110710

So after cutting this out:
Murray Stamped Frame - Page 2 P1110653

I thought it'd look pretty good. It's not as high as it will really be in these pics, but it looks meant to be:
Murray Stamped Frame - Page 2 P1110652
Murray Stamped Frame - Page 2 P1110651

Then the next day (yesterday), after removing the floorboards, I cut all those tabs out of the shifter's way:
Murray Stamped Frame - Page 2 P1110654
Murray Stamped Frame - Page 2 P1110711

Then I cut a space for the clutch pedal:
Murray Stamped Frame - Page 2 P1110655

And then, after cutting the MO area out of the body and a little too much of it, I could fit the battery and the body in place permanently. I do wish there was more meat in the back, but it fits like it was made for it:
Murray Stamped Frame - Page 2 P1110713

Plenty of clearance:
Murray Stamped Frame - Page 2 P1110712

The front is mounted, but I'm still working on the rear, the seat is gonna give me some trouble if the shifter doesn't. I still have to remove the "CRAFTSMAN" stickers because, well, it's not a craftsman Smile. I'll be using the original junk Murray floorboards. Anyway, it's comin' along great. I also plan on putting a rack on it now.

Murray Stamped Frame - Page 2 P1110714
Murray Stamped Frame - Page 2 P1110715
Back to top Go down
mr.modified
Seasoned Veteran
Seasoned Veteran
mr.modified

Age : 29
Join date : 2013-11-02
Posts : 2573
Forum Rep : 100
Location : New Jersey USA

Murray Stamped Frame - Page 2 Empty
PostSubject: Re: Murray Stamped Frame   Murray Stamped Frame - Page 2 Icon_minitimeTue Aug 27, 2019 12:51 pm

Looking good. Watch out for jagged edges around the shifter. Some people get ramming on the shifter and get cut on the edges. Nice front fenders!
Back to top Go down
Destructive
Apprentice
Apprentice
Destructive

Age : 40
Join date : 2019-07-20
Posts : 53
Forum Rep : 7
Location : King, NC

Murray Stamped Frame - Page 2 Empty
PostSubject: Re: Murray Stamped Frame   Murray Stamped Frame - Page 2 Icon_minitimeWed Aug 28, 2019 3:38 pm

Look at you with the fancy Craftsman fenders now! Looking good.
Back to top Go down
Murraymountain
Expert
Expert
Murraymountain

Join date : 2019-02-04
Posts : 1137
Forum Rep : 42
Location : North Carolina

Murray Stamped Frame - Page 2 Empty
PostSubject: Re: Murray Stamped Frame   Murray Stamped Frame - Page 2 Icon_minitimeWed Aug 28, 2019 5:01 pm

@mr.modified wrote:
Looking good. Watch out for jagged edges around the shifter. Some people get ramming on the shifter and get cut on the edges. Nice front fenders!

Thank you. Them front fenders could do a better job at keeping the mud off, but it should be an easy fix.
I ground down all the edges, and I'm putting the original cover back on, so I'll be plenty save from that!

@Destructive wrote:
Look at you with the fancy Craftsman fenders now!  Looking good.

Heh, I must admit I do like the looks.


Murray Stamped Frame - Page 2 P1110718
Murray Stamped Frame - Page 2 P1110717
Murray Stamped Frame - Page 2 P1110716


So, I mounted it this way so I can mount the rack to the same bolts, and then mount it to the sides of the frame to make everything more sturdy... And, in this case, I like using round headed bolts...
Murray Stamped Frame - Page 2 P1110720
Murray Stamped Frame - Page 2 P1110721

I also like the way the seat looks... Could be more comfortable, but it's good enough.
Murray Stamped Frame - Page 2 P1110719

Murray Stamped Frame - Page 2 P1110722

Can't wait to get it in the mud!
Back to top Go down
AllisKidD21
Moderator
Moderator
AllisKidD21

Age : 21
Join date : 2016-07-10
Posts : 4870
Forum Rep : 239
Location : Ontario Canada

Murray Stamped Frame - Page 2 Empty
PostSubject: Re: Murray Stamped Frame   Murray Stamped Frame - Page 2 Icon_minitimeWed Aug 28, 2019 5:08 pm

Looking like a little Jeep with the front fenders! Are those sockets that are spacing up the rear fender pan?

_______________________________________________
"This'll either wake you up or put you to sleep forever!"- Red Green         "Whatever you do you should do right, even if it's something wrong." - Hank Hill
       - MTD Off-Road Build
       - Toro Rat Rod Tractor Build
       - Ford LT 110 Off-Road Build
       - Craftsman GT 6000 Off-Road Build
       - John Deere 110 Basic Off-Road Build
       - Allis B-110, 710 & 716 - Wheel Horse 655 & 953 - Case 444 - Bolens Versamatic - Cub Cadet 106 - Ford LGT 125 -
Back to top Go down
Murraymountain
Expert
Expert
Murraymountain

Join date : 2019-02-04
Posts : 1137
Forum Rep : 42
Location : North Carolina

Murray Stamped Frame - Page 2 Empty
PostSubject: Re: Murray Stamped Frame   Murray Stamped Frame - Page 2 Icon_minitimeWed Aug 28, 2019 8:04 pm

Shhhh! Don't let everyone know how I use my tools..... LOL, yep, sockets.

Yeah the Jeep look must be why I like it so much!
Back to top Go down
Double W Cross Ranch
Seasoned Veteran
Seasoned Veteran
Double W Cross Ranch

Age : 16
Join date : 2017-06-09
Posts : 2509
Forum Rep : 74
Location : Literally Nowhere, Texas

Murray Stamped Frame - Page 2 Empty
PostSubject: Re: Murray Stamped Frame   Murray Stamped Frame - Page 2 Icon_minitimeFri Aug 30, 2019 4:56 pm

Haha, actually I've got the same thing on my John Deere. Forgot to go buy spacers and just never got around to swapping them out.
Back to top Go down
https://themagazineishalff.wixsite.com/website
Murraymountain
Expert
Expert
Murraymountain

Join date : 2019-02-04
Posts : 1137
Forum Rep : 42
Location : North Carolina

Murray Stamped Frame - Page 2 Empty
PostSubject: Re: Murray Stamped Frame   Murray Stamped Frame - Page 2 Icon_minitimeSun Sep 01, 2019 2:56 pm

LOL, I use sockets instead of spacers from time to time.

Well, I've pretty much completed this project! The "junk" rack is on.

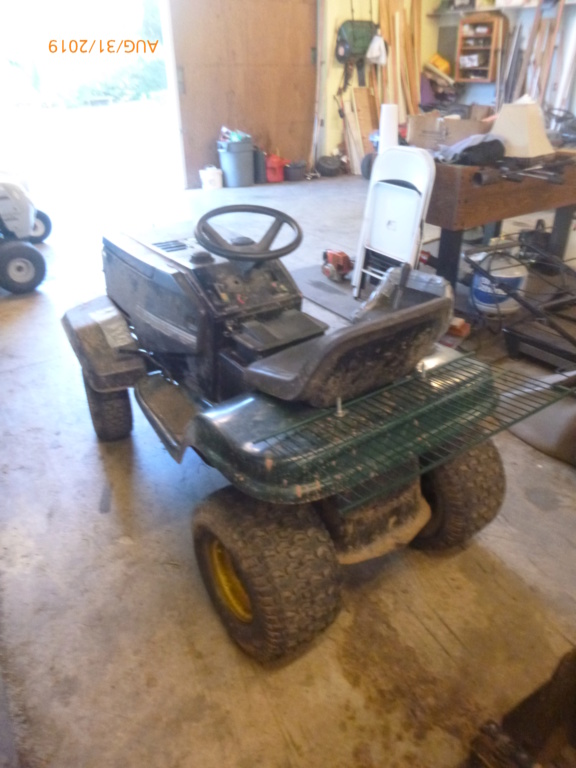

Murray Stamped Frame - Page 2 P1110733

All in all, I think it looks pretty good!
Murray Stamped Frame - Page 2 P1110734
Murray Stamped Frame - Page 2 P1110735

Some future possibilities:

-Bigger and better tires

-New seat

-Exhaust

-Locker

-Better pulley swap

All depends on what the owner wants...


But for now, I like it!

Stamped frame update 9/1/19. Sorry for the stupid sideways screen...

Something I forgot to mention in the video, the belt always being engaged fixed itself!
Back to top Go down
Murraymountain
Expert
Expert
Murraymountain

Join date : 2019-02-04
Posts : 1137
Forum Rep : 42
Location : North Carolina

Murray Stamped Frame - Page 2 Empty
PostSubject: Re: Murray Stamped Frame   Murray Stamped Frame - Page 2 Icon_minitimeThu Sep 05, 2019 10:21 am

Well, since I've completed it, it's been constantly breaking things.

First the throttle, luckily the Craps-man's old motor had a new one...

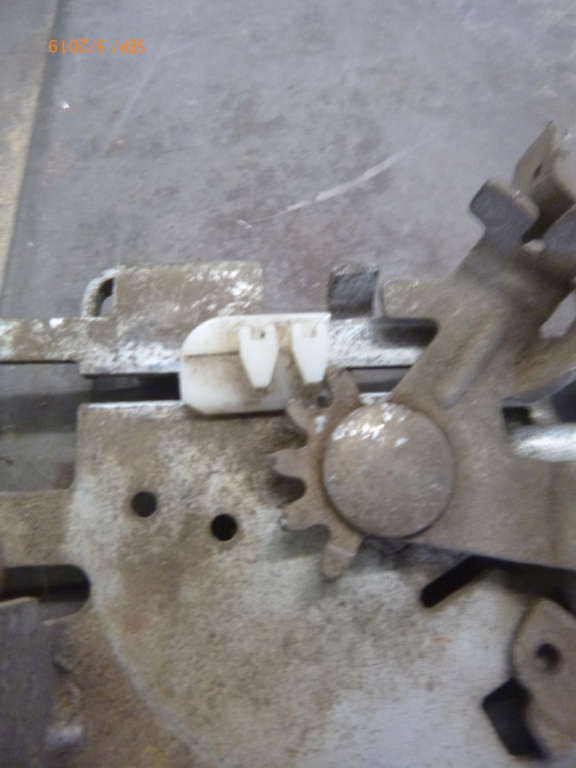

Murray Stamped Frame - Page 2 P1110738

Then the headlights fell out, so I mounted them a better way... Alot brighter too.

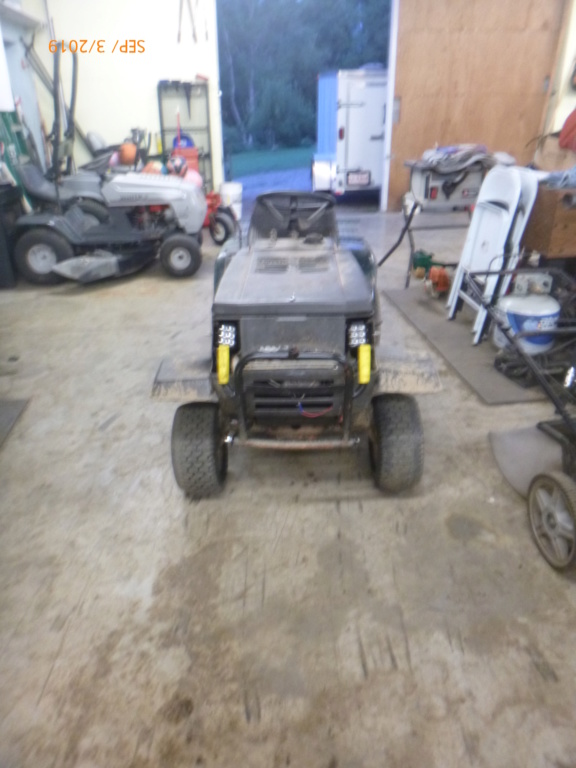

Murray Stamped Frame - Page 2 P1110737

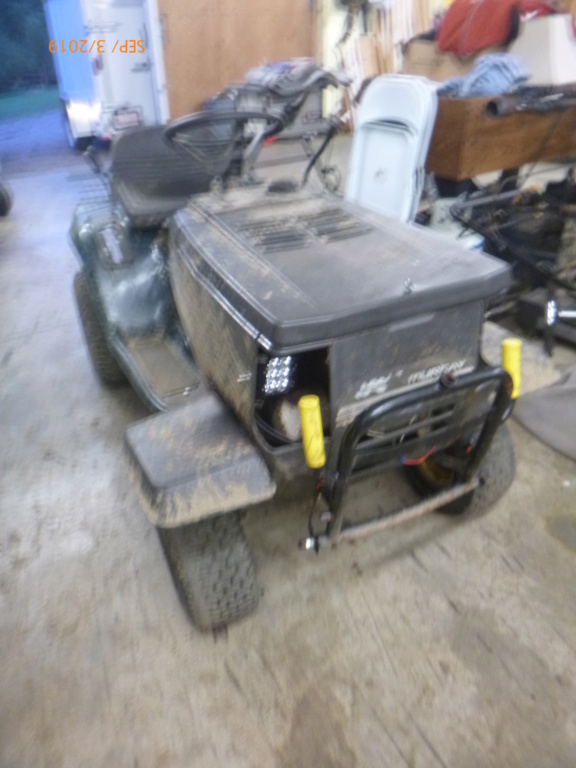

Murray Stamped Frame - Page 2 P1110736
