All-Terrain Lawn Tractor Forum
Would you like to react to this message? Create an account in a few clicks or log in to continue.

All-Terrain Lawn Tractor Forum

Like riding lawn tractors through mud, woods, rocks, and snow? Then this is the place for you! Share your ideas, Post your projects and more!

PortalHomeSite RulesEventsFAQSearchRegisterLog inBuild-Off



 Simplicity Broadmoor R/S Project

Go down
+17
Hillbilly Offroading
redzz02
muddstir
redlinemotorsportts
prancstaman
mrshaft696
MightyRaze
JohnLidell
diddie
TheBeal
mowerjunkie03
RichieRichOverdrive
Mister_Studabaker
Creepycrawler
AllisKidD21
CraftsmanQuad19
mr.modified
21 posters
Go to page : Previous  1, 2, 3, 4, 5, 6, 7
AuthorMessage
Creepycrawler
Established Member

Established Member

500+ Posts
500+ Posts
2024 Build-Off Entrant
2024 Build-Off Entrant

Join date : 2013-07-02
Posts : 731

Simplicity Broadmoor R/S Project  - Page 7 Empty
PostSubject: Re: Simplicity Broadmoor R/S Project    Simplicity Broadmoor R/S Project  - Page 7 Icon_minitimeMarch 26th 2020, 1:45 pm

I think your making the right decision to give the front steering a break and work else ware. Love seeing a oppy go together
Back to top Go down
mr.modified
Veteran Member
mr.modified
Veteran Member

2015 Build-Off Top 3 Winner
2015 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2018 Build-Off Finalist
2018 Build-Off Finalist
2022 Build-Off Entrant
2022 Build-Off Entrant
2500+ Posts
2500+ Posts!
1st Place Build-Off 2014
1st Place Build-Off Winner 2014
2023 Build-Off Entrant
2023 Build-Off Entrant

Age : 34
Join date : 2013-11-02
Points : 6916
Posts : 2906
Location : New Jersey USA

Simplicity Broadmoor R/S Project  - Page 7 Empty
PostSubject: Re: Simplicity Broadmoor R/S Project    Simplicity Broadmoor R/S Project  - Page 7 Icon_minitimeMarch 26th 2020, 6:46 pm

Thanks, do any of you guys know a good online spot to get opposed valve springs and various stuff?
Back to top Go down
mr.modified
Veteran Member
mr.modified
Veteran Member

2015 Build-Off Top 3 Winner
2015 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2018 Build-Off Finalist
2018 Build-Off Finalist
2022 Build-Off Entrant
2022 Build-Off Entrant
2500+ Posts
2500+ Posts!
1st Place Build-Off 2014
1st Place Build-Off Winner 2014
2023 Build-Off Entrant
2023 Build-Off Entrant

Age : 34
Join date : 2013-11-02
Points : 6916
Posts : 2906
Location : New Jersey USA

Simplicity Broadmoor R/S Project  - Page 7 Empty
PostSubject: Re: Simplicity Broadmoor R/S Project    Simplicity Broadmoor R/S Project  - Page 7 Icon_minitimeMarch 29th 2020, 12:07 pm

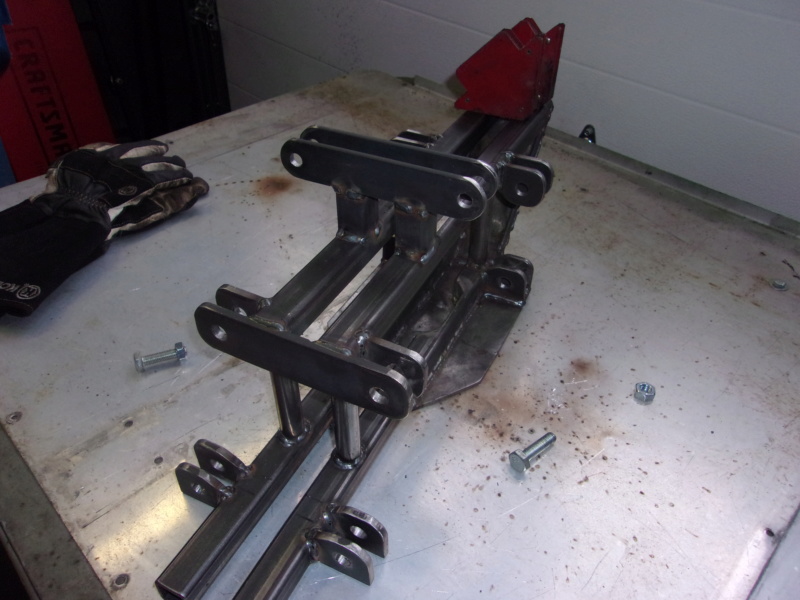

Front suspension shock mounts are pretty much completed.
Simplicity Broadmoor R/S Project  - Page 7 240_0214

Because I assumed the angle on the shocks to be almost too much anyway, I opted to go with only one position for the upper mounting instead of multiple mounting holes. It also simplified the bracket and saved some time.
Simplicity Broadmoor R/S Project  - Page 7 240_0216

I pushed on the front end a bit to get a feel for it and it will hold 150-170 lbs or so with maybe 3/4" of sag. That's just a guess not an exact measurement. But it feels like it won't be ultra soft and not too stiff either. Probably stiffer than the #64 adventure edition though as it's setup now. They are 700-750lb springs.
Simplicity Broadmoor R/S Project  - Page 7 240_0215

Time will tell if the shocks themselves have much resistance to them or not. If needed I can add golf cart shocks along side the coil overs.
Simplicity Broadmoor R/S Project  - Page 7 240_0217

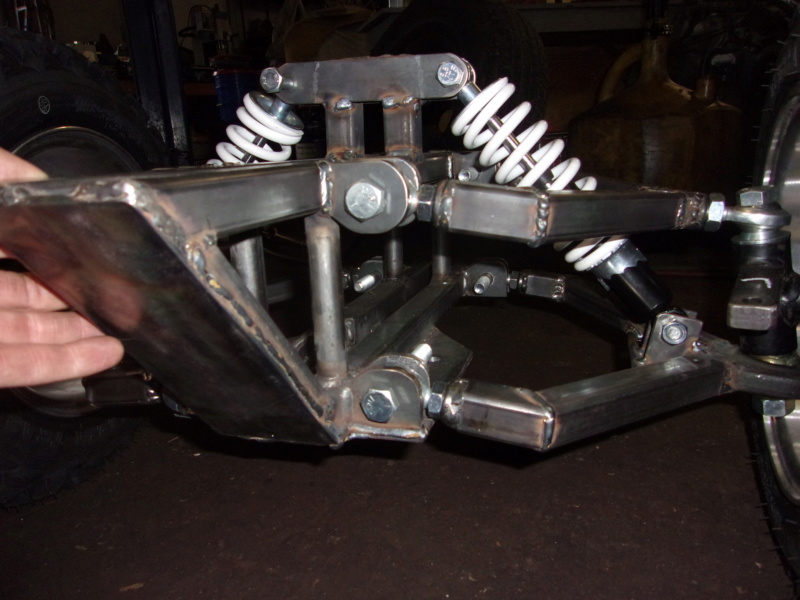

I also weighed the front end as seen in the pic with wheels attached. 81 lbs so far. That's not light but also not too far off since it's the whole front suspension and forward half of the frame with wheels. 81 lbs plus 100 lbs for the opposed, plus 75 for the 633a transaxle brings us up to 256 lbs. There's still a lot of things to add but we're still on track for a hopefully max 500 lb machine. I could have skimped on the front end steel, it's pretty beefy as it is. But I think I would rather have the extra weight vs break the front end all the time. Besides that, it's all nice and low with none of it over the top of the tires. Should make for a nice planted feel. I don't think tipping sideways will be much of an issue. Actual measured ground clearance 6-3/4" under the skid plate.
Back to top Go down
mr.modified
Veteran Member
mr.modified
Veteran Member

2015 Build-Off Top 3 Winner
2015 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2018 Build-Off Finalist
2018 Build-Off Finalist
2022 Build-Off Entrant
2022 Build-Off Entrant
2500+ Posts
2500+ Posts!
1st Place Build-Off 2014
1st Place Build-Off Winner 2014
2023 Build-Off Entrant
2023 Build-Off Entrant

Age : 34
Join date : 2013-11-02
Points : 6916
Posts : 2906
Location : New Jersey USA

Simplicity Broadmoor R/S Project  - Page 7 Empty
PostSubject: Re: Simplicity Broadmoor R/S Project    Simplicity Broadmoor R/S Project  - Page 7 Icon_minitimeApril 4th 2020, 10:12 pm

Worked on the engine mounting plate. Here is a stock one and the one I changed for comparison.
I cut the ends down a bit and added gussets along the length of both sides. They do not interfere with the engine.
Simplicity Broadmoor R/S Project  - Page 7 240_0222

Better view of the gusset seen from the bottom of the mounting plate.
Simplicity Broadmoor R/S Project  - Page 7 240_0223

Minor changes were made to the original plan. I intended on having 9" of ground clearance in the middle of the frame
but this was reduced to about 7" same as the front. Also, instead of having the engine completely centered, I decided to move it slightly to the left (only about 3/4") for better belt clearance.
Simplicity Broadmoor R/S Project  - Page 7 240_0219

Seen from the bottom, more gussets will be added later on.
Simplicity Broadmoor R/S Project  - Page 7 240_0221

Mock up engine in place.
Simplicity Broadmoor R/S Project  - Page 7 240_0218

Left front tire to engine clearance. A bit hard to see from this angle but it should be good to go.
Simplicity Broadmoor R/S Project  - Page 7 240_0220

Top
Simplicity Broadmoor R/S Project  - Page 7 240_0224

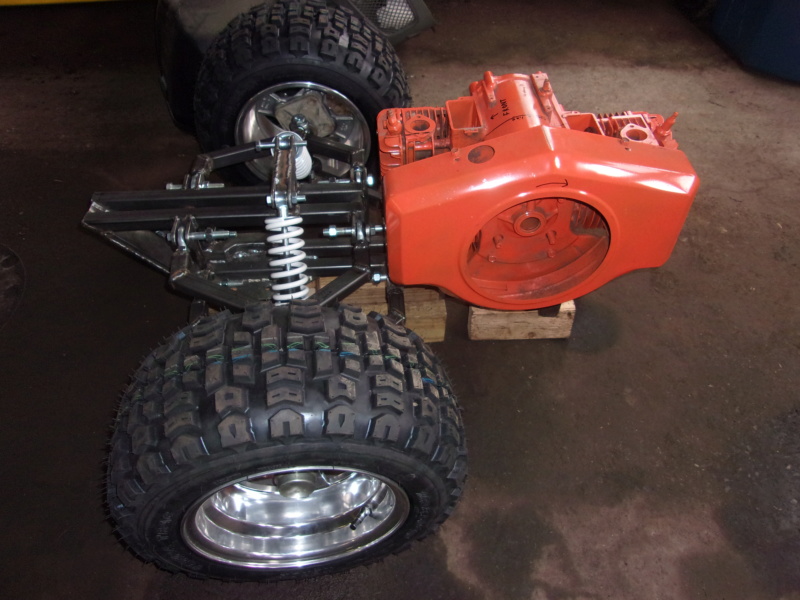

Left side
Simplicity Broadmoor R/S Project  - Page 7 240_0225

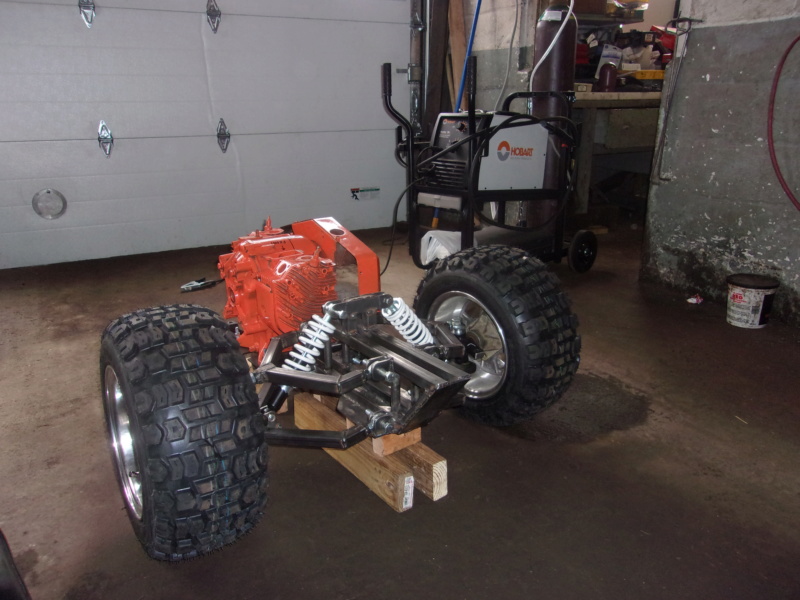

I also did some better measurements on the front suspension to see if I would need extra bump stops or not. It seems the shocks will bottom out before the suspension arms bind up, so that should be good. Also I'll have much more travel than I originally thought. I was hoping for at least 3-4" of travel but it seems I'll end up with about 5" at the wheel. So not too bad. It should be good for high speeds over rough stuff.
Simplicity Broadmoor R/S Project  - Page 7 240_0226
Back to top Go down
RichieRichOverdrive
Moderator
RichieRichOverdrive
Moderator

2500+ Posts
2500+ Posts!
2018 Build-Off Entrant
2018 Build-Off Entrant
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 21
Join date : 2016-10-29
Points : 6476
Posts : 3549
Location : Lewisburg, KY

Simplicity Broadmoor R/S Project  - Page 7 Empty
PostSubject: Re: Simplicity Broadmoor R/S Project    Simplicity Broadmoor R/S Project  - Page 7 Icon_minitimeApril 4th 2020, 10:14 pm

This is shaping up very cool. How are you going to run steering over the engine?
Back to top Go down
mr.modified
Veteran Member
mr.modified
Veteran Member

2015 Build-Off Top 3 Winner
2015 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2018 Build-Off Finalist
2018 Build-Off Finalist
2022 Build-Off Entrant
2022 Build-Off Entrant
2500+ Posts
2500+ Posts!
1st Place Build-Off 2014
1st Place Build-Off Winner 2014
2023 Build-Off Entrant
2023 Build-Off Entrant

Age : 34
Join date : 2013-11-02
Points : 6916
Posts : 2906
Location : New Jersey USA

Simplicity Broadmoor R/S Project  - Page 7 Empty
PostSubject: Re: Simplicity Broadmoor R/S Project    Simplicity Broadmoor R/S Project  - Page 7 Icon_minitimeApril 4th 2020, 11:04 pm

Thank you. I'm thinking with two universal joints. The steering shaft will be held somewhere above the engine. There's going to be a sort of upper cage over everything.
Back to top Go down
Murraymountain
Veteran Member
Murraymountain
Veteran Member

1000+ Posts
1000+ Posts!
2019 Build-Off Finalist
2019 Build-Off Finalist
2020 Build-Off Entrant
2020 Build-Off Entrant
2022 Build-Off Entrant
2022 Build-Off Entrant

Join date : 2019-02-04
Points : 4161
Posts : 2155
Location : North Carolina

Simplicity Broadmoor R/S Project  - Page 7 Empty
PostSubject: Re: Simplicity Broadmoor R/S Project    Simplicity Broadmoor R/S Project  - Page 7 Icon_minitimeApril 5th 2020, 9:38 am

Looking really good! After looking at your tire to engine clearance, it looks like it will hit when the suspension allows the tire to move upward. It could be the camera angle though.
Back to top Go down
mr.modified
Veteran Member
mr.modified
Veteran Member

2015 Build-Off Top 3 Winner
2015 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2018 Build-Off Finalist
2018 Build-Off Finalist
2022 Build-Off Entrant
2022 Build-Off Entrant
2500+ Posts
2500+ Posts!
1st Place Build-Off 2014
1st Place Build-Off Winner 2014
2023 Build-Off Entrant
2023 Build-Off Entrant

Age : 34
Join date : 2013-11-02
Points : 6916
Posts : 2906
Location : New Jersey USA

Simplicity Broadmoor R/S Project  - Page 7 Empty
PostSubject: Re: Simplicity Broadmoor R/S Project    Simplicity Broadmoor R/S Project  - Page 7 Icon_minitimeApril 5th 2020, 7:06 pm

Thanks a lot!
The tire should move away slightly as the suspension comes up, it is somewhat close but I think it'll be ok. I figured in a worst case scenario, I could mod the shroud to clear the tire.
Back to top Go down
CraftsmanQuad19
Veteran Member
CraftsmanQuad19
Veteran Member

2500+ Posts
2500+ Posts!
2018 Build-Off Entrant
2018 Build-Off Entrant
2019 Build-Off Finalist
2019 Build-Off Finalist

Age : 23
Join date : 2016-04-12
Points : 5709
Posts : 2617
Location : Indiana

Simplicity Broadmoor R/S Project  - Page 7 Empty
PostSubject: Re: Simplicity Broadmoor R/S Project    Simplicity Broadmoor R/S Project  - Page 7 Icon_minitimeApril 5th 2020, 9:08 pm

mr.modified wrote:
Thanks a lot!
The tire should move away slightly as the suspension comes up, it is somewhat close but I think it'll be ok. I figured in a worst case scenario, I could mod the shroud to clear the tire.

Ah yes, the ol sledgehammer mod
Back to top Go down
mrshaft696
Established Member
mrshaft696
Established Member

500+ Posts
500+ Posts
2018 Build-Off Finalist
2018 Build-Off Finalist
2019 Build-Off Finalist
2019 Build-Off Finalist
2020 Build-Off Entrant
2020 Build-Off Entrant

Join date : 2016-07-10
Points : 3812
Posts : 870
Location : Phillydelphia

Simplicity Broadmoor R/S Project  - Page 7 Empty
PostSubject: Re: Simplicity Broadmoor R/S Project    Simplicity Broadmoor R/S Project  - Page 7 Icon_minitimeApril 7th 2020, 7:48 am

mr.modified wrote:
Thanks, do any of you guys know a good online spot to get opposed valve springs and various stuff?

I have a ratty vertical one you can have, missing carb and tins, had a bunch of mice, but internally complete....

looking pretty custom so far man, gonna be like a buggy...
Back to top Go down
mr.modified
Veteran Member
mr.modified
Veteran Member

2015 Build-Off Top 3 Winner
2015 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2018 Build-Off Finalist
2018 Build-Off Finalist
2022 Build-Off Entrant
2022 Build-Off Entrant
2500+ Posts
2500+ Posts!
1st Place Build-Off 2014
1st Place Build-Off Winner 2014
2023 Build-Off Entrant
2023 Build-Off Entrant

Age : 34
Join date : 2013-11-02
Points : 6916
Posts : 2906
Location : New Jersey USA

Simplicity Broadmoor R/S Project  - Page 7 Empty
PostSubject: Re: Simplicity Broadmoor R/S Project    Simplicity Broadmoor R/S Project  - Page 7 Icon_minitimeApril 24th 2020, 5:01 pm

Thanks for the offer mrshaft but I was gonna try to find some new stuff somewhere. For some reason I had some trouble locating the parts online. I have a surplus of used engines here now so I can piece it together no prob if need be. Haven't got much progress lately, just been busy.

And yeah craftsmanquad, the old sledge hammer trick will fix anything that doesn't turn out quite right.
Back to top Go down
mr.modified
Veteran Member
mr.modified
Veteran Member

2015 Build-Off Top 3 Winner
2015 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2018 Build-Off Finalist
2018 Build-Off Finalist
2022 Build-Off Entrant
2022 Build-Off Entrant
2500+ Posts
2500+ Posts!
1st Place Build-Off 2014
1st Place Build-Off Winner 2014
2023 Build-Off Entrant
2023 Build-Off Entrant

Age : 34
Join date : 2013-11-02
Points : 6916
Posts : 2906
Location : New Jersey USA

Simplicity Broadmoor R/S Project  - Page 7 Empty
PostSubject: Re: Simplicity Broadmoor R/S Project    Simplicity Broadmoor R/S Project  - Page 7 Icon_minitimeMay 13th 2020, 11:20 pm

Update for this month to stay within build off rules. I hate to post without a pic, but I've been kinda busy. I did receive the rear axle, bearings, brake rotor, and all that stuff in the mail. Have not done any math yet on the gearing. At this point I'm going to focus on the #64 Simplicity the next couple weekends to get ready for Haspin 2020, but the next thing I want to do with the RS project is do some mild port work on the engine block so I can start putting it together.
Back to top Go down
mr.modified
Veteran Member
mr.modified
Veteran Member

2015 Build-Off Top 3 Winner
2015 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2018 Build-Off Finalist
2018 Build-Off Finalist
2022 Build-Off Entrant
2022 Build-Off Entrant
2500+ Posts
2500+ Posts!
1st Place Build-Off 2014
1st Place Build-Off Winner 2014
2023 Build-Off Entrant
2023 Build-Off Entrant

Age : 34
Join date : 2013-11-02
Points : 6916
Posts : 2906
Location : New Jersey USA

Simplicity Broadmoor R/S Project  - Page 7 Empty
PostSubject: Re: Simplicity Broadmoor R/S Project    Simplicity Broadmoor R/S Project  - Page 7 Icon_minitimeJune 14th 2020, 11:24 pm

June's super update... Uh... Well I haven't made any more progress with Haspin going on. Since this won't be ready for the TTC in August this year, I'll be focusing on temporary mods to the Adventure Edition to make it a bit more competitive.
Back to top Go down
MightyRaze
Administrator
MightyRaze
Administrator

2017 Build-Off Finalist
2017 Build-Off Finalist
2018 Build-Off Top 3 Winner
2018 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2021 Winner of Winners
2021 Winner of Winners
1st Place Build-Off 2022
1st Place Build-Off Winner 2022
10,000 POSTS!
10,000 POSTS!
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 48
Join date : 2016-09-06
Points : 14921
Posts : 10540
Location : Oklahoma

Simplicity Broadmoor R/S Project  - Page 7 Empty
PostSubject: Re: Simplicity Broadmoor R/S Project    Simplicity Broadmoor R/S Project  - Page 7 Icon_minitimeJuly 29th 2020, 11:30 pm

Any updates?  No updates?


Simplicity Broadmoor R/S Project  - Page 7 Sig115PROJECTS:
     Marshal ........93 Craftsman GT6000
     Red Bandit ...72 Wheel Horse Raider 12
     Dirty Rat........77 Sears Suburban
     Bowser..........01 Murray Widebody LT
     Other projects
Have a question? Ask me! Type in "@MightyRaze" in your post!
Simplicity Broadmoor R/S Project  - Page 7 Sig214Simplicity Broadmoor R/S Project  - Page 7 Sig314
Back to top Go down
mr.modified
Veteran Member
mr.modified
Veteran Member

2015 Build-Off Top 3 Winner
2015 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2018 Build-Off Finalist
2018 Build-Off Finalist
2022 Build-Off Entrant
2022 Build-Off Entrant
2500+ Posts
2500+ Posts!
1st Place Build-Off 2014
1st Place Build-Off Winner 2014
2023 Build-Off Entrant
2023 Build-Off Entrant

Age : 34
Join date : 2013-11-02
Points : 6916
Posts : 2906
Location : New Jersey USA

Simplicity Broadmoor R/S Project  - Page 7 Empty
PostSubject: Re: Simplicity Broadmoor R/S Project    Simplicity Broadmoor R/S Project  - Page 7 Icon_minitimeJuly 30th 2020, 9:23 am

Unfortunately, no updates. I borrowed the RS shocks to swap onto the adventure edition for the TTC because they lower the front end about 2". I think i'm gonna switch back though because they're a bit too stiff.
Back to top Go down
mr.modified
Veteran Member
mr.modified
Veteran Member

2015 Build-Off Top 3 Winner
2015 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2018 Build-Off Finalist
2018 Build-Off Finalist
2022 Build-Off Entrant
2022 Build-Off Entrant
2500+ Posts
2500+ Posts!
1st Place Build-Off 2014
1st Place Build-Off Winner 2014
2023 Build-Off Entrant
2023 Build-Off Entrant

Age : 34
Join date : 2013-11-02
Points : 6916
Posts : 2906
Location : New Jersey USA

Simplicity Broadmoor R/S Project  - Page 7 Empty
PostSubject: Re: Simplicity Broadmoor R/S Project    Simplicity Broadmoor R/S Project  - Page 7 Icon_minitimeAugust 9th 2020, 8:56 pm

Tested out the broadmoor rs shocks on the #64 during the 2020 Top Tractor Challenge. They we're a little stiff for this machine with around 60lbs of weight removed from the front end. But they did give a bit and held up to some pounding. This year's TTC proved to have a few more rough spots with the rock crawl and a big concrete slab pile. I'm not so sure that the RS design would have been up to it with it's 5 or 6" of ground clearance. In all the open sections, steep ramps, dirt piles, tire obstacle, I think it would do well. It would certainly suffer in the mud run with it's small tires and low clearance. The hill climb would have been no problem at all as it was mostly a smooth run. I think at haspin it would definately be decent for hills and higher speed. I'm starting to think that as a TTC competitor though, I probably went a bit too far with the design. Something in between the RS design and the conventional setup would probably be better....
Simplicity Broadmoor R/S Project  - Page 7 244_0327
Back to top Go down
MightyRaze
Administrator
MightyRaze
Administrator

2017 Build-Off Finalist
2017 Build-Off Finalist
2018 Build-Off Top 3 Winner
2018 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2021 Winner of Winners
2021 Winner of Winners
1st Place Build-Off 2022
1st Place Build-Off Winner 2022
10,000 POSTS!
10,000 POSTS!
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 48
Join date : 2016-09-06
Points : 14921
Posts : 10540
Location : Oklahoma

Simplicity Broadmoor R/S Project  - Page 7 Empty
PostSubject: Re: Simplicity Broadmoor R/S Project    Simplicity Broadmoor R/S Project  - Page 7 Icon_minitimeSeptember 25th 2020, 2:27 pm

Spoiler:


Simplicity Broadmoor R/S Project  - Page 7 Sig115PROJECTS:
     Marshal ........93 Craftsman GT6000
     Red Bandit ...72 Wheel Horse Raider 12
     Dirty Rat........77 Sears Suburban
     Bowser..........01 Murray Widebody LT
     Other projects
Have a question? Ask me! Type in "@MightyRaze" in your post!
Simplicity Broadmoor R/S Project  - Page 7 Sig214Simplicity Broadmoor R/S Project  - Page 7 Sig314


Last edited by MightyRaze on December 18th 2020, 7:02 pm; edited 2 times in total
Back to top Go down
MightyRaze
Administrator
MightyRaze
Administrator

2017 Build-Off Finalist
2017 Build-Off Finalist
2018 Build-Off Top 3 Winner
2018 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2021 Winner of Winners
2021 Winner of Winners
1st Place Build-Off 2022
1st Place Build-Off Winner 2022
10,000 POSTS!
10,000 POSTS!
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 48
Join date : 2016-09-06
Points : 14921
Posts : 10540
Location : Oklahoma

Simplicity Broadmoor R/S Project  - Page 7 Empty
PostSubject: Re: Simplicity Broadmoor R/S Project    Simplicity Broadmoor R/S Project  - Page 7 Icon_minitimeOctober 28th 2020, 7:37 pm

Spoiler:


Simplicity Broadmoor R/S Project  - Page 7 Sig115PROJECTS:
     Marshal ........93 Craftsman GT6000
     Red Bandit ...72 Wheel Horse Raider 12
     Dirty Rat........77 Sears Suburban
     Bowser..........01 Murray Widebody LT
     Other projects
Have a question? Ask me! Type in "@MightyRaze" in your post!
Simplicity Broadmoor R/S Project  - Page 7 Sig214Simplicity Broadmoor R/S Project  - Page 7 Sig314
Back to top Go down
MightyRaze
Administrator
MightyRaze
Administrator

2017 Build-Off Finalist
2017 Build-Off Finalist
2018 Build-Off Top 3 Winner
2018 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2021 Winner of Winners
2021 Winner of Winners
1st Place Build-Off 2022
1st Place Build-Off Winner 2022
10,000 POSTS!
10,000 POSTS!
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 48
Join date : 2016-09-06
Points : 14921
Posts : 10540
Location : Oklahoma

Simplicity Broadmoor R/S Project  - Page 7 Empty
PostSubject: Re: Simplicity Broadmoor R/S Project    Simplicity Broadmoor R/S Project  - Page 7 Icon_minitimeDecember 18th 2020, 7:04 pm

Topic merged with b/o topic.


Simplicity Broadmoor R/S Project  - Page 7 Sig115PROJECTS:
     Marshal ........93 Craftsman GT6000
     Red Bandit ...72 Wheel Horse Raider 12
     Dirty Rat........77 Sears Suburban
     Bowser..........01 Murray Widebody LT
     Other projects
Have a question? Ask me! Type in "@MightyRaze" in your post!
Simplicity Broadmoor R/S Project  - Page 7 Sig214Simplicity Broadmoor R/S Project  - Page 7 Sig314
Back to top Go down
mr.modified
Veteran Member
mr.modified
Veteran Member

2015 Build-Off Top 3 Winner
2015 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2018 Build-Off Finalist
2018 Build-Off Finalist
2022 Build-Off Entrant
2022 Build-Off Entrant
2500+ Posts
2500+ Posts!
1st Place Build-Off 2014
1st Place Build-Off Winner 2014
2023 Build-Off Entrant
2023 Build-Off Entrant

Age : 34
Join date : 2013-11-02
Points : 6916
Posts : 2906
Location : New Jersey USA

Simplicity Broadmoor R/S Project  - Page 7 Empty
PostSubject: Re: Simplicity Broadmoor R/S Project    Simplicity Broadmoor R/S Project  - Page 7 Icon_minitimeDecember 23rd 2020, 9:16 am

Thanks Mightyraze for switching these threads around for me! So basically, I got a bit frustrated with this build after the rack and pinion steering setup didn't work out too good. Not only that but it's original intended purpose of entering the 2020 TTC didn't pan out too well, since it wasn't ready in time and also since the TTC courses are a tad rougher than they were in 2019 and now I wonder if I went too far to the extreme on the design. 5" of ground clearance might not be enough. So now I'm trying to decide if I should stick to the original plan, or re-design and come up with something closer to a conventional layout. I'm leaning towards doing that... Probably keeping some of the original ideas like wheels and fiberglass parts but doing away with some of the suspension.

As seen in the Simplicity Adventure Edition thread, I recently picked up a free simplicity broadmoor 728 which has a nice hood/grill ect. I had been looking for one to use as a mold to make fiberglass parts.
Simplicity Broadmoor R/S Project  - Page 7 Simpli18

Here's a shot of the Broadmoor R/S work area, pretty well cluttered up with all kinds of junk. With the 2021 TTC still quite a ways ahead, there's still time to put together a build for that if I don't get too technical. I think the RS design might have been good for haspin or just riding in general, but it's a bit too complex to figure out when I have other things to do and can't dedicate the time needed to do it right and sort out the issues with it.

Anybody wanna buy a front suspension?
Simplicity Broadmoor R/S Project  - Page 7 Rsproj10
Back to top Go down
Sponsored content





Simplicity Broadmoor R/S Project  - Page 7 Empty
PostSubject: Re: Simplicity Broadmoor R/S Project    Simplicity Broadmoor R/S Project  - Page 7 Icon_minitime

Back to top Go down

Simplicity Broadmoor R/S Project
Back to top
Page 7 of 7Go to page : Previous  1, 2, 3, 4, 5, 6, 7
 Similar topics
-
» T-Dub's Simplicity 738 Broadmoor Rally Project
» Simplicity Broadmoor 728 XC
» Simplisity Broadmoor 717 with a 14 hp twin build, ideas?
» My "new" 1970 Simplicity Broadmoor 728
» Simplicity Broadmoor 717 steering problems?

Permissions in this forum:You cannot reply to topics in this forum
All-Terrain Lawn Tractor Forum :: Tractor Project Builds :: Off Road & Rally Tractors-
Jump to:
