 Bolens 1668 Diesel Conversion.

Go down
+3
TheBeal
RichieRichOverdrive
AllisKidD21
7 posters
AuthorMessage
AllisKidD21
Moderator
AllisKidD21
Moderator

5000+ Posts
5000+ Posts!
2020 Build-Off Entrant
2020 Build-Off Entrant
1st Place Build-Off 2019
1st Place Build-Off Winner 2019

Age : 25
Join date : 2016-07-10
Points : 8340
Posts : 5190
Location : Ontario Canada

Bolens 1668 Diesel Conversion. Empty
PostSubject: Bolens 1668 Diesel Conversion.   Bolens 1668 Diesel Conversion. Icon_minitimeMay 3rd 2020, 9:24 am

Well as you may know I picked up a nice freebie Bolens tractor yesterday with a crippled opposed twin:

Bolens 1668 Diesel Conversion. 20200516

Bolens 1668 Diesel Conversion. 20200517

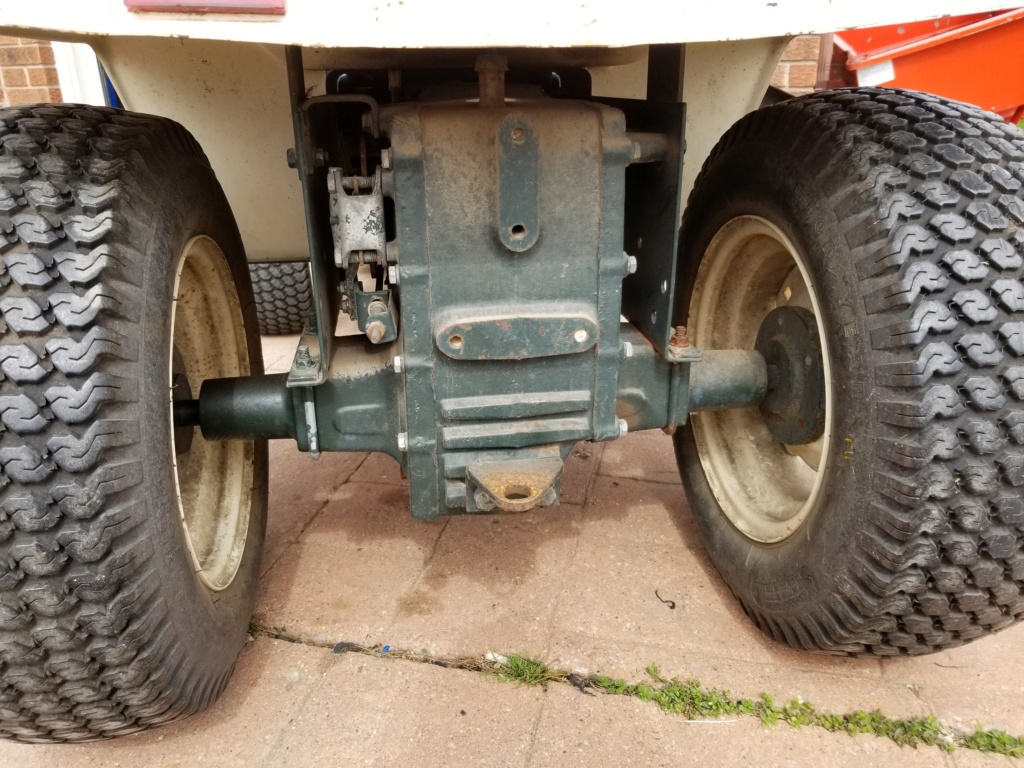

Bolens 1668 Diesel Conversion. 20200518

Bolens 1668 Diesel Conversion. 20200519

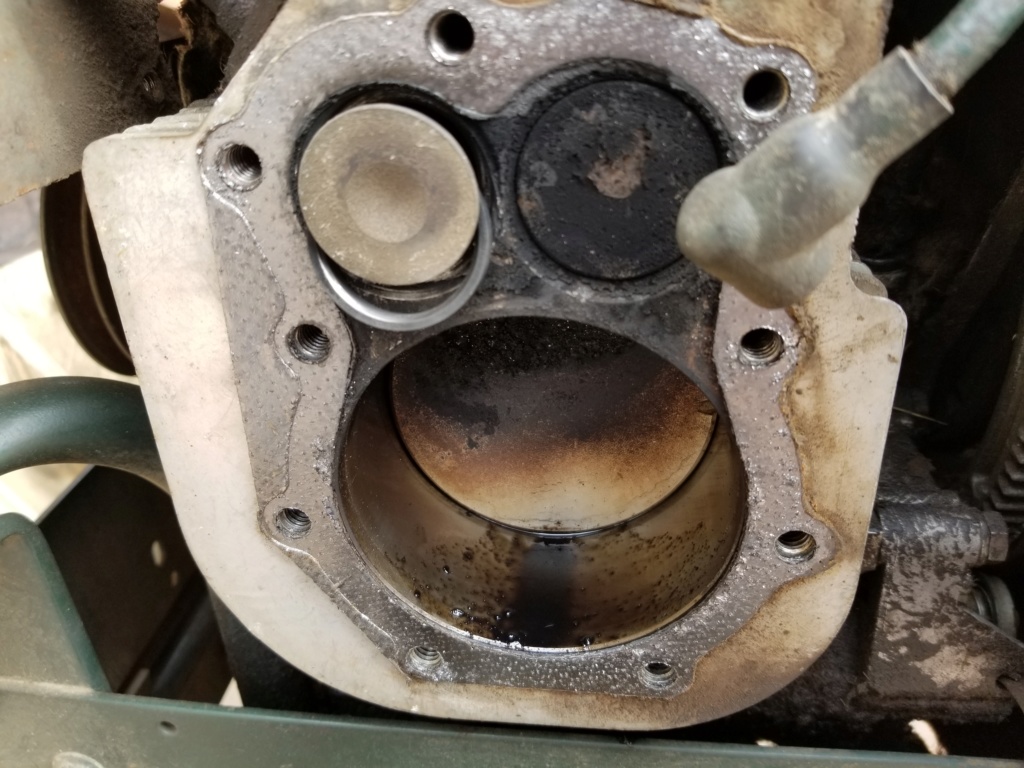

Poor thing had the #2 cylinder head packed up with mouse nest and popped the exhaust valve seat. Normally I would attempt to fix it, but it most likely could use a tear down to be inspected and also re-gasketed, as it looks like it leaks oil from pretty much everywhere.

It's a shame, but I have a nice Yanmar L100 that needs to go in something so that's the direction we're going! Should be neat.

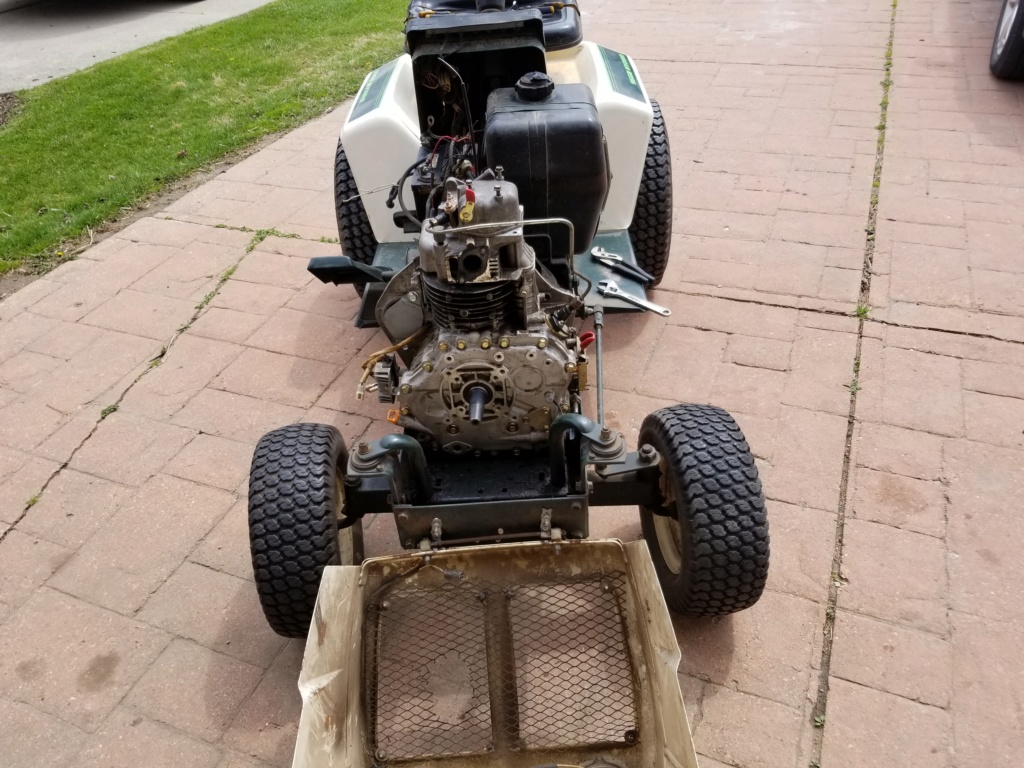

So anyways, yesterday I got the opposed removed, and used my parts diesel for mock-up, so I didn't scratch up my nice purty one. Bolens 1668 Diesel Conversion. 2240318088

Bolens 1668 Diesel Conversion. 20200520

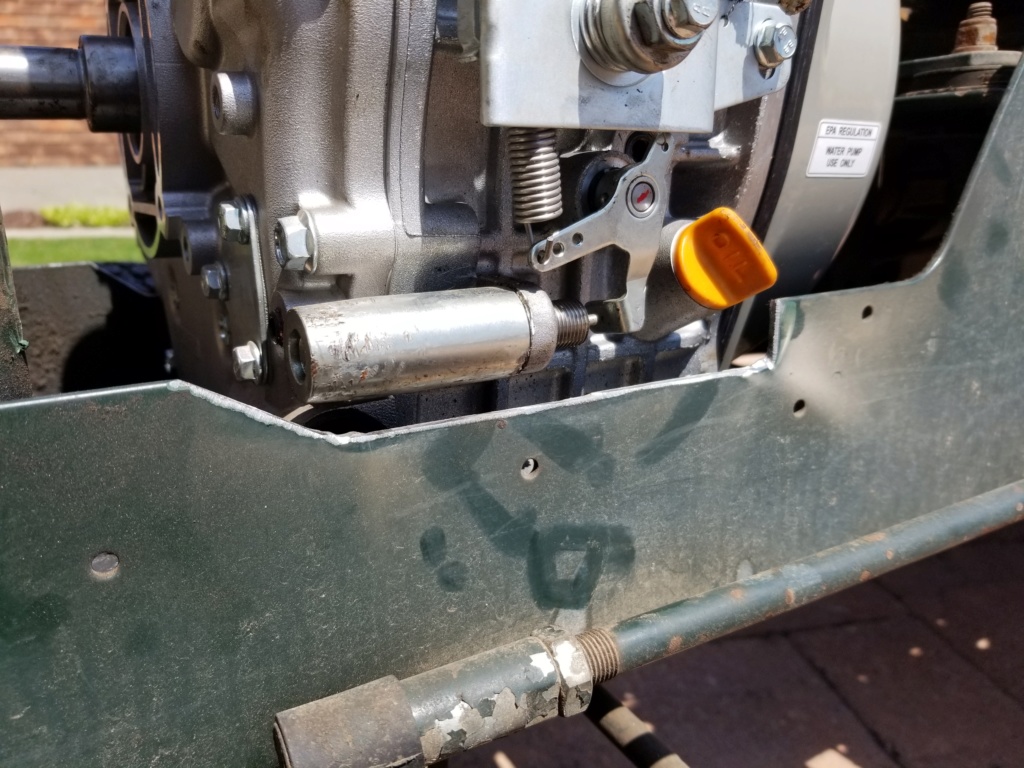

Checked for clearance, and found some minor trimming was needed:

Bolens 1668 Diesel Conversion. 20200521

Bolens 1668 Diesel Conversion. 20200522

Not too bad at all! So I got that done and semi-cleaned up:

Bolens 1668 Diesel Conversion. 20200523

Bolens 1668 Diesel Conversion. 20200524

Tried to make it look as clean as possible, didn't turn out too bad!

Now here's what I was waiting to see!

Bolens 1668 Diesel Conversion. 20200525

Bolens 1668 Diesel Conversion. 20200526

Bolens 1668 Diesel Conversion. 20200527

Man she really fits well! I think it looks pretty cool too, haha. Next I'll have to work on the mounts, and then figure out something for a driveshaft adapter.

So yeah, this is gonna be my little project at home for a bit, should be lots of fun. Let me know what ya think!


"This'll either wake you up or put you to sleep forever!"- Red Green         "Whatever you do you should do right, even if it's something wrong." - Hank Hill

      - MTD Off-Road Build
      - Ford LT 110 Off-Road Build
      - Craftsman GT 6000 Off-Road Build
       - Sears LT11 Rat Rod Build *2019 Build-Off Winner!*


 Garden Tractor Collection: Allis B-110 x2, 710, 716, & 410 - Wheel Horse 655, 953 & 500 Special - Case 444 - Bolens Versamatic, G10 & 1668 Diesel Swapped - Cub 106, 124 & 1000/149 Frankentractor - Ford 120, LGT 125 & 145 - White 1650 Yard Boss - Moto Mower 710-100

JB_4x4 likes this post

Back to top Go down
RichieRichOverdrive
Moderator
RichieRichOverdrive
Moderator

2500+ Posts
2500+ Posts!
2018 Build-Off Entrant
2018 Build-Off Entrant
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 21
Join date : 2016-10-29
Points : 6476
Posts : 3549
Location : Lewisburg, KY

Bolens 1668 Diesel Conversion. Empty
PostSubject: Re: Bolens 1668 Diesel Conversion.   Bolens 1668 Diesel Conversion. Icon_minitimeMay 3rd 2020, 10:04 am

That's really neat Allis. All the better for putting a blade under it Bolens 1668 Diesel Conversion. 2664539216
Back to top Go down
AllisKidD21
Moderator
AllisKidD21
Moderator

5000+ Posts
5000+ Posts!
2020 Build-Off Entrant
2020 Build-Off Entrant
1st Place Build-Off 2019
1st Place Build-Off Winner 2019

Age : 25
Join date : 2016-07-10
Points : 8340
Posts : 5190
Location : Ontario Canada

Bolens 1668 Diesel Conversion. Empty
PostSubject: Re: Bolens 1668 Diesel Conversion.   Bolens 1668 Diesel Conversion. Icon_minitimeMay 3rd 2020, 10:27 am

Yeah you guys got me thinking about that now, haha.


"This'll either wake you up or put you to sleep forever!"- Red Green         "Whatever you do you should do right, even if it's something wrong." - Hank Hill

      - MTD Off-Road Build
      - Ford LT 110 Off-Road Build
      - Craftsman GT 6000 Off-Road Build
       - Sears LT11 Rat Rod Build *2019 Build-Off Winner!*


 Garden Tractor Collection: Allis B-110 x2, 710, 716, & 410 - Wheel Horse 655, 953 & 500 Special - Case 444 - Bolens Versamatic, G10 & 1668 Diesel Swapped - Cub 106, 124 & 1000/149 Frankentractor - Ford 120, LGT 125 & 145 - White 1650 Yard Boss - Moto Mower 710-100
Back to top Go down
TheBeal
Veteran Member
TheBeal
Veteran Member

1000+ Posts
1000+ Posts!

Age : 29
Join date : 2013-06-06
Points : 5465
Posts : 1398
Location : Central PA

Bolens 1668 Diesel Conversion. Empty
PostSubject: Re: Bolens 1668 Diesel Conversion.   Bolens 1668 Diesel Conversion. Icon_minitimeMay 3rd 2020, 10:48 am

That would be pretty nifty.
Back to top Go down
MightyRaze
Administrator
MightyRaze
Administrator

2017 Build-Off Finalist
2017 Build-Off Finalist
2018 Build-Off Top 3 Winner
2018 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2021 Winner of Winners
2021 Winner of Winners
1st Place Build-Off 2022
1st Place Build-Off Winner 2022
10,000 POSTS!
10,000 POSTS!
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 48
Join date : 2016-09-06
Points : 14921
Posts : 10540
Location : Oklahoma

Bolens 1668 Diesel Conversion. Empty
PostSubject: Re: Bolens 1668 Diesel Conversion.   Bolens 1668 Diesel Conversion. Icon_minitimeMay 3rd 2020, 11:51 am

That would be a perfect home for a diesel!


Bolens 1668 Diesel Conversion. Sig115PROJECTS:
     Marshal ........93 Craftsman GT6000
     Red Bandit ...72 Wheel Horse Raider 12
     Dirty Rat........77 Sears Suburban
     Bowser..........01 Murray Widebody LT
     Other projects
Have a question? Ask me! Type in "@MightyRaze" in your post!
Bolens 1668 Diesel Conversion. Sig214Bolens 1668 Diesel Conversion. Sig314
Back to top Go down
AllisKidD21
Moderator
AllisKidD21
Moderator

5000+ Posts
5000+ Posts!
2020 Build-Off Entrant
2020 Build-Off Entrant
1st Place Build-Off 2019
1st Place Build-Off Winner 2019

Age : 25
Join date : 2016-07-10
Points : 8340
Posts : 5190
Location : Ontario Canada

Bolens 1668 Diesel Conversion. Empty
PostSubject: Re: Bolens 1668 Diesel Conversion.   Bolens 1668 Diesel Conversion. Icon_minitimeMay 3rd 2020, 2:17 pm

Thanks fellas.

Well another update here, I actually got the engine mounts done last night, but it was too dark to get any pictures. Nothing special there though, just some 1/4" plate and 3/8" bolts. So she's mounted, but it needs the driveshaft adapter now. That's what we did today!

After planning all morning, here's the few parts I need to make the adapter:

Bolens 1668 Diesel Conversion. 20200528

On the left is the recoil cup from the Yanmar, and in the middle is the original driveshaft hub off the oppy from this tractor. The other two pieces are simple brackets I made.

So basically the plan was to weld the brackets into the cup to allow for a place to bolt the stub shaft.

Bolens 1668 Diesel Conversion. 20200529

Used a digital caliper to get it centered, I went all the way around until I got a measurement of 1.664" in every spot.

Then I carefully welded it while checking the measurement after every tack. Eventually I got 'er fully welded up and trimmed the excess pieces off.

Bolens 1668 Diesel Conversion. 20200530

As you can see the cup can easily be bolted to the flywheel with the stub shaft removed.

Bolens 1668 Diesel Conversion. 20200531

Should hold up fine, but I'll be keeping an eye on it for the first little while.

Bolens 1668 Diesel Conversion. 20200535

Fits great! Then, the moment we've been waiting for..


The test drive!!

Bolens 1668 Diesel Conversion. 20200536

Man she works good! The transmission is smooth and quiet, same goes for the hydraulic lift. I'm very happy with it so far.

I don't have the throttle or electric start hooked up yet, so I'll probably work on that stuff some more today. Also gotta change the exhaust and make new hinges so the hood can be put back on.

But anyways, I'm very happy with the conversion so far, let me know what ya think!


"This'll either wake you up or put you to sleep forever!"- Red Green         "Whatever you do you should do right, even if it's something wrong." - Hank Hill

      - MTD Off-Road Build
      - Ford LT 110 Off-Road Build
      - Craftsman GT 6000 Off-Road Build
       - Sears LT11 Rat Rod Build *2019 Build-Off Winner!*


 Garden Tractor Collection: Allis B-110 x2, 710, 716, & 410 - Wheel Horse 655, 953 & 500 Special - Case 444 - Bolens Versamatic, G10 & 1668 Diesel Swapped - Cub 106, 124 & 1000/149 Frankentractor - Ford 120, LGT 125 & 145 - White 1650 Yard Boss - Moto Mower 710-100

JB_4x4 likes this post

Back to top Go down
RichieRichOverdrive
Moderator
RichieRichOverdrive
Moderator

2500+ Posts
2500+ Posts!
2018 Build-Off Entrant
2018 Build-Off Entrant
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 21
Join date : 2016-10-29
Points : 6476
Posts : 3549
Location : Lewisburg, KY

Bolens 1668 Diesel Conversion. Empty
PostSubject: Re: Bolens 1668 Diesel Conversion.   Bolens 1668 Diesel Conversion. Icon_minitimeMay 3rd 2020, 2:26 pm

Looks great Allis! I bet that driveshaft adapter will hold up alright, they don't see much torque.

So, got the turbo manifolds done yet? Razz
Back to top Go down
AllisKidD21
Moderator
AllisKidD21
Moderator

5000+ Posts
5000+ Posts!
2020 Build-Off Entrant
2020 Build-Off Entrant
1st Place Build-Off 2019
1st Place Build-Off Winner 2019

Age : 25
Join date : 2016-07-10
Points : 8340
Posts : 5190
Location : Ontario Canada

Bolens 1668 Diesel Conversion. Empty
PostSubject: Re: Bolens 1668 Diesel Conversion.   Bolens 1668 Diesel Conversion. Icon_minitimeMay 4th 2020, 6:21 am

I'll get there, haha.

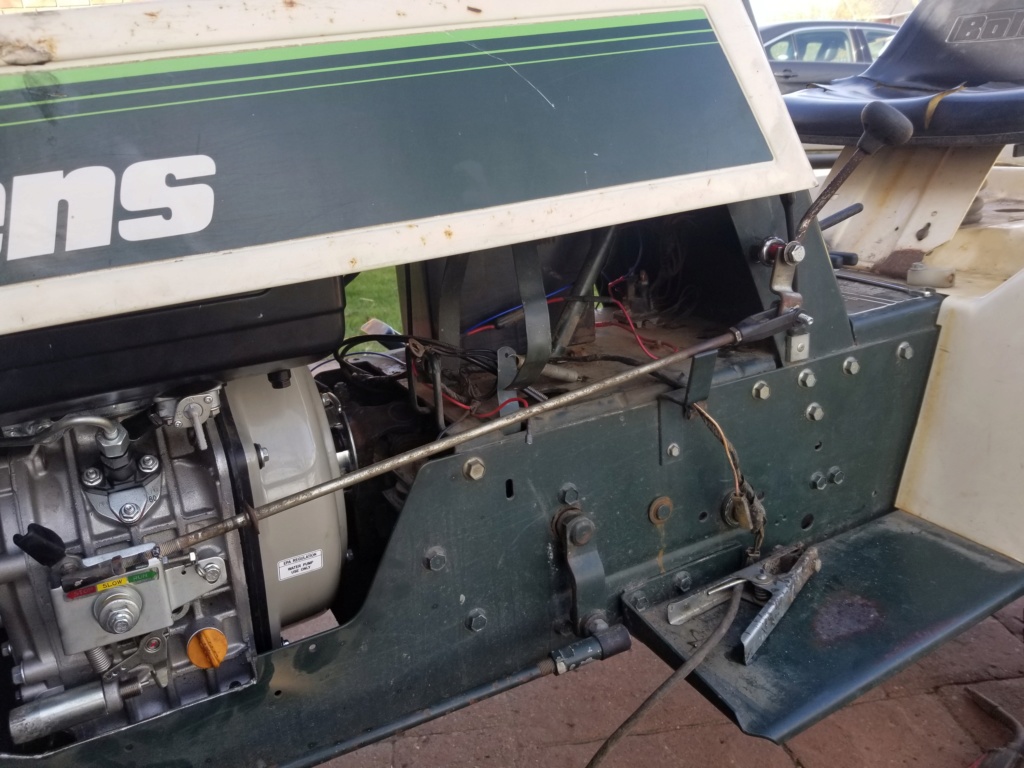

Worked on a hand throttle setup yesterday afternoon, wanted to come up with something that was stupid simple and sorta heavy duty:

Bolens 1668 Diesel Conversion. 20200537

Turned out kinda neat looking, haha. I got it all welded it up and it works great, so I'm happy.

Gotta do some wiring next!


"This'll either wake you up or put you to sleep forever!"- Red Green         "Whatever you do you should do right, even if it's something wrong." - Hank Hill

      - MTD Off-Road Build
      - Ford LT 110 Off-Road Build
      - Craftsman GT 6000 Off-Road Build
       - Sears LT11 Rat Rod Build *2019 Build-Off Winner!*


 Garden Tractor Collection: Allis B-110 x2, 710, 716, & 410 - Wheel Horse 655, 953 & 500 Special - Case 444 - Bolens Versamatic, G10 & 1668 Diesel Swapped - Cub 106, 124 & 1000/149 Frankentractor - Ford 120, LGT 125 & 145 - White 1650 Yard Boss - Moto Mower 710-100
Back to top Go down
Crazy_Carl
Veteran Member
Crazy_Carl
Veteran Member

2018 Build-Off Entrant
2018 Build-Off Entrant
2500+ Posts
2500+ Posts!
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 34
Join date : 2017-10-30
Points : 5085
Posts : 2560
Location : Rochester, New York

Bolens 1668 Diesel Conversion. Empty
PostSubject: Re: Bolens 1668 Diesel Conversion.   Bolens 1668 Diesel Conversion. Icon_minitimeMay 4th 2020, 6:24 am

Oh I like the linkage for the throttle!

How is the adapter you made for the driveshaft working out?

It would be nice if you would post a video of the tractor running on youtube...please
Back to top Go down
AllisKidD21
Moderator
AllisKidD21
Moderator

5000+ Posts
5000+ Posts!
2020 Build-Off Entrant
2020 Build-Off Entrant
1st Place Build-Off 2019
1st Place Build-Off Winner 2019

Age : 25
Join date : 2016-07-10
Points : 8340
Posts : 5190
Location : Ontario Canada

Bolens 1668 Diesel Conversion. Empty
PostSubject: Re: Bolens 1668 Diesel Conversion.   Bolens 1668 Diesel Conversion. Icon_minitimeMay 4th 2020, 6:42 am

Thanks Carl! The driveshaft adapter has been fine so far.

I did take a short video right after I got it going, I'll probably upload it soon.


"This'll either wake you up or put you to sleep forever!"- Red Green         "Whatever you do you should do right, even if it's something wrong." - Hank Hill

      - MTD Off-Road Build
      - Ford LT 110 Off-Road Build
      - Craftsman GT 6000 Off-Road Build
       - Sears LT11 Rat Rod Build *2019 Build-Off Winner!*


 Garden Tractor Collection: Allis B-110 x2, 710, 716, & 410 - Wheel Horse 655, 953 & 500 Special - Case 444 - Bolens Versamatic, G10 & 1668 Diesel Swapped - Cub 106, 124 & 1000/149 Frankentractor - Ford 120, LGT 125 & 145 - White 1650 Yard Boss - Moto Mower 710-100
Back to top Go down
AllisKidD21
Moderator
AllisKidD21
Moderator

5000+ Posts
5000+ Posts!
2020 Build-Off Entrant
2020 Build-Off Entrant
1st Place Build-Off 2019
1st Place Build-Off Winner 2019

Age : 25
Join date : 2016-07-10
Points : 8340
Posts : 5190
Location : Ontario Canada

Bolens 1668 Diesel Conversion. Empty
PostSubject: Re: Bolens 1668 Diesel Conversion.   Bolens 1668 Diesel Conversion. Icon_minitimeMay 5th 2020, 9:27 pm

Little more tinkering on the ol' Bolens over the last couple days. I got the hand throttle welded up but never tried it 'til yesterday, it works quite well!

Bolens 1668 Diesel Conversion. 20200538

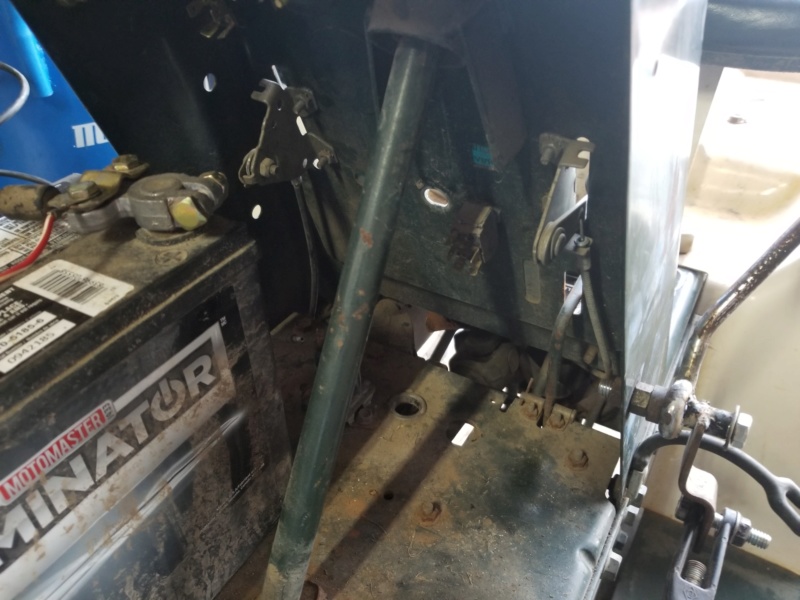

Decided I wanted to re-do the wiring for the diesel, so I removed the entire harness and did the simple momentary push button for the starter.

Bolens 1668 Diesel Conversion. 20200539

Cranks over good! Still need to rig up a charging system, but I have a plan for that.

Last thing I did is something I've been wanting to try for a little bit. I figured since the choke lever is no longer needed, it would be handy to hook it up to the decompression lever on the rocker cover. The choke cable happened to be the perfect length, so I routed it and made a little bracket to clamp it down:

Bolens 1668 Diesel Conversion. 20200540

Pulls it and releases it nicely:

Bolens 1668 Diesel Conversion. 20200541

Bolens 1668 Diesel Conversion. 20200542

Perfect! So now I have the throttle, decompression, and starter all operable from the seat:

Bolens 1668 Diesel Conversion. 20200543

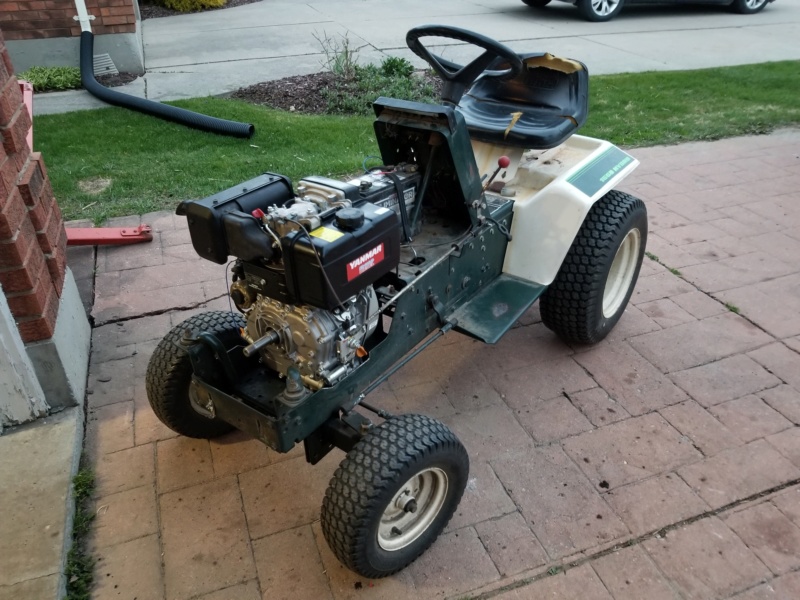

Fired 'er up and everything works nicely:

Bolens 1668 Diesel Conversion. 20200544

Bolens 1668 Diesel Conversion. 20200545

Pretty happy with that stuff. Next I should probably try and make that hood fit, haha.


"This'll either wake you up or put you to sleep forever!"- Red Green         "Whatever you do you should do right, even if it's something wrong." - Hank Hill

      - MTD Off-Road Build
      - Ford LT 110 Off-Road Build
      - Craftsman GT 6000 Off-Road Build
       - Sears LT11 Rat Rod Build *2019 Build-Off Winner!*


 Garden Tractor Collection: Allis B-110 x2, 710, 716, & 410 - Wheel Horse 655, 953 & 500 Special - Case 444 - Bolens Versamatic, G10 & 1668 Diesel Swapped - Cub 106, 124 & 1000/149 Frankentractor - Ford 120, LGT 125 & 145 - White 1650 Yard Boss - Moto Mower 710-100
Back to top Go down
RichieRichOverdrive
Moderator
RichieRichOverdrive
Moderator

2500+ Posts
2500+ Posts!
2018 Build-Off Entrant
2018 Build-Off Entrant
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 21
Join date : 2016-10-29
Points : 6476
Posts : 3549
Location : Lewisburg, KY

Bolens 1668 Diesel Conversion. Empty
PostSubject: Re: Bolens 1668 Diesel Conversion.   Bolens 1668 Diesel Conversion. Icon_minitimeMay 5th 2020, 9:43 pm

Seems pretty ergonomic having everything to run it right there. The throttle is the kill switch too so that's nice.
Back to top Go down
AllisKidD21
Moderator
AllisKidD21
Moderator

5000+ Posts
5000+ Posts!
2020 Build-Off Entrant
2020 Build-Off Entrant
1st Place Build-Off 2019
1st Place Build-Off Winner 2019

Age : 25
Join date : 2016-07-10
Points : 8340
Posts : 5190
Location : Ontario Canada

Bolens 1668 Diesel Conversion. Empty
PostSubject: Re: Bolens 1668 Diesel Conversion.   Bolens 1668 Diesel Conversion. Icon_minitimeMay 5th 2020, 9:52 pm

Yeah I'm gonna do away with that evetually though. I never liked the idea of having to guess where the idle is so you don't shut the engine off, kinda tacky.

I have a couple different ideas for a remote shut-off.


"This'll either wake you up or put you to sleep forever!"- Red Green         "Whatever you do you should do right, even if it's something wrong." - Hank Hill

      - MTD Off-Road Build
      - Ford LT 110 Off-Road Build
      - Craftsman GT 6000 Off-Road Build
       - Sears LT11 Rat Rod Build *2019 Build-Off Winner!*


 Garden Tractor Collection: Allis B-110 x2, 710, 716, & 410 - Wheel Horse 655, 953 & 500 Special - Case 444 - Bolens Versamatic, G10 & 1668 Diesel Swapped - Cub 106, 124 & 1000/149 Frankentractor - Ford 120, LGT 125 & 145 - White 1650 Yard Boss - Moto Mower 710-100
Back to top Go down
CraftsmanQuad19
Veteran Member
CraftsmanQuad19
Veteran Member

2500+ Posts
2500+ Posts!
2018 Build-Off Entrant
2018 Build-Off Entrant
2019 Build-Off Finalist
2019 Build-Off Finalist

Age : 23
Join date : 2016-04-12
Points : 5709
Posts : 2617
Location : Indiana

Bolens 1668 Diesel Conversion. Empty
PostSubject: Re: Bolens 1668 Diesel Conversion.   Bolens 1668 Diesel Conversion. Icon_minitimeMay 5th 2020, 11:08 pm

You going to run the factory fuel tank and remove the one on the engine? And make a new exhaust? Will that be all the hood needs to clear or is the valve cover too tall?
Back to top Go down
AllisKidD21
Moderator
AllisKidD21
Moderator

5000+ Posts
5000+ Posts!
2020 Build-Off Entrant
2020 Build-Off Entrant
1st Place Build-Off 2019
1st Place Build-Off Winner 2019

Age : 25
Join date : 2016-07-10
Points : 8340
Posts : 5190
Location : Ontario Canada

Bolens 1668 Diesel Conversion. Empty
PostSubject: Re: Bolens 1668 Diesel Conversion.   Bolens 1668 Diesel Conversion. Icon_minitimeMay 6th 2020, 6:25 am

I was actaully planning on running the original tractor tank, but the one on the engine fits under the hood quite nicely so I'm sorta tempted to just leave it there. We'll see I guess.

The valve cover clears fine, it's just the muffler causing issues so I'll have to come up with a different setup.


"This'll either wake you up or put you to sleep forever!"- Red Green         "Whatever you do you should do right, even if it's something wrong." - Hank Hill

      - MTD Off-Road Build
      - Ford LT 110 Off-Road Build
      - Craftsman GT 6000 Off-Road Build
       - Sears LT11 Rat Rod Build *2019 Build-Off Winner!*


 Garden Tractor Collection: Allis B-110 x2, 710, 716, & 410 - Wheel Horse 655, 953 & 500 Special - Case 444 - Bolens Versamatic, G10 & 1668 Diesel Swapped - Cub 106, 124 & 1000/149 Frankentractor - Ford 120, LGT 125 & 145 - White 1650 Yard Boss - Moto Mower 710-100
Back to top Go down
MightyRaze
Administrator
MightyRaze
Administrator

2017 Build-Off Finalist
2017 Build-Off Finalist
2018 Build-Off Top 3 Winner
2018 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2021 Winner of Winners
2021 Winner of Winners
1st Place Build-Off 2022
1st Place Build-Off Winner 2022
10,000 POSTS!
10,000 POSTS!
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 48
Join date : 2016-09-06
Points : 14921
Posts : 10540
Location : Oklahoma

Bolens 1668 Diesel Conversion. Empty
PostSubject: Re: Bolens 1668 Diesel Conversion.   Bolens 1668 Diesel Conversion. Icon_minitimeMay 6th 2020, 11:18 am

Any ideas for the exhaust?  You leaning stack? Side can and blow it forward? other?  Still on the fence?  HAHA... Loving where this is going.  Do you think the cup will stand up to any pressure of a load on the rear end over time?


Bolens 1668 Diesel Conversion. Sig115PROJECTS:
     Marshal ........93 Craftsman GT6000
     Red Bandit ...72 Wheel Horse Raider 12
     Dirty Rat........77 Sears Suburban
     Bowser..........01 Murray Widebody LT
     Other projects
Have a question? Ask me! Type in "@MightyRaze" in your post!
Bolens 1668 Diesel Conversion. Sig214Bolens 1668 Diesel Conversion. Sig314
Back to top Go down
TheBeal
Veteran Member
TheBeal
Veteran Member

1000+ Posts
1000+ Posts!

Age : 29
Join date : 2013-06-06
Points : 5465
Posts : 1398
Location : Central PA

Bolens 1668 Diesel Conversion. Empty
PostSubject: Re: Bolens 1668 Diesel Conversion.   Bolens 1668 Diesel Conversion. Icon_minitimeMay 7th 2020, 6:17 pm

Using the stock tractor tank as a reserve might be cool.
Back to top Go down
AllisKidD21
Moderator
AllisKidD21
Moderator

5000+ Posts
5000+ Posts!
2020 Build-Off Entrant
2020 Build-Off Entrant
1st Place Build-Off 2019
1st Place Build-Off Winner 2019

Age : 25
Join date : 2016-07-10
Points : 8340
Posts : 5190
Location : Ontario Canada

Bolens 1668 Diesel Conversion. Empty
PostSubject: Re: Bolens 1668 Diesel Conversion.   Bolens 1668 Diesel Conversion. Icon_minitimeMay 7th 2020, 8:27 pm

MightyRaze wrote:
Any ideas for the exhaust?  You leaning stack? Side can and blow it forward? other?  Still on the fence?  HAHA... Loving where this is going.  Do you think the cup will stand up to any pressure of a load on the rear end over time?

Still undecided on the exhaust, haha. There is probably a pretty good amount of stress on the starter cup with the hydro trans and all, but I imagine it will hold up fine. Still keeping an eye on it for bending or stress cracks.

TheBeal wrote:
Using the stock tractor tank as a reserve might be cool.

That would be neat, but this thing uses so little fuel it wouldn't prelly be practical, haha.

Took 'er for a nice long ride in the field next to my house this evening! It's a pleasure to drive, the transmission and steering are nice and smooth, and the torque from the diesel is nice as well. Can't wait to put 'er to work!


"This'll either wake you up or put you to sleep forever!"- Red Green         "Whatever you do you should do right, even if it's something wrong." - Hank Hill

      - MTD Off-Road Build
      - Ford LT 110 Off-Road Build
      - Craftsman GT 6000 Off-Road Build
       - Sears LT11 Rat Rod Build *2019 Build-Off Winner!*


 Garden Tractor Collection: Allis B-110 x2, 710, 716, & 410 - Wheel Horse 655, 953 & 500 Special - Case 444 - Bolens Versamatic, G10 & 1668 Diesel Swapped - Cub 106, 124 & 1000/149 Frankentractor - Ford 120, LGT 125 & 145 - White 1650 Yard Boss - Moto Mower 710-100
Back to top Go down
AllisKidD21
Moderator
AllisKidD21
Moderator

5000+ Posts
5000+ Posts!
2020 Build-Off Entrant
2020 Build-Off Entrant
1st Place Build-Off 2019
1st Place Build-Off Winner 2019

Age : 25
Join date : 2016-07-10
Points : 8340
Posts : 5190
Location : Ontario Canada

Bolens 1668 Diesel Conversion. Empty
PostSubject: Re: Bolens 1668 Diesel Conversion.   Bolens 1668 Diesel Conversion. Icon_minitimeMay 15th 2020, 6:42 am

Okay so I did some more tinkering a little while ago, but I haven't posted it yet so here we are.

Wanted to get the hood mounted back up on this thing, so I had to figure the exhaust. Tool the stock muffler off to get a good measurement of the flange:

Bolens 1668 Diesel Conversion. 20200546

None of the ones I had lying around fit unfortunately, so I decided to just make a flange instead.

Figured some 1/8" plate would work nicely.

Bolens 1668 Diesel Conversion. 20200547

And the finished product:

Bolens 1668 Diesel Conversion. 20200548

Not too bad! Bolted it up and welded a pipe fitting in:

Bolens 1668 Diesel Conversion. 20200549

Then the I finally decided on a muffler:

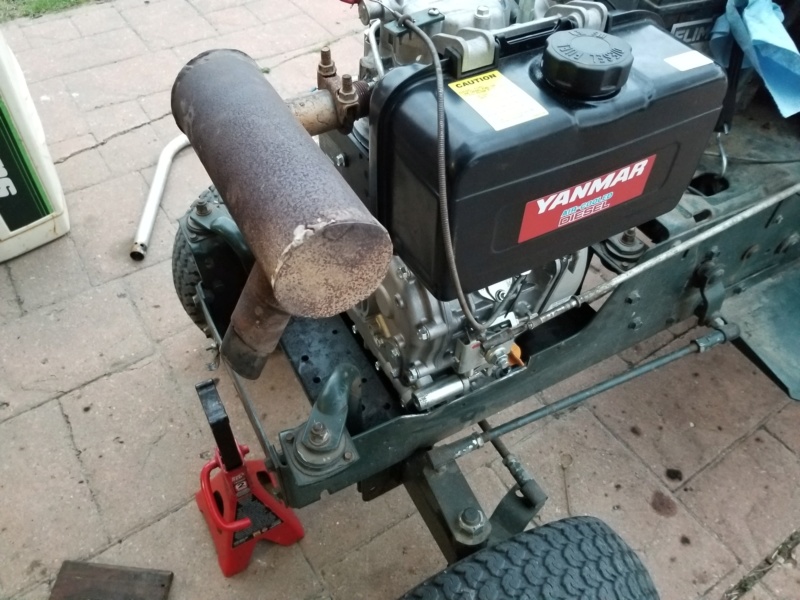

Bolens 1668 Diesel Conversion. 20200550

Bolens 1668 Diesel Conversion. 20200551

Just clamps on as you can see. That'll be nice in case I ever decide to change this setup in the future. The original exhaust for the opposed twin exited out of the grille, so I tried to make this one do the same.

Made a bit of a deflector to get it flowing the right way:

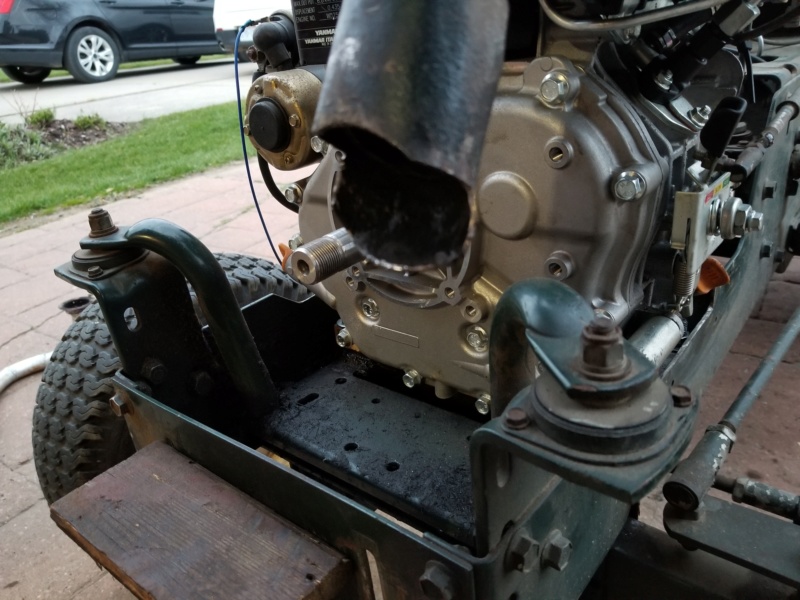

Bolens 1668 Diesel Conversion. 20200552

Flipped the grille mesh 180° and the hole almost lines up with the new exhaust, but not quite.

Bolens 1668 Diesel Conversion. 20200553

Oh well, haha. Then I had a rather nice surprise when I tested the headlights out:

Bolens 1668 Diesel Conversion. 20200554

They both work! Haha, didn't expect that. Got 'em wired to a switch in the dash, so we're all good there.

Then finally, a shot with the hood on:

Bolens 1668 Diesel Conversion. 20200555

Definitely nice to see it back on there! She's a good looking ol' tractor tractor if you ask me, haha.

Let me know what ya think!


"This'll either wake you up or put you to sleep forever!"- Red Green         "Whatever you do you should do right, even if it's something wrong." - Hank Hill

      - MTD Off-Road Build
      - Ford LT 110 Off-Road Build
      - Craftsman GT 6000 Off-Road Build
       - Sears LT11 Rat Rod Build *2019 Build-Off Winner!*


 Garden Tractor Collection: Allis B-110 x2, 710, 716, & 410 - Wheel Horse 655, 953 & 500 Special - Case 444 - Bolens Versamatic, G10 & 1668 Diesel Swapped - Cub 106, 124 & 1000/149 Frankentractor - Ford 120, LGT 125 & 145 - White 1650 Yard Boss - Moto Mower 710-100
Back to top Go down
MightyRaze
Administrator
MightyRaze
Administrator

2017 Build-Off Finalist
2017 Build-Off Finalist
2018 Build-Off Top 3 Winner
2018 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2021 Winner of Winners
2021 Winner of Winners
1st Place Build-Off 2022
1st Place Build-Off Winner 2022
10,000 POSTS!
10,000 POSTS!
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 48
Join date : 2016-09-06
Points : 14921
Posts : 10540
Location : Oklahoma

Bolens 1668 Diesel Conversion. Empty
PostSubject: Re: Bolens 1668 Diesel Conversion.   Bolens 1668 Diesel Conversion. Icon_minitimeMay 15th 2020, 10:24 am

Nicely done AK.


Bolens 1668 Diesel Conversion. Sig115PROJECTS:
     Marshal ........93 Craftsman GT6000
     Red Bandit ...72 Wheel Horse Raider 12
     Dirty Rat........77 Sears Suburban
     Bowser..........01 Murray Widebody LT
     Other projects
Have a question? Ask me! Type in "@MightyRaze" in your post!
Bolens 1668 Diesel Conversion. Sig214Bolens 1668 Diesel Conversion. Sig314
Back to top Go down
AllisKidD21
Moderator
AllisKidD21
Moderator

5000+ Posts
5000+ Posts!
2020 Build-Off Entrant
2020 Build-Off Entrant
1st Place Build-Off 2019
1st Place Build-Off Winner 2019

Age : 25
Join date : 2016-07-10
Points : 8340
Posts : 5190
Location : Ontario Canada

Bolens 1668 Diesel Conversion. Empty
PostSubject: Re: Bolens 1668 Diesel Conversion.   Bolens 1668 Diesel Conversion. Icon_minitimeMay 24th 2020, 9:57 pm

Why thanks Mighty!

I did some messing around with a remote shut-off today because I didn't really like having to use the throttle lever, I wanted to have a solid spot for the idle so that had to change.

I messed around with a detent for the lever but it didn't work out too well, so I found a way to use the original throttle lever on the dash!

Here's the cable on the engine.

Run:

Bolens 1668 Diesel Conversion. 20200557

Shut-off:

Bolens 1668 Diesel Conversion. 20200558

So basically it just closes the fuel rack in the off position, and in the run position it just kinda hovers and lets the governor work as it should. Pretty similar to what I did with the de-comp control.

Made a simple stop for the throttle lever at idle:

Bolens 1668 Diesel Conversion. 20200559

Good ol' 1/4" bolt! Also I labelled the shut-off to make it look more official:

Bolens 1668 Diesel Conversion. 20200560

Tested it out and everything works great, also I picked up a set of four Ag tires on rims so I figured I'd throw a pair on the old diesel Bolens:

Bolens 1668 Diesel Conversion. 20200561

Bolens 1668 Diesel Conversion. 20200562

Still need to paint the rims but it looks pretty neat! Really happy to have that shut-off done too.

Let me know what ya think!


"This'll either wake you up or put you to sleep forever!"- Red Green         "Whatever you do you should do right, even if it's something wrong." - Hank Hill

      - MTD Off-Road Build
      - Ford LT 110 Off-Road Build
      - Craftsman GT 6000 Off-Road Build
       - Sears LT11 Rat Rod Build *2019 Build-Off Winner!*


 Garden Tractor Collection: Allis B-110 x2, 710, 716, & 410 - Wheel Horse 655, 953 & 500 Special - Case 444 - Bolens Versamatic, G10 & 1668 Diesel Swapped - Cub 106, 124 & 1000/149 Frankentractor - Ford 120, LGT 125 & 145 - White 1650 Yard Boss - Moto Mower 710-100

JB_4x4 likes this post

Back to top Go down
AllisKidD21
Moderator
AllisKidD21
Moderator

5000+ Posts
5000+ Posts!
2020 Build-Off Entrant
2020 Build-Off Entrant
1st Place Build-Off 2019
1st Place Build-Off Winner 2019

Age : 25
Join date : 2016-07-10
Points : 8340
Posts : 5190
Location : Ontario Canada

Bolens 1668 Diesel Conversion. Empty
PostSubject: Re: Bolens 1668 Diesel Conversion.   Bolens 1668 Diesel Conversion. Icon_minitimeSeptember 12th 2020, 8:20 am

RichieRichOverdrive wrote:
All the better for putting a blade under it Bolens 1668 Diesel Conversion. 2664539216

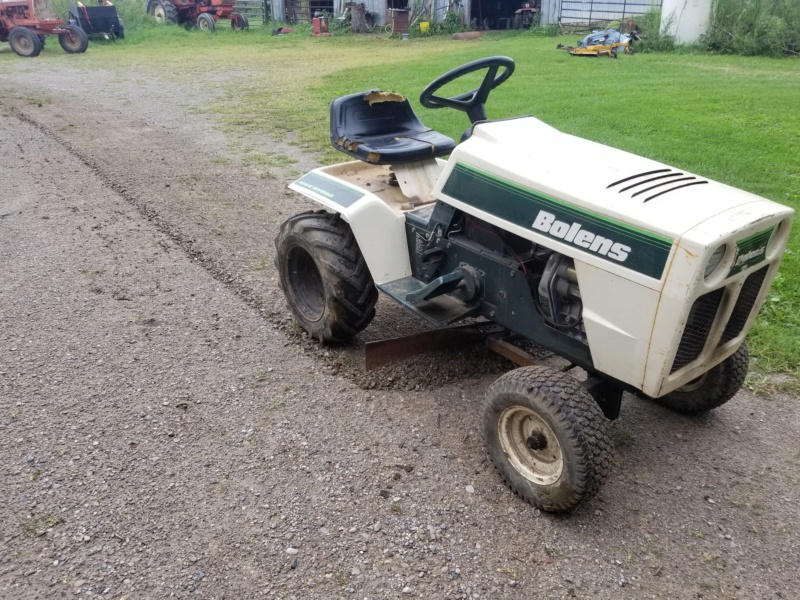

Well since you mentioned it... look what I did!

Bolens 1668 Diesel Conversion. 20200912

Bolens 1668 Diesel Conversion. 20200911

Bolens 1668 Diesel Conversion. 20200910

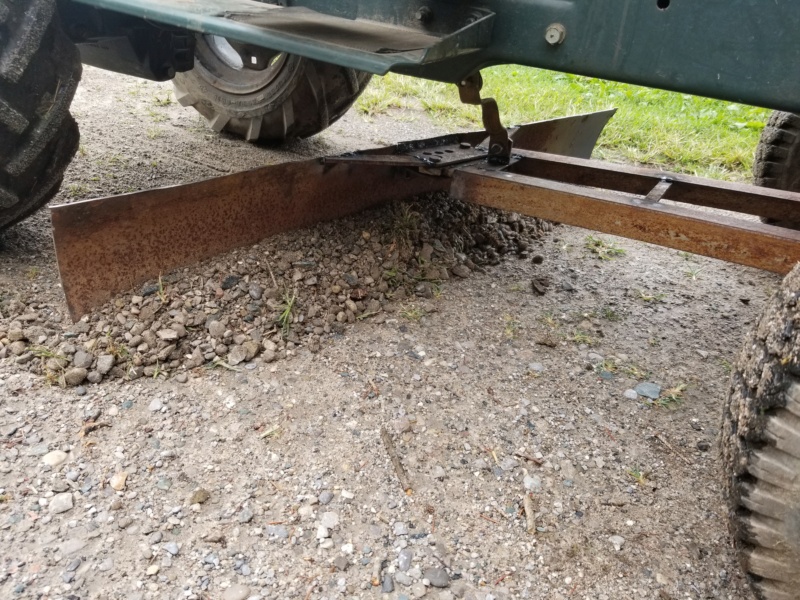

Yep I finally did it, haha. I just cut the blade out of an old water tank, and made the other brackets myself. It has a couple different lock in positions for the pivot.

It works great so far!


"This'll either wake you up or put you to sleep forever!"- Red Green         "Whatever you do you should do right, even if it's something wrong." - Hank Hill

      - MTD Off-Road Build
      - Ford LT 110 Off-Road Build
      - Craftsman GT 6000 Off-Road Build
       - Sears LT11 Rat Rod Build *2019 Build-Off Winner!*


 Garden Tractor Collection: Allis B-110 x2, 710, 716, & 410 - Wheel Horse 655, 953 & 500 Special - Case 444 - Bolens Versamatic, G10 & 1668 Diesel Swapped - Cub 106, 124 & 1000/149 Frankentractor - Ford 120, LGT 125 & 145 - White 1650 Yard Boss - Moto Mower 710-100

JB_4x4 likes this post

Back to top Go down
BlakeGroce
Member
BlakeGroce
Member


Age : 21
Join date : 2019-06-02
Points : 2271
Posts : 469
Location : Richmond Ky

Bolens 1668 Diesel Conversion. Empty
PostSubject: Re: Bolens 1668 Diesel Conversion.   Bolens 1668 Diesel Conversion. Icon_minitimeSeptember 17th 2020, 9:39 am

Nice job on the swap! Looks factory. Nice job on the blade too that thing is pretty slick! Bolens 1668 Diesel Conversion. 2731072446
Back to top Go down
AllisKidD21
Moderator
AllisKidD21
Moderator

5000+ Posts
5000+ Posts!
2020 Build-Off Entrant
2020 Build-Off Entrant
1st Place Build-Off 2019
1st Place Build-Off Winner 2019

Age : 25
Join date : 2016-07-10
Points : 8340
Posts : 5190
Location : Ontario Canada

Bolens 1668 Diesel Conversion. Empty
PostSubject: Re: Bolens 1668 Diesel Conversion.   Bolens 1668 Diesel Conversion. Icon_minitimeSeptember 17th 2020, 5:38 pm

Thanks Blake! The blade had definitely come in handy so far.


"This'll either wake you up or put you to sleep forever!"- Red Green         "Whatever you do you should do right, even if it's something wrong." - Hank Hill

      - MTD Off-Road Build
      - Ford LT 110 Off-Road Build
      - Craftsman GT 6000 Off-Road Build
       - Sears LT11 Rat Rod Build *2019 Build-Off Winner!*


 Garden Tractor Collection: Allis B-110 x2, 710, 716, & 410 - Wheel Horse 655, 953 & 500 Special - Case 444 - Bolens Versamatic, G10 & 1668 Diesel Swapped - Cub 106, 124 & 1000/149 Frankentractor - Ford 120, LGT 125 & 145 - White 1650 Yard Boss - Moto Mower 710-100
Back to top Go down
Sponsored content





Bolens 1668 Diesel Conversion. Empty
PostSubject: Re: Bolens 1668 Diesel Conversion.   Bolens 1668 Diesel Conversion. Icon_minitime

Back to top Go down

Bolens 1668 Diesel Conversion.
Back to top
Page 1 of 1
 Similar topics
-
» Diesel conversion?
» Flathead to ohv conversion
» Has anyone ever thought about Propane Conversions on a Tecumseh?
» grease to oil conversion?
» propane conversion, is it possable?

Permissions in this forum:You cannot reply to topics in this forum
All-Terrain Lawn Tractor Forum :: Tractor Project Builds :: Utility, Workhorse, and Pulling Tractors-
Jump to:
