 Ford LT 110 Off-Road Build

Go down
Go to page : Previous  1, 2, 3 ... 10, 11, 12
AuthorMessage
MatthewD
Grand Master
Grand Master


Join date : 2014-11-16
Posts : 1967

PostSubject: Re: Ford LT 110 Off-Road Build   Mon Aug 20, 2018 7:36 pm

Looking good cleaned up and painted. Will look sharp once it's all assembled.
Back to top Go down
AllisKidD21
Moderator
Moderator
avatar

Age : 20
Join date : 2016-07-10
Posts : 3820
Forum Rep : 125
Location : Glencoe, Ontario

PostSubject: Re: Ford LT 110 Off-Road Build   Mon Aug 20, 2018 8:58 pm

Thanks Matt! Yeah I'm sure hoping it looks better, haha.

_______________________________________________
"Here's another option, it's not as violent but it's dishonest. So it has that going for it" - Red Green                "Memory is good, remember that" - Tomas Haake
                                                                        ----Uploading Pictures----
        - M.T.D. Off-Road Build

- Toro Rat Rod Tractor Build
        - Ford LT 110 Off-Road Build
        - Craftsman GT 6000 Off-Road/Workhorse Build
        -John Deere 110 Basic Project
Back to top Go down
Crazy_Carl
Grand Master
Grand Master
avatar

Age : 29
Join date : 2017-10-30
Posts : 1956
Forum Rep : 85
Location : Rochester, New York

PostSubject: Re: Ford LT 110 Off-Road Build   Mon Aug 20, 2018 11:53 pm

I like the added gussets and the refinements.

Man that crane boom on the front of the GT is giving me a lot of ideas.
Back to top Go down
AllisKidD21
Moderator
Moderator
avatar

Age : 20
Join date : 2016-07-10
Posts : 3820
Forum Rep : 125
Location : Glencoe, Ontario

PostSubject: Re: Ford LT 110 Off-Road Build   Sat Aug 25, 2018 9:46 pm

Thanks Carl! Yeah she's pretty solid now, haha.

Made some good progress on the coilover towers today!

I used some angle steel as the lower part of the brackets to bolt on to the frame:



Bolted them up and made the uprights and mounting tabs out of some more angle steel and some flatstock.

Right side:





Left side:



Had to make a little cutout to fit around a casting in the intake manifold:



Coilovers back in place!







Not done yet, but I'm really liking it so far! Still need to make some rearward facing braces and some braces to keep the towers from bending inwards, but that'll be easy. Then I just gotta paint up the towers, probably paint the coilovers, and I also wanna mess with the steering a bunch, because leaving that kinda stuff stock is just simply no fun. lol!

But anyways, I'm definitely liking the way things are looking so far. Let me know what ya think!

_______________________________________________
"Here's another option, it's not as violent but it's dishonest. So it has that going for it" - Red Green                "Memory is good, remember that" - Tomas Haake
                                                                        ----Uploading Pictures----
        - M.T.D. Off-Road Build

- Toro Rat Rod Tractor Build
        - Ford LT 110 Off-Road Build
        - Craftsman GT 6000 Off-Road/Workhorse Build
        -John Deere 110 Basic Project
Back to top Go down
MightyRaze
Administrator
Administrator
avatar

Age : 43
Join date : 2016-09-06
Posts : 4470
Forum Rep : 208
Location : Shawnee, OK

PostSubject: Re: Ford LT 110 Off-Road Build   Sat Aug 25, 2018 10:03 pm

Looking good thus far. You answered already the question I had. LOL! Great job.

_______________________________________________
(Kal-El) 1982 Murray GT [2018 Entry]
Sasquatch II [2017 Finalist]
Li'l Red Murray
Forum Administrator ~ Chat Moderator ~ Facebook Page Admin
ATLTF Facebook Page
How To Upload Pictures
ATLTF Staff:
Administrators: @Doug, @"Doc Sprocket", @Stretch44875, @MightyRaze
Moderators: @TheRainbowBoxer, @AllisKidD21
Back to top Go down
http://mightyraze.com
AllisKidD21
Moderator
Moderator
avatar

Age : 20
Join date : 2016-07-10
Posts : 3820
Forum Rep : 125
Location : Glencoe, Ontario

PostSubject: Re: Ford LT 110 Off-Road Build   Sat Aug 25, 2018 10:21 pm

Haha, thanks Mighty!

_______________________________________________
"Here's another option, it's not as violent but it's dishonest. So it has that going for it" - Red Green                "Memory is good, remember that" - Tomas Haake
                                                                        ----Uploading Pictures----
        - M.T.D. Off-Road Build

- Toro Rat Rod Tractor Build
        - Ford LT 110 Off-Road Build
        - Craftsman GT 6000 Off-Road/Workhorse Build
        -John Deere 110 Basic Project
Back to top Go down
AllisKidD21
Moderator
Moderator
avatar

Age : 20
Join date : 2016-07-10
Posts : 3820
Forum Rep : 125
Location : Glencoe, Ontario

PostSubject: Re: Ford LT 110 Off-Road Build   Sun Aug 26, 2018 4:04 pm

Alrighty so I got some more stuff done here. Painted my coilovers up all nice and pretty:




Turned out pretty cool looking in my opinion!

Then I added a couple braces and a cross bar for the towers:







Gonna paint those with the same gloss black I use for the beams after I I finish up the limit chain mounts, but first I just had to see how the coilovers were gonna look:





Oh yeah! Haha. Definitely happy with the way it's turning out, more progress to come soon!

_______________________________________________
"Here's another option, it's not as violent but it's dishonest. So it has that going for it" - Red Green                "Memory is good, remember that" - Tomas Haake
                                                                        ----Uploading Pictures----
        - M.T.D. Off-Road Build

- Toro Rat Rod Tractor Build
        - Ford LT 110 Off-Road Build
        - Craftsman GT 6000 Off-Road/Workhorse Build
        -John Deere 110 Basic Project
Back to top Go down
Crazy_Carl
Grand Master
Grand Master
avatar

Age : 29
Join date : 2017-10-30
Posts : 1956
Forum Rep : 85
Location : Rochester, New York

PostSubject: Re: Ford LT 110 Off-Road Build   Sun Aug 26, 2018 6:33 pm

Nice work with that strut going through the hood connecting the towers and the gussets you added.  Looks really strong.  Will look even better once it's painted.  What are you thinking for steering?
Back to top Go down
AllisKidD21
Moderator
Moderator
avatar

Age : 20
Join date : 2016-07-10
Posts : 3820
Forum Rep : 125
Location : Glencoe, Ontario

PostSubject: Re: Ford LT 110 Off-Road Build   Sun Aug 26, 2018 9:36 pm

Thanks Carl! I actually added a couple more gussets, painted everything up, and re-assembled the whole thing shortly after that post. It turned out looking great, but of course it was too dark to get any good pictures by then, haha. Oh well, I'll be sure to snap a couple tomorrow.

The idea I have for steering is pretty hard to explain, but it will basically be more like the drag link and tie rod set up on an older Ford pickup. It would work much better with the Twin I-Beam than the current steering setup does. I'll be able to explain it better once I get everything sorta mocked up and what not. That is, if I actually ever do it. lol!

_______________________________________________
"Here's another option, it's not as violent but it's dishonest. So it has that going for it" - Red Green                "Memory is good, remember that" - Tomas Haake
                                                                        ----Uploading Pictures----
        - M.T.D. Off-Road Build

- Toro Rat Rod Tractor Build
        - Ford LT 110 Off-Road Build
        - Craftsman GT 6000 Off-Road/Workhorse Build
        -John Deere 110 Basic Project
Back to top Go down
AllisKidD21
Moderator
Moderator
avatar

Age : 20
Join date : 2016-07-10
Posts : 3820
Forum Rep : 125
Location : Glencoe, Ontario

PostSubject: Re: Ford LT 110 Off-Road Build   Tue Aug 28, 2018 11:55 am

So I actually decided to start on the crossover style steering yesterday, and it went quite well!

Started with the old bellcrank from the GT's stock steering setup, and a piece cut out of the mounting plate:

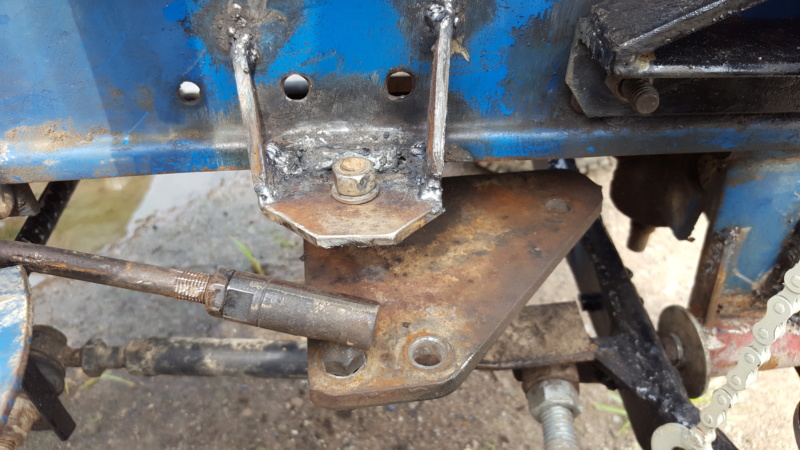

Welded the mount to the frame and added a couple gussets:



Probably gonna add a cross member right behind it later on to keep the frame from flexing, but she's pretty solid for now.

Then after some cutting, bending, and welding, I got the linkages all made up and painted!







You can kinda get an idea of how it works here, as I said it's a lot more like a pickup truck setup. It works great too!! No more change in the wheel toe during suspension travel, and it's pretty neat looking in my opinion. Hahaha.

Finally some pictures of the whole rig:







Everything's holding up fantastic so far. Took it through the trail in the woods yesterday after I finished the steering, bumping over logs and what not, and the front end handled it great! A bit better that I expected to be honest, haha. Pretty happy with how the front end re-vamp went, let me know what ya think!

_______________________________________________
"Here's another option, it's not as violent but it's dishonest. So it has that going for it" - Red Green                "Memory is good, remember that" - Tomas Haake
                                                                        ----Uploading Pictures----
        - M.T.D. Off-Road Build

- Toro Rat Rod Tractor Build
        - Ford LT 110 Off-Road Build
        - Craftsman GT 6000 Off-Road/Workhorse Build
        -John Deere 110 Basic Project


Last edited by AllisKidD21 on Tue Aug 28, 2018 2:43 pm; edited 1 time in total
Back to top Go down
MightyRaze
Administrator
Administrator
avatar

Age : 43
Join date : 2016-09-06
Posts : 4470
Forum Rep : 208
Location : Shawnee, OK

PostSubject: Re: Ford LT 110 Off-Road Build   Tue Aug 28, 2018 12:02 pm

Interesting steering set up.  Does the extra point cause additional slop?

_______________________________________________
(Kal-El) 1982 Murray GT [2018 Entry]
Sasquatch II [2017 Finalist]
Li'l Red Murray
Forum Administrator ~ Chat Moderator ~ Facebook Page Admin
ATLTF Facebook Page
How To Upload Pictures
ATLTF Staff:
Administrators: @Doug, @"Doc Sprocket", @Stretch44875, @MightyRaze
Moderators: @TheRainbowBoxer, @AllisKidD21
Back to top Go down
http://mightyraze.com
AllisKidD21
Moderator
Moderator
avatar

Age : 20
Join date : 2016-07-10
Posts : 3820
Forum Rep : 125
Location : Glencoe, Ontario

PostSubject: Re: Ford LT 110 Off-Road Build   Tue Aug 28, 2018 12:11 pm

Surprisingly no, although some of the joints I used are pretty loose. I'd like to pick up some more heim joints so I can have all heims instead.

_______________________________________________
"Here's another option, it's not as violent but it's dishonest. So it has that going for it" - Red Green                "Memory is good, remember that" - Tomas Haake
                                                                        ----Uploading Pictures----
        - M.T.D. Off-Road Build

- Toro Rat Rod Tractor Build
        - Ford LT 110 Off-Road Build
        - Craftsman GT 6000 Off-Road/Workhorse Build
        -John Deere 110 Basic Project
Back to top Go down
RockeyDA
Skilled
Skilled
avatar

Age : 24
Join date : 2017-10-15
Posts : 400
Forum Rep : 11
Location : Bellefonte PA

PostSubject: Re: Ford LT 110 Off-Road Build   Wed Aug 29, 2018 9:29 am

were do you guys find the shocks you throw on the tractors, or if i went to the junk yard what shold i be looking for?
Back to top Go down
AllisKidD21
Moderator
Moderator
avatar

Age : 20
Join date : 2016-07-10
Posts : 3820
Forum Rep : 125
Location : Glencoe, Ontario

PostSubject: Re: Ford LT 110 Off-Road Build   Wed Aug 29, 2018 11:08 am

Well obviously I can't speak for everyone, but I just happened to find these coilovers next to an old truck I robbed the steering box out of a year or so ago.

_______________________________________________
"Here's another option, it's not as violent but it's dishonest. So it has that going for it" - Red Green                "Memory is good, remember that" - Tomas Haake
                                                                        ----Uploading Pictures----
        - M.T.D. Off-Road Build

- Toro Rat Rod Tractor Build
        - Ford LT 110 Off-Road Build
        - Craftsman GT 6000 Off-Road/Workhorse Build
        -John Deere 110 Basic Project
Back to top Go down
muckmudd
Master
Master
avatar

Age : 16
Join date : 2017-07-11
Posts : 807
Forum Rep : 22
Location : In the shop

PostSubject: Re: Ford LT 110 Off-Road Build   Wed Aug 29, 2018 12:04 pm

I have found a few pairs of coilovers at the juinkyard, I robbed them off of some street bikes with two shocks, but both times I have found them a bit too stiff. So try to find the smallest bike you can I guess.
Back to top Go down
RockeyDA
Skilled
Skilled
avatar

Age : 24
Join date : 2017-10-15
Posts : 400
Forum Rep : 11
Location : Bellefonte PA

PostSubject: Re: Ford LT 110 Off-Road Build   Wed Aug 29, 2018 1:21 pm

well, theres a street bike sitting close to a tractor i want. but i dont know anything about taking apart somthing road legal.
Back to top Go down
AllisKidD21
Moderator
Moderator
avatar

Age : 20
Join date : 2016-07-10
Posts : 3820
Forum Rep : 125
Location : Glencoe, Ontario

PostSubject: Re: Ford LT 110 Off-Road Build   Wed Aug 29, 2018 10:52 pm

Dang, finally get some traffic in here and we're not even talking about the build.... lol! lol!

_______________________________________________
"Here's another option, it's not as violent but it's dishonest. So it has that going for it" - Red Green                "Memory is good, remember that" - Tomas Haake
                                                                        ----Uploading Pictures----
        - M.T.D. Off-Road Build

- Toro Rat Rod Tractor Build
        - Ford LT 110 Off-Road Build
        - Craftsman GT 6000 Off-Road/Workhorse Build
        -John Deere 110 Basic Project
Back to top Go down
muckmudd
Master
Master
avatar

Age : 16
Join date : 2017-07-11
Posts : 807
Forum Rep : 22
Location : In the shop

PostSubject: Re: Ford LT 110 Off-Road Build   Thu Aug 30, 2018 1:22 am

Deal with it Cool Cool Cool
Back to top Go down
MightyRaze
Administrator
Administrator
avatar

Age : 43
Join date : 2016-09-06
Posts : 4470
Forum Rep : 208
Location : Shawnee, OK

PostSubject: Re: Ford LT 110 Off-Road Build   Thu Aug 30, 2018 7:37 am

@AllisKidD21 wrote:
Dang, finally get some traffic in here and we're not even talking about the build.... lol! lol!

People are in AWE of the Ford build they don't know what to say!

_______________________________________________
(Kal-El) 1982 Murray GT [2018 Entry]
Sasquatch II [2017 Finalist]
Li'l Red Murray
Forum Administrator ~ Chat Moderator ~ Facebook Page Admin
ATLTF Facebook Page
How To Upload Pictures
ATLTF Staff:
Administrators: @Doug, @"Doc Sprocket", @Stretch44875, @MightyRaze
Moderators: @TheRainbowBoxer, @AllisKidD21
Back to top Go down
http://mightyraze.com
RockeyDA
Skilled
Skilled
avatar

Age : 24
Join date : 2017-10-15
Posts : 400
Forum Rep : 11
Location : Bellefonte PA

PostSubject: Re: Ford LT 110 Off-Road Build   Thu Aug 30, 2018 7:44 am

@AllisKidD21 wrote:
Dang, finally get some traffic in here and we're not even talking about the build.... :lol!: :lol!:
hay, i got a ford that needs to be as "shocking" as this ford.
Back to top Go down
Crazy_Carl
Grand Master
Grand Master
avatar

Age : 29
Join date : 2017-10-30
Posts : 1956
Forum Rep : 85
Location : Rochester, New York

PostSubject: Re: Ford LT 110 Off-Road Build   Thu Aug 30, 2018 6:07 pm

Those are some complicated linkages you have there, but if the toe doesn't change during suspension travel you nailed it.

I like the roller chain you used for suspension travel limits.
Back to top Go down
MightyRaze
Administrator
Administrator
avatar

Age : 43
Join date : 2016-09-06
Posts : 4470
Forum Rep : 208
Location : Shawnee, OK

PostSubject: Re: Ford LT 110 Off-Road Build   Thu Aug 30, 2018 9:08 pm

I wish I had the what seems to be endless amount of good heavy scrap metal you have.  LOL

_______________________________________________
(Kal-El) 1982 Murray GT [2018 Entry]
Sasquatch II [2017 Finalist]
Li'l Red Murray
Forum Administrator ~ Chat Moderator ~ Facebook Page Admin
ATLTF Facebook Page
How To Upload Pictures
ATLTF Staff:
Administrators: @Doug, @"Doc Sprocket", @Stretch44875, @MightyRaze
Moderators: @TheRainbowBoxer, @AllisKidD21
Back to top Go down
http://mightyraze.com
AllisKidD21
Moderator
Moderator
avatar

Age : 20
Join date : 2016-07-10
Posts : 3820
Forum Rep : 125
Location : Glencoe, Ontario

PostSubject: Re: Ford LT 110 Off-Road Build   Fri Aug 31, 2018 12:29 pm

@Crazy_Carl wrote:
Those are some complicated linkages you have there, but if the toe doesn't change during suspension travel you nailed it.

I like the roller chain you used for suspension travel limits.

Thanks Carl! Yeah there are a couple more joints involved now, but it's definitely worth it not having to worry about hetting death-wobble or anything.


@MightyRaze wrote:
I wish I had the what seems to be endless amount of good heavy scrap metal you have.  LOL

I can share, but it's gonna cost ya! lol!

_______________________________________________
"Here's another option, it's not as violent but it's dishonest. So it has that going for it" - Red Green                "Memory is good, remember that" - Tomas Haake
                                                                        ----Uploading Pictures----
        - M.T.D. Off-Road Build

- Toro Rat Rod Tractor Build
        - Ford LT 110 Off-Road Build
        - Craftsman GT 6000 Off-Road/Workhorse Build
        -John Deere 110 Basic Project
Back to top Go down
MightyRaze
Administrator
Administrator
avatar

Age : 43
Join date : 2016-09-06
Posts : 4470
Forum Rep : 208
Location : Shawnee, OK

PostSubject: Re: Ford LT 110 Off-Road Build   Fri Aug 31, 2018 1:07 pm

AK and death wobble.  Something just doesn't sound right there.  LOL

_______________________________________________
(Kal-El) 1982 Murray GT [2018 Entry]
Sasquatch II [2017 Finalist]
Li'l Red Murray
Forum Administrator ~ Chat Moderator ~ Facebook Page Admin
ATLTF Facebook Page
How To Upload Pictures
ATLTF Staff:
Administrators: @Doug, @"Doc Sprocket", @Stretch44875, @MightyRaze
Moderators: @TheRainbowBoxer, @AllisKidD21
Back to top Go down
http://mightyraze.com
AllisKidD21
Moderator
Moderator
avatar

Age : 20
Join date : 2016-07-10
Posts : 3820
Forum Rep : 125
Location : Glencoe, Ontario

PostSubject: Re: Ford LT 110 Off-Road Build   Fri Aug 31, 2018 1:58 pm

@MightyRaze wrote:
AK and death wobble.  Something just doesn't sound right there.  LOL

Maybe, but it's quite a sight I assure you. lol!

_______________________________________________
"Here's another option, it's not as violent but it's dishonest. So it has that going for it" - Red Green                "Memory is good, remember that" - Tomas Haake
                                                                        ----Uploading Pictures----
        - M.T.D. Off-Road Build

- Toro Rat Rod Tractor Build
        - Ford LT 110 Off-Road Build
        - Craftsman GT 6000 Off-Road/Workhorse Build
        -John Deere 110 Basic Project
Back to top Go down
Sponsored content




PostSubject: Re: Ford LT 110 Off-Road Build

Back to top Go down

Ford LT 110 Off-Road Build
Back to top
Page 12 of 12Go to page : Previous  1, 2, 3 ... 10, 11, 12
 Similar topics
-
» Pinkie's off road build
» Murray Mud Mower
» How do you build an off road trailer?
» Murray Off-Road Mower Build
» MTD off-road romper build.

Permissions in this forum:You cannot reply to topics in this forum
All-Terrain Lawn Tractor Forum :: Tractor Project Builds :: Off Road & Rally Tractors-
Jump to:
