All-Terrain Lawn Tractor Forum
Would you like to react to this message? Create an account in a few clicks or log in to continue.

All-Terrain Lawn Tractor Forum

Like riding lawn tractors through mud, woods, rocks, and snow? Then this is the place for you! Share your ideas, Post your projects and more!

PortalHomeSite RulesEventsFAQSearchRegisterLog inBuild-Off



 '86 Westwood T1200

Go down
+18
Crazy_Carl
Mow Money Mods
prancstaman
TheBeal
RichieRichOverdrive
MightyRaze
AllisKidD21
Doug
STUNTMAN JON
CraftsmanQuad19
Rockinator
1997 Murray
RevDogg
mr.modified
KyleDeere79
bradtractor
chevy8988
MatthewD
22 posters
Go to page : Previous  1 ... 9 ... 14, 15, 16  Next
AuthorMessage
MatthewD
Veteran Member

Veteran Member

1000+ Posts
1000+ Posts!
2015 Build-Off Entrant
2015 Build-Off Entrant
2016 Build-Off Entrant
2016 Build-Off Entrant

Join date : 2014-11-16
Posts : 1993

'86 Westwood T1200 - Page 15 Empty
PostSubject: Re: '86 Westwood T1200   '86 Westwood T1200 - Page 15 Icon_minitimeSeptember 27th 2018, 6:06 pm

Thanks. Yeah it is heavy duty.

So if you remember a while back one of the brake caliper bolts from the trans fell out and the brake pads, backing plate and dowel pins fell out. I ordered up a piece of 8mm Stainless steel rod to make the brake dowel pins from, which arrived today.
'86 Westwood T1200 - Page 15 Img_2095
Cut into 3/4" lengths. I just did this with the angle grinder and squared the ends up with a buffing disk. Turned out quite good.
'86 Westwood T1200 - Page 15 Img_2096
Also cut out a new backing plate.
'86 Westwood T1200 - Page 15 Img_2097

Drilled out and tapped the trans case for an M8 bolt and assembled it together. The threads for the other bolt are nearly stripped too so I will need to drill and tap it out too. But anyway I decided to give it a test drive, even though it was dark and I had to jump start it because the recoil rope broke. Feels nice to have brakes again, I need to adjust the linkage a bit though. Next job is to order up another axle bearing (I only ordered one up last time Razz), an input bearing for the trans axle and maybe buy or make a new rear pulley.
Back to top Go down
Crazy_Carl
Veteran Member
Crazy_Carl
Veteran Member

2018 Build-Off Entrant
2018 Build-Off Entrant
2500+ Posts
2500+ Posts!
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 35
Join date : 2017-10-30
Points : 5209
Posts : 2561
Location : Rochester, New York

'86 Westwood T1200 - Page 15 Empty
PostSubject: Re: '86 Westwood T1200   '86 Westwood T1200 - Page 15 Icon_minitimeSeptember 27th 2018, 7:31 pm

Nice brake fix!
Back to top Go down
SteamNut247
Member
SteamNut247
Member


Age : 28
Join date : 2016-12-14
Points : 2854
Posts : 70
Location : Duluth Minnesota

'86 Westwood T1200 - Page 15 Empty
PostSubject: Re: '86 Westwood T1200   '86 Westwood T1200 - Page 15 Icon_minitimeSeptember 28th 2018, 11:34 am

very nice brake fix. I forget does this westwood have the Peerless 2300 series?
Back to top Go down
MightyRaze
Administrator
MightyRaze
Administrator

2017 Build-Off Finalist
2017 Build-Off Finalist
2018 Build-Off Top 3 Winner
2018 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2021 Winner of Winners
2021 Winner of Winners
1st Place Build-Off 2022
1st Place Build-Off Winner 2022
10,000 POSTS!
10,000 POSTS!
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 49
Join date : 2016-09-06
Points : 15313
Posts : 10789
Location : Oklahoma

'86 Westwood T1200 - Page 15 Empty
PostSubject: Re: '86 Westwood T1200   '86 Westwood T1200 - Page 15 Icon_minitimeSeptember 28th 2018, 1:19 pm

I believe he has an MST.


'86 Westwood T1200 - Page 15 Sig115PROJECTS:
     Marshal ........93 Craftsman GT6000
     Red Bandit ...72 Wheel Horse Raider 12
     Dirty Rat........77 Sears Suburban
     Bowser..........01 Murray Widebody LT
     Other projects
Have a question? Ask me! Type in "@MightyRaze" in your post!
'86 Westwood T1200 - Page 15 Sig214'86 Westwood T1200 - Page 15 Sig314
Back to top Go down
MatthewD
Veteran Member
MatthewD
Veteran Member

1000+ Posts
1000+ Posts!
2015 Build-Off Entrant
2015 Build-Off Entrant
2016 Build-Off Entrant
2016 Build-Off Entrant

Age : 22
Join date : 2014-11-16
Points : 5629
Posts : 1993
Location : Northern Ireland

'86 Westwood T1200 - Page 15 Empty
PostSubject: Re: '86 Westwood T1200   '86 Westwood T1200 - Page 15 Icon_minitimeSeptember 28th 2018, 1:22 pm

Yes MST 205. Thanks for the positive comments!
Back to top Go down
RichieRichOverdrive
Moderator
RichieRichOverdrive
Moderator

2500+ Posts
2500+ Posts!
2018 Build-Off Entrant
2018 Build-Off Entrant
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 21
Join date : 2016-10-29
Points : 6866
Posts : 3802
Location : Lewisburg, KY

'86 Westwood T1200 - Page 15 Empty
PostSubject: Re: '86 Westwood T1200   '86 Westwood T1200 - Page 15 Icon_minitimeSeptember 28th 2018, 4:49 pm

Nice fix. I plan to tap my brake caliper bolt holes to 5/16" some time, after snapping off so many 1/4-20s
Back to top Go down
MatthewD
Veteran Member
MatthewD
Veteran Member

1000+ Posts
1000+ Posts!
2015 Build-Off Entrant
2015 Build-Off Entrant
2016 Build-Off Entrant
2016 Build-Off Entrant

Age : 22
Join date : 2014-11-16
Points : 5629
Posts : 1993
Location : Northern Ireland

'86 Westwood T1200 - Page 15 Empty
PostSubject: Re: '86 Westwood T1200   '86 Westwood T1200 - Page 15 Icon_minitimeSeptember 30th 2018, 6:11 pm

Thanks Richie.

So I got my battery. It is bigger than I thought it would be so I probably will have to put it under the seat instead of under the hood. I've got the day off on Wednesday so I'll hopefully get it wired up then.

'86 Westwood T1200 - Page 15 Img_2098
Back to top Go down
Crazy_Carl
Veteran Member
Crazy_Carl
Veteran Member

2018 Build-Off Entrant
2018 Build-Off Entrant
2500+ Posts
2500+ Posts!
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 35
Join date : 2017-10-30
Points : 5209
Posts : 2561
Location : Rochester, New York

'86 Westwood T1200 - Page 15 Empty
PostSubject: Re: '86 Westwood T1200   '86 Westwood T1200 - Page 15 Icon_minitimeOctober 1st 2018, 10:44 am

That's a small car battery, not really a lawn and garden variety but if you can make it work cool.
Back to top Go down
MatthewD
Veteran Member
MatthewD
Veteran Member

1000+ Posts
1000+ Posts!
2015 Build-Off Entrant
2015 Build-Off Entrant
2016 Build-Off Entrant
2016 Build-Off Entrant

Age : 22
Join date : 2014-11-16
Points : 5629
Posts : 1993
Location : Northern Ireland

'86 Westwood T1200 - Page 15 Empty
PostSubject: Re: '86 Westwood T1200   '86 Westwood T1200 - Page 15 Icon_minitimeOctober 1st 2018, 3:30 pm

A lawn tractor battery was the same price but less CCA. And I have to make it work now because I'm not buying another battery Razz
Back to top Go down
MatthewD
Veteran Member
MatthewD
Veteran Member

1000+ Posts
1000+ Posts!
2015 Build-Off Entrant
2015 Build-Off Entrant
2016 Build-Off Entrant
2016 Build-Off Entrant

Age : 22
Join date : 2014-11-16
Points : 5629
Posts : 1993
Location : Northern Ireland

'86 Westwood T1200 - Page 15 Empty
PostSubject: Re: '86 Westwood T1200   '86 Westwood T1200 - Page 15 Icon_minitimeOctober 18th 2018, 1:09 pm

Well that Wednesday came and went and I never got it wired up. Decided I'm going to put the battery under the seat, as that's the only place it will fit. If I get a spare minute or two on Saturday I will weld up a 'cage' to hold the battery.
Back to top Go down
RockeyDA
Established Member
RockeyDA
Established Member

500+ Posts
500+ Posts

Age : 29
Join date : 2017-10-15
Points : 3136
Posts : 639
Location : Bellefonte PA

'86 Westwood T1200 - Page 15 Empty
PostSubject: Re: '86 Westwood T1200   '86 Westwood T1200 - Page 15 Icon_minitimeOctober 18th 2018, 1:58 pm

nah, just do what a car audio guy wold do. sky high car audio 0 gage running everywere to a single buss bar, 6 XSpower batteries or yellow tops, and 3 300-600amp singer or mecman alternators.

you will be able to keep holding down the start after the starter has already cought on fire and run you light bar for a month after not being able to start.

all jokes a side next build off im probably putting a car battery in the fordwheeler my self. the the extra CCA and the wheight
Back to top Go down
MatthewD
Veteran Member
MatthewD
Veteran Member

1000+ Posts
1000+ Posts!
2015 Build-Off Entrant
2015 Build-Off Entrant
2016 Build-Off Entrant
2016 Build-Off Entrant

Age : 22
Join date : 2014-11-16
Points : 5629
Posts : 1993
Location : Northern Ireland

'86 Westwood T1200 - Page 15 Empty
PostSubject: Re: '86 Westwood T1200   '86 Westwood T1200 - Page 15 Icon_minitimeFebruary 5th 2019, 6:31 pm

So bit of an update on the Westwood. I have been doing some work on it but neglected to update the thread. I firstly made up a list of areas that need improved.


  • Engine
  • Wiring
  • Clutch/Belts/Pulleys
  • Transaxle
  • Other things like bodywork, tyres, exhaust.

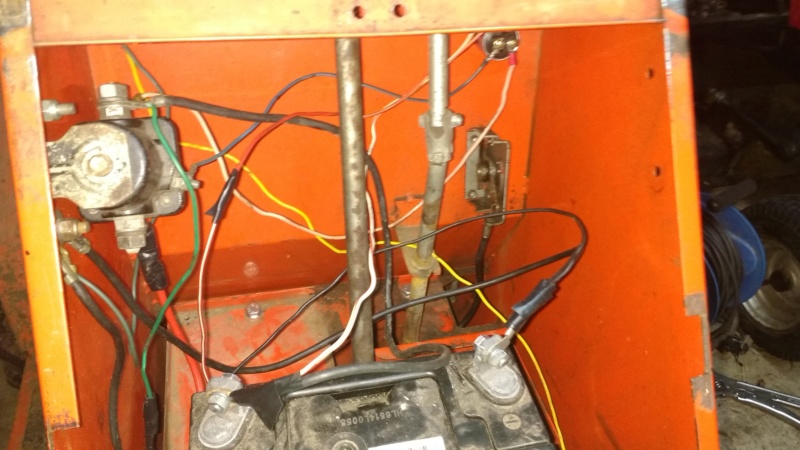

I started with the wiring and rewired the whole thing with a toggle on/off switch and push button ignition. The battery that I had planned to put in this cracked a hole in the side of it because I didn't remove the transport plugs that allow ventilation, so I borrowed one from my other tractor for now. Ah well, it was too big anyway.

'86 Westwood T1200 - Page 15 Img_2108

I know it looks a bit of a mess but I am going to redo some of the poorer connections and also get red wire for the positive battery terminal. I did have the lights hooked up and running off the battery but for some reason they have stopped working, even if I put 12v across them. Should I have put a fuse in there somewhere?

Once I get that finished, focus will turn to the engine. It has got very little compression but doesn't burn any oil so I'm thinking the valves need lapped. I'm also going to treat it to a gasket set like this one: https://www.ebay.co.uk/itm/Gasket-Set-Oil-Seals-Some-Briggs-and-Stratton-10HP-11HP-Vertical-Shaft-Engine/362419247573?hash=item5461ded9d5:g:drIAAOSwL1hbfSkB:rk:1🇵🇫0
The carb also needs rebuilt and it's leaking from the bowl and the gasket set comes with a bowl gasket so that should cure it.


Let me what you think!
Back to top Go down
SteamNut247
Member
SteamNut247
Member


Age : 28
Join date : 2016-12-14
Points : 2854
Posts : 70
Location : Duluth Minnesota

'86 Westwood T1200 - Page 15 Empty
PostSubject: Re: '86 Westwood T1200   '86 Westwood T1200 - Page 15 Icon_minitimeFebruary 5th 2019, 6:44 pm

nice job
Back to top Go down
Crazy_Carl
Veteran Member
Crazy_Carl
Veteran Member

2018 Build-Off Entrant
2018 Build-Off Entrant
2500+ Posts
2500+ Posts!
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 35
Join date : 2017-10-30
Points : 5209
Posts : 2561
Location : Rochester, New York

'86 Westwood T1200 - Page 15 Empty
PostSubject: Re: '86 Westwood T1200   '86 Westwood T1200 - Page 15 Icon_minitimeFebruary 5th 2019, 9:07 pm

That wiring doesn't really look too bad the more I look at it.  I'm not too fussy about wire colors because different manufacturers use different colors all the time.  I would put a 20 amp fuse or so in the white wire that goes to your push button switch from the battery.  I'm very suspect of the electrical tape where the small wires are spliced into the large cables on the battery.  You really should pick up some ring terminals from ebay or something where you could buy a few in bulk and save vs a local store.  What is the small black wire going to the battery for?  Is there a light switch above your pushbutton switch?  If so just get 12v next door at the pushbutton switch instead of going all the way back the battery.
Back to top Go down
MatthewD
Veteran Member
MatthewD
Veteran Member

1000+ Posts
1000+ Posts!
2015 Build-Off Entrant
2015 Build-Off Entrant
2016 Build-Off Entrant
2016 Build-Off Entrant

Age : 22
Join date : 2014-11-16
Points : 5629
Posts : 1993
Location : Northern Ireland

'86 Westwood T1200 - Page 15 Empty
PostSubject: Re: '86 Westwood T1200   '86 Westwood T1200 - Page 15 Icon_minitimeFebruary 6th 2019, 5:41 pm

SteamNut247 wrote:
nice job
Thanks!
Crazy_Carl wrote:
That wiring doesn't really look too bad the more I look at it.  I'm not too fussy about wire colors because different manufacturers use different colors all the time.  I would put a 20 amp fuse or so in the white wire that goes to your push button switch from the battery.  I'm very suspect of the electrical tape where the small wires are spliced into the large cables on the battery.  You really should pick up some ring terminals from ebay or something where you could buy a few in bulk and save vs a local store.  What is the small black wire going to the battery for?  Is there a light switch above your pushbutton switch?  If so just get 12v next door at the pushbutton switch instead of going all the way back the battery.
Thanks. Yeah I kinda done a quick job just to see if it worked, so now I'm going to redo all the bad connections. The two wires going to the battery are for the lights. I'm looking at buying this pack of ring terminals, do they look ok? https://www.ebay.co.uk/itm/90PC-Copper-Tube-Terminals-Battery-Welding-Cable-Lug-Ring-Crimp-Connectors-UK/163336313103?hash=item26079a590fⓂm1Kbak-C25gSnrFg5K8NxTg:rk:12🇵🇫0
I will look into putting a fuse in the wire going to the push button, but just wondering what purpose it serves? The push button is rated at 50A. Any idea on why the lights stopped working? It isn't the wiring because I put 12v across each of them and they still don't work. Should I have put a fuse in the wiring running to the lights?

The plan for the engine is to take it off the tractor, strip it down, rebuild it with a new gasket set and give it a lick of paint.
Back to top Go down
Crazy_Carl
Veteran Member
Crazy_Carl
Veteran Member

2018 Build-Off Entrant
2018 Build-Off Entrant
2500+ Posts
2500+ Posts!
2024 Build-Off Entrant
2024 Build-Off Entrant

Age : 35
Join date : 2017-10-30
Points : 5209
Posts : 2561
Location : Rochester, New York

'86 Westwood T1200 - Page 15 Empty
PostSubject: Re: '86 Westwood T1200   '86 Westwood T1200 - Page 15 Icon_minitimeFebruary 6th 2019, 5:57 pm

I would get insulated ring terminals, but those would work pretty well too.  They seem very cheap which I know you like lol.

A fuse feeding the pushbutton, lights, or both serves as protection in case a 12V wire shorts to ground the fuse blows instead of the tractor catching on fire.  It almost happened in my latest live stream.

As to why your lights aren't working.  With a voltmeter or test light check for 12 volts on both sides of the switch when the switch is on, then check if you have 12 volts at the lights.  You most likely have a bad connection or the ground your using for the lights is no good.
Back to top Go down
MatthewD
Veteran Member
MatthewD
Veteran Member

1000+ Posts
1000+ Posts!
2015 Build-Off Entrant
2015 Build-Off Entrant
2016 Build-Off Entrant
2016 Build-Off Entrant

Age : 22
Join date : 2014-11-16
Points : 5629
Posts : 1993
Location : Northern Ireland

'86 Westwood T1200 - Page 15 Empty
PostSubject: Re: '86 Westwood T1200   '86 Westwood T1200 - Page 15 Icon_minitimeFebruary 7th 2019, 6:39 pm

I thought that the insulated ring terminals looked more flimsy, so I ordered a pack of the non insulated ones. While I'm fixing all the dodgy connections, I will add in a 20A fuse. I probably have a fuse holder on one of my scrap wiring looms that I've been raiding to rewire this machine. I checked the lights and am getting 12v when the light switch is on. Maybe it's to do with the way I have wired them. I just ran the ground wire from the battery to the lights, then the positive from the battery to a switch, then to the lights. The ground for the battery is good because it starts the engine fine.

So I ordered the gasket kit, some fuel line, and ring terminals tonight. I'll probably just use the head gasket, sump gasket, crank seal and carb gaskets for the moment, instead of completely stripping the engine down.
Back to top Go down
MatthewD
Veteran Member
MatthewD
Veteran Member

1000+ Posts
1000+ Posts!
2015 Build-Off Entrant
2015 Build-Off Entrant
2016 Build-Off Entrant
2016 Build-Off Entrant

Age : 22
Join date : 2014-11-16
Points : 5629
Posts : 1993
Location : Northern Ireland

'86 Westwood T1200 - Page 15 Empty
PostSubject: Re: '86 Westwood T1200   '86 Westwood T1200 - Page 15 Icon_minitimeFebruary 24th 2019, 3:22 pm

Here's some snow pics from January that I forgot to upload:

'86 Westwood T1200 - Page 15 Img_2110
'86 Westwood T1200 - Page 15 Img_2111
'86 Westwood T1200 - Page 15 Img_2112
Back to top Go down
MatthewD
Veteran Member
MatthewD
Veteran Member

1000+ Posts
1000+ Posts!
2015 Build-Off Entrant
2015 Build-Off Entrant
2016 Build-Off Entrant
2016 Build-Off Entrant

Age : 22
Join date : 2014-11-16
Points : 5629
Posts : 1993
Location : Northern Ireland

'86 Westwood T1200 - Page 15 Empty
PostSubject: Re: '86 Westwood T1200   '86 Westwood T1200 - Page 15 Icon_minitimeFebruary 24th 2019, 6:15 pm

Finally got my parts ready to do the semi rebuild of the 11hp Briggs.

'86 Westwood T1200 - Page 15 Img_2114

Back to top Go down
The author of this message was banned from the forum - See the message
The author of this message was banned from the forum - See the message
MatthewD
Veteran Member
MatthewD
Veteran Member

1000+ Posts
1000+ Posts!
2015 Build-Off Entrant
2015 Build-Off Entrant
2016 Build-Off Entrant
2016 Build-Off Entrant

Age : 22
Join date : 2014-11-16
Points : 5629
Posts : 1993
Location : Northern Ireland

'86 Westwood T1200 - Page 15 Empty
PostSubject: Re: '86 Westwood T1200   '86 Westwood T1200 - Page 15 Icon_minitimeFebruary 25th 2019, 12:53 pm

SebastianAlbrecht wrote:
Great!! When do U start??

Is there also a Straight piped Stack included??
Hopefully will get it started this week Wink A straight piped stack would be way too loud for this as it's a utility machine. I'll probably do a stack or a sidepipe with a muffler in it because the stock box exhaust sounds bad.
SebastianAlbrecht wrote:
and the Pics of WW look great!!!!!
Thanks Very Happy
Back to top Go down
The author of this message was banned from the forum - See the message
MatthewD
Veteran Member
MatthewD
Veteran Member

1000+ Posts
1000+ Posts!
2015 Build-Off Entrant
2015 Build-Off Entrant
2016 Build-Off Entrant
2016 Build-Off Entrant

Age : 22
Join date : 2014-11-16
Points : 5629
Posts : 1993
Location : Northern Ireland

'86 Westwood T1200 - Page 15 Empty
PostSubject: Re: '86 Westwood T1200   '86 Westwood T1200 - Page 15 Icon_minitimeFebruary 26th 2019, 6:01 pm

Got a bit of work done on the engine tonight. Drained the oil, stripped it down almost to bare block, just have to remove the carb and exhaust. Also put some paint stripper on the shroud and recoil cover to make it easier to sand off the old paint.

'86 Westwood T1200 - Page 15 Img_2118'86 Westwood T1200 - Page 15 Img_2116

Next stage is to remove the carb and exhaust, and take the block off the frame. Then lap the valves, replace the gaskets and inspect the internals.
Back to top Go down
AllisKidD21
Moderator
AllisKidD21
Moderator

5000+ Posts
5000+ Posts!
2020 Build-Off Entrant
2020 Build-Off Entrant
1st Place Build-Off 2019
1st Place Build-Off Winner 2019

Age : 25
Join date : 2016-07-10
Points : 8463
Posts : 5190
Location : Ontario Canada

'86 Westwood T1200 - Page 15 Empty
PostSubject: Re: '86 Westwood T1200   '86 Westwood T1200 - Page 15 Icon_minitimeFebruary 26th 2019, 6:20 pm

Nice to see an update Matt! Should be a good runner once she's back together.



"This'll either wake you up or put you to sleep forever!"- Red Green         "Whatever you do you should do right, even if it's something wrong." - Hank Hill

      - MTD Off-Road Build
      - Ford LT 110 Off-Road Build
      - Craftsman GT 6000 Off-Road Build
       - Sears LT11 Rat Rod Build *2019 Build-Off Winner!*


 Garden Tractor Collection: Allis B-110 x2, 710, 716, & 410 - Wheel Horse 655, 953 & 500 Special - Case 444 - Bolens Versamatic, G10 & 1668 Diesel Swapped - Cub 106, 124 & 1000/149 Frankentractor - Ford 120, LGT 125 & 145 - White 1650 Yard Boss - Moto Mower 710-100
Back to top Go down
MatthewD
Veteran Member
MatthewD
Veteran Member

1000+ Posts
1000+ Posts!
2015 Build-Off Entrant
2015 Build-Off Entrant
2016 Build-Off Entrant
2016 Build-Off Entrant

Age : 22
Join date : 2014-11-16
Points : 5629
Posts : 1993
Location : Northern Ireland

'86 Westwood T1200 - Page 15 Empty
PostSubject: Re: '86 Westwood T1200   '86 Westwood T1200 - Page 15 Icon_minitimeFebruary 26th 2019, 6:47 pm

Thanks AK. I think the reason for lack of compression and power is because the valve seats are dirty. It doesn't burn any oil so I hope it's not rings.
Back to top Go down
Sponsored content





'86 Westwood T1200 - Page 15 Empty
PostSubject: Re: '86 Westwood T1200   '86 Westwood T1200 - Page 15 Icon_minitime

Back to top Go down

'86 Westwood T1200
Back to top
Page 15 of 16Go to page : Previous  1 ... 9 ... 14, 15, 16  Next
 Similar topics
-
» Westwood t1200 has been modified
» Westwood t1200 fluid drive
» Westwood T1200 Offroad/Utility tractor
» MatthewD's Westwood T1200 Rally Mower
» Craftsman t1200

Permissions in this forum:You cannot reply to topics in this forum
All-Terrain Lawn Tractor Forum :: Tractor Project Builds :: Utility, Workhorse, and Pulling Tractors-
Jump to:
