Coilovers are always a good option, but not real short ones if you're looking for lots of articulation. In that sense I can see how the motorcycle forks would do good.

The only thing I wonder is would the sprung mass of this rig be too much for the shocks? I don't really know much about motorcycle shocks, but I assume if you get them from a bigger bike they'd have a higher spring rate. Do they usually have some adjustability to then?

A 1-link setup would be good and easy to fab up, but that setup has been dome a lot of times already. I think I'd be really neat to see something like a triangulated 4-link setup! Sure that requires some geometery work, but that's no big deal. Plus a triangulated setup would eliminate the need for a track bar.
I suppose the simplicity of the one link is hard to beat though..

One thing I really love about my Y-link setup is that it doesn't get in the way of anything under the tractor. Some multi-link setups like a 1-link, 3-link, etc. would make it a bit more difficult to mess with some stuff at the front of the tractor. Might not be a huge deal, but still a pain sometimes.

The strength issue shouldn't be as hard as you're thinking, just be sure to heavy enough steel and gusset every link mount so it'll stay solid and not break off or bend when you really get working the front axle. I've slammed or bumped the front wheels on my MTD forwards and backwards over countless objects, and surprisingly I have had zero issues with the link mounts or links themselves.

The only thing I can see not working out so great for you is the cast front axle, I'm thinking that might limit you to some degree.
Back to top Go down
RichieRichOverdrive
Core Member
Core Member
RichieRichOverdrive

2500+ Posts
2500+ Posts!
2018 Build-Off Entrant
2018 Build-Off Entrant

Age : 20
Join date : 2016-10-29
Posts : 2983
Location : Lewisburg, KY

Craftsman GT6K - Page 6 Empty
PostSubject: Re: Craftsman GT6K   Craftsman GT6K - Page 6 Icon_minitimeJune 30th 2019, 11:33 pm

I might just avoid suspension on this rig.

Playing around with the axle and Mutt's front tires.

l o n g b o i
Craftsman GT6K - Page 6 20190672

Anteater
Craftsman GT6K - Page 6 20190673

I'm gonna have to go a bit different this time around on hubs as the bolt pattern on these new atv wheels is a lot smaller. I'm not opposed to just welding a pair of 6" rims on. That was my original plan with Mutt.
Back to top Go down
RichieRichOverdrive
Core Member
Core Member
RichieRichOverdrive

2500+ Posts
2500+ Posts!
2018 Build-Off Entrant
2018 Build-Off Entrant

Age : 20
Join date : 2016-10-29
Posts : 2983
Location : Lewisburg, KY

Craftsman GT6K - Page 6 Empty
PostSubject: Re: Craftsman GT6K   Craftsman GT6K - Page 6 Icon_minitimeJuly 1st 2019, 4:36 am

Alright folks take a guess as to what I'm doing this time.

Craftsman GT6K - Page 6 20190710
Back to top Go down
The author of this message was banned from the forum - See the message
RichieRichOverdrive
Core Member
Core Member
RichieRichOverdrive

2500+ Posts
2500+ Posts!
2018 Build-Off Entrant
2018 Build-Off Entrant

Age : 20
Join date : 2016-10-29
Posts : 2983
Location : Lewisburg, KY

Craftsman GT6K - Page 6 Empty
PostSubject: Re: Craftsman GT6K   Craftsman GT6K - Page 6 Icon_minitimeJuly 1st 2019, 3:12 pm

Yep. And it'll be at an angle to help with caster and leveling
Back to top Go down
The author of this message was banned from the forum - See the message
RichieRichOverdrive
Core Member
Core Member
RichieRichOverdrive

2500+ Posts
2500+ Posts!
2018 Build-Off Entrant
2018 Build-Off Entrant

Age : 20
Join date : 2016-10-29
Posts : 2983
Location : Lewisburg, KY

Craftsman GT6K - Page 6 Empty
PostSubject: Re: Craftsman GT6K   Craftsman GT6K - Page 6 Icon_minitimeJuly 1st 2019, 3:27 pm

It shouldn't hurt the alignment much. I'm making a new drag link so I'm not worried about steering. I don't think it'll move if i tighten all the bolts plenty. I mean there's 4 bolts on each side. It's the same as your GT axle.
Back to top Go down
The author of this message was banned from the forum - See the message
MightyRaze
Administrator
Administrator
MightyRaze

7500+ Posts
7500+ Posts!
2017 Build-Off Finalist
2017 Build-Off Finalist
2018 Build-Off Top 3 Winner
2018 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2021 Winner of Winners
2021 Winner of Winners
2022 Build-Off Entrant
2022 Build-Off Entrant

Age : 47
Join date : 2016-09-06
Posts : 8864
Location : Oklahoma

Craftsman GT6K - Page 6 Empty
PostSubject: Re: Craftsman GT6K   Craftsman GT6K - Page 6 Icon_minitimeJuly 2nd 2019, 12:02 pm

"l o n g b o i" looks to have a nice stance to it.

_______________________________________________
Tractors:
Dirty Rat - 77 Sears Suburban
Li'l Red Part1  Current - 98 Murray Widebody
Bowser - 2001 Murray Widebody LT

Have a question? Ask me! Type in "@MightyRaze" in your post!
"MTD: Made To Die, Many Troubles Daily..." - Taryl
Back to top Go down
RichieRichOverdrive
Core Member
Core Member
RichieRichOverdrive

2500+ Posts
2500+ Posts!
2018 Build-Off Entrant
2018 Build-Off Entrant

Age : 20
Join date : 2016-10-29
Posts : 2983
Location : Lewisburg, KY

Craftsman GT6K - Page 6 Empty
PostSubject: Re: Craftsman GT6K   Craftsman GT6K - Page 6 Icon_minitimeJuly 2nd 2019, 12:39 pm

Mine was bent too. Part of why I'm adding the caster.

Those were kinda jokes mighty lol, the new front axle location will be maybe 4" forward of stock
Back to top Go down
RichieRichOverdrive
Core Member
Core Member
RichieRichOverdrive

2500+ Posts
2500+ Posts!
2018 Build-Off Entrant
2018 Build-Off Entrant

Age : 20
Join date : 2016-10-29
Posts : 2983
Location : Lewisburg, KY

Craftsman GT6K - Page 6 Empty
PostSubject: Re: Craftsman GT6K   Craftsman GT6K - Page 6 Icon_minitimeJuly 2nd 2019, 9:22 pm

This is about where she'll sit. I'm gonna use four ½" bolts to hold it for now, if those become an issue I'll just weld it.
Craftsman GT6K - Page 6 20190711
Back to top Go down
RichieRichOverdrive
Core Member
Core Member
RichieRichOverdrive

2500+ Posts
2500+ Posts!
2018 Build-Off Entrant
2018 Build-Off Entrant

Age : 20
Join date : 2016-10-29
Posts : 2983
Location : Lewisburg, KY

Craftsman GT6K - Page 6 Empty
PostSubject: Re: Craftsman GT6K   Craftsman GT6K - Page 6 Icon_minitimeJuly 3rd 2019, 12:45 am

Clamped
Craftsman GT6K - Page 6 20190712

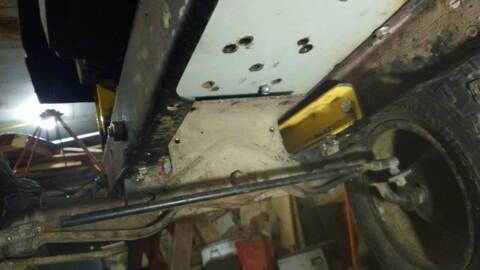

Drilled and bolted. Axle isn't all the way back in the slots but is all the way back against the frame as far as i cut. I think the bolts will hold it fine anyways.
Craftsman GT6K - Page 6 20190713

Cut the excess frame to match the axle mounts
Craftsman GT6K - Page 6 20190716
General idea for turning radius whatchamacallit.
Craftsman GT6K - Page 6 20190714

Craftsman GT6K - Page 6 20190715

Came out to about 5° caster, lot easier to work with than whatever ridiculous amount i did on mutt. Making a new drag link shouldn't be too hard.

Also I'm replacing the plastic axle bushing with steel if the lathe cuts 820 axle shaft alright. Only other 1" stock i have is stainless. Not drilling that stuff. Even on a lathe.
Back to top Go down
RichieRichOverdrive
Core Member
Core Member
RichieRichOverdrive

2500+ Posts
2500+ Posts!
2018 Build-Off Entrant
2018 Build-Off Entrant

Age : 20
Join date : 2016-10-29
Posts : 2983
Location : Lewisburg, KY

Craftsman GT6K - Page 6 Empty
PostSubject: Re: Craftsman GT6K   Craftsman GT6K - Page 6 Icon_minitimeJuly 3rd 2019, 3:18 am

Cut off a piece of axle on the bandsaw. This was the 820 axle that had the ends torched off in the scrapyard. Glad it's going to good use.

So here's the setup on the lathe. Don't have a Z axis readout on the lathe, so i set one up with the dial indicator. Not an uncommon setup, although usually it's on the other side of the carriage.
Craftsman GT6K - Page 6 20190717

Face both sides, then measure and cut from there. .160" takes a while to take off at .020" a pass. A half thou over is well within my tolerances.
Craftsman GT6K - Page 6 20190718

Center drill and my 2nd pilot drill, went from ¼" to ½" to ⅝". Naturally my only ⅝" bit was bent and dull so that took a bit of fixing.
Craftsman GT6K - Page 6 20190719

Not bad! Good project for a 92 year old lathe.
Craftsman GT6K - Page 6 20190720

A good interference fit with the axle, went in nicely with a hammer. Bolt fits snugly in there too.
Craftsman GT6K - Page 6 20190721


Just my observation- the front axle is a interesting casting. You can see flashing cut off on top of the axle over the kingpin, as well as at both ends outside the spindles. There's a line indicating a two piece mold(that wasn't very well aligned) all around. I imagine iron flowed in over the kingpin and excess flowed out into vents at each end of the mold. When iron appeared at the top of these vents, they stopped pouring. This may have all been automated though, I'm not sure. You can see a lot of engineering in a cast piece. A lot goes into good moldmaking. That's an entire profession of it's own, really. Whether you're making steel molds to form sand molds (moldception eh), or machining tiny molds for casting a dental implant.

Whoops, tangent. At least it's not a 3 page one.
Back to top Go down
RichieRichOverdrive
Core Member
Core Member
RichieRichOverdrive

2500+ Posts
2500+ Posts!
2018 Build-Off Entrant
2018 Build-Off Entrant

Age : 20
Join date : 2016-10-29
Posts : 2983
Location : Lewisburg, KY

Craftsman GT6K - Page 6 Empty
PostSubject: Re: Craftsman GT6K   Craftsman GT6K - Page 6 Icon_minitimeJuly 3rd 2019, 4:01 am

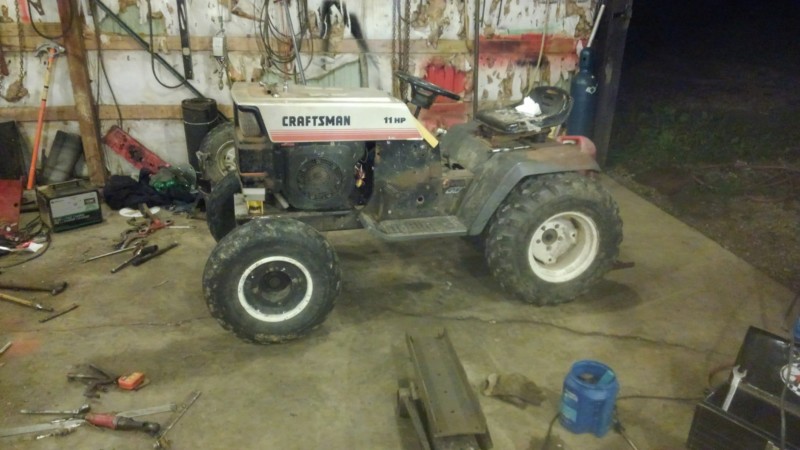

So how about it?

Craftsman GT6K - Page 6 20190722
Back to top Go down
MightyRaze
Administrator
Administrator
MightyRaze

7500+ Posts
7500+ Posts!
2017 Build-Off Finalist
2017 Build-Off Finalist
2018 Build-Off Top 3 Winner
2018 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2019 Build-Off Top 3 Winner
2021 Winner of Winners
2021 Winner of Winners
2022 Build-Off Entrant
2022 Build-Off Entrant

Age : 47
Join date : 2016-09-06
Posts : 8864
Location : Oklahoma

Craftsman GT6K - Page 6 Empty
PostSubject: Re: Craftsman GT6K   Craftsman GT6K - Page 6 Icon_minitimeJuly 3rd 2019, 7:54 am

I think it looks great Rich!  Great job on the fabrication of parts!

_______________________________________________
Tractors:
Dirty Rat - 77 Sears Suburban
Li'l Red Part1  Current - 98 Murray Widebody
Bowser - 2001 Murray Widebody LT

Have a question? Ask me! Type in "@MightyRaze" in your post!
"MTD: Made To Die, Many Troubles Daily..." - Taryl
Back to top Go down
The author of this message was banned from the forum - See the message
mr.modified
Core Member
Core Member
mr.modified

2014 Build-Off Top 3 Winner
2014 Build-Off Top 3 Winner
2015 Build-Off Top 3 Winner
2015 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2018 Build-Off Finalist
2018 Build-Off Finalist
2022 Build-Off Entrant
2022 Build-Off Entrant
2500+ Posts
2500+ Posts!

Age : 32
Join date : 2013-11-02
Posts : 2885
Location : New Jersey USA

Craftsman GT6K - Page 6 Empty
PostSubject: Re: Craftsman GT6K   Craftsman GT6K - Page 6 Icon_minitimeJuly 3rd 2019, 4:23 pm

Nice deal. A bit off topic, but what kind of lathe do you have?
Back to top Go down
RichieRichOverdrive
Core Member
Core Member
RichieRichOverdrive

2500+ Posts
2500+ Posts!
2018 Build-Off Entrant
2018 Build-Off Entrant

Age : 20
Join date : 2016-10-29
Posts : 2983
Location : Lewisburg, KY

Craftsman GT6K - Page 6 Empty
PostSubject: Re: Craftsman GT6K   Craftsman GT6K - Page 6 Icon_minitimeJuly 3rd 2019, 4:33 pm

1927 South Bend 9" swing x 3-½' bed. I absolutely love it.
Back to top Go down
RichieRichOverdrive
Core Member
Core Member
RichieRichOverdrive

2500+ Posts
2500+ Posts!
2018 Build-Off Entrant
2018 Build-Off Entrant

Age : 20
Join date : 2016-10-29
Posts : 2983
Location : Lewisburg, KY

Craftsman GT6K - Page 6 Empty
PostSubject: Re: Craftsman GT6K   Craftsman GT6K - Page 6 Icon_minitimeJuly 3rd 2019, 11:41 pm

Replaced the steering sector gear with one I pulled out of my friends mower(i did up another steering system like i did with this one and swapped it in his). This is actually a hardened gear, crazy it wore that much. I figured out it was hardened when i went to drill the drag link hole out to ½". Dang thing chipped my 7/16” bit.
Craftsman GT6K - Page 6 20190724

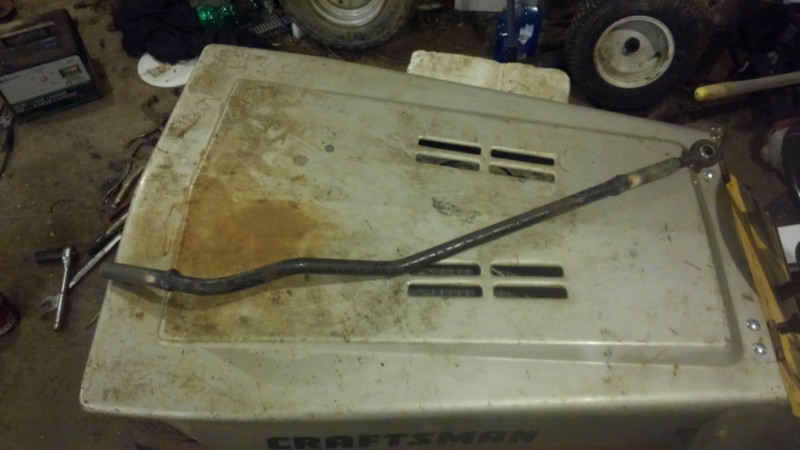

Cut up the last of the linkage arms i found with my ½" heims to make a drag link. I hate stick welding small stuff like this.
Craftsman GT6K - Page 6 20190725

Drilled a ½" hole in a ⅝" Murray steering shaft and parted it off in ¼" sections to work as spacers for the heims. Modelled after the ones mutt has.
Craftsman GT6K - Page 6 20190726

Just gotta deburr the spacers and put it together now. HSS parting tools are really finicky but I made them work. At least I'm not replacing an expensive insert if i break this, just grind a new end on it.
Back to top Go down
Murraymountain
Core Member
Core Member
Murraymountain

1000+ Posts
1000+ Posts!
2019 Build-Off Finalist
2019 Build-Off Finalist
2020 Build-Off Entrant
2020 Build-Off Entrant
2022 Build-Off Entrant
2022 Build-Off Entrant

Join date : 2019-02-04
Posts : 2026
Location : North Carolina

Craftsman GT6K - Page 6 Empty
PostSubject: Re: Craftsman GT6K   Craftsman GT6K - Page 6 Icon_minitimeJuly 4th 2019, 9:41 am

Wow! That thing did wear out.

Nice idea with the homemade spacers! I have too many questions about the shaft and machinery you're using to flood your topic with so I'll keep quite lol!
Back to top Go down
RichieRichOverdrive
Core Member
Core Member
RichieRichOverdrive

2500+ Posts
2500+ Posts!
2018 Build-Off Entrant
2018 Build-Off Entrant

Age : 20
Join date : 2016-10-29
Posts : 2983
Location : Lewisburg, KY

Craftsman GT6K - Page 6 Empty
PostSubject: Re: Craftsman GT6K   Craftsman GT6K - Page 6 Icon_minitimeJuly 4th 2019, 3:17 pm

Lol feel free to ask if you want. I'm really only one or two machines short of being a machine shop. I'll get a milling machine someday.

Put the drag link on yesterday. It works. The steering crossmember could use some reinforcement as it will twist some when i turn the wheel. Not a hard fix.
Back to top Go down
mr.modified
Core Member
Core Member
mr.modified

2014 Build-Off Top 3 Winner
2014 Build-Off Top 3 Winner
2015 Build-Off Top 3 Winner
2015 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2016 Build-Off Top 3 Winner
2018 Build-Off Finalist
2018 Build-Off Finalist
2022 Build-Off Entrant
2022 Build-Off Entrant
2500+ Posts
2500+ Posts!

Age : 32
Join date : 2013-11-02
Posts : 2885
Location : New Jersey USA

Craftsman GT6K - Page 6 Empty
PostSubject: Re: Craftsman GT6K   Craftsman GT6K - Page 6 Icon_minitimeJuly 4th 2019, 11:53 pm

I sold a smaller south bend lathe not too long ago. They look to be nice rugged machines. Good for stuff like that making up custom spacers ect. I got one of those tiny chinese ones to play with. Not great for big stuff but smaller things it works ok. Just gotta be easy on it.
Back to top Go down
RichieRichOverdrive
Core Member
Core Member
RichieRichOverdrive

2500+ Posts
2500+ Posts!
2018 Build-Off Entrant
2018 Build-Off Entrant

Age : 20
Join date : 2016-10-29
Posts : 2983
Location : Lewisburg, KY

Craftsman GT6K - Page 6 Empty
PostSubject: Re: Craftsman GT6K   Craftsman GT6K - Page 6 Icon_minitimeJuly 9th 2019, 2:42 am

Carb kit got here yesterday, put the O rings for it in and I'm working on finishing the exhaust now.
Craftsman GT6K - Page 6 20190732
Back to top Go down
RichieRichOverdrive
Core Member
Core Member
RichieRichOverdrive

2500+ Posts
2500+ Posts!
2018 Build-Off Entrant
2018 Build-Off Entrant

Age : 20
Join date : 2016-10-29
Posts : 2983
Location : Lewisburg, KY

Craftsman GT6K - Page 6 Empty
PostSubject: Re: Craftsman GT6K   Craftsman GT6K - Page 6 Icon_minitimeJuly 9th 2019, 1:20 pm

Here's the finished exhaust for now. Dunno what it sounds like yet lol.
Craftsman GT6K - Page 6 20190737
Back to top Go down
Murraymountain
Core Member
Core Member
Murraymountain

1000+ Posts
1000+ Posts!
2019 Build-Off Finalist
2019 Build-Off Finalist
2020 Build-Off Entrant
2020 Build-Off Entrant
2022 Build-Off Entrant
2022 Build-Off Entrant

Join date : 2019-02-04
Posts : 2026
Location : North Carolina

Craftsman GT6K - Page 6 Empty
PostSubject: Re: Craftsman GT6K   Craftsman GT6K - Page 6 Icon_minitimeJuly 9th 2019, 1:21 pm

Oh yeah that looks great!
Back to top Go down
RichieRichOverdrive
Core Member
Core Member
RichieRichOverdrive

2500+ Posts
2500+ Posts!
2018 Build-Off Entrant
2018 Build-Off Entrant

Age : 20
Join date : 2016-10-29
Posts : 2983
Location : Lewisburg, KY

Craftsman GT6K - Page 6 Empty
PostSubject: Re: Craftsman GT6K   Craftsman GT6K - Page 6 Icon_minitimeJuly 9th 2019, 3:14 pm

This thing won't run worth a damn. It's surging now. At least it's not so fat.
Back to top Go down
Sponsored content





Craftsman GT6K - Page 6 Empty
PostSubject: Re: Craftsman GT6K   Craftsman GT6K - Page 6 Icon_minitime

Back to top Go down

Craftsman GT6K
Back to top
Page 6 of 8Go to page : Previous  1, 2, 3, 4, 5, 6, 7, 8  Next
 Similar topics
-
» Craftsman GT6000 "GT6k"
» 1989 Craftsman GT6000/ craftsman II
» My new $50 Craftsman
» Craftsman BQ 700 XL
» My Craftsman II

Permissions in this forum:You cannot reply to topics in this forum
All-Terrain Lawn Tractor Forum :: Tractor Project Builds :: Off Road & Rally Tractors-
Jump to:
